Ranger Pro - Camera IMOU - Free user manual and instructions

Product Type	Wi-Fi Surveillance Camera
Brand	Imou
Model	Ranger Pro
Power Supply	DC 5 V / 2 A Power Adapter
Connectivity	Wi-Fi 2.4 GHz
Mobile App	Imou Life (iOS, Android, Windows)
LED Indicator	Red (solid or flashing) / Green (solid or flashing)
Main Features	Human detection, two-way audio, night vision, recording, alerts
Resolution	HD (estimated)
Viewing Angle	Wide angle (estimated)
Memory	Cloud storage or microSD card (not included)
Mounting	Ceiling or wall, mounting kit included
Dimensions (approx.)	Approximately 10 x 10 x 10 cm
Weight (approx.)	Approximately 300 g
Package Contents	Camera, power adapter, power cable, mounting plate, screw kit, quick start guide
Care and Cleaning	Clean the lens with a soft, dry cloth. Avoid chemicals.
Security	Reset via button (10 s). Secure Wi-Fi pairing.
Spare Parts and Repairability	Power adapter and USB cable replaceable. Contact support for parts.
Compatibility	Wi-Fi 2.4 GHz router. Smartphone with Imou Life app.
Warranty	Check manufacturer's website.

Frequently Asked Questions - Ranger Pro IMOU

How to install my Imou Ranger Pro camera?

Download the Imou Life app, create an account, plug in the camera, wait for the LED to flash green, then follow the in-app instructions to pair the camera with your 2.4 GHz Wi-Fi network.

What if the LED indicator does not flash green?

Make sure the camera is properly powered via the included adapter. If the LED stays red or is off, perform a reset by holding the reset button for 10 seconds.

Why does the app say 'Network configuration failed'?

Check that your router is broadcasting on the 2.4 GHz band (some dual-band routers need to be set to 2.4 GHz). Reset the camera and try again.

How to reset my camera to factory settings?

Press and hold the reset/pairing button for about 10 seconds. The LED will turn off then flash green, indicating the camera is reset.

I have no image / no video signal, what to do?

Make sure the LED is solid green (normal operation). Ensure the camera is properly powered and the Wi-Fi signal is strong. Remove obstacles between the camera and the router.

How to improve image quality?

Clean the lens with a soft cloth. Remove any protective film. Avoid direct light sources. Check the resolution in the app settings.

Why is there no sound?

Check that the audio function is enabled in the app. Increase the volume on your viewing device. Make sure the camera's microphone is not blocked.

Human detection is not working, how to enable it?

Open the Imou Life app, go to device settings and enable the Human Detection option. Make sure the camera is properly positioned.

The camera is upside down (image inverted), how to fix?

In the device settings on the Imou Life app, disable the Shielding (or flip) option to invert the image.

My phone does not read the QR code during pairing, what to do?

Clean your smartphone's lens. Make sure the QR code is clear and well-lit. Do not hold the phone too close to the camera. Try repositioning the QR code.

USER MANUAL Ranger Pro IMOU

Thank you for choosing IMOU.

We are devoted to providing you easy smart home products. If you have problems using the product, please contact our service team before returning your product.

Our service mail: [e-mail]

Frequently asked questions can be found at imoulife.com/support/help

Package content

EN

Camera × 1

Power Cable × 1

Power Adapter X1

Positioning Map × 1

Quick Start Guide × 1

Screw Package × 1

Mounting Plate × 1

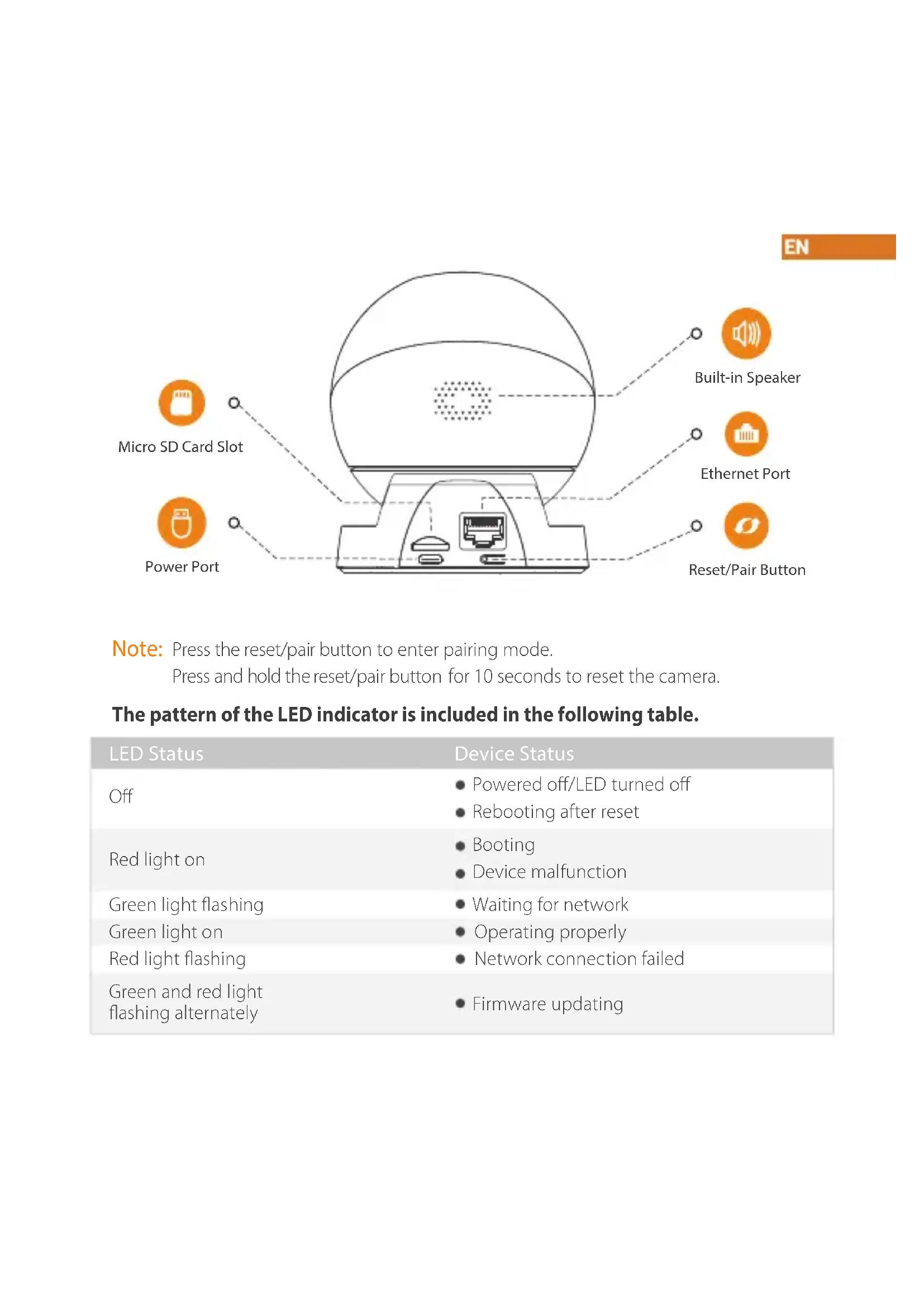

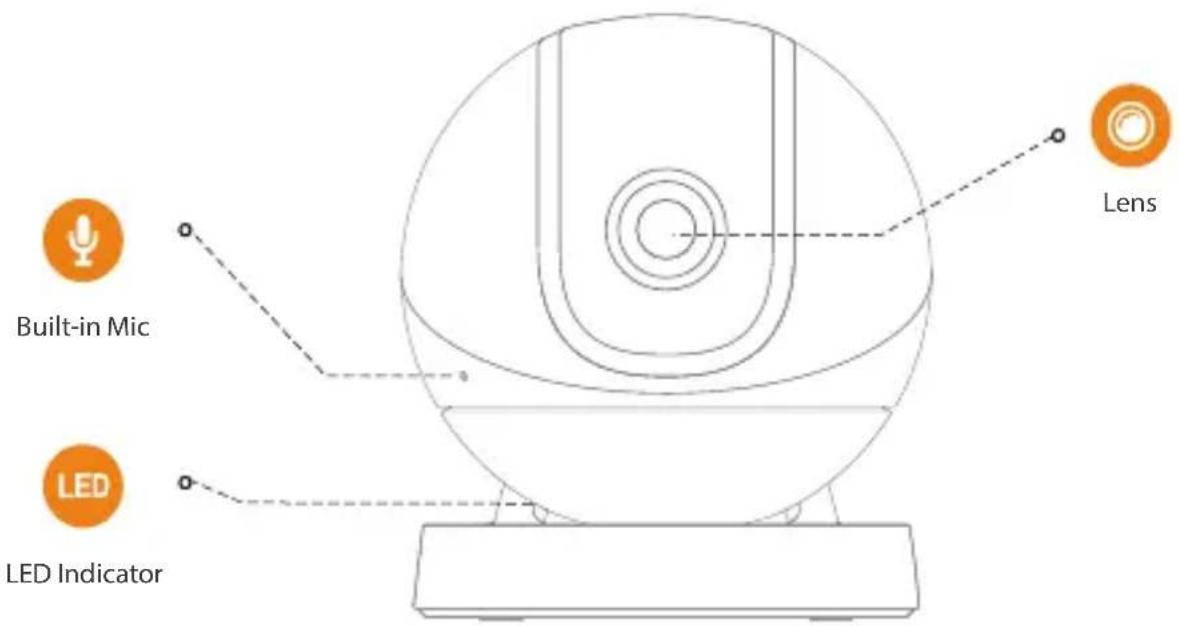

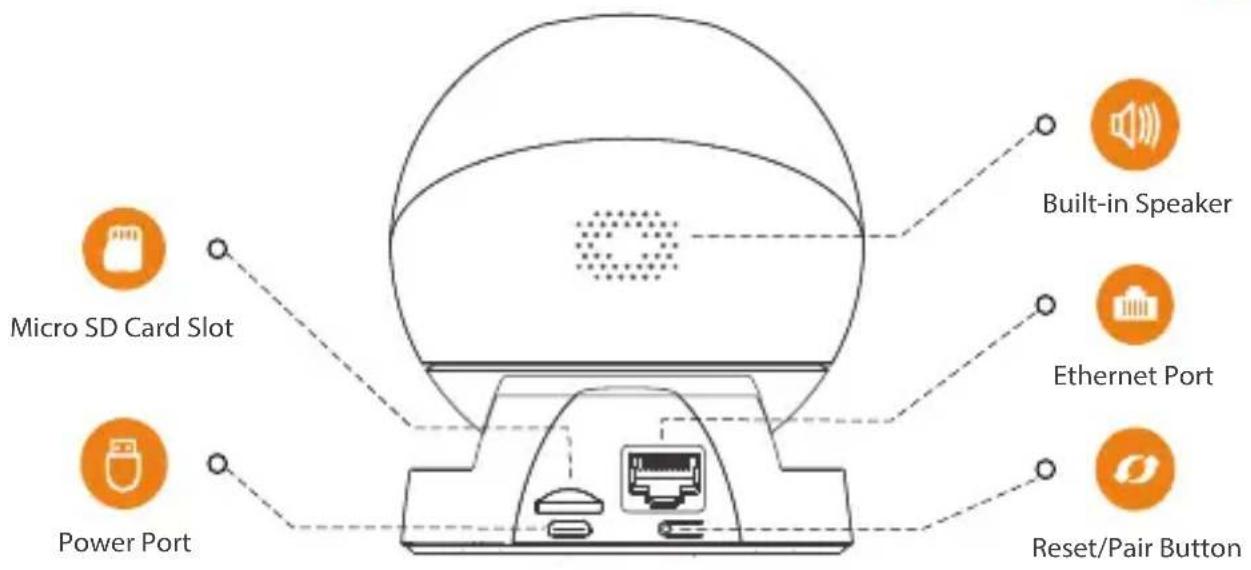

Camera introduction

Note: Press the reset/pair button to enter pairing mode.

Press and hold the reset/pair button for 10 seconds to reset the camera.

The pattern of the LED indicator is included in the following table.

LED Status	Device Status
Off	• Powered off/LED turned off • Rebooting after reset
Red light on	• Booting • Device malfunction
Green light flashing	• Waiting for network
Green light on	• Operating properly
Red light flashing	• Network connection failed
Green and red light flashing alternately	• Firmware updating

EN

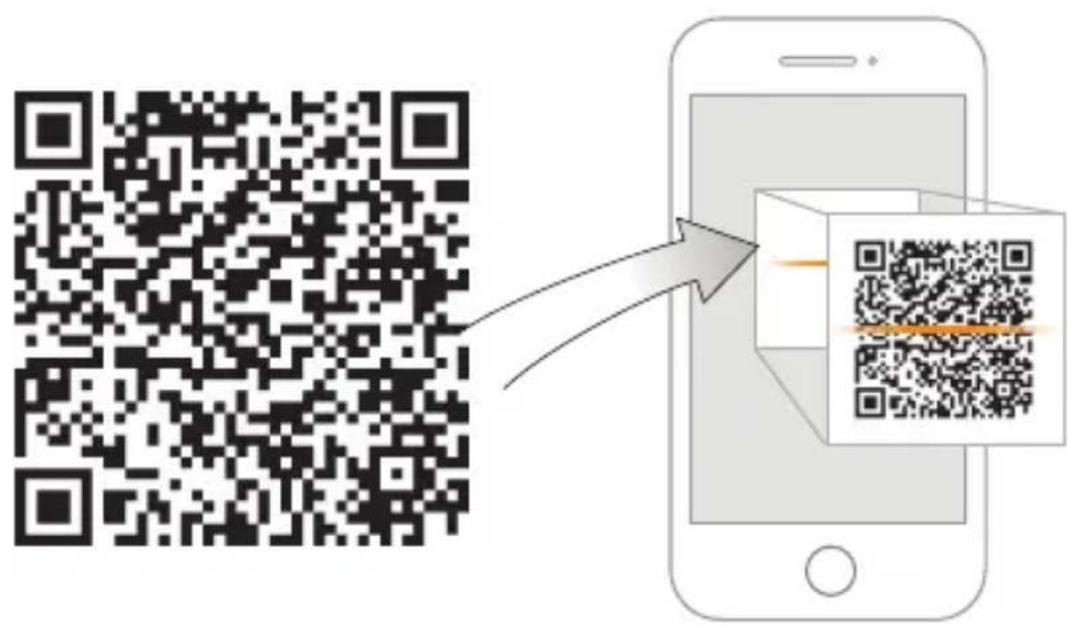

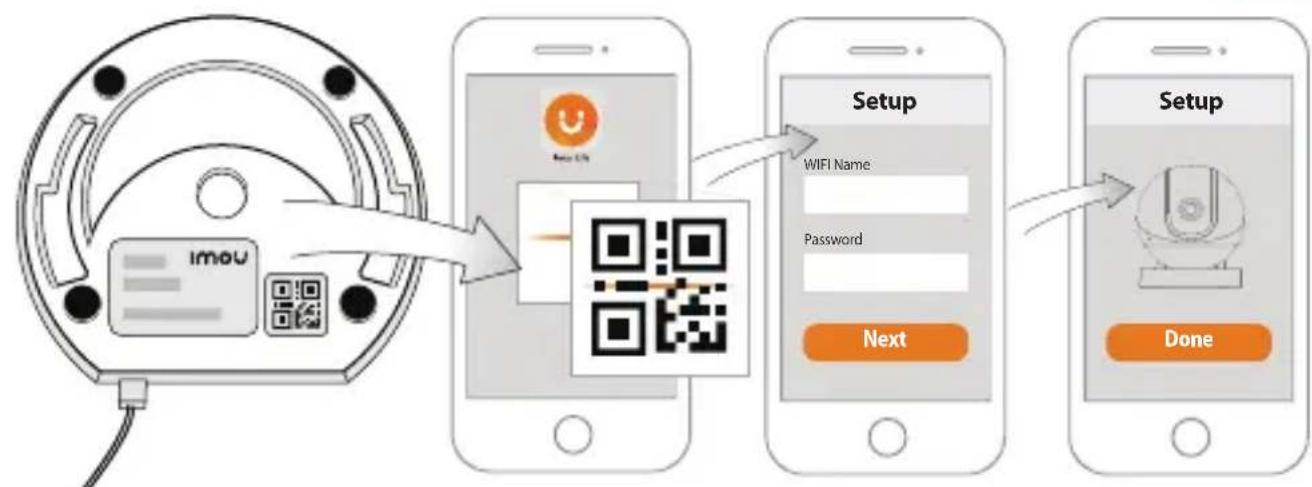

Imou Life

Download on the

App Store

GET IT ON

Google play

Windows

Tips

To ensure the best possible wireless performance, please make sure there are no obstacles and electromagnetic interference between the camera and router.

EN

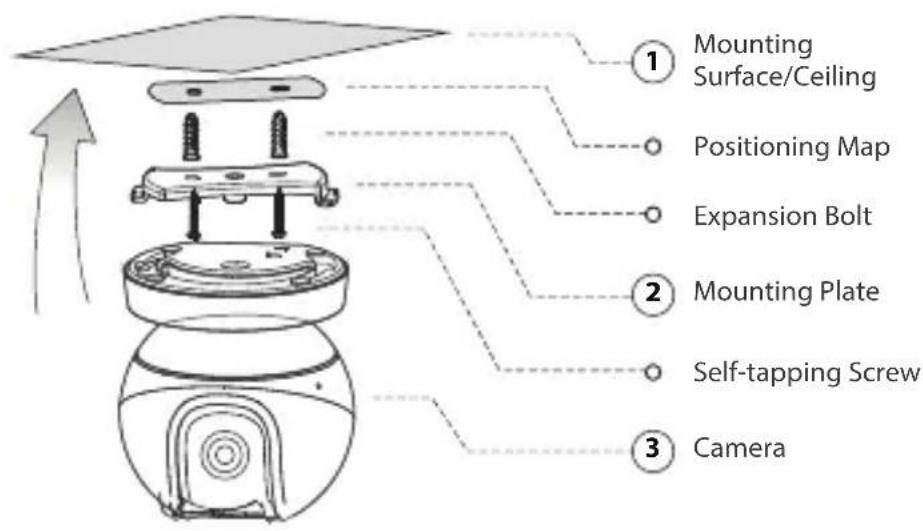

Ceiling Mounting (Optional)

DC 5V2A

Troubleshooting

EN

Problem Solution
Cannot set up camera	·Ensure your mobile device and the camera are within range of your Wi-Fi router. ·Ensure the LED indicator on the camera is flashing green before beginning setup.
The APP says "Failed to configure device network"	·Reset your Camera and connect it again. ·Some cameras only support 2.4GHz, while some routers have dual band, 2.4G/5G. Make sure you are connecting 2.4GHz only.
The app says "Failed to bind"	The camera is already connected to Wi-Fi, but the router is: ·Not connected to Interne ·Poor network status ·The Wi-Fi signal is not stable due to obstacles or electronic interference
No picture / signal	·Ensure the LED indicator on the camera is flashing steady green. See 'LED Status' section for details if otherwise. ·Ensure the camera is properly connected to power using the included USB power adapter. ·Try repositioning the camera, router, or both to improve signal strength.
Picture is not clear	·Check the camera lens for dirt, dust, spider webs. Clean the lens with a soft, clean cloth. ·Remove the vinyl cover on the camera lens.
No audio	·Ensure audio function on camera is turned on. ·Ensure audio is turned up on viewing device.
Human detection not working	·Ensure you have enabled "Human Detection" in the Device Settings screen of the Imou LifeApp.
Camera stuck downwards	·Turn off Camera Shielding in Device Settings on the Imou Life app.
Phone is not reading QR code	·Clean the camera lens of your Smartphone ·Ensure that there is enough light on the QR code ·Don't hold the QR code too close to the camera
