Product Type	Security Camera
Brand	Imou
Model	Rex 2D
Resolution	5MP (2688x1664) / 3K
Lens Type	3.6mm Fixed Lens
Field of View	79° H, 44° V, 94° D
Pan & Tilt	355° Pan, 90° Tilt
Night Vision Distance	Up to 10m (33ft)
Video Compression	H.265/H.264
Frame Rate	Up to 25/30 fps
Audio	Two-way talk with built-in mic & speaker
Human Detection	Yes
Smart Tracking	Yes
Privacy Mode	Yes (lens hides)
Active Deterrence	Yes (built-in siren)
Storage Options	Micro SD (max 256GB), NVR, Cloud
Connectivity	Wi-Fi 2.4GHz b/g/n, Ethernet 100Mbps
App Support	Imou App (iOS/Android), Onvif
Power Supply	DC 5V 1A, consumption <3.5W
Dimensions & Weight	90x90x104mm (3.5x3.5x4.1in), 206g (0.45lb)
Operating Temperature	-10°C to 45°C
Maintenance	Clean lens with soft dry cloth
Safety Features	Privacy mode, siren, do not disassemble
Spare Parts & Repairs	Available through Imou support

Frequently Asked Questions - Rex 2D IMOU

How do I reset the camera to factory defaults?

Press and hold the Reset button for about 10 seconds until the LED blinks.

What type of Micro SD card does the camera support?

It supports Micro SD cards up to 256GB capacity.

Can I use the camera outdoors?

No, the Rex 2D is designed for indoor use only.

How do I enable privacy mode?

In the Imou app, go to settings and toggle Privacy Mode which hides the lens.

Does the camera support 5GHz Wi-Fi?

No, it supports only 2.4GHz Wi-Fi (802.11b/g/n).

What is the field of view?

The lens provides a 94° diagonal, 79° horizontal, and 44° vertical field of view.

How can I store video recordings?

You can store videos on a Micro SD card (up to 256GB), via Cloud subscription, or to an NVR.

Is the camera compatible with Alexa or Google Assistant?

It works with the Imou app and supports Onvif integration; check the app for third-party compatibility.

What should I do if the camera is not connecting to Wi-Fi?

Ensure the camera is near the router, use 2.4 GHz band, and try resetting the camera. Also check the Imou app for setup instructions.

How do I clean the camera lens?

Use a soft, dry cloth to gently wipe the lens. Avoid water or harsh chemicals.

USER MANUAL Rex 2D IMOU

Black spherical digital camera with a green sensor, mounted on a black base (no text or symbols visible)

imou

Rex 2D 5MP

5MP H.265 Wi-Fi Pan & Tilt Camera

With 5MP/3K live monitoring and panoramic pan & tilt feature, Rex 2D ensures every corner of your home completely covered. Human Detection quickly finds human targets in the images and sends a notification to you. With built-in siren, Rex 2D actively keeps unwelcome visitors away from what you care about. Privacy Mode helps protect your personal privacy when you are home, and Smart Tracking function lets the camera follows moving objects when it detects motion.

H.265 5MP/3K

Sees more than 1080P

Human Detection

Quickly finds human targets in your home

Smart Tracking

Automatically tracks moving objects

Privacy Mode

Hides the lens to protect your personal privacy

Active Deterrence

Scare away unwelcome visitors with built-in siren

Two-way Talk

Real-time communicates with people at the camera

24/7 Protection

Infrared night vision for clear-as-day clarity even in pitch dark

Abnormal Sound Alarm

Sends alerts to your smartphone when it detects abnormal sound

Auto-cruise

Survey the area 360^ horizontally or cruise between favorite points

Diversified Storage

Supports NVR, Cloud Storage or Micro SD card (up to 256GB)

Alarm Notification

Sends instant motion-activated alerts to your mobile phone

Wi-Fi Connection

IEEE802.11b/g/n(2.4GHz)

Stay close with what you care

With Cloud service, you will have access to what you care as long as Internet is available. You can record daily or motion videos on Cloud and play back anytime anywhere.

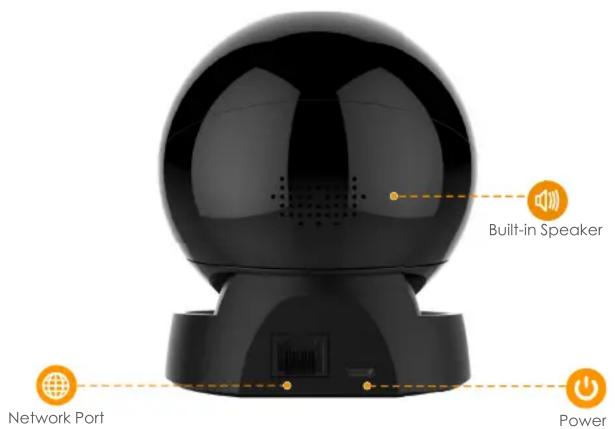

Front View Back View

Specifications

Camera

1/3" Progressive CMOS

5MP(2688 x 1664)

Night Vision: 10m(33ft) Distance

3.6mm Fixed Lens

Field of View : 79^ (H), 44^ (V), 94^ (D)

0\~355° Pan & 0\~90° Tilt

Video & Audio

Video Compression : H.265/H.264

Up to 25/30fps Frame Rate

Digital Zoom

Two-way Audio

Notice Management

Motion Detection

Human Detection

Configurable Region

Abnormal Sound Alarm

Network

1 x 100Mbps Ethernet Port

Wi-Fi:IEEE802.11b/g/n, 50m Open Field

Imou App: iOS, Android

Onvif

Auxiliary Interface

Micro SD Card Slot (up to 256GB)

Built-in Mic & Speaker

Reset Button

General

DC 5V1A Power Supply

Power Consumption:<3.5W

Working Environment:-10° C\~+45° C, Less Than 95%RH

Dimensions: 90 × 90 × 104mm ( 3.5 × 3.5 × 4.1inch )

Weight: 206g (0.45lb)

CE

What's in the box

• 1x Camera
• 1x Quick Start Guide
• 1x Power Adapter

• 1x USB Cable

• 1x Screw Package

• 1x Quick Installation Board
• 1x Installation Position Map
