USER MANUAL IAN 304090 Playtive

www.lidl-service.com PDF online

4-IN-1 TRI-SCOOTER

DE AT CH

4-IN-1 TRI-SCOOTER

Gebrauchsanweisung

IT CH

MONOPATTINO A TRE RUOTE 4 IN 1

Istruzioni d'uso

FR CH

TROTTINETTE 4 EN 1

Instructions for use

CE

IAN 304090

A 1 2 3 4 5 6 7 8 9 0

B 2/3 2a/3a 2a/3a 1

C 3a 3 4 6 7 7 6 1 9 5 5 5 8

Cleaning and storage 21

Information on disposal 21

Notes on the guarantee and service handling 21 - 22

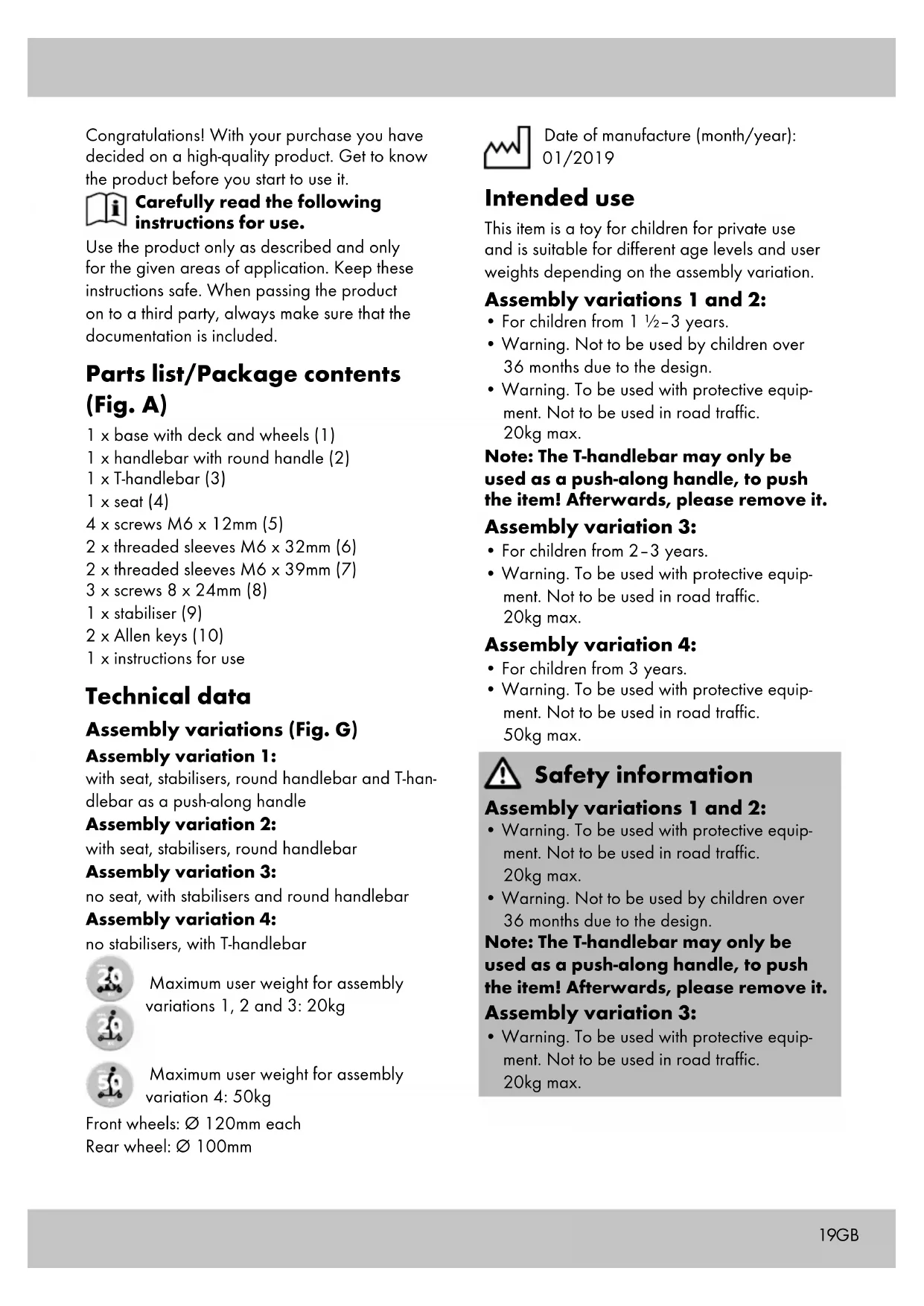

Congratulations! With your purchase you have decided on a high-quality product. Get to know the product before you start to use it.

Carefully read the following instructions for use.

Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

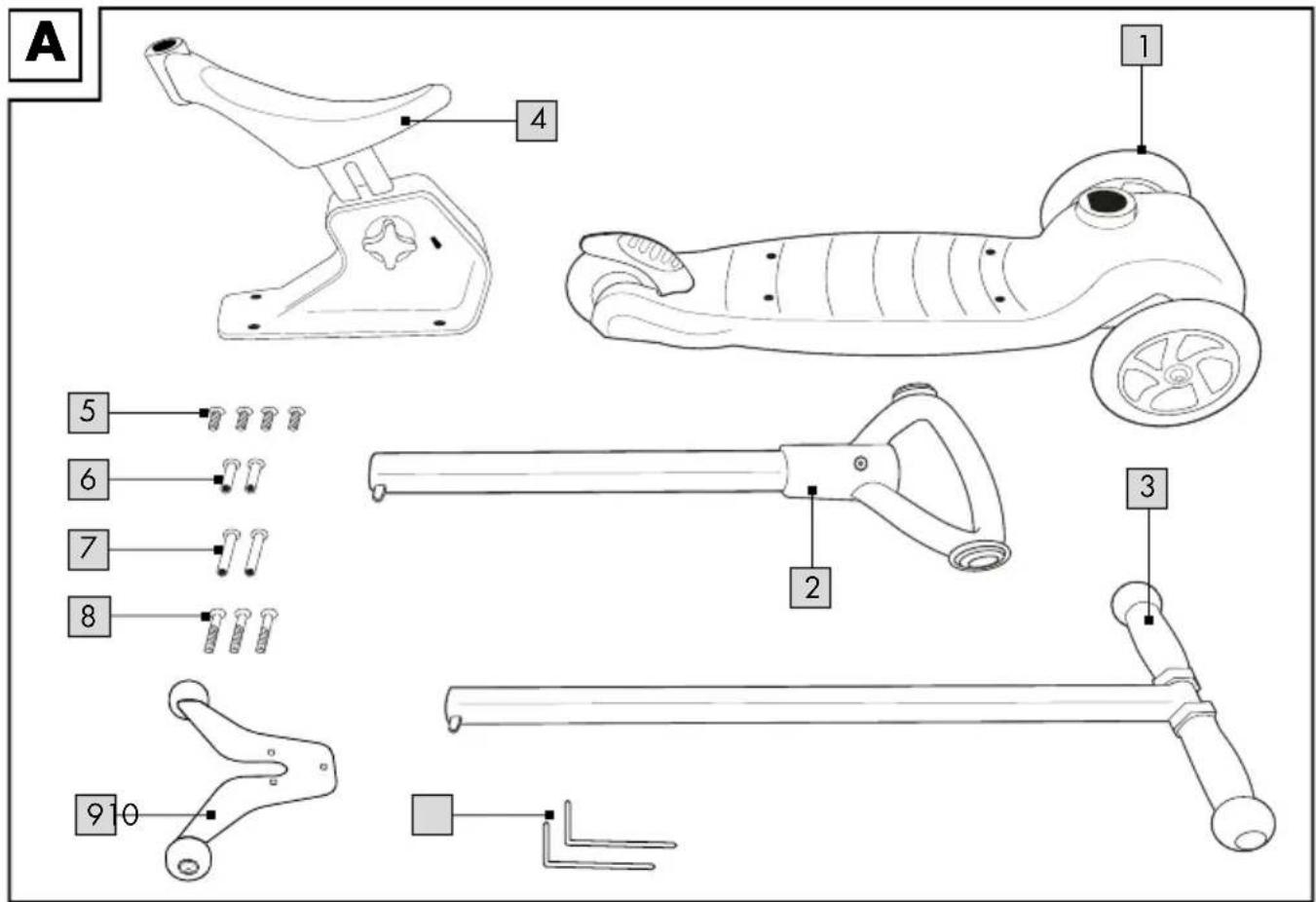

Parts list/Package contents (Fig. A)

1 x base with deck and wheels (1)
1 x handlebar with round handle (2)
1 x T-handlebar (3)
1 x seat (4)
4 x screws M6 x 12mm (5)
2 x threaded sleeves M6 x 32mm (6)
2 x threaded sleeves M6 x 39mm (7)
3 x screws 8 x 24mm (8)
1 x stabiliser (9)
2 x Allen keys (10)
1 x instructions for use

Technical data

Assembly variations (Fig. G)

Assembly variation 1:

with seat, stabilisers, round handlebar and T-handlebar as a push-along handle

Assembly variation 2:

with seat, stabilisers, round handlebar

Assembly variation 3:

no seat, with stabilisers and round handlebar

Assembly variation 4:

no stabilisers, with T-handlebar

Maximum user weight for assembly variations 1, 2 and 3: 20kg

Maximum user weight for assembly variation 4: 50kg

Front wheels: ∅ 120mm each

Rear wheel: ∅ 100mm

Date of manufacture (month/year): 01/2019

Intended use

This item is a toy for children for private use and is suitable for different age levels and user weights depending on the assembly variation.

Assembly variations 1 and 2:

• For children from 1 12 - 3 years.
• Warning. Not to be used by children over 36 months due to the design.
• Warning. To be used with protective equipment. Not to be used in road traffic. 20kg max.

Note: The T-handlebar may only be used as a push-along handle, to push the item! Afterwards, please remove it.

Assembly variation 3:

• For children from 2–3 years.
• Warning. To be used with protective equipment. Not to be used in road traffic. 20kg max.

Assembly variation 4:

• For children from 3 years.
- Warning. To be used with protective equipment. Not to be used in road traffic. 50kg max.

Safety information

Assembly variations 1 and 2:

• Warning. To be used with protective equipment. Not to be used in road traffic. 20kg max.
• Warning. Not to be used by children over 36 months due to the design.

Note: The T-handlebar may only be used as a push-along handle, to push the item! Afterwards, please remove it.

Assembly variation 3:

- Warning. To be used with protective equipment. Not to be used in road traffic. 20kg max.

Assembly variation 4:

- Warning. To be used with protective equipment. Not to be used in road traffic. 50kg max.

Assembly variations 1, 2, 3 and 4: WARNING!

• None of the packaging materials and fittings are part of the toy itself, and must be removed for safety reasons before giving the item to children to play with.
  • Children may only play with the item under supervision.

Risk of injury!

• Adult assembly only due to small parts!
• The item may only be used by one person at a time.
• Check the item for damage or wear before each use. Always check that all fasteners are tight. The item should only be used if it is in perfect condition!
• Make sure that the screws and threaded screws retain their self-locking properties.
• Do not modify the item in a way that might endanger your safety.
• Always wear suitable protection (helmet, hand protectors, elbow pads, knee pads and wrist guards) and shoes!
  • Always show consideration for other people!
• Use the item only on suitable surfaces that are smooth, clean and dry. Keep away from other traffic users, if possible.
  Avoid sloping terrain, stairs and open water.
• Never ride in the dark or when visibility is poor.
• Do not let your child use the item unsupervised, as children cannot assess potential dangers.
• Using the item requires skill to prevent falls or collisions, which could result in injury to the user or others.

Preventing damage to the item!

- Avoid water, oil, potholes and very rough surfaces.

Assembly

Assembling the handlebar (Fig. B)

You will need the base (1) and, for the assembly variations 1, 2 and 3, the round handlebar (2) and the T-handlebar (3) for assembly variation 4.

Press the pin (2a, 3a) and insert the handlebar into the base.

Important: Make sure that the handlebar locks into place in the base.

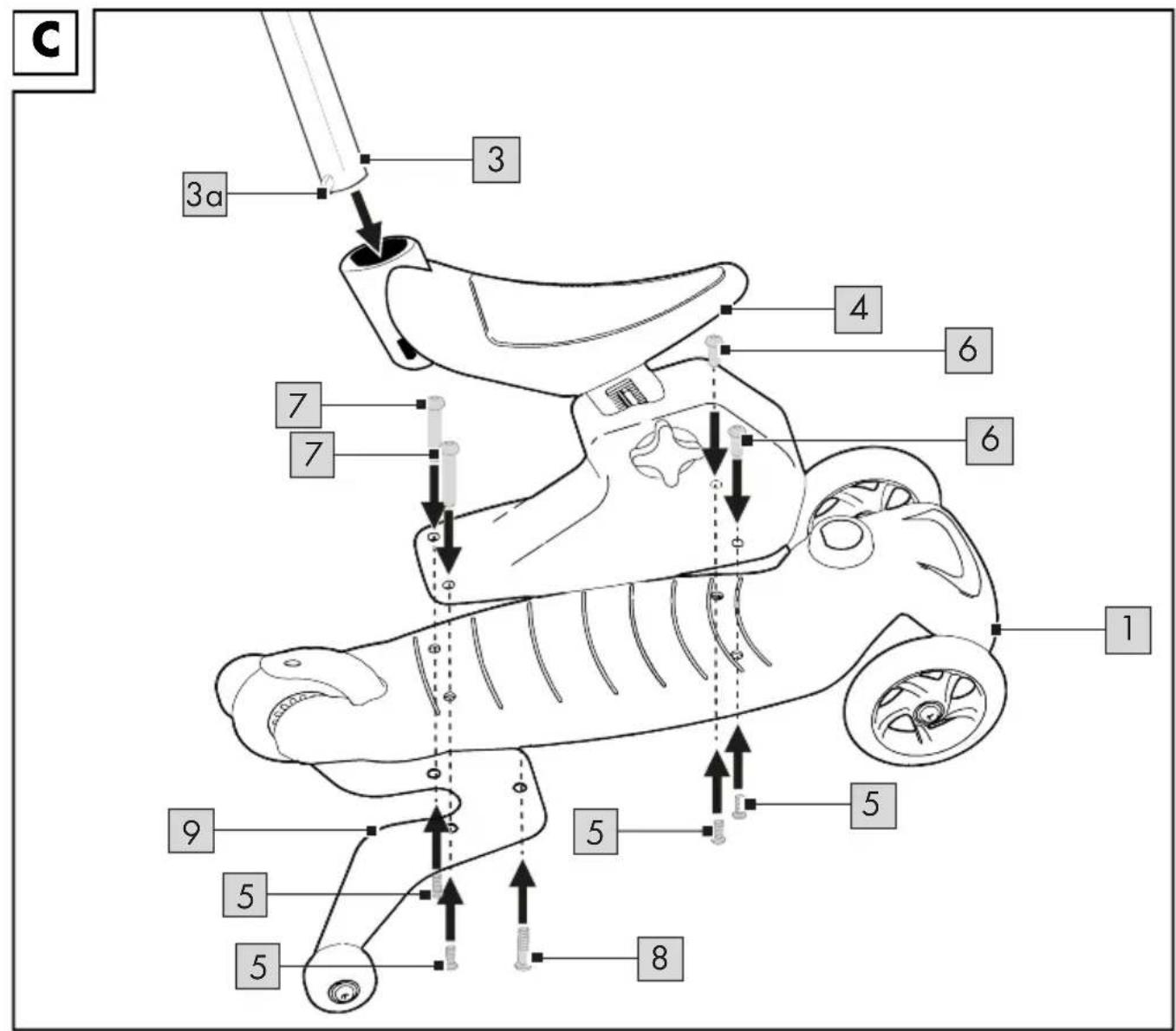

Assembly variations 1 and 2 (Fig. C)

Place the seat (4) on the base (1). Make sure that the holes on the seat and the base are lying on top of each other.

Insert the short sleeves (6) from above through the two front holes and secure them from below with two screws (5).

Insert the long sleeves (7) from above through the two rear holes on the seat and the rear holes on the stabiliser (9).

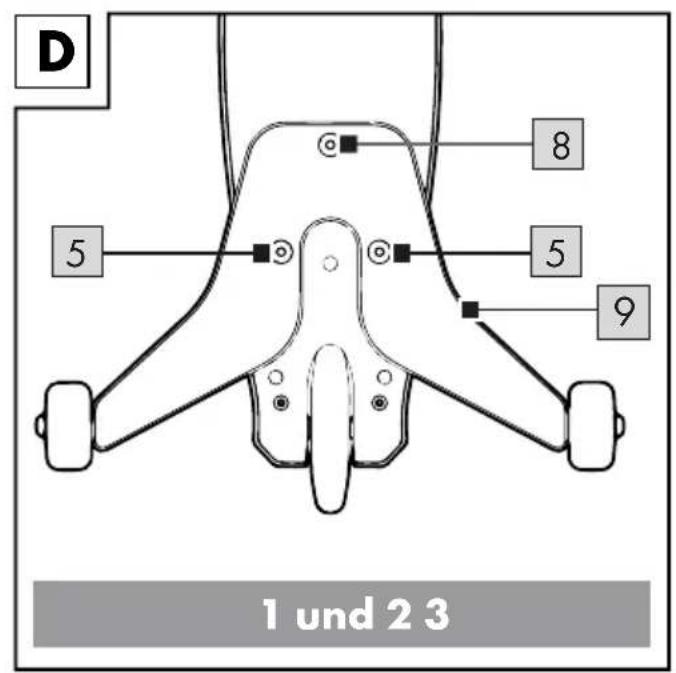

Secure them from below with two screws (5). Put a screw (8) into the front hole of the stabiliser and tighten it (Fig. D).

Use the Allen key (10) provided for the assembly and lock all screws and threads.

Note: The T-handlebar can be used as a push-along handle for assembly variation 1.

Press the pin (3a) on the T-handlebar (3) inwards and insert the T-handlebar (3) into the opening on the seat (4). The pin (3a) must audibly click into place.

Assembly variation 3 (Fig. E)

Secure the stabilisers (9) in the rear three holes with the screws (8) and tighten the screws with one of the Allen keys (10) provided.

Adjusting the height of the seat (Fig. F)

The seat can be adjusted to various heights from approx. 26-32cm.

To do this, loosen the locking screw (4a) and adjust the seat to the desired height.

Tighten the locking screw again.

Disassembly

Disassembling the handlebars

Press the pin (2a, 3a) on the back of the base and pull out the handlebar (Fig. B). To remove the handlebar from the seat, press the pin (3a) and pull the handlebar out.

Disassembling the seat (Fig. C)

Loosen the screws and remove the threaded sleeves. Take off the seat.

Use

Riding

Depending on the assembly variation, either sit on the seat and give momentum by regularly pushing off with both legs, or, if using without the seat, put one leg on the deck and give momentum by regularly pushing off with the other leg. The item is steered by shifting your weight.

Braking

For the assembly variation with a seat, apply the brakes by setting both feet on the ground. When using without the seat, you can brake by pressing one foot on the rear wheel friction brake.

Maintenance

Replacing the front wheels

You can replace the front wheels.

Important!

Pay attention to the technical specifications. Wheels with a different diameter, may alter the riding properties and possibly endanger the user.

Do not use wheels that cannot be installed properly.

Never use wheels that are larger than the original wheels on the item.

Wheels wear out. This wear depends on many factors, such as, for example, the terrain, the size and weight of the user, the weather conditions, the material of the wheels and their hardness, etc. Therefore, it is necessary to replace them now and then.

1. Using a suitable Allen key, loosen the screws of the two front wheels and remove them.
2. Install the new wheels and secure them with the screws.

After replacing the wheels: After the first few minutes of riding, make sure that the screws are still tight and that nothing has detached or become loose.

Tension the wheel once more to make sure that it is running quietly.

Cleaning and storage

We recommend that you clean and dry the item thoroughly after use.

Remove small stones or other objects that may have got caught on the wheels. Always store the item in a dry place.

Information on disposal

Dispose of the item and its packaging materials in accordance with current local regulations.

Packaging materials like e.g. foil bags must be kept away from children.

Store the packaging materials out of reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol

• which is meant to represent the recycling cycle
• and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 304090
