PDTS 6.3 B3 - Pneumatic grinder PARKSIDE - Free user manual and instructions
Find the device manual for free PDTS 6.3 B3 PARKSIDE in PDF.
| Product type | Pneumatic grinder (straight grinder) |
| Brand | Parkside |
| Model | PDTS 6.3 B3 |
| Maximum air pressure | 6.3 bar |
| Air consumption | 198 l/min |
| Maximum no-load speed | 22,500 min⁻¹ |
| Compatible shank diameter | 6.35 mm (1/4") and 3.2 mm (1/8") |
| Sound pressure level | Lₚₐ = 88.2 dB(A) |
| Sound power level | L_WA = 99.2 dB(A) |
| Total vibration value | a = 3.34 m/s² |
| Power supply | Compressed air |
| Intended use | Precision sanding, polishing, buffing |
| Lubrication | Special compressed air oil, every 15 minutes or via oil mist |
| Cleaning | Soft, dry cloth or compressed air; no aggressive cleaning agents |
| Scope of delivery | Grinder, 2 collets (1/4" and 1/8"), 10 grinding bits, 2 mounting tools, carrying case, instruction manual |
| Safety | Mandatory PPE: eye, hearing, respiratory protection; gloves |
| Warranty | 3 years |
Frequently Asked Questions - PDTS 6.3 B3 PARKSIDE
User questions about PDTS 6.3 B3 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Pneumatic grinder in PDF format for free! Find your manual PDTS 6.3 B3 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PDTS 6.3 B3 by PARKSIDE.
USER MANUAL PDTS 6.3 B3 PARKSIDE
DRUCKLUFT-STABSCHLEIFER-SET / AIR DIE GRINDER SET MEULEUSE DROITE PNEUMATIQUE ET ACCESSOIRES PDSS 16 A1
DE AT CH
DRUCKLUFT-STABSCHLEIFER-SET
Translation of the original instructions
NL BE
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE
GB/IE Translation of the original instructions Page 29
DRUCKLUFT-STABSCHLEIFER-SET PDSS 16 A1
Einleitung
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND
www.kompernass.com
General safety instructions for compressed air tools 35
Hazards caused by flying parts 36
Hazards caused by entanglement 37
Hazards during operation 37
Hazards caused by repetitive movements 38
Hazards caused by accessories 39
Hazards in the workplace 40
Hazards caused by dust and vapours 41
Hazards caused by noise 42
Hazards caused by vibrations 42
Additional safety instructions 43
Additional safety notices 4 4
Before use 45
Lubrication 45
Refilling oil 45
Connecting to a compressed air source 46
Operation 47
Changing/inserting the tool/collet chuck. 47
Switching on and off 47
Maintenance and cleaning 48
Troubleshooting 49
Disposal 50
Kompernass Handels GmbH warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service 53
Impor ter 53
Translation of the original Conformity Declaration . .54
AIR DIE GRINDER SET PDSS 16 A1
Introduction
Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.
Intended use
This appliance is suitable for fine grinding work with sanding pens for shaped polishers, felt polishers and lamellar grinding wheels.
The tool may only be operated with a compressed air supply. The maximum permissible operating pressure specified on the tool must not be exceeded.
This tool must not be operated with explosive, flammable or health-damaging gases.
Do not use as a lever, crusher or striking tool.
Any other usage or modification of the tool is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) resulting from improper usage. This tool is intended for domestic use only.
Symbols on the compressed air tool
| WARNING! | Read the operating instructions before use. |
| Always wear eye protection when using or maintaining the compressed air appliance. | |
| Always wear a dust mask in situations in which dust is being generated. | |
| Always wear hearing protection. | |
| Oil daily |
Features
1 Compressed air appliance
Air inlet
3 Connector nipple (pre-assembled)
Trigger lock
5 Trigger
Spindle
Collet chuck nut
Collet chuck 1 / 4'' (pre-assembled)
Collet chuck 1/8"
Teflon tape (not included)
Assembly tool (SW 19)
Assembly tool (SW 14)
13 5x grinding bits (6 mm)
14 5x grinding bits (3 mm)
Package contents
1 air die grinder set PDSS 16 A1
2 assembly tools
1 connector nipple 6.35 mm (1/4", pre-assembled)
5 grinding bits (3 mm)
5 grinding bits (6 mm)
1 collet chuck 1 / 4'' / 6.35mm (pre-assembled)
1 collet chuck 1 / 8'' / 3.2mm
1 carrying case
1 set of operating instructions
Technical data
Rated air pressure max. 6.3 bar
Air consumption 198 l/min
Max. rotational speed 22500 rpm
Tool fitting 6.35mm (1/4", collet chuck)
3.2 ~mm (1/8", collet chuck)
Noise emission values
Noise measurement determined in accordance with ISO 15744:
Sound pressure level L pA = 88.2 dB (A)
Uncertainty K_pA = 3 ~dB
Sound power level L WA = 99.2 dB (A)
Uncertainty WA = 3 dB K
Wear hearing protection!
Vibration emission value
Vibration values determined in accordance with ISO 28927-12 and
EN 12096: a
$$ \mathrm {h} = 3. 3 4 \mathrm {m} / \mathrm {s} ^ {2} $$
Uncertainty
$$ \mathrm {K} ^ {2} = $$
0.87
WARNING!
The noise emission levels specified in these instructions have been measured in accordance with the standardised measuring procedure specified in ISO 15744 and can be used to make equipment comparisons. The noise emission values vary in accordance with the use of the compressed air tool and may be higher than the values specified in these instructions in some cases. It is easy to underestimate the noise emission load if the compressed air tool is used regularly in a certain manner.
NOTE
For an accurate estimate of the noise emission load during a certain working period, the times during which the appliance is switched off or is running but not actually being used must also be taken into consideration. This can significantly reduce the noise emission load over the total working period.
General safety instructions for compressed air tools
WARNING!
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
NOTE
The terms "compressed air tool" or "tool" used in the following text refer to the compressed air tools specified in these operating instructions.
Save all warnings and instructions for future reference.
The user must evaluate the specific risks that may arise due to different kinds of use.
Please ensure that you have read and understood the safety instructions before fitting, operating, repairing, servicing or replacing any accessories and before working near the compressed air tool. Failure to do this can result in serious bodily injury.
The compressed air tool should only be set up, adjusted or used by adequately qualified and trained operators.
The compressed air tool may not be modified. Modifications can reduce the effectiveness of the safety measures and increase the risks for the operator.
- Never use damaged compressed air tools. Maintain compressed air tools with care. Check regularly whether moving parts function correctly and do not jam; check whether any parts are broken or damaged to an extent that the compressed air tool will no longer operate correctly. Check signs and labels for completeness and readability. If damaged, have parts repaired or replaced before using the compressed air tool. Many accidents are caused by poorly maintained compressed air tools.
Hazards caused by flying parts
If a workpiece or accessory of the compressed air tool breaks, parts can be flung out at high speeds.
Always wear impact-resistant safety goggles during operation, when replacing accessory parts or during repair or maintenance of the compressed air tool. The level of the required protection must be evaluated separately for each individual task.
■ You must ensure that the workpiece has been securely fixed in place.
Check regularly that the rotation speed of the compressed air tool is not higher than the specified rotation speed appended on the compressed air tool. These rotation speed tests must be conducted without any accessory tools attached.
■ Ensure that sparks and fragments created during work do not constitute a hazard.
- Separate the compressed air tool from the compressed air supply before replacing the attachment or accessories or before you adjust the settings, service or clean the tool.
■ Ensure that no dangers are created for other persons either.
Hazards caused by entanglement
- Dress properly. Do not wear loose clothing or jewellery. Keep hair, clothing and gloves away from the compressed air tool and moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. There is a risk of personal injury.
Suffocation, scalping and/or cuts may occur if loose-fitting clothing, jewelry, necklaces, hair or gloves are not kept away from the machine and its accessories.
Hazards during operation
- Avoid contact with the rotating shaft and the accessory tool to prevent cuts on your hands and other body parts.
When using the machine, the operator's hands can be subject to hazards such as cuts, grazing and heat. Wear suitable gloves to protect your hands.
The operator and maintenance personnel must be physically capable of handling the size, weight and power of the compressed air tool.
Hold the compressed air tool correctly: be ready to counteract any normal or sudden movements -keep both hands ready.
- Keep proper footing and balance at all times.
Prevent unintentional starting. If the air supply is interrupted, switch off the compressed air tool on the On/Off switch.
Use only the lubricants recommended by the manufacturer.
Use personal protective equipment. Always wear eye protection. Wearing personal protective equipment such as protective gloves, non-slip safety shoes or hearing protection, depending on the type and use of the power tool reduces the risk of personal injuries and it is recommended.
The permissible speed of the accessory tool used must be at least as high as the maximum speed specified for the compressed air tool. Accessories that rotate faster than the permissible rate can break and throw pieces into the air.
Wear a safety helmet for overhead work.
The tool will run on after the compressed air tool has been switched off.
Ensure that no hazard is caused by sparks created during use. Explosive or flammable dusts can be generated when processing certain materials. There is a risk of explosion or fire.
Hazards caused by repetitive movements
Users of the compressed air tool may experience unpleasant sensations in their hands, arms, shoulders, neck area or other body parts.
Assume a comfortable position when working with the compressed air tool, pay attention to safe footing and avoid unfavourable positions or such that make it difficult to keep your balance. During work over longer periods, the operator should change posture to avoid discomfort and fatigue.
If the operator notices symptoms such as persistent discomfort, throbbing, pain, tingling, burning or stiffness, these warning indications should not be ignored. The operator should consult a qualified medical doctor.
Hazards caused by accessories
- Separate the compressed air tool from the compressed air supply before replacing the attachment or accessory.
Only use accessories that are intended for this appliance and comply with the requirements and specifications listed in these operating instructions.
- Avoid direct contact with the accessory tool during and after use because it may be hot or have sharp edges.
The permissible speed of the accessory tool used must be at least as high as the maximum speed specified for the compressed air tool. Accessories that rotate faster than the permissible rate can break and throw pieces into the air.
Never fit a grinding disc, cutting disc or milling cutter. A bursting grinding disc can lead to serious injuries or death.
- Do not use discs that are damaged, cracked or have been dropped.
Only approved accessory tools with the appropriate shaft diameter may be used.

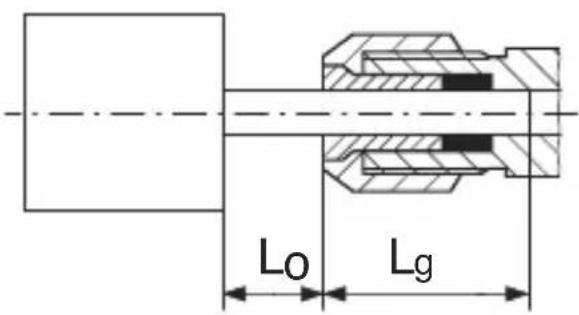

Observe the manufacturer's recommendation for small grinding tools. The maximum permissible protrusion (LO = length of the shaft between the collet chuck end and the small grinding tool) specified by the manufacturer must not be exceeded when using small grinding tools! If the protrusion (LO) is increased, the permissible rotation speed must be lowered. Wherever possible, insert the complete length of the shaft of the accessory tool into the collet chuck. Ensure that the clamping length (Lg) is at least 10 mm.
The shaft diameter of the accessory tool must exactly match the clamp bore of the collet chuck!
Hazards in the workplace
Slipping, tripping up and falling are the main causes of injuries in the workplace. Pay attention to surfaces that may have become slippery from the use of the compressed air tool and tripping hazards caused by air or the hydraulic hose.
■ Proceed with caution in unknown surroundings. Hidden hazards caused by power or other supply lines may be present.
This compressed air tool is not suitable for use in explosive atmospheres and is not insulated against contact with power sources.
Make sure (e.g. by using a metal detector) that there are no hidden power, water or gas lines in the location where you are working.
Hazards caused by dust and vapours
The dusts and vapours produced by using the machines for screw connections can be hazardous to health (e.g. cause cancer, birth defects, asthma and/or dermatitis); it is essential to carry out a risk assessment in respect of these risks and to implement corresponding regulatory mechanisms.
The risk assessment should include the dust caused by using the machine and any existing dust that may be raised at the same time.
The compressed air tool is to be operated and maintained in accordance with the recommendations contained in this manual to keep the release of dust and vapours to a minimum.
The exhaust air should be extracted so that the minimum amount of dust is raised in an already dusty environment.
If dusts or vapours are created, the main priority must be to control these at the site of their release.
All components of the compressed air tool or accessories intended for collecting, extracting or suppressing airborne dust or vapours or should be used and serviced properly in accordance with the manufacturer's instructions.
Consumables/tools should be selected, maintained and replaced in accordance with the recommendations in this guide in order to avoid unnecessary intensification of dust or vapour production.
Use a dust mask as per the instructions provided by your employer or as required by health and safety regulations.
■ Working with certain materials can lead to emissions of dust and vapours that are potentially explosive.
Hazards caused by noise
Excessive noise levels in conjunction with insufficient hearing protection may lead to permanent hearing damage, loss of hearing and other problems, such as tinnitus (ringing, buzzing, whistling or humming in your ears).
It is essential to carry out a risk assessment with regard to these hazards and implement suitable control mechanisms.
- Suitable control mechanisms include measures such as the use of insulating materials to avoid ringing noises from occurring on the workpieces.
Use hearing protection as required by work and health safety regulations.
The compressed air tool is to be operated and maintained in accordance with the recommendations contained in these instructions in order to reduce any unnecessary increase of the noise levels.
Consumables and the tool should be selected, maintained and replaced in accordance with the recommendations in these instructions in order to avoid any unnecessary increase of the noise levels.
The integrated silencer may not be removed and must be in good working order.
Hazards caused by vibrations
Vibrations can damage the nerves and cause malfunctions to the blood circulation in the hands and arms.
■ Wear warm clothing when working in a cold environment and keep your hands warm and dry.
If you notice that the skin of your fingers or hands is becoming numb, tingles, hurts or shows white discolouration, stop working with the compressed air tool and consult a doctor.
The compressed air tool is to be operated and maintained in accordance with the recommendations contained in this manual to reduce any unnecessary increase of the vibrations.
Consumables and the tool should be selected, maintained and replaced in accordance with the recommendations in this guide in order to avoid unnecessary increase of oscillations.
To support the weight of the compressed air tool, use a stand, clamp or a balancing unit wherever possible.
Hold the compressed air tool securely but not too firmly while maintaining the necessary hand-reaction force, as the vibration risk generally increases the harder the machine is held.
An inadequately mounted or damaged accessory tool can lead to excessive vibrations.
Additional safety instructions
Compressed air can cause serious injury.
- When the compressed air tool is not in use, the air supply must always be shut off and the air hose depressurised. The compressed air tool must be disconnected from the compressed air supply before replacing accessories or when conducting repair work.
Never aim the airflow at yourself or anyone else.
- Thrashing hoses can cause serious injury. Therefore, always check whether the hoses and their fixings are undamaged and have not come loose.
If universal rotary joints (claw couplings) are used, locking pins must be inserted and Whipcheck hose restraints must be used to provide protection in the case of a failure of the connection between the hose and the compressed air tool.
■ Ensure that the maximum permissible pressure on the compressed air tool is not exceeded.
Never carry compressed air tools by the hose.
If you are operating the compressed air tool with a tool holder, ensure that it is securely fastened. Loss of control can lead to injuries.
Additional safety notices
If applicable, observe special work safety or accident prevention regulations for the handling of compressors and compressed air tools.
■ Ensure that the maximum permissible working pressure specified in the Technical Data is not exceeded.
- Do not overload this tool - use this tool only within the capacity range specified in the Technical Data.
Use safe lubricants. Ensure sufficient ventilation at the place of work. In case of increased discharge: check the compressed air tool and have it repaired if necessary.
- Do not use this tool if you are distracted. Be alert, watch what you are doing and use common sense when operating a compressed air tool. Do not use tools when you feel tired or are under influence of drugs, alcohol, or medication. A moment of inattention when operating the tool can result in serious personal injuries.
- Keep work area clean and well lit. Cluttered or dark areas invite accidents.
- Keep compressed air tools out of reach of children.
Do not store outdoors or in damp environments without protection.
- Protect the compressed air tool, in particular the compressed air connection and operating elements against dust and dirt.
Before use
NOTE
The compressed air tool may only be operated using cleaned, oil-atomised compressed air and the maximum operating pressure of 6.3 bar must not be exceeded on the appliance. The compressor must be fitted with a pressure reducer to regulate the working pressure.
Lubrication
NOTE
Regular lubrication is particularly important to avoid friction and corrosion damage. We recommend using a suitable special oil for compressed air tools (e.g. Liqui Moly compressor oil).
-Lubrication with mist oiler
A mist oiler (not supplied) continuously and optimally lubricates the appliance as a preparation stage after the pressure reducer. A mist oiler gives off fine drops of oil into the air flow and thus guarantees regular lubrication.
- Manual lubrication
If you do not have a mist oiler, lubricate the tool before every use or longer work sessions. Add 3-5 drops of pneumatic oil into the connector nipple ③ .
Refilling oil
To ensure that the tool remains operational for a long time, the tool must have a sufficient fill of pneumatic oil.
You have the following options:
Attach a maintenance unit with an oiler to the compressor.
Install an add-on oiler in the compressed air line or the compressed air tool.
Add 3-5 drops of pneumatic oil into the connector nipple ③ after every 15 minutes of operation.
Connecting to a compressed air source
NOTE
Before connecting the compressed air source,
- the correct working pressure (6,3 bar) must be fully reached, and
make sure that the trigger is in the upper position.
- Use only connection hoses with an internal diameter of at least 9mm .
- Use only filtered, lubricated and regulated compressed air.
Attach the tool to a compressor by connecting the connector nipple 3 with the supply hose of the compressed air source.
CAUTION!
- Ensure that the compressed air hose is firmly attached. A loose hose can thrash about uncontrollably causing grave danger. Likewise, ensure the firm seat of the two screw connections between the coupling piece and the appliance.
The compressed air source must be equipped with a pressure reducer so that you can regulate the air pressure.
Operation
Changing/inserting the tool/collet chuck
CAUTION!
The shaft diameter of the tool must exactly match the clamp bore of the collet chuck 8 / 9 ( 0.635 ~mm / 3.2 ~mm )!
Hold the spindle 6 using the assembly tool 12.
Unscrew the collet chuck nut ⑦ from the thread using the assembly tool ⑪.
Insert the tool into the collet chuck 8 / 9
Hold the spindle 6 using the assembly tool 12.
Tighten the collet chuck nut using the assembly tool
■ Ensure the accessory tool is firmly attached.
CAUTION!
If no tool is inserted into the collet chuck 8 / 9 , do not tighten the collet chuck nut with the assembly tool, screw it on by hand only!
Switching on and off
Switching on
First, press the trigger lock 4 forwards and then the trigger 5 down to switch the tool on.
Switching off
Release the trigger 5.
When you have finished working, disconnect the tool from the compressed air source.
Maintenance and cleaning
WARNING! RISK OF INJURY!
Disconnect the tool from the compressed air supply.
CAUTION!
Before maintenance, clean off any hazardous substances that may have accumulated on the tool (due to working processes). Avoid all skin contact with these substances. If the skin comes into contact with hazardous dusts, this can lead to severe dermatitis. If dust is produced or swirled up during maintenance, it can be inhaled.
NOTE
To ensure correct functioning and a long service life for the tool, pay attention to the following points:
- Sufficient and continuous oil lubrication is highly important for optimum functioning.
Check the speed and vibration levels after each use.
- Check the idle speed regularly and after any maintenance is performed: use a rev counter and perform the measurement without any clamped tools. At a residual pressure of 6.3 bar, the idle speed may not be exceeded under any circumstances.
If the tool is exhibiting excessive vibration levels, the cause of the vibrations must be identified and repaired.
Use only the genuine replacement parts recommended by the manufacturer, otherwise you could put users at risk. In doubt, contact the Service Centre.
Clean the tool with a soft, dry cloth only.
- Never use sharp or abrasive cleaning agents under any circumstances.
Troubleshooting
| Fault Possible cause Remedy | ||
| Speed too slow, air escapes from the outlet. | Motor parts jamming due to dirt. | Check the pressure supply filter for contamination. |
| Pressure supply too low. | Check the pressure supply filter for contamination. | |
| Lubricate the tool as described in the instructions. | ||
| If necessary, repeat the steps outlined above. | ||
| Tool does not move; compressed air escapes completely through the outlet. | Motor is jammed due to material build-up. | Lubricate the tool as described in the instructions. |
Disposal
The packaging consists of environmentally friendly material. It can be disposed of at any local recycling container.
Do not dispose of the appliance in the normal domestic waste!
Your local community or municipal authorities can provide information on how to dispose of the worn-out appliance.
Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.
Your local community or municipal authorities can provide information on how to dispose of the worn-out product.
The product is recyclable, subject to extended producer responsibility and is collected separately.
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase. If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.
The warranty period does not apply to
Normal reduction of the battery capacity over time
Commercial use of the product
Damage to or alteration of the product by the customer
Non-compliance with safety and maintenance instructions, operating errors
Damage caused by natural hazards
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
- You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.
This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 356007_2004.
Service
Service Great Britain
Tel.: 0800 404 7657
E-Mail: kompernass@lidl.co.uk
Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
IAN 356007_2004
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Translation of the original Conformity Declaration
We, KOMPERNASS HANDELS GMBH, docu ment officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:
Machinery Directive (2006/42/EC)
Applied harmonised standards EN ISO 11148-9:2011
Type designation of machine Air die grinder set PDSS 16 A1
Year of manufacture: 08-2020
Serial number: IAN 356007_2004
Bochum, 10/06/2020
CE
Semi Uguzlu - Quality Manager -
We reserve the right to make technical changes in the context of further product development.
Table des matières
Introduction 57
Chere cliente, cher client,
Chere cliente, cher client,
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALLEMAGNE
www.kompernass.com
Directive relative aux machines (2006/42/CE)
Semi Uguzlu - Responsible qualite
Risico's door accessories
Risico's door lawaaa
Risico's door trilling
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DUITSLAND
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NIEMCY
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NÉMECKO
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
