Product type	High-pressure cleaner
Brand	Parkside
Model	PHDP 180 A1
Rated voltage	230 V~
Frequency	50 Hz
Rated power	3000 W
Maximum pressure	18 MPa (180 bar)
Working pressure	15 MPa (150 bar)
Rated flow rate	540 l/h (9 l/min)
Maximum flow rate	600 l/h (10 l/min)
High-pressure hose length	10 m
Power cable length	5 m
Weight (with accessories)	21.6 kg
Protection type	IPX5
Protection class	I
Max. inlet temperature	40 °C
Max. inlet pressure	0.8 MPa
Supplied items	Gun, lance, HP hose 10 m, 3-in-1 nozzle, turbo brush, surface cleaner, cleaning product 0.5 l, cleaning needle, 2 AAA batteries, instruction manual
Intended use	High-pressure cleaning of machines, vehicles, buildings, facades, terraces, garden tools
Safety	Automatic motor stop, child safety on trigger, residual current circuit breaker recommended
Warranty	5 years (France and Belgium)
After-sales service	Grizzly Tools – Tel. [phone] (FR) or 070 270 171 (BE)

Frequently Asked Questions - PHDP 180 A1 PARKSIDE

How to start the Parkside PHDP 180 A1 high-pressure cleaner?

Make sure the On/Off switch (30) is in the 'O' position. Plug the power plug into a socket with a residual current circuit breaker. Open the water tap, then set the switch to 'I' (ON). The motor starts briefly to build up pressure. Press the trigger (17) to spray water.

What type of water supply is required?

The device requires a garden hose with a diameter of 13 mm (1/2") and a flow rate of at least 550 l/h. You can also draw water from a rain barrel using a suction hose (not included). You must use a system separator (non-return valve) on the drinking water supply.

How to use the cleaning product?

Fill the cleaning product tank (13) with a suitable detergent. Select the 3-in-1 nozzle (23) in 'foam' position and set the gun handle tube to high pressure. Press the trigger to apply the product. Then rinse with clear water.

What to do if pressure is insufficient?

First check the water supply: the tap must be fully open and the hose not kinked. Bleed the air by pressing the trigger several times. Clean the 3-in-1 nozzle (23) with the cleaning needle (7) if it is blocked. Check the connections for leaks.

How to drain the device after use?

Close the tap, remove the supply hose. Set the switch to 'I', wait for the pressure to build, then switch to 'O'. Press the trigger until the pressure drops. Repeat until there is no more air in the system.

What are the important safety instructions?

Never direct the jet at people, animals or electrical equipment. Wear safety goggles and closed shoes. Do not leave the device unattended when plugged in. Use a 30 mA residual current device (RCD). Do not touch a damaged cable before unplugging it.

How to store the device after use?

Empty all water from the device and accessories. Let the device cool down. Coil the high-pressure hose onto the reel (5) and the cable onto the drum (11). Store in a clean, dry, frost-free place. Place the nozzles vertically in their holder.

What to do if the LC display shows nothing?

This indicates the batteries in the compartment (16) are empty. Open the compartment (remove the screw), replace the two AAA batteries respecting polarity, then close. The display will show the pressure again.

Which accessories are included and how to mount them?

The delivery includes a gun, a lance, a 10 m HP hose, a 3-in-1 nozzle, a turbo brush, a surface cleaner, 0.5 l of cleaning product, a needle and two AAA batteries. Mount the lance onto the gun by bayonet, then the nozzle by snapping it on. The surface cleaner is attached with the extension tube.

How to maintain the high-pressure cleaner?

After each use, clean the device with a damp cloth (not with a water jet). Clean the 3-in-1 nozzle with the supplied needle. Regularly check the hose and connections. For winter storage, empty all water and store frost-free. Repairs must be carried out by an authorized service center.

USER MANUAL PHDP 180 A1 PARKSIDE

PDF ONLINE www.lidi-service.com

Hochdruckreiniger / Pressure Washer / Nettoyeur haute pression PHDP 180 A1

DE AT CH

Hochdruckreiniger

Translation of the original instructions

NL BE

Hogedrukreiniger

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Two safety warning signs: one with a robot icon and a thumbs-up symbol, the other with a crossed-out car and a cross symbol.

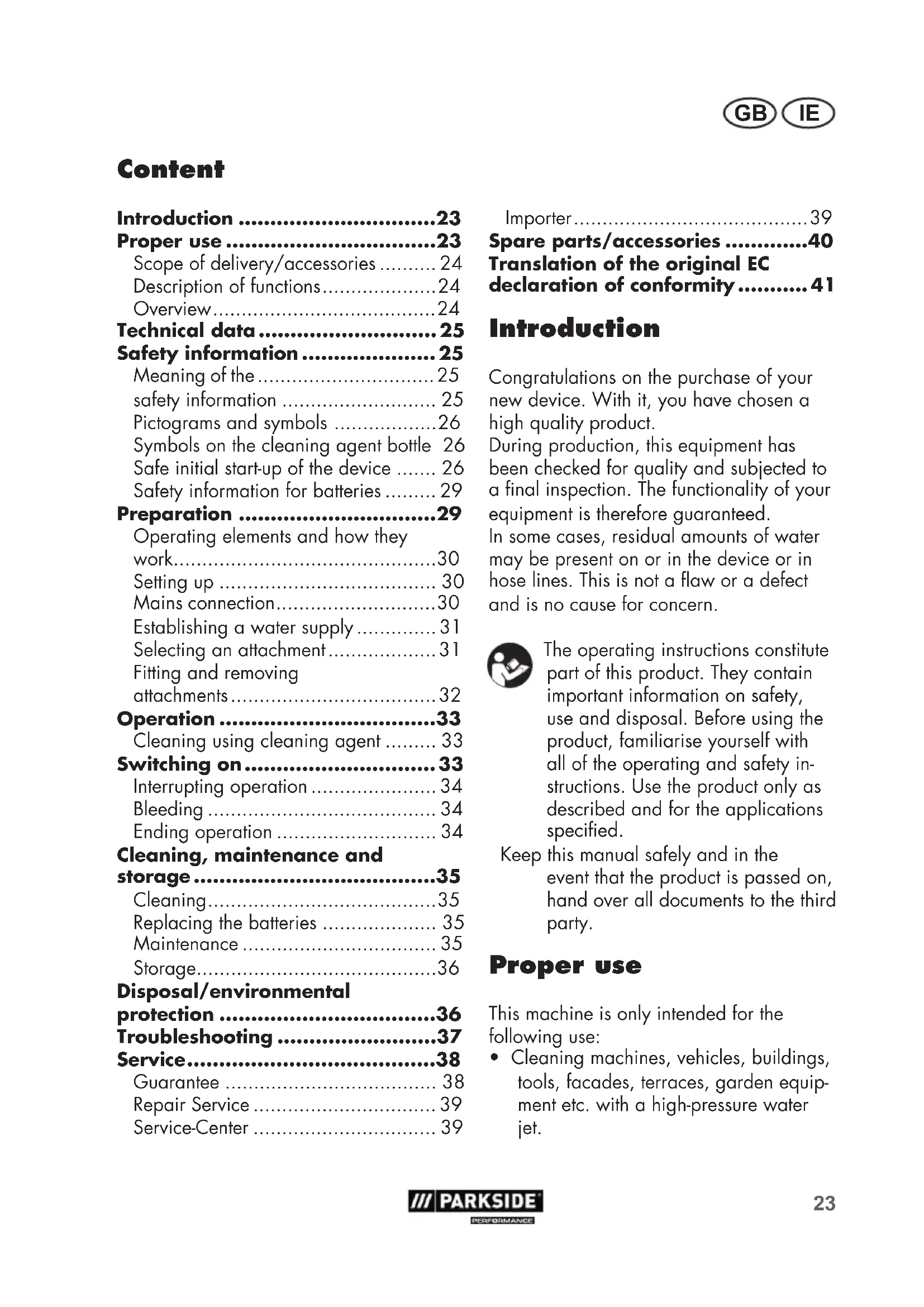

Scope of delivery/accessories ..... 24

Description of functions....24

Overview....24

Technical data 25

Safety information 25

Meaning of the 25

safety information 25

Pictograms and symbols ......26

Symbols on the cleaning agent bottle 26

Safe initial start-up of the device ..... 26

Safety information for batteries ..... 29

Preparation 29

Operating elements and how they work....30

Setting up 30

Mains connection....30

Establishing a water supply 31

Selecting an attachment....31

Fitting and removing attachments....32

Operation 33

Cleaning using cleaning agent ..... 33

Switching on 33

Interrupting operation 34

Bleeding 34

Ending operation 34

Cleaning, maintenance and

storage 35

Cleaning....35

Replacing the batteries 35

Maintenance 35

Storage....36

Disposal/environmental

protection 36

Troubleshooting 37

Service....38

Guarantee 38

Repair Service 39

Service-Center 39

Importer....39

Spare parts/accessories ....40

Translation of the original EC declaration of conformity......41

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

In some cases, residual amounts of water may be present on or in the device or in hose lines. This is not a flaw or a defect and is no cause for concern.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Proper use

This machine is only intended for the following use:

- Cleaning machines, vehicles, buildings, tools, facades, terraces, garden equipment etc. with a high-pressure water jet.

GB IE

Always follow the manufacturer's in-

structions for the object being cleaned.

Any other use not expressly approved in the present instruction manual can damage the device and thus present a substantial risk for the user.

The machine is intended to be used by do-it-yourselfers. This device is not suitable for commercial use. The warranty is void in the case of commercial use. The manufacturer is not liable for damage caused by improper use or incorrect operation.

Scope of delivery/ accessories

Unpack the device and check for completeness. Dispose of the packaging material properly.

• Pressure washer with mains connection cable
• Quick connector for water supply
• Pistol grip
• Lance
• High-pressure hose
• 3-in-1 nozzle
• Turbo dirt miller
• Surface cleaner
• 0.5 | cleaning agent
• Nozzle cleaning needle
• 2 x AAA battery
• Instruction manual

Description of functions

The pressure washer cleans using a high-pressure water jet.

If necessary, it can also be operated with additional cleaning agents.

Please refer to the descriptions below for information on how the operating elements work.

Overview

The illustrations can be found on the front fold-out page.

1 Pistol grip
2 Bow-type handle
3 Release
4 Lance
5 Hose reel
6 Crank handle
7 Nozzle cleaning needle
8 Extension hose
9 High-pressure hose on hose reel
10 Mains connection cable
11 Cable reel
12 Sealing cap with suction hose
13 Cleaning agent tank
14 Wheels
15 LC display
16 Battery compartment
17 Switch lever
18 Lock
19 Release for high-pressure hose
20 Pressure setting
21 Quick connector
22 Turbo dirt miller
23 3-in-1 nozzle
24 Surface cleaner
25 Pressure regulator
26 Pivotable connection
27 Cleaning agent bottle
28 Quick connector with filter insert
29 Water connection
30 On/off switch
31 Holder for nozzles
32 Quick connector for the water supply

Technical data

High-pressure washer PHDP 180 A1

Rated voltage (U) 230 V~

Frequency 50 Hz

Rated output (P) 3000 W

Mains connection cable length 5 m

Protection class I

Protection type IPX5

Weight incl. accessories (m) 21.6 kg

Length of high-pressure hose 10 m

Pressure rating/working pressure (p)

15 MPa

Max. permitted pressure (pmax) 18 MPa

Max. intake pressure (pin;max) 0.8 MPa

Max. intake temperature (Tin;max) 40 °C

Rated flow rate (Q)......540 l/h (9 l/min)

Max. rated flow rate(Qmax) 600 l/h (10 l/min)

Sound pressure level ( L_pA )77.24 dB(A); K_pA = 3 dB

Sound power level ( L_WA )-measured 95.5 dB(A); K_WA = 2,55 dB-guaranteed 98 dB(A)

Vibration ( a_n ) ≤2.5 m/ s^2

This appliance is intended to be operated using a mains supply network with a system impedance Zmax on the transfer point (house connection) of maximum 0.3206 Ohm. The user must ensure that the device is only operated using a mains supply network that meets the requirements. If necessary, local power supply companies can be consulted with regards to the system impedance.

Safety information

This section deals with the basic safety instructions for using the device.

Meaning of the safety information

⚠️ DANGER! • If you do not observe this safety instruction, an accident will occur. The result of which is severe bodily injury or death.

WARNING! • If you do not observe this safety instruction, an accident may occur. The result of which is likely severe bodily injury or death.

CAUTION!! • If you do not observe this safety instruction, an accident will occur. The result of which is likely minor or moderate bodily injury.

NOTE! • If you do not observe this safety instruction, an accident will occur. The result of which is possible damage to property.

Pictograms and symbols

Symbols on the device

Caution!

Read the instruction manual carefully. Familiarise yourself with the controls and how to use the device correctly.

Caution! If the cable gets damaged during use, it must be disconnected from the supply network immediately. This also includes connecting to the water supply or trying to eliminate leaks.

The device is not suitable for connecting to a drinking water supply system.

Electrical devices must not be disposed of with domestic waste.

High-pressure washers can be dangerous if used incorrectly. The jet must not be directed at persons, animals, active electrical equipment or the device itself.

Two safety symbols: a robot icon with a thumbs-down gesture and a crossed-out car with a diagonal line.

Operate the device vertically only. Never use horizontally.

The sound power level LWA is indicated in dB.

Symbols on the cleaning agent bottle

Caution! Corrosive! Irritant! May cause serious skin burns and eye damage.

Safe initial start-up of the device

General information

- Read the instruction manual carefully. Familiarise yourself with the controls and how to use the device correctly.

- The device must not be used by children. Children should be supervised to ensure that they do not play with the device.

- The device can be used by individuals with reduced physical, sensory or mental abilities or a lack of experience and knowledge if they are supervised or have been instructed in the safe use of the device and understand the resulting hazards.

• People who are not familiar with the instruction manual may not use the device.

• Pressure washers must not be operated by untrained persons.

- In the case of a malfunction or defect during operation, the device must be switched off immediately and the mains plug unplugged. For possible causes of a malfunction: see Troubleshooting (page 37) or contact our service centre.

• Note that the user is responsible for any accidents or risks to others and their property.
- Observe noise protection rules and other local regulations.

Initial start-up

• When using the device, always wear protective goggles.
• When using the device, always wear sturdy shoes and full-length trousers. Do not use the device barefoot or in light sandals.
• Do not work with a damaged or incomplete device or one which has been converted without the permission of the manufacturer. Before commissioning, have a specialist check that the required electrical protective measures are in place.
• The device may only be connected to a socket that was installed by an experienced electrician in accordance with IEC 60364-1.
• Prior to use, always check the connecting cable and extension cable for signs of damage or wear and tear. If the cable gets damaged during use, it must be disconnected from the supply network immediately. DO NOT TOUCH THE CABLE BEFORE IT HAS BEEN DISCONNECTED FROM THE POWER SUPPLY. Do not use the device if the cable is damaged or worn. To avoid

hazards, a damaged mains connection cable may only be replaced by the manufacturer, their customer service or a similarly qualified person.

• Only connect the device to a power socket with a residual current device (RCD) with a rated residual current no more than 30 mA.
• Unsuitable extension cables can be dangerous! Use only extension cables that are designed for outdoor use. The connection must be dry and routed above the ground. We recommend using a cable reel that holds the socket at least 60 mm above the ground.
• Extension cables must have a minimum wire cross section of 2 × 2.5 ~mm^2 .
• High-pressure hoses, fittings and couplings are important for device safety. Only use high-pressure hoses, fittings and couplings recommended by the manufacturer.
• Do not start the device up if the mains connection cable, water supply or other important parts such as the high-pressure hose or spray gun are damaged or leaky.
• Only use the device standing and on a firm, level surface.
• Never use the device if there are children or animals nearby. People nearby must wear protective clothing.

Operation

- Pay attention and be aware of what you are doing and take the utmost care when working with a power tool. Do not use power tools if you are tired or you are under the influence of drugs, alcohol or medication.

- High-pressure jets can be dangerous if used incorrectly. The jet must not be directed at persons, animals, active electrical equipment or the device itself.

- Do not direct the jet at yourself or others to clean clothing or shoes.

- If you come into contact with cleaning agents, rinse them with sufficient clean water.

- Never use the mains connection cable to pull the plug out of the socket or to pull the device. Protect the mains connection cable from heat, oil and sharp edges.

- Risk of explosion – do not spray any flammable liquids.

- Do not use the device near flammable liquids or gases. There is a risk of fire or explosion if this advice is not heeded.

- Never transport the device while the drive is running.

- Switch off the device and disconnect the mains plug from the socket. Make sure that all moving parts have come to a complete stop:

- when leaving the device,

- before changing the accessories,

- before removing obstructions or loosening blockages,

• before checking the device, cleaning it or performing maintenance work on it.

- If the device starts to vibrate abnormally strong, an immediate inspection is required:

• search for signs of damage,

- replace damaged parts,

- Contact the service centre.

Cleaning, maintenance and storage

- Allow the motor to cool down before storing the device for a longer period.

- Replace worn or damaged parts for safety reasons. Use only original spare parts and accessories.

- The device may only be opened by an authorised electrician. Always contact our service centre for repairs.

- Switch the drive off, disconnect the device from the power supply and allow the device to cool off if you want to clean, adjust, store the device or to exchange an accessory part.

- Handle the device with care and keep it clean.

- Store the device out of reach of children.

Safety information for batteries

⚠ WARNING! Risk of chemical burns and poisoning from battery acid! Leaking battery acid can cause burns. If children swallow batteries, the batteries can leak and cause poisoning or death.

• Keep batteries out of reach of children.
• Avoid battery acid coming into contact with skin, eyes and mucous membranes. In the event of coming into contact with the acid, rinse the affected areas with plenty of water and consult a doctor if necessary.
• If you suspect that a battery has been swallowed or otherwise entered the body, seek medical advice immediately.

⚠ WARNING! Risk of injury and damage! Incorrect use of batteries can damage the surrounding components and cause bodily harm from escaping battery fluid.

• Never remove the casing from batteries, do not short-circuit batteries or try to charge batteries.
• Never expose batteries to a source of heat, fire or direct sunlight.
  • Make sure that the battery poles are correctly aligned when inserting them into the battery compartment.

⚠️ CAUTION! Risk of burns! Batteries can leak, especially if they are old. There is a risk of burns if you come into direct contact with battery acid.

• Avoid battery acid coming into contact with skin, eyes and mucous membranes.
• If you have come into contact with battery acid, rinse the affected area with plenty of clean water and seek a doctor immediately.
• If your eyes come into contact with battery acid, rinse your eyes immediately with cold water for a minimum of 10 minutes. Seek the assistance of a doctor as fast as possible.
  • Take leaking batteries out of the battery compartment immediately.

Preparation

WARNING! Risk of injury due to unintentional device start-up. Do not insert the plug into the socket until the device is fully prepared for use.

Inserting the batteries

1. Open the battery compartment (16). Remove the screw from the battery compartment cover.
2. Insert the batteries provided. Make sure that the battery poles are correctly aligned when inserting them into the battery compartment.
3. Close the battery compartment. Fasten the cover of the battery compartment using the screw.

Operating elements and how they work

Familiarise yourself with the operating elements before using the device for the first time.

Pistol grip (1)

- Switch lever (17)

• Pulling the switch lever: Activates the pressure jet
• Releasing the switch lever: Deactivates the pressure jet

- Switch lever child safety lock

(18) (seen from behind)

← The switch lever is locked 🔒 → You can pull the switch lever 🔒

WARNING! Risk of injury due to pressure jet! Lock the switch lever every time you take a break.

• Pressure setting (20)

The pistol grip pipe can be turned through three levels.

- ○ low pressure - ○ high pressure

• LC display (15)

The display shows the set pressure when the switch lever is pulled.

high pressure for walls and foam

medium pressure for vehicles

low pressure for sensitive objects

Setting up

Setting up the device

1. Place the device horizontally on a level, solid surface.
2. Plug the high-pressure hose into the high-pressure connection on the pistol grip (1).
3. Fit a suitable attachment.

Mains connection

⚠ WARNING! Risk of injury due to unintentional start-up. Do not insert the plug into the device until it is fully prepared for use

• Prior to use, always check the connecting cable and extension cable for signs of damage or wear and tear. If the cable gets damaged during use, it must be disconnected from the supply network immediately. DO NOT TOUCH THE CABLE BEFORE IT HAS BEEN DISCONNECTED FROM THE POWER SUPPLY. Do not use the device if the cable is damaged or worn.
• Only connect the device to a socket with a protective connector (earth). Only use extension cables with a protective conductor.
• Only connect the device to a power socket with a residual current device (RCD) with a rated residual current no more than 30 mA.
• Unsuitable extension cables can be dangerous. Use only extension cables that are designed for outdoor use. The connection must be dry and routed above the ground. We recommend using a cable reel that holds the socket at least 60 mm above the ground.

Establishing a water supply

Requirements

- Supply hose: Garden hose with fitted quick connector (included in delivery); ∅ 13 mm (½"); length between 5 m and 30 m

- Domestic water connection with a system separator; pump capacity of at least 550 l/h.

Alternatively using water suction function and suction hose with filter basket (not included in delivery): standing, clean water, e.g. rain barrel

System separator

A system separator (check valve) prevents the backflow of water and cleaning agent into the drinking water pipeline.

- According to current regulations, a pressure washer must never be connected to the drinking water network without a system separator. A suitable system separator must be used in accordance with EN 12729 Type BA.

- Water that has flowed through a system separator is classified as non-potable.

- System separators are available from specialist dealers.

Connecting the water supply

1. Mount the quick connector with filter insert (28) to the device's water connection (29).

2 Attach the quick connector for the water supply (32) to your supply hose. To do so, unscrew the grooved clamping nut and slide it over the end of the hose. Now guide the protruding supports of the quick connector (32) into the end of the hose. Fix the components

in place using the previously threaded clamping nut.

1. Connect the supply hose to the water supply.
2. Bleed the supply hose: Open the water supply until the water flows bubble-free out of the other end of the supply hose. Close the water supply.
3. Connect the quick adapter on the supply hose to the quick connector with filter insert.

Suctioning water

You can also use the device without a water pipe (for example, rain barrel) through the integrated water suction function.

1. Connect the suction hose with filter basket to the quick connector with filter insert (12) on the water connection (13) of the device.

2. ⚠ WARNING! Electric shock The device itself must not be submerged in the water collector.

NOTE! Contamination through back-washed cleaning agents Do not draw in any water from natural accumulations.

NOTE! Damage through dry running Ensure there is a sufficient and reliable water supply.

Insert the end with the filter basket into the water collector (e.g. rain barrel).

Selecting an attachment

3-in-1 nozzle (23)

You can choose from 3 nozzles by rotating the tip. A symbol on the lance extension shows the nozzle which is selected.

GB IE

Spot jet Flat spray (30°) Foam nozzle for

Turbo dirt miller (22)

The rotating water jet is suitable for working with low water consumption.

Surface cleaner (24)

Notes

• Only use the surface cleaner on solid surfaces.
• Never raise the surface cleaner while the pressure jet is active.

Properties

Splash-free high-pressure cleaning of floor and wall surfaces

• High degree of cleaning through rotating nozzles
• Pressure regulator

Control elements

• Pressure regulator (25)

Higher pressure, spray arms rotate faster

Low pressure, spray arms rotate slower

Fitting and removing attachments

Fitting the nozzle

1. Fit the lance (4) on the pistol grip (1) by inserting and turning it (Bayonet locking device).

2. Turn and hold the quick connector ring.

3. Fit the attachment on the lance (4).
4. Release the quick connector ring.

√ The attachment clicks into place.

Removing the nozzle

1. Turn and hold the quick connector ring.
2. Pull the attachment from the lance (4).
3. Release the quick connector ring.
4. Remove the lance (4) from the pistol grip (1) by turning and pulling it (Bayonet locking device).

Mounting the surface cleaner (24)

1. Remove the lance (4) from the pistol grip (1) by turning and pulling it (Bayonet locking device).
2. Fit the extension tube (8) on the pivotable connection (26) of the surface cleaner by inserting and turning it (Bayonet locking device).
   Mounting the extension tube is not required.
3. Fit the extension tube (the surface cleaner connection) to the pistol grip (1) by inserting and turning it (Bayonet locking device).

Removing the surface cleaner (24)

1. Remove the extension tube (8) (the surface cleaner connection (26)) from the pistol grip (1) by turning and pulling it (Bayonet locking device).
2. Remove the extension tube from the surface cleaner connection (26) by turning and pulling it (Bayonet locking device).

Operation

Cleaning using cleaning agent

Requirements for the cleaning agent

• This device has been designed to be used with a neutral cleaning agent based on biodegradable anionic surfactants.
• Use of other cleaning agents or chemicals can negatively impact the safety of the device and can cause damage. Such damage to the device is not covered by the warranty.
• You can buy cleaning agents in our online shop.

Requirements

• The cleaning agent tank is filled with cleaning agent.
• 3-in-1 nozzle is at foam nozzle position for cleaning agent.
• The pistol grip pipe is at high pressure position for walls and foam.

Filling and emptying the cleaning agent tank

1. Remove the sealing cap with suction hose (12) from the cleaning agent tank
2. Pull the cleaning agent tank (13) upward and then to the front.
   √ The cleaning agent tank is removed.

You can fill or empty the cleaning agent container.

1. Insert the cleaning agent tank in reverse order.

2. Seal the cleaning agent tank with the sealing cap.

3. Push the suction hose into the cleaning agent tank until it reaches the bottom.

Switching on

WARNING! A leaky water system can result in electric shock! Move the on/off switch (30) to the "O" (OFF) position. Unplug the plug. Try connecting the water connection again (see Establishing a water supply).

⚠ WARNING! The device may only be used in an upright position! There is a risk of an electric shock if the device falls over. Turn the device off immediately using the on/off switch (30). Unplug the plug. Only now may you bring the device into the upright position. For your own safety, wait about five minutes until you restore the electrical connection.

WARNING! Unsuitable extension cables can be dangerous! Use only extension cables that are designed for outdoor use. The connection must be dry and routed above the ground. We recommend using a cable reel that holds the socket at least 60 mm above the ground.

1. Ensure that the on/off switch (30) is in the "○" position.
2. Insert the mains plug into an earthed socket with residual current circuitry.
3. Put the device in an upright position.
4. NOTE! Dry running will damage the device. Do not operate the pressure washer with the tap turned off.
   Turn the tap on fully.
5. Move the on/off switch (30) into position "I" (ON).

GB IE

The motor starts briefly to build pressure. Once the necessary pressure has been built, the motor stops.

1. ⚠ WARNING! Be aware of the recoil force when the water jet commences. There is a risk of injuring yourself or other people. Ensure that your footing is secure. Keep a good hold on the pistol grip (1).

Press the switch lever (17) on the pistol grip (1).

The nozzle starts working at pressure and the motor starts. If you release the switch lever (17), the motor stops. The high pressure is maintained in the system.

Interrupting operation

1. Release the switch lever (17) on the pistol grip (1).

2. If you put down the pistol grip: Lock the switch lever using the child safety lock (18) (seen from behind).

← The switch lever is locked → You can pull the switch lever

WARNING! Risk of injury due to pressure jet! Lock the switch lever every time you take a break.

1. When taking longer breaks: Move the on/off switch (30) to the "○" (OFF) position.

Bleeding

Bleeding the supply hose

1. Turn off the tap.
2. Remove the supply hose from the device.
3. For more information, see "Connecting the water supply".

Bleeding the device

1. Move the on/off switch (30) into position "I" (ON).
2. Wait until pressure has built up and the motor stops.
3. Move the on/off switch (30) to the "○" (OFF) position.
4. Press the switch lever (17) on the pistol grip (1) until the pressure has been released.
5. Repeat these steps a few times until there is no more air in the device.

Ending operation

1. After working with cleaning agents:
2. Empty the cleaning agent tank
3. Rinse the device with clear water until the lines are free of cleaning agent.
4. Release the switch lever (17) on the pistol grip (1).
5. Move the on/off switch (30) to the "○" (OFF) position.
6. Turn off the tap.
7. Press the switch lever on the pistol grip until the pressure has been released.
8. Unplug the mains plug and wind up the mains connection cable (10).
9. Disconnect the device from the water supply.

Cleaning, maintenance and storage

WARNING! Electric shock!

• Protect yourself when performing maintenance or cleaning work.
• Switch the device off.
• Pull out the mains plug.

You should have any repair and maintenance work that is not described in these instructions carried out by our Service Centre. Only use original replacement parts.

Cleaning

NOTE! Risk of damage! Improper cleaning can damage the device.

• Never spray down the device with water.
• Do not clean the device under running water.
• Do not use any abrasive cleaning agents or solvents.

Always keep the device clean.

Cleaning after operation

1. Move the on/off switch (30) to the "○" (OFF) position.
2. Unplug the mains plug.
3. Keep the ventilation slits clean and free of objects.
4. Clean the device with a soft brush or a slightly damp cloth.

Cleaning the 3-in-1 nozzle

In rare cases, the 3-in-1 nozzle may become clogged by foreign bodies.

1. Remove the 3-in-1 nozzle (23).
2. Adjust the 3-in-1 nozzle so that the nozzle to be cleaned and the connection are in a straight line.
3. Remove the foreign body from the front using the nozzle cleaning needle (7).
4. Rinse the 3-in-1 nozzle with water from the front to remove the foreign body.

Replacing the batteries

Replace the batteries if the LC display (15) is not displaying anything.

1. Open the battery compartment (16). Remove the screw from the battery compartment cover.
2. Replace the batteries with new batteries. Make sure that the battery poles are correctly aligned when inserting them into the battery compartment.
3. Close the battery compartment. Fasten the cover of the battery compartment using the screw.

Maintenance

The device is maintenance free.

Storage

Information on storage

Always store the device and accessories:

• clean
  • dry
  • protected against dust
  • protected against frost
  • out of the reach of children

Preparing the device for storage

NOTE! • The pressure washer and accessories are destroyed by frost if they are not completely emptied of water.

1. Completely empty the water from the device.
2. Disconnect the device from the water supply.
3. Turn on the pressure washer with the on/off switch (30) for a maximum of 1 minute until there is no more water coming out of the pistol grip (1) or the attachments.
4. Turn off the device.
5. Completely empty the water from the accessories.
6. Store all attachments upright in the holders with the connection facing downwards.
7. Roll the high-pressure hose around the hose reel.
8. Store the mains connection cable in the holder (11) provided.

Disposal/environmental protection

The device, accessories and packaging should be properly recycled.

Electrical devices must not be disposed of with domestic waste.

• Take the device to a recycling plant. The plastic and metal parts used on your device can be properly sorted according to materials and grades and efficiently recycled. Please contact our service centre for more information.
• We will dispose of defective devices you ship to us free of charge.

Dispose of the batteries according to local regulations. Hand in the batteries at a used battery collection point where they are recycled in an environmentally friendly manner. For more information, please contact your local waste management provider or our service centre.

Troubleshooting

The following table will assist you in fixing faults:

Problem Possible	cause Error correction
Device does not work	On/off switch (30) turned off	Check the On/off switch
	No mains power supply	Check the socket, mains connection cable, plug and fuse and have them repaired by a qualified electrician if necessary.
	Incorrect voltage supply	Check whether the electrical system matches the information on the type plate
Device does not convey water	Air locks in the pressure washer	Turn the device on and activate the pistol grip (1).
		See “Bleeding”
No pressure in device	Air locks in the pressure washer	See “Bleeding”
	Pressure loss in line Check the water supply
Water system leaky	Connections not correctly installed	Turn off the device and disconnect it from the mains. Reconnect the device to the water supply.
	Water connection (29) leaky	Turn off the device and disconnect it from the mains. Replace the water connection coupling (28) incl. sealing ring (see “Spare parts and accessories”)
Strong pressure fluctuations	3-in-1 nozzle (23) is dirty	Rinse the 3-in-1 nozzle (23) with water. If required, clean the nozzle bore hole with a needle (see “Cleaning”).
	3-in-1 nozzle (23) clogged	Remove the 3-in-1 nozzle (23) and ensure that the water can discharge from the pistol grip (1) unimpeded.
LC display (15) not displaying anything	Batteries empty See “Replacing the batteries”

Service

Guarantee

Dear Customer,

This device comes with a 5-year warranty from the date of purchase.

In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The warranty period begins upon the date of purchase. Please retain the original receipt. This documentation will be required as proof of purchase.

If a material or manufacturing defect occurs within five years from the date of purchasing of this product, the product will be repaired or replaced by us for free – according to our choice. This warranty service requires you to present the defective device and proof of purchase (sales receipt) within five years and describe briefly in writing the nature of the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. drill) or to cover damage to breakable parts (e.g. switches).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

• Please have the receipt and item number (IAN 355055_2004) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain Tel.: [phone]

E-Mail: [e-mail]

IAN 355055_2004

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 355055_2004

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Spare parts/accessories

You can get spare parts and accessories from www.grizzlytools-service.eu

If you have any problems with your order, contact us via our online shop. If you have any other questions, contact the service centre (see page 39).

Position	Name Order no.
27	Cleaning agent URM 500 (500 ml) 30990010
7	Nozzle cleaning needle 91103736
28	Quick connector with filter insert 91104610
13	Cleaning agent tank 91106026
11	Holder for mains connection cable 91106027
2	Bow-type handle 91106029
9	High-pressure hose, 10m, black 91106030
1	Pistol grip	91106032
22	Turbo dirt miller	91106033
23	3-in-1 nozzle	91106034
5	Hose reel (without hose) 91106035
8	Extension hose	91106036

Translation of the original EC declaration of conformity

Device: Pressure WasherModel: PHDP 180 A1Serial number: 000001 - 030000The object of the declaration described above meets the relevant harmonisation legislation of the European Union

2014/30/EU • 2006/42/EC • 2000/14/EC2005/88/EC • 2011/65/EU* • (EU) 2015/863

To ensure compliance, the following harmonised standards as well as national standards and regulations were applied:

EN 60335-1:2012/A2:2019 • EN 60335-2-79:2012EN 55014-1:2017/A11:2020 • EN 55014-2:2015 • EN 62233:2008EN IEC 61000-3-2:2019 • EN 61000-3-11:2000 • EN IEC 63000:2018

We additionally confirm the following in accordance with the 2000/14/EC emissions guideline:Guaranteed sound power level: 98 dB(A);Measured sound power level: 95,5 dB(A)Compliance evaluation process carried out in accordance with Appendix V, 2000/14/EC

This declaration of conformity is issued under the sole responsibility of the manufacturer:

Grizzly Tools GmbH & Co. KGStockstädter Straße 2063762 GroßostheimGERMANY30.01.2021Christian FrankDocumentation Representative

Sommaire

Introduction ......42

Service Réparations ......60

Service-Center......60

Importateur ......60

Two safety symbols: a robot icon with a thumbs-down gesture and a crossed-out vehicle symbol.

Safety warning sign showing a robot icon and a crossed-out vehicle symbol with a thumbs-up icon

Service-Center....98

Importer 98

Two safety symbols: a vehicle with a thumbs-up icon and a crossed-out car with a crossed-out sign.

Service-Center....116

Dovozce....116

Two safety symbols: a vehicle with a thumbs-down icon and a crossed-out construction site with a cross symbol.

Service-Center....134

Dovozca....134

Safety warning sign showing a gear and a crossed-out vehicle with a thumbs-down icon

FSC www.fsc.org MIX Paper from responsible sources FSC® C142184

FSC www.fsc.org MIXTE Papier issu de sources responsables FSC® C142184
