USER MANUAL CEVCSFBF CONTINENTAL EDISON

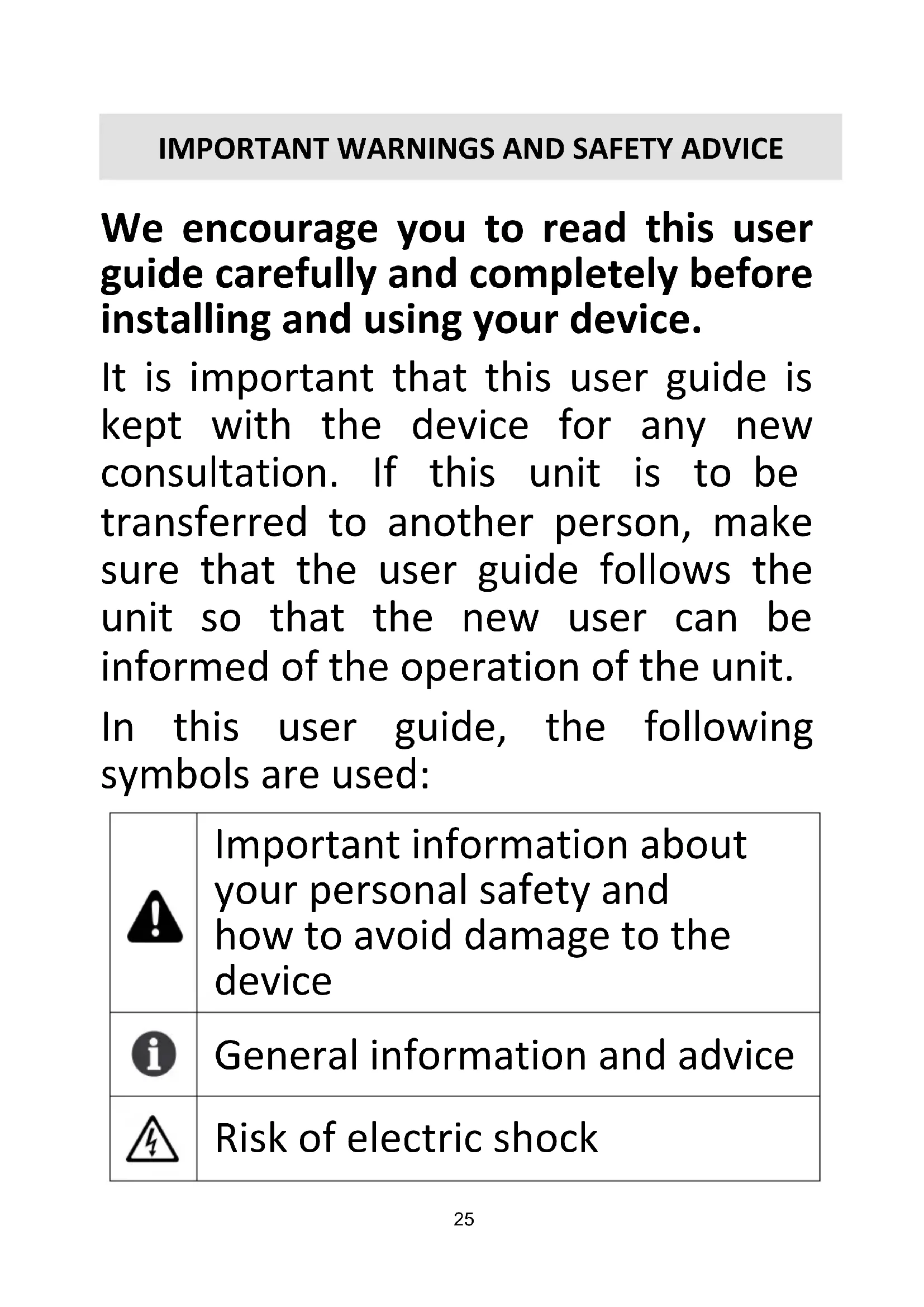

We encourage you to read this user guide carefully and completely before installing and using your device. It is important that this user guide is kept with the device for any new consultation. If this unit is to be transferred to another person, make sure that the user guide follows the unit so that the new user can be informed of the operation of the unit. In this user guide, the following symbols are used: Important information about your personal safety and how to avoid damage to the device General information and advice Risk of electric shock

IMPORTANT WARNINGS AND SAFETY ADVICE26

Use and Precautions:

1. Do not use the unit as accessories or

consumables are not well adjusted.

2. Do not use the appliance for suckin

3. Do not use this device if the on/off

setting does not work.

4. Do not force the working capacity of

5. Unplug the unit from the if you do not

use and before any cleaning operation.

6. This device is intended solely for

household use and not professional or industrial.

7. This device may be used by children

8 years of age or older, and those with reduced physical, sensory or mental capacity or lack of experienc

r knowledge, if they are properly supervised. s or if instructions for the safe use of the device have been given to them and the risks involved have been apprehended.27

8. Children should not carry out the

cleaning and maintenance operations of the appliance unless under the supervision of an adult.

9. This device is not a toy. Children

should be supervised to ensure they do not play with the device.

10. Leave the unit out of reach of

children and/or disabled.

11. Check this device the air vents are

not blocked by dust, dirt or any other object.

12. Do not aspire to areas containing

metal objects such as nails and (or) screws.

13. Never pick incandescent or sharp

objects (cigarette butts, ashes, nails ...)

14. Do not open the battery in any case.

15. Storing the battery in a location

where the temperature does not exceed 40 ° C.

16. Recharge battery with the charger

supplied by the manufacturer only.28

17. A charger that is suitable for a certain

type of batteries may cause explosion or fire when used with other batteries.

18. Use the device only with supplied

battery. Misuse other kind of batteries may cause a risk of explosion or fire.

19. All improper use or not in

accordance with instructions will void the warranty and product liability.

20. To operate the device, using the

supplied adapter only. Here are the technical specifications of the adapter: Input current: 100-240 V ~ 50/60 Hz Output Current: 400mA 26V

ips and safety measures

22. Carefully read these instructions

before operating the appliance, and29 keep it for future reference. Non observation and application of these instructions may cause an accident. Electrical safety:

23. Before connecting the battery

charger to the main unit, check that the voltage on the rating label matches the device.

24. The outlet of the machine must

coincide with the base of the socket. Never modify the socket. Do not us

25. Please use the appliance only with

the power adapter, which will be supplied with the appliance.

26. Connect the device only to very low

voltage, as indicated on the device.

27. Do not expose the device to rain or in

a humid environment. The water entering the device increases the risk of electric shock.30

28. If any part of the appliance casing

breaks, immediately disconnect the appliance from the mains, to avoid possible electric shock.

29. Do not use the appliance if it has

dropped, if it shows visible signs of damage or if there is a leak.

30. Do not force the electrical connection

cable. Never use the power cord to lift, carry or disconnect the battery charger.

31. Check the condition of the power

supply cable. Damaged or tangled cables increase the risk of electric shock.

32. Do not touch the connection plug

with wet hands. Personal safety:

33. Avoid contact with the battery fluid.

In case of accidental contact with the eyes, wash them and consult

octor. Battery fluid can cause rashes or burns.31

34. The unit contains accessories with

pivoting parts. Hanging clothes, jewelry / pendants or long hair can be caught by moving parts. Dress appropriately for the activity. Do not wear loose clothing or any pendant. Keep hair, clothing and gloves away from moving parts.32 IMPORTANT IT IS STRICTLY FORBIDDEN TO REPLACE YOU EVEN THE POWER CABLE. IF IT IS DAMAGED IT MUST BE REPLACED BY THE AFTER- SALES YOUR DEALER STORE, THE MANUFACTURER, ITS CUSTOMER SERVICE PERSON OR SIMILAR QUALIFICATION TO AVOID A HAZARD. IF THE IRON OR UNIT FALL HOME, DO IT CONSIDERED BY A PROFESSIONAL PUTTING BEFORE POWER. INTERNAL DAMAGE MAY REPRESENT A RISK OF ACCIDENT. FOR ANY PROBLEM OR REPAIR, PLEASE CONTACT THE CUSTOMER SERVICE STORE YOUR DEALER, THE MANUFACTURER, ITS CUSTOMER SERVICE PERSON OR SIMILAR QUALIFICATION TO AVOID A HAZARD. For installation, handling, cleaning and disposal of the device, refer to the following chapters of the User's Guide. Information on the meaning of the conformity marking The marking indicates that the product meets the main requirements of the European Directives: 2014/35/EU (Low Voltage), 2014/30/EU (Electromagnetic Compatibility), 2011/65/EU (Restriction of use of certain substances in equipment electronic)33 Important warnings and safety advice

I. Description of the device

IV. Assembly of the device

V. Assembly of accessories

VI. Use of the device

VII. Cleaning and maintenance

VIII. Failure and solution

SUMMARY This user manual is available in the following languages: - FR (original version) - EN (translated from the original) Any other translation would be a translation of the original version. This user guide, any modifications or any new version, is available on our website.34

3. Reservoir release button

6. Button to disconnect the tube from the

8. Release button of the motorized brush

onnection to charge the battery and charge indicator

queegee end for baseboards

. B rush for carpets and rugs

Continuous autonomy Speed 1: 45 minutes Speed 2: 25 minutes Capacity of the dust container

Before first use, you must fully charge the battery. (Refer to the paragraph

Charge the battery ")

• Remove all packing material around the appliance and the protective elements inside the appliance compartments.

• Cartonboard and sheets of paper are recyclable. They must be thrown in the collection bins provided for this purpose.

• Materials bearing the symbol are recyclable: > PE <= polyethylene; > PS <= polystyrene; > PP <= polypropylene This means that they can be recycled by depositing them into appropriate collection containers.

• Other packaging elements (adhesive, fasteners, etc.) must be disposed of with household waste. To know more: www.quefairedemesdechets.fr

1. Place the cone into the dust container and match the cone pins in the grooves

2. Place the filter on the cone.

ssembling the dust container with the engine block Fit the dust container with the engine block.

ssembling the motorized brush with the tube and the engine block

1. Insert the upper end of the motorized brush into the lower end of the tub

ntil you hear a click.

2. Insert the top end of the tube into the bottom end of the tank until a click is

The accessories are interchangeable with the motorized brush and can be assembled at the end of the tube.

Insert the 2-in-1 brush or crevice nozzle in the engine block housing. The accessories can be assembled directly without the tube.

Insert the 2 in 1 brush or crevice nozzle in the bottom end of the app liance body. Parking position: Remove the accessories and the tube from the body of the unit and place the body of the unit and its accessories on its storage base according to the diagram below.

V. ASSEMBLY OF ACCESSORIES39

Turn on or off To start the vacuum, press the "on / off" button once. The device operates at speed 1 (slow suction). Press the "on / off" button again to switch to speed 2 (fast suction). To turn off the vacuum, press the "on / off" button again. Accessory n ° 9 - Motorized brush This accessory makes it possible to clean large surfaces and can be used on all types of floors: tiles, parquet, carpets and rugs. LED front lighting This lighting helps identify dust in dark corners.

ccessory n ° 12 - Suction nozzle This accessory is used to clean narrow areas, baseboards, wall corners, stairs. Accessory n ° 13 - Carpet and carpet brush This accessory is used to clean carpets, rugs and curtains. Accessory n ° 14 - 2 in 1 brush The accessory is used to clean furniture and shelves. Charge the battery Before connecting the device, make sure the adapter is the right one.

nstall the body of the unit on the storage base.

onnect the adapter to the body of the device and to a wall outlet. During charging, the charge indicator lights red. As soon as the battery is fully charged, the charge indicator lights up in green. When using your device regularly, allow the device to discharge completely before recharging it again. The maximum charging time is 5 hours.

VI. USE OF THE DEVICE40

WARNING: Always unplug the adapter from the wall outlet before servicing or

replacing any accessory. Do not clean the vacuum cleaner, accessories with gasoline or any other flammable liquid or solvent. Do not wash the accessories in a dishwasher. Clean the outside surfaces of the vacuum cleaner with a dry cloth. After cleaning, wipe any moisture off the cleaner, its components and accessories with a dry cloth.

leaning the dust container − Press the unlock button to remove the tube or accessories. − To empty the dust container, hold the tank on top of a bin, press the tank opening button to open the lid and empty it. − The tank must be emptied as soon as the Max line is exceeded. In addition, the device loses suction and filtration efficiency. Cleaning the dust filter − To access the tank dust filter, press the tank unlock button. − Take out the filter and dust it off. You can rinse it in water to clean it. − The filter must be dusted and washed with water regularly. − Before putting it back in place, let it air dry.

VII. CLEANING AND MAINTENANCE41

Be sure to reassemble all items properly before using the vacuum cleaner again.

leaning and maintenance of the motorized brush

To unlock the motorized brush, press the unlocking button on it. − T o release the main brush, slide the release button (1) under the motorized brush. Then, lift the latch and remove the main brush. You can help yourself with scissors to clean the hair stuck in the brush.42 − Replace the brush, checking that both ends are in place in their respective compartments. Then, reshape the latch and slide the lock knob (1) to lock the brush.43

f you have a problem with your device or think that the device is not working properly, you can perform a few simple checks before calling a technician. Failure Solution No power Before using the appliance, check that it is fully charged, empty the dust container and clean the filter. Loss of aspiration Check to see if the openings are clogged. Unplug and clean if necessary. Make sure the filter is correctly installed. Empty the dust container and clean the filter. The motorized brush does not turn Unplug the unit, check for clogged hair or dirt. If necessary, remove the rotating shaft from the power brush by unlocking the latch, clean and reposition the shaft by performing the reverse procedure. Make sure that the axle has been properly inserted into the power brush and the latch is in the locked position. The device may need to be recharged. Connect the device to the charger. The battery indicator will turn GREEN when charging is complete. The battery indicator lights red while in use The motorized brush is blocked. Turn off the vacuum and remove any object blocking the brush.

or any other problem occurring on your device: contact the After-Sales Service. CAUTION: The power brush contains electrical connections, do not immerse in water for cleaning.

VIII. FAILURE AND SOLUTION44

War ranty does not cover product wear parts, problems or loads

1. superficial damage to the normal wear and tear of the product;

2. defects or deterioration due to product contact with liquids and corrosio

aused by rust or the presence of insects;

3. any incident, misuse, misuse, alteration, disassembly or unauthorized repair;

4. any maintenance not in accordance with the instructions for the product or

connection to incorrect voltage;

5. any use of accessories not supplied or not approved by the manufacturer.

The warranty will be void if the nameplate and / or serial number of the product is removed.

is appliance carries the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be supported by a selective collection system in accordance with EU Directive 2012/19 / EU so that it can either be dismantled or recycled, and thus reduce the impact on the environment. For more information, you can contact your local (city hall) or regional administration. Electronic products that have not been sorted are potentially dangerous for the environment due to the presence of hazardous substances. Thi s unit is supplied with a rechargeable battery. When this device reaches its end of life, you must remove the battery to deposit each element (battery, device) in an appropriate selective collection system that will take care of their destruction and / or recycling Unde r no circumstances should you dispose of this unit or the battery on public roads. Continental Edison – 120-126 Quai de Bacalan – CS 11584 – 33000 Bordeaux Imported by ADMEA, 12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE
