Product type	Cordless stick vacuum cleaner
Brand	Continental Edison
Model	CEVCL230
Power source	Rechargeable battery 22.2 V, mains charger 230 V ~ 50 Hz
Rated power	100 W
Runtime	Approximately 20 minutes (full battery)
Charging time	3 to 4 hours (first charge: 6 hours)
Noise level	75 dB (acoustic power)
Battery type	22.2 V, 2200 mAh
Filter type	Motor protection filter (washable)
Wet function	Yes, with water tank and mop
Included accessories	Electric floor brush, 2-in-1 furniture brush, charger, mop, mounting screw
Use mode	Stick vacuum or hand vacuum
Power adjustment	Power selector (variable suction)
Rotating brush	Yes, integrated in the floor brush
Charger	Model ZD12D270050EU
Charge indicator	Light indicator (stays on even when charged)
Recommended use	Dry indoor surfaces
Safety	Do not use outdoors or on wet surfaces; do not vacuum hot objects or flammable liquids
Routine maintenance	Regular filter cleaning and dust bin emptying
Spare parts	Replaceable filter and battery (contact customer service)
Storage temperature	10 to 40 °C
Minimum age of use	8 years with supervision

Frequently Asked Questions - CEVCL230 CONTINENTAL EDISON

How to charge the CEVCL230 vacuum cleaner?

Plug the charger into a 230 V socket and insert the jack plug into the opening at the back of the device. The charge indicator lights up. The first charge takes about 6 hours, subsequent charges 3 to 4 hours.

Can the vacuum cleaner be used in wet mode?

Yes, thanks to the water tank and mop provided. Fill the tank with clean water, attach the mop, and use the OPEN/CLOSE wheel to regulate dampening.

How to clean the filter?

Press the release button to remove the dust bin. Remove the filter and its holder. Tap off the dust or wash with soapy water. Let it dry completely before reassembling.

What accessories are included?

The vacuum cleaner comes with an electric floor brush, a 2-in-1 furniture brush, a charger, a mop, a water tank, and a mounting screw.

How to switch from stick vacuum to hand vacuum?

Press the handle release button to remove the hand vacuum. You can then use the device in portable mode with the 2-in-1 brush.

What to do if the vacuum cleaner stops working?

Check the battery charge, clean the filter, and ensure the dust bin is properly in place. If the problem persists, contact customer service.

How to remove and replace the battery?

Unplug the device, press the battery release button, and remove the batteries. For recycling, place the used battery in a bag and take it to a recycling center.

What is the runtime of the vacuum cleaner?

The runtime is approximately 20 minutes when the battery is fully charged.

Can the vacuum cleaner pick up liquids?

No, the vacuum cleaner is not designed to pick up liquids. Never use the device to vacuum water or flammable liquids.

How to clean the rotating brush?

Remove the roller brush from the floor brush by sliding it out. Clean it with soapy water, then reinstall it.

USER MANUAL CEVCL230 CONTINENTAL EDISON

Abstract geometric shapes resembling partial arcs or crescent, rendered in dark gray with no text or symbols.

Continental Edison

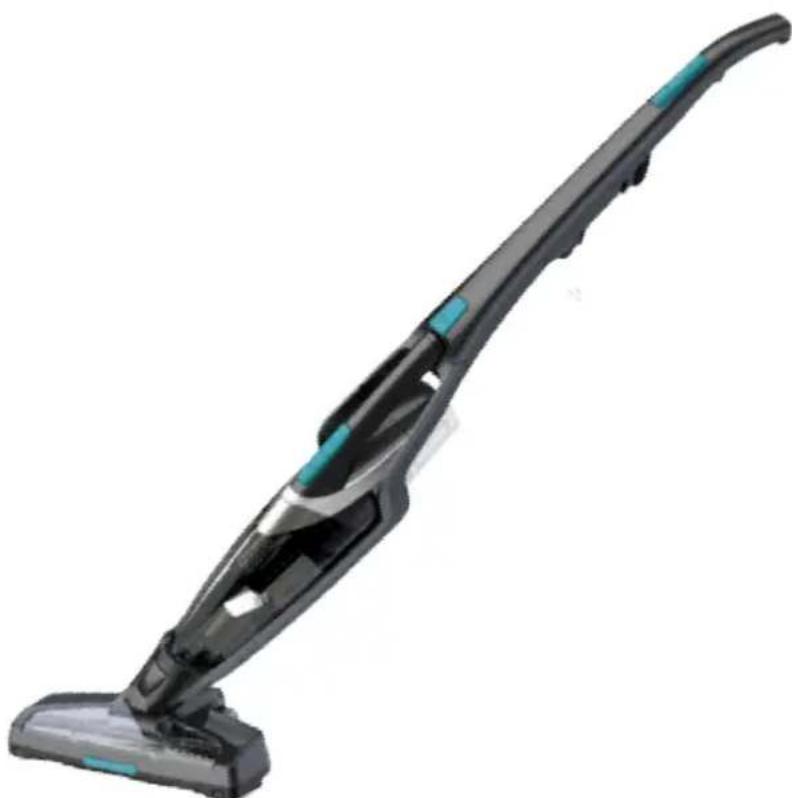

Black and white vacuum cleaner with blue handle, isolated on white background (no text or symbols)

CEVCL230

ASPIRATEUR BALAI UPRIGHT VACUUM CLEANER

Two black plastic devices with a white circular base, placed vertically against a plain background (no text or symbols visible)

Close-up of a black and white electronic device with a handle and indicator lights (no visible text or symbols)

Close-up of a black electronic device with a circular button and a white base (no visible text or symbols)

UTILISATIONS :

Close-up of two mechanical components with a black arrow pointing to a detail (no visible text or symbols)

Close-up of a hand holding a transparent vacuum cleaner (no visible text or symbols)

Close-up of a transparent cylindrical device with black connectors, possibly a vacuum cleaner or cleaning tool (no visible text or symbols)

Six black-and-white photos showing various electronic components and devices, including a battery case, striped case, and vacuum cleaner (no visible text or symbols)

MODE D'EMPLOI

Black-and-white photo of a white handheld device with a black plastic cover and a metallic handle, showing its exterior and side profile (no text or symbols visible)

Three-step assembly of a black electronic device showing internal components and housing (no text or symbols visible)

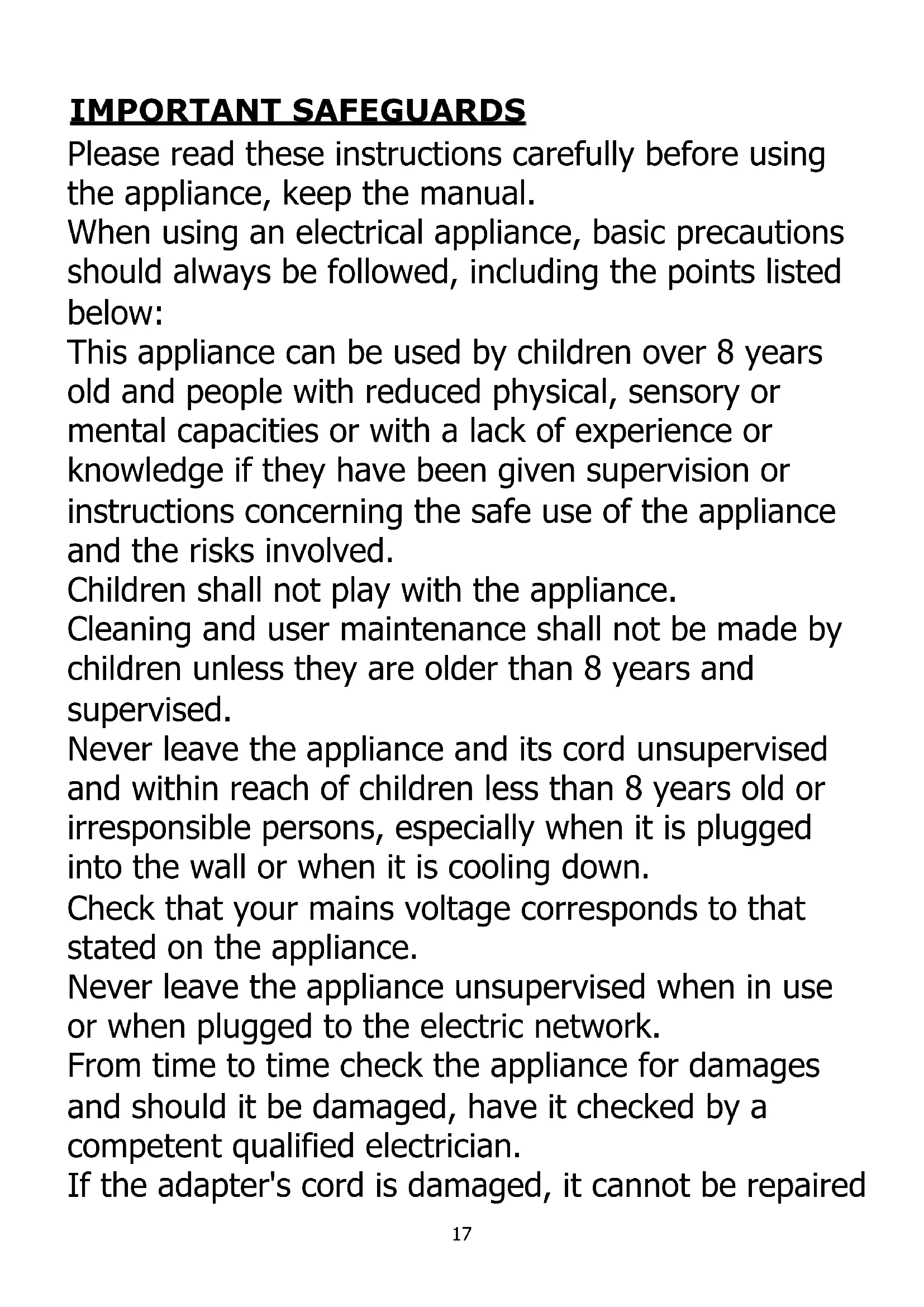

Please read these instructions carefully before using the appliance, keep the manual.

When using an electrical appliance, basic precautions should always be followed, including the points listed below:

This appliance can be used by children over 8 years old and people with reduced physical, sensory or mental capacities or with a lack of experience or knowledge if they have been given supervision or instructions concerning the safe use of the appliance and the risks involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Never leave the appliance and its cord unsupervised and within reach of children less than 8 years old or irresponsible persons, especially when it is plugged into the wall or when it is cooling down.

Check that your mains voltage corresponds to that stated on the appliance.

Never leave the appliance unsupervised when in use or when plugged to the electric network.

From time to time check the appliance for damages and should it be damaged, have it checked by a competent qualified electrician.

If the adapter's cord is damaged, it cannot be repaired

but the complete adapter must be replaced by an identical adapter or an adapter similar to the original one and showing the same characteristics. This replacement

should be done by a competent qualified electrician in order to avoid all danger.

The vacuum cleaner can only be used with the ZD12D270050EU charger provided.

Only use the appliance for domestic purposes and in the way indicated in these instructions.

Never immerse the appliance in water or any other liquid for any reason whatsoever. Otherwise the appliance may be damaged.

Never use the appliance near hot surfaces.

Unplug the appliance before cleaning it.

Never use the appliance with its adapter outside and always place it in a dry environment.

Never use accessories or an adapter that are not recommended by the producer (see characteristics of the adapter). They could constitute a danger to the user and risk to damage the appliance.

Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way.

Do not use the cord to hang your appliance.

Do not wind the cord around the appliance and do not bend it.

Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things.

Do not use it on wet surfaces or surfaces covered with cement or other substances that are too fine or even toxic when inhaled.

Never vacuum any kind of liquid with this appliance, particularly flammable liquids.

Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears. If you use the appliance with a full dust container or saturated filters, the appliance might get damaged. Make sure to check the good quality and placement of the dust container and/or filters.

If your appliance no longer vacuums correctly or if the dust container is full, clean the filters and empty the dust container in order to prevent the appliance from overheating.

Never replace the batteries yourself. If the batteries have to be replaced, please contact a competent qualified electrician.

When you decide to throw away the appliance, make sure to remove the batteries and to dispose of them in an ecological manner by handing them in at a place destined to this end.

Always unplug the appliance before removing the batteries.

If liquid coming out of the batteries comes in contact with clothes or with skin, immediately clean the polluted surface with clear water and consult a doctor. If the appliance contains rechargeable batteries, do not replace them with ordinary batteries.

Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger.

In case of need you should return the appliance to this electrician using the appliance when not all the filters are installed properly and in good shape might damage the appliance. No guarantee claims will be accepted for damages due to that reason.

Description of the parts

1. On/off switch
2. Electronic power control switch
3. Stick release button
4. On/off switch
5. Dust collector release button
6. Battery
7. Motor unit
8. Motor protection filter
9. Filter holder
10. Dust collector
11. Crevice tool/Upholstery brush
12. Mains adaptor
13. Floor brush
14. Water tank lid
15. Water reservoir
16. Windshield for cleaning wet when the tank is installed
17. Electric floor nozzle

CHARACTERISTICS OF THE ADAPTER

Your appliance is delivered with an adaptor, and if you have to replace it, we advise you to call in the nearest customer service or, in case of emergency, to pay attention to the following characteristics:

• Voltage: make sure to respect the voltage of the country you are using the appliance in.
• Voltage supplied: 22.2V ---
• Current intensity: 2200mAh
  We accept no liability for damages resulting from non-observance of this paragraph.

CHARGING THE VACUUM CLEANER

The adaptor should only be connected to a 230V, 50Hz power supply.

Important: The charger and its cord cannot be repaired. Should they be damaged, they must be thrown out. Contact the customer service to replace them.

Make sure the "jack" plug enters the appliance in the opening foreseen in the back of the appliance. Insert the plug of the adapter into a 230V wall socket. The charging indicator will come on, indicating that the charging process will start. The charging indicator will stay illuminated even if the battery is fully charged.

You can leave your appliance on the charging base for a long time without any risk of deterioration. Do not charge the battery if the room temperature falls below 0°C or rises to more than 37°C. The charger will warm

up during use. This is perfectly normal. It will cool down as soon as the charging process is over. ASSEMBLING THE VACUUM CLEANER

Remove the packaging from the appliance and its attachments. Your appliance contains following attachments:

charger floor brush crevice tool/upholstery brush stick

Two black plastic devices with a white circular device on the right, placed side by side on a plain background (no text or symbols visible)

Close-up of a black mechanical component with a circular hole and a white base (no visible text or symbols)

Close-up of a black mechanical component with a circular knob and a white base (no visible text or symbols)

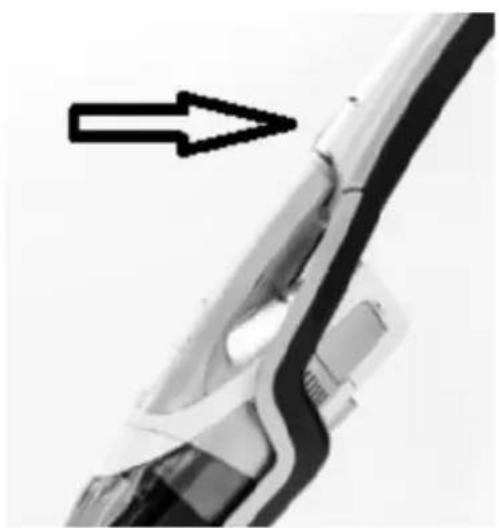

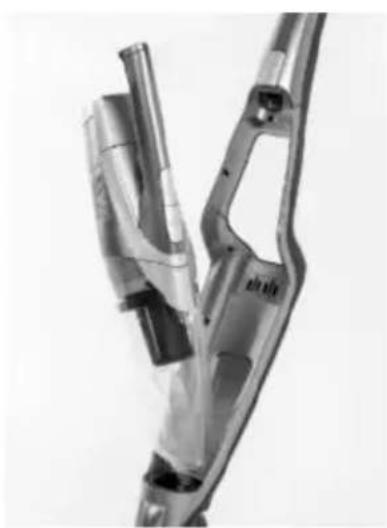

3) To remove the stick, press the stick release button and pull the appliance out.

Close-up of a mechanical component with a black arrow pointing to a feature (no visible text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

The dust collector always has to be attached to the motor unit before using the appliance. If the dust collector is not mounted, attach it to the motor unit and make sure it fits into place.

You can use the vacuum cleaner in two ways:

1) You can use the appliance without stick as handheld vacuum cleaner.
2) Attach the stick to the body of the appliance until it clicks into place. Then you can use the appliance as a stick vacuum cleaner.

Attach the desired suction tool (floor brush, small upholstery brush or crevice tool) to the suction opening of the dust collector if necessary.

Close-up of a metallic vacuum cleaner with black connectors and transparent casing (no visible text or symbols)

Close-up of a transparent cylindrical device with black tip and handle, no visible text or symbols

To remove the floor brush, crevice tool or small upholstery brush, you just have to pull it off.

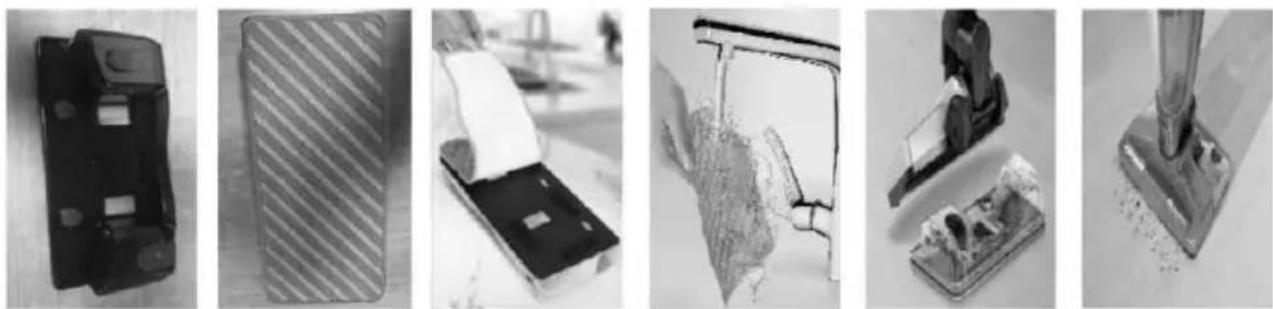

Use of mop and water tank

Mount the water tank and fix the cloth.

Open the lid of the water tank, fill it with water, make sure to close it after filling water.

On the other hand, the button OPEN/CLOSE (OUVRIR/FERMER) can be used to moisten the cloth

(OPEN) or to stop humidification (CLOSE).

Use the device normally to vacuum and clean the floor.

Six black-and-white photos showing various electronic components and devices, including a battery case, striped case, and mechanical parts (no visible text or symbols)

USE

Once your appliance is fully charged, remove it from the charging base by holding it by its handle.

Switch it on by pressing the ON/OFF switch. When you are finished, press the ON/OFF switch again to switch off the appliance.

By pressing the electronic power regulator, the suction power can be adjusted when using the appliance as a stick vacuum cleaner. Use a low suction power for furniture and other delicate surfaces and use high suction power for fitted carpet and other floors.

The floor brush can be used for daily cleaning of large surfaces, hard floors or fitted carpet.

To clean surfaces that are difficult to reach, use the crevice tool supplied. The crevice tool can also be used for mattresses, couches, curtains or wallpaper.

The small upholstery brush is useful to clean delicate surfaces or tissues without scratching them.

AFTER USE

If necessary, disassemble the stick and the suction tool used.

After use we advise you to empty the dust collector to avoid smells and mildew that could be caused by damp dust particles that may have been vacuumed, and also to guarantee an optimal efficiency during the next use. To do so, see below.

IMPORTANT SAFEGUARDS

Never use the appliance to vacuum hot, glowing objects such as cigarettes, matches etc. or sharp objects that could damage the filter.

Only use the appliance with the charger supplied.

CLEANING AND MAINTENANCE

Cleaning the filter and the dust collector is extremely important as it allows the optimal use of your appliance and eliminates the unpleasantness due to bad smells that can occur after having vacuumed liquids or humid particles.

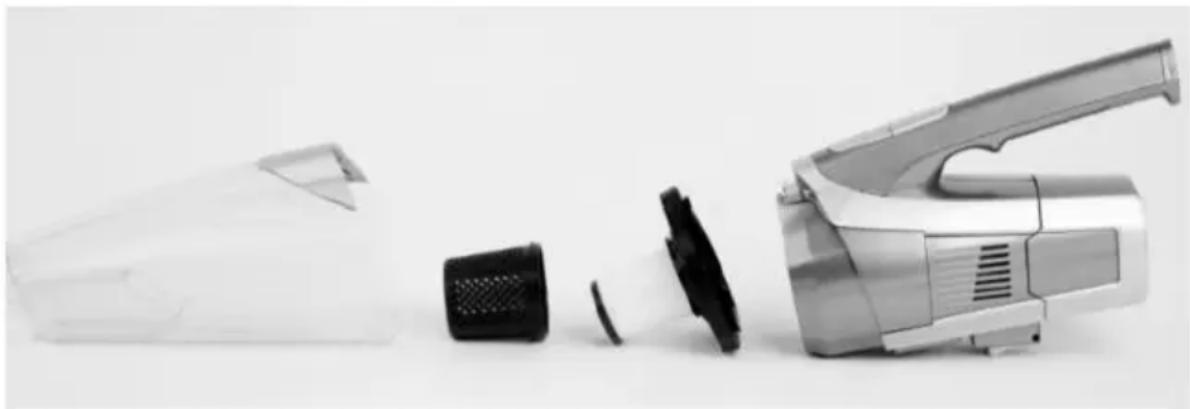

Remove the dust collector by pressing the release button situated on top of the appliance and turning the dust collector. We advise you to do this over a dust bin.

Black-and-white photo of a white handbag and a silver handheld device with visible internal components (no text or symbols)

Remove the filter and filter holder.

Empty the dust compartment and clean it with soapy water if necessary.

To clean the filter you can detach it from its holder and gently knock the dust off over a dustbin. You can then take the filter and clean it in soapsuds if necessary. If you use soapsuds, rinse the filter with clear water and let it dry before putting it back into the appliance.

Once the filter is clean and dry, put it back in its holder. Then reinsert the filter and filter holder in the dust collector. The correct position of the filter and filter holder is extremely important, as it guarantees the tightness between the dust compartment and the motor. If the filter is too dirty or damaged, it must be replaced. To do so, please contact the nearest customer service. After having replaced the filter, attach the dust compartment to the motor unit.

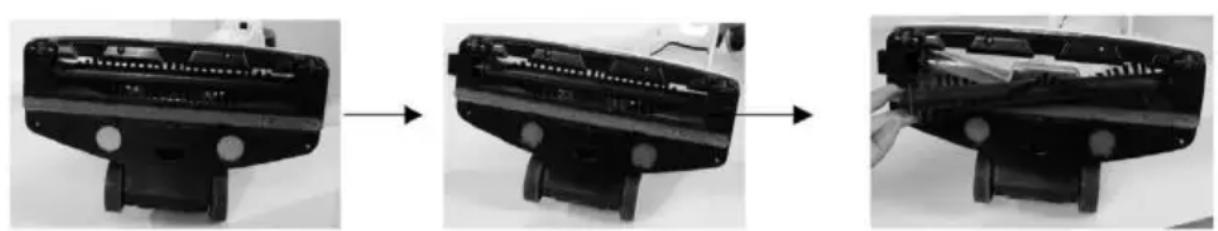

To clean the floor brush, slide the rolling brush and remove it. Clean the rolling brush and reinstall it into the floor brush.

Three-step black-and-white photo sequence showing a device's internal structure before and after assembly (no text or symbols visible)

To clean the wheels, use a screwdriver to unscrew them and take them out of their compartment.

Remove the dirt and put the wheels back by pressing them down. Clean and rinse the water tank.

The surface of the motor block and the stick can be cleaned with a slightly damp cloth.

REMOVING THE BATTERIES

If the filter is too dirty or damaged, it must be replaced. To do so, please contact the nearest customer service. The batteries must be taken out of the unit when the batteries no longer provide power after charging or when you want to throw away the appliance.

Unplug the appliance, press the battery release button and remove the batteries. Please dispose of your old batteries in an environmentally friendly way.

BE CAREFUL NOT TO TOUCH THE LEAKING LIQUID COMING OUT OF THE BATTERIES.

Wash your hands after having removed the batteries. Make sure that children do not come into contact with the batteries.

Put the used or leaking accumulator in a bag and bring it to a recycling park. For more information, contact your town authorities.

TECHNICAL CHARACTERISTICS

Brand	CONTINENTAL EDISON
Ref	CEVCL230
Model
Sound power level:	75dB
Nominal power	100W
Voltage	22.2V
charging time ours	3 4 h

In compliance with the directives on Waste Electrical and Electronic Equipment, this product must not be discarded with domestic waste but should be disposed of separately for recycling. If you wish to dispose of this product in the future, do NOT throw it away with the household rubbish but hand it in at a specially designated place, such as your municipal domestic chemical waste depot.

IMPORTE PAR

A.M.C.
