Product type	All-in-one steam vacuum
Brand	Continental Edison
Reference	CEVCV1600BK (VCS-160A)
Power supply	220-240 V~ 50/60 Hz
Total power	1000 W (steam) + 600 W (suction)
Water tank capacity	510 mL
Dust tank capacity	1 L
Suction pressure	≥ 16 kPa
Noise level	≤ 80 dB
Main functions	Suction only, steam only, combined suction + steam, high/low steam adjustment
Filtration	HEPA filter + cyclonic filter
Included accessories	Brush with holder for large cloth, small cloth, water tank
Maintenance	Clean HEPA filter at least once a month, cloths washable with water
Safety	Unplug before maintenance, do not direct steam towards electrical components, do not use in a swimming pool
Spare parts	HEPA filter, microfiber cloths, water tank (not included)
Repairability	Power cord replacement by a professional only
Warranty	Does not cover normal wear, damage due to incorrect use or unauthorized repairs
Weight	Not specified

Frequently Asked Questions - CEVCV1600BK CONTINENTAL EDISON

How to assemble the CEVCV1600BK vacuum cleaner?

Press the handle unlock button, insert the handle element into the device until you hear a click. Then, remove the water tank, fill it, put it back, then attach the microfiber cloth under the brush.

Can I use the steam function without suction?

Yes, the steam function can be used separately as a steam cleaner only. Press the steam switch to activate it, then hold the steam flow trigger under the handle.

How to adjust the steam flow?

Press the high or low steam flow switch while holding the trigger. Release to stop the steam. The adjustment is made before pressing the trigger.

What to do if suction decreases?

Check that the dust tank is not full and that the filters (HEPA and cyclonic) are not clogged. Clean the HEPA filter with water and let it dry before putting it back.

How to clean the HEPA filter?

Press the dust tank release button, remove the assembly. Take out the HEPA filter and cyclone frame. Wash with water and air dry. Clean at least once a month.

Are the microfiber cloths washable?

Yes. Remove the main cloth by pressing the sides of the brush, the small cloth is removed by pulling. Wash them with water and air dry.

What objects should not be vacuumed?

Do not vacuum hot, sharp objects, dangerous liquids (solvents, corrosive) or flammable substances such as gasoline or alcohol.

How to store the device after use?

Unplug the device. Wrap the power cord around the two hooks, then store the vacuum upright in a dry place.

What to do if the power cord is damaged?

Do not replace the cord yourself. Contact the manufacturer's after-sales service or a qualified professional to avoid any danger.

Can I use the vacuum on a carpet?

Yes, but remove the microfiber cloth from the brush to make it easier. Make sure the brush is clean.

USER MANUAL CEVCV1600BK CONTINENTAL EDISON

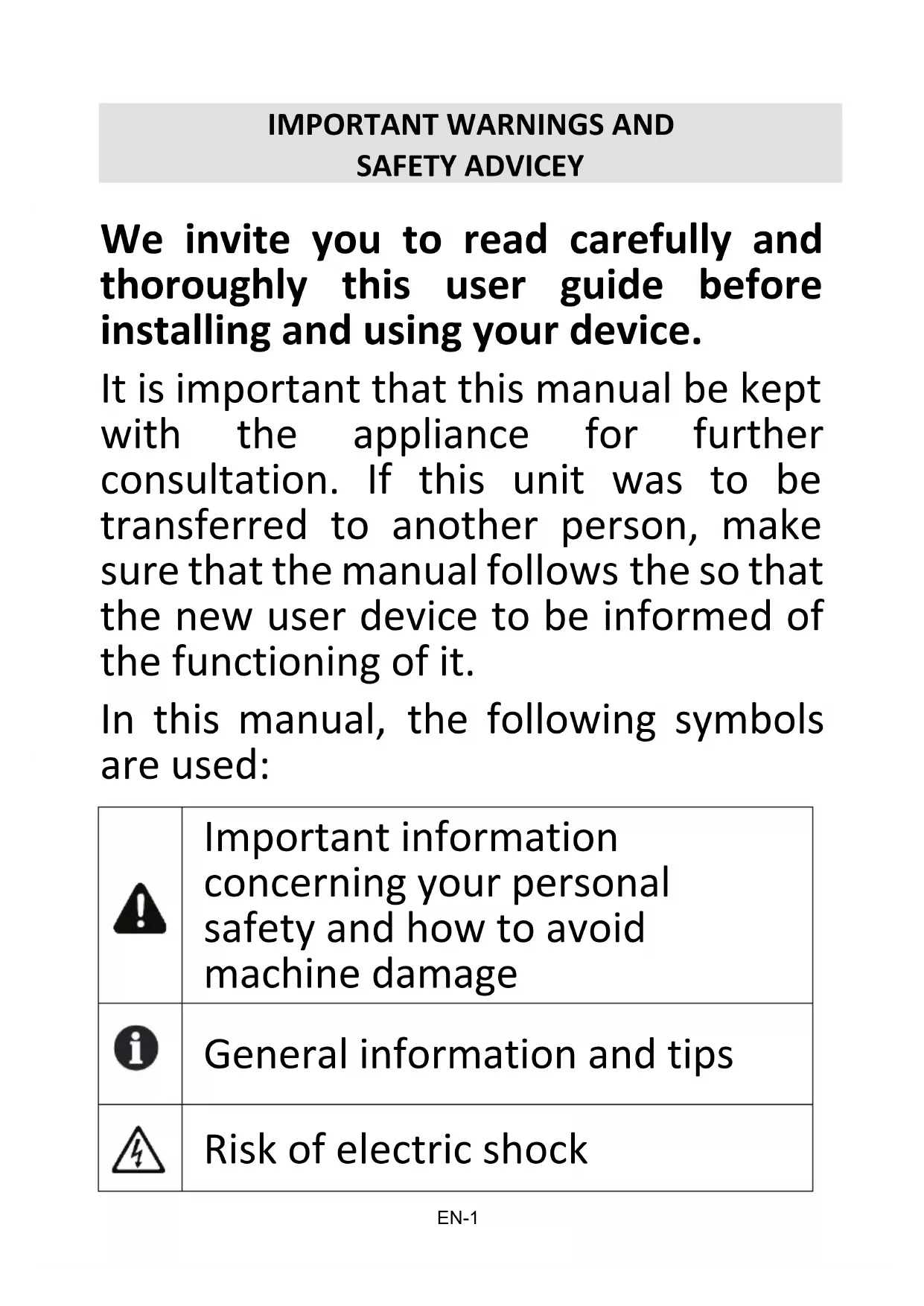

We invite you to read carefully and thoroughly this user guide before installing and using your device.

It is important that this manual be kept with the appliance for further consultation. If this unit was to be transferred to another person, make sure that the manual follows the so that the new user device to be informed of the functioning of it.

In this manual, the following symbols are used:

▲	Important information concerning your personal safety and how to avoid machine damage
i	General information and tips
4	Risk of electric shock

Use and Precautions:

1. The vacuum cleaner is an electrical appliance, it must be used under the conditions of the manual, the manual should be kept properly for future reference.
2. Check and confirm that the vacuum cleaner uses a voltage compatible with the voltage of the power supply.

3. Do not vacuum the following objects, it may damage the vacuum cleaner or fire, resulting in physical injury and other accidents.

4. Heated objects such as a coal fire, etc.;

5. Sharp objects, such as glass, etc.;
   Dangerous objects or water and liquids (solvents, corrosive products, etc.)

6. Flammable and explosive substances such as gasoline or alcohol-based products.

7. To clean, repair or stop using the

vacuum cleaner, the power supply must be cut. When you turn off the power, pull the plastic part of the plug instead of pulling the power cable.

1. Do not immerse the cleaner in water and placing the vacuum near a heating equipment.
2. Prevent children from playing with the vacuum cleaner to avoid accidents.

3. Please do not use the vacuum cleaner in the following situations:

4. The vacuum appears damaged or not working properly.

5. Out of the power cord.

6. Do not block the suction mouth to prevent damage to the motor and cause deformation due to heat.

7. The power cable and the motor of this product use a connection type Y, if the electric cable is damaged, special equipment is required to replace it, or you can contact our customer service for repair.

WARNING

1. The steam should not be directed towards equipment containing electrical components, such as the interior of furnaces.
2. The device must be disconnected after use and prior to maintenance of the unit.
3. Do not use in pools containing water.
4. This unit can be used by people with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision for using this device safely and understand the risks. Children should not play with the appliance.
5. This unit can be used by people with physical, sensory or mental capabilities or lack of experience and knowledge provided they receive supervision or have received instructions regarding the use of the device in any security and they

understand the risks involved. Children should not play with the appliance.

1. The device should not be left unattended when plugged into AC power.
2. The device should not be used if it has fallen. If it shows signs visible deterioration or leaking.
3. Keep the device out of reach of children when on or cooling down.

IMPORTANT

IT IS STRICTLY FORBIDDEN TO REPLACE YOU EVEN THE POWER CABLE. IF IT IS DAMAGED IT MUST BE REPLACED BY THE AFTERSALES YOUR DEALER STORE, THE MANUFACTURER, ITS POST-SALES PERSON OR SIMILAR QUALIFICATION TO AVOID A HAZARD.

IF YOUR DEVICE FALL, DO IT CONSIDERED BY A PROFESSIONAL PUTTING BEFORE POWER. INTERNAL DAMAGE MAY REPRESENT A RISK OF ACCIDENT.

FOR ANY PROBLEM OR REPAIR, PLEASE CONTACT THE CUSTOMER SERVICE STORE YOUR DEALER, THE MANUFACTURER, ITS POSTSALES PERSON OR SIMILAR QUALIFICATION TO AVOID A HAZARD.

Regarding the installation, handling, cleaning and disposal of the device, refer to the following sections of the User Guide.

Information on the meaning of conformity marking

Marking CC indicates that the product meets the essential requirements of the European Directives 2014/35 / EU (Lower Voltage), 2014/30 / EU (electromagnetic compatibility), 2011/65 / EU (Restriction of use of certain substances in electronic equipment)

SUMMARY

Important warnings and safety advicey -01-

I.Description of the appliance -08-
II. Technical characteristics -09-
III.Before first use -10-
IV. Instructions to use -11-
V. Cleaning and maintenance -16-
VI. Warranty -17-
VII. Disposal -18-

This user guide is available in the following languages:

• FR (original version)
• EN (translated from the original)

Any other translation would be a translation of the original version.

This user guide, any modifications or any new version, is available on our website.

I. DESCRIPTION OF THE APPLIANCE

1. Handle
2. Trigger to the steam flow
3. Control panel
4. Hook of the power cord
5. Telescopic handle
6. Handle the main housing
7. Power cord
8. Water reservoir

9. Filter

10. Cover the air outlet
    11.Brush

11. Small cloth
12. Support for large cloth
13. Large towelette
14. Main Body
15. Tank Dust
16. Cyclone filter
17. Filtrer HEPA

II. TECHNICAL CHARACTERISTICS

Technical information:

Brand:	Continental Edison
Reference:	CEVCV1600BK (VCS-160A) CEVCV1600W (VCS-160A)
Voltage:	220-240V 50/60 Hz ~
Power:	1000 W (steam) + 600 W (suction)
Volume of the water tank: 510 ml
Suction: ≥ 16 KPa
Noise: ≤ 80 dB
Capacity of the dust container:	1 L

UNPACKING THE EQUIPMENT AND DISPOSAL OF PACKAGING ELEMENTS

• Remove all the packaging elements around the unit, and the protective elements located within the compartments of the unit.

• The carton and the paper is recycled. They must be thrown into the collection bins provided for this purpose.
  The materials marked with the symbol are recyclable:

PE <= polyethylene; > PS <= polystyrene; > PP <= polypropylene

This means they can be recycled by placing them in appropriate collection containers.

• The other packaging elements (adhesive fasteners ...) must be disposed of with household waste.

To know more: www.quefairedemesdechets.fr

IV. INSTRUCTIONS TO USE

ASSEMBLY

1. a. Press the release button of the handle;
   b. Insert the element of the handle into the device until you hear a click when the handle is in place;
2. Lift the release button of the water tank. At the same time, hold the top of the water tank for easy removal;

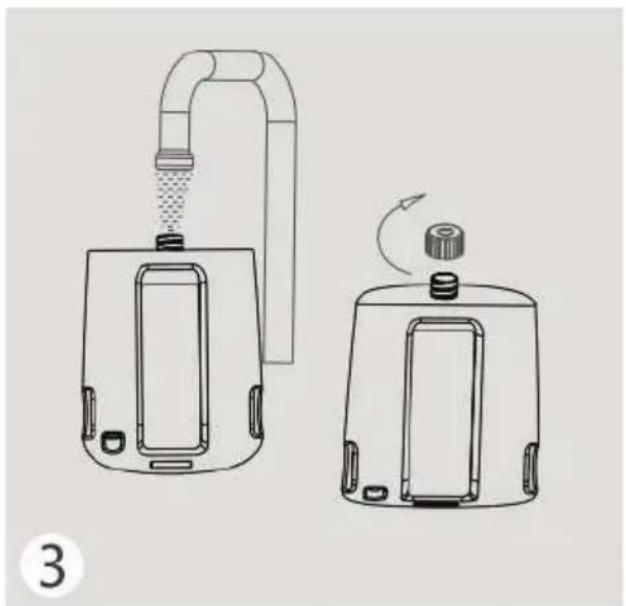

1. Remove the tank cap, fill the water tank and replace the plug and tighten it;
2. Insert the water tank by aligning the water inlet; slowly push the water tank to install until you hear a click when the water tank is replaced properly;

1. Place the microfibre cloth under the brush respecting the right and left brush pattern, press until you hear a click when it is secured;
2. Plug the power cord into an electrical outlet and make sure the connection is correct, press the on / off switch (Picture No. 7) and select the appropriate function for your application.

OPERATION

1. a. Press the switch "ON / OFF VACUUM" the suction is activated. Repeat the process, the suction function is disabled;

b. Select the steam volume according to your needs; the indicator remains lit fixedly after 17 seconds (At the first use, the steam function must be kept activated for 17 seconds), indicating that the steam function is ready. At this point, the steam function can be used by holding down the steam flow trigger located under the handle;
c. Press the high flow steam switch or low flow, while holding down the steam flow trigger. The high flow steam function or low-flow starts. Release the switch handle, the steam function will stop, again press the steam switch, steam is turned off.

Note:

Steam function: can be used simultaneously with the vacuum function separately or as a steam cleaner only.

Suction function: may be used simultaneously with the steam function separately or as a vacuum only.

1. Press the ON/OFF button to disable all functions. The device turns off. Remove the plug from the electrical outlet;

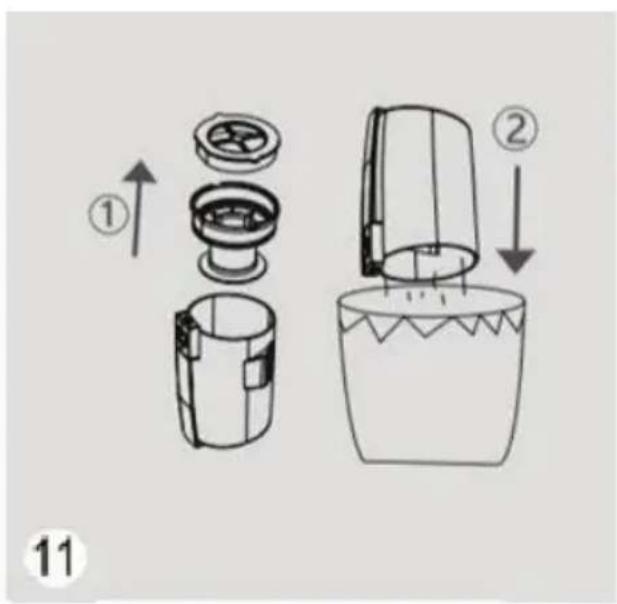

2. Press the dust compartment button to unlock it.
3. Open the dust compartment lid to empty the dust.

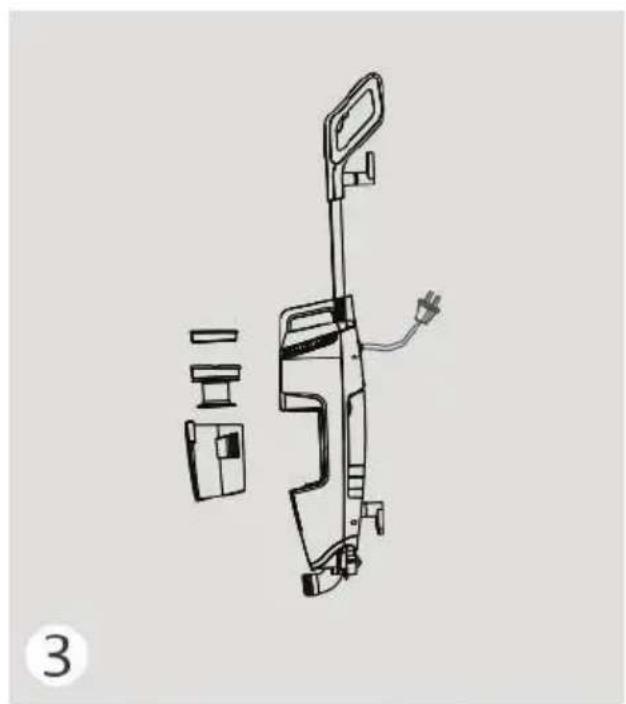

11.Step 1: Remove the water tank;

Step 2: Remove the water filter of the housing;

Step 3: Open the air duct of the cover in order to vent the air duct in the event of obstruction.

1. Press the left or right side of the brush to remove microfiber wipe. The small cloth on the back of the brush is simply removed by pulling it (Velcro tape) and is repositioned in the same way
2. Remove the microfiber component of the coating;

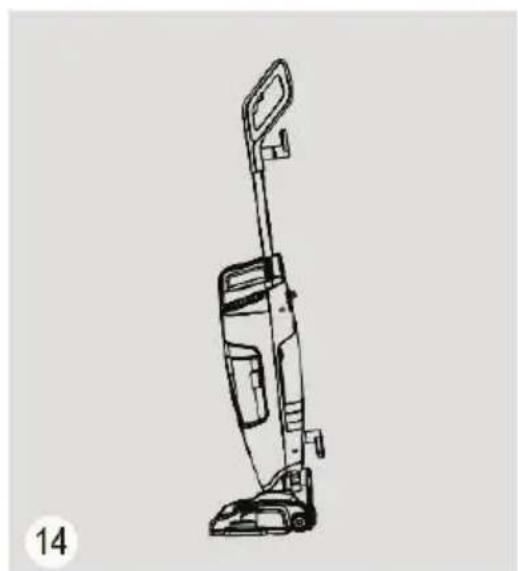

1. At the end of the product use, wrap the power cord around the two hooks and position it vertically in a storage location.

EN-14

PRECAUTIONS

• In use, be careful not to lose the valve seal on the bottom of the water tank as shown in Figure 1.

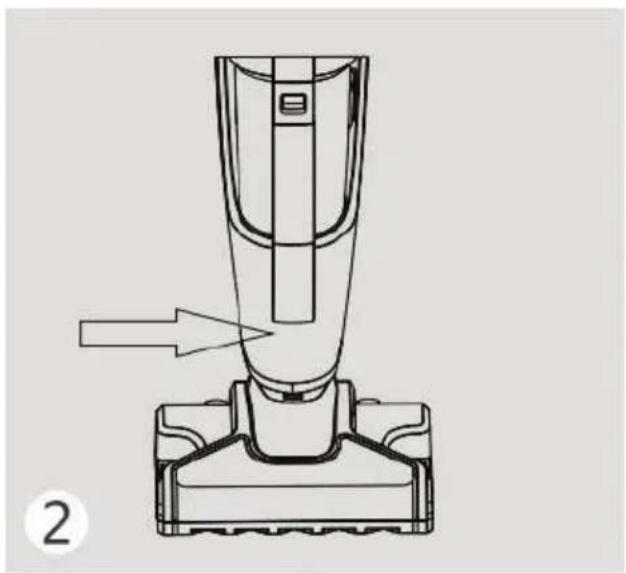

WARNING : Do not touch the area shown in Figure 2 to prevent high-temperature burns.

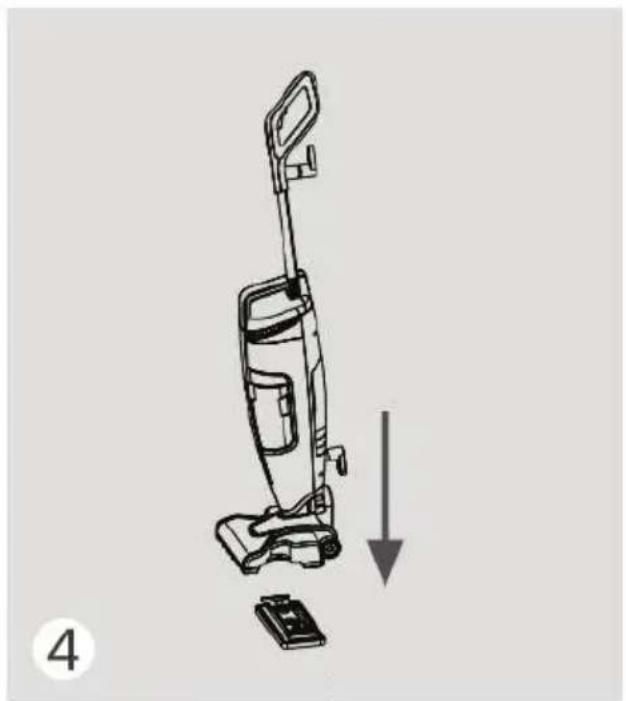

• Before use, make sure that the dust container is placed in the body of the apparatus with the HEPA filtration block and that the elements are firmly connected.
• For carpet cleaning, remove the microfiber lining and brush cleaning cloth for easy operation.

V. CLEANING AND MAINTENANCE

Warning Before procthder to clean, unplug'apparatus.

In case of accumulation in the pipe, it should be cleaned immediately. After cleaning, the pipe must be dried before use.

The air outlet cover must remain installed on the device when in use.

Cleaning the air duct :

After removing the water tank and the filter of the main unit, remove the air duct of the cover to open and clean the air inlet.

Cleaning the filter :

Press the release button of the dust tank, remove the entire dust container of the main unit.

Remove the HEPA filter and part of the cyclone. Wash with water and let dry outdoors.

Precautions :

• The HEPA filter should be cleaned at least once a month. If obvious buildup on the filter, it should be cleaned immediately. Dry the filter prior to use;
• The HEPA filter must remain installed on the device when in use.
• Make sure the filter is not damaged and is in place.

Replacement and cleaning wipes microfiber :

Use the brush side to remove the stand and remove the main microfiber wipe. Wash it with water and let it dry in the open.

The small cloth is simply removed by pulling it (scratch band).

Remove the fabric brush, wash it with water and let it dry in the open.

VI. WARRANTY

The warranty does not cover product wear parts, no problems or damage resulting from:

1. Surface damage due to normal wear and tear;
2. Defects or damage due to contact of the product with liquid and due to corrosion caused by rust or the presence of insects;
3. Any incident, abuse, misuse, modification, unauthorized removal or repair;
4. The improper maintenance operation not in accordance with product instructions or connection to improper voltage;
5. Any use of accessories not supplied or approved by the manufacturer.

number.

The warranty is void if the elimination of plate and / or the product serial

VII. DISPOSAL

This device bears the selective sorting symbol relating to electrical and electronic equipment (WEEE).

This means that this product should be supported by a selective collection system in accordance with European Directive 2012/19 / EU in order to either be dismantled or be recycled, thus reducing the impact on the environment.

For more information, you can contact your local authorities (town

hall) or regional.

Electronic products which have not been sorted are potentially dangerous for the environment because of the presence of hazardous substances.

Continental Edison - 120-126 Quai Bacalan - CS 11584 - 33000 Bordeaux

Imported by SCHNEIDER CONSUMER GROUP

12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE
