USER MANUAL CEVCWBA CONTINENTAL EDISON

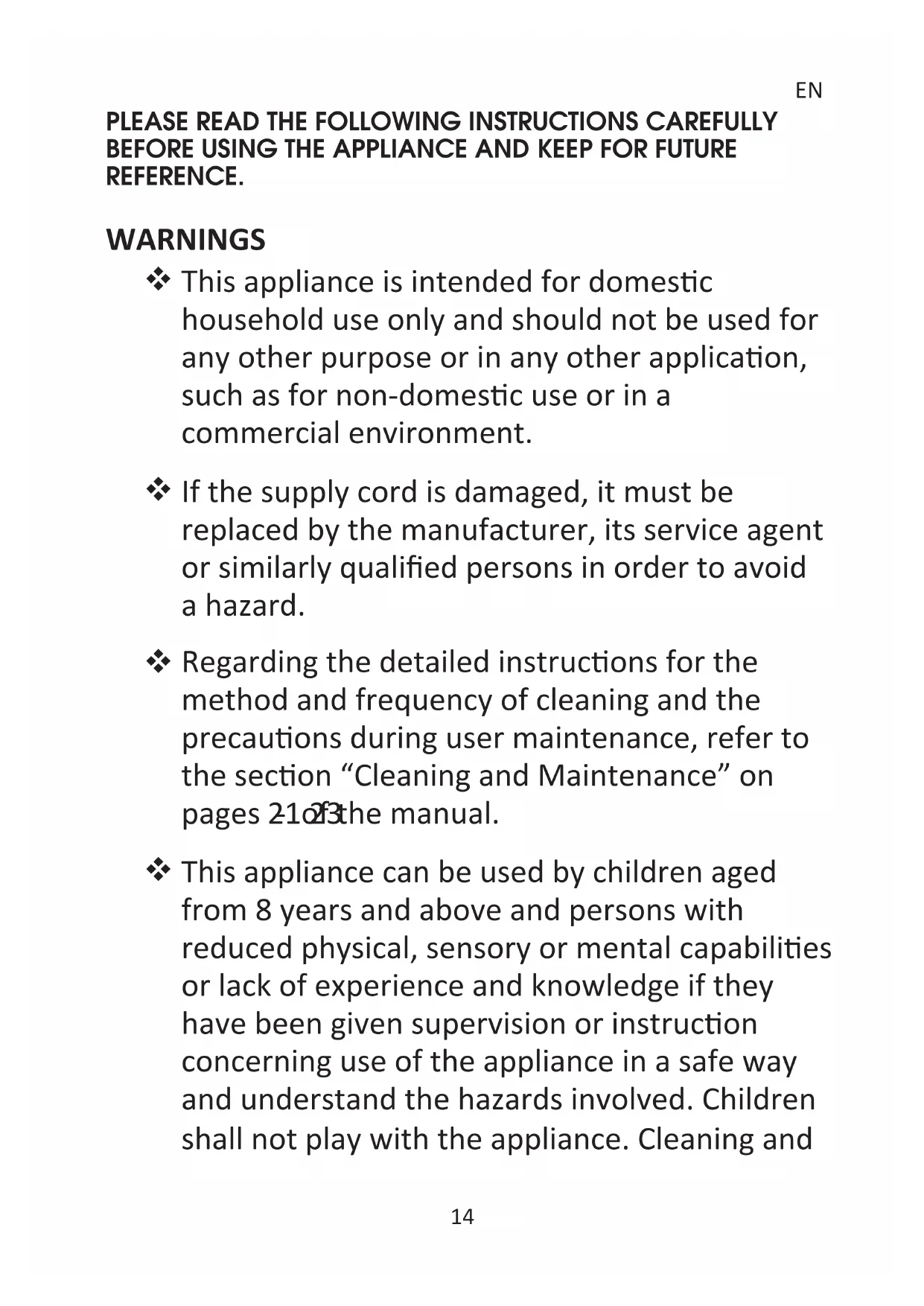

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.

WARNING

This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Regarding the detailed instructions for the method and frequency of cleaning and the precautions during user maintenance, refer to the section "Cleaning and Maintenance" on pages 21 of the manual.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and

EN user maintenance shall not be made by children without supervision.

The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.
Following objects are strictly banned, otherwise the vacuum cleaner will be damaged or fire calamity will be caused, which bring such accidents as human body injuries:
Don't pick up large or sharp broken such as glasses.
Don't pick up harming or erodent liquids (solvent, corrosive, detergent...).
Don't pick up inflammable or explosive substance such as gasoline or alcohol.
Don't pick up/ vacuum burning or glowing objects (cigarettes, matches, hot ashes).
Regarding the detailed instructions for the safe use of the appliance, refer to the section "Operation".

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electrical shock or injury:

• Always turn off and unplug the appliance from the mains socket if it is left unattended and before assembling, disassembling or cleaning.
• Do not unplug by pulling on the power cord. To unplug, grasp the plug not the power cord.
• Do not use the appliance with wet hands or feet.
• Never operate the vacuum cleaner without filters in place.
• Do not use the appliance outdoors or on wet surfaces.
• Do not pull or carry the appliance by the power cord.
• The appliance should only be used for its intended purpose as described in this instruction manual.
• Do not use the appliance to suck up water or any other liquid.
• To prevent electrical shock, do not immerse the appliance, power cord or power plug into water or other liquids.
• Use only original accessories approved by the manufacturer.
• The hose must be checked regularly and must not be used if damaged.
• Do not operate the vacuum cleaner too close to the heaters, radiators and other hot surfaces.
• Do not leave the appliance unattended when it is in operation.

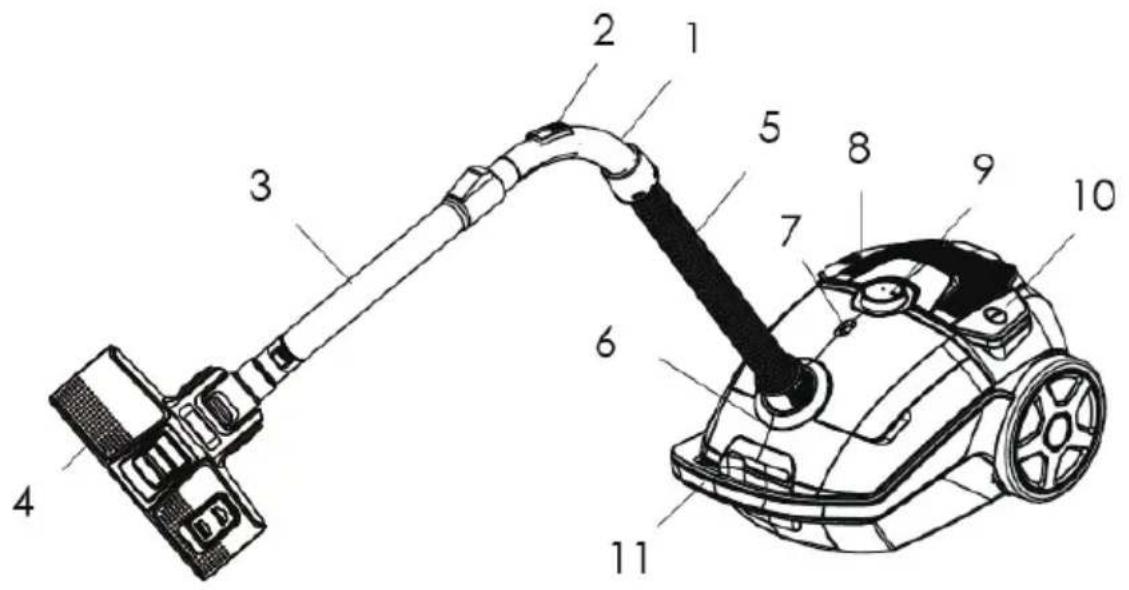

DESCRIPTION

12

13

1. Hose handle
2. Airflow regulator
3. Telescopic tubes
4. Power brush
   5.Hose
5. Hose socket
6. Dust full indicator

7. Cord rewind button

8. Suction power regulator

9. Power button
10. Handle

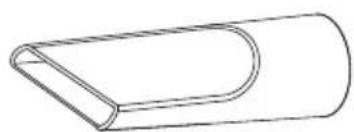

11. Crevice Tool
12. Dusting Brush

ASSEMBLY

Always disconnect the appliance from the mains socket before assembling or disassembling accessories.

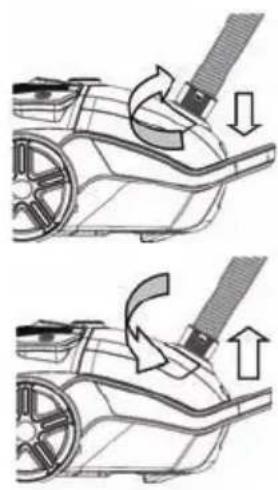

Connecting the hose

• To fit the hose, push the hose end into the hose socket and turn it clockwise until it locks into place.
• To remove the hose, hold the hose end and turn it anticlockwise.

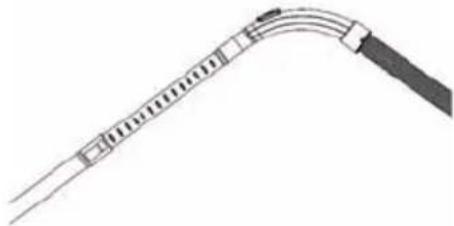

Connecting tubes and accessories

1. Insert the hose handle into one end of tubes.

2. Adjust the tubes to your desired length.

3. Push forward the switch on the tube then adjust. Release the switch until the desired length is achieved.

4. Attach the desired cleaning accessory to the end of the tube.

To remove the tubes and accessories, hold each piece tightly and pull firmly apart.

OPERATION

1. Pull the power cord out of the appliance and insert the mains plug into the mains socket.

2. A YELLOW mark on the power cord indicates the ideal cable length. Do not extend the power cord beyond the RED mark.

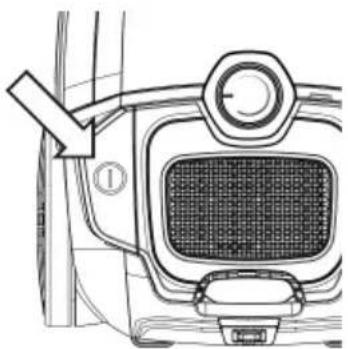

3. Press the power button on top of the appliance to switch on the appliance.

4. Make sure that the suction power regulator is set to the minimum position before switching on the appliance.

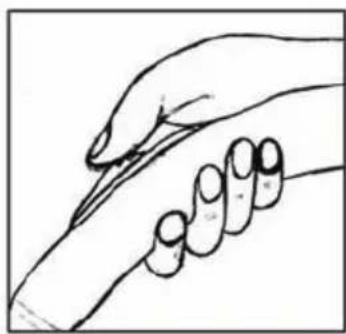

1. You can quickly reduce the suction power by pushing the airflow regulator on the hose handle.

2. Push it forward, suction power will increase; push it backward, suction power will reduce.

3. You can also adjust the suction power by setting the suction power regulator.

Using the Cleaning Accessories

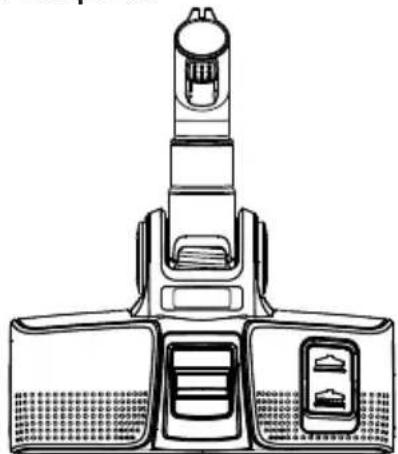

• Dual position carpet / floor brush (Drawings for reference only)

Position 1: Bristles extended For hard floors

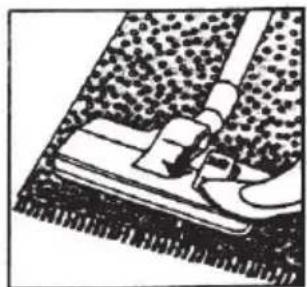

Position 2: Bristles retracted For carpets

• Power brush
• For cleaning hard floors and carpets

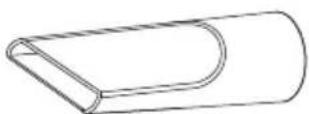

• Crevice Tool to vacuum down the side of cushions, corners, edges or small spaces.

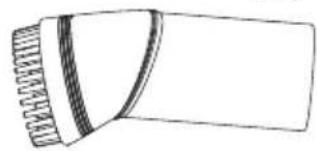

• Dusting brush to clean curtains, etc.

CLEANING AND MAINTENANCE

Always switch off the appliance and unplug from the mains socket before carrying out any maintenance or cleaning. Clean the outside of the appliance with a damp cloth. Dry thoroughly before use.

Emptying and Replacing the Dust Tank

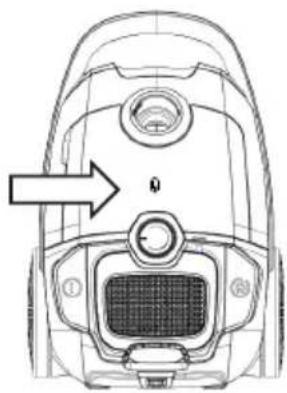

When the dust full indicator is coloured red, the dust bag is full. You need to empty or replace the dust bag if it is clogged.

Dust full indicator

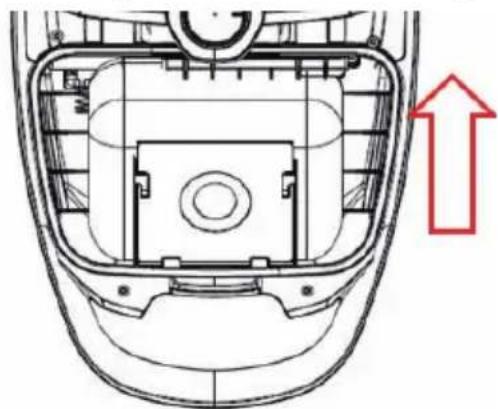

1. Lift up the front cover clamp to open the dust tank.
2. Remove the dust bag from the dust bag holder.

1. Empty the dust bag or replace it with a new one.
2. Attach the dust bag to its holder and close the front cover until a click is heard.

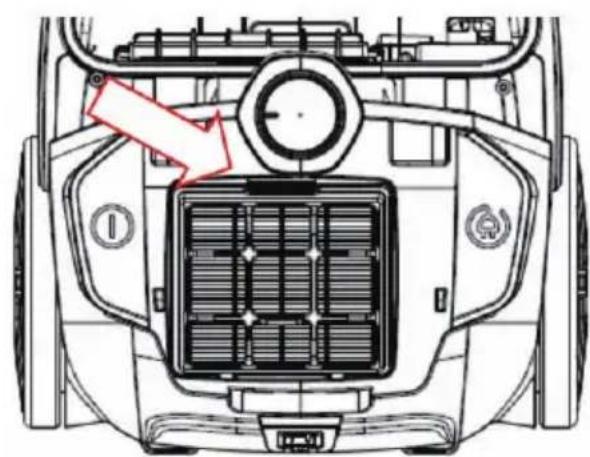

Cleaning HEPA filter

The high efficiency particulate air (HEPA) filter is an effective system in removing almost all indoor pollutants, dust mites, pollen and mould spores.

1. Remove the air outlet filter grille and then remove the HEPA filter.

2. Wash them under running water and allow them to dry thoroughly. DO NOT USE DETERGENTS TO CLEAN THE FILTER.

3. After cleaning, attach the HEPA filter back and then attach the air outlet grille to the appliance until a click is heard.

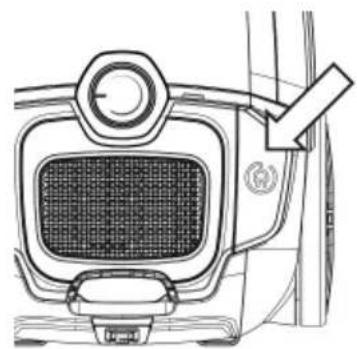

Rewinding the Power Cord

When not in use, unplug the appliance from the mains socket and then press the cord rewind button to feed back the power cord.

CAUTION: Take special care to rewind the mains cord by holding the plug to avoid injury by a whipping action.

Storage

Insert the holder of the floor brush with tubes into the storage clip at the rear of the appliance.

TROUBLESHOOTING

Please check the following details before you have your appliance repaired by an authorised servicing agent.

Problem	Possible Cause	Possible Solution
Vacuum cleaner does not work.	1. Check if the power plug is firmly inserted into the power outlet. 2. Check if the power switch of the appliance is on.	1. Insert the plug back into the power outlet and ensure it is switched on. 2. Then turn the vacuum power switch on.
Suction power becomes weak.	1. Check if the hose, brush or tube is clogged or damaged. 2. Check if the dust tank is full. 3. Check if the filter is clogged and if the tubes are correctly attached.	1. Immediately remove the obstruction. 2. Empty the dust tank. 3. Clean the filter or reassemble the tubes
Power cord will not fully feedback.	Check if the power cord is twisted.	Pull out the power cord at its optimal length and rewind it.
Power cord cannot be pulled out.	The power cord may be twisted.	Rewind or pull the cord in and out several times by pressing the cord rewind button.

SPECIFICATIONS

Ratings: 220V-240V~ 50/60Hz 700W

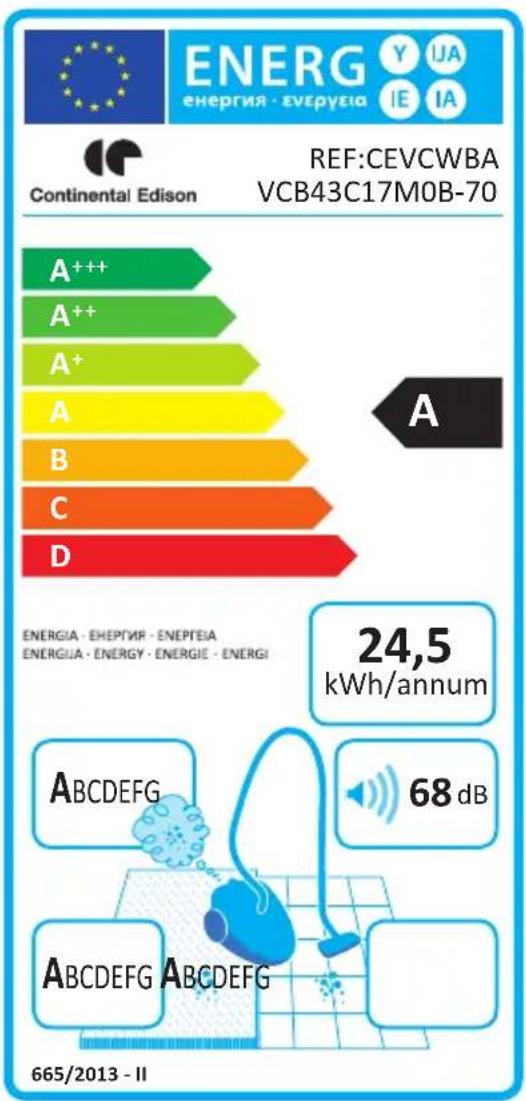

General usage of Vacuum Cleaner

Brand	Continental Edison
Ref	CEVCWBA (VCB43C17M0B-70)
Energy Class	A
Average Energy consumption per year.	24,5kWh/an
Carpet:	A
Hard Floor:	A
Dust Re-emission:	A
Noise Emission:	68dB
Nominal Power	700W
Voltage	220-240V
Frequency	50/60Hz

This method of measurement is based on the regulation of EU 666/2013.

DISPOSAL

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations.

Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling. The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

IMPORTE PAR

amc
