USER MANUAL AR5S31 ARDES

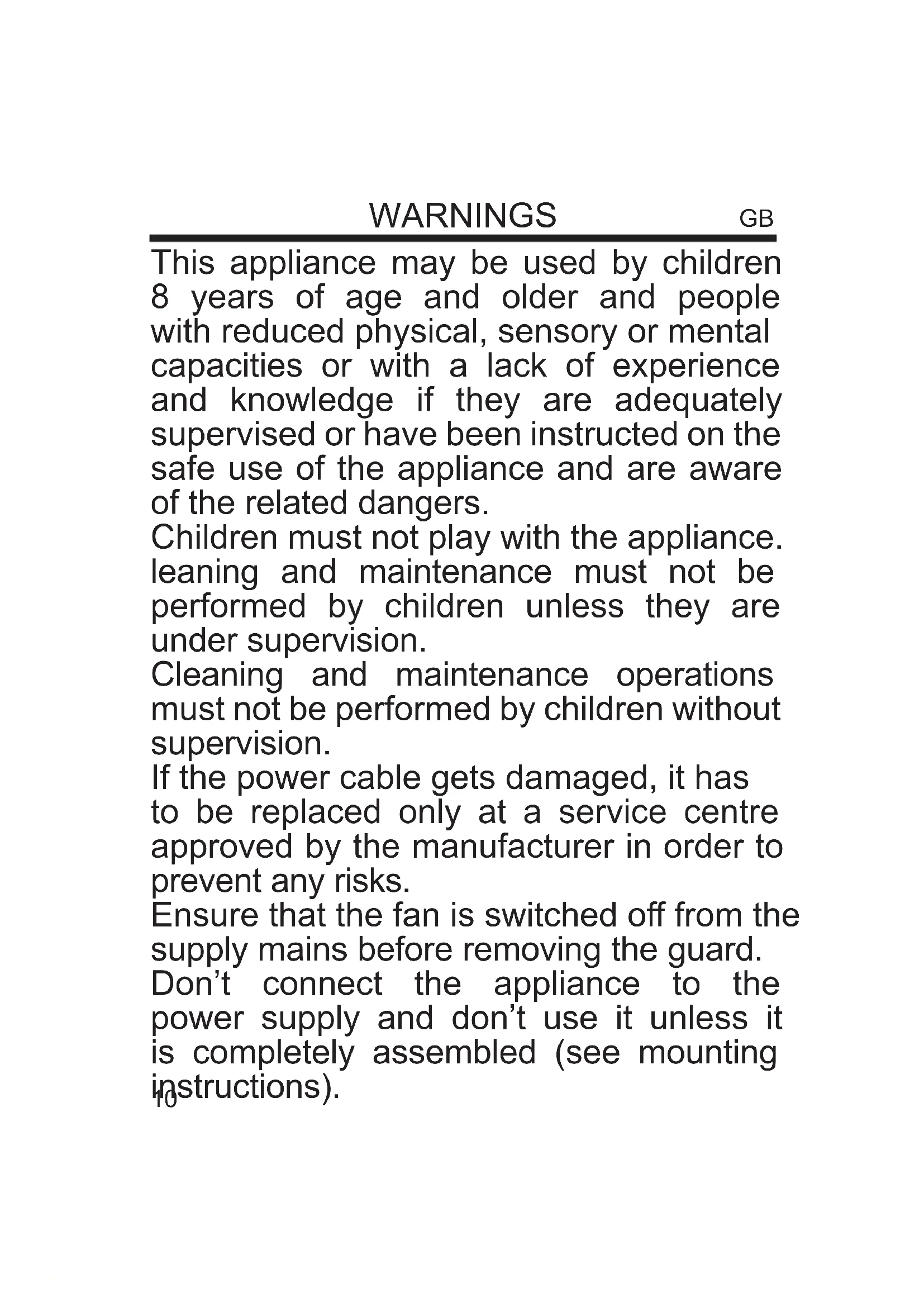

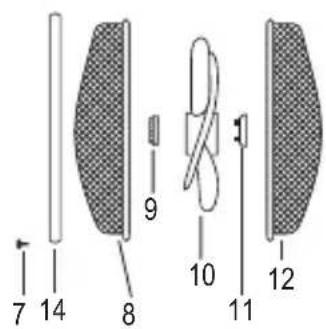

1. Mount the base on the main body xing it with
the 4 screws provided as shown in gure.
2. Unscrew the locking ring of the rear grille
(11) from the motor shaft (5) by turning it counterclockwise.
3. Insert the rear grille (12) on the motor shaft
(5) making sure that the handle on the back is facing upwards and the locking pins (A-B) are in the vertical holes of the rear grille. Screw the locking ring (11) by turning it clockwise.
4. Insert the fan (10) on the motor shaft (5) and
fasten the proper lock ring (9) by rotating counterclockwise.
5. Loosen the safety screw (7) of the closing ring (14) and place it on the
6. Position the front grille (8) on the rear one (12) and so that the ring
7. Once you have found the right position, tighten the safety screw (7).
A-B. Locking pin for the rear grille
