Brand	Ardes
Model	AR5A90L
Product Type	Ceiling Fan with Light
Blade Span	90 cm (approx.)
Number of Blades	5
Motor Type	AC (induction)
Speed Settings	3 (High, Medium, Low) via wall control
Light Fixture	E27 socket, max 60W (bulb not included)
Voltage / Frequency	220-240V ~ 50/60Hz
Installation Height	Minimum 2.3 m from floor to bottom of fan
Electrical Connection	Terminal block with line (brown), neutral (blue), light (red), earth (yellow/green)
Control Type	Wall-mounted rotary switch and separate light switch
Material	Metal body, glass decorative cover, plastic blades
Ceiling Support	Wood joist screws and anchors provided
Safety Features	Class I, grounded, overvoltage category III switch disconnection
Maintenance	Clean with soft dry cloth; do not immerse or use solvents
Warranty	24 months (subject to conditions)

Frequently Asked Questions - AR5A90L ARDES

What is the minimum ceiling height for installing the Ardes AR5A90L fan?

The fan must be installed at a height of at least 2.3 meters from the floor to the bottom of the fan.

Can I use the fan with a dimmer or timer?

No. The manual states that the appliance must not be supplied through an external switching device like a timer or connected to a circuit that is regularly switched on and off by the utility.

What type of light bulb does the fan use?

The fan uses an E27 base bulb with a maximum power of 60W. The bulb is not included.

How do I change the speed of the fan?

Use the wall-mounted rotary knob. Rotate it to select High, Medium, or Low speed. Turn to 'Off' to stop the fan.

How do I turn on the light?

Push the 'LIGHT' switch on the wall control to turn the light on or off.

Is professional installation required?

Yes. The manual states that the appliance must be installed by professionally qualified personnel.

Can children operate this fan?

The fan may be used by children aged 8 years and older if supervised or instructed on safe use. Children must not play with the appliance.

How do I clean the fan?

Before cleaning, turn off the fan and disconnect from power. Use a soft, dry cloth. Do not use water, solvents, or chemical cleaners.

What is the warranty period?

The fan comes with a 24-month warranty valid with a properly filled form and purchase receipt.

Can I install the fan on a sloped ceiling?

The manual does not specify sloped ceiling installation. The support plate is designed for flat ceilings with wood joists. Consult a professional for alternate mounting.

USER MANUAL AR5A90L ARDES

Line drawing of an open cardboard box with several small round objects inside (no text or symbols)

Simple line drawing of a U-shaped pipe with two hanging weights and a base, labeled '2' in the corner (no text or symbols on the diagram itself)

Hand holding a cup with an upward arrow, labeled '4' (no text or symbols on the cup itself)

Line drawing of a hand holding a funnel-shaped object, no text or symbols present

Line drawing of a hand holding a small object above a conical container (no text or symbols)

Line drawing of a hand adjusting a car wheel (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset view of a component (no text or symbols present)

Line drawing of a hand using a screwdriver to adjust or install a mechanical component (no text or symbols)

Hand-drawn sketch of a mechanical component with a circular top and base, no text or symbols present

This appliance may be used by children 8 years of age and older and people with reduced physical, sensory or mental capacities or with a lack of experience and knowledge if they are adequately supervised or have been instructed on the safe use of the appliance and are aware of the related dangers.

Children must not play with the appliance.

Cleaning and maintenance must not be performed by children unless they are under supervision.

Cleaning and maintenance operations must not be performed by children without supervision.

This appliance must be installed by professionally qualified personnel.

Since the installation of the equipment sets, the power of the network must be done, according to the installation rules, through flexible cable plug or by all pole switch that provide full disconnection under overvoltage category III conditions. Contacts opening distance shall not be less than 3 mm.

Equipment must be installed at the height of at least 2,3 meters from the floor (2,3 meters means from the floor to the bottom of the fan).

Warnings

ATTENTION : read this booklet carefully it contains important instructions for a safe installation, use and maintenance. Important instructions to be kept for future reference.

Remove the packing and make sure that the appliance is intact. In case of doubt do not use it and address to an after-sales service recommended by the manufacturer. Do not allow packaging materials like bags and staples can be reached by children.

Before connecting the appliance, check if the electrical voltage and frequency of the circuit correspond to those indicated on the appliance.

The manufacturer is not responsible for any eventual damages caused by improper or faulty use.

The unit must be connected to a good ground conductor.

Equipment must be installed at the height of at least 2,3 meters from the floor (2,3 meters means from the floor to the bottom of the fan).

Since the installation of the equipment sets, the power of the network must be done through flexible cable plug or by pole switch with contact opening distance not less than 3 mm.

For the installation of the apparatus used a cable type H05 VVF.

Before maintenance and cleaning operations turn off the product and disconnect from the mains power supply turning off the system switch.

This appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

If the appliance is out of work, switch it off without tampering it. If any repair is required please contact only our after-sales centres and ask for original spare parts. Otherwise safety of the appliance can be compromised.

The use of every electrical appliance calls for the awareness of some basic rules, such us:

-do not touch the appliance with wet hands or feet

-never expose the appliance to atmospheric conditions (rain, sun...)

Do not use the device in the presence of potentially explosive or flammable liquids or gases.

Do not leave the appliance plugged in when not in use. Swith it off and unplug it when it is not in use.

Technical informations

1. Screw terminal
2. Support rod
3. Electric cables
4. Upper cap
5. Screw for fixing the upper cap
6. Lower cap
7. Pin for fix the support rod
8. Pin's nut (n. 7)
9. Motor support
10. Motor
11. Control unit
12. Screws and washers for secur the blades (fixed on the motor
13. Blade
14. Decorative glass

Assembling

Simple line drawing of an open cardboard box with a cluster of small objects inside (no text or symbols)

Simple line drawing of a U-shaped pipe with two hanging weights and a base, labeled '2' in the corner (no text or symbols on the diagram itself)

Hand holding a cup with an upward arrow, labeled '4' (no text or symbols on the cup itself)

Line drawing of a hand holding a funnel-shaped object, no text or symbols present

Line drawing of a hand holding a small object above a conical container (no text or symbols)

Line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing a mechanical assembly with a magnified inset view of a component (no text or symbols present)

Line drawing of a hand using a screwdriver to adjust or install a mechanical component (no text or symbols)

Line drawing of hands holding a circular object with a ring, labeled '10' in corner (no text or symbols on the object itself)

Make sure you have all the components before beginning installation. To prevent damage, attach the motor to the support rod on a soft surface or use the polystyrene contained in the package.

-Open the carton box and take out the fan (fig. 1)

-Assemble the support plate on the ceiling using two or more screw anchors and appropriate washers. Attention: the provided screw are for wood joist. (fig. 2).

-Insert the support rod through the upper cap and lower cap.

-Insert the electric cables coming out from the motor through the support rod and connect them to the screw terminal placed on the top of support rod. NB: arrange the electrical connection as shown in fig. 3

-Fix the support rod to the motor using the pin and pin's nut (see Technical information - n° 7-8).

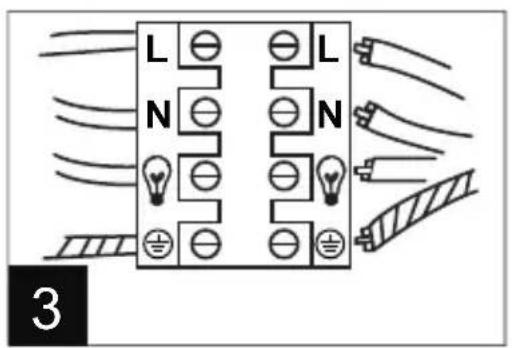

-Hang the fan to the hook on the support plate and connect the electrical cable coming from the ceiling to the screw terminal placed on the top of support rod. NB: arrange the electrical connection as shown in fig. 3

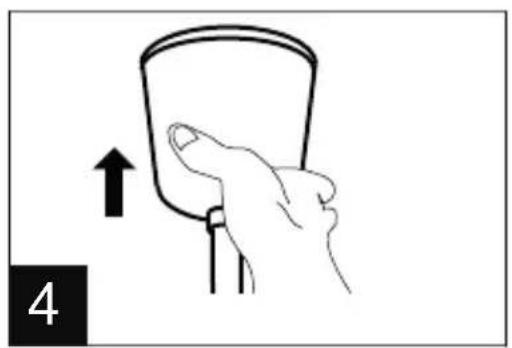

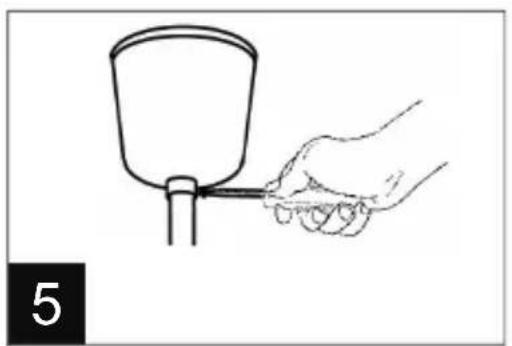

-Slide upwards the upper cap (fig. 4) and fix it with the screw (fig. 5)

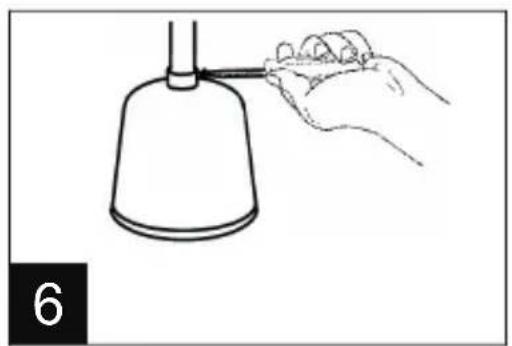

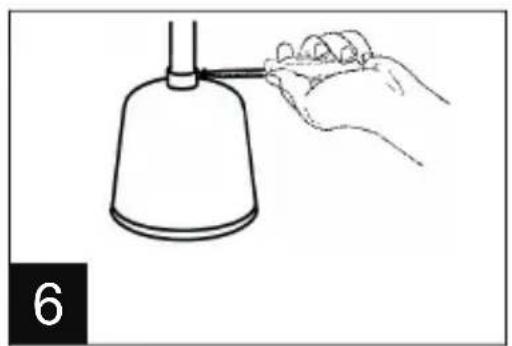

-Slide downwards the lower cap; it must be supported by the motor. Fix it with the screw (fig. 6).

-Remove the plastic retainer of the blades fastening screws located in the upper part of the motor body as shown in fig. 7.

-Center the slots on the blades with the heads of the blades fixing screws and slide the blades so that the head of the screws are positioned at the end of slot (fig. 8)

-Tighten the screw (fig. 9)

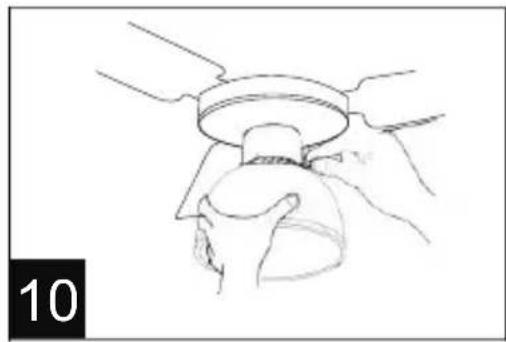

-Install the light bulb (E27 type Max 60W not provided) in the light holder -Install the decorative glass and fix it using the provided screws. Take care to do not tight the screws too much or the decorative glass can get broken (fig. 10).

ELECTRICAL CONNECTION:

1. Brown wire: line to motor
2. Blue wire: neutral
3. Red wire: light
4. Yellow/Green wire: earth connection
5. Wall speed control

Instructions for use

The ceiling fan is provided with wall speed control. To turn On the ceiling fan it's enough rotate the knob on wall speed control and select the desired speed:

Hi High speed

Med Medium speed

Low Low speed

To turn the ceiling fan Off rotate the knob in "Off" position.

To turn the light On push the "LIGHT" switch of the wall control.

Maintenance

Before carrying out the regular cleaning operations and before replacing the lamp turn off the fan and disconnect it from the electrical supply. For external cleaning use a soft and dry cloth.

DO NOT dip the device in water, or splash it with any other liquids.

DO NOT use solvents or any other chemical products for cleaning it.

GARANZIA

Condizioni

Terms and Conditions

The guarantee is valid for 24 months.

This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase.

The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.

After the guarantee has expired, the appliance will be repaired against payment.

The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.

Limits

All rights under this guarantee and any responsibility on our part will be voided if the appliance has been:

- mishandled by unauthorized persons

- improperly used, stored or transported.

The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.

If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.

USER INFORMATION

Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)", pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal".

The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other waste at the end of its service life.

The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste, or return it to the dealer in case they purchase a new device of equivalent type, at a one-to-one-ratio.

Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally-friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment.

Abusive disposal of the product by the user shall result in the application of administrative fines in accordance with the laws in force.
