USER MANUAL AR5EA30 ARDES

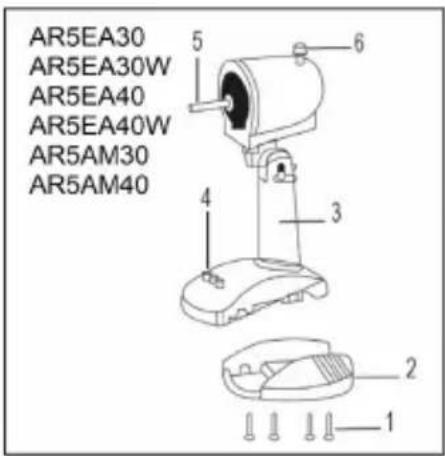

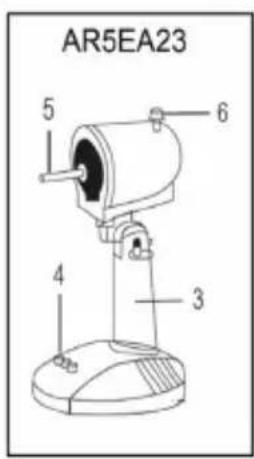

1. Mount the base on the main body xing it
with the 4 screws provided as shown in gure (mod. AR5EA30, AR5EA30W, AR5EA40, AR5EA40W, AR5AM30, AR5AM40).

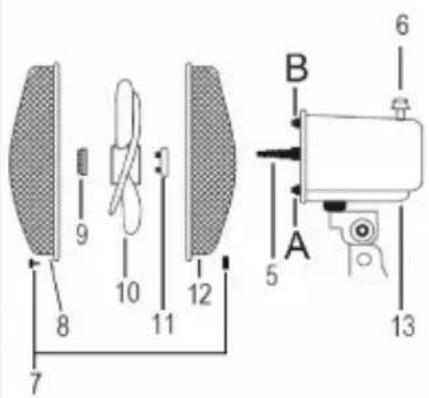

2. Unscrew the locking ring of the rear grille
(11) from the motor shaft (5) by turning it counterclockwise.
3. Insert the rear grille (12) on the motor shaft
(5) making sure that the handle on the back is facing upwards and the locking pins (A-B) are in the vertical holes of the rear grille. Screw the locking ring (11) by turning it clockwise.
4. Insert the fan (10) on the motor shaft (5) and fasten the proper lock ring
(9) by rotating counterclockwise.
5. Open the clips of the front grille (8) and place it on the back grille (12)
making sure that the logo on the central stud is placed horizontally, parallel with the oor.
6. Find the proper position to lock the clips and insert the safety screw
A-B. Locking pin for the rear grille14
