Product type	Microwave
Brand	Beko
Model	MOC20100BFB
Dimensions (H x W x D)	243 x 446 x 340 mm
Net weight	10 kg
Capacity	20 L
Power supply	230-240 V ~ 50 Hz
Input power	1100 W
Microwave output power	700 W
Operating frequency	2450 MHz
Number of power levels	6 (10% to 100%)
Turntable diameter	245 mm
Available colors	White, Black, Silver
Control type	Mechanical (rotary knobs)
Main functions	Cooking, reheating, defrosting
Timer	Up to 30 minutes
Safety lock system	Yes (automatic stop when door opens)
Grounding required	Yes (plug with ground)
Maintenance and cleaning	Clean with a damp cloth; glass turntable dishwasher safe
Repairability	Call a qualified technician for any repair
Environmental information	Recyclable product; do not discard with household waste

Frequently Asked Questions - MOC20100BFB BEKO

How to start cooking with this Beko microwave?

Place food in the oven and close the door. Turn the power knob to select the power level, then turn the timer knob to set the cooking time. Cooking starts automatically.

What utensils can I use in this microwave?

Use only microwave-safe utensils: heat-resistant glass, ceramic, microwave-safe plastic, paper towels. Avoid metal containers, aluminum foil, and metal trims.

What to do if the oven does not work?

Check that the oven is plugged in, the fuse is not blown, and the door is properly closed. Make sure the timer is set. If the problem persists, contact a qualified technician.

How to clean the inside of the microwave?

Wipe the walls with a damp cloth. For stubborn stains, use a mild detergent. Do not use steam cleaner or abrasive products. The glass turntable can be washed in the dishwasher.

Can I heat hard-boiled eggs or food in sealed containers?

No, never heat eggs in shell or whole hard-boiled eggs, they may explode. Do not use hermetically sealed containers, they may explode under pressure.

What are the available power levels?

Six levels: 10% (low), 20% (defrost), 42% (medium-low), 52% (medium), 73% (medium-high), 88% and 100% (high). Turn the knob clockwise to increase power.

How to avoid radio interference with this microwave?

Clean the door and seals, reorient the antenna of your receiver, move the microwave away from the receiver, or plug it into a different circuit.

What is the actual power of this microwave?

The input power is 1100 W, the output power (microwave) is 700 W at 2450 MHz.

Can I operate the oven empty?

No, never operate the oven empty, it could damage it. Make sure there is always food or a container of water inside.

How to remove bad odors from the microwave?

Place a bowl of water with lemon juice and zest in the oven, heat for 5 minutes at maximum power, then wipe the inside with a soft cloth.

USER MANUAL MOC20100BFB BEKO

CONTENTS

ENGLISH	3-15
FRANÇAIS	16-29
DEUTSCH	30-47
ESPÁÑOL 48-61
HRVATSKI	62-74
ČESKY	75-90
ITALIANO	91-105
POLSKI	106-122
ROMÁNă	123-142
PORTUGUES	143-156
NEDERLANDS	157-170
SLOVENSKý	171-185
LIETUVIÜK 186-197
EESTI	198-209
БългAPСКИ	210-227
SLOVENŠČINA	228-239
СРПСКИ	240-252
MAKΕΝΟHСΚΙ	253-269
SHQIPTARE	270-282
BOSANSKI	283-295

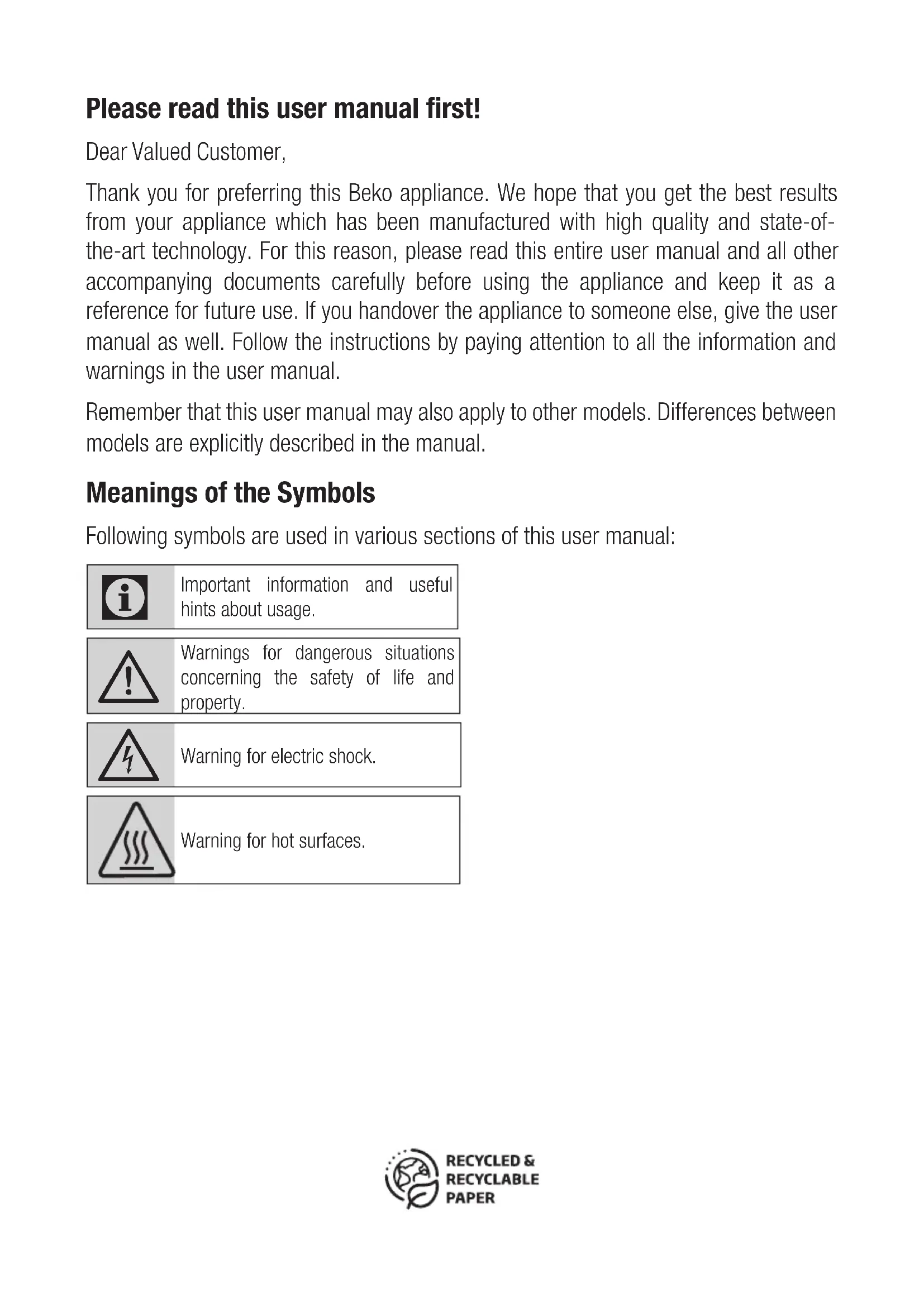

Please read this user manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

Warnings for dangerous situations concerning the safety of life and property.

Warning for electric shock.

Warning for hot surfaces.

1 Important safety and environmental instructions

Important Safety Instructions Read Carefully And Keep For Future Reference

1.1 Safety warnings

This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

• Beko Microwave Ovens comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.
• This appliance is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses
• By clients in hotels, motels and other residential type environments;

Bed and Breakfast type environments.

• Bed and Breakfast type environments.
• Microwave oven is intended used freestanding. It is not intended for industrial or laboratory use.
• Do not attempt to start the oven when its door is open; otherwise you may be exposed to harmful microwave energy. Safety locks should not be disabled or tampered with.
• The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
• Do not place any object between the front side and the door of the oven. Do not allow dirt or cleaning agent remnants to build up on the closure surfaces.
• Any service works involving removal of the cover that provides protection against exposure to microwave energy must be performed by authorized persons/service. Any other approach is

1 Important safety and environmental instructions

dangerous.

• Your product is intended for cooking, heating and defrosting food at home. It must not be used for commercial purposes.
• Your oven is not designed to dry any living being.
• Do not use your appliance to dry clothes or kitchen towels.
• Do not use this appliance outdoors, in bathrooms, in humid environments, or in places where it can get wet.
• No responsibility or warranty claim shall be assumed for damages arising from misuse or improper handling of the appliance.
• Never attempt to dismantle the appliance. No warranty claims are accepted for damage caused by improper handling.
• Only use the original parts or parts recommended by the manufacturer.
• Do not leave this appliance unattended while it is in use.
• Always use the appliance on a stable, flat, clean, dry, and non-slip surface.
• The appliance should not be operated with an external clock timer

or separate remote control system. - Before using the appliance for the first time, clean all parts. Please see the details given in the "Cleaning and Care" section. - Operate the appliance for its intended purpose only as described in this manual. - The appliance becomes very hot while it is in use. Pay attention not to touch the hot parts inside the oven. - Do not operate the oven empty. - Cooking utensils may get hot due to the heat transferred from the heated food to the utensil. You may need oven gloves to hold the utensil. - Utensils shall be checked to ensure that they are suitable for use in microwave ovens. - Do not place the oven on stoves or other heat-generating appliances. Otherwise, it may be damaged and the warranty becomes void. - Steam may come out while opening the covers or the foil after cooking the food. - The appliance and its accessible surfaces may be very hot when the appliance is in use. - Door and outer glass may be very

1 Important safety and environmental instructions

hot when the appliance is in use.

• Make sure that your mains power supply complies with the information supplied on the rating plate of the appliance.
• The only way to disconnect the appliance from the power supply is to remove the power plug from the power outlet.
• Use the appliance with a grounded outlet only.
• Never use the appliance if the power cable or the appliance itself is damaged.
• Do not use this appliance with an extension cord.
• Never touch the appliance or its plug with damp or wet hands.
• Place the appliance in a way so that the plug is always accessible.
• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.
• Make sure that there is no danger that the power cable could be accidentally pulled or that someone could trip over it when the appliance is in use.
• Unplug the appliance before each

cleaning and when the appliance is not in use.

• Do not pull the power cable of the appliance to disconnect it from its power supply and never wrap its power cable around the appliance.
• Do not immerse the appliance, power cable, or power plug in water or any other liquids. Do not hold it under running water.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• Remove the wire strings and/or metal handles of paper or plastic bags before placing bags to the oven.
• If smoke is observed, switch off or unplug the appliance if safe to do so and keep the door closed in order to stifle any flames.
• Do not use microwave oven for storage. Do not leave paper items, cooking material or food inside the oven when it is not being used.
• The contents of feeding bottles and baby food jars should be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

1 Important safety and environmental instructions

• This appliance is a Group 2 Class B ISM equipment. Group 2 contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. Class B equipment is suitable for use in domestic establishments and establishments directly connected to a low voltage power supply network.
• Do not use cooking oil in the oven. Hot oil may damage the components and materials of the oven, and it may even cause skin burns.
• Pierce food with thick crust such as potatoes, courgettes, apples and chestnuts.
• Appliance must be placed so that the rear side is facing the wall.
• Before moving the appliance, please secure the turntable to prevent damage.
• Eggs in their shell and whole hard-boiled eggs must not be heated in microwave ovens since they may explode, even after microwave heating has ended.

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

• The oven should be cleaned regularly and any food deposits removed.
• There should be at least 30 cm of free space above the top surface of the oven.
• Do not overcook foods; otherwise, you may cause a fire.
• Do not use chemicals or steam-assisted cleaners to clean the appliance.
• Extreme caution is advised when the appliance is used near children or persons with restricted physical, sensory, or mental abilities.
• This appliance can be used by

1 Important safety and environmental instructions

children aged 8 years and above, and by persons with limited physical, sensory, or mental capabilities, or those lacking experience and knowledge, provided they are supervised or have been given instruction concerning safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be performed by children unless they are older than 8 and supervised.

• Danger of choking! Keep all packaging materials away from children.
• Keep the product and its power cord out of reach of children under 8 years old.
• Do not cook food directly on the glass tray. Place food in or on appropriate kitchen utensils before putting them in the oven.
• Metallic containers for food and beverages are not allowed during microwave cooking. Otherwise, sparking may occur.
• This product is not designed to be built-in. Do not place the product in a cabinet or enclosure while it is in use.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface, which could adversely affect the life of the appliance and possibly result in a hazardous situation.
• The appliance shall not be cleaned with a steam cleaner.
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
• WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. Cleaning: Do not place the appliance in water or other liquids. Clean the housing only with a sponge/cloth moistened in warm, soapy water. Do not use harsh, abrasive cleaners. See the Cleaning and care and Storage sections for detailed cleaning instructions.

1 Important safety and environmental instructions

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling

of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National

Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your microwave oven

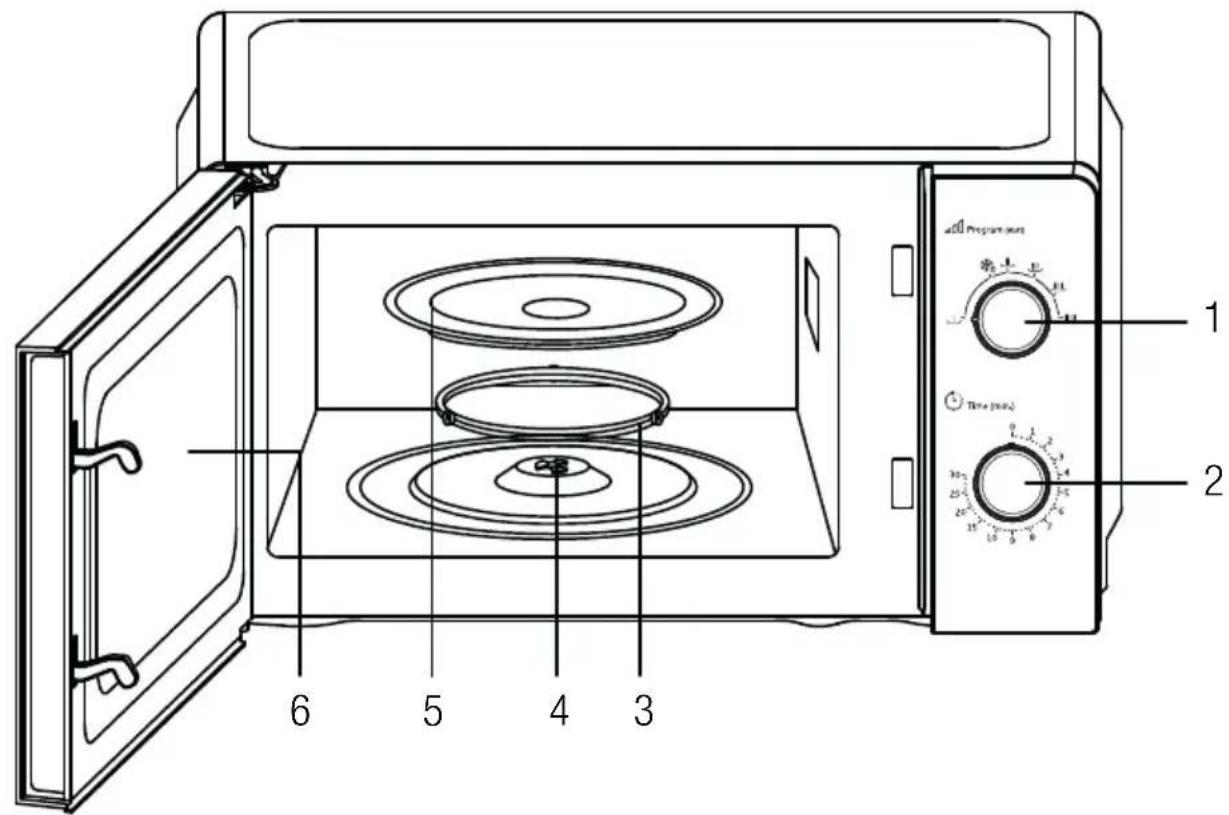

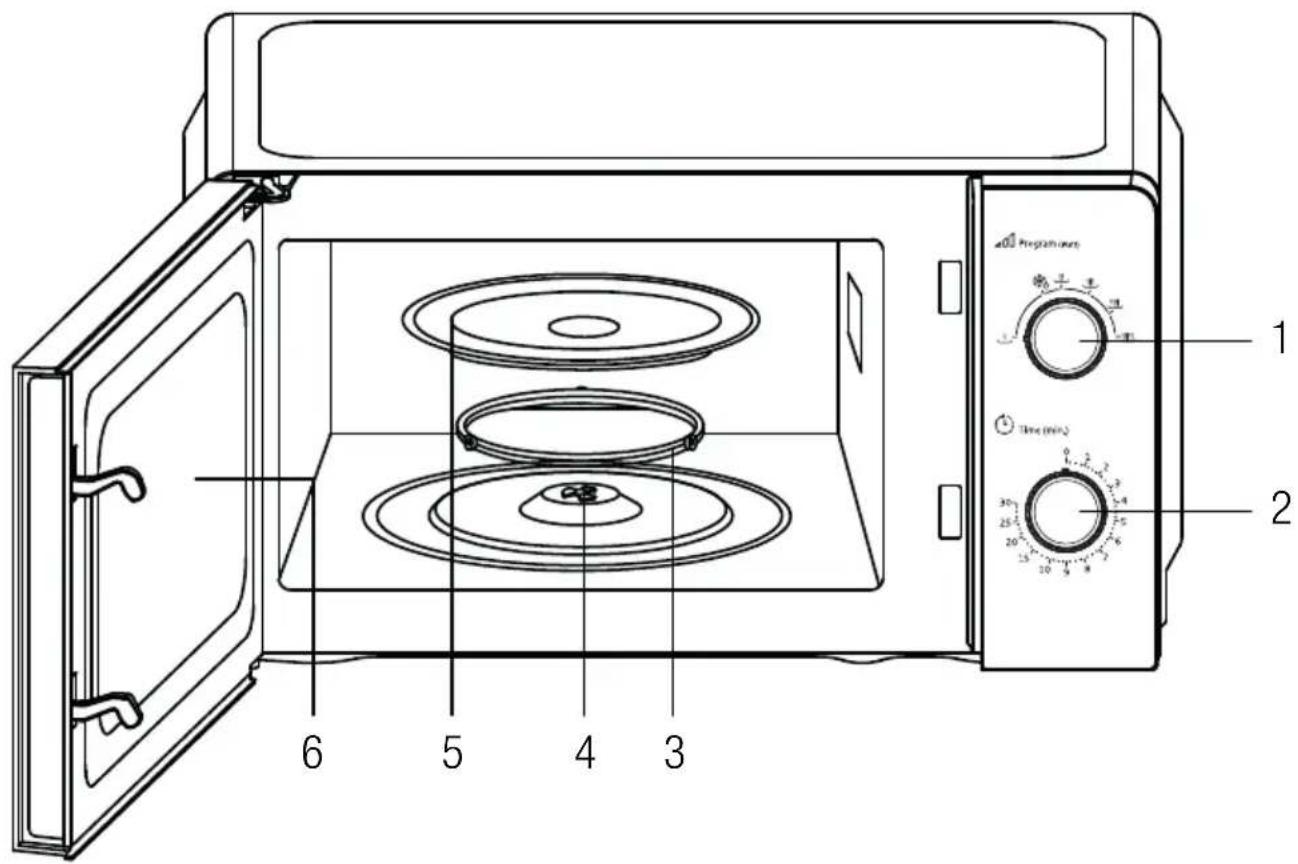

2.1 Overview

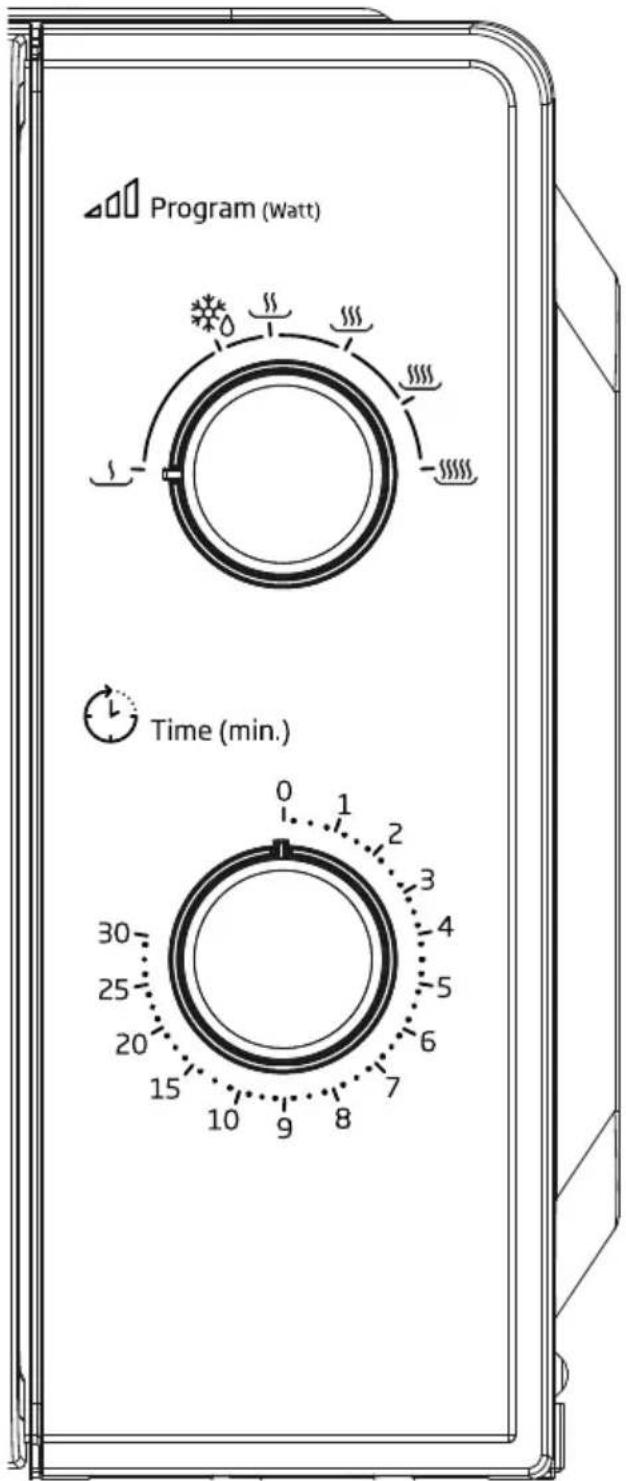

Controls and parts

1. Power knob
2. Timer knob
3. Roller ring
4. Shaft
5. Glass tray
6. Oven window

2.2 Technical data

Rated Voltage 230-240V~,50Hz
Rated Input 1100W (Microwave)
Rated Output 700W
Microwave frequency 2450MHz
Microwave power level 6
Outside dimensions (H*W*D) mm	243*446*340 mm
Glass turntable 245 mm
Oven capacity 20 L
Net weight 10 kg
Color White / Black / Silver

Technical and design modification rights are reserved.

Markings on the appliance or the values stated in other documents supplied with the product are values obtained under laboratory conditions as per relevant standards. These values may vary according to the usage of the appliance and ambient conditions.

3.1 Installation

1. Make sure that all the packing materials are removed from the inside of the door.

1. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
2. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
3. For correct operation, the oven must have sufficient airflow. Allow 20 cm of space above the oven, 10 cm at the back, and 5 cm on both sides. Do not cover or block any openings on the appliance. Do not remove the feet.
4. Do not operate the oven without the glass tray, roller support, and shaft in their proper positions.
5. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
6. The socket must be readily accessible so that it can be easily unplugged in an emergency.
7. Do not use the oven outdoors.

3.2 Radio interference

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean the door and sealing surface of the oven.
2. Reorient the receiving antenna of the radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that the microwave oven and receiver are on different branch circuits.

3.3 Microwave cooking principles

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

3.4 Grounding instructions

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING: Improper use of the grounding plug can result in a risk of electric shock.

3 Installation and connection

If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.

4	Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

3.5 Utensils guide

1. Microwave cannot penetrate metal. Only use utensils that are suitable for use in microwave ovens. Metallic containers for food and beverages are not allowed during microwave cooking. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
4. Round/oval dishes rather than square/oblong ones are recommended, as food in corners tends to overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54 cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

Cookware Microwave
Heat-Resistant Glass Yes
Non Heat-Resistant Glass No
Heat-Resistant Ceramics Yes
Microwave-Safe Plastic Dish Yes
Kitchen Paper Yes
Metal Tray No
Metal Rack No
Aluminum Foil & Foil Containers No

4 Operation

4.1 Control panel

The control panel consists of two function operators. One is a timer knob, and another a power knob.

Power knob

You use this power knob to choose a cooking power level. It is the first step to start a cooking session.

Timer knob

Offer visual timing settings at easy turn of your thumb to select a desired cooking time up to 30 minutes per cooking session.

Microwave cooking

For pure microwave cooking, there are six power levels from which to choose one as best fit to do the job at hand.

Power level increases with the knob turning clockwise. The power levels can be classified as the following:

	Power output Description
1	10% High
2	88% M. High
3	73% Med
4	52% M. Low
5	42% Defrost
6	20% Low

4.2 Operation

To start a cooking session,

1. Place food in oven and close the door.
2. Turn power knob (1) to select a power level.
3. Use timer knob (2) to set a cooking time

As soon as the timer is turned, oven starts cooking. When selecting time for less than 2 minutes, turn timer past 2 minutes and then return to the correct time.

CAUTION: Always return timer back to zero position if food is removed from oven before the set cooking time is complete or when oven is not in use. To stop oven during cooking process, push the door release button or open the door by the handle.

5.1 Cleaning and care

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

WARNING: Never immerse the appliance or its power cable in water or in any other liquid.

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Wait for the appliance to completely cool down.
3. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
4. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
5. Wipe the both sides of the door and window, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
6. A steam cleaner is not to be used.
7. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
8. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
9. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
10. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
11. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
12. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
13. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.
14. When the microwave oven with grill function is first used, it may produce slight smoke and smell. This is a normal phenomenon because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.

5.2 Storage

• If you do not intend to use the appliance for a long time, please store it carefully.
• Please make sure that the appliance is unplugged, cooled down and totally dry.
• Store the appliance in a cool and dry place.
• Keep the appliance out of the reach of children.

5.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.

5 Cleaning and care

• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it non-operational or cause permanent damage.

6 Troubleshooting

Problem Possible solution
If the oven fails to operate	Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
	Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
	Check to ensure that the control panel is programmed correctly and the timer is set.
	Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.
If none of the above rectifies the situation, then contact a qualified technician. Do not try to adjust or repair the oven yourself.

Dear customer,

3.5 Tool guide

Blue = NEUTRAL

Brown = LIVE

Maroon = LIVE (PHASE)

3.5 Tool guide

Green/yellow = EARTH

Blue = NEUTRAL

Brown = PHASE

IMPORTANT: Before using the appliance, read the instructions carefully and keep them for future reference.

The oven must be cleaned regularly, and any leftover food should be removed. There must be at least 30 cm of free space above the top surface of the oven. Do not cook food directly on the bottom; it may cause a fire. Do not use chemical or abrasive cleaners for cleaning.

1 Important safety instructions and environmental protection

CLEANING of the appliance.

You should be especially careful if you use the appliance near children or people with reduced physical, sensory, or mental capabilities.

• The appliance can be used by children aged 8 and above and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Danger of burns! Keep the oven door and accessible parts away from children.

Store the product and its packaging in such a way that they are not accessible to children under 8 years of age.

Do not cook food directly on the glass tray. Place the food in/on a suitable microwave-safe dish before placing it in the oven.

During cooking in the microwave oven, the use of metal containers for food and drinks is not allowed. Otherwise, sparks may occur.

This product is not intended for use by children. Do not place the product in a cabinet or corner while it is in use.

• Maintenance of

1 Important instructions for safety and environmental protection

The oven may become hot during operation, which could cause burns if touched. Be careful to avoid any dangerous situation.

• The appliance should not be placed near a heat source. For heating food in the microwave oven, it may cause burns, so care must be taken when handling containers.
• WARNING: When the appliance operates in combination mode, children should only use the oven under adult supervision due to the high temperatures generated.
• Cleaning: Do not place the oven in water or other liquids. Cleaning: Only clean the exterior

with a damp cloth soaked in warm soapy water. Do not use abrasive or harsh cleaning agents. Follow the detailed instructions for cleaning and maintenance.

1.2 Compliance with the WEEE Directive regarding the disposal of waste products:

The product complies with the requirements of the EU Directive on waste electrical and electronic equipment (2012/19/EU). This product bears the classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that the product must not be disposed of with other unsorted household waste at the end of its useful life. The used device

must be returned to a designated collection point for recycling of electrical and electronic equipment. To find these collection points, please contact your local authority or the retailer from whom the product was purchased. Every household plays an important role in the collection and recycling of used equipment. Proper disposal of used equipment helps prevent potential negative effects on the environment and human health.

1 Important instructions for safety and environmental protection

1.3 Compliance with the Directive restricting the use of certain hazardous substances

The product you have purchased complies with the requirements of the EU Directive restricting the use of certain hazardous substances (2011/65/EU). It does not contain any of the harmful and banned materials described in the Directive.

1.4 Information about the packaging

The product packaging is made of recyclable materials in accordance with national

legislation. Do not dispose of packaging materials with household or other waste. Take them to a packaging collection center designated by local authorities.

2 Your microwave oven

2.1 Parts

Control panel and parts

1. Power cord
2. Turntable
3. Glass tray
4. Bowl
5. Glass tray
6. Oven window

2.2 Technical data

HOMHaJIHo HApTeXeHne 230-	240V~,50Hz
HOMHaJIeH BxOД 1100W (MnK	roBbJIHOBa)
HOMHaJIHa MoUHocT 700W
YeCTOTA 2450MXu
HnBO Ha MoUHocT 6
Вьнши pa3Мери (Висоуна *ширINA *Дьбочина) MM	243*446*340 MM
Вьртуso ce StbКло 245 MM
КаразитET Ha Φурнata	20 п
Hetno TerJIo 10 Kr
ЦВЯТ БЯП /ЧерЕн /С repeБьрен

Technical rights and rights to change the design are reserved.

The markings on the device or the values, indicated in other documents, provided with the product, are values obtained in laboratory conditions according to the relevant standards. These values may vary depending on the use of the device and the conditions of the environment.

3.1 Installation

1. Make sure that all packaging material is removed from the inside of the door.

WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches, and dents inside the oven or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.

1. This microwave oven must be placed on a flat, stable surface, to hold the weight of the oven and the hottest food that may be cooked in the oven. 3. Do not place the oven in a place where heat, moisture or high humidity are generated, or near combustible materials. 4. For proper operation, the oven must have sufficient air flow. Leave 20 cm space above the oven, 10 cm at the back and 5 cm on both sides. Do not cover or block any of the openings of the device. Do not remove the feet. 5. Do not operate the oven if the glass tray, roller ring or shaft are not in their correct positions.
2. Make sure that the power cord is not damaged and does not run under the oven or over a hot or sharp surface.
3. The socket, into which it is plugged, must be easily accessible, so that it can be unplugged quickly in case of an emergency. 8. Do not use the oven outdoors.

3.2 Interference

The operation of the microwave oven may cause interference with the operation of your radio, television, or other electronic equipment.

When interference occurs, it can be reduced or eliminated by taking the following measures:

1. Clean the door and the sealing surface of the oven. 2. Reorient the receiving antenna. 3. Reposition the microwave oven in relation to the receiver. 4. Move the microwave oven away from the receiver. 5. Plug the microwave oven into a different outlet so that the microwave oven and the receiver are on different electrical circuits.

The wires in the mains lead are colored in accordance with the following code:

Green and yellow = Earth

Blue = Neutral

Brown = Live

3.3 Principles for cooking with the microwave oven

1. Prepare the food carefully. Place the remaining parts outside the oven. 2. Pay attention to the cooking time. Cook for the shortest possible recommended time and

add a little more if necessary. Overcooked food can catch fire or be ruined.

3. Stir the food during cooking. Stirring the food prevents burning and helps it cook evenly. 4. Turn the food like meat and hamburgers during cooking in the microwave oven to speed up the cooking of such food. Large pieces of food like poultry should be turned over at least once. 5. Turn the food like cutlets in the middle of cooking and change their positions in the oven.

3.4 Earthing instructions

This appliance must be earthed. This oven has an earthing cable with a plug. The plug must be connected to a wall socket that is properly installed and earthed. The earthing system allows the discharge of electric current leakage in case of a short circuit and reduces the risk of electric shock. Do not use an electrical outlet that is intended only for the oven. Working with high voltage is dangerous and can lead to fire or other accidents that could damage the oven.

WARNING:

Improper grounding of the device may lead to electric shock.

If you have any questions regarding grounding and electrical instructions, consult a qualified electrician or service personnel.

The manufacturer and/or distributor are not responsible for damage caused by the use of non-compliant equipment that may occur if the electrical connection procedures are not followed.

3.5 Cookware Guide

1. Microwaves cannot pass through metal. Use only cookware that is suitable for use in a microwave oven. When using a microwave oven, the use of metal containers for food and drinks is not allowed. This requirement does not apply if the manufacturer specifies the dimensions and format of metal containers suitable for use in the microwave oven.
2. Microwaves cannot pass through metal, so metal utensils or utensils with metal trim should not be used.
3. Do not use recycled paper products when cooking in the microwave oven, as they may contain small metal fragments that could cause sparks and/or fire.
4. Stir or turn the food quickly, as soon as the square/rectangular containers are used, because the food in them tends to overcook.

3 Installation and Connection

1. Tight ends of aluminum foil can be used to prevent overcooking of exposed parts. But be careful not to use too much foil, and keep a distance of 1 inch (2.54 cm) between the aluminum foil and the walls.

The following is a brief guide to help you choose the appropriate cookware.

WARNING: Never use gasoline, solvents, abrasive cleaners, metal objects, or sharp objects for cleaning and maintenance.

WARNING: Never immerse the appliance in water or any other liquid.

1. Unplug the appliance and remove the plug from the socket. 2. Wait for the appliance to cool completely. 3. Keep the interior of the oven clean. Wipe with a damp cloth if there are spills or splatters. The oven can be cleaned with a mild detergent if it is very dirty. Avoid using abrasive cleaners or sharp objects.

Cleaners, as they may cause discoloration, marking, and damage to the surface of the door.

4. The surface of the furnace should be cleaned with a damp cloth. Do not allow water to drip from the ventilation openings, to prevent damage to the furnace parts. 5. Clean the door and the two sides of the door and the seal, the door fittings and the parts under it with a damp cloth after each use. Do not use abrasive cleaning agents. 6. Do not use a steam cleaner. 7. Do not allow the control panel to get wet. Clean it with a soft damp cloth. Leave the furnace door open to prevent accidental switching on during cleaning. Do not clean the control panel. 8. If dirt accumulates around and in the door of the furnace, wipe it off

with a damp cloth. This may happen when the microwave furnace has been operating in very humid conditions. This is normal.

1. In some cases, you may need to remove the glass tray for cleaning. Remove the tray and wash it with warm soapy water or in a dishwasher.
2. The rack and the bottom of the furnace should be cleaned regularly to prevent the accumulation of dirt. It is sufficient to wipe the entire surface of the furnace with a soft cloth. The rack can be removed and washed with warm soapy water or in a dishwasher. When you remove the rack for cleaning, make sure you install it back in the correct position.
3. To remove any remaining odors in your furnace, place a bowl of water with lemon juice in a deep dish suitable for microwave furnaces and run the furnace for 5 minutes in microwave mode. Then wipe it well and dry it with a soft cloth. 12. Contact an authorized service center when the furnace lamp needs to be replaced. 13. Do not dispose of the appliance with household waste; old furnaces must be disposed of in special municipal centers.
4. When the microwave furnace is used in grill mode, there may be a small amount of smoke and odor, which will disappear after some time of use.

5.2 Storage

• If you do not intend to use the appliance for an extended period of time, store it carefully. Make sure the appliance is unplugged, cooled down, and completely dry.
• Store the appliance in a cool and dry place. Keep the appliance away from children.

5.3 Handling and transport

• During operation and transport, carry the appliance in its original packaging. The packaging protects the appliance from physical damage. Do not place heavy items on top of the appliance or its packaging. The appliance may be damaged.
• Releasing the appliance may cause it to malfunction or be damaged.

6 Troubleshooting

5.3 Handling and transport

• During handling and transport, carry the appliance in its original packaging. The packaging protects the appliance from physical damage.

Do not heat water.

Do not leave food items, materials for cooking or storing in the microwave oven when it is not in use.

• The contents of feeding bottles and baby food jars must be stirred or shaken and the temperature checked before consumption to avoid burns.
• This appliance is classified as group 2 class B ISM equipment. Group 2 includes all ISM (industrial, scientific and medical) equipment in which radio frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the processing of materials, and equipment for spark erosion. - For appliances intended for household use and similar establishments directly connected to a low voltage mains supply. Do not use the appliance for

cooking in the microwave. The hot oil may damage the elements and materials of the oven, and may also cause skin burns.

Avoid storing food with a thick skin, such as potatoes, sausages, apples, and chestnuts.

Place the appliance in such a position that its rear side is turned towards the wall.

• When placing the appliance, make sure the floor is not damaged.

Eggs with shells and whole hard-boiled eggs should not be heated in microwave ovens because they may explode, even after microwave heating has ended.

WARNING: If the surface of the microwave oven is damaged, it must not be used until it is repaired by a qualified person.

1 Safety instructions and environmental protection

WARNING:

It is dangerous for anyone other than a qualified person to carry out any service or repair operation that involves the removal of a cover which provides protection against exposure to microwave energy.

WARNING:

Food with a thick skin should not be heated in sealed containers because they may explode.

The microwave must be cleaned regularly and any food residue must be removed. There must be at least 30 cm of free space above the top surface of the microwave. Do not leave food in the microwave for a long time, as it may catch fire. Do not clean the appliance with steam cleaners or cleaning agents. Be especially careful when using the appliance near children and persons who have

reduced physical, sensory, or mental capabilities. This device may be used by children aged 8 and above, as well as by persons with reduced physical, sensory, or mental capabilities, provided they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and maintenance must not be performed by children unless they are over 8 years old and are supervised.

DANGER! Packaging materials must be kept away from children.

-Due to the high temperatures that occur when using the grill and combination modes, children may use these modes only

1 Important safety and environmental instructions

under adult supervision.

The appliance and its power cord must not be accessible to children under 8 years old. Do not place food directly on the glass turntable. Place the food in a suitable microwave-safe container before putting it in the microwave. It is not allowed to place metal utensils for food and drinks in the microwave oven. Otherwise, sparks may occur. The microwave oven must not be placed in a cabinet that is not in accordance with the installation instructions. Failure to maintain the appliance in good condition may cause damage to the surface, which could adversely affect the life of the appliance and possibly lead to a dangerous situation. The appliance must not be

cleaned with a steam cleaner. The heating of liquids in the microwave oven can cause delayed boiling, so care must be taken when handling the container.

WARNING: When the appliance is used in combination mode, children should only use the appliance under adult supervision due to the high temperatures generated.

Cleaning: Do not immerse the appliance in water or other liquids. Clean the interior only with a soft cloth or sponge dampened in warm water with dish soap. Do not use abrasive or harsh cleaning agents. See the detailed cleaning and maintenance instructions.

1.2 Compliance with the Waste Electrical and Electronic Equipment (WEEE) Directive and disposal of waste product:

This product complies with the EU Directive on waste electrical and electronic equipment (2012/19/

1 Important safety and environmental instructions

EU). This product bears the classification symbol for waste electrical and electronic equipment.

This symbol indicates that the product must not be disposed of with other household waste at the end of its service life.

The appliance is intended to be used in the household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments. It is not intended for industrial use. The appliance must be connected to a suitable socket with protective earth. If the socket does not have such a protective earth contact, connect the appliance to a separate earth according to the regulations. If you are not sure whether your socket has a protective earth contact, ask a qualified electrician or the dealer from whom you purchased the product. Every household plays an important role in preserving the old appliance. Proper use of the appliance helps to prevent potential negative consequences for the environment and human health.

1.3 In accordance with the Directive on the restriction of hazardous substances (RoHS)

The product you have purchased is in compliance with the EU Directive on the restriction of hazardous substances (2011/65/EU). It does not contain the prohibited materials listed in the Directive.

WARNING:

Never immerse the appliance or the power cord in water or any other liquid.

1. Unplug the appliance and let it cool down completely. 2. Wait for the appliance to cool down completely. 3. Clean the inside of the oven with a damp cloth. Wipe it with a damp cloth if food or liquids have spilled on the oven walls. Use a mild detergent if the oven is very dirty. Avoid abrasive cleaners as they may cause scratches, stains, or damage to the surface of the door. 4. The outer surface of the oven must be cleaned with a damp cloth. Do not allow water to enter the ventilation openings to avoid damaging the oven's components. 5. Wipe the two side doors and the glass, the door gasket and the parts of the appliance with a damp cloth to remove stains from splashes. Do not use abrasive cleaning agents. 6. Do not use steam cleaners.

1. Do not allow the control panel to become wet. Clean it with a soft damp cloth. Leave the oven door open to avoid accidentally activating any function while cleaning the control panel.
2. If moisture appears inside or around the oven door, wipe it with a soft cloth. This may happen when the microwave oven operates in humid conditions. This is quite normal. 9. In some cases, you will need to remove the glass tray and clean it. Wash the tray in warm water with detergent or in a dishwasher. 10. The turntable ring of the oven must be cleaned regularly to prevent the appearance of mold. It is sufficient to wipe the surface with a soft cloth and a mild detergent. The ring can be washed in water with detergent or in a dishwasher. When you remove the ring from the oven for cleaning, make sure you put it back correctly in place. 11. To remove unpleasant odors from the oven, place a bowl of water with lemon juice in a shallow dish that can be used in the microwave oven and run the oven for 5 minutes in microwave mode. Then wipe it well and dry it with a soft cloth.
3. Please contact the regional service center if the burner in the furnace needs to be replaced. 13. Please do not remove the old burner together with the flue from the household; the old furnaces need to be taken to recycling centers.

5 Cleaning and maintenance

1. When the micro-burner furnace with the roasting function is first used, it may produce some smoke and odor. This is a normal phenomenon because the furnace is made of sheet metal coated with oil for protection, and the new furnace will produce smoke and odor that is created by the burning of the protective oil. This phenomenon will disappear after a certain period of use.

5.2 Storage

• If you do not plan to use the device for a long time, please store it carefully.
• Please check that the device is unplugged, clean, and completely dry.
• Leave the device in a dry and clean place.
• Store the device in places inaccessible to children.

5.3 Handling and transport

During travel and transport, carry the device packed in the original packaging. The packaging protects the device from possible damage. Do not place heavy items on the device or on the packaging. The device may be damaged. Handle the device with care to avoid damage and defects.

6 Cleaning and maintenance

ПюбLEM Можно решения
Дokолку пechа та не павOTи	Пюверete дani e добpo ппклунец воштесер. ДOKOLКУ He e, ИЗва对接е го ппклунокот odштесерот, поекajte 10 ceунди и NOВТОРноцрто ппклунеуе го.
	Пюверete дani e залален Небов осигувачи ини поекуен Небов пекиньач. ДOKOLКU се чини дeca тиpe paBOTAT повлино, Тостра对接е гоштесерот сдруг anapat.
	Пюверete дani koHTPOЛнata tabla e павино поогамира на и дani тajмерот e постaven.
	Пюверete дani врата eцрсTo 3aTВорета, ВКЛчУВajку ro сИгунOCHNot сисем за зakлунуваъе на врата. ВсspOTINBHO, мNKрбразовата сөргийа Нemaда STPyн ИЗ пechа-ta.
Ако НИшTO od ropенавendeHOTо He ja reши сИтуациJAтA, TORAШ KoNTAKТрajte KBалиФикУВан texнчар. He obidувaje седа ja писпособпeуппллппправипппппппсamITE.

Blu = NULI

Kafe = FAZA

3.3 How to prepare food in the microwave oven

Power level (WATTS) Time (MINUTES)*

Mode ENERGY CONSUMPTION (WATT) PERIOD (MINUTES)*

Mode ENERGY CONSUMPTION (WATT)

PERIOD (MINUTES)*

Mode POWER CONSUMPTION (WATT)

TIME (MINUTES)*

Mode ENERGY CONSUMPTION (W)

PERIOD (IN MINUTES)*

Mode of operation ENERGY CONSUMPTION (watts) PERIOD (MINUTES)*

Mode POWER CONSUMPTION (WATTS)

TIME PERIOD (MINUTES)*

Mode ENERGY CONSUMPTION (WATT)

PERIOD (MINUTES)*
