USER MANUAL ProClub MC 8030 GRUNDIG

Hair and Beard Clipper

User Manual

Black silhouette icon of a bearded man's head (no text or symbols)

MC 8030

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Illustration showing various hairpin components including a pair of scissors, a cord with a strap, and a box with a red arrow indicating direction or movement.

2 1 2

3 20 minutes

4

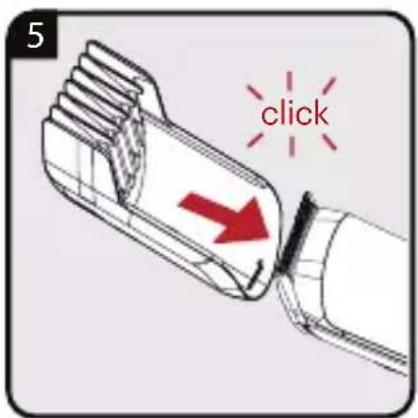

5 click

Illustration of a hand holding a hairbrush with a red arrow indicating compression (no text or symbols)

7 3-15 mm 18-30 mm

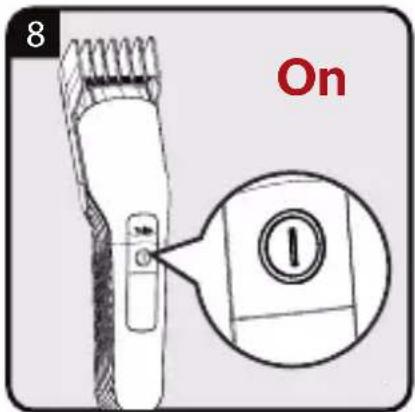

8 On

Illustration of a person applying a hair brush to their face (no text or symbols present)

Illustration of a person applying a hair product to their face, no text or symbols present

11 TURBO Turbo

Illustration of a person applying a hair brush to their face (no text or symbols present)

Illustration of a person applying a hair brush to the ear (no text or symbols present)

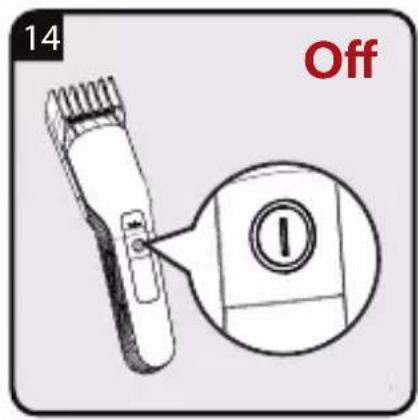

14 Off

Diagram of a mechanical component with a red arrow indicating direction, no text or symbols present

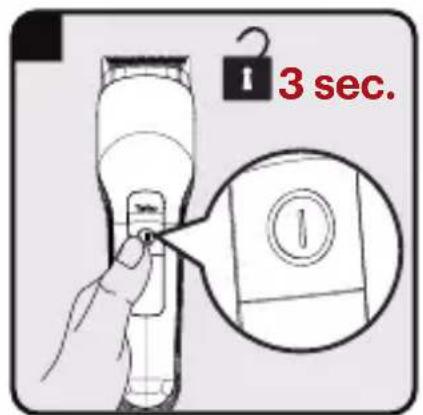

16 3 sec.

17-8

3 sec.

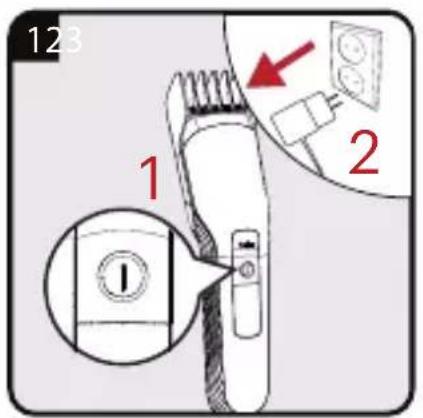

123 1 2

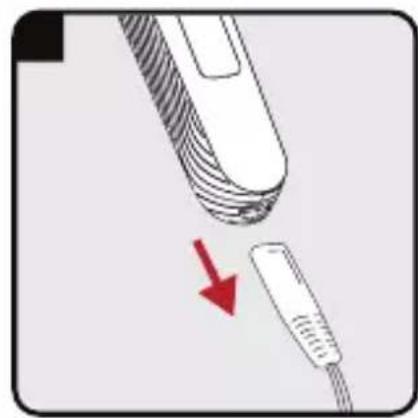

Diagram showing a cable being inserted into a connector, with a red arrow indicating the insertion direction (no text or symbols present)

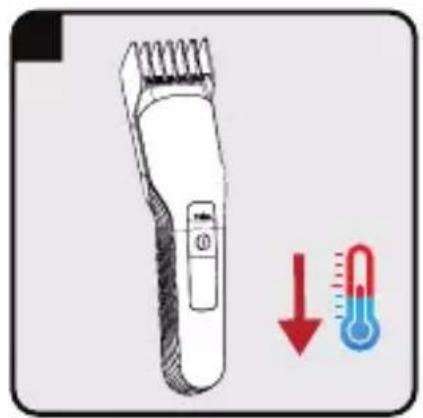

Diagram showing a hairbrush with a thermometer and temperature indicator, illustrating thermal regulation.

Diagram of a mechanical component with a red arrow indicating direction, no text or symbols present

Illustration of a hand using a tool to cut or mark a small object, no text or symbols present

Illustration of a hand holding a small object with a red arrow indicating rotation (no text or symbols)

Illustration of hands using a tool to adjust or install a small object, no text or symbols present

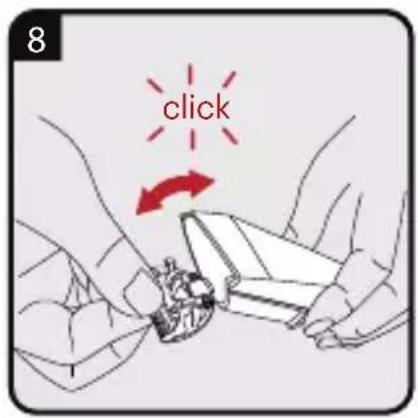

8 click

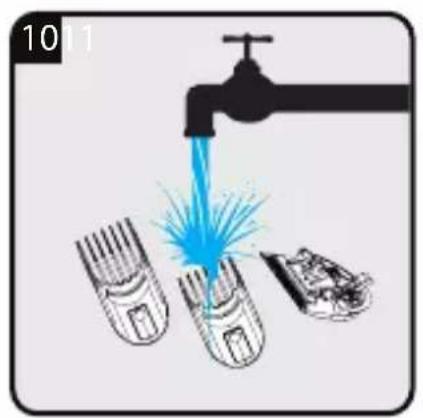

Illustration of a blue water spray being poured into a pipe with a faucet (no text or symbols)

10 1

Illustration of a hand cleaning a small object with a cloth (no text or symbols)

Illustration of a hand cleaning a small object with a cloth (no text or symbols)

Diagram showing a hairbrush with a lock and a magnified view of the device's tip, indicating a warning or inspection.

Illustration of hands using a pipette to apply a small electronic component (no text or symbols visible)

DE BETrieb REINIGUNG UND PFLEGE
EN OPERATION CLEANING AND CARE
TR KULLANIM TEMIZLEME VE BAKIM
ES FUNCIONAMIENTO LIMPIEZA Y CUIDADOS
FR FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
HR RAD ČIŠĆENJE I ODRŽAVANJE
PL OBSŁUGA CZYSZCZENIE I KONSERWACJA

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Manufactory CO., LTD

Modellidentifikator:

ZD006M050100EU

Eingangsspannung:

100-240V\~

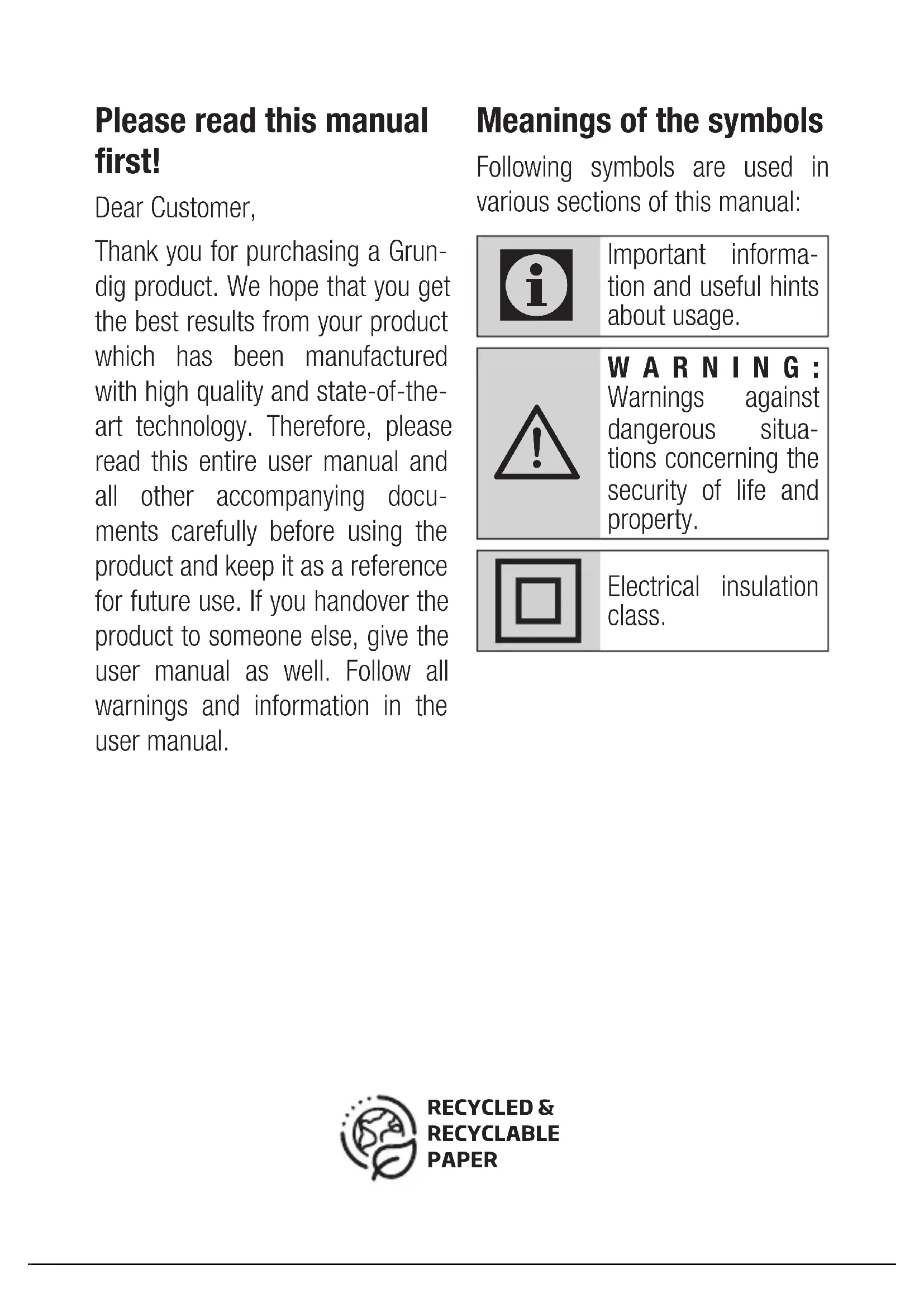

Please read this manual first!

Dear Customer,

Thank you for purchasing a Grundig product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Electrical insulation class.

1 Important safety and environmental instructions

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damage due to improper use!

Failure to follow these instructions voids any granted warranty.

1.1 Safety warnings

• The appliance is designed for domestic use only.
• This appliance is designed solely for trimming human hair and beards. Any other use is expressly prohibited.

itable for use in a bath or shower.

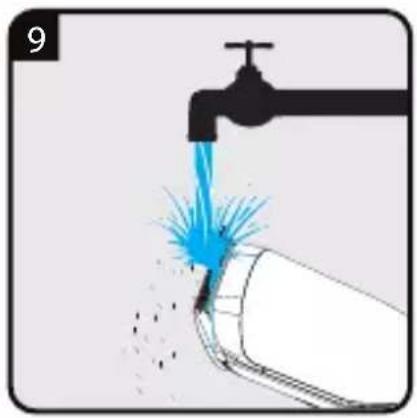

Suitable for cleaning under an open water

- Never use the appliance if it, the cutting head or the power adapter show any signs of damage. Contact authorized service.

1 Important safety and environmental instructions

• Only use the appliance with the parts and power adapter supplied.
• Caution! Always keep the appliance and power adaptor dry.
• When the appliance is being charged, on no account should it come into contact with water or any other liquid.
• After charging, always unplug the cable from the socket and disconnect the power adapter from the wall socket.
• Do not drop the appliance.
• Charging adaptor and power cable cannot be repaired once damaged. Please make sure that you dispose the charging adaptor in accordance with environmental directions. You can get your new charger from the manufacturer or authorised service provider.

1 Important safety and environmental instructions

• Never place the appliance, accessories or power adapter on or near hot surfaces.
• Check that the mains voltage on the rating label corresponds to your local mains supply.
• Keep the appliance out of the reach of children.
• Before cleaning or user maintenance operation first plug out.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Do not open the appliance under any circumstances.

1 Important safety and environmental instructions

No warranty claims are accepted for damage caused by improper handling.

• This appliance contains batteries that are non-replaceable.
• WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.
• WARNING: Detach the hand-held part from the supply cord before cleaning it in water.
• WARNING: Adaptor cannot fall in water.
• Do not squeeze or bend the power cord and do not rub in on sharp edges in order to prevent any damage. Keep the cord away from hot sur faces and open flames.
• If you keep the packaging materials, keep them out of the reach of children.

1 Important safety and environmental instructions

• This appliance is designed solely for trimming human hair and beards. Any other use is expressly prohibited.
• Before removing the battery, the product should be disconnected from the electricity supply. Observe the local legislation and regulations when disposing of the battery.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Symbol of a waste bin crossed out by two crossed lines, with no text or numbers present.

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1 Important safety and environmental instructions

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1.5 Information on Waste Batteries

This symbol on rechargeable batteries/batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular household waste. Always dispose of used rechargeable batteries/batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

20overview

2.1 Controls and parts

See the illustrations on page 3.

1. Cutting head
2. High speed setting button (Turbo)
3. On/Off switch
4. LED Light
5. Body

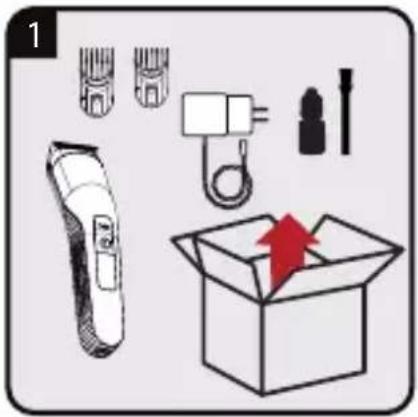

Accessories

1. 3-15 mm comb
2. 18-30 mm comb

Other Accessories

Power adapter

Charging plug

Cleaning brush

Oil

2.2 Technical data

Operating temperature:

$$ + 5 ^ {\circ} \mathrm{C} - + 4 0 ^ {\circ} \mathrm{C} $$

Storage temperature:

$$ 0 ^ {\circ} \mathrm{C} - + 4 0 ^ {\circ} \mathrm{C} $$

Parameter of External Power Supply

Manufacturer: E-TEK Electronics

Manufactory CO., LTD

Model Identifier:

ZD006M050100EU

Input Voltage: 100-240V\~

Input Frequency: 50/60Hz

Input Current: 0.3A

Output Voltage: 5.0V DC

Output Current: 1.0A

Output Power: 5.0W

Average active efficiency:

77.74%

Efficiency at low load(10%):

73.15%

No-load power consumption:

0.042W

Protection class:

Hair clipper IPX7

Adaptor IPX4

Batteries: Li-ion (Lithium-ion rechargeable battery)

Electrical insulation class: ||

Design and specifications subject to change without notice.

The values which are declared in the markings affixed on your appliance or other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

3 Power supply

3.1 Operating with the power adapter

Check that the voltage indicated on the rating plate of the power adapter corresponds to your local power supply.

The only way to disconnect the appliance from the power supply is to unplug the power adapter.

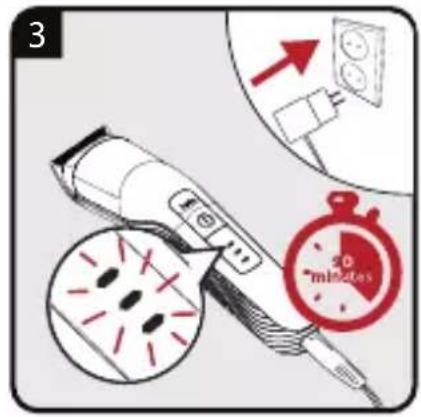

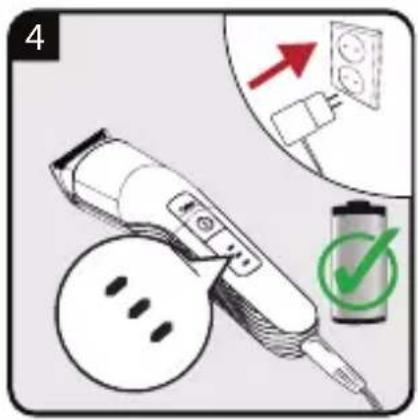

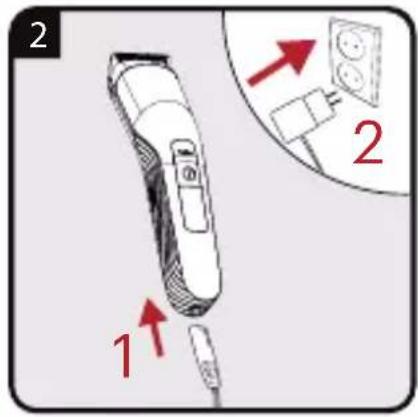

1. Plug the charging plug into the appliance socket and the power adapter into the wall socket.

CAUTION! The groove on the charging plug must match the notch in the appliance socket.

- LED lights will lit up one after another until it's fully charged. After full charge, lights will go out completely.

Charging time: 1.5 hours when the battery is fully charged

1. LED lights will start flashing when the unit reaches low battery capacity during operation.

- When the batteries are discharged: LED lights will not display.

Discharge the appliance through normal use. Then recharge to full capacity. Maximum battery capacity will only be reached after several charging/discharging cycles.

The adapter and unit may become warm while charging; this is normal operation.

When the appliance is fully charged, it has a cordless operating time of up to 70 minutes.

3 Power supply

CAUTION!

Appliance will not work while it is plugged. Please do not try to operate the trimmer while it is plugged.

Unplug the adapter from the wall when not in use.

CAUTION! When in the bathroom or beside a water connection, only use the appliance in battery mode; never run it from the mains.

The appliance does not run from the mains when the battery is empty. Make sure the appliance is switched off during charging.

3.2 Optimising the lifetime of the rechargeable battery

CAUTION! Do not leave the switch adapter plugged into the wall socket for more than 24 hours.

CAUTION! Discharge the bat- tery completely twice a year by let- ting the motor run until it stops. Then fully recharge the battery.

CAUTION! Please do not operate for long time, or it may burn the adapter.

4Preparation

The trimming length without combing system is 1.5 mm.

Trimming without a comb is perfect for designer stubble.

Width of cutting head is 42 mm.

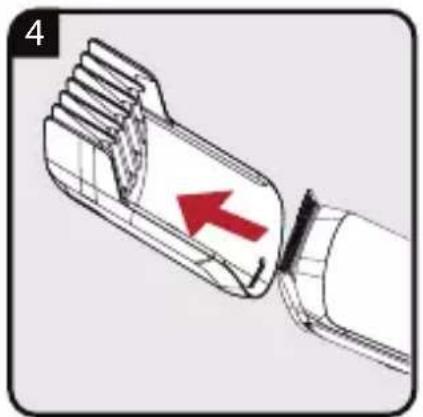

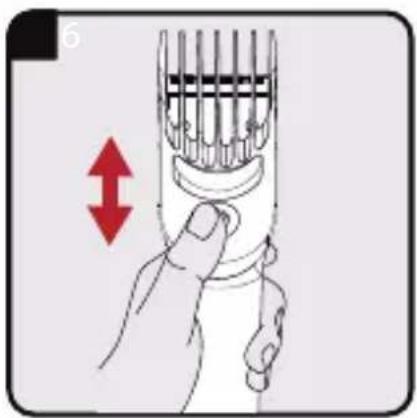

4.1 Setting the trimming length

The Adjustable comb allows the appliance to adjust in 10 different lengths:

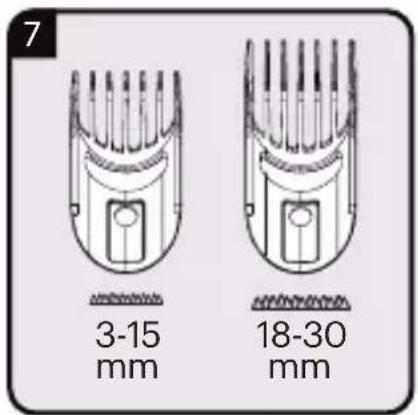

4.2 Adjustable comb (6, 7)

Comb 1 3 mm
Comb 1 6 mm
Comb 1 9 mm
Comb 1 12 mm
Comb 1 15 mm
Comb 2 18 mm
Comb 2 21 mm
Comb 2 24 mm
Comb 2 27 mm
Comb 2 30 mm

50Operation

Before Using, remove the plug of adapter from the mains power socket and remove the connect wire from body.

We recommend to trim a small area first to familiarize yourself with the attachment comb.

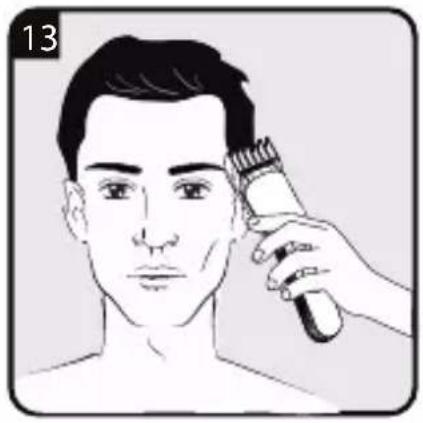

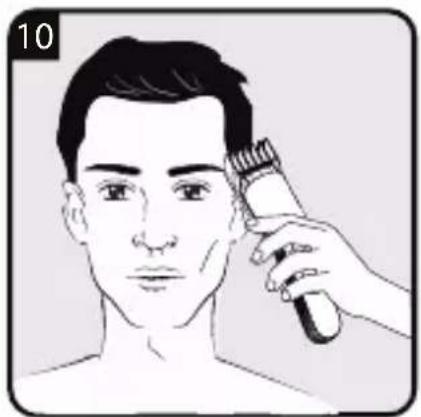

5.1 Hair trimming

Make sure that the hair is clean and completely dry.

Place a towel around the neck and shoulders of the person whose hair you are trimming. Make sure that the person is seated so that their head is roughly at your eye level. Before trimming, comb the hair so that it falls naturally and you can see the direction in which it grows.

1. Place the cutting head on the person's hair. Hold the clipper against the hair, the teeth of the clipper guide pointing upwards yet flat against the head.

2. Move the cutting head against the direction of hair growth. Apply only a slight pressure when cutting with slow, gentle movements.

5.1.1 Useful tips

- Move the clipper upwards and out wards through the hair, a little at a time, against the direction of hair growth.

- The appliance will work most efficiently when cutting through the hair at its own speed. Never force the clipper through the hair. Never switch the clipper off whilst in the hair.

- For longer hair on top of the head, hold the hair between the fingers and cut to the desired length. Always work from the front to the back of the head.

- As you cut, take a break at regular intervals. You can always make a correction, but not once the hair has been cut.

50Operation

• Only cut a small amount the first time you use it. This is the only way to get used to the variable positions.
• Keep combing the hair. Only look for hair which is too long and comb out clippings.

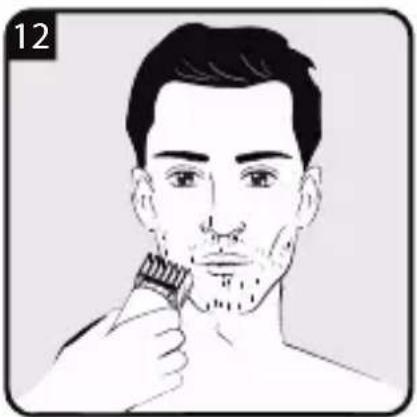

5.2 Beard trimming

1. Place the cutting head (1) on the beard.
2. Move the cutting head (1) against the direction of hair growth. Apply only a slight pressure when cutting with slow, gentle movements.

5.2.1 Useful tips

• The combs are designed for easy removal of excess hair and clean the cutting head (1) with the brush supplied. Clean the appliance as described in the “Cleaning and Care” section.

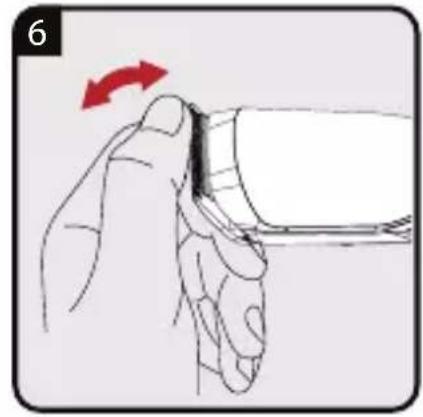

• For trimming contours, remove the detachable blade. Use the appliance without the combs (cutting length is 1.5 mm).

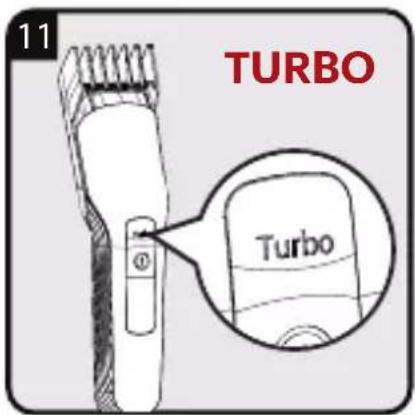

5.3 High speed setting button (2) (Turbo)

Device performance can be maximized by pushing the turbo button (2).

5.4 The usage of the BeardCare sensor

The BeardCare sensor detects in real time the density of the beard hair and adjusts the power of the motor accordingly. At Turbo Mode, the BeardCare sensor will be inactive.

6Information

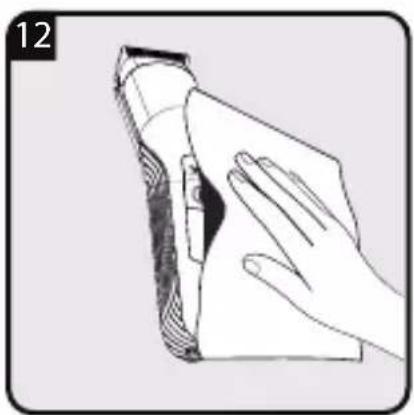

The appliance must be cleaned regularly so that you can continue to enjoy its top performance and optimum results.

6.1 Cleaning and care

Before cleaning, remove the plug of adapter from the mains power socket and remove the connect wire from body.

Never used liquids to clean the appliance. Use the cleaning brush provided and water only.

Remove any clippings after each use.

The cutting head of your appliance does not normally need to be oiled. If you want to maintain the original condition of the cutting head for as long as possible, it is worth oiling it at regular intervals (with the oil provided).

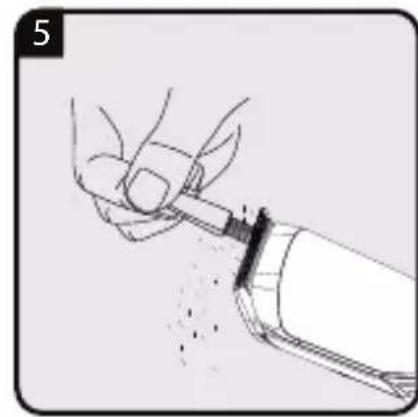

Using exclusively the cleaning brush, remove the hairs from the blade head. The blade head may be cleaned with water or other liquids.

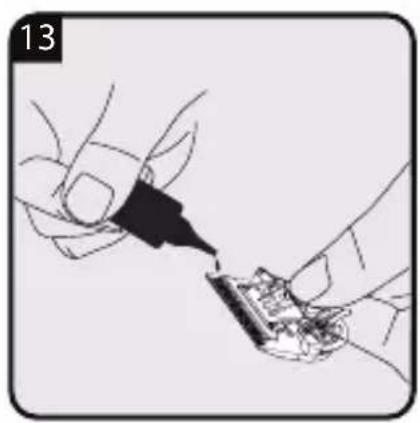

If in regular use, the blade head should be oiled. For this, use the supplied blade oil.

6.2 Storage

• If you do not plan to use the appliance for a long period of time, please store it carefully.
• Make sure that it is unplugged and is completely dry.
• Store the appliance in a cool, dry place.
• Make sure that the appliance is kept out of the reach of children.

For commissioning, general use and cleaning, please observe the instructions on pages 4-5-6 of this operating manual.
