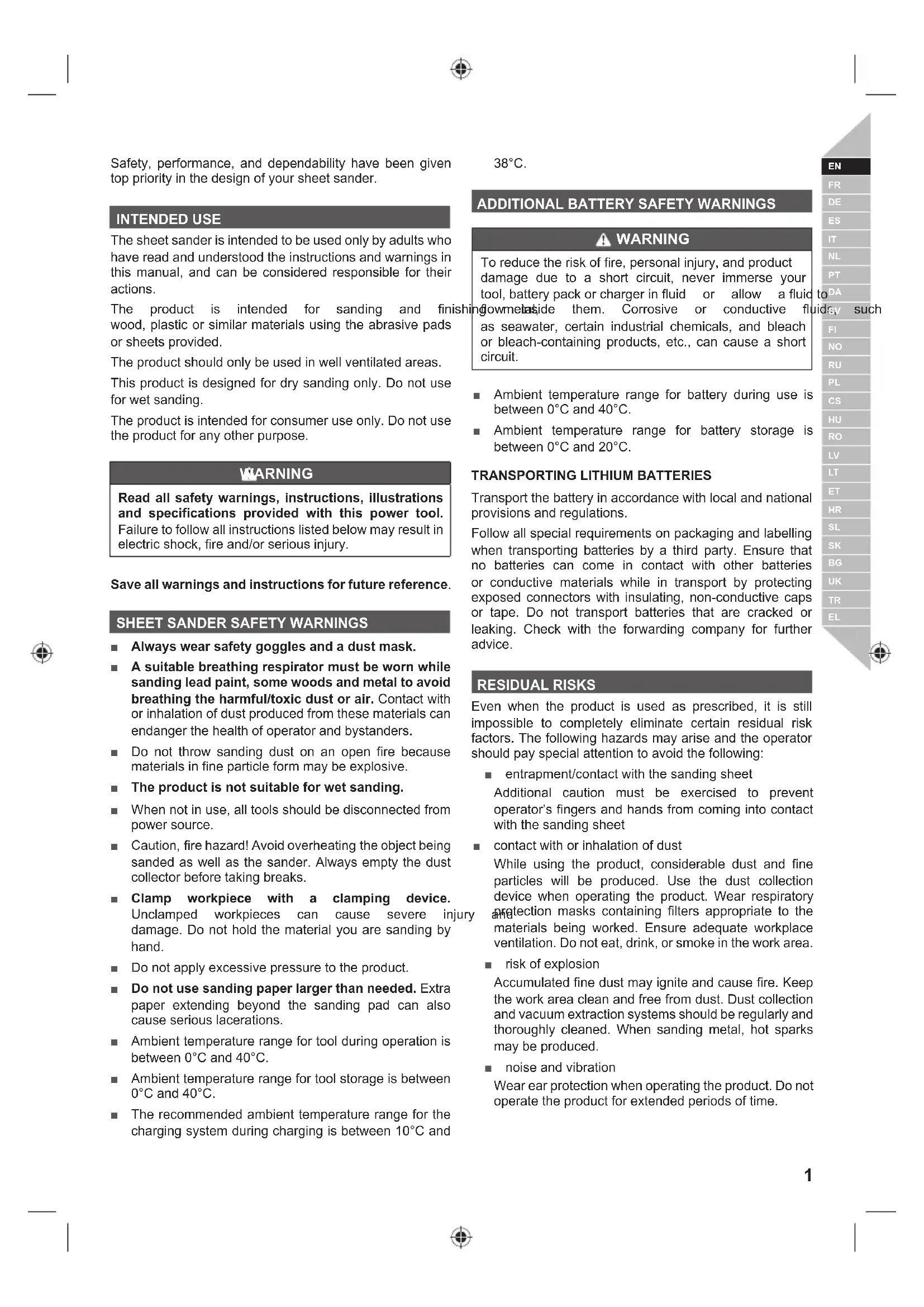

Ŷ Always wear safety goggles and a dust mask. Ŷ A suitable breathing respirator must be worn while sanding lead paint, some woods and metal to avoid breathing the harmful/toxic dust or air. Contact with or inhalation of dust produced from these materials can endanger the health of operator and bystanders. Ŷ Do not throw sanding dust on an open fire because materials in fine particle form may be explosive. Ŷ The product is not suitable for wet sanding. Ŷ When not in use, all tools should be disconnected from power source.

Ŷ &DXWLRQILUHKD]DUG$YRLGRYHUKHDWLQJWKHREMHFWEHLQJ

sanded as well as the sander. Always empty the dust collector before taking breaks. Ŷ Clamp workpiece with a clamping device. 8QFODPSHG ZRUNSLHFHV FDQ FDXVH VHYHUH LQMXU\ DQG damage. Do not hold the material you are sanding by hand. Ŷ Do not apply excessive pressure to the product. Ŷ Do not use sanding paper larger than needed. Extra paper extending beyond the sanding pad can also cause serious lacerations. Ŷ Ambient temperature range for tool during operation is between 0°C and 40°C. Ŷ Ambient temperature range for tool storage is between 0°C and 40°C. Ŷ The recommended ambient temperature range for the charging system during charging is between 10°C and 38°C.

damage due to a short circuit, never immerse your WRROEDWWHU\SDFNRUFKDUJHULQÀXLG RU DOORZ DÀXLGWR ÀRZ LQVLGH WKHP &RUURVLYH RU FRQGXFWLYH ÀXLGV VXFK as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit. Ŷ Ambient temperature range for battery during use is between 0°C and 40°C. Ŷ Ambient temperature range for battery storage is between 0°C and 20°C.

TRANSPORTING LITHIUM BATTERIES

Transport the battery in accordance with local and national provisions and regulations. Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice. RESIDUAL RISKS Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise and the operator should pay special attention to avoid the following: Ŷ HQWUDSPHQWFRQWDFWZLWKWKHVDQGLQJVKHHW Additional caution must be exercised to prevent operator’s fingers and hands from coming into contact with the sanding sheet Ŷ contact with or inhalation of dust While using the product, considerable dust and fine particles will be produced. Use the dust collection device when operating the product. Wear respiratory protection masks containing filters appropriate to the materials being worked. Ensure adequate workplace ventilation. Do not eat, drink, or smoke in the work area. Ŷ risk of explosion Accumulated fine dust may ignite and cause fire. Keep the work area clean and free from dust. Dust collection and vacuum extraction systems should be regularly and thoroughly cleaned. When sanding metal, hot sparks may be produced. Ŷ noise and vibration Wear ear protection when operating the product. Do not operate the product for extended periods of time. 1 English |

ELRISK REDUCTION It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud’s Syndrome in certain individuals. Symptoms may include tingling,

QXPEQHVVDQGEODQFKLQJRIWKH¿QJHUVXVXDOO\DSSDUHQW

upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking, and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration: Ŷ Keep your body warm in cold weather. When operating the product wear gloves to keep the hands and wrists ZDUP,WLVUHSRUWHGWKDWFROGZHDWKHULVDPDMRUIDFWRU contributing to Raynaud’s Syndrome. Ŷ After each period of operation, exercise to increase blood circulation. Ŷ Take frequent work breaks. Limit the amount of exposure per day. If you experience any of the symptoms of this condition, immediately discontinue use and see your doctor about these symptoms. WARNING

,QMXULHVPD\EHFDXVHGRUDJJUDYDWHGE\SURORQJHGXVH

of a tool. When using any tool for prolonged periods, ensure you take regular breaks.

4. Dust vacuum adapter

12. Insulated grasping surface

MAINTENANCE WARNING Empty bag frequently and before storage to avoid

SRVVLEOH¿UHKD]DUGGXHWRVHOILJQLWLRQRIWKHGXVW

WARNING The product should never be connected to a power supply when you are assembling parts, cleaning, performing maintenance, or when the product is not in use. Disconnecting the product will prevent accidental VWDUWLQJWKDWFRXOGFDXVHVHULRXVLQMXU\ WARNING When servicing, use only identical RYOBI replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING Always remove the sanding sheet from the product before cleaning. Failure to do so could cause serious SHUVRQDOLQMXU\ Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, carbon dust, etc. WARNING

'RQRWDWDQ\WLPHOHWEUDNHÀXLGVJDVROLQHSHWUROHXP

based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal LQMXU\ (OHFWULF WRROV XVHG RQ ¿EHUJODVV PDWHULDO ZDOOERDUG VSDFNOLQJFRPSRXQGVRUSODVWHUDUHVXEMHFWWRDFFHOHUDWHG ZHDUDQGSRVVLEOHSUHPDWXUHIDLOXUHEHFDXVHWKH¿EHUJODVV chips and grindings are highly abrasive to bearings, brushes and commutators. The manufacturer does not recommend the use of the product for extended periods of time on these types of materials. After each use, remove the sanding sheet and dust

FROOHFWRULI¿WWHG&OHDQWKHGXVWFROOHFWRUDVVKRZQLQWKH

illustrations in this manual. Clean the tool thoroughly with a brush, dry cloth and vacuum cleaner. WARNING Do not use compressed air to blow dust from the product WRSUHYHQWVHULRXVH\HLQMXU\ For greater safety and reliability, all repairs should be performed by an authorised RYOBI service centre. $OORIWKHEHDULQJVLQWKLVWRRODUHOXEULFDWHGZLWKDVXI¿FLHQW amount of high grade lubricant for the life of the unit under normal operating conditions. Therefore, no further lubrication is required. ENVIRONMENTAL PROTECTION Recycle raw materials instead of disposing of as waste. The machine, accessories and packaging should be sorted for environmental-friendly recycling. 2 | EnglishSYMBOLS ON THE PRODUCT Safety Alert V Volts No-load speed PLQʚï Revolutions or reciprocations per minute Direct current CE Conformity EurAsian Conformity Mark. Ukrainian mark of conformity Please read the instructions carefully before starting the machine. Wear ear protection Wear eye protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

SYMBOLS IN THIS MANUAL

Note Parts or accessories sold separately Unlock Lock The following signal words and meanings are intended to explain the levels of risk associated with this product: DANGER Indicates an imminently hazardous situation, which, if not DYRLGHGZLOOUHVXOWLQGHDWKRUVHULRXVLQMXU\ WARNING Indicates a potentially hazardous situation, which, if not DYRLGHGFRXOGUHVXOWLQGHDWKRUVHULRXVLQMXU\ CAUTION Indicates a potentially hazardous situation, which, if not DYRLGHGPD\UHVXOWLQPLQRURUPRGHUDWHLQMXU\ CAUTION (Without Safety Alert Symbol) Indicates a situation that may result in property damage. 3 English |
