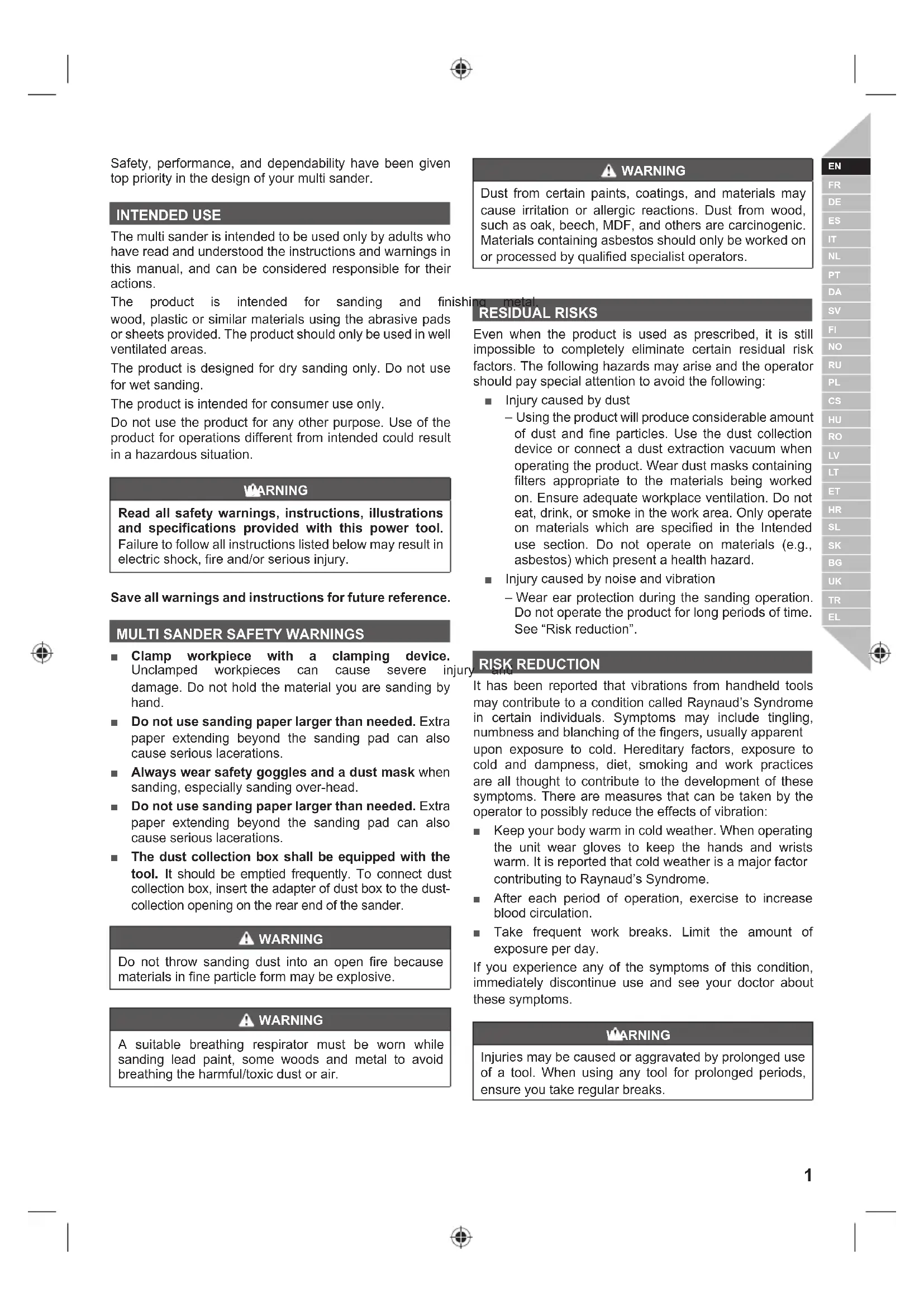

Safety, performance, and dependability have been given top priority in the design of your multi sander. INTENDED USE The multi sander is intended to be used only by adults who have read and understood the instructions and warnings in this manual, and can be considered responsible for their actions. 7KH SURGXFW LV LQWHQGHG IRU VDQGLQJ DQG ¿QLVKLQJ PHWDO wood, plastic or similar materials using the abrasive pads or sheets provided. The product should only be used in well ventilated areas. The product is designed for dry sanding only. Do not use for wet sanding. The product is intended for consumer use only. Do not use the product for any other purpose. Use of the product for operations different from intended could result in a hazardous situation. WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in HOHFWULFVKRFN¿UHDQGRUVHULRXVLQMXU\ Save all warnings and instructions for future reference.

MULTI SANDER SAFETY WARNINGS

Ŷ Clamp workpiece with a clamping device. 8QFODPSHG ZRUNSLHFHV FDQ FDXVH VHYHUH LQMXU\ DQG damage. Do not hold the material you are sanding by hand. Ŷ Do not use sanding paper larger than needed. Extra paper extending beyond the sanding pad can also cause serious lacerations. Ŷ Always wear safety goggles and a dust mask when sanding, especially sanding over-head. Ŷ Do not use sanding paper larger than needed. Extra paper extending beyond the sanding pad can also cause serious lacerations. Ŷ The dust collection box shall be equipped with the tool. It should be emptied frequently. To connect dust collection box, insert the adapter of dust box to the dust- collection opening on the rear end of the sander. WARNING Do not throw sanding dust into an open fire because materials in fine particle form may be explosive. WARNING A suitable breathing respirator must be worn while sanding lead paint, some woods and metal to avoid EUHDWKLQJWKHKDUPIXOWR[LFGXVWRUDLU WARNING Dust from certain paints, coatings, and materials may cause irritation or allergic reactions. Dust from wood, such as oak, beech, MDF, and others are carcinogenic. Materials containing asbestos should only be worked on

RUSURFHVVHGE\TXDOL¿HGVSHFLDOLVWRSHUDWRUV

RESIDUAL RISKS Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise and the operator should pay special attention to avoid the following:

Ŷ ,QMXU\FDXVHGE\GXVW

– Using the product will produce considerable amount of dust and fine particles. Use the dust collection device or connect a dust extraction vacuum when operating the product. Wear dust masks containing filters appropriate to the materials being worked on. Ensure adequate workplace ventilation. Do not eat, drink, or smoke in the work area. Only operate on materials which are specified in the Intended use section. Do not operate on materials (e.g., asbestos) which present a health hazard.

Ŷ ,QMXU\FDXVHGE\QRLVHDQGYLEUDWLRQ

– Wear ear protection during the sanding operation. Do not operate the product for long periods of time. See “Risk reduction”. RISK REDUCTION It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud’s Syndrome in certain individuals. Symptoms may include tingling,

QXPEQHVVDQGEODQFKLQJRIWKH¿QJHUVXVXDOO\DSSDUHQW

upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration: Ŷ Keep your body warm in cold weather. When operating the unit wear gloves to keep the hands and wrists ZDUP,WLVUHSRUWHGWKDWFROGZHDWKHULVDPDMRUIDFWRU contributing to Raynaud’s Syndrome. Ŷ After each period of operation, exercise to increase blood circulation. Ŷ Take frequent work breaks. Limit the amount of exposure per day. If you experience any of the symptoms of this condition, immediately discontinue use and see your doctor about these symptoms. WARNING

,QMXULHVPD\EHFDXVHGRUDJJUDYDWHGE\SURORQJHGXVH

of a tool. When using any tool for prolonged periods, ensure you take regular breaks.2 | English

13. Non-adhesive sandpaper

14. Insulated grasping surface

SANDPAPER SELECTION Selecting the correct size, grit and type of sand paper is an extremely important step in achieving a high quality sanded

surface. Always continue sanding with each grit until surface is uniform. WARNING Do not use sander without sandpaper; doing so will damage the cushion. Sheet/pad recommended use 80-grit sanding sheet Coarse sanding 120-grit sanding sheet Light sanding 150-grit sanding sheet Light sanding MAINTENANCE WARNING The product should never be connected to a power

VXSSO\ ZKHQ DVVHPEOLQJ SDUWV PDNLQJ DGMXVWPHQWV

cleaning, performing maintenance, or when the product is not in use. Disconnecting the product from the power supply will prevent accidental starting that could cause VHULRXVLQMXU\ WARNING When servicing, use only original manufacturer’s replacement parts, accessories and attachments. Use of any other parts may create a hazard or cause product damage. WARNING

'RQRWDWDQ\WLPHOHWEUDNHÀXLGVJDVROLQHSHWUROHXP

based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal LQMXU\ Ŷ Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, carbon dust, etc. Ŷ Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. If operation is dusty, also wear a dust mask. Ŷ If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. Ŷ For greater safety and reliability, all repairs should be performed by an authorised service centre. WARNING

(OHFWULFDO WRROV XVHGRQ ¿EHUJODVV PDWHULDOZDOOERDUG

VSDFNOLQJ FRPSRXQGV RU SODVWHU DUH VXEMHFW WR accelerated wear and possible premature failure EHFDXVH WKH ¿EHUJODVV FKLSV DQG JULQGLQJV DUH KLJKO\ abrasive to bearings, brushes, commutators, etc. We do not recommend using the product for extended work on these types of materials. WARNING Do not use compressed air to blow dust from the product. This practice is dangerous and can cause dirt and grit to

EHEODVWHGLQWRVRPHRQH¶VH\HVFDXVLQJLQMXU\

LUBRICATION All of the bearings in the product are lubricated with a VXI¿FLHQWDPRXQWRIKLJKJUDGHOXEULFDQWIRUWKHOLIHVSDQRI the product under normal operating conditions. Therefore, no further lubrication is required.

CLEANING THE SANDING SHEETS

The sanding sheets that come with the product are made to be re-used. Therefore, it is important that they be cleaned periodically to remove sanding residue and foreign material that can accumulate over time. To clean sanding sheets, rub the sheets with a hard rubber block. You can also use the clean rubber sole of a shoe.3 English |

ENVIRONMENTAL PROTECTION Recycle raw materials instead of disposing of as waste. The machine, accessories and packaging should be sorted for environment- friendly recycling. SYMBOL Safety Alert V Volts

Hertz Alternating Current W Watts

o No-load speed PLQʚï Revolutions or reciprocations per minute Orbital Diameter CE Conformity EurAsian Conformity Mark. Ukrainian mark of conformity Class II tool, double insulation Wear ear protection Wear eye protection Please read the instructions carefully before starting the machine. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

SYMBOLS IN THIS MANUAL

Connect to the power supply. Disconnect from the power supply. Parts or accessories sold separately Lock Unlock Note Off

Without force With force The following signal words and meanings are intended to explain the levels of risk associated with this product: DANGER Indicates an imminently hazardous situation, which, if not DYRLGHGZLOOUHVXOWLQGHDWKRUVHULRXVLQMXU\ WARNING Indicates a potentially hazardous situation, which, if not DYRLGHGFRXOGUHVXOWLQGHDWKRUVHULRXVLQMXU\ CAUTION Indicates a potentially hazardous situation, which, if not DYRLGHGPD\UHVXOWLQPLQRURUPRGHUDWHLQMXU\ CAUTION (Without Safety Alert Symbol) Indicates a situation that may result in property damage.4 | Français Votre ponceuse-multi-usages a été conçue en donnant SULRULWpjODVpFXULWpjODSHUIRUPDQFHHWjOD¿DELOLWp
