SG 55 - Croque monsieur clip STEBA - Free user manual and instructions

Product type	Cooking appliance with interchangeable plates
Model	SG 55
Brand	Steba
Power supply	220-240 V ~ 50/60 Hz
Included plates	Sandwich plate, grill plate, waffle plate
Main functions	Sandwich cooking, grilling, waffles
Indicator lights	Red light (heating), blue light (temperature reached)
Thermostat	Adjustable, maintains cooking temperature
Maximum opening angle	90° (do not exceed to avoid damaging the hinge)
Plate material	Non-stick coating
Safety	Do not immerse, hot surface, unplug after use, keep out of reach of children
Maintenance and cleaning	Clean after each use with a damp cloth and a little dish soap; oil stubborn plates; do not use abrasive cleaner
Before first use	Lightly oil the plates, preheat for 10 minutes, then wipe with a damp cloth
Removing plates	Press the release buttons and pull; to reattach, insert the rear tabs then press until it clicks
Grease drip tray	Present, clean after cooling
Recyclable materials	Paper/cardboard packaging, plastics (PE, PP, PS); appliance to be recycled via WEEE
After-sales service	Contact the manufacturer; repairs by qualified electrician only
Weight	Approximately 2 kg (estimate)
Dimensions (W x D x H)	Approximately 30 x 25 x 12 cm (estimate)
Warranty	Manufacturer's warranty (see terms)

Frequently Asked Questions - SG 55 STEBA

How to use the appliance for the first time?

Lightly oil the plates, then preheat the closed appliance for 10 minutes. Wipe the plates with a damp cloth. Do not use harsh detergents.

What do the indicator lights mean?

The red light turns on when the appliance is heating. The blue light turns on when the desired temperature is reached. They may turn on and off during cooking.

How to clean the plates?

Unplug the appliance and let it cool slightly. Clean with a damp cloth and a little dish soap. For stubborn stains, apply a little oil, wait 5 minutes, then wipe. Never immerse the appliance in water.

Can the plates be changed and how?

Yes, the plates are removable. Unplug the appliance, let it cool, press the release buttons and pull the plates. To put them back, first insert the rear tabs, then press until it clicks.

Why does smoke come out during the first use?

This is normal. The smoke comes from burning off manufacturing residues. It will disappear after a few minutes of heating.

What utensils to use to avoid damaging the coating?

Use wooden or plastic spatulas. Metal utensils may scratch the non-stick surface.

How to avoid burns?

The appliance becomes very hot. Do not touch metal surfaces. Keep it out of reach of children. Steam may escape between the plates – beware of burns. Wear oven mitts if necessary.

Can I use the appliance with a timer or remote control?

No, the appliance must not be used with a separate timer or remote control system.

How to store the appliance?

Store it in a dry place, away from moisture. Do not leave it outdoors. Make sure it is completely cooled before storing.

What to do if the appliance stops heating?

First check the plug and cable. If the problem persists, contact after-sales service. Repairs must be carried out by a qualified electrician.

USER MANUAL SG 55 STEBA

Exterior view of a Steba brand electric shaver with black casing and rolled insulation (no visible text or symbols)

Multi-Snackmaker SG 55

Instructions for use 10

Mode d'emploi 14

Stacked rectangular electronic components with internal compartments (no visible text or symbols)

1. 1. 3.

Cartoon illustration of a chef sitting on top of a stack of books (no text or symbols)

Italienischer Toast

Cartoon illustration of a chef sitting on a stack of books (no text or symbols)

Cartoon illustration of a chef sitting on a stack of books (no text or symbols)

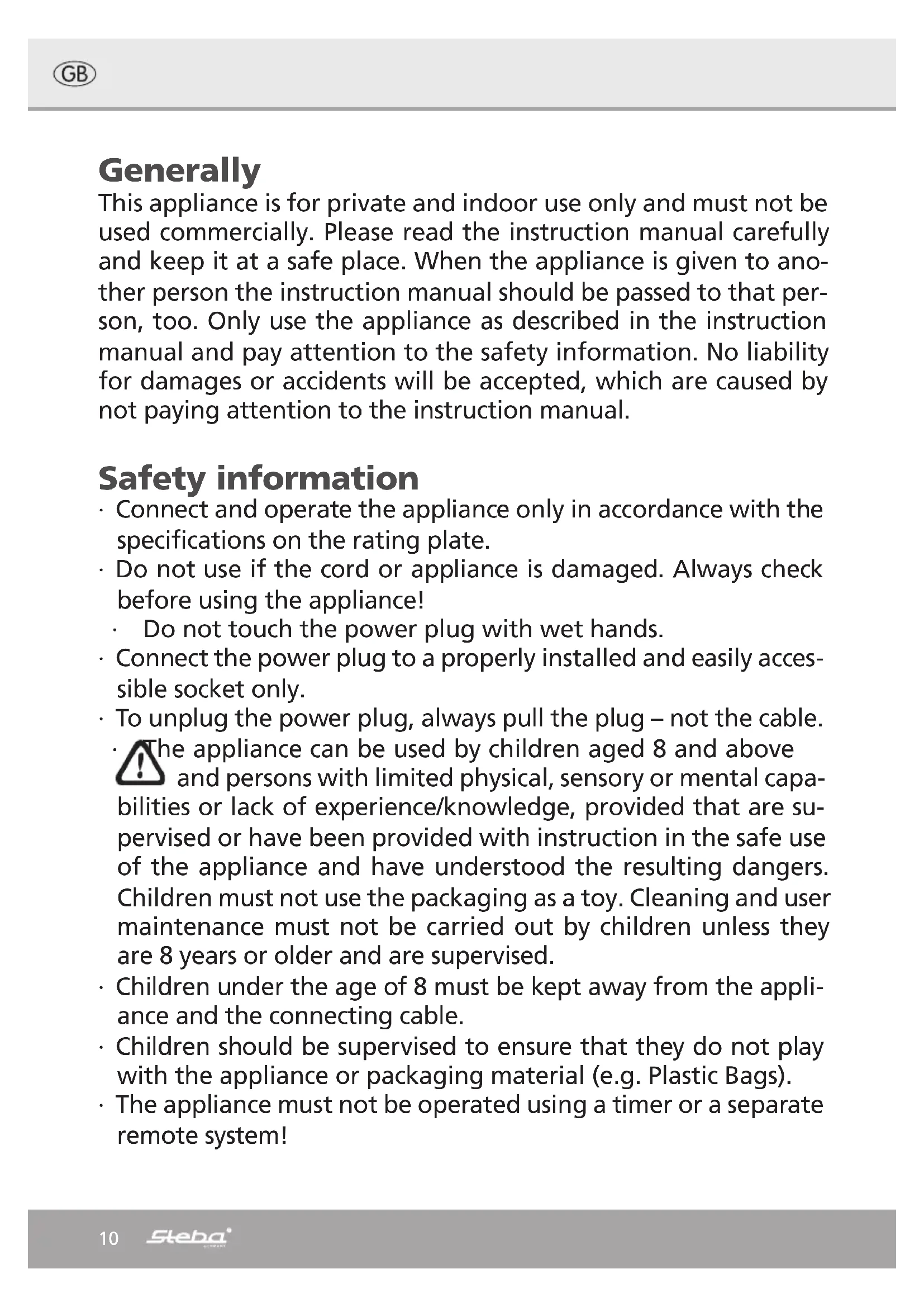

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

Safety information

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Do not use if the cord or appliance is damaged. Always check before using the appliance!
• Do not touch the power plug with wet hands.
• Connect the power plug to a properly installed and easily accessible socket only.
• To unplug the power plug, always pull the plug – not the cable.
  The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.
• Children under the age of 8 must be kept away from the appliance and the connecting cable.
• Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).

• The appliance must not be operated using a timer or a separate remote system!

• After using the appliance or if the appliance malfunctions, always pull out the plug.

• Never pull at the cord set. Do not chafe it over edges or squeeze it.

- Keep the power supply cord away from hot parts.

- Never leave the appliance unattended when operating.

- Do not leave the apliance outdoors or in a damp area.

- Never immerse the appliance in water.

- Do not operate the appliance if it is damaged (for example if it felt down).

- The manufacturer is not liable for damage occurred by using the appliance in

- another way than described or if a mistake in operating has been made.

- The apliance becomes very hot. Do not move the apliance until it has cooled down!

- To prevent injury, repairs such as replacing a damaged cord, should only be carried out by customer service.

Attention! Housing get hot. Danger of burns! Do not place the appliance on a sensitive surface (e.g. painted furniture) and keep a distance of at least 70cm to burnable materials.

- When using a powercord extension it is important that children are not pulling at it or a trip hazard occurs.

- The appliance must always be unplugged in case of no supervision, prior to assembly, the dismantling or cleaning.

Working place

Important: Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflatable items are near to the device.

Cleaning and maintenance:

• The device should be cleaned after each use

- Unplug the device

- The device should cool down a little. It can be cleaned easier when it is not that hot.

- Never immerse the device in water!

- Use a humid cloth with a little bit of detergent to clean it. Resisting dirt should be covered with some oil, wait for ca 5 min and try to remove it again with a humid cloth. Do not use abherasive cleaners. When cleaning the oil tray, be careful, that the liquid in it is cooled down completely.

Before the first use:

Oil the grill slightly before the first use. Then heat up the device for ca 10 min with closed plates without food. Afterwards clean the plates with a humid cloth. Do not use agressive cleaners to avoid damages to the non-stick surface.

Open the device only in a 90° angle, otherwise the hinge will break.

right wrong

Food preparation:

• Plug in the device according to the datas on the rating label. If the red light shines, the device is heating. If the desired temperature is reached, the red light turns off and the blue light shines.
• At the first heating a little bit of smoke can occur. This smoke will vanish after some minutes.
• Heat up the device with closed plates until the red light turns off. You have reached the wanted temperature.
• Put the food in the grill and close the device.
• Press on the upper side of the handle until the cover clicks in audibly.
• During grilling, the blue and the red light can turn on and off. The thermostat is working.
• When the food is ready, remove it from the grilling plate with a plastic or wodden device, to avoid damages from the non-stick coating.
  • Always close the plates to avoid loosing heat.
• When the red light turned off, you can put food again on the grill.

The grill time and the temperature selection depends on several factors:

• Kind and thickness of the food
  The colour of the food
  • The personal preferences

- Carefull!:

Steam from the food can emerge between the plates. Danger of burns!

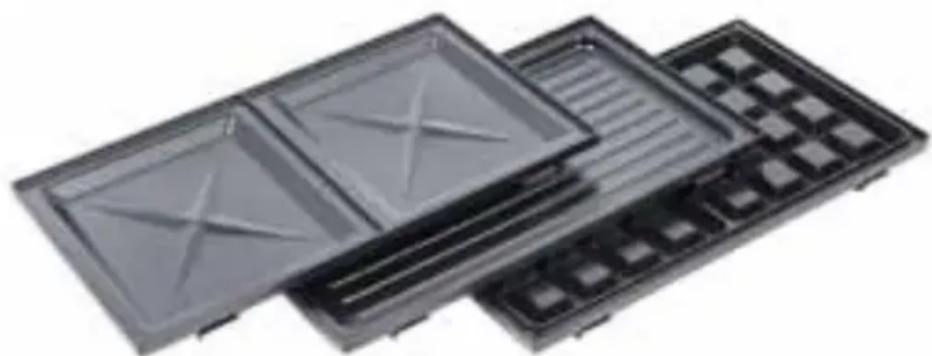

Changing the plates

• Unplug the device
• Allow the device to cool down
• Press the release buttons on each side and then pull the plates out of the device
• For setting in the plates, put the two tabs into the recess on the back and press the plates into the device until you hear a noise

• To achieve optimal results, you should use the matching plate sets.

• Sandwich plate

• Grill plate
• Waffle plate

Stacked black plastic electrical enclosures with internal compartments (no visible text or symbols)

1.

2.

3.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:

Stacked black plastic wafers with star-shaped cutouts, no visible text or symbols

1.

2.

3.

Stacked black plastic tray with internal compartments and grid patterns (no visible text or symbols)

1. 1. 3.

Cartoon illustration of a chef with a hat and skirt, sitting on top of a stack of books (no text or symbols)

Итальянский тост

Cartoon illustration of a smiling chef holding a book, sitting on top of a stack of papers (no text or symbols)

Cartoon illustration of a chef with a hat and skirt, sitting on top of a stack of books (no text or symbols)

Stacked plastic tray with square cutouts and grid compartments (no visible text or symbols)

1.

2.

3.
