USER MANUAL GPLB 18200 Li GK EINHELL

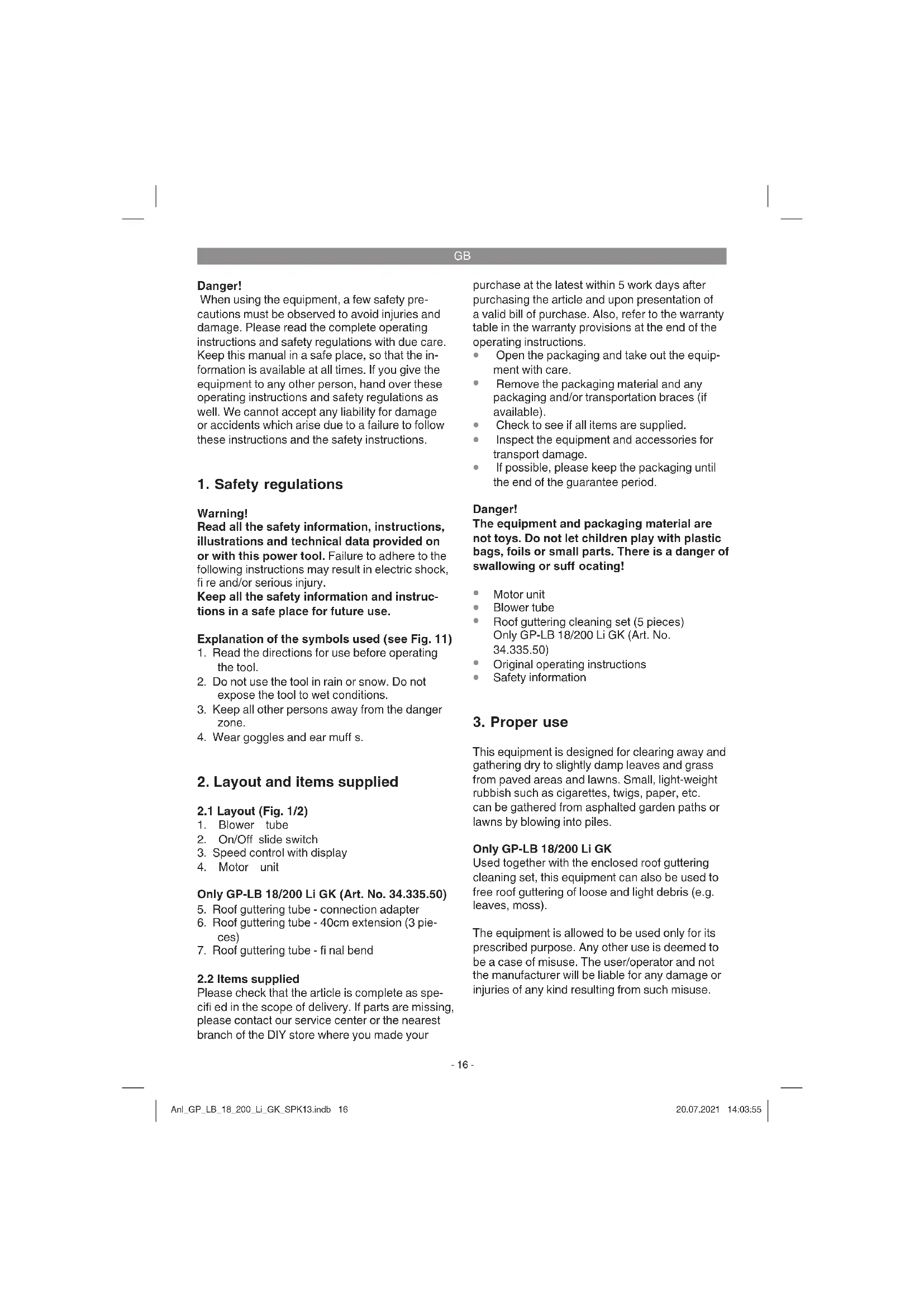

Danger! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

Warning! Read all the safety information, instructions, illustrations and technical data provided on or with this power tool. Failure to adhere to the following instructions may result in electric shock, fi re and/or serious injury. Keep all the safety information and instruc- tions in a safe place for future use. Explanation of the symbols used (see Fig. 11)

1. Read the directions for use before operating

2. Do not use the tool in rain or snow. Do not

expose the tool to wet conditions.

3. Keep all other persons away from the danger

2. Layout and items supplied

3. Speed control with display

5. Roof guttering tube - connection adapter

6. Roof guttering tube - 40cm extension (3 pie-

Please check that the article is complete as spe- cifi ed in the scope of delivery. If parts are missing, please contact our service center or the nearest branch of the DIY store where you made your purchase at the latest within 5 work days after purchasing the article and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the warranty provisions at the end of the operating instructions.

Open the packaging and take out the equip- ment with care.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

If possible, please keep the packaging until the end of the guarantee period. Danger! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

Roof guttering cleaning set (5 pieces) Only GP-LB 18/200 Li GK (Art. No.

Original operating instructions

This equipment is designed for clearing away and gathering dry to slightly damp leaves and grass from paved areas and lawns. Small, light-weight rubbish such as cigarettes, twigs, paper, etc. can be gathered from asphalted garden paths or lawns by blowing into piles. Only GP-LB 18/200 Li GK Used together with the enclosed roof guttering cleaning set, this equipment can also be used to free roof guttering of loose and light debris (e.g. leaves, moss). The equipment is allowed to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any kind resulting from such misuse. Anl_GP_LB_18_200_Li_GK_SPK13.indb 16Anl_GP_LB_18_200_Li_GK_SPK13.indb 16 20.07.2021 14:03:5520.07.2021 14:03:55GB

Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or indust- rial businesses or for equivalent purposes.

........................................... 2.03 m/s² Uncertainty K ......................................... 1.5 m/s² Weight (without roof gutting cleaning set) ............ ..................................................................2.15 kg Important! The equipment is supplied without batteries and without a charger and is allowed to be used only with the lithium-ion batteries of the Power X- Change series! The lithium-ion batteries of the Power X-Change series are allowed to be charged only with the Power-X charger. Measured and guaranteed sound power level determined in accordance with 2000/14/EC, extended by 2005/88/EC. The value given for vibration was determined in accordance with a set of standardized criteria and can be used to compare diff erent products with one another. This value is also suitable to be used for estimating the strain on the user caused by the vibration beforehand. Caution! Depending on how you use the device, the actual vibration emissions can vary from the values lis- ted above. Take appropriate measures to protect yourself against vibration stress. Take the entire work sequence into consideration including times at which the device is not working under load or is switched off . Appropriate measures include among other things regular care and maintenance of the device and tool attachments, keeping your hands warm, taking regular breaks and good work sequence planning. Keep the noise emissions and vibrations to a minimum.

Only use appliances which are in perfect wor- king order.

Service and clean the appliance regularly.

Adapt your working style to suit the appliance.

Do not overload the appliance.

Have the appliance serviced whenever ne- cessary.

Switch the appliance off when it is not in use.

Wear ear-muffs. Caution! Residual risks Even if you use this electric power tool in accordance with instructions, certain resi- dual risks cannot be rules out. The following hazards may arise in connection with the equipment’s construction and layout:

3. Health damage caused by hand-arm vib-

rations if the equipment is used over a pro- longed period or is not properly guided and maintained.

4. Risk of eye damage if suitable safety goggles

are not worn. This equipment generates an electromagnetic fi eld during operation. Under certain circumstan- ces this fi eld may actively or passively impede medical implants. To reduce the risk of serious or fatal injuries, we recommend persons with medical implants to consult their doctor and the manufacturer of the medical implant prior to using the equipment.

5. Before starting the equipment

Important! The machine is supplied without batteries and without a charger! Warning! Always remove the battery pack before making adjustments to the equipment. Anl_GP_LB_18_200_Li_GK_SPK13.indb 17Anl_GP_LB_18_200_Li_GK_SPK13.indb 17 20.07.2021 14:03:5520.07.2021 14:03:55GB

Plug the blower tube onto the motor unit. The groove (A) must be pushed into the guide (B) when you do this. Turn the blower tube to the right to secure it in its fi nal position on the motor unit. Caution! The tube must be turned as far as it will go to make sure it is fi rmly secured in position.

5.2 Fitting the battery (Fig. 4)

Important! Before fi tting the battery you must always set the On/Off slide switch to OFF (see

Press the pushlock button of the battery pack as shown in Fig. 4 and push the battery pack into the mount provided. When the battery pack is posi- tioned as in Fig. 4, make sure that the pushlock button latches in place! To remove the battery pack, proceed in reverse order.

5.3 Charging the battery (Fig. 5)

1. Take the battery pack out of the equipment.

Do this by pressing the pushlock button.

2. Check that your mains voltage is the same as

that marked on the rating plate of the battery charger. Insert the power plug of the charger into the socket outlet. The green LED will then begin to blink.

3. Insert the battery pack into the charger.

4. In section 7. „Charger indicator“ you will fi nd a

table with an explanation of the LED indicator on the charger. The battery pack can become a little warm during the charging. This is normal. If the battery pack fails to charge, check:

whether there is voltage at the socket outlet

whether there is good contact at the charging contacts If the battery pack still fails to charge, send

and the battery pack to our customer service center. To ensure that items are properly packaged and delivered when you send them to us, please contact our customer service or the point of sale at which the equipment was purchased. When shipping or disposing of batteries and cordless tools, always ensure that they are packed individually in plastic bags to prevent short circuits and fi res. To ensure that the battery pack provides long ser- vice, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the performance of the device drops. Never allow the battery pack to become fully di- scharged. This will cause it to develop a defect.

5.4 Battery capacity indicator (Fig. 6)

Press the button for the battery capacity indicator (A). The battery capacity indicator (B) shows the charge status of the battery using 3 LEDs. All 3 LEDs are lit: The battery is fully charged. 2 or 1 LED(s) are lit: The battery has an adequate remaining charge. 1 LED fl ashes: The battery is empty, recharge the battery. All LEDs blink: The battery temperature is too low. Remove the battery from the equipment, keep it at room tem- perature for one day. If the fault reoccurs, this me- ans that the rechargeable battery has undergone exhaustive discharge and is defective. Remove the battery from the equipment. Never use or charge a defective battery.

5.5 Fitting the roof guttering cleaning set

(only GP-LB 18/200 Li GK) The roof guttering cleaning set consists of a con- nection adapter, three extension tubes and a fi nal bend. Fig. 7: Screw the connection adapter (Item 5) onto an extension tube (Item 6). Fig. 8/8a: Depending on your requirements, screw on more extension tubes (Item 6) or the fi nal bend (Item 7). Fig. 9/9a: Plug the connection adapter (Item 5) onto the blower tube (Item 1). The groove (A) must be pushed into the guide (B) when you do this. By turning to the right, the connection adapter will be secured on the blower tube upon reaching its fi nal position. Anl_GP_LB_18_200_Li_GK_SPK13.indb 18Anl_GP_LB_18_200_Li_GK_SPK13.indb 18 20.07.2021 14:03:5620.07.2021 14:03:56GB

Caution! If you point the air fl ow at other people, animals or objects (e.g. windows), this could cause injuries and damage. Check that all the components are correctly seated.

Point the air flow away from yourself.

Never point the air flow at other people, ani- mals or objects.

Do not blow away any hard objects such as stones or branches.

6.1 Switching the equipment on/off (Fig. 10)

This equipment comes with an On/Off slide switch (Item 2).

To switch on, press the slide switch to the right into the housing (ON position). The equipment will blow at its lowest level.

To switch off, press the slide switch to the left into the housing (OFF position).

6.2 Speed control (Fig. 10)

The equipment comes with electronic speed control for setting the continuous blowing velocity. Four blowing velocity levels are possible.

1. Switch on the equipment (section 6.1). The

equipment will blow at its lowest level. One bar will appear on the display (Item 3a).

2. You can increase the blowing velocity by pres-

sing the SPEED pushbutton (Item 3b). Bars appear on the display (Item 3a) according to the selected blowing velocity. 1 bar = lowest blowing velocity 4 bars = highest blowing velocity

3. If you press the SPEED pushbutton (Item 3b)

again when the highest blowing velocity is active, the equipment will return to the lowest blowing velocity. Use the equipment only with the blowing velo- city needed for the job.

6.3 Turbo mode (Fig. 10)

If you need a higher blowing velocity for a short time, you can press the TURBO button (Item 3c). Pressing the TURBO button will increase the speed for a short time, providing the maximum blowing velocity. All the bars will appear in the display (Item 3a). Important: To minimize noise and maximize battery operating time, you should not press the TURBO button any longer than ne- cessary.

Turn on the equipment (see section 6.1).

Set the desired blowing velocity with the speed controller (see section 6.2).

Direct the air stream forward and walk slowly to blow foliage or garden refuse into a pile or to remove it from hard-to-reach places.

To increase the blowing velocity for a short time, use TURBO mode (see section 6.3). Danger! Never gather (blow) hot, combustible or explosive materials into piles.

6.5 Using the roof guttering cleaning set

(only GP-LB 18/200 Li GK) Danger!

Electric shock can cause fatal injury! Keep well away from overhead power cables.

Wear eye, head and hearing protection!

All bystanders must be kept at least 10m from the machine.

Be careful not to be hit by objects lying in the roof guttering.

Hold the equipment with both hands.

Hold the final bend (Fig. 8a/Item 7) so that it enters the roof guttering at a slight angle. The opening must point away from yourself so that you will not be hit by objects lying in the roof guttering.

Turn on the equipment (see section 6.1).

Set the desired blowing velocity with the speed controller (see section 6.2).

Move slowly in order to free the roof gutting of debris.

7. Cleaning, maintenance and

ordering of spare parts Danger! Always pull out the battery pack before starting any cleaning work.

Keep all safety devices, air vents and the mo- tor housing free of dirt and dust as far as pos- sible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.

We recommend that you clean the device immediately each time you have finished using it.

cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

Should the tool experience problems beyond those mentioned above, let only an authorised professional or a customer service shop per- form an inspection.

There are no other parts inside the equipment which require maintenance.

7.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Article number of the machine

Identification number of the machine

Replacement part number of the part required For our latest prices and information please go to www.Einhell-Service.com Accessories for GP-LB 18/200 Li E: Roof guttering – cleaning set, Article No.:

The equipment does not work: Check that the battery is charged and that the charger is working. If the equipment will not work in spite of the voltage supply being OK, please send it to the customer service address provided.

9. Disposal and recycling

The equipment is supplied in packaging to pre- vent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper dis- posal. If you do not know the whereabouts of such a collection point, you should ask in your local council offi ces.

Store the equipment and accessories out of children’s reach in a dark and dry place at above freezing temperature. The ideal storage tempera- ture is between 5 and 30 °C. Store the electric tool in its original packaging. Anl_GP_LB_18_200_Li_GK_SPK13.indb 20Anl_GP_LB_18_200_Li_GK_SPK13.indb 20 20.07.2021 14:03:5620.07.2021 14:03:56GB

Indicator status Explanations and actions Red LED Green LED Off Flashing Ready for use The charger is connected to the mains and is ready for use; there is no battery pack in the charger On Off Charging The charger is charging the battery pack in quick charge mode. The charging times are shown directly on the charger. Important! The actual charging times may vary slightly from the stated charging times depending on the existing battery charge. Off On The battery is charged and ready for use. The unit then changes over to gentle charging mode until the battery is fully charged. To do this, leave the rechargeable battery on the charger for approx. 15 minutes longer. Action: Take the battery pack out of the charger. Disconnect the charger from the mains supply. Flashing Off Adapted charging The charger is in gentle charging mode. For safety reasons the charging is performed less quickly and takes more time. The reasons can be: - The rechargeable battery has not been used for a very long time. - The battery temperature is outside the ideal range. Action: Wait for the charging to be completed; you can still continue to charge the battery pack. Flashing Flashing Fault Charging is no longer possible. The battery pack is defective. Action: Never charge a defective battery pack. Take the battery pack out of the charger. On On Temperature fault The battery pack is too hot (e.g. due to direct sunshine) or too cold (below 0° C). Action: Remove the battery pack and keep it at room temperature (approx. 20° C) for one day . Anl_GP_LB_18_200_Li_GK_SPK13.indb 21Anl_GP_LB_18_200_Li_GK_SPK13.indb 21 20.07.2021 14:03:5620.07.2021 14:03:56GB

For EU countries only Never place any electric power tools in your household refuse. To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot. Recycling alternative to the return request: As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any ac- cessories or aids without electrical components supplied with the old equipment. The reprinting or reproduction by any other means, in whole or in part, of documentation and papers ac- companying products is permitted only with the express consent of the Einhell Germany AG. Subject to technical changes Anl_GP_LB_18_200_Li_GK_SPK13.indb 22Anl_GP_LB_18_200_Li_GK_SPK13.indb 22 20.07.2021 14:03:5720.07.2021 14:03:57GB

Service information We have competent service partners in all countries named on the guarantee certifi cate whose contact details can also be found on the guarantee certifi cate. These partners will help you with all service re- quests such as repairs, spare and wearing part orders or the purchase of consumables. Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Category Example Wear parts* Battery Consumables* Missing parts

• Not necessarily included in the scope of delivery! In the eff ect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?

Warranty certifi cate Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product

neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not aff ected by this guarantee. Our guarantee is free of charge to you.

2. The warranty services cover only defects due to material or manufacturing faults on a product which

you have bought from the manufacturer mentioned below and are limited to either the rectifi cation of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applica- tions. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by ex- posing the device to abnormal environmental conditions or by lack of care and maintenance. - Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for ex- ample by dropping it). - Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

4. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Gu-

arantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fi tted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fi tted. This also applies if an on-site service is used.

5. To make a claim under the guarantee, please register the defective device at:

www.Einhell-Service.com. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identifi cation will not be possible. If the defect is co- vered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement. Of course, we are also happy off er a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address. Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions. Anl_GP_LB_18_200_Li_GK_SPK13.indb 24Anl_GP_LB_18_200_Li_GK_SPK13.indb 24 20.07.2021 14:03:5720.07.2021 14:03:57F
