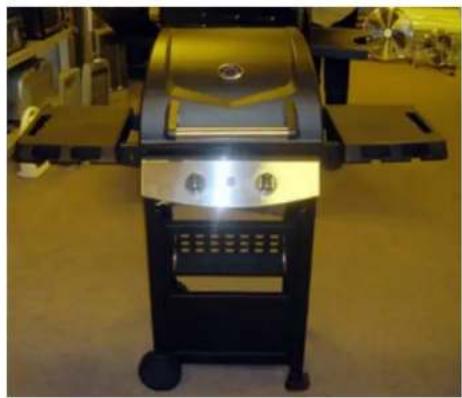

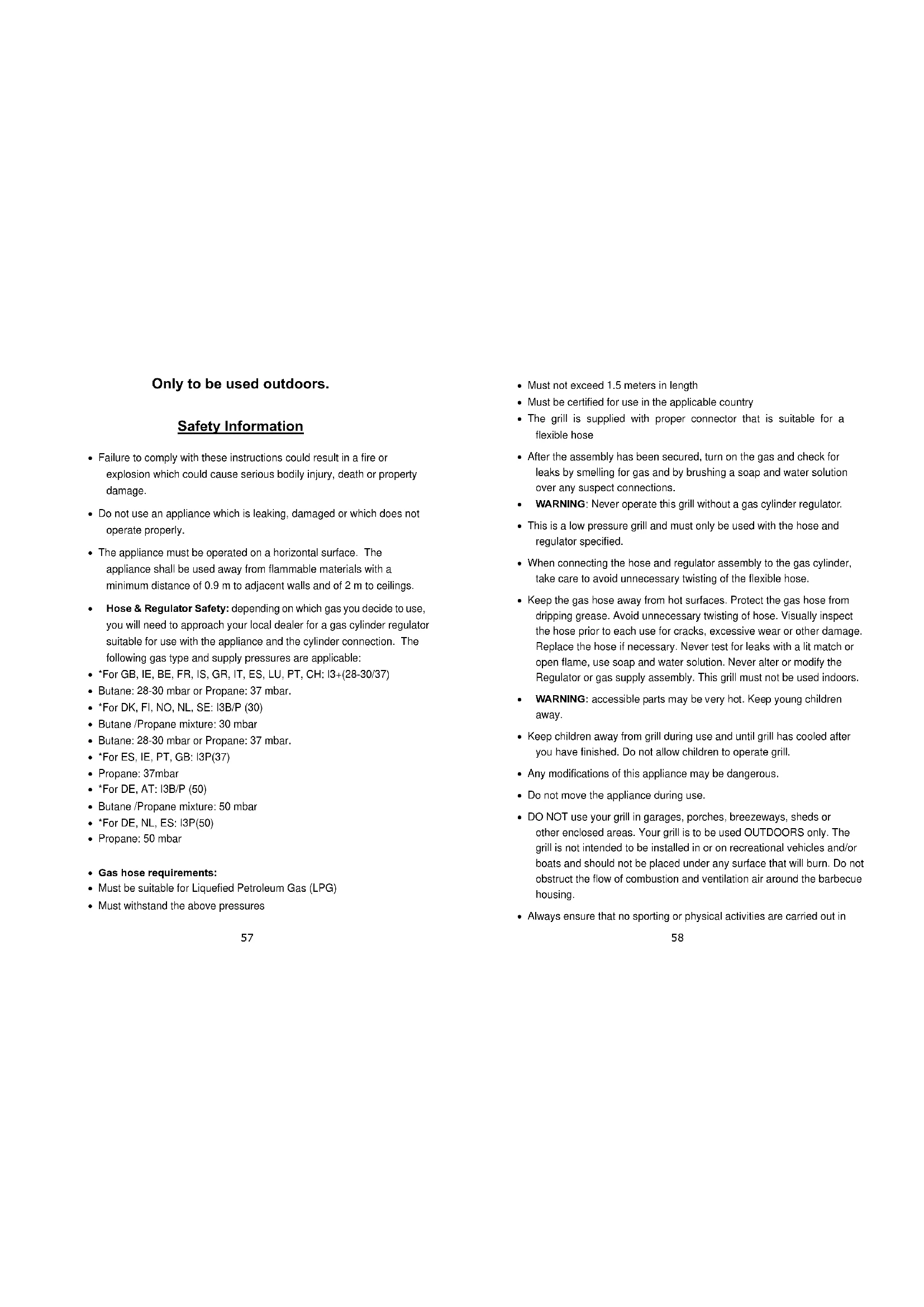

Supply Pressure (mbar) Destination Countries I3+(28-30/37) GB, IE, BE, CH, ES, FR, GR, IT & PT I3 B/P (30) DK, FI, GR, LU, NL, NO & SE I3 B/P (50) AT, CH & DE This appliance must be used with the appropriate gas and at the correct gas pressures. Failure to comply may result in a hazardous situation.57 Only to be used outdoors. Safety Information Failure to comply with these instructions could result in a fire or explosion which could cause serious bodily injury, death or property damage. Do not use an appliance which is leaking, damaged or which does not operate properly. The appliance must be operated on a horizontal surface. The appliance shall be used away from flammable materials with a minimum distance of 0.9 m to adjacent walls and of 2 m to ceilings. Hose & Regulator Safety: depending on which gas you decide to use, you will need to approach your local dealer for a gas cylinder regulator suitable for use with the appliance and the cylinder connection. The following gas type and supply pressures are applicable: *For GB, IE, BE, FR, IS, GR, IT, ES, LU, PT, CH: I3+(28-30/37) Butane: 28-30 mbar or Propane: 37 mbar. *For DK, FI, NO, NL, SE: I3B/P (30) Butane /Propane mixture: 30 mbar Butane: 28-30 mbar or Propane: 37 mbar. *For ES, IE, PT, GB: I3P(37) Propane: 37mbar *For DE, AT: I3B/P (50) Butane /Propane mixture: 50 mbar *For DE, NL, ES: I3P(50) Propane: 50 mbar Gas hose requirements: Must be suitable for Liquefied Petroleum Gas (LPG) Must withstand the above pressures

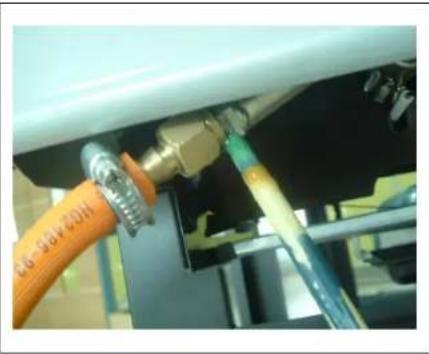

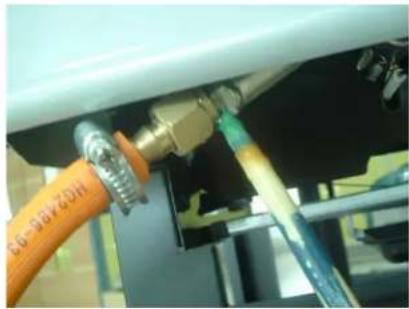

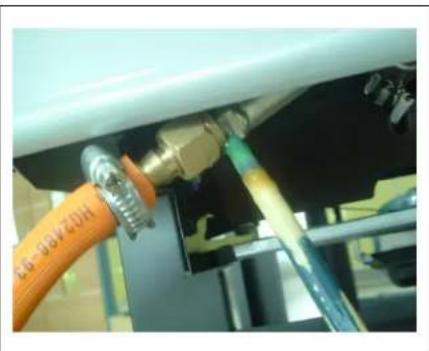

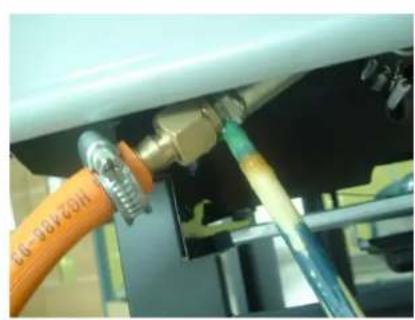

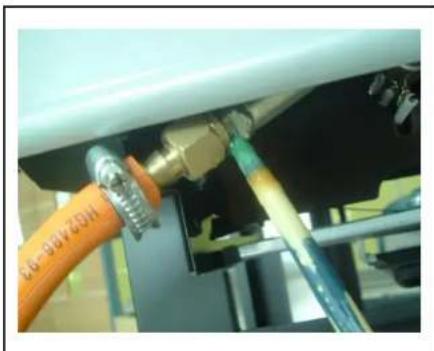

Must not exceed 1.5 meters in length Must be certified for use in the applicable country The grill is supplied with proper connector that is suitable for a flexible hose After the assembly has been secured, turn on the gas and check for leaks by smelling for gas and by brushing a soap and water solution over any suspect connections.

WARNING: Never operate this grill without a gas cylinder regulator.

This is a low pressure grill and must only be used with the hose and regulator specified. When connecting the hose and regulator assembly to the gas cylinder, take care to avoid unnecessary twisting of the flexible hose. Keep the gas hose away from hot surfaces. Protect the gas hose from dripping grease. Avoid unnecessary twisting of hose. Visually inspect the hose prior to each use for cracks, excessive wear or other damage. Replace the hose if necessary. Never test for leaks with a lit match or open flame, use soap and water solution. Never alter or modify the Regulator or gas supply assembly. This grill must not be used indoors.

WARNING: accessible parts may be very hot. Keep young children

away. Keep children away from grill during use and until grill has cooled after you have finished. Do not allow children to operate grill. Any modifications of this appliance may be dangerous. Do not move the appliance during use. DO NOT use your grill in garages, porches, breezeways, sheds or other enclosed areas. Your grill is to be used OUTDOORS only. The grill is not intended to be installed in or on recreational vehicles and/or boats and should not be placed under any surface that will burn. Do not obstruct the flow of combustion and ventilation air around the barbecue housing. Always ensure that no sporting or physical activities are carried out in59 close proximity to the grill during use and while still hot. Parts sealed by the manufacturer or their agent must not be manipulated by the user. This appliance is only to be used outdoors only. If there is a leak on your appliance (smell of gas), take it immediately into a well ventilated flame free location where the leak may be detected and stopped. Do not try to detect leaks using a flame, use soapy water. Do not use the appliance until the leak has been stopped. After the assembly has been secured, turn on the gas and check for leaks by brushing a soap and water solution over all the gas connections.

WARNING: Do not test for Gas leaks with a naked flame.

If you are unable to correct the leak by tightening the connections, turn off the gas and contact your supplier immediately.

WARNING: If you smell gas

Shut off gas to the grill at gas cylinder valve Extinguish any open flame. Raise the lid. If the odor continues immediately call your supplier or fire department if it is a serious leak from the gas cylinder. Turn off gas supply at the gas cylinder after use. The appliance can be stored indoors once disconnected from the gas cylinder. The gas cylinder must be stored outdoors in a well ventilated area. When changing over from an empty gas cylinder to a full one make sure this procedure is carried out in a flame free atmosphere.

WARNING: Do not store a spare gas cylinder under or near this grill.

This grill is only to be used outdoors.

WARNING: Never store your gas cylinder indoors. If you store your

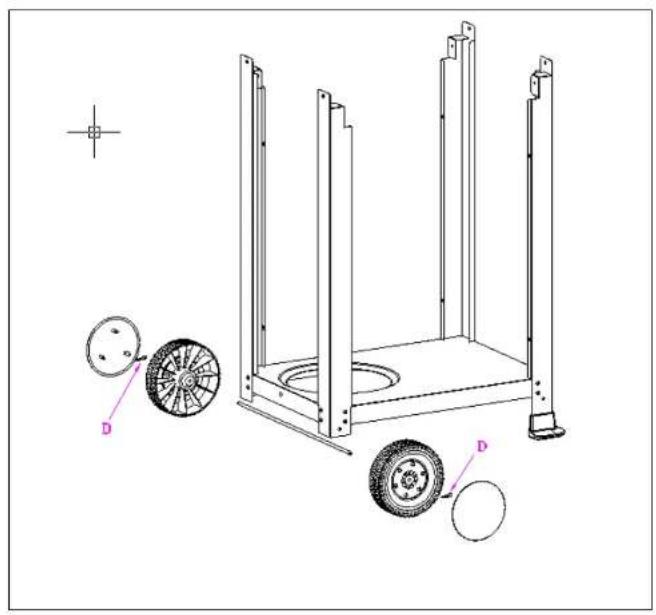

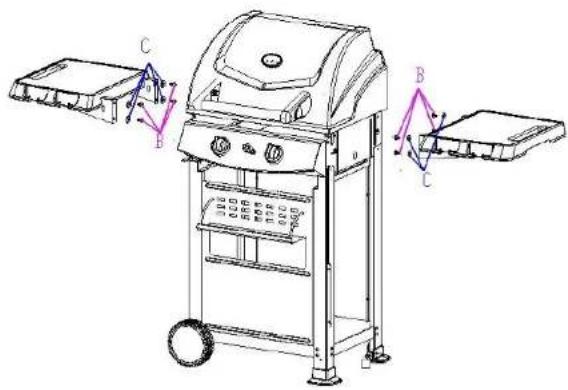

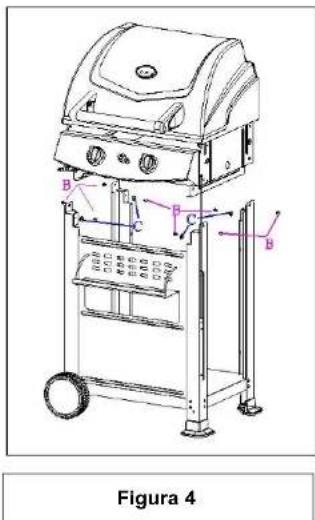

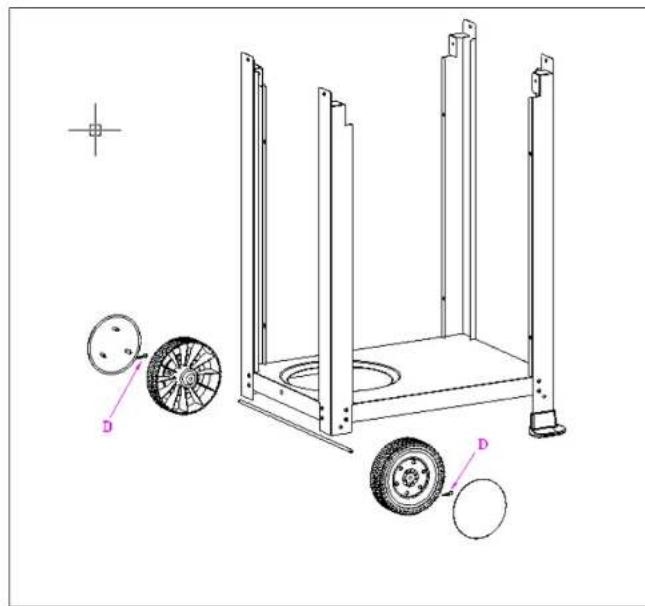

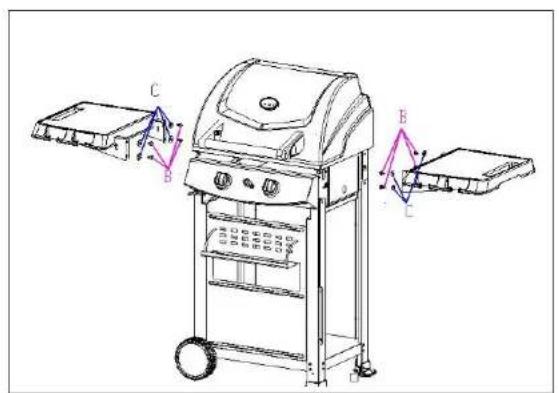

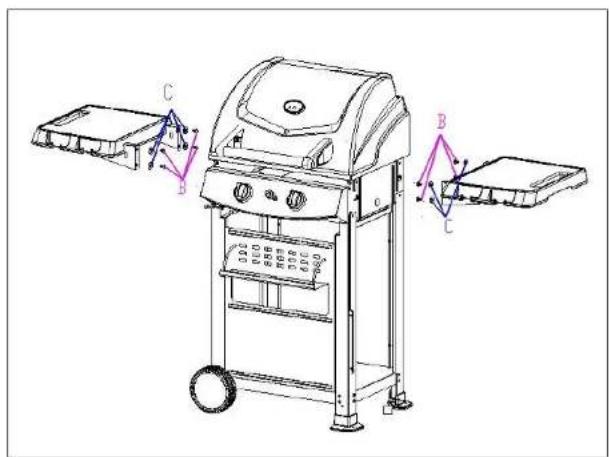

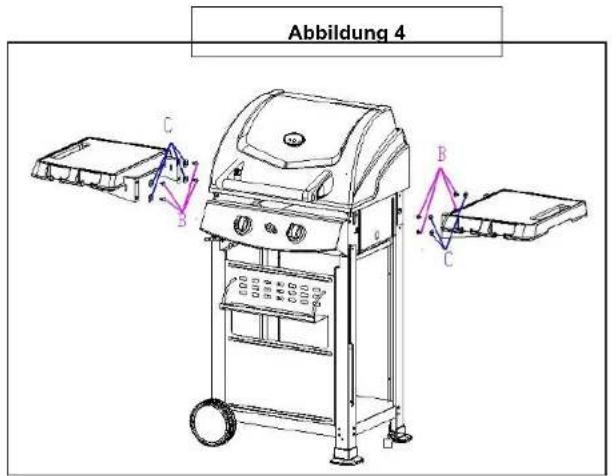

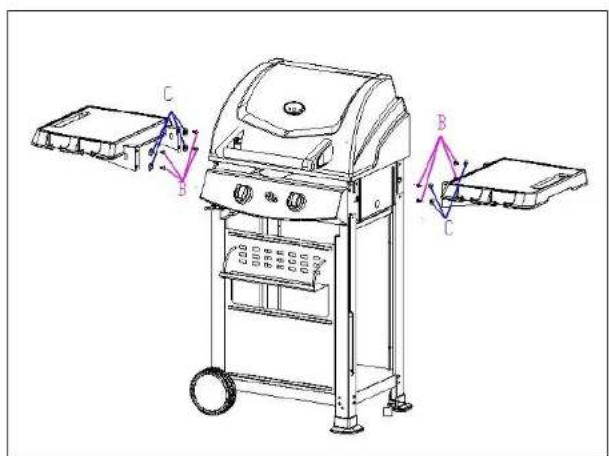

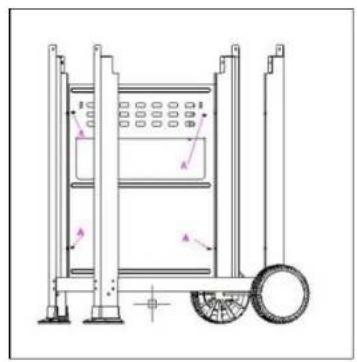

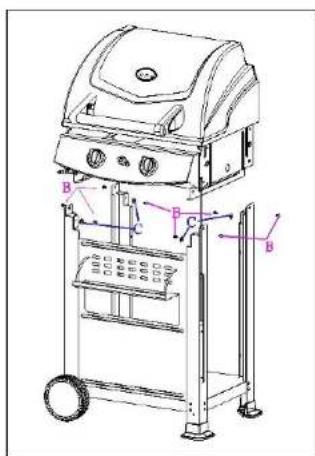

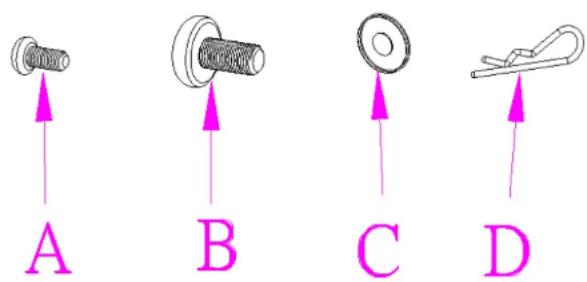

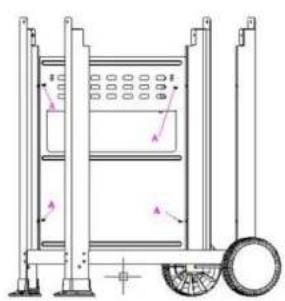

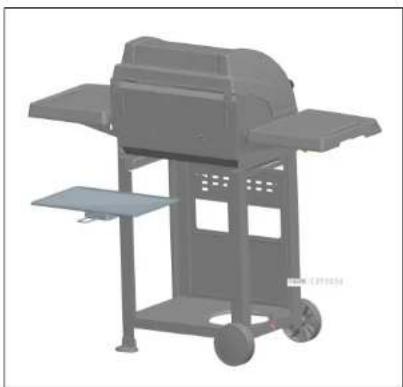

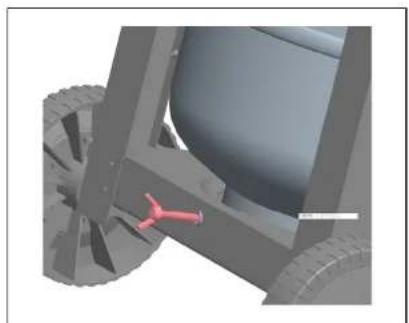

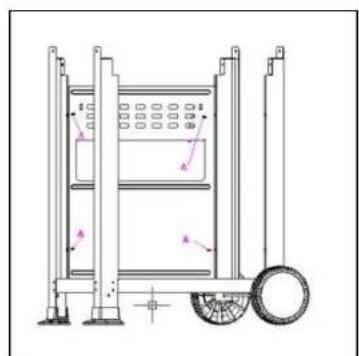

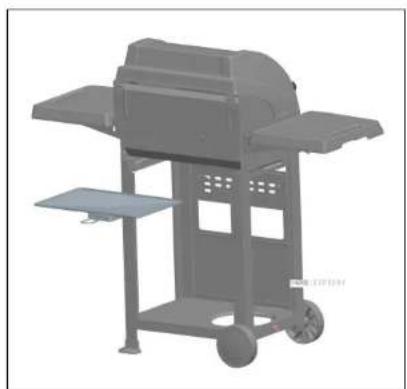

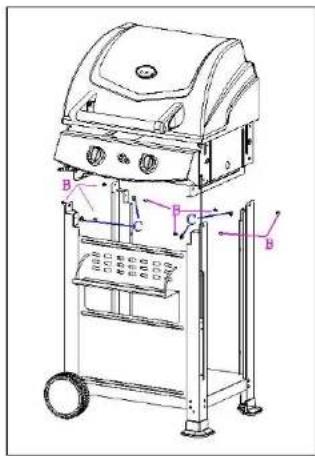

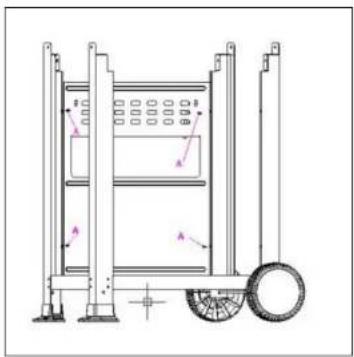

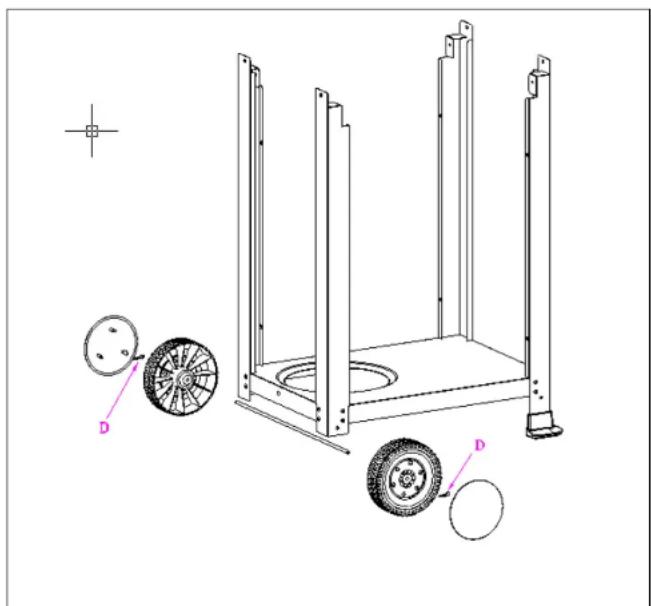

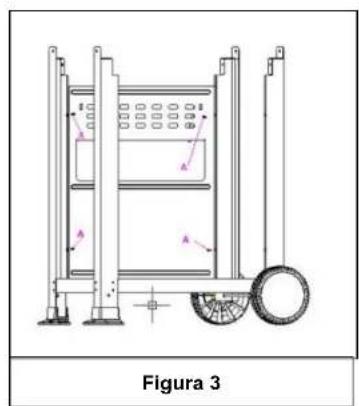

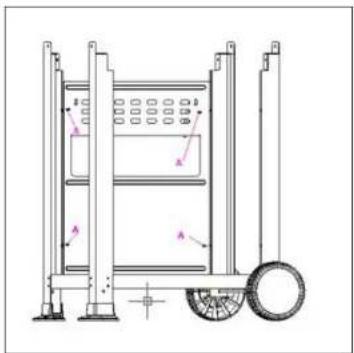

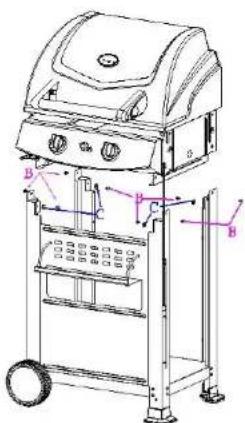

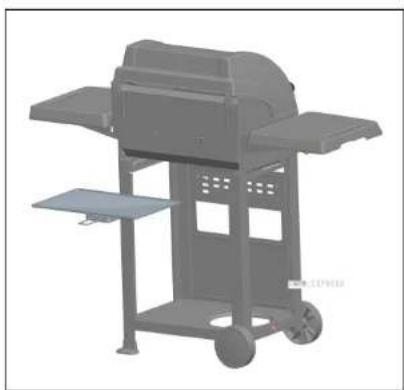

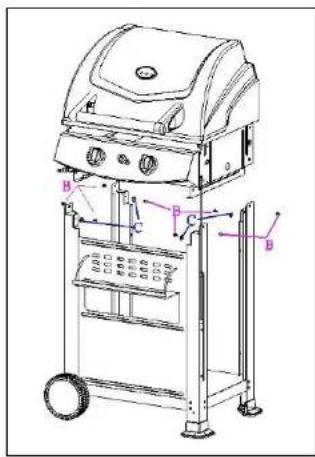

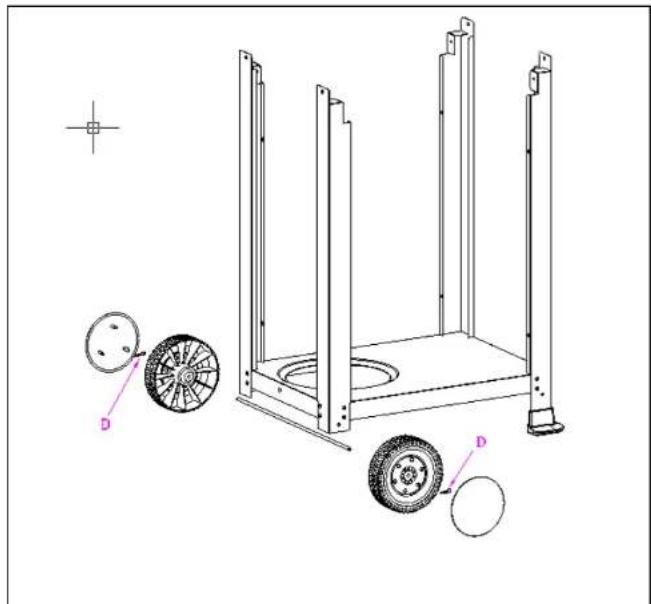

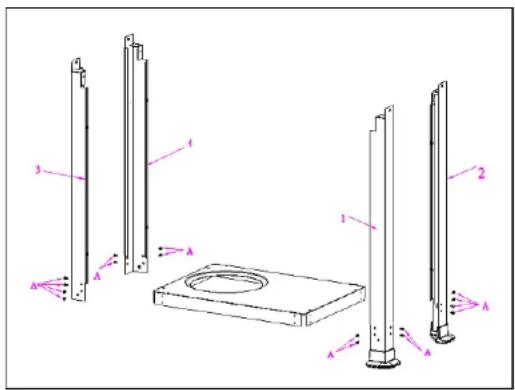

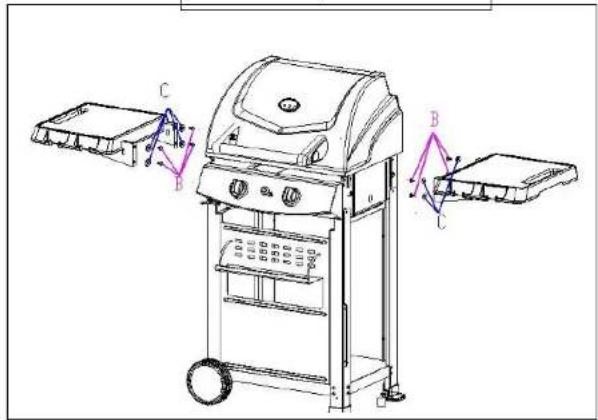

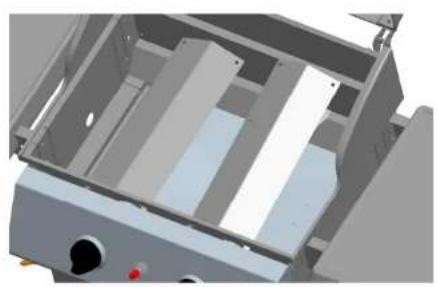

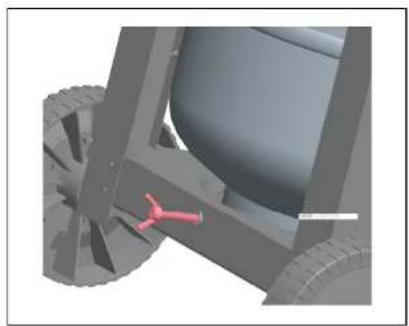

grill indoors, ALWAYS disconnect the gas cylinder first and store the cylinder safely outside. Cylinders must be stored outdoors in a well ventilated area out of reach of children, and must not be stored in a building, garage any other enclosed area. Do not store or use petrol or other flammable liquids in the vicinity of this or any other appliance. Preparation and Grill Set-up Before First Use: Remove Grill and all the packing from carton and place on the floor. Make sure there are no loose parts. Note: Before using your grill, read these instructions. Follow instructions of each step in the order they are written as you look at the diagrams. This will allow for easier assembly. Spare parts for assembly:61 A: Assembly Instructions for Cart Assembly STEP 1. Attach Legs to Cart Floor Panel with screws (Type A). (Fig. 1) STEP 2. Assemble Wheel Assembly with pins (Type D). Attach Wheel Assembly to Legs by axle. (Fig. 2) STEP 3. Attach Front Cart Panel to Legs by screws (Type A) and nuts (Type C). (Fig. 3) STEP 4. Secure the Base Assembly to the Cart Assembly by screws and washers. (Fig. 4) STEP 5. Secure the Side Tables to each side of Base Assembly. (Fig. 5) STEP 6. Attach the Grease Tray to the Base Assembly. (Fig. 6) STEP 7. Place Heat Tents on position. (Fig.7) STEP 8. Place Cooking Grids on position. (Fig.8) STEP 9. Secure the gas hose to the connector by clip. (Fig.9) STEP 10. Secure the gas cylinder by screw. (Fig. 10)

Figure 1067 Connecting the Gas Cylinder

IMPORTANT: Before connecting and disconnecting the barbecue to a gas cylinder make sure both of the grill control knobs are in the OFF position. CAUTION: When the barbecue is not in use, the gas must be turned off at the gas cylinder valve. Connecting: Make sure cylinder valve is closed. Check cylinder valve features to ensure it has proper mating threads to those of the regulator. Read the instructions supplied with the regulator to make sure of the correct connection and operation Make sure the grill burner control knobs are in the “OFF” position. Inspect cylinder valve connections port and regulator assembly. Look for any damage or debris. Remove any debris. Inspect hose for damage. Never attempt to use damaged or blocked equipment. Connect the regulator assembly to the cylinder valve. Open the cylinder valve fully. Use a soapy water solution to check all connections for leaks before attempting to light barbecue. If a leak is found, turn the cylinder valve off and do not use the grill until repairs can be made by your local gas dealer. Disconnecting Make sure both burner control valves are in the “OFF” position. Make sure gas cylinder valve is fully closed. Detach the regulator assembly from gas cylinder valve.

WARNING: Never connect an unregulated gas cylinder to your

Lighting Procedure Ignition System Check The ignition test is done with the gas cylinder valve closed. Test both burners in turn by following the procedure detailed below Make sure the control knob is in the off position. Push in and turn the control knob anti-clockwise to the High position until the control clicks.

3. Repeat this operation, each time checking for a spark at the burner.

If spark is not evident at the burner, check that the ignition lead is firmly attached to the control and spark electrode. With sparking established turn the Control Knob to the OFF position. Note: If the igniter is faulty the burners can be lit using a lighted match attached to the match holder. Burner Operation Open the lid before attempting to light the burners. The User should always operate the grill with the Drip Tray in place. Make sure both the control knobs are in the Off “0” position. Open the gas cylinder valve. To light the burners Push and in and turn the appropriate control knob anti-clockwise to the High position, at the same time check that the burner has lit. See note below. The left hand control knob controls the69 left hand side burner and the right hand side control knob controls the right hand burner Once the burner has lit the temperature of the grill can be reduced by turning the control knob the low position. o To turn the burner off, turn the control knob fully clockwise to the off position “0”. o Turn off the gas cylinder valve when the grill is not in use. Notes: 1.Upon first assembly, the gas line and burners will be full of air. In order for the burners to light properly the lines must fill with gas. It may require several attempts at lighting the burners before you are successful. If a burner fails to light after several attempts turn off gas supply at cylinder and read “If the Barbecue Fails to Operate Properly” section below. 2.Note if an igniter is faulty the burner can be lit using a lighted match attached to the match holder. If the Barbecue Fails to Operate Properly Turn off the gas at the cylinder valve and turn both control Knobs to the OFF position. Wait 5 minutes before trying to light again. Check gas supply connections. Repeat the lighting procedure and if barbecue still fails to operate properly, turn off the gas at the cylinder valve and turn both control Knobs to the OFF position and wait for grill to cool and check the following: d) Misalignment of burner tube over orifice

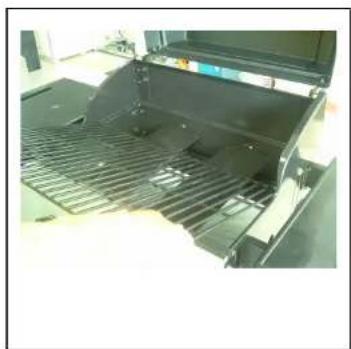

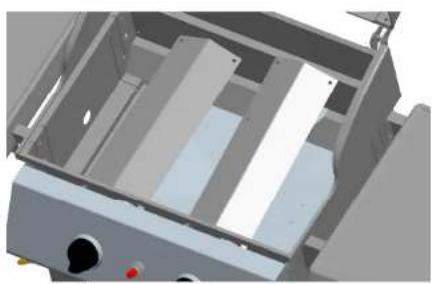

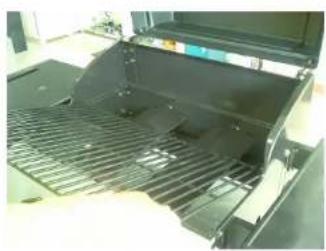

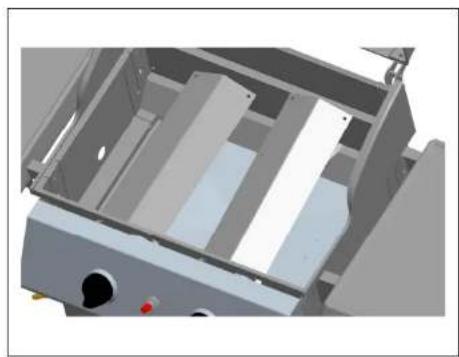

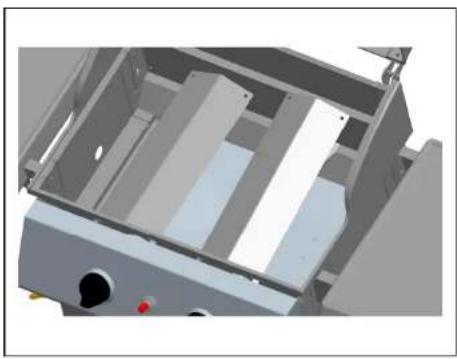

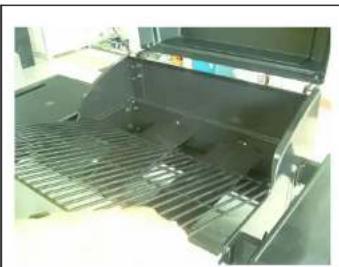

CORRECTION: Reposition burner tube to properly sit over orifice as shown in Fig. 11. b) Obstruction in gas hose CORRECTION: Remove the hose from grill. DO NOT SMOKE! Open the gas cylinder valve for one second to blow any obstruction from the hose. Turn off the gas cylinder valve before reconnecting the hose to the grill. Operating Procedure Burn-off Before cooking on your grill for the first time, burn-off any residual oils or foreign matter by igniting the burners. Ensure the lid is open and operate both burners at “High” setting for approximately 2-3 minutes. You may then turn the control valves to “OFF” or proceed to cooking at the “LOW” or “High” settings. Preheating It is necessary to preheat the barbecue for a short time before cooking certain foods, depending on the type of food and the cooking temperature. Food that requires a high cooking temperature, needs only a period of 5- 6 minutes preheating. Note: Do not close lid on the Grill Plate for more than 8 minutes, or without food loaded on the Grill Plate. The non-stick coating may be damaged. Hotplate option Figure 1171 The right hand burner can be used as a hotplate for use with pans by removing the right hand side grill plate and replacing it with the “Pan support” rack. Do not cook food directly on the pan support , it must only be used when cooking with a pan. Care & Maintenance Care & Maintenance As with all appliance, proper care and maintenance will keep them in top operating condition and prolong their life. Your new gas grill is no exception. By following these cleaning procedures on a timely basis, your grill will be kept clean and working properly with minimum effort. Spiders and small insects occasionally spin webs or make nests in the burner tubes during warehousing and transit. These webs can lead to a gas flow obstruction that could result in a fire in and around the burner tubes. This type of fire is known as “FLASH-BACK” and cause serious damage to your barbecue and create an unsafe operating condition for the user. Although an obstructed burner tube is not the only cause of “FLASH-BACK” it is the most common cause and frequent inspection and cleaning of the burner tube is necessary. CAUTION: The lid must be in the open position for lighting. Do not smoke at any time when attempting to ignite the grill burners. Do not move the stand while the grill is in operation. Do not leave the grill unattended when alight. CAUTION: Beware of spiders and wasps. Burner tube should be inspected and cleaned periodically.

Flash-Back If fire occurs in and around the burner, immediately turn off gas at the cylinder valve and turn the control knobs to the OFF position, wait until the grill has cooled, then clean the burner tubes and burner ports as described below. Cleaning the Grill Plates After cooking, turn both burner controls to the OFF position and let the grill cool before attempting to clean the grill plates. Before first use and periodically, it is suggested that the grill plates are washed using warm mild soapy water and a cleaning cloth Care of Cooking Surface Use and care of the cooking surface is important. Do not use metal utensils or cut food on the cooking surface. Use only plastic cooking utensils. Do not use pans on the grill plate cooking surfaces. Do not overheat the cooking surfaces with the lid down or without food being cooked. Cleaning the Drip Tray The drip tray should be emptied and wiped clean periodically and washed in warm mild soapy water. General Maintenance and Repair Do not modify the appliance. After sales service The appliance isn’t user–serviceable. If it’s not working properly, check that you’ve followed the instructions correctly. If it still doesn’t work, consult your retailer. If your retailer fails to solve your problem, ring the Customer Service Department. If you need to return the grill to us: 1.Disconnect the gas cylinder. 2.Pack the grill carefully. 3.Enclose your name, address, and daytime telephone number. 4.Tell us what’s wrong with it. If it’s under guarantee, state where and when it was bought, and include proof of purchase (e.g. till receipt). 5.Send it to Customer Service Dept, at the address at the end of this leaflet.73 6.They’ll give you an estimate for inspection/repair. Guarantee Any defect affecting the functionality of the appliance which becomes apparent within one year of its purchase will be corrected by free repair or replacement provided that it has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. In line with our policy of continuous product development we reserve the right to change product, packaging and documentation specifications without notice.
