EM 3 - Knife STEBA - Free user manual and instructions

Product type	Electric knife
Brand	Steba
Model	EM 3
Dimensions (L x W x H)	Approx. 40 x 10 x 8 cm
Weight	Approx. 1.2 kg
Power supply	230 V ~ 50 Hz
Power	150 W
Cable length	Approx. 1.5 m
Blade material	Stainless steel
Included blade types	Universal knife and bread knife
Main functions	Cutting meat, poultry, vegetables, bread; continuous operation up to 15 minutes
Care and cleaning	Unplug before cleaning; blades hand washable or dishwasher safe; wipe housing with damp cloth; do not immerse
Safety	Safety switch, blade lock, child protection (use from 8 years under supervision), do not use with timer
Spare parts and repairability	Repairs reserved for authorized after-sales service; cable replacement only by a professional
General information	Household use only; storage box included; not suitable for frozen foods
Operating temperature	Hot foods possible with caution, use the provided fork
Warranty	Standard manufacturer warranty

Frequently Asked Questions - EM 3 STEBA

How to assemble the blades of the Steba EM 3?

Place the two blades on top of each other by sliding the metal pin of one into the hole of the other. Hold the assembly by the blade guard and insert them into the slots of the motor unit until they click. Then remove the blade guard.

What to do if the appliance does not work?

First check that the appliance is plugged in and the outlet works. Make sure the blades are correctly inserted and locked. Check that the safety button is not activated. If the problem persists, contact customer service.

Can I cut frozen foods with the Steba EM 3?

No, the universal knife is not suitable for frozen products. Use it only for thawed or fresh foods.

How to clean the blades?

Unplug the appliance, press the unlock button and remove the blades. The blades can be washed by hand or in the dishwasher. Dry them thoroughly before storing.

Does the motor heat up normally?

Yes, some heat is normal. The recommended continuous operating time is about 15 minutes, after which you must let the motor cool down for 5 minutes to avoid overheating.

Can I use an extension cord with the appliance?

Yes, but the extension cord must have a minimum cross-section of 1.5 mm². If you use a power strip, make sure it is GS certified with 16 A and do not exceed 3680 watts to avoid any fire risk.

How to store the appliance after use?

Clean and dry all parts. Place the blades back into the storage box with the motor and cord. Store the box in a dry place out of reach of children.

What to do if the power cord is damaged?

Do not use the appliance. The damaged cord must be replaced only by a qualified professional or authorized after-sales service to avoid any danger.

Is the appliance suitable for children?

It can be used by children over 8 years old under supervision. Cleaning should not be done by children unless they are over 8 and supervised. Keep the appliance out of reach of children under 8 years old.

Can I use the appliance without blades?

No, never use the appliance without blades. This would damage the motor and pose a safety risk.

USER MANUAL EM 3 STEBA

230 V ;50 Hz;120 W

Elettromesser

EM 3

Instructions for use 8

Mode d'emploi 12

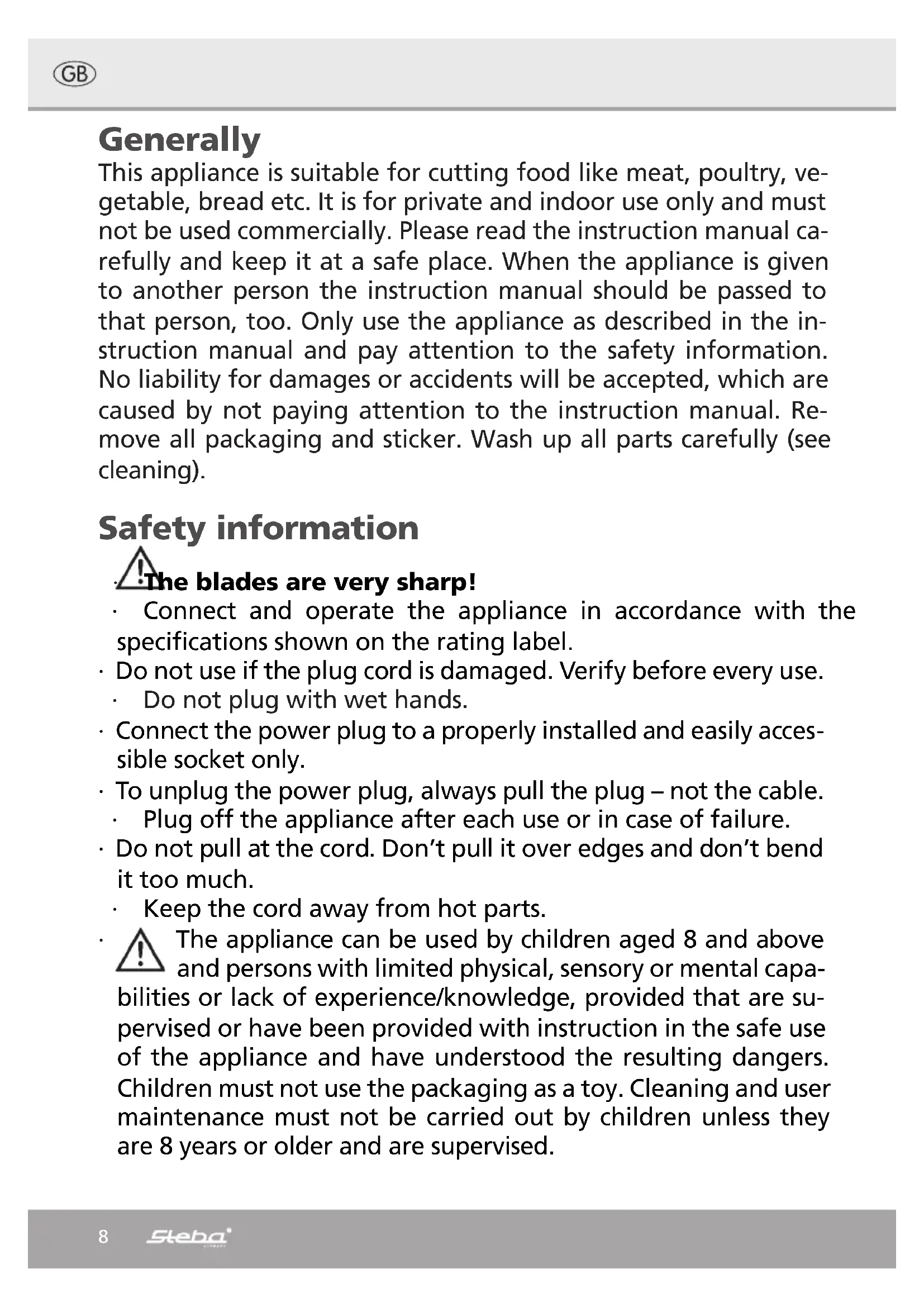

This appliance is suitable for cutting food like meat, poultry, vegetable, bread etc. It is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker. Wash up all parts carefully (see cleaning).

Safety information

The blades are very sharp!

• Connect and operate the appliance in accordance with the specifications shown on the rating label.

• Do not use if the plug cord is damaged. Verify before every use.

• Do not plug with wet hands.

• Connect the power plug to a properly installed and easily accessible socket only.

• To unplug the power plug, always pull the plug – not the cable.

Plug off the appliance after each use or in case of failure.

• Do not pull at the cord. Don't pull it over edges and don't bend it too much.

• Keep the cord away from hot parts.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.
• Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).
• The appliance must not be operated using a timer or a separate remote system!
  · Do not leave the appliance outdoors or in a damp area.

- Never immerse the unit in water.

• Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.
• The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.

• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.

• Only use the device as described in this manual.

• This appliance is intended to be used in household and similar applications such as:

to staff kitchen areas in shops, offices and others working environments.
o by clients in hotels, motels and other residential type environments
o bed and breakfast type environments.

• Before initial use: clean all parts carefully and leave to dry.
• If an extension cable is used, it has to have a cross-section of 1.5mm^2 . A cable drum must always be unwound.
• If a GS-tested 16 A multi-pin extension is used, it may not be charged with more then 3680 watts due to fire hazard.
• Make sure that children do not tease the cable or that a trip hazard occurs.
• The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.

Take care when cutting hot food. Use the supplied fork.

Cleaning

tention!

Pull the plug before cleaning.

• Never immerse the unit into water.

• The device must be cleaned after every use due to hygienic reasons.

Clean the housing with a damp cloth.
- Do not use aggressive or abrasive cleaning agents.

the blades are very sharp!

Risk of injury.

• Carefully pull the double blades out of the motor part by pressing the release button.
• Take apart the two blades and clean by hand or in the dishwasher.
• Store the device and accessories in the box after cleaning.

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

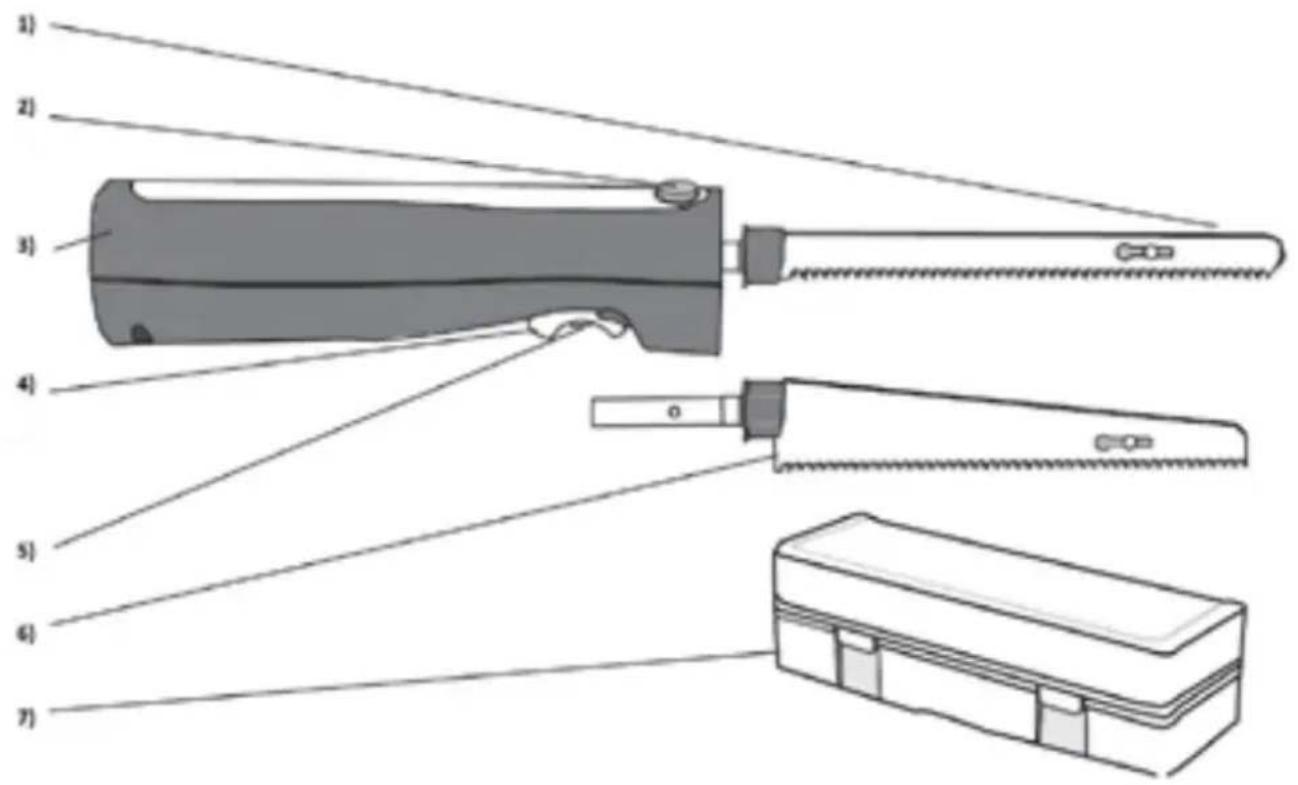

1) Multi blade, not suitable for frozen food
2) Release button
3) Motor part
4) ON/OFF
5) Security switch
6) Bread blade
7) Storage box

Usage

Make sure that the device is not plugged in before inserting the blades!

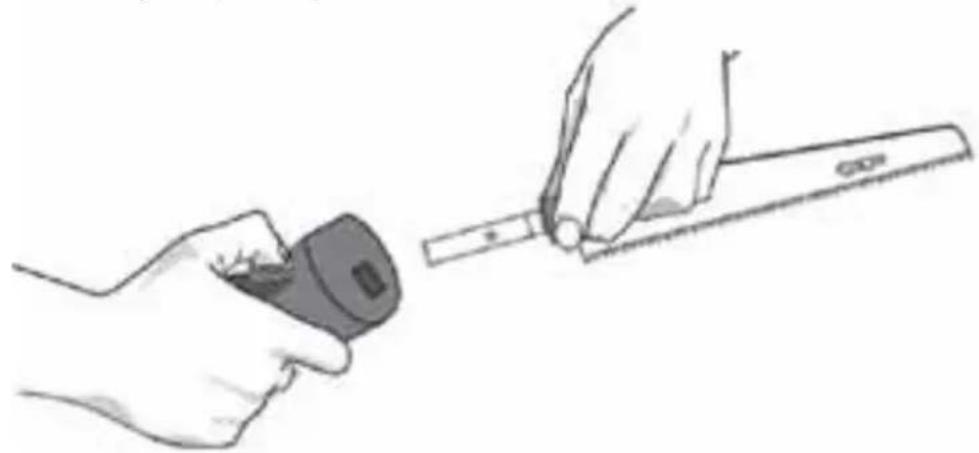

• Place the two blades on top of each other and slide the metal pin of one into the hole of the other blade

• Take the two blades with the blade guard and insert them into the slots on the motor part until they snap into place.

• Now remove the blade guard and plug in the device.
• Carefully cut the food without much pressure from top to bottom.
• Pay attention not to cut into bones or metal, neither operate the device on a metal surface. Otherwise the blades will blunt.

Never press the ON / Off button and the release button simultaneously.

• Long-term usage: in order not to damage the motor, the operating time should not exceed 15 minutes. Then, let the motor cool down for approx. 5 minutes.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
