Product type	DAB+ / FM clock radio
Brand	Nedis
Model	RDDB5110BK
Dimensions (L x W x H)	200 x 110 x 110 mm
Weight	800 g
Power supply	5 V DC - 500 mA (USB adapter)
Built-in battery	Li-ion 1200 mAh
Charging time	Approximately 3 hours
Battery life	Up to 4 hours
Display	LCD with backlight
Radio bands	DAB+ (174 - 240 MHz) / FM (87.5 - 108 MHz)
Tuning type	PLL
Presets	80 (40 DAB+ + 40 FM)
Power (RMS)	1.5 W
Peak power	4.5 W
Alarm function	Yes, 2 alarms
Sleep function	Yes (5/10/15/30 minutes)
Snooze function	Yes, adjustable from 5 to 30 minutes
Connectivity	Auxiliary input 3.5 mm, micro-USB port (charging)
Antenna	Telescopic antenna
Package contents	Radio, micro-USB cable, quick start guide
Warranty	2 years
Repairability	Spare parts available via after-sales service
Care and cleaning	Wipe with a soft dry cloth. Do not use abrasive cleaners.
Safety	Do not expose to moisture, do not open, use only recommended adapter

Frequently Asked Questions - RDDB5110BK NEDIS

How to set the time on the Nedis RDDB5110BK radio?

The time is set automatically as soon as a DAB+ signal is received. Otherwise, go to the menu via the Menu button (9), select Time/Date, then use the Tune button (2) to adjust the values and Enter (10) to confirm.

How to save a station as a preset?

Press and hold the Preset button (6). Turn the Tune button (2) to choose a location (1-40), then press Enter (10) to confirm. You can save up to 40 DAB+ and 40 FM stations.

How to use the alarm function?

Press the Alarm button (8) to select alarm 1 or 2. Use Tune (2) to set hours, minutes, source (DAB+/FM/buzzer), days (every day, weekends, weekdays, once), and volume. Confirm each step with Enter (10). Activate the alarm at the end.

How to activate the sleep function?

Press the Menu button (9), navigate to the Sleep option. Choose a duration (15, 30, 45, 60 minutes or off). The radio will turn off automatically after this time.

What to do if the radio does not pick up any DAB+ station?

Make sure the telescopic antenna is fully extended. Move the radio near a window or to a higher position. Perform a manual search by pressing the Scan button (12). Check that you are in an area covered by DAB+.

How to connect an external device in AUX mode?

Connect a 3.5 mm audio cable between your device (smartphone, MP3 player) and the auxiliary input (16) on the back of the radio. Press the Mode button (7) until AUX is selected. The sound will be played through the radio's speakers.

How to reset the radio to factory settings?

Press Menu (9), navigate to Factory reset and confirm with Enter (10). All presets and settings will be erased.

What is the battery life and how to charge it?

The built-in 1200 mAh battery provides up to 4 hours of playback. Charge it via the micro-USB port (14) with a 5V/500mA USB adapter. The LED indicator (15) lights up during charging; a full charge takes about 3 hours.

How to change the screen backlight?

Press Menu (9), select Backlight. You can choose between On (always on) or Off (turns off after a few seconds) by turning the Tune button (2) and confirming with Enter (10).

What to do if the radio does not turn on?

Check that the battery is charged or plug in the power adapter. Make sure the micro-USB cable is properly connected. If the LED indicator does not light up, try another USB adapter. If the problem persists, contact Nedis customer service.

USER MANUAL RDDB5110BK NEDIS

with alarm clock radio

RDDB5110BK

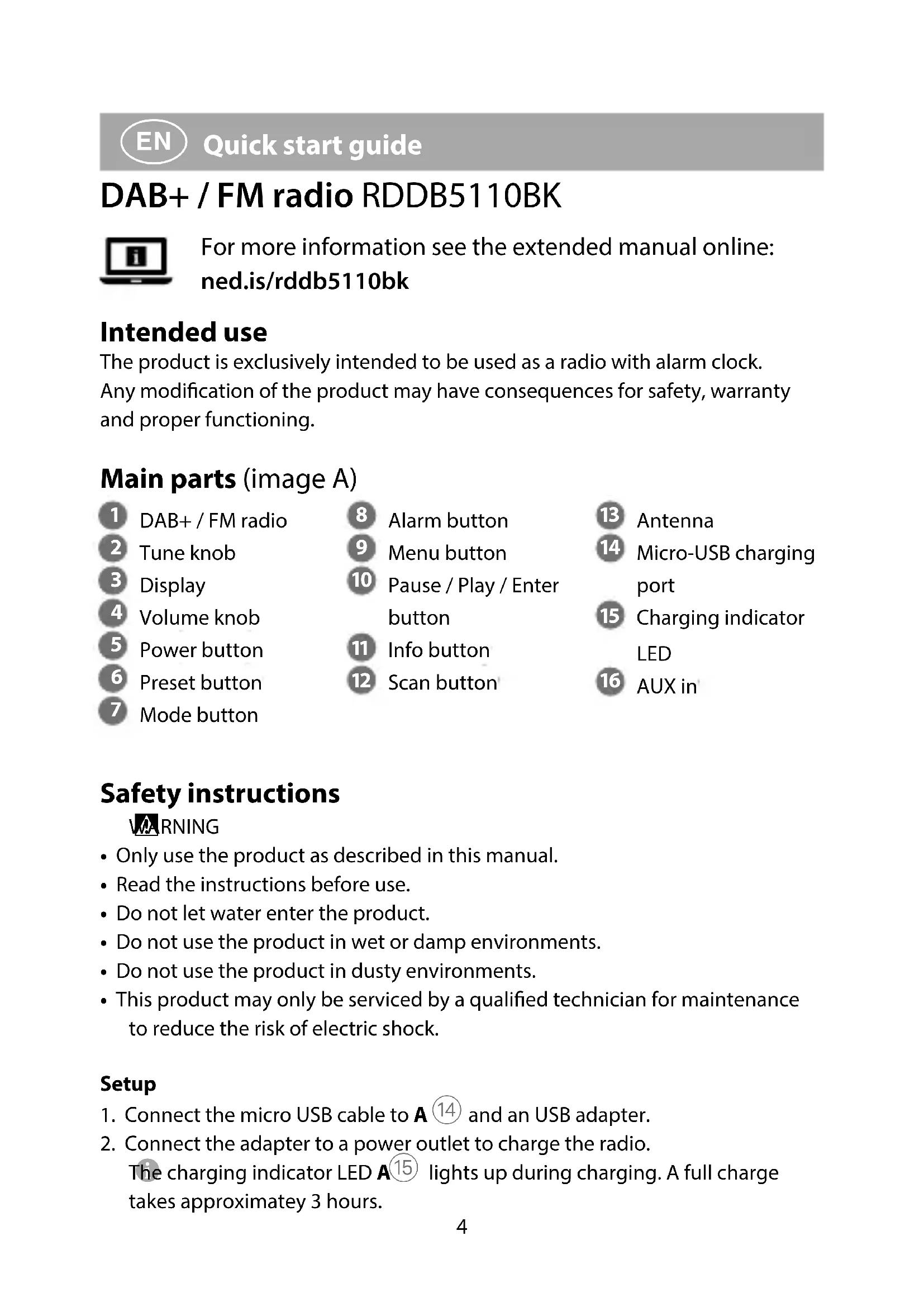

EN Quick start guide 4

DE Kurzanleitung 7

DAB+ / FM radio RDDB5110BK

For more information see the extended manual online: ned.is/rddb5110bk

Intended use

The product is exclusively intended to be used as a radio with alarm clock. Any modification of the product may have consequences for safety, warranty and proper functioning.

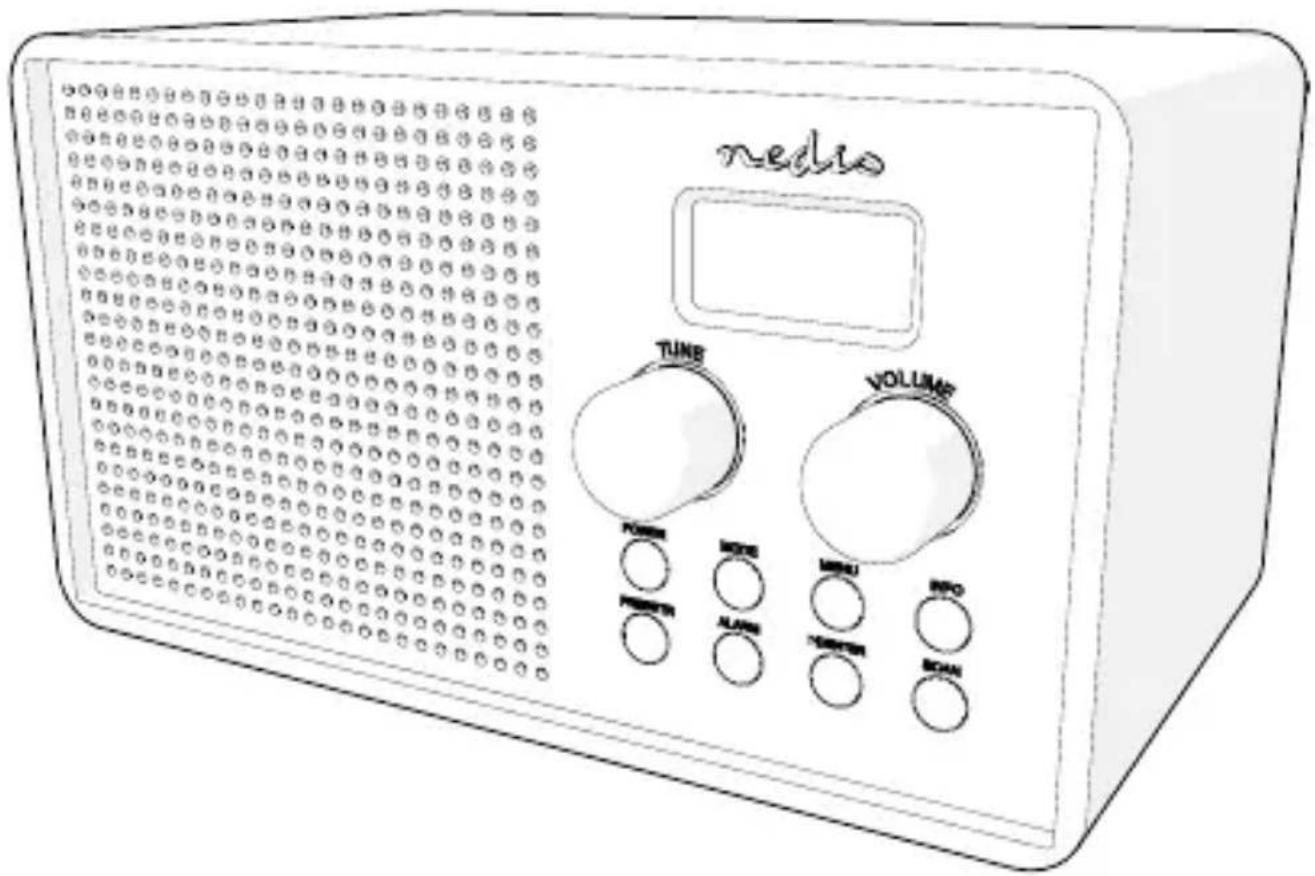

Main parts (image A)

1 DAB+ / FM radio
2 Tune knob
3 Display
4 Volume knob
5 Power button
6 Preset button
7 Mode button

8 Alarm button
9 Menu button
10 Pause / Play / Enter button
11 Info button
12 Scan button

13 Antenna
14 Micro-USB charging port
15 Charging indicator LED
16 AUX in

Safety instructions

WARNING

• Only use the product as described in this manual.
• Read the instructions before use.
• Do not let water enter the product.
• Do not use the product in wet or damp environments.
• Do not use the product in dusty environments.

- This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.

Setup

1. Connect the micro USB cable to A ⑭ and an USB adapter.

2. Connect the adapter to a power outlet to charge the radio.
   The charging indicator LED A ^15 lights up during charging. A full charge takes approximately 3 hours.

3. Extend the antenna A ⑬.

Alternatively, you can use built-in battery.

Setting date and time

If a DAB+ signal is found, date and time will be set automatically.

DAB+ mode

1. When the radio is in FM or AUX mode, press Mode A ⑦ to switch to DAB+. The radio will scan for available DAB+ stations automatically.

2. Turn Tune A ② to switch stations.

FM mode

1. When the radio is in DAB+ or AUX mode, press Mode A ⑦ to switch to FM. The radio will scan for available FM stations automatically.

2. Turn Tune A ② to switch stations.

AUX mode

1. Connect a device via a 3.5 mm jack to the AUX port A ^16 .
2. When the radio is in DAB+ or FM mode, press Mode A ^7 to switch to AUX.

Using presets

1. Press and hold Preset A ⑥ to save the current station. You can save up to 40 DAB+ stations and 40 FM stations.

2. Turn Tune A ② .

3. Press Enter A ⑩ to confirm.

Using the menu

- Press Menu A ⑨ to enter the menu.

Using the alarm

1. Turn Tune A ② to choose between:
2. Press Enter A ⑩ to confirm.

Scan Scan for radio stations
Time / date Set date and time
Backlight Switch the backlight of the LCD display on or off
Contrast Change the contrast level of the LCD display on or off
System version Check the system version
Factory reset Reset to factory defaults

Two different alarms can be set.

1. Press A ⑧ to select alarm 1.
2. Press A ② again to select alarm 2.
3. Press Enter A ⑩ to confirm.
4. Turn A ② to set the hours of the wake up time. Press A ⑩ to confirm.
5. Turn A ② to set the minutes. Press A ⑩ to confirm.
6. Turn A ^2 to choose the source of the alarm: DAB+ / FM or buzzer. Press A ^10 to confirm.
7. Turn A ^2 to choose when to sound the alarm. Choose between Daily / Weekends / Weekdays / Once. Press A ^10 to confirm.
8. Turn A ② to set the alarm volume. Press A ⑩ to confirm.
9. Turn A ② to switch the alarm on or off. Press A ^10 to confirm.

Snoozing and switching off the alarm

1. Press Enter A ⑩ to snooze the alarm
2. Turn A ② to select the snooze time between 5/10/15/30 minutes. Press A ^10 to confirm.
3. Press A ⑧ to switch off the alarm.

Specifications

Product DAB+ / FM radio
Article number RDDB5110BK
Dimensions (l x w x h) 200 x 110 x 110 mm
Weight 800 g
Power input 5 VDC - 500 mA
Power (RMS) 1.5 W
Peak power 4.5 W
Radio bands DAB+ / FM
DAB+ frequency 174 - 240 MHz
FM frequency 87.5 - 108 MHz
Preset channels 80 (40 DAB+, 40 FM)
Tuning type PLL
Play time Up to 4 hours
Battery capacity 1200 mAh
Charging time 3 hours
LCD display Yes
Alarm clock Yes
Snooze function Yes
Connection Aux input, micro USB

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product RDDB5110BK from our brand Nedis ^® , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via webshop.nedis.com/RDDB5110BK#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Phone: [phone] (during office hours)

Nedis B.V., de Tweeling 28

5215 MC 's-Hertogenbosch, the Netherlands
