AD 3040 - Toaster ADLER - Free user manual and instructions

Product type	Multifunction cooking appliance (toaster, waffle maker, grill)
Brand	Adler
Model	AD 3040
Power supply	220-240 V ~ 50/60 Hz
Rated power	800 W
Maximum power	1200 W
Dimensions (L x W x H)	Approx. 30 x 25 x 12 cm
Weight	Approx. 2 kg
Plate material	Non-stick coating
Number of plates	4 interchangeable sets (waffles, thin sandwiches, thick sandwiches, grill, nut cookies)
Indicator light	Power indicator (red) and thermostat indicator (green)
Main functions	Grilling, baking waffles, toasts, sandwiches, grilling, nut cookies
Adjustable thermostat	No, built-in thermostat maintains temperature
Indicative cooking time	Thin sandwiches: 2-3 min, thick: 5-6 min, waffles: 8-11 min, nut cookies: 2-3 min
Safety	Non-slip feet, hot surfaces, do not immerse
Maintenance and cleaning	Clean with a damp or dry cloth, use a wooden spatula, do not use abrasive sponges
Spare parts and repairability	Power cord replaceable by a qualified professional
General information	Household use only, do not use with an external timer

Frequently Asked Questions - AD 3040 ADLER

What is the power of the Adler AD 3040?

The rated power is 800 W, with a maximum power of 1200 W.

How long does it take to preheat the appliance?

It takes about 10 minutes for the appliance to reach the cooking temperature. The green thermostat indicator then lights up.

Can I use metal utensils on the plates?

No, only use wooden or plastic spatulas to avoid scratching the non-stick coating.

How to clean the Adler AD 3040?

Unplug it and let it cool down. Clean with a damp or dry cloth. For stubborn residues, use a little cooking oil and remove with a wooden spatula. Never immerse the appliance in water.

What types of plates are provided?

The appliance comes with several interchangeable plates: for waffles, thinner toast sandwiches, thicker bread sandwiches, grill, and nut cookies.

Can I make waffles with the Adler AD 3040?

Yes, the appliance is equipped with waffle plates. The recommended cooking time is at least 8 minutes, ideally 10-11 minutes.

What does the green light that turns on and off mean?

The green thermostat indicator means that the cooking temperature is reached. It turns on and off to maintain a constant temperature.

Can I use the appliance with an external timer?

No, the appliance should not be used with external timers or remote control systems.

Is it safe to leave the appliance plugged in unattended?

No, it is forbidden to leave the appliance plugged in unattended. Unplug it after each use.

How to store the appliance after use?

Wait for the appliance to cool down completely before storing. Do not wrap the cord around the hot appliance.

USER MANUAL AD 3040 ADLER

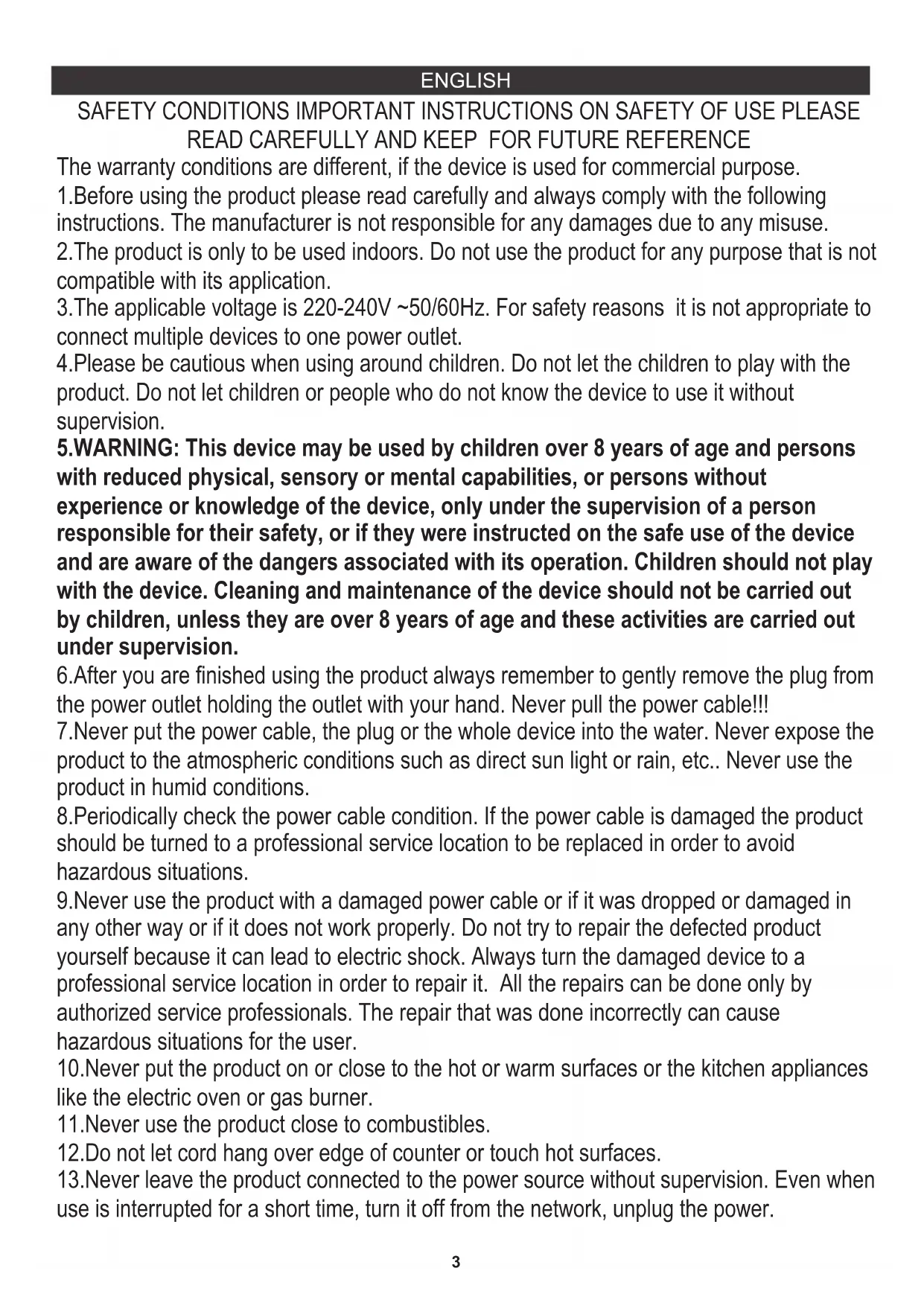

SAFETY CONDITIONS. IMPORTANT INSTRUCTIONS ON SAFETY OF USE. PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

The warranty conditions are different if the device is used for commercial purposes.

1. Before using the product, please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.
2. The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application.
3. The applicable voltage is 220-240V ~ 50/60Hz. For safety reasons, it is not appropriate to connect multiple devices to one power outlet.
4. Please be cautious when using around children. Do not let children play with the product. Do not let children or people who do not know the device use it without supervision.

WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory, or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they have been instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.

1. After you are finished using the product, always remember to gently remove the plug from the power outlet, holding the outlet with your hand. Never pull the power cable! Never put the power cable, the plug, or the whole device into water. Never expose the product to atmospheric conditions such as direct sunlight or rain, etc. Never use the product in humid conditions. Periodically check the power cable condition. If the power cable is damaged, the product should be taken to a professional service location to be replaced in order to avoid hazardous situations.
2. Never use the product with a damaged power cable, or if it was dropped or damaged in any other way, or if it does not work properly. Do not try to repair the defective product yourself because it can lead to electric shock. Always take the damaged device to a professional service location to be repaired. All repairs can be done only by authorized service professionals. Incorrectly performed repairs can cause hazardous situations for the user.
3. Never put the product on or close to hot or warm surfaces or kitchen appliances like an electric oven or gas burner. Never use the product close to combustibles.
4. Do not let the cord hang over the edge of a counter or touch hot surfaces.
5. Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network and unplug the power.
6. In order to provide additional protection, it is recommended to install a residual current device (RCD) in the power circuit, with a residual current rating not more than 30 mA. Contact a professional electrician in this matter.

1. Accessible surface temperatures can be high when the appliance is operating. Never touch the hot surfaces of the appliance.
2. Due to the high temperature, you should be careful when removing the prepared dishes, removing hot grease or other hot liquids. Be careful, there can be hot steam present during use of the appliance.
3. This electrical appliance contains a heating function. Surfaces, also different than the functional surfaces, can develop high temperatures. The equipment shall be touched only at intended handles and gripping surfaces, and use heat protection like gloves or similar. During or after use, please do not touch the baking tray or the hot area on the shell before the temperature goes down.
4. The device must cool down before you store it.
5. Do not place products made of cardboard, paper, plastic materials or other flammable or meltable objects in the device.
6. The device is not designed to work with external schedulers or separate remote control systems.
7. Do not insert food portions that use the whole oven volume, as it may cause fire and destruction of the device.
8. The power cord may not be placed above the device and it may not touch or be located near hot surfaces. Do not place the device under a mains socket.
9. Do not move or carry the device during operation. After the operation, it can be moved only if it had enough time for cooling down.
10. Open the device by holding the handle. Before that, release the buckle (4).
11. Before and during use, make sure that the power cord is not stretched over an open flame or other heat source or sharp edges that may damage the insulation of the cable.
12. Before first use, remove all packaging components. Attention! In the case of a casing with metal parts, on these elements a slightly visible protective foil can be stretched, which should also be removed.
13. NEVER cover the device during operation or when it has not cooled down completely. Remember that the heating elements of the device take time to cool down completely.
14. SAVE CAREFULLY if you use the device on surfaces sensitive to high temperatures. It is recommended then to use insulating washers.
15. The device cannot be used with external time switches or other separate remote control systems.

DESCRIPTION OF THE DEVICE

(1) toaster cover (2) power indicator light (red) (3) thermostat lamp (green) (4) closing clip (5) heating plate lock (6) waffle plate (7) plate for thinner toasted bread sandwiches (8) plate for thicker bread sandwiches (9) grill plate (10) plate for cookies "nuts"

BEFORE FIRST USE

1. Remove the packaging and all stickers and accessories that are outside and inside the device - between the hobs.
2. Wipe the hobs with a moist cloth and then with a dry cloth.
3. Lightly grease the plates with vegetable oil or other fat, close the device and connect to the power - the power indicator light (2) will light up.
4. Leave the device turned on for a few minutes to get rid of the odor. At this time, the device can emit a small amount of smoke. This is a normal phenomenon.
5. Clean the device in accordance with the "Cleaning" section of these operating instructions.

USE

1. Connect the device to a mains socket with earthing - the power indicator (2) will light up.
2. Wait about 10 minutes for the device to warm up to the right temperature. The thermostat control lamp (3) will then light up.
3. In the meantime you can prepare sandwiches for toasting / cake for waffles / food for grilling / cake for cookies.
4. The device is ready for use when the thermostat control lamp (3) comes on.
5. Open the device completely and place pre-prepared food on the bottom cooking plate.
6. Sandwiches: ingredients should not stick out of the bread.
7. Waffle cake: will grow, do not pour the dough full, just enough to cover the bottom plate with cake.
8. Nut cakes: form balls of 1.5 cm in diameter and fill in the dimples with nut.
9. Close the device by the closing clip (4) on the lower holder. Do not close the upper cover (1) by force. When closing and opening, watch out for the steam coming out of the sides of the device. Even when food is being baked, hot steam may come out from under the lid.
10. During toasting, the thermostat control lamp (3) will light up and go out - the thermostat maintains the right temperature of the heating plates.
11. The toasting time is different and depends on the type of food, additives used and taste preferences. We recommend:
12. Thin sandwiches: 2-3 minutes or until golden brown.
13. Thicker sandwiches: 5-6 minutes or until golden brown.
14. Contact grill: vegetables or meat - individual match your preferences. Waffles: minimum 8 minutes, preferably 10-11 minutes, depending on the ingredients of the dough.
15. Nut cakes: 2-3 minutes or until golden.
16. Open the top cover (1) of the device completely and remove the food using only a wooden or plastic spatula. ATTENTION! Do not use metal cutlery or sharp kitchen tools as they may damage the special non-stick coating of the hobs.
17. Before loading the next batch of food, close the device, so that the hobs are heated to the right temperature. The lighting of the thermostat lamp (3) indicates readiness for browning.
18. After the toasting is finished, remove the plug from the power socket and let the appliance cool down.

CLEANING THE DEVICE

1. Before cleaning the device, unplug the appliance from the power socket and allow the device to cool down.
2. Clean using a damp and then dry cloth (or paper towel).
3. Use a small amount of edible oil to remove leftovers and after a few minutes, gently remove them with a wooden spatula.
4. Do not clean the hobs with sharp, abrasive cloths or sponges, or use cleaning powders as they may damage the smooth non-stick coatings.
5. Do not immerse the device in water.

TECHNICAL DATA

Supply voltage: 220 - 240V 50 / 60Hz

Power: 800W

Maximum power: 1200W

To protect your environment: please separate carton boxes and plastic PE bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may effect the environment. Electrical appliance must be returned in order to reduce its reuse and utilization. If the device contains batteries they should be delivered to dedicated points separately.

Power: 220-240V~50/60Hz

Power: 800W

Maximum power: 1200 W

Disposal of the appliance. Please hand over the cardboard packaging to waste paper. Plastic parts (PE) should be disposed of in the recycling container for plastics. The worn-out device must be handed over to the appropriate collection point, as the components contained in the device may pose a threat to the environment. The electrical device must be handed over in such a way as to limit its reuse and use. If the device contains batteries, they must be removed and handed over to the collection point separately. Do not dispose of the device in the container for municipal waste!

SLOVENSKY

SAFETY CONDITIONS IMPORTANT INSTRUCTIONS FOR SAFETY OF USE READ CAREFULLY AND KEEP FOR FUTURE

(2) Heating indicator (red)

(3) Thermostat knob (green)

(4) Lid handle (5) Lock of the heating plate (6) Waffle plate (7) Plate for thin waffles (8) Plate for thick waffles (9) Grill plate (10) Plate for "sandwiches"

Thin waffles: 2-3 minutes until golden brown.

Thick waffles: 5-6 minutes until golden brown.

For the grill plate: green vegetables or meat - according to your preference.

Ready: minimum 8 minutes, preferably 10-11 minutes, depending on the composition of the dough.

Eggs: 2-3 minutes until golden.

1. Open the lid (1) of the device and store it, using a wooden or plastic spatula. ATTENTION! Do not use metal utensils for storage, as they may damage the special non-stick coating of the plates.
2. Before using the appliance, close the device and wait for it to reach the correct temperature. The thermostat lamp (3) will indicate readiness.
3. After use, remove the food from the container and leave the device to cool down.

CLEANING THE DEVICE

1. Remove the plug from the socket and wait for the device to cool down before cleaning. 2. Wipe with a damp cloth and then dry with a soft cloth. 3. Leave the cleaning cloth with a little detergent and leave it for a while. After a few minutes, remove the residue carefully with a soft cloth. 4. Do not use metal, hard, or abrasive instruments to clean the interior/exterior of the device's body, to avoid scratching the non-stick surface of the appliance. 5. Do not immerse in water.

TECHNICAL DATA:

Power supply: 220-240V~50/60Hz

Power: 800W

Maximum power: 1200W

To protect the environment: separate the cardboard packaging, plastic bags, and dispose of them in the appropriate containers for recycling. The used device must be disposed of at special collection points, as it contains hazardous components that may harm the environment. The electrical device must be returned to prevent its reuse. If the device contains batteries, they must be disposed of at separate collection points for batteries and not with household waste.

3 50/60 ~ 240-220

1g 1b 1a 0e 0j

jzll yia iia aiai jai abai glll jzlal 1

1 1

jaiy i jybj ylln jk l kglzuiu gglzuiu sxcj . Jiaia Kiyai jai jai all abill ll gilbc! gylr jy
