USER MANUAL CR 8076 CAMRY

Exterior view of a modern gray industrial waste bin with open lid and control panel (no visible text or symbols)

CR 8076

(GB) user manual 3 (BS) upute za rad 32

1 6 4 5 Canry Fleece

Diagram of a portable electronic device with labeled parts 2 and 3, showing front panel, status indicators, and control buttons.

Line drawing of a coiled cable with two connectors (no text or symbols)

Picture A

Temp1 B C Temp2 8890 8830 8880 Voltage 6 D E G F A H

Picture B

AC: 220-240V\~50/60Hz

DC: 12-24V

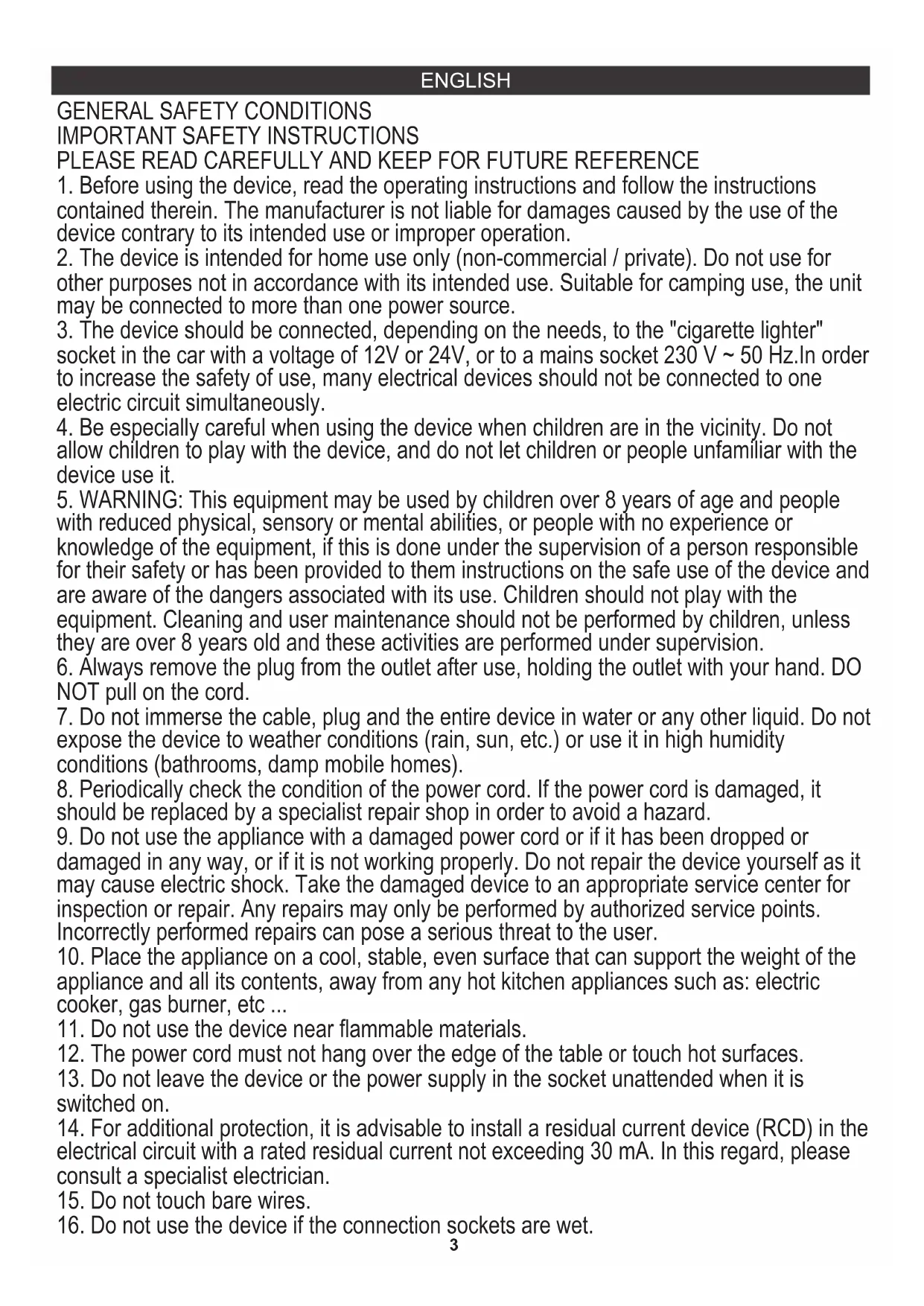

GENERAL SAFETY CONDITIONS

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. Before using the device, read the operating instructions and follow the instructions contained therein. The manufacturer is not liable for damages caused by the use of the device contrary to its intended use or improper operation.
2. The device is intended for home use only (non-commercial / private). Do not use for other purposes not in accordance with its intended use. Suitable for camping use, the unit may be connected to more than one power source.
3. The device should be connected, depending on the needs, to the "cigarette lighter" socket in the car with a voltage of 12V or 24V, or to a mains socket 230 V \~ 50 Hz. In order to increase the safety of use, many electrical devices should not be connected to one electric circuit simultaneously.
4. Be especially careful when using the device when children are in the vicinity. Do not allow children to play with the device, and do not let children or people unfamiliar with the device use it.
5. WARNING: This equipment may be used by children over 8 years of age and people with reduced physical, sensory or mental abilities, or people with no experience or knowledge of the equipment, if this is done under the supervision of a person responsible for their safety or has been provided to them instructions on the safe use of the device and are aware of the dangers associated with its use. Children should not play with the equipment. Cleaning and user maintenance should not be performed by children, unless they are over 8 years old and these activities are performed under supervision.
6. Always remove the plug from the outlet after use, holding the outlet with your hand. DO NOT pull on the cord.
7. Do not immerse the cable, plug and the entire device in water or any other liquid. Do not expose the device to weather conditions (rain, sun, etc.) or use it in high humidity conditions (bathrooms, damp mobile homes).
8. Periodically check the condition of the power cord. If the power cord is damaged, it should be replaced by a specialist repair shop in order to avoid a hazard.
9. Do not use the appliance with a damaged power cord or if it has been dropped or damaged in any way, or if it is not working properly. Do not repair the device yourself as it may cause electric shock. Take the damaged device to an appropriate service center for inspection or repair. Any repairs may only be performed by authorized service points. Incorrectly performed repairs can pose a serious threat to the user.
10. Place the appliance on a cool, stable, even surface that can support the weight of the appliance and all its contents, away from any hot kitchen appliances such as: electric cooker, gas burner, etc ...
11. Do not use the device near flammable materials.
12. The power cord must not hang over the edge of the table or touch hot surfaces.
13. Do not leave the device or the power supply in the socket unattended when it is switched on.
14. For additional protection, it is advisable to install a residual current device (RCD) in the electrical circuit with a rated residual current not exceeding 30 mA. In this regard, please consult a specialist electrician.
15. Do not touch bare wires.

16. Do not use the device if the connection sockets are wet.

17. Do not put electrical appliances inside the refrigerator.

18. Do not block the device's ventilation openings.

19. Protect the device against heat sources and sunlight.

20. Put cold food into the device.

21. Place the equipment in a place with adequate ventilation. The distance from other objects should be at least 20 cm.

- WARNING: Do not obstruct the ventilation openings in the equipment enclosure or in the built-in structure

- WARNING: Protect the cooling system from damage

- WARNING: Do not use electrical equipment inside the foodstuff storage compartment of a type other than that recommended by the manufacturer

- WARNING: Do not store explosive substances inside the device, such as aerosol cans with flammable propellant.

- WARNING: The equipment contains high pressure refrigerant. Do not modify the device. The device may only be serviced by a qualified - authorized service center.

- WARNING: When positioning the machine, make sure that the power cord is not pinched or damaged.

- WARNING: Do not place extension cords or portable power adapters on the back of this apparatus.

Before first use: Proper location

1. Before using for the first time, remove the packaging and leave a free space of at least 15 cm around the device (5 cm on the side, 10 cm when tilting the device).

2. Position the refrigerator in a dry and well-ventilated place. Keep the refrigerator away from direct sunlight, heaters and corrosive gas.

NOTE: Because this device is compressor operation based, ample space is required around the unit to allow it to exhaust properly.

NOTE: It is not recommended to move the device if the floor is not smooth. Do not use if the refrigerator is tilted. If the refrigerator is drawn to a place for use, please leave it upright and wait for 10 minutes before use. When moving the refrigerator, always use both handles to the carry the unit as level as possible. This is in order to protect the compressor and the sealed system.

WARNING: Use two or more people to move and handle this unit. Failure to do so can result in back or other injury.

1. Keep the portable refrigerator away from heat and direct sunlight if possible.

2. This portable refrigerator is suitable for car use and camping however, the appliance should not be exposed to rain or any other severe weather elements.

3. This portable refrigerator should not be placed in a built-in or recessed area. The device is designed to be freestanding.

4. The normal operation of the refrigerator depends on heat radiation from the condenser.

5. Clean the interior surface with a little bit of lukewarm water and a soft cloth.

Note: When inserting the DC power-cord, make sure the input is a 12V\~DC / 24V power source.

IMPORTANT: Do not remove any safety, warning, or product information labels from your portable car refrigerator.

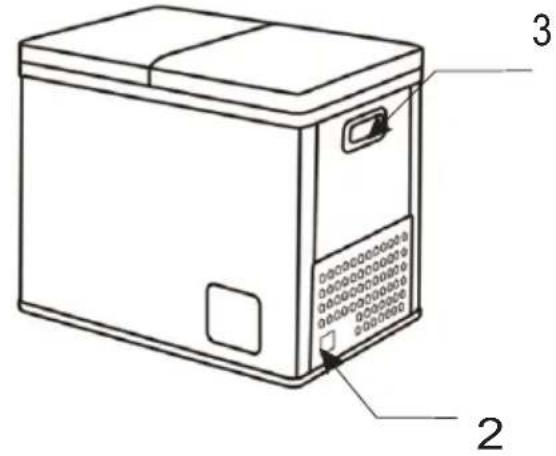

DEVICE DESCRIPTION Portable car refrigerator – Picture A

1. Base 2. Plug socket

2. Handle 4. Cover for refrigerator compartment

3. Cover for freezer compartment 6. Control Panel

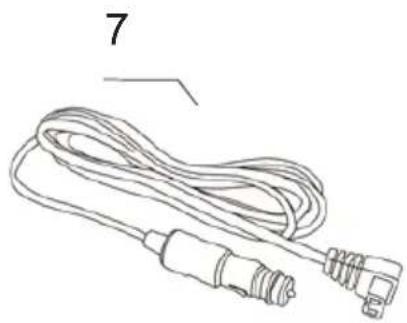

4. DC Power Cord- For use when traveling, plug directly into car lighter.

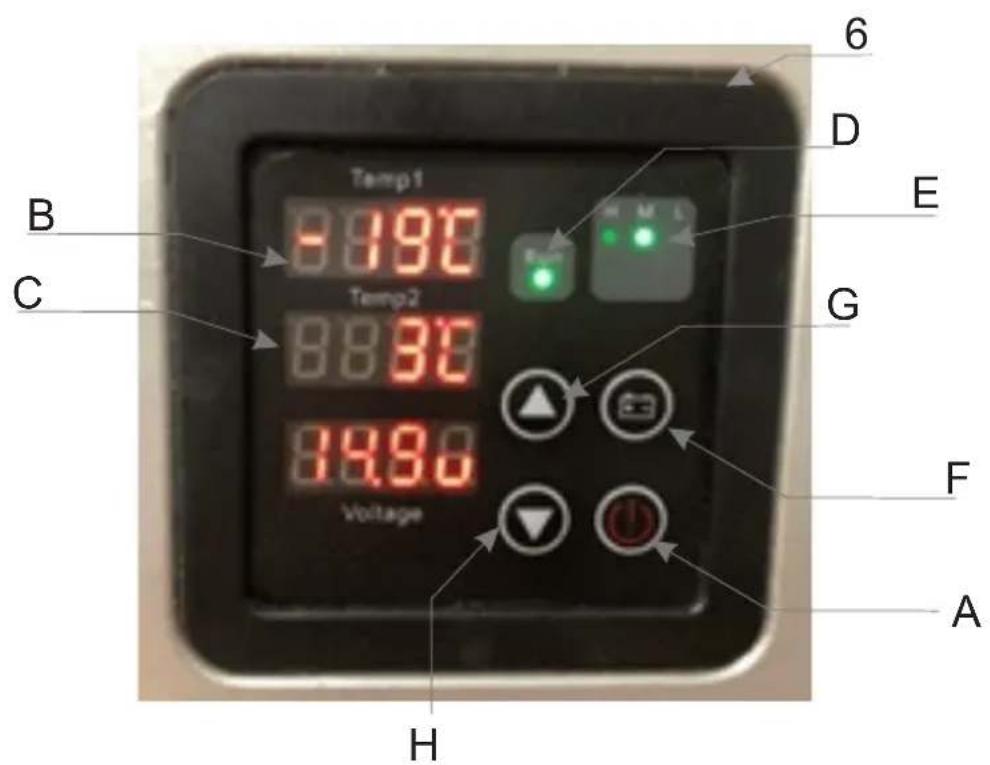

CONTROL PANEL – Picture B

A – Power button ON/OFF

B - Temp 1 - freezer compartment temperature display

C - Temp 2 - refrigerator compartment temperature display

D - RUN - compressor operation display

E - Battery protection level display F - Battery protection level button

G - Temperature up button

H - Temperature down button

BEFORE FIRST USE

When attempting to plug your portable freezer into a standard 12 V socket, the unit will not work if socket has a voltage of less than 9.6 V. The unit will restart when the voltage is 12.2V or greater.

When attempting to plug unit into a standard 24 V socket, the unit will not work if the socket has a voltage of less than 21.3 V. The unit will restart when the voltage is 25.2 V or greater.

The device can also be connected to the 230V \~ 50 / 60Hz mains supply after using an external power supply (not included). The recommended AC / DC adapter model is CR8076.1.

OPERATION

It is recommended to pack food into bags or containers intended to be in touch with food before placing it inside the refrigerator compartment and freezer compartment.

Temperature sensor sensitivity error is +/- 1°C.

1.Switch on the device by pressing button (A) by 3 seconds. The buzzer will be hear after pressing each button on control panel. After

switch on the device the self-test function will be automatically started, there will be shown figures from 000-111... to 999 on digital display for 2 seconds, indicators will be illuminated, next the display will show temperature inside both compartments and normal operation will be started. The compressor is turned on, it will start and stop operate to keep stable temperature inside device.

1. To set up the temperature in freezer compartment (5), adjust temperature by pressing button (G) to increase temperature or button (H) to decrease temperature. The temperature range in freezer compartment (5) is from +10°C to -20°C. After pressing button (G) or (H) change data will be remember, if there is no any button pressed by 3 seconds there will be displayed present temperature in compartment.

2. The temperature in refrigerator compartment (4) cannot be adjusted by user, it is adjusted automatically by electronic thermostat. The temperature range in refrigerator compartment (4) is from +2°C to +10°C, exact level depends on set up temperature in freezer compartment (5). If temperature in freezer compartment (5) is adjusted to -17°C, the temperature in refrigerator compartment (4) will be in range from +2°C to +4°C.

3. When turn on the device the compressor starts to operate, it is shown by illuminating the compressor operation display (D). When the temperature reach desired level, the compressor operation display (D) is not illuminated and compressor stop working. Compressor will switch on and switch off from time to time to keep desired temperature inside freezer and refrigerator compartments. Follow up the compressor operation cycles, the compressor operation display (D) will be switch on and switch off.

4. To select suitable battery protection level press button (F).

The device has three battery protection levels, which protect the normal operation of the device and protect the battery of the vehicle. The three levels of battery protection select by repeated pressing button (F):

H - high level:

for voltage 12V: stops at 11.5V and starts operation at 12.5V

for voltage 24V: stops at 22.6V and starts operation at 26.0V

M - medium level:

for voltage 12V: stops at 10.7V and starts operation at 11.7V

for voltage 24V: stops at 22.6V and starts operation at 24.0V

L - low level:

for voltage 12V: stops at 10.0V and starts operation at 11.0V

for voltage 24V: stops at 21.6V and starts operation at 23.0V

1. The device is equipped with the setting memory function after power failure. When the control panel is powered off, the system will remember the set temperature level before power-off for 2 hours. After the power is restored, the system directly enters the temperature level fixed before the power failure.

In case of a power failure longer than 2 hours, the operation mode set before switching off is not saved, then the device will start operating with a default start temperature of -10^ .

7.Switch off the device by pressing button (A) by 3 seconds.

Common temperature settings for storage of:

Wine (from +6 to +18) Vaccines, Insulin (from +2 till - 8)

Fruit (from 4 till - 6) Beverage (from 2 till - 5)

Please be careful if you want to store drugs in the device. Place the food in containers / bags intended for this purpose before putting into the device.

CLEANING AND MAINTENANCE

Always unplug the device before you start cleaning.

Do not use chemical solvents because they can cause permanent damage or deformation of the

device. Clean the inside surface with a little lukewarm soapy water and a soft cloth.

TECHNICAL DATA

Capacity: 38 liters (23 liters in freezer compartment + 15 liters refrigerator compartment)

Power supply:

DC 12V / 24V - car lighter socket

230V \~50/60Hz - mains socket after using an external power supply (not included)

Refrigerant: R600a / 40 g

Climate class: ST /N / SN

Isolation: C5H10

Rated Power Consumption: 40W

Maximum Rated Current: 3,34A

Warning: risk of fire

Warning sign depicting a flame symbol in yellow and black on a white background

Device is made in class I of insulation and has to be connected

only to power outlet with ground circuit.

Device is compliant with EU directives:

Low voltage directive (LVD)

Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Do not dispose this appliance in the common waste bin.
