Product Type	Multicooker
Brand	Camry
Model	CR 6408
Capacity	5 L
Power Consumption	700 W
Voltage	220-240 V ~ 50/60 Hz
Dimensions (W x D x H)	28 x 28 x 30 cm
Weight	4.2 kg
Material	Stainless steel and plastic
Inner Pot Coating	Non-stick
Functions	Cooking, steaming, stewing, baking, slow cooking, rice cooking, porridge, yogurt making
Control Type	Digital touch panel with LED display
Timer	Up to 24 hours delay start
Keep Warm	Automatic keep warm function
Safety Features	Overheat protection, auto shut-off, pressure relief valve
Accessories Included	Measuring cup, rice paddle, steamer basket
Cleaning and Maintenance	Detachable inner pot for easy cleaning; wipe exterior with damp cloth
Spare Parts Availability	Inner pot, seal ring, and other parts available from Camry service
Repairability	Repairable by certified technicians; warranty period 2 years

Frequently Asked Questions - CR 6408 CAMRY

What is the capacity of the Camry CR 6408 multicooker?

The Camry CR 6408 has a capacity of 5 liters, suitable for families of 3-5 people.

How do I clean the inner pot?

The inner pot has a non-stick coating and is removable. Wash it with warm soapy water and a soft sponge. Avoid abrasive cleaners.

Can I delay the start of cooking?

Yes, the multicooker features a delay start timer up to 24 hours, allowing you to set cooking to begin at a convenient time.

What safety features does the CR 6408 have?

It includes overheat protection, auto shut-off when cooking is complete, and a pressure relief valve for safe steaming.

Can I make yogurt in this multicooker?

Yes, the CR 6408 has a yogurt making function. Follow the included recipe for best results.

What is the power consumption?

The multicooker operates at 700 watts, making it energy-efficient for everyday cooking.

Does it come with a steamer basket?

Yes, the package includes a steamer basket for steaming vegetables, fish, and dumplings.

How do I adjust cooking time manually?

Use the digital touch panel to select a preset program, then adjust the time using the + and - buttons. The LED display shows the selected time.

Is the inner pot dishwasher safe?

It is recommended to hand wash the non-stick inner pot to prolong its life. Dishwasher use may damage the coating.

Where can I find replacement parts?

Replacement parts like the inner pot and sealing ring are available through Camry authorized service centers or online store.

USER MANUAL CR 6408 CAMRY

Exterior view of a modern kitchen rice cooker with digital display and control buttons (no visible text or symbols)

CR 6408

(GB) user manual
(F) mode d'emploi
(P) manual de serviço
(LV) lietošanas instrukcija
(RO) Instructiunea de deservire
(H) felhasználói kézikönyv
(GR) οδηγίες χρήσεως
(MK) упатство за корисникот
(SLO) navodila za uporabo
(HR) upute za uporabu
(PL) instrukcja obsługi

(D) bedienungsanweisung
(E) manual de uso
(LT) naudojimo instrukcija
(EST) kasutusjuhend
(BIH) upute za rad
(CZ) návod k obsluze
(RUS) инструкция обслуживания
(NL) handleiding
(FIN) käyttöopas
(S) bruksanvisning

Diagram of a circular mechanical component with internal features and a triangular top (no text or symbols)

Diagram of a circular mechanical or biological structure with internal components and directional arrow (no text or symbols)

	36	37	38	39	40	41	42
Chef	42		X		X		X
Rice	43		X		X		X
Soup	44		X	X	X		X
Stew	45		X	X	X		X
Multicook	46	X			X	X	X
Porridge	47		X		X		X
Steam	48		X		X		X
Fry	49	X			X	X
Slow Stew	50	X			X		X
Cheese	51	X			X	X	X
Cake	52	X			X	X	X
Crispy	53	X			X	X	X
[8276]Cereals	54		X		X		X
[6CWZ]Galantine	55		X		X		X
[CTBC]Wine	56	X			X		X
Pilaw	57		X		X		X
Jam	58	X			X		X
[DYB4]rt	59	X			X		X
	60	X			X	X

Omelette

ENGLISH

SAFETY CONDITIONS IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different, if the device is used for commercial purpose."

1. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.

2. The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application.

3. The applicable voltage is 220-240V, \~50Hz. For safety reasons it is not appropriate to connect multiple devices to one power outlet.

4. Please be cautious when using around children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.

5. WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.

6. After you are finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Never pull the power cable!!!

7. Never put the power cable, the plug or the whole device into the water. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.

8. Periodically check the power cable condition. If the power cable is damaged the product should be turned to a professional service location to be replaced in order to avoid hazardous situations.

9. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product yourself because it can lead to electric shock. Always turn the damaged device to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.

10. Never put the product on or close to the hot or warm surfaces or the kitchen appliances like the electric oven or gas burner.

11. Never use the product close to combustibles.

12.Do not let cord hang over edge of counter or touch hot surfaces.

1. Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network, unplug the power.

2. In order to provide additional protection, it is recommended to install residue current device (RCD) in the power circuit, with residual current rating not more than 30 mA. Contact professional electrician in this matter. 15. Do not fill the pot more than 2/3 of its internal volume

3. In the case of products which increase their volume during cooking, eg. Rice, do not fill the inner pot over half its capacity

4. The device is not suitable for frying in oil under pressure. By using the frying function, cover must remain open.

5. Do not move the device during operation

6. When cooking under pressure, before opening the unit, make sure the pressure indicator slumped and check if the pressure inside dropped. Do not open the device by force
7. Be careful when opening, as some hot products can spray
8. Before each use, check that the indicator and the pressure regulator are not clogged
9. Opening the steam regulator, use kitchen gloves. Keep your face at a safe distance from hot steam
10. Due to the risk of damage, do not use the device or the internal pot for the storage of acidic or salted products before and after cooking
11. Use only genuine spare parts and accessories
12. For mixing, use only wooden or plastic spoons

DESCRIPTION OF THE DEVICE

1. Body	2. Cover	3. Handle
4. Pressure regulator	5. Pressure indicator	6. Display
7. Knob	8. Hinge	9. Inner cover
10. Power cord	11. The cap for steaming	12. Dispenser
13. Spoon	14. Cancel/Keep warm button	15. Product selection button
16. Delay button	17. Time button	18. START button
19. Function button RICE	20. Function button SOUP	21. Function button STEW
22. Function button CHEF	23. Temperature button	24. Time icon
25. Icons of products (fish, red meat, poultry, vegetables)		26. Temperature Icon
27. Temperature selection icon	28. Time setting icon	29. Delay setting icon
30. Power indicator	31. Volume icon	32. Functions buttons (See Table)
33. The inner pot	34. The sealing ring	35. Removable condensate couple

FUNCTION TABLE

36. Function name	37. Possibility to cook under pressure in concrete function
38. Possibility to cook without pressure in concrete function	39. Possibility to choose the type of raw material in concrete function
40. Ability to change the cooking time in concrete function	41. Ability to change the temperature in concrete function
42. Ability to set a delayed start in concrete function

TABLE OF FUNCTIONS (36)

42. Chef	43. Rice	44. Soup	45. Stew
46. Multicook	47. Porridge	48. Steam	49. Fry
50. Slow stew	51. Cheese	52. Cake	53. Crispy
54. Cereals	55. Galantine	56. Wine	57. Pilaw
58. Jam	59. Yoghurt	60. Omelette

COOKING

1. Open the device (Fig. A)
2. Remove the inner pot (33) from inside of device. Fill it with ingredients so as not to exceed the FULL level on the scale. NOTE: Take into account the fact that some products increase the volume during cooking.
3. Next you can cook under pressure or without pressure, depending on the selected function according to the table (37-38).

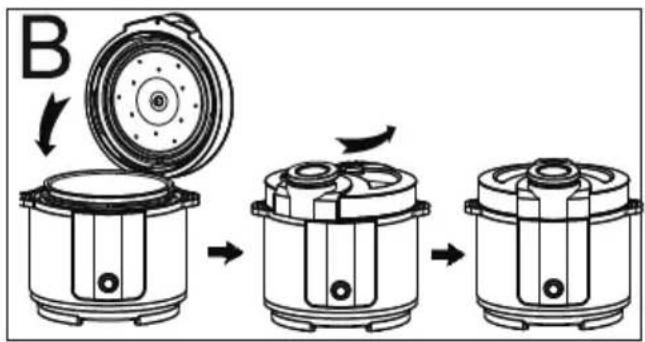

4. Check that the sealing ring (34) is well fitted in the inner cover (9). Cooking should be provided with the cover mounted inside (9). Close the lid (2) (Fig. B).
   5a. COOKING WITHOUT PRESSURE: Set pressure regulator (4) in the open position (Fig. C).
   5b. COOKING UNDER PRESSURE: Set pressure regulator (4) in the closed position (Fig. D). During the cooking process pressure indicator (5) rises.
5. Turn on the device using button (18). NOTE: If during 20 seconds you won't select any function display will show: "F". You should then press the button (18) for 5 seconds, and select a function.
6. Select the function by pressing the appropriate button (19-22) or by turning the knob (7) until desired program will be highlighted.
7. If in concrete function it is allowed (39) you can select the type of key ingredients used.
8. The display (6) will show the cooking time (24) and temperature (26). If in concrete function it is allowed you can change:
   a) the delayed start of device by pressing the button (16) and then set it using the knob (7)
   b) temperature by pressing button (23) and then set it using the knob (7)
   c) the time by pressing button (17) and then set it using the knob (7)
9. Confirm the function by pressing the START (18).
10. The device will start to countdown after reaching operating temperature.
11. After completing the countdown you will hear sound. The unit will maintain the temperature. You can disable maintaining the temperature by pressing the button (14).
12. When cooking is finished, turn off the device (18) and unplug it from the power supply.
13. COOKING UNDER PRESSURE: Open the pressure regulator (4) by lifting it up and release the accumulated steam.
14. Open the device (Fig. A) and remove products.
15. To heat again the ready meal, press (14). To finish press button (14).

SETTING THE VOLUME

Simultaneously press time (17) and temperature (23) buttons. Set the volume by knob (7).

CLEANING AND MAINTENANCE

1. Before cleaning disconnect the unit from the mains, if it's necessary release the pressure and wait until it cools down.
2. The body (1) and the outer part of the lid (2) clean with a damp cloth and wipe dry.
3. Water can not get into the inside of the device.
4. No part of the device can be washed in the dishwasher. When cleaning any part of the device do not use chemically active or aggressive detergents. Do not use any sharp materials including steel wool.
5. Pot, the inside of the lid, the inside lid and the sealing ring clean with a soft damp cloth containing washing-up liquid and dry. Dismantling and mantling of cover is shown in figures E and F.
6. In the case of deposits of stone or iridescent stains apply vinegar soaked cloth
7. Periodically check the condition of the seals - if they are damaged, replace them.
8. In the case of blocking of the pressure indicator (5) or pressure regulator (6) they should be a cleaned or dismantled and clean as shown in Figure G.

TECHNICAL DATA

Power supply: 220-240 \~ 50 / 60Hz

Power: 1000W

Capacity: 6L

Working pressure: 70 kPa

Device is made in class I of insulation and has to be connected only to power outlet with ground circuit.

Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Do not dispose this appliance in the common waste bin.
