SMV6ZBX01D - Dishwasher BOSCH - Free user manual and instructions

Brand	Bosch
Model	SMV6ZBX01D
Product type	Built-in dishwasher
Height	86 cm (86 cm models) / 81 cm depending on version
Width	60 cm (standard)
Depth	55 cm (approx.)
Weight	Approx. 45 kg
Electrical supply	220-240 V, 10 A, 50-60 Hz
Total power	2100 W (estimated)
Main functions	Vario drawer, EmotionLight, TimeLight, GAP illumination, filtration system, upper and lower spray arms, Vario drawer, cup shelf, steam cooking insert
Programs	Several wash cycles (not listed in detail)
Safety	Automatic shut-off, child lock, anti-leak system, overflow protection
Maintenance and cleaning	Washable filters, removable spray arms, replaceable door seal
Spare parts and repairability	Available parts: worktop, basket, Vario drawer, spray arms, filters, power cord, detergent lid, pump, side panel, door, control panel, springs, base, overflow hose, inner door, hinge, seals, EmotionLight, TimeLight, GAP illumination
Repairability	High repairability thanks to detailed instructions for replacing many parts
General information	Manual available in multiple languages (FR, EN, DE, etc.) - 989 pages

Frequently Asked Questions - SMV6ZBX01D BOSCH

How to remove the worktop of the Bosch SMV6ZBX01D dishwasher?

Unplug the appliance and de-install it. Remove the rear screws (optional), push the locking levers upwards, lift the worktop forward, then push it backward to remove it.

How to replace the upper spray arm?

Unscrew the upper spray arm (1) then pull it downwards to remove it (2). To install, insert it and screw it firmly in place.

How to clean the filters?

Turn the coarse filter counterclockwise, remove the filter system. Disassemble the microfilter by lowering it. Clean under running water, then reassemble by aligning the arrows.

What to do in case of power failure or leak?

First check that the appliance is properly plugged in. For a leak, shut off the water supply and unplug the appliance. Consult the manual to locate the leak (overflow hose, seals).

How to change the front door panel?

Unplug the appliance. Remove the door screws, immobilize it, then remove the remaining screws. To install, position the front door panel, secure it with the supplied screws (4x11 mm).

How to access the Vario drawer to remove it?

Bend the handle tabs inward, remove the handle from the top. Push the side plastic inserts outward and remove them. Then remove the folding rods and the metal frame.

The dishwasher displays an error code, what to do?

Check the code table in the complete manual. Common codes may indicate a problem with the filter, spray arms or water supply. Restart the appliance after checking these items.

How to replace the EmotionLight?

Unplug the appliance. Remove the worktop and the right side panel if necessary. Unclip the lug, remove the socket from the top, then disconnect the connections. Install the new socket and clip the lug back in.

What is the recommended height for installation?

The dishwasher is designed for a height of 86 cm (86 cm models) or 81 cm. Make sure the worktop is removed for built-in installation.

How to maintain the door seal?

Clean the seal regularly with a damp cloth. If the seal is damaged, replace it: remove the fixing clips, detach the old seal and install the new one respecting the length (1750 mm for 81 cm, 1850 mm for 86 cm).

USER MANUAL SMV6ZBX01D BOSCH

4.2 Mounting the system from the coil.. 9

4.2.1 Mounting and pulling out the shelf for the 86-cm model 4.2.2 Mounting the fixing bracket for the drawer.. 9 4.2.3 Mounting the block of the steam generator 10

4.3 Replacing the varioDrawer drawer 11

4.3.1 Pulling out the varioDrawer drawer 11 4.3.2 Mounting the varioDrawer drawer 12

4.4 Replacing the spray arms 13

4.4.1 Pulling out the spray arm 13 4.4.2 Mounting the spray arm 13

4.5 Replacing the filters 14

4.5.1 Pulling out the filter 14 4.5.2 Mounting the filters 14

4.6 Mounting the front panel for the table.. 15

4.7 Replacing the power cable.. 16

4.7.1 Disconnecting the power cable 16 4.7.2 Connecting the power cable 16

4.8 Replacing the cap for the rinse aid 17

4.8.1 Removing the cap for the rinse aid 17 4.8.2 Installing the spring 17 4.8.3 Mounting the cap for the rinse aid... 17

4.9 Replacing the drain hose 18

4.9.1 Removing the drain hose 18 4.9.2 Mounting the drain hose 18

4.10 Replacing the door leaf 19

4.10.1 Removing the door leaf 19 4.10.2 Installing the door leaf 20

4.11 Replacing the outer door 21

4.11.1 Unlocking the outer door 21 4.11.2 Installing the outer door 21

4.12 Replacing the control panel 23

4.12.1 Removing the control panel 23 4.12.2 Installing the control panel 23

4.13 Fixing the spring-loaded door 24

4.14 Replacing the floor panel 26

4.14.1 Removing the floor panel 26 4.14.2 Installing the floor panel 26

4.15 Replacing the main contact plate 27

4.15.1 Removing the main contact plate 27 4.15.2 Installing the main contact plate 27

4.16 Replacing the overflow pipe 28

4.16.1 Removing the overflow channel 28 4.16.2 Installing the overflow pipe 29

4.17 Replacing the inner door 31

4.17.1 Removing the inner door 31 4.17.2 Installing the inner door 31

4.18 Replacing the door hinge

4.18.1 Removing the door hinge 32 4.18.2 Installing the door hinge 32

4.19 Replacing the door seal (bottom) 34

4.19.1 Removing the door seal 34 4.19.2 Installing the door seal 35

4.20 Replacing the door seal (top) 36

4.20.1 Removing the door seal 36 4.20.2 Installing the door seal 36

Repair advice - machine disassembly

4.21 Replacing the EmotionLight 37

4.21.1 Removing the EmotionLight 37 4.21.2 Installing the EmotionLight 37

4.22 Replacing the TimeLight 40

4.22.1 Removing the TimeLight 40 4.22.2 Installing the TimeLight 40

4.23 Replacing the gap illumination (lighting of the gap) 41

4.23.1 Removing the gap illumination 41 4.23.2 Installing the gap illumination 42

About this document

1.1 Important information

1.1.1 General

These instructions for repair are intended for the user. The repair should be carried out in accordance with the regulations for environmentally sound design of devices (from 03.2021).

They contain information about the replacement of certain spare parts, including fuses and risks.

If you have any questions or doubts, you can contact our customer service department. We are not responsible for damage if the repair instructions have not been followed correctly.

1.2 Explanation of symbols

1.2.1 Danger level

The warning is indicated by a symbol with a warning triangle. The signal word indicates the severity of the danger.

Ниво на п dedурждени 3начени
ОПАСHОCT	Еспаразы新股у на п dedурждени до сбоб Shedени по смьгшни серноши наразяваим.
ПРEDУПЕЖДЕНЕ	Еспаразы新股у на п dedурждени до сбob Shedени по смьгшни серноши наразяваим.
ВИМАТЕЛНО	Еспаразы新股у на п dedурждени до сбob Shedени по смьгшни наразяваим.
ВИМАМЕЛЗ	Еспаразы新股у на п dedурждени до сбob Shedени по смьгшни смьгшни наразяваим.

Table 1: Danger levels

1.2.2 Danger symbols

Danger symbols are symbolic images that provide information about the type of danger.

The following danger symbols are used in this document:

Симboл за опасост за чужения	ОвноPre dedуриdentелно сбоб Shedи Опасост от[elektrovesко наразожения
	Пuck ot[eckлосnia]
	Опасost от[nорязвania]

Regarding this document

Симbol 3a onachoct 3начени	Опachoct ot пемарази Опachoct ot горец поьрхости
	Опachoct ot симно магнисто плел Опachoct ot неюни рашу лычени

Table 2: Danger symbols

1.2.3 Structure of warnings

The warnings in this document have a standardized structure.

DANGER

Immediate danger / warning

Safety measures taken to prevent danger.

Specific example shows a warning for electric shock, caused by parts under voltage. The warning sign for danger is placed.

DANGER

Risk of electric shock from live parts!

Electric shock

Disconnect the electrical equipment from the power supply before servicing.

1.2.4 General symbols

This document uses the following general symbols:

Оьш симвов Зачени
I	Иденихицаре на спесиален сьвет (TEKCT w/ллграфика)
I	Иденихицаре на постс сьвет (само TEKCT)
I	Иденихицаре на врьзka Кьм Вideо урок
I	Иденихицаре на необхочимite И-стру金融市场
I	Иденихицаре на необхочимite поедырпелейу沧LOBли
I	Иденихицаре на усанове (ako ..., Тогава ... )
I	Иденихицаре на peэуntат
[Стар]	Иденихицаре на Клиочни睁ь soюн homep
[00123456]	Иденихицаре на Каталожен Homep
[Статус]	Иденихицаре на показаняп Тект/празорец (на диспега на урEDA)

Table 3: General symbols

Safety

2.1 General safety instructions

2.1.1 All household appliances

Risk of electric shock!

• During repairs, when electrical components are opened, they may be under voltage.
• Disconnect the device from the electrical supply for at least 60 seconds before starting work. After repairs, safety must be checked in accordance with VDE 0701 or in accordance with the country-specific regulations.

Risk of burns from hot surfaces!

Wear protective gloves.

Risk of injury during repair, maintenance, or removal of safety devices and moving components.

Wear protective footwear. Secure moving components so they cannot move. Do not allow body parts to come into contact with moving components.

Safety/functional risk! - Use only original spare parts. Risk of damage to electrostatic sensitive components (ESD) - do not touch modules, including connectors and circuit boards.

Tools and aids

посочане Робносту Избражения
Оверты Торх T20 С овор [00340764]	100 MM, за виHTове с преда- зен удиФТ
Оверты Торх T15	Дылжина 80 MM
Плеска OTberрта Врьх 10 MM x 1,6 MM x 200 MM
Кleineц с Истовд- ни челков [00340871]	Дылжина: 200 MM, пави

Repair

4.1 Removing the work platform

Removal:

Set the device to off and disconnect from power. Allow it to cool down freely.

4.1.1 Removing the work platform

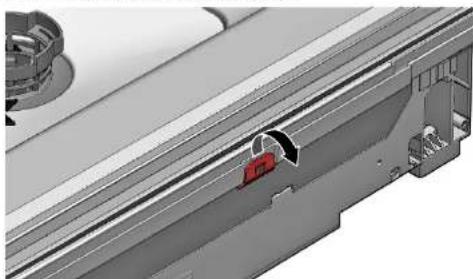

1. Remove the two screws (1) (both). 2. Press the two locking clips on the work platform downwards (2).

1. Turn the workpiece over. (3). 4. Press the workpiece down (4). 5. Secure the workpiece.

4.1.2 Mounting the workpiece

1. Insert the workpiece into the hole using the locking pin (1).

1. Press the workpiece down (2).
2. Press the front part of the workpiece down until you feel the locking mechanism engage (3). 4. Release the locking lever (4) (optional).

Repair

4.2 Mounting the blade system

Requirement:

The appropriate blade has been removed from the tool.

4.2.1 Mounting the blade for the 86-cm model

Special tools:

Blade guard [00614935] Locking pin [00618565]

1. Place the blade diagonally into the front part of the blade guard. 2. Center and press the blade into place.

4.2.2 Mounting the locking pin

Special tools:

Body harness [00614935] Fixator for elimination [00618565]

WARNING: The fixator must be removed before washing. The instructions for use must be followed carefully. The high and low temperatures may damage the fixator. If the connecting parts are made of plastic, they must be removed first.

1. Remove the plastic part.

2. Turn the fixator to the left.

3. Remove the fixator.

Repair

1. Place the item for me.

4.2.3 Mounting the generator block

Special tools:

Shoulder harness [00614935]

4.10.2 Mounting the page holder

1. Place the page holder in the base slot (1).

Fig. 2: Pressure plate

2. Press the page holder onto the groove (2). 3. Secure the page holder with screws (3).

Repair

4.11 Adjusting the inlet door

Warning:

The adjustment excludes locking. The adjustment excludes the supply line.

4.11.1 Removing the inlet door

Simply remove the screws, as shown in the figure.

1. Open the door. 2. Remove the four screws.

3.

Close the door, holding the front side.

Remove the door.

4.11.2 Mounting the inlet door

Repair

Warning:

The insulating cover is correctly positioned on the front side of the inlet door. The inlet door is equipped with hinges.

1. Close the inner door, without slamming it.
2. Press the control panel door release button (1).

1. Open the door to the interior and secure it (2).

4.

Close the door, pressing the hinge side.

Open the door and secure it with the screws (metal 4 x 11 mm screws).

5. Secure the door with the screws (metal 4 x 11 mm screws).

Repair

4.12 Replacing the control panel

If the control panel is defective, the control panel must be replaced.

Requirements:

Disconnect from the power supply. Disconnect from the water supply. The door is closed. The door is closed (if integrated).

4.12.1 Replacing the control panel

1. Disconnect the electrical connections from the control panel. Remove the sensor for the door lock (1,2).

2. Disconnect the grounding cable (3) (optional). 3. Open the door of the device. 4. Secure the control panel, to prevent it from falling (secure it).

5. Close the gate.

1. Control panel

4.12.2 Mounting the control panel

Use screws 4 x 16 mm.

Mount the bracket.

Repair

4.13 Fixing the gate spring

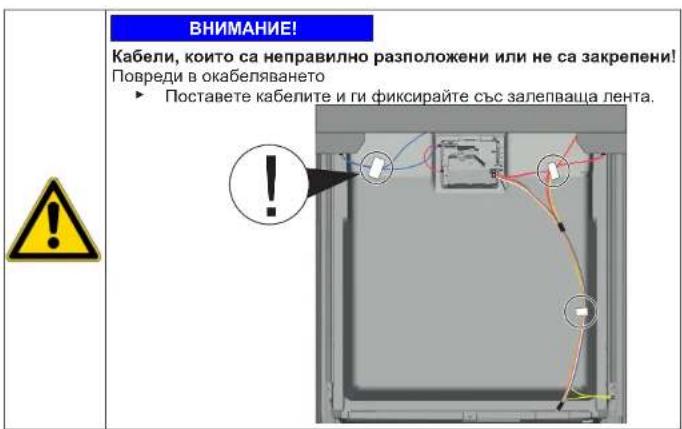

1. Route the cable.

2.1. Open the gate slightly (1).

2. Fix the bracket to the base (2).

1. Close the gate firmly (3).

The system will automatically lock to the gate.

Repair

3.1. Close the gate slightly (4).

1. Remove the pin from the rear and release the gate latch (5).
2. Remove the bottom bracket (6).

1. Remove the bottom bracket from the other side of the device.

The brackets are identical and can be swapped.

Inspection:

The device is excluded from the warranty. The device is excluded from the water supply network. The output valve is sealed. The output valve is sealed (factory/integrated).

4.14.1 Removing the bottom bracket

1

Incorrect removal. If the bottom bracket is loose, remove the pins, and the two brackets can be detached. If only one bracket is damaged, the side can be replaced, as the brackets are identical. Proceed to install the new bottom bracket with the brackets.

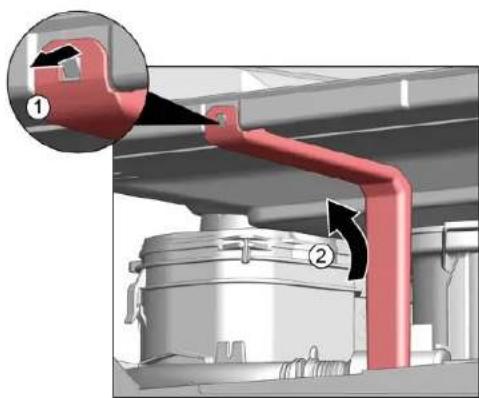

2. Insert the screwdriver (1) into the slot and release the fastener by pressing down.

1. Remove the bracket.

4. Remove the brackets or the pin (1).

4.14.2 Installing the bottom bracket

1. Place the brackets.

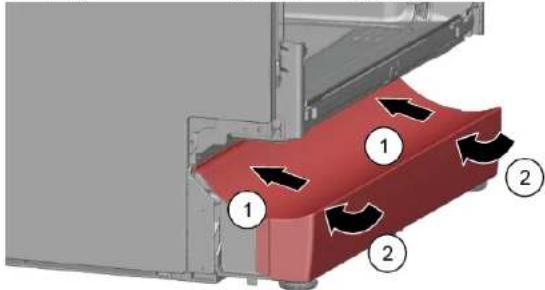

2. Attach the bottom bracket from the side (1) and press it down until it clicks into place (2).

Repair

4.15 Main power switch

The main power switch is located in the lower part of the device.

Switching on:

The device is disconnected from the power supply. The device is disconnected from the mains. The furniture panel (optional) is removed. The upper door is removed. The upper door is removed (optionally integrated/integrated). The lower panel is removed (optional).→26

4.15.1 Removing the main power switch

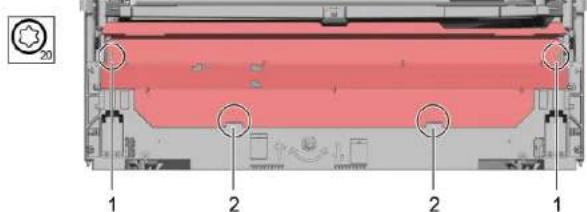

1. Remove the two screws (1).

2. Release the fastening elements (2).

1. CAREFULLY PULL THE MAIN POWER SWITCH FORWARD (1).

Depending on the model, the switch is either screwed to the base or clipped.

Release the cable from the cable holder and pull it back (option 2).

4.15.2 Installing the main power switch

Install the main power switch in reverse order.

Repair

4.16 Replacing the fuse

The fuse is located in the lower part of the device.

N3nckBaHe:

YpeBt E n3KIOUeH OT 3aXpaHbAHeTo. UpeBte H3KNIOueH OT BOOCHaDnTeHaTa Mpeka. Me6enHnT nHaH e cBaH e (onzna). BbHHaTa BpaTa e cBaNeHa. DonnHnT naHEn eCBaneH (onua).→26 NooyataHaIraBHHKoHTeCBAeHa.→27

4.16.1 CbajnHe Ha KaHaHa 3a npenBlaBe

OctaTbUHa BOna

PnO tCpTaHbAHe Ha DpeHaXHm AmpKMy MoKe Da n3TeYe OCTaTbH a BOda. Cnpete BOATA INI INpemaxHEOTOCOBHINCBCMYKATEHNA CnPHUOKBA.

1. OtnycheTe MexaHn3Ma 3a 3axBaUaHe oTrope (1,2).

1. Ocbobodete KpeneKHN enemt otrope

PemOH

3.1.NoctabeTe OTBepkata Noi MetaHnHCTonep(1). 2.BHHMaTeHNO OcBO6oDeTe MeTaHnHaCko6a(2)

1. NOBHHeTe Tp6bonpoB0da 3a npenbnahe.

4.16.2 MoThiPaine Ha Tpb6oPbOba 3a npenbIbHe

IopoeiOn OT BODa NopAei HENpABINeH MOHTaX Na TpBcONpOBOda 3a nppebNaBe!

Bkaparape npabnnpbbonpoBa 3a npenbbahe ot dony bB BODaHa H na yhen a OCHOBATA.

MoHTpaTe KaBena B 3OHata Ha NaHTata Ha BpTaTata (MeKny

nAHTATAHaIIOOyATAHpe3epBOaopa3aNnNaKeBaHe)Taka He

DA He MoKe Da 6bDe NOBpeHEn OT DBNXeUIn Ce qactN.

MOHTnpaIe KaBenaOT TaChata DonHa cTpaHa.

Repair

Fig. 3: Cable routing

4. Turn on the device.

4.23 Lamp for gap illumination (illumination of the gap)

Removal:

Remove the plug from the socket. Remove the plug from the power supply. The front door is disassembled. The operating panel is removed.

4.23.1 Lamp for gap illumination

1.1. Remove the fixator (1).

2. Disconnect the electrical connection from the operating module (2).

2.1. Remove the hook of the fixator rear (1).

2. Remove the damp cloth (2).

Repair

3.1. Remove the hook of the fixator (1).

4.23.2 Mounting the Illumination Bar

1. Place the retaining bracket on the front panel in the frame of the operating module.

1. Mount the optional bracket and then tighten it until you achieve the desired position.

4. Connect the wire to the operating module.

4. Replacing the top panel 90

4.1.1 Removing the top panel 90 4.1.2 Mounting the top panel 90

4.2 Mounting the drawer system 91

4.2.1 Mounting the tablet holder on the 86 cm model 91 4.2.2 Mounting the cup holder 91 4.2.3 Mounting the steam insert 92

4.3 Replacing the varioDrawer drawer 93

4.3.1 Removing the varioDrawer drawer 93 4.3.2 Mounting the varioDrawer drawer 94

4.4 Replacing the spray arms 95

4.4.1 Removing the spray arm 95 4.4.2 Mounting the spray arm 95

4.5 Replacing the filter 96

4.5.1 Removing the filter 96 4.5.2 Mounting the filter 96

4.6 Mounting the spray head for sheets 97

4.7 Replacing the power cable 98

4.7.1 Removing the power cable 98 4.7.2 Connecting the power cable.. 98

4.8 Replacing the detergent tank cover 99

4.8.1 Removing the detergent tank cover 99 4.8.2 Inserting the spring 99 4.8.3 Mounting the detergent tank cover.. 99

4.9 Replacing the waste water pump cover 100

4.9.1 Removing the waste water pump cover 100 4.9.2 Mounting the waste water pump cover 100

4.10 Replacing the side panel 101

4.10.1 Removing the side panel 101 4.10.2 Mounting the side panel 102

4.11 Replacing the external door 103

4.23 Replacing the Gap Illumination

Requirement:

4.22.1 Removing the timeLight 163 4.22.2 Mounting the timeLight 163

4.23 Replacing the Gap illumination 164

4.23.1 Removing the Gap illumination 164 4.23.2 Mounting the Gap illumination 165

4.21.2 Mounting of emotionLight

1. Insert the holder into the frame of the flush tank (1).

Repair

1. Activate the locking hook (2).

3.

NOTE!

Incorrect mounting!

4.22 Replacing timeLight

4.22.1 Removing timeLight

4.22.2 Mounting timeLight

4.23 Replacing Gap illumination

Presetting:

4.23.2 Mounting of Gap illumination

1. Insert the printed circuit board holder into the frame of the operating module.

1. Fasten it with a "click" sound.

2.1 General Safety instructions 212

2.1.1 All domestic appliances 212

Tools and aids. 213

Repair 214

4.1 Replacing worktop 214

4.1.1 Removing worktop 214 4.1.2 Installing worktop 214

4.2 Installing basket system 215

4.2.1 Installing a tab slide for the 86 cm model 215 4.2.2 Installing cup support clip 215 4.2.3 Installing steamer insert 216

4.3 Replacing varioDrawer 217

4.3.1 Removing varioDrawer 217 4.3.2 Installing varioDrawer 218

4.4 Replacing spray arms 219

4.4.1 Removing spray arm 219 4.4.2 Installing spray arm 219

4.5 Replacing filters 220

4.5.1 Removing filter 220 4.5.2 Installing filters 220

4.6 Installing baking sheet spray head 221

4.7 Replacing power cord 222

4.7.1 Unplugging power cord 222 4.7.2 Plugging in power cord 222

4.8 Replacing detergent cover 223

4.8.1 Removing detergent cover 223 4.8.2 Inserting spring 223 4.8.3 Installing detergent cover 223

4.9 Replacing wastewater pump cover 224

4.9.1 Removing wastewater pump cover 224 4.9.2 Installing wastewater pump cover 224

4.10 Replacing side panel 225

4.10.1 Removing side panel 225 4.10.2 Installing side panel 226

4.11 Replacing outer door 227

4.12 Replacing control panel 229

4.12.1 Removing control panel 229 4.12.2 Installing control panel 229

4.19 Replacing (lower) door seal 240

4.19.1 Removing the door seal 240 4.19.2 Installing the door seal 241

4.20 Replacing (upper) door seal 242

4.20.1 Removing door seal 242 4.20.2 Installing door seal 242

Repair hints - Dishwasher

4.21 Replacing EmotionLight 243

4.21.1 Removing EmotionLight 243 4.21.2 Installing EmotionLight 243

4.22 Replacing TimeLight 246

4.22.1 Removing TimeLight 246 4.22.2 Installing TimeLight 246

4.23 Replacing Gap illumination 247

4.23.1 Removing Gap illumination 247 4.23.2 Installing Gap illumination 248

Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumers to repair appliances by themselves according to the applicable eco-design regulation (as of 03/2021).

They contain information on how to exchange defined spare parts, including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Table 1: Danger levels

Warning level Meaning
Danger	Non-observation of the warning message will result in death or serious injuries.
Warning	Non-observation of the warning message could result in death or serious injuries.
Caution	Non-observation of the warning message could result in minor injuries.
Notice	Non-observation of the warning message could result in damage to property.

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.

The following hazard symbols are used in this document:

Hazard symbol Meaning
!	General warning message
	Danger from electrical voltage
	Risk of explosion
	Danger of cuts
	Danger of crushing

Concerning this document

Hazard symbol Meaning
	Danger from hot surfaces
	Danger from strong magnetic field
	Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Danger

Type and source of danger!

Possible consequences of ignoring the danger / warning.

Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Danger

Risk of electric shock due to live parts!

Death by electrocution

• Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
1	Identification of a special tip (text and/or graphic)
i	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start]Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

Errors by repairs involving electrical components can lead to electrical shock! - Disconnect the appliance from the mains for at least 60 seconds before starting work. After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

Wear protective shoes. - Secure heavy components from falling down. - Do not stick body parts into moving components.

Risk to the appliance's safety / function! Only use original spare parts. Risk of damage to electrostatically sensitive components (ESDs)! - Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Screwdriver Torx T20 with bore hole [00340764]	100 mm, for screws with safety pin
Insulated Screw- driver Torx T15 with bore hole [15000626]	Blade length 125 mm, for screws with safety pin
Slotted screwdriver	Blade 10 mm x 1.6 mm x 200 mm
Needle nose pliers [00340871]	Length: 200 mm, straight

Repair

4.1 Replacing worktop

Prerequisite:

Appliance is disconnected from the power supply. Appliance is freely accessible.

4.1.1 Removing worktop

1. Remove the two screws at the back (1) (optional).
2. Press both catch levers under the worktop upwards (2).

1. Lift the worktop slightly at the front (3).
2. Push worktop away towards the rear (4).
3. Remove worktop.

4.1.2 Installing worktop

1. Lock the rear of the worktop into the guides using the retaining collars (1).

1. Push worktop forwards (2).
2. Press the front of the worktop downwards until both catch levers click audibly into place (3).
3. Screw in the two screws again (4) (optional).

Repair

4.2 Installing basket system

Prerequisite:

The relevant basket has been removed from the appliance.

4.2.1 Installing a tab slide for the 86 cm model

Required tools:

Tabguide [00614935] Cup support clip [00618565]

1. Insert the tab slide diagonally at the front of the basket.
2. Centre and click the tab chute into place.

4.2.2 Installing cup support clip

Required tools:

Tabguide [00614935] Cup support clip [00618565]

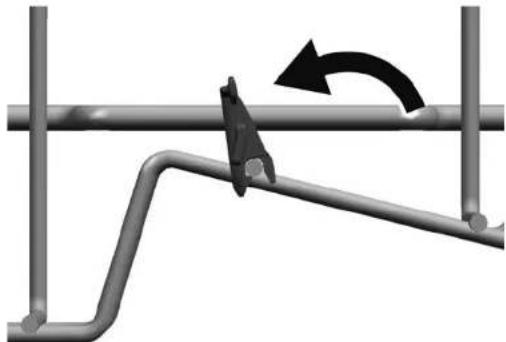

When washing cups, the cup support clip can be folded up. The additional angle reduces the collection of water on the bottom of cups. In the case of tall glasses we recommended leaving the cup support clip folded down. If upper baskets have an optional plastic insert, they must first be removed.

1. Remove the plastic insert.

1. Click the cup support clip into place.

1. Fold up the clip.

Repair

1. Position the items to be washed.

4.2.3 Installing steamer insert

Required tools:

Tab guide [00614935] Cup support clip [00618565]

• Wedge the steamer insert with the end pieces under the basket system.

Repair

4.3 Replacing varioDrawer

4.3.1 Removing varioDrawer

1. Bend the handle flaps inwards.

1. Remove the handle upwards.
2. Press plastic side inserts outwards and press them upwards out of the frame.

Repair

1. Carefully bend the guide tabs outwards.

1. Pull the folding spines out of the tabs.
2. Press metal frame at the front out of the holders.

1. Push metal frame back out of the guide.

4.3.2 Installing varioDrawer

Install in reverse order.

Repair

4.4 Replacing spray arms

4.4.1 Removing spray arm

1. Unscrew the upper spray arm (1) and pull down to remove (2).

1. Pull down the lower spray arm to remove.

4.4.2 Installing spray arm

1. Insert the lower spray arm. The spray arm clicks into position.
2. Insert the upper spray arm and screw it firmly in place.

Repair

4.5 Replacing filters

4.5.1 Removing filter

1. Turn the coarse filter anticlockwise (1) and remove the filter system (2).

Check that no foreign objects fall into the sump.

1. Pull down the micro filter to remove.

4.5.2 Installing filters

1. Re-assemble the filter system. Make sure that the locking catches on the coarse filter click into position.
2. Insert the filter system into the appliance and turn the coarse filter clockwise. Make sure that the arrow markings match up.

Repair

4.6 Installing baking sheet spray head

1. Remove top basket.
2. Insert the baking sheet spray head in the holder (1) and turn to the right (2).

The baking sheet spray head clicks into position.

Repair

4.7 Replacing power cord

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Appliance is freely accessible.

4.7.1 Unplugging power cord

• Move the plug of the power cord carefully up and down and pull it out of the mains socket.

4.7.2 Plugging in power cord

Notice

Overheating of main connection!

Risk of fire

Firmly insert the power cord until it clicks.

• Insert the plug of the power cord into the mains socket until the plug clicks audibly into place.

Repair

4.8 Replacing detergent cover

A small screwdriver can be used as a levering tool.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Door has been opened. Detergent cover has been opened.

4.8.1 Removing detergent cover

1. Slide the detergent cover in 5 mm.
2. Lever the detergent cover on the lower side out of the guide rails and take the detergent cover on the upper side out of the guide rails.
3. Remove the spring.

4.8.2 Inserting spring

1. Insert the long end of the spring into the mounting hole of the dispenser device (1).

1. Insert the short end of the spring into the mounting hole of the detergent cover (2).
2. Press cover into the dispenser device (3).

4.8.3 Installing detergent cover

1. Insert the detergent cover 5 mm before the completely open position into the guide rails on one side. Applying gentle force, press the opposite side into the guide rails.
2. Check the function of the detergent cover.

Repair

4.9 Replacing wastewater pump cover

Prerequisite:

Basket has been removed. Filters have been removed. -> Page 220

4.9.1 Removing wastewater pump cover

1. Scoop out any water.

Use a sponge if necessary.

1. Prise off the pump cover using a spoon and grip it by the crosspiece.

1. Lift the pump cover inwards at an angle and remove.

4.9.2 Installing wastewater pump cover

Insert the pump cover (1) and press down (2).

The pump cover clicks into position.

Repair

4.10 Replacing side panel

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The appliance is freely accessible. For free-standing appliances: The worktop has been removed. → See page 214

4.10.1 Removing side panel

1. Remove the screws from the side panel (1).

Fig. 1: Fully integrated

1. Tilt the side panel slightly outwards at the top (2).
2. Lower the side panel and pull it out of the base trough (3).

Repair

4.10.2 Installing side panel

1. Insert the side panel into the base trough (1).

Fig. 2: Fully integrated

1. Press the side panel onto the appliance (2).
2. Secure the side panel with screws (3).

Repair

4.11 Replacing outer door

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply.

Just remove the screws which are described in the following steps.

1. Open the door.
2. Remove four screws.

3

Secure the door by holding it on one side.

Remove two screws.

Insulating fleece has been correctly positioned and fixed on the inside of the outer door. Hinges are inserted into the outer door.

1. Close the inner door without snapping it shut.
2. Push the outer door upwards underneath the control panel (1).

1. Press the outer door against the inner door and hold (2).

4.

Secure the door by holding it on one side.

Open the door and secure it with two screws (4 x 11 mm metal screws).

1. Secure the outer door with four screws (4 x 11 mm metal screws).

Repair

4.12 Replacing control panel

If an operating module is defective, the entire control panel must be replaced.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Outer door has been removed. Outer door has been removed (fully integrated/integrated).

4.12.1 Removing control panel

1. Disconnect electrical connections from the control panel and the low rinse-aid sensor (1, 2).

1. Disconnect the earth cable (3) (optional).
2. Open the appliance door.
3. Secure the control panel to prevent it from falling down (hold on to it).
4. Remove six screws.

1. Remove the control panel.

4.12.2 Installing control panel

Use screws 4 × 16 mm .

Install in reverse order.

Repair

1. Remove cord guide cover out.

2.1.Open door slightly (1).

1. Fix in the groove of the base trough (2).
2. Slowly close the door (3).

The cord system attaches itself automatically to the door hinge.

Repair

3.1. Slightly close the door (4).

1. Move the groove to the back and release the door hinge (5).
2. Open the door (6).

1. Repeat the process again on the other side of the appliance.

Repair

4.14 Replacing the toe panel

The feet are identical and can be swapped over.

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The outer door has been removed. The outer door has been removed (fully integrated/integrated).

4.14.1 Removing the toe panel

1.

Incorrect removal. If the toe panel is loosened at the side and removed, the two brackets may break away. If only one bracket is damaged, the side can be changed as the brackets are identical. It is advisable to place something under the appliance at the front on the side to relieve the load on the toe panel with the feet.

1. Reach into the guides (1) with a screwdriver and release the catch by pushing downwards.

1. Lift the panel off.
2. Remove the feet forwards (1).

4.14.2 Installing the toe panel

1. Insert the feet.
2. Attach the toe panel at the top (1) and press it down until it audibly clicks into place (2).

Repair

4.15 Replacing base socket plate

The base socket plate is located in the lower area at the front.

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The furniture panel (optional) has been removed. The outer door has been removed. The outer door has been removed (fully integrated/integrated). The toe panel has been removed (optional). See page 232.

4.15.1 Removing the base socket plate

1. Remove the two screws (1).

1. Disengage the catch elements (2).
2. Tilt the base socket plate carefully forwards (1).

4.

Depending on the model series, the plug to the EmotionLight is still secured to the base.

Unlock the plug on the catch tappet and pull to the rear (optional) (2).

4.15.2 Installing base socket plate

Install the base socket plate in reverse order.

Repair

4.16 Replacing overflow conduit

The overflow conduit is located in the front lower area of the appliance.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Furniture panel has been removed (optional). Outer door has been removed. Toe panel has been removed (optional). See page 232. Base socket plate has been removed. See page 233.

4.16.1 Removing overflow channel

Residual water

• When the drainage hose is removed, residual water may run out. Catch water or remove from the base pan with suction syringe.
• Lever out of the catch mechanism at the top (1, 2).

1. Release catch element at top.

3.1. Insert screwdriver below metal brake (1).

1. Gently release metal clip (2).

Repair

1. Lift overflow conduit off.

4.16.2 Installing overflow conduit

Water damage due to incorrect installation of the overflow conduit! Correctly insert the overflow conduit at the bottom into the guide of the base trough. Click the overflow conduit correctly into place at the top.

1. Place overflow conduit (1).
2. Move overflow conduit into seal (2).
3. Press overflow conduit in guide of seal (3).
4. Insert overflow conduit concisely (4).
5. Clip in overflow conduit (5).

Repair

1. Check installation left and right. 3. Check firm seat.

1. Clip in metal clip on left and right side.

Repair

4.17 Replacing inner door

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply.

4.17.1 Removing inner door

1. Remove screws (1).
2. Remove inner door upwards (2).

4.17.2 Installing inner door

1. Flap door seal to front.
2. Move inner door behind door seal.
3. Close inner door.
4. Flap door seal upwards. Side parts show up.
5. Move door hinge upwards.
6. Secure door hinge with screws.
7. Place inner door on door hinge.
8. Secure inner door with screws.

Repair

4.18 Replacing door hinge

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Appliance is freely accessible. Side panel has been removed. (see page 225) Outer door has been removed. Inner door has been removed. Control panel has been removed. (see page 229) Door springs have been fixed. (see page 230) Toe panel has been removed. (see page 232) Base socket plate has been removed. (see page 233) Overflow channel has been removed. (see page 234)

1. Release catch hook with a screwdriver (1).

1. Release ground connection on door hinge.

1. Place hinge on appliance (1).
2. Move hinge downwards (2) until it is latched to the appliance.

2.

A missing ground connection can lead to mains potential on door.

Establish ground connection.

Repair

4.19 Replacing (lower) door seal

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Outer door has been removed. Base socket plate has been removed. (See page 233) Toe panel has been removed (optional). (See page 232) Door springs have been removed. Control panel has been removed. Cable harness holder on bottom right has been removed.

4.19.1 Removing the door seal

1. Remove the two retaining clips on the lower door seal (1, 2).

1. Detach the overflow channel.

1. Lift the overflow gutter off.

Repair

1. Remove the lower door seal from the inner door.

4.19.2 Installing the door seal

1. Fit the sealing caps on the left and right to the sealing rail with the door seal.

1. Insert the door seal with the sealing flap in the inner door.
2. Secure the door seal with two retaining clips.

Repair

4.20 Replacing (upper) door seal

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply.

4.20.1 Removing door seal

• Remove door seal from inner frame.

4.20.2 Installing door seal

The door seal must be cut to the correct length before installation. This is 1750 mm for appliances of 81 cm in height and 1850 mm for appliances of 86 cm in height.

1. Prepare appropriate door seal.
2. Ensure correct installation position of sealing profile.

1. White dot must be on level with sealing bed strip.

4

Sealing must not be wavy or stretched at corners. Seal is cut off diagonally at ends and tapers away into bottom of container at front.

Position the end of the seal straight to the front underneath the inner door. The seal should lie against the side of the container as far as possible.

Correctly installed door seal:

Repair

4.21 Replacing EmotionLight

The EmotionLight is situated in the upper front exterior area of the rinsing tank.

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The appliance is freely accessible. The worktop has been removed (optional). The right-hand side panel has been removed (optional). See page 225.

4.21.1 Removing EmotionLight

1. Detach the catch hook at the rear (1).

1. Remove the holder upwards (2).
2. Pull the plug out of the connector (bottom right at the front of the appliance).
3. Remove the electrical connection from the power module.

1. Remove the EmotionLight from the appliance.

4.21.2 Installing EmotionLight

1. Insert the holder into the rinsing tank frame (1).

Repair

1. Engage the catch hook (2).

3

Install the cable on the right lower side.

Repair

Fig. 3: Flat cable

1. Insert the plug.

Repair

4.22 Replacing TimeLight

Replace the TimeLight only as a complete part.

The TimeLight module is fixed to the rear of the base socket plate.

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The toe panel has been removed. (See page 232) The base socket plate has been removed and turned. (See page 233)

4.22.1 Removing TimeLight

1. Bend the catch elements (1) slightly outwards.

1. Pull the TimeLight module upwards out of the guide (2).

4.22.2 Installing TimeLight

1. Bend the catch elements (1) back again.

1. Push the TimeLight module into the guide (2).
2. Connect the electrical connection.

Repair

4.23 Replacing Gap illumination

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The outer door is disassembled. The operation panel has been removed.

4.23.1 Removing Gap illumination

1. Detach catch (1).
2. Remove the electrical connection from the operation module (2).

1. Detach catch hook at rear (1).
2. Remove light fibre (2).

Repair

3.1. Detach catch hook (1).

1. Lift up PCB with holder and remove it from operation module frame (2).

4.23.2 Installing Gap illumination

1. Insert PCB holder to operation module frame.

1. Tighten it with a "click" sound.

1. Install light fibre and tighten it with a "click" sound.

1. Connect wire to operation module.

1.1 General information 251

1.1.1 Purpose 251 1.2 Explanation of symbols 251 1.2.1 Safety devices 251 1.2.2 Safety symbols 251 1.2.3 Structure of warnings 252 1.2.4 General symbols 252

Safety 253

2.1 General safety instructions 253

2.1.1 All household appliances 253

Table 1: Safety devices

1.2.2 Safety symbols

3. Open the drawer.

1. Turn the handle to the right and then to the left.

4.2.3 Turn the handle to the right and then to the left.

Insert the tablet [00614935] and the power supply [00618565] - start the device and then the pump.

EMPTY

4.3 Replacing the drawer

3. Open the drawer.

1. Remove the front feet (1).

4.14.2 ToToBéTηn Φδiας

1. ToToBETHaTe TaTbOia.
2. Pooapntote Tny moia enaw (1) kai meote npoc ta katu mepi va koumuoei ot th ean ts kai va akouatei o xapaktnipiotikos nxos (2).

EMIOKEUN

1. Isimkite,EmotionLight" is prietaio.

4.2.1.2 „EmotionLight" jdéjimas

4.23.2 Montaz Gap illumination

4.17.1 Remove a porta interior 731 4.17.2 Instalar a porta interior 731

4.18 Substitui a dobradiça da porta 732

4.18.1 Remove a dobradiça da porta 732 4.18.2 Instalar a dobradiça da porta 732

4.19 Substituir a vedao (inferior) da porta 734

4.19.1 Removea vedao da porta 734 4.19.2 Instalar aVEDa da porta 735

4.20 Substituir a vedao (superior) da porta 736

4.20.1 Remove aVEDaço da porta 736 4.20.2 Instalar a vedao da porta 736

Dicas de resolution - Maquina de lavar loça

4.21 Replacing the EmotionLight 737

4.21.1 Removing the EmotionLight 737 4.21.2 Installing the EmotionLight 737

4.22 Replacing the TimeLight 740

4.22.1 Removing the TimeLight 740 4.22.2 Installing the TimeLight 740

4.23 Replacing the Gap Illumination 741

4.23.1 Removing the Gap Illumination 741 4.23.2 Installing the Gap Illumination 742

4.17.1 Removing the inner door

4.17.2 Installing the inner door

4.23.1 Removing the Gap Illumination

1. Release the clip (1).
2. Disconnect the electrical connection of the operating module (2).

1. Release the aft hook (1). 2. Remove the optical fiber (2).

Repair

3.1. Lower the locking hook (1).

4.23 Replacing Gap illumination 823

4.23.1 Removing Gap illumination 823 4.23.2 Installing Gap illumination 824

About this document

4.23 Replacing Gap illumination

Requirement:

4.23 Replacing Gap illumination

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The outer door has been removed. The control panel has been removed.

4.23.1 Removing Gap illumination

1. Release the latch (1).
2. Disconnect the electrical connection from the control module (2).

2.1. Release the locking hook at the rear (1).

1. Remove the louse fiber (2).

Repair

3.1. Loosen the hook (1).

4.23.2 Mount Gap illumination

1. Insert the circuit board into the operating module's frame.

Special auxiliary equipment:

Tab Guide [00614935] Snap-in part [00618565]
