AD 7716 - Heating ADLER - Free user manual and instructions

Product Type	Fan Heater
Brand	Adler
Model	AD 7716
Power Supply	220-240 V ~ 50/60 Hz
Rated Power	1800-2000 W
Heating Power 1	1000 W
Heating Power 2	2000 W
Cool Air Function	Yes, ventilation without heating
Thermostat	Rotary temperature selector
Electrical Insulation Class	Class II (double insulation, no earth connection)
Overheat Protection	Built-in thermal cut-out
Approximate Dimensions	20 × 25 × 15 cm
Approximate Weight	1.5 kg
Intended Use	Occasional domestic use in well-insulated rooms
Placement Surface	Flat, stable, cool surface, away from heat sources
Safety Distance	At least 1 meter from flammable materials
Cleaning and Maintenance	Unplug, allow to cool, clean housing with dry or slightly damp cloth, do not immerse
Repairability	Repairs by a qualified professional only
Certifications	CE, compliant with LVD and EMC directives

Frequently Asked Questions - AD 7716 ADLER

How to use the Adler AD 7716 fan heater?

Plug the appliance into a 220-240V socket. Use the switch to select the power: position I (1000 W), II (2000 W) or 0 to turn off. For cool air, set the switch to I and turn the thermostat to minimum. Adjust the temperature with the rotary thermostat selector.

What to do if the appliance turns off by itself?

This is normal in case of overheating: the thermal cut-out cuts the power. Unplug the appliance, wait a few minutes for it to cool down, then plug it back in. If the problem persists, contact a professional.

Can I use the AD 7716 in a bathroom?

No, it is not suitable for very humid rooms such as bathrooms or showers. Humidity can cause a short circuit. Use it only in dry, well-insulated rooms.

How to clean the fan?

Unplug the appliance and allow it to cool. Clean the housing with a dry or slightly damp cloth. Never immerse the appliance in water. Ensure the air openings are free of dust.

Can I cover the appliance while it is operating?

No, never cover the fan while it is running. This may cause overheating and a fire hazard. Flammable materials (curtains, clothing) must be at least 1 meter away.

The fan makes an abnormal noise, what to do?

Check that the appliance is on a flat surface and that the air inlet/outlet grilles are not obstructed. If the noise persists, unplug it and have it checked by a professional.

What is the maximum power?

The maximum power is 2000 W (position II). At 1000 W (position I), the heating is milder. A cool air position is also available.

How to adjust the temperature?

Turn the rotary thermostat selector (1) clockwise to increase the temperature. The appliance maintains the selected room temperature. If the room is too hot, turn the selector towards the minimum.

Do I need to use an earthed socket?

No, the appliance is class II (double insulation) and does not require an earth socket. Plug it into a standard 220-240V socket.

Can I leave the appliance on unattended?

No, never leave the appliance on unattended. Unplug it when leaving the room or when not in use. Keep it out of reach of children.

USER MANUAL AD 7716 ADLER

This product is suitable only for occasional use or for use in well insulated rooms.

SAFETY CONDITIONS IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different if the device is used for commercial purposes." 1. Before using the product, please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to misuse. 2. The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application. 3. The applicable voltage is 220-240V, ~50/60Hz. For safety reasons, it is not appropriate to connect multiple devices to one power outlet. 4. Please be cautious when using around children. Do not let children play with the product. Do not let children or people who do not know the device use it without supervision. 5. WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision. 6. After you are finished using the product, always remember to gently remove the plug from the power outlet while holding the outlet with your hand. Never pull the power cable!!! 7. Never put the power cable, the plug or the whole device into water. Never expose the product to atmospheric conditions such as direct sunlight or rain, etc. Never use the product in humid conditions. 8. Periodically check the power cable condition. If the power cable is damaged, the product should be taken to a professional service location to be replaced in order to avoid hazardous situations. 9. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defective product yourself because it can lead to electric shock. Always take the damaged device to a professional service location to repair it. All repairs can only be done by authorized service professionals. Incorrect repairs can cause hazardous situations for the user. 10. Never put the product on or close to hot or warm surfaces or kitchen appliances like electric ovens or gas burners. 11. Never use the product close to combustibles. 12. Do not let the cord hang over the edge of a counter or touch hot surfaces. 13. Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network and unplug the power. 14. In order to provide additional protection, it is recommended to install a residual current device (RCD) in the power circuit, with a residual current rating not more than 30mA. Contact a professional electrician in this matter.

15. Never use this device close to water, e.g., under a shower, in a bathtub, or above a sink filled with water.

1. If using the device in the bathroom, remove the power plug from the socket after use, because proximity to water presents a risk even if the device is turned off.
2. Do not allow the device or power adaptor to get wet. If the device falls into water, immediately remove the power plug or power adaptor from the socket. If the device is powered, do not put your hands in the water. Have the device checked by a qualified electrician before using it again.
3. Do not touch the device or power adaptor with wet hands.
4. Place the fan heater only on a flat, stable surface.
5. Always turn the fan heater off and set the thermostat dial to minimum before removing the power plug from the socket.
6. Never use the fan heater in high humidity rooms – bathroom, shower room, swimming pools, etc. The humidity can cause a short circuit and result in damaging the device.
7. The operating fan heater needs to be under supervision and in sight at all times. If you are leaving the room with the fan heater, always turn the fan heater off. If the fan heater is not used, the power plug has to be removed from the power outlet.
8. Do not connect the fan heater to an automatic switching device, for example, a temperature controlling device or time switch.
9. Flammable materials, for example, furniture, bedclothes, paper, clothes, and curtains should be kept at least one meter from the fan heater.
10. Do not cover the device or put any objects on it while it is operating. Do not use the device to dry clothes.
11. The power cord should not be placed above the fan heater, and it should not touch or be placed near hot surfaces of the fan heater. Do not place the fan heater directly under the power outlet.
12. The heating surfaces can heat to a temperature of 60°C or higher. The fan heater should be in a place that children and animals do not have access to.
13. The device is not intended to be installed or used in vehicles.
14. Some parts inside the device can be hot or cause sparking. Do not use the fan heater in places where gasoline, paints, or other flammable materials are used or stored.

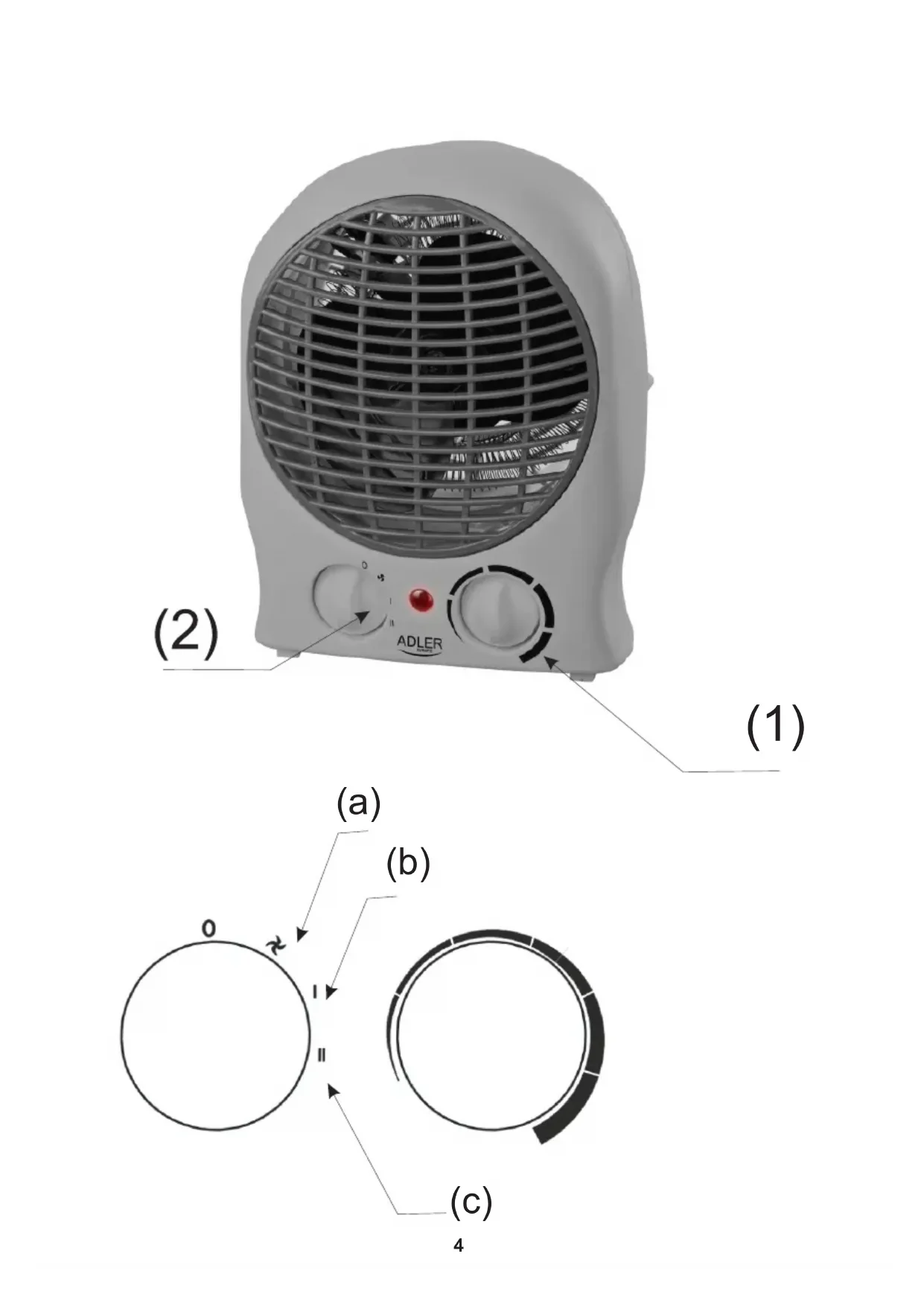

DESCRIPTION OF THE DEVICE

1. Thermostat dial
2. Power switch/heating power selector

(a) - cold airflow (b) - 1000W (c) - 2000W

USING THE DEVICE

The fan heater has two levels of heating power.

Position 0 - device is switched off

Position - unheated air flow

Position | - 1000 W warm air flow

Position II - 2000 W hot air flow

On both heating levels, the temperature can be adjusted using the thermostat dial (1).

The device is protected against overheating by means of a thermal switch, which can power it off for a while. If this happens, unplug the device and wait a couple of minutes. After a while, you can continue to use the device.

CLEANING AND MAINTENANCE

1. Make sure the fan heater is not hot.
2. Before cleaning the device, remove the plug from the electrical socket.
3. Keep the air inlet and outlet openings clean. Do not allow dust to collect on the openings.
4. Clean the housing using only a dry or moist cloth.
5. Do not immerse the device in water!

TECHNICAL DATA

Voltage: 220-240V ~ 50/60Hz

Power: 1800-2000W

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

GERMAN

Position I - 1000 W - warm air

(a) - cool air (b) - 1000W (c) - 2000W

Type designation and meaning of the sign on the labels

To protect the device from moisture: Do not place it in corners or on shelves where it could come into contact with water. The device must be connected to a properly installed socket with a protective earth conductor. Do not dispose of this device in household waste; take it to a collection point for recycling.

GREEK

GENERAL SAFETY RULES

1. 1. Before using the device, read the instructions carefully and keep them for future reference. The manufacturer is not liable for any damage caused by improper use or incorrect operation of the device. 2. The device is intended for household use only. It must not be used for any other purpose for which it was not designed. 3. The device must be connected to a 220-240V ~50/60Hz power supply. For your safety, do not connect it to the same circuit as other high-power appliances. 4. You must be especially careful when using the device if there are children nearby. Children must not be allowed to use the device. The device must not be used by children or by people who have not been informed about its operation. 5. The device is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or by persons lacking experience or knowledge, unless they are supervised or have been instructed in the use of the device by a person responsible for their safety.
2. 6. When connecting the device to the mains, hold the plug. Do not pull the power cord. 7. Do not immerse the cord, the plug, or the device in water or any other liquid. Protect the device from weather conditions (rain, sun, etc.). Do not use it in conditions of high humidity (bathroom, sauna).
3. 8. Regularly check the condition of the power cord. If the power cord is damaged, it must be replaced by a qualified technician or a service center to avoid any danger. 9. Do not use the device with a damaged power cord or a cord that has been damaged or does not work properly. Do not repair the device yourself; there is a risk of electric shock. The device must be repaired by a qualified technician or an authorized service center. Repairs can only be carried out by authorized service centers. Improper repair can cause serious injury.

Keep the appliance away from water. 10. Do not use the appliance in a bathtub, shower, or over a basin filled with water, etc. 11. Do not use the appliance with wet hands. 12. The power cord cannot be hung from tables or touch hot surfaces. 13. Do not leave the appliance connected to the mains supply without supervision. 14. To ensure your safety, it is recommended to install a residual current device (RCD) with a rated residual operating current not exceeding 30 mA in the electrical circuit. To do this, you must contact a qualified electrician.

1. Do not use the appliance near water, for example: in the bathtub, shower, or above a washbasin filled with water.
2. When the appliance is used in the bathroom, after use, remove the plug from the socket, as the proximity of water can pose a danger even when the appliance is switched off.
3. Do not leave the appliance or the plug exposed. If the appliance falls into water, immediately pull the plug or the appliance out of the socket. Do not put your hands in the water while the unit is running. In case of a fall, before reusing it, the appliance must be checked by a qualified electrician.
4. Do not hold the appliance or the plug with wet hands.
5. The fan heater must be placed only on a flat, stable surface.
6. Before removing the plug from the socket, always switch off the fan heater and set the thermostat to the minimum setting.
7. Do not use the fan heater in humid environments - bathrooms, laundry rooms, etc. Humidity can cause short circuits or malfunction.
8. When the fan heater is operating continuously, it needs to be under supervision and in a visible place. When leaving the room while the fan heater is operating, always switch it off. If the fan heater is not operating continuously, unplug it from the socket.
9. Do not connect the fan heater to automatic switching systems, for example, timers or programmable thermostats.
10. Keep a distance of at least one meter from the fan heater to flammable materials, such as curtains, clothing, paper, furniture, etc.
11. Do not cover the appliance during operation, nor place objects on top of it. Do not use the appliance to dry clothes.
12. The power cord cannot be placed on top of the fan heater, nor can it be near the hot surfaces. Do not place the fan heater under the socket.
13. The heating surface cannot be heated to a temperature higher than 60°C. The fan heater should be placed in a place where children and animals do not have access to it.
14. Do not install the appliance on walls or use it on them.
15. Inside the device there are components that may become hot if they produce sparks. Do not use the heater in areas where flammable materials such as gasoline, paints, or other flammable substances are used or stored.

DESCRIPTION OF THE DEVICE 1. Air outlet switch 2. Power selector switch (A) - Cold air (B) - 1000W (C) - 2000W

USE OF THE DEVICE

The heater has two power settings.

DESCRIPTION OF THE DEVICE

The product is marked with the CE symbol.

Please dispose of the packaging (cardboard box) responsibly, preferably for recycling. Do not dispose of plastic bags (PE) in the recycling bin. The worn-out device must be handed over to the appropriate collection point. Since the device contains hazardous components, it may pose a threat to the environment. The electrical device must be handed over in such a way as to limit its secondary use. If the device contains batteries, they must be removed and handed over to the collection point separately. Do not dispose of the device in the municipal waste bin!

(DK) DANISH

GENERAL SAFETY CONDITIONS

IMPORTANT INSTRUCTIONS FOR SAFETY GUIDELINES MUST BE READ CAREFULLY AND KEPT FOR FUTURE REFERENCE

The warranty conditions apply if the device is used for commercial use.

1. Before using the product, please read and follow the instructions below. The manufacturer is not responsible for any damage resulting from improper use. 2. The product is intended for household use only. Do not use the product for any purpose that is not in line with its intended use.
2. Rated voltage 220-240V, ~ 50/60 Hz. For safety reasons, do not connect multiple devices to one socket. 4. Be careful when using the product near children. Do not allow children to play with the product. Do not allow children or people who are not familiar with the device to use it without supervision. 5. WARNING. This device can be used by children aged 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

6. When using the device, always keep the power cord away from the socket and hold the socket with your hand. Never pull the cord! 7. Never place the cord, plug, or the entire device in water. Never expose the device to atmospheric conditions such as direct sunlight or rain. Never use the device in wet conditions. 8. Periodically check the condition of the cord. If the cord is damaged, the product must be returned to a professional service center for replacement to prevent hazardous situations. 9. Never use the device with a damaged cord or if it has been dropped or damaged in any other way, or if it does not work properly. Do not attempt to repair the defective product yourself, as this may lead to electric shock. Always return the damaged device to a professional service center for repair. All repair work should only be performed by authorized specialists. Improper repair may lead to hazardous situations for the user. 10. Never place the device on a hot surface or near heating appliances such as an electric stove or gas burner. 11. Never use the product near hot objects. 12. Do not allow the cord to hang over the edge of a table or touch hot surfaces. 13. Never connect the device to the power supply without supervision. Even if the device is turned off for a short time, unplug it from the outlet and disconnect the power. 14. To ensure basic protection, it is recommended to install a residual current device (RCD) in the electrical circuit, and the RCD should not exceed 30 mA. Consult a professional electrician on this matter. 15. Never use this device near water, for example: under a shower, in a bathtub, or over a sink filled with water. 16. If you use the device in a bathroom, unplug it from the outlet, as proximity to water poses a risk even if the device is turned off. 17. Do not allow the device or adapter to get wet. If the device falls into water, immediately unplug the cord or the power block from the outlet. If the device is wet, do not put your hands in the water. Have the device checked by a qualified electrician before using it again. 18. Do not touch the device or adapter with wet hands. 19. Place the heater fan on a flat, stable surface. 20. Always turn off the fan and set the regulator to the minimum level before unplugging the cord from the outlet. 21. Never use the heater fan in rooms with high humidity.

high humidity - bathroom, shower room, laundry room

basin, etc. Humidity can cause short circuits and also affect the condition of the device.

1. The operation of the heater fan must be constantly under supervision and in sight. If you

leave the room with the fan operating, always turn off the fan. If the fan is operating

It must be pulled out of the socket before cleaning.

It must be in a place where children and animals do not have access.

1. Do not use or install it in transport vehicles.
2. Some parts of the device may be hot or cause sparks. Do not use the heater near

Places where gasoline, paints, and other flammable materials are used or stored.

DEVICE DESCRIPTION

1. Thermostat dial 2. Power switch / heat selector (a) - cold air flow (b) - 1000 W (c) - 2000 W

USING THE DEVICE

The heater has a fan-forced mode.

Description of the device operation

Airflow - cold air flow

Position - 1 1000 W of warm air flow

Position - II 2000 W of warm air flow

Do not use the device if the thermostat (1) is damaged.

The device may switch off due to overheating. If this happens, turn off the device and wait a few minutes. After some time, you can continue using the device.

CLEANING AND MAINTENANCE

1. Make sure the fan is not running. 2. Before cleaning, unplug the power cord from the electrical outlet. 3. Keep the air inlet and outlet openings clean. Do not allow dust to accumulate on the openings. 4. Wipe the housing with a dry or slightly damp cloth. 5. Do not immerse the device in water! In the interest of environmental protection.

TECHNICAL DATA

Voltage: 220-240 V ~ 50/60 Hz

Power: 1800-2000 W

Please dispose of the cardboard packaging in the paper recycling container. Plastic bags (PE) should be disposed of in the recycling container for plastics. Used devices must be disposed of at an appropriate collection point. Do not dispose of the device with household waste. Electrical devices must be returned so that they can be recycled and to avoid any risk to the environment. If the device contains batteries, they must be removed and disposed of at an appropriate collection point.

SERVICE

SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS KEEP FOR FUTURE REFERENCE

Warranty conditions differ if the device is used for commercial purposes.

1. 1. Before using the product, read all instructions carefully and always follow them. The manufacturer is not responsible for any damage caused by misuse. 2. The product is intended for household use only. Do not use the product for any purpose that is not compatible with its intended use. 3. The rated voltage is 220-240V ~ 50/60Hz. For safety reasons, it is not recommended to connect multiple devices to one outlet. 4. Pay attention to safety when using the device. Do not allow children to play with the product. Do not allow children or persons who do not know how to use the device to use it without supervision. 5. WARNING: This device can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
2. After you have finished using the product, always make sure to unplug the plug from the electrical outlet with dry hands. Never

pull the power cord!!!

1. Do not place the power cord, plug or device in water. Never expose the product to atmospheric conditions such as direct sunlight or rain. Never use the product in humid conditions. 8. Regularly check the condition of the power cord. If the power cord is damaged, the product must be taken to a service location for replacement to avoid a hazardous situation.
2. The product is manufactured with a cable for power supply. If it is not connected in the correct way or if it does not work properly, do not attempt to repair it yourself, as this could lead to serious injury. Always disconnect the power supply and take it to a professional service for repair. All repairs may only be carried out by qualified personnel. An incorrectly performed repair can cause dangerous situations for the user. 10. Do not place the product near open flames or hot surfaces, or near heat sources such as electric heaters or radiators.
3. Do not use the product near flammable materials.
4. Do not allow the cable to hang over the edge of a table or touch hot surfaces.
5. Do not leave the product connected to the power source unattended. Even if the use is interrupted for a short time, unplug it from the socket and turn off the power.
6. To ensure additional protection, it is recommended to install a residual current device (RCD) in the electrical circuit, with a residual current not exceeding 30 mA. Consult a qualified electrician about this matter. 15. Do not use this device near water, e.g., under a shower, in a bathtub, or near containers filled with water.
7. If you use the device in a bathroom after use, unplug it from the socket, because the proximity of water poses a risk, even if the device is switched off.
8. Do not allow the device or the power cord to get wet. If the device falls into water, immediately unplug the power cord from the socket. If the device is wet, do not put your hands in the water. Check that the device has been properly inspected by a qualified electrician before using it again.
9. Do not touch the device or the power plug with wet hands.
10. Place the fan heater only on a flat, stable surface.
11. Always switch off the fan heater and set the thermostat knob to minimum, before unplugging it from the socket.
12. Never use the fan heater in rooms with high humidity - bathrooms, showers, or swimming pools. Humidity can cause a short circuit and damage the device.
13. The fan heater must be kept under supervision and in sight at all times. If you leave the room with the fan heater on, always switch off the fan heater. If the fan heater is

Do not use the appliance if the power cord or plug is damaged. 23. Do not connect the fan heater to automatic timers, for example timers for temperature control or time switches. 24. Keep flammable materials, such as curtains, bedding, paper, clothing, at least one meter away from the fan heater. 25. Do not cover the appliance or place objects on it while it is operating. Do not use the appliance to dry clothes. 26. The power cord must not be placed under the fan heater and should be positioned away from other heat sources of the fan heater. Do not place the fan heater directly under a socket. 27. The heater can reach temperatures up to 60°C and above. The heater should be placed in a location where children and pets do not have access. 28. The appliance is not intended for installation or use in vehicles. 29. Some parts of the appliance may be hot or cause sparks. Do not use the fan heater in places where flammable liquids or gases are stored.

places where gasoline, paints, or other flammable materials are used or stored.

DESCRIPTION OF THE APPLIANCE

1. Thermostatic switch
2. Heating/Fan selector

(a) - Cold air intake (b) - I 1000W (c) - II 2000W

USING THE APPLIANCE

The fan heater has two heating levels.

Fan only - appliance switched on

Fan - unheated air flow
