PBSD 900 A1 - Sander PARKSIDE - Free user manual and instructions
Find the device manual for free PBSD 900 A1 PARKSIDE in PDF.
| Product type | Belt sander |
| Brand | Parkside |
| Model | PBSD 900 A1 |
| Power supply | 230 V ~, 50 Hz |
| Rated power input | 900 W |
| No-load belt speed | 240–400 m/min |
| No-load speed | 450–750 min⁻¹ |
| Sanding belt dimensions | 75 x 533 mm |
| Protection class | II (double insulation) |
| Sound pressure level (LpA) | 93.2 dB(A), uncertainty K=3 dB |
| Sound power level (LWA) | 104.2 dB(A), uncertainty K=3 dB |
| Vibration (main handle) | 1.719 m/s², uncertainty K=1.5 m/s² |
| Vibration (additional handle) | 1.623 m/s², uncertainty K=1.5 m/s² |
| Speed adjustment | Adjustment wheel (6 positions) |
| Continuous operation | Yes, with locking button |
| Tiltable front cover | Yes, for access to difficult areas |
| Adjustable additional handle | Yes, multiple positions |
| Dust extraction system | Integrated dust box + adapter for external extraction |
| Delivery contents | Sander, abrasive belt grit 80, dust box, extraction adapter, reducer, 2 clamps, instruction manual |
| Warranty | 3 years |
| After-sales service France | 0800 907 612 |
| After-sales service Belgium | 0800 12614 |
| Maintenance and cleaning | Clean with a dry cloth, empty dust box regularly, clear ventilation slots |
| Spare parts available | Carbon brushes, switch, dust box, etc. (contact customer service) |
Frequently Asked Questions - PBSD 900 A1 PARKSIDE
User questions about PBSD 900 A1 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Sander in PDF format for free! Find your manual PBSD 900 A1 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PBSD 900 A1 by PARKSIDE.
USER MANUAL PBSD 900 A1 PARKSIDE
GB / IE
BELT SANDER
Translation of the original instructions
FR / BE
PONCEUSE À BANDE
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
DE / AT / CH
GB/IE Translation of the original instructions Page 1
| DE/AT/CH | Originalbetriebsanleitung | Seite | 13 | ||
| FR/BE | Traduction des instructions d'origine Page 27 | ||||
| NL/BE | Vertaling van de originele gebruiksaanwijzing Pagina 43 | ||||
| CZ | Překlad originálního provozního návodu Strana 57 | ||||
| PL | Tłumaczenie oryginalnej instrukcji obsługi | Strona | 69 | ||
| SK | Preklad originálneho návodu na obsluhu | Strana 83 | |||
| ES | Traducción del manual de instrucciones original | Página | 95 | ||
| DK | Oversættelse af den originale driftsvejledning | Side | 109 | ||
| IT | Traduzione delle istruzioni d'uso originali | Pagina | 121 | ||
| HU | Az originál használati utasítás fordítása | Oldal | 135 |
Introduction 2
Intended use....2
Depicted components 2
Package contents 2
Technical data 2
General Power Tool Safety Warnings....3
- Work area safety 3
- Electrical safety 3
- Personal safety 4
- Power tool use and care 4
- Service 5
Appliance-specific safety instructions for grinders 5
Operation 5
Tensioning/replacing the abrasive belt 5
Adjusting the additional handle 6
Flipping up the front cover 6
Attaching/removing a dust extraction unit 6
Working procedures 7
Use 7
Switching on and off 7
Emptying the dust collector 7
Selecting speed and abrasive belt 8
Stationary work 8
Tips and tricks 9
Maintenance and cleaning 9
Disposal 9
Kompernass Handels GmbH warranty....10
Service....11
Importer....11
Translation of the original Conformity Declaration....12
Introduction
Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.
Intended use
The belt grinder is designed for the dry surface sanding of wood, plastic, metal and plaster and painted surfaces (depending on the type of sandpaper used). The appliance may only be used for dry sanding. Please note that you need to use appropriate abrasive belts with different grains for working different materials, and that you may need to adapt the speed to suit the material. The appliance is not intended for commercial use. Any other use of or modification to the appliance is deemed to be improper and carries the risk of serious personal injury. The manufacturer accepts no responsibility for damage(s) attributable to misuse.
Depicted components

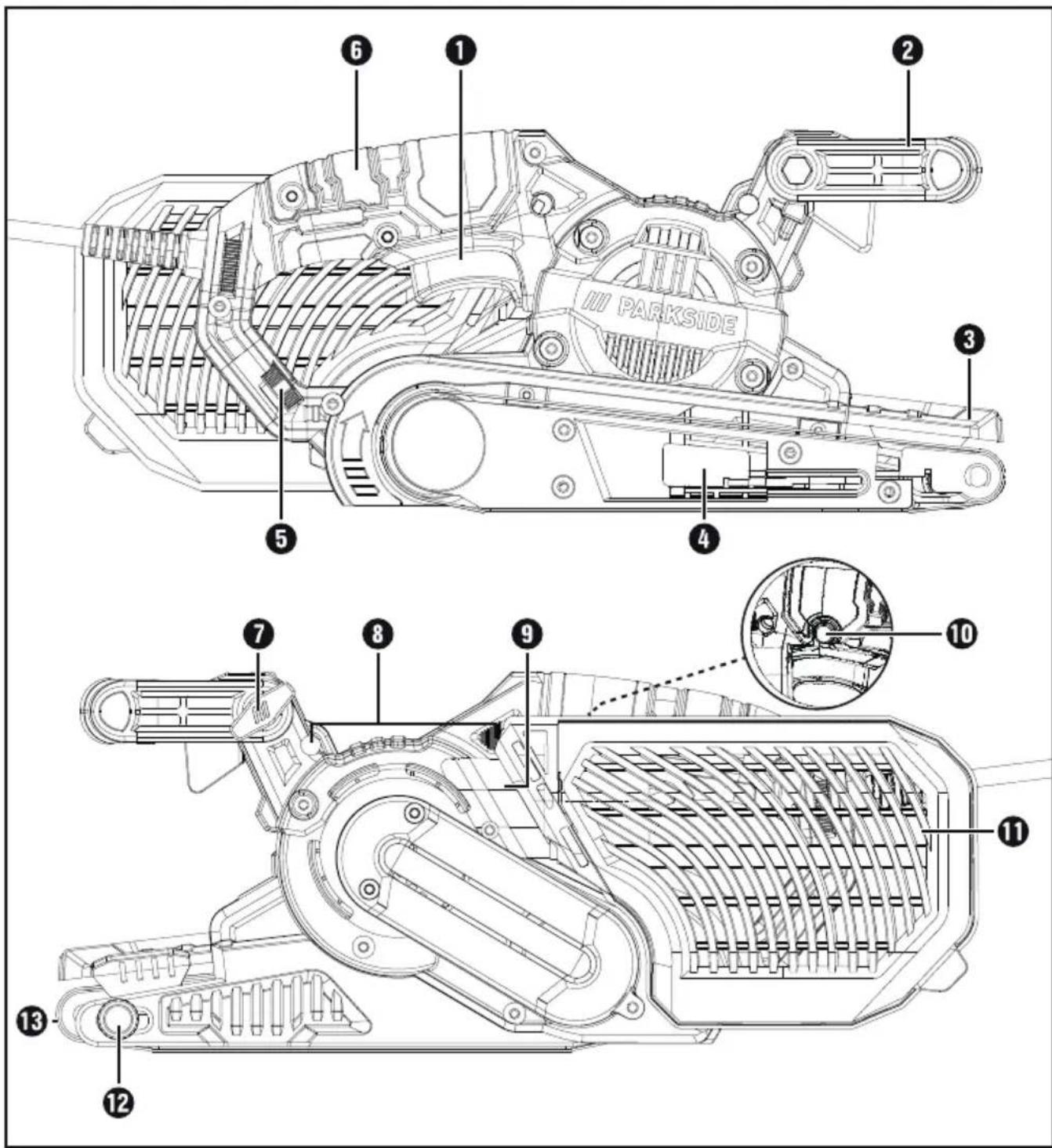

① ON/OFF switch
② Additional handle (rubberised grip)
3 Front cover
4 Clamping lever for abrasive belt
5 Belt speed adjusting wheel
6 Handle (rubberised grip)
⑦ Screw for adjusting the handle
8 Recesses for screw clamps
9 Connection for dust collector
10 Locking button for ON/OFF switch
⑪ Dust collector
12 Adjustment screw for belt tracking
13 Abrasive belt

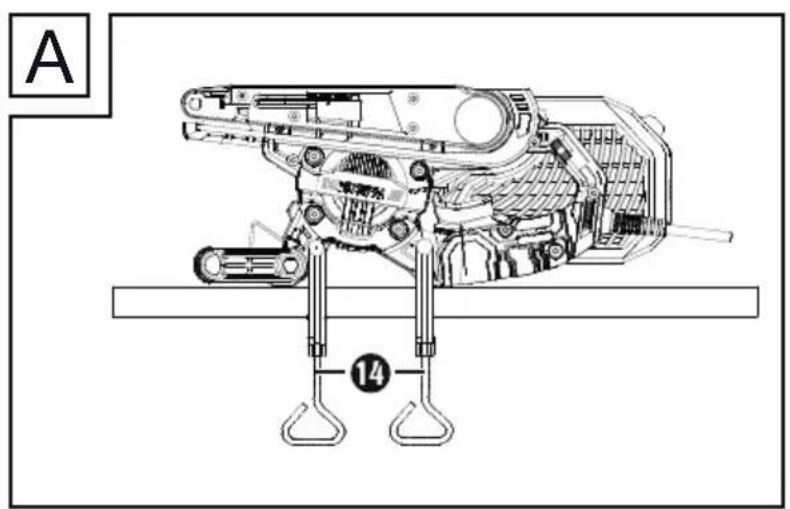

14 Screw clamp
15 Reducer
16 Dust extraction adapter
Package contents
1 belt sander
1 abrasive belt for wood (grain 80)
1 dust collector
1 dust extraction adapter and reducer (for external dust extraction)
2 screw clamps
1 set of operating instructions
Technical data
Rated voltage 230 V \~, 50 Hz (AC)
Rated power
consumption 900 W
Idling belt speed 240–400 m/min
Rated idling speed n_0 450–750 rpm
Abrasive belt 75 x 533 mm
Protection class II / (double insulation)
Noise emission value
Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool is typically as follows:
Sound pressure level L pA = 93,2 dB Uncertainty pA = 3 kB Sound power level L WA = 104,2 dB Uncertainty KWA = 3 dB
Wear hearing protection!
Total vibration value
Total vibration value (vector total of three directions) determined in accordance with EN 62841:
Main handle a _h = 1.719 m/s ^2
Additional handle a _h = 1.623 m/s ^2
Uncertainty K = 1.5 m/s ^2
NOTE
The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
▶ The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.
WARNING!
▶ Depending on the manner in which the power tool is being used, and in particular the kind of workpiece that is being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.
▶ Try to keep the load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).
General Power Tool Safety Warnings
WARNING!
Read all safety warnings, instructions, illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-slip safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Appliance-specific safety instructions for grinders
■ Hold the appliance by the insulated handles as the abrasive belt ^13 can come into contact with its own power cable. Damage to a live wire may make exposed metal parts of the power tool live and could give the operator an electric shock.
WARNING!
■ Dusts from materials such as leaded paint, some types of wood and metal can be harmful to your health.
■ Contact with or inhalation of these dusts can represent a health hazard for the person operating the appliance and other people in the vicinity.
■ Wear safety goggles and a protective dust mask!
Operation
Tensioning/replacing the abrasive belt
WARNING! RISK OF INJURY!
■ Always remove the power plug from the wall socket before carrying out any work on the belt grinder.
- Loosen the clamping device for the abrasive belt by swivelling the clamping lever 4 all the way out. The abrasive belt 1 can now be removed.
- Now fit a new abrasive bel13 or swap the belt to work on a different material or to use a different grain size.
IMPORTANT: The direction of the arrows on the inside of the abrasive belt ⑬ and on the appliance housing must match. - Push the clamping level back into its initial position.
Manually adjusting the abrasive belt 13 If the belt tracking is not centred when you switch on the appliance, you may need to manually adjust it.
To do this, turn the adjusting screw ^12 on the front roller until the abrasive belt is running centred.
IMPORTANT: It is important to ensure that
the abrasive belt ⑯ does not rub against the housing. Check the belt tracking regularly and adjust it with the adjusting screw if required ⑫
Adjusting the additional handle
You can position the additional handle 2n several different positions.
◆ To reposition the additional handl ② undo the screw ⑦
◆ Move the additional handle ^2 to the required position.
◆ Retighten the screw⑦.
Flipping up the front cover

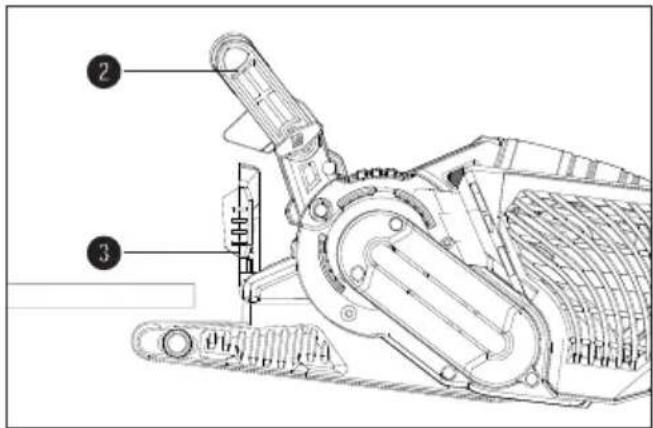

You can flip up the front cover ③ to grind in hard-to-reach areas (see illustration).
The front cove ^3 can only be flipped upwards if the additional handle ^2 s also positioned upwards (see section "Adjusting the additional handle").
♦ Flip up the front cover ^3 .
Attaching/removing a dust extraction unit
WARNING! RISK OF EXPLOSION!
If there is an explosive dust/air mixture, you must use a specially designed extraction appliance. RISK OF FIRE DUE TO FLYING SPARKS! Do not use dust extraction systems (dust collector or vacuum cleaner) when grinding metals.
■ Materials containing asbestos must not be processed. Asbestos is a known carcinogen.
WARNING! RISK OF FIRE!
When working with power tools which have a dust collector or can be connected to a vacuum cleaner via a vacuum cleaner adapter, there is a risk of fire! In unfavourable conditions, e.g. when sparks are flying while sanding metal or metal residues in wood, wood dust in the dust collector (or the bag of the vacuum cleaner) can spontaneously ignite. This is a particular risk if the wood dust is mixed with paint residues or other chemicals and the workpiece has become hot after being worked for a long time. Therefore, do not allow the workpiece to overheat and always empty the dust box or the dust bag of the vacuum cleaner before taking a break from work.
■ Ensure that your workplace is adequately ventilated.
- Observe the regulations applicable in your country regarding the materials to be worked.
Wear a dust mask.
Fitting the dust collector ⑪
♦ Push the dust collector onto the dust collector connection from above.
Dismantling/removing the dust collector
◆ Pull the dust collector off upwards.
Connecting a dust extraction adapter and reducer for an external extraction appliance
♦ Push the dust extraction adapter ^16 onto the connection ^9
♦ Push the reducer ^15 for the dust extraction adapter into the adapter fitting ^16
♦ Push the hose from a suitable dust extraction appliance (e.g. a workshop vacuum cleaner) onto the reducer 15 for external vacuum extraction.
Removing the dust extraction adapter and reducer for an external extraction appliance
◆ Pull off the hose of the dust extraction appliance.
◆ Remove the reduce ^15 for external dust extraction.
◆ Pull the dust extraction adapter ^16 upwards off the connection ^9 .
Working procedures
- Secure the workpiece. A workpiece held in a clamp or vise is held more securely than with your hand.
A light grinding pressure is sufficient
■ Apply minimal pressure when grinding. The belt grinder's own weight is sufficient for a good grinding result. In addition, working this way helps to reduce the wear on the abrasive belt ^13 and the surface of the workpiece will become more smooth.
Removal and surface
■ The material removal rate and surface quality are determined by the belt speed and grain strength of the abrasive belt (see also the section "Selecting speed and abrasive belt").
Grinding
■ Place the appliance on the workpiece when switched on and work at a moderate feed rate. Guide the grinder in parallel and overlapping sanding motions over the workpiece. To avoid unpleasant transverse grinding marks, always sand in the direction of the grain. After completing the task, lift the appliance from the workpiece and then switch it off.
NOTE
▶ Always hold the appliance firmly with two hands while working.
Use
Switching on and off
While operating the belt grinder, you can choose between instantaneous and continuous operation.
Switching to instantaneous operation
◆ Press the ON/OFF switch①.
Switching off instantaneous operation
◆ Release the ON/OFF switch①.
Switching to continuous operation
◆ Press the ON/OFF switch ^① , keep it pressed in and then press the lock button ^⑩
Switching off continuous operation
◆ Press the ON/OFF switch ^1 and then release it.
Emptying the dust collector
The dust collector should be emptied after every 10 minutes of operation at least.
♦ Pull the dust collector① off (see section "Attaching/removing a dust extraction unit")
◆ Shake the dust collection over a rubbish bin to empty it.
◆ Fit the dust collector⑪ back onto the appliance.
Selecting speed and abrasive belt
You can use the belt speed adjusting wheel ⑤ to adjust the speed, even while the appliance is running. The optimum belt speed is dependent on the workpiece or material being processed. We recommend carrying out a practice run to determine the correct speed. In the table below, you will find some recommended values which will help you determine which belt and speed to use for which job.
| Material/working area | Softwood |
| Rough sanding(grain size) | 60 |
| Finishing (grain size) | 240 |
| Speed preselection high (5-6) | |
| Material/working area | Hardwood |
| Rough sanding (grain size) | 60 |
| Finishing (grain size) | 180 |
| Speed preselection high (5-6) | |
| Material/working area | Chipboard |
| Rough sanding(grain size) | 60 |
| Finishing (grain size) | 150 |
| Speed preselection high (5-6) | |
| Material/ working area | Removing paint/varnish |
| Rough sanding (grain size) | 60 |
| Finishing (grain size) | -- |
| Speed preselection high (5-6) | |
| Material/ working area | Rubbing down paintwork/varnish |
| Rough sanding (grain size) | 150 |
| Finishing (grain size) | 320 |
| Speed preselection low (1-2) | |
| Material/ working area | Removing rust from steel |
| Rough sanding (grain size) | 40 |
| Finishing (grain size) | 120 |
| Speed preselection | medium/high (3-4) |
| Material/ working area | Plastics |
| Rough sanding (grain size) | 120 |
| Finishing (grain size) | 240 |
| Speed preselection low/medium (2-3) | |
| Material/ working area | Non-ferrous metals (e.g. aluminium) |
| Rough sanding (grain size) | 80 |
| Finishing (grain size) | 150 |
| Speed preselection | medium/high (3-4) |
Stationary work
♦ Turn the additional handl② to the horizontal position.
- Turn the power tool as shown in the illustration and place it on a stable work-top.
◆ Fit the two screw clamps ^34 in the recesses 8 provided and clamp the power tool tightly.
Tips and tricks
■ Never use the same abrasive belt 13 to work wood and metal.
■ Worn or cracked abrasive belts can damage the workpiece. Therefore, be sure to replace worn abrasive belts before starting work.
■ Always hang up the abrasive belts to store them, as kinks etc. can make them unusable.
Maintenance and cleaning
WARNING! RISK OF INJURY!
Switch off the appliance and pull out the power plug before starting any work on the appliance.
The belt grinder is maintenance-free.
■ Always clean the appliance directly after finishing work.
■ Use a dry cloth to clean the housing. Under no circumstances should you use fuel, detergents, solvents or abrasive cleaners.
Emptying/cleaning the dust collector ⑪
◆ Pull the dust collector ⑪ off the appliance.
◆ Empty the dust collector ^11 completely by knocking out the contents and then push the dust collector ^11 back onto the appliance.
◆ Ensure ventilation openings are always free.
◆ Remove any adhering grinding dust with a brush.
Disposal
Applies only to France
The product, its packaging and the operating instructions are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.
Do not dispose of power tools in your normal domestic waste!
The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.
The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.
Your local community or municipal authorities can provide information on how to dispose of the worn-out product.
The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.
Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites.
This appliance has a 3-year warranty valid from the date of purchase. If included with the product on delivery, the battery packs of the X12V and X20V Team series also come with a 3-year warranty from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.
If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not cover product parts that are subject to normal wear and tear and can therefore be considered wearing parts, such as saw blades, replacement blades, abrasive papers, etc. or for damage to fragile parts, such as switches or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.
The warranty does not apply to
■ Normal reduction of the battery capacity over time
■ Commercial use of the product
■ Damage to or alteration of the product by the customer
■ Non-compliance with safety and maintenance instructions, operating errors
■ Damage caused by natural hazards
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
■ Please have the till receipt and the item number (IAN) 465513_2404 available as proof of purchase.
■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional faults or other defects occur, please first contact the service department listed below by telephone or use our contact form, which you can find on parkside-diy.com in the Service category.
■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can view and download these instructions along with many other manuals at parkside-diy.com. This QR code will take you directly to parkside-diy.com. Select your
country and use the search box to search for the operating instructions. Enter the article number (IAN) 465513_2404 to find the operating instructions for your article.
WARNING!
■ Have the power tool repaired by the service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.
■ Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained.
NOTE
▶ Replacement parts not listed (such as carbon brushes, switches, dust collector) can be ordered via our service hotline.
Service
GB Service Great Britain
Tel.: 0800 051 897 0 Contact form on parkside-diy.com
IE Service Ireland
Tel.: 1800 851251 Contact form on parkside-diy.com
IAN 465513_2404
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Translation of the original Conformity Declaration
We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:
Machinery Directive
(2006/42/EC)
EMC (Electromagnetic Compatibility)
(2014/30/EU)
RoHS Directive
(2011/65/EU)*
* The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.
Applied harmonised standards
EN 62841-1:2015
EN 62841-2-4:2014
EN IEC 55014-1:2021
EN IEC 55014-2:2021
EN IEC 61000-3-2:2019/A1:2021
EN 61000-3-3:2013/A2:2021
EN IEC 63000:2018
Type designation of machine: Belt sander PBSD 900 A2
Year of manufacture: 06–2024
Serial number: IAN 465513_2404
Bochum, 23/05/2024
Semi Uguzlu
- Quality Manager -
We reserve the right to make technical changes in the context of further product development.
Inhaltsverzeichnis
Einleitung 14
⚠️ WARNUNG! EXPLOSIONSGEFAHR!
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND
www.kompernass.com
AVERTISSEMENT !
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALLEMAGNE
www.kompernass.com
Directive relative aux machines
(2006/42/CE)
Semi Uguzlu
WAARSCHUWING! LETSELGEVAAR!
WAARSCHUWING!
WAARSCHUWING! EXPLOSIE GEVAAR!
WAARSCHUWING! BRANDGEVAAR!
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DUITSLAND
www.kompernass.com
Semi Uguzlu
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NĚMECKO
www.kompernass.com
Semi Uguzlu
- manažer kvality -
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NIEMCY
www.kompernass.com
VÝSTRAHA!
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21 | 44867 BOCHUM
NEMECKO | www.kompernass.com
Semi Uguzlu
- Manažér kvality -
Mango principal a _h = 1,719 m/s ^2
Mango adicional a _h = 1,623 m/s
Incertidumbre K = 1,5 m/s ^2
INDICACIÓN
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALEMANIA
www.kompernass.com
Semi Uguzlu
ADVARSEL! EKSPLOSIONSFARE!
Sluk for permanent drift
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
TYSKLAND
www.kompernass.com
Semi Uguzlu
- Kvalitetschef -
AVVERTENZA!
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANIA
www.kompernass.com
Semi Uguzlu
WHOMHVkWPgQ\IHOYgWHO□ □□□□:
Üresjárati
Vztlagsebesség
IW ^a VH]HU ^b
Nevieges uresjarati
Fordulatszam
Csiszolószalag
240-400
m/min
n_0 450–750 min ^-1
75 x 533 mm
9gGHOPLRV]WuO\□,,□
□ (dupla
szigetelés)
FIGYELMEZTETÉS!
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
Németország
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Last Information Update · Stand der Informationen · Version des informations
Stand van de informatie · Stav informací · Stan informacji · Stav informácií
Estado de las informaciones · Tilstand af information · Versione delle informazioni
