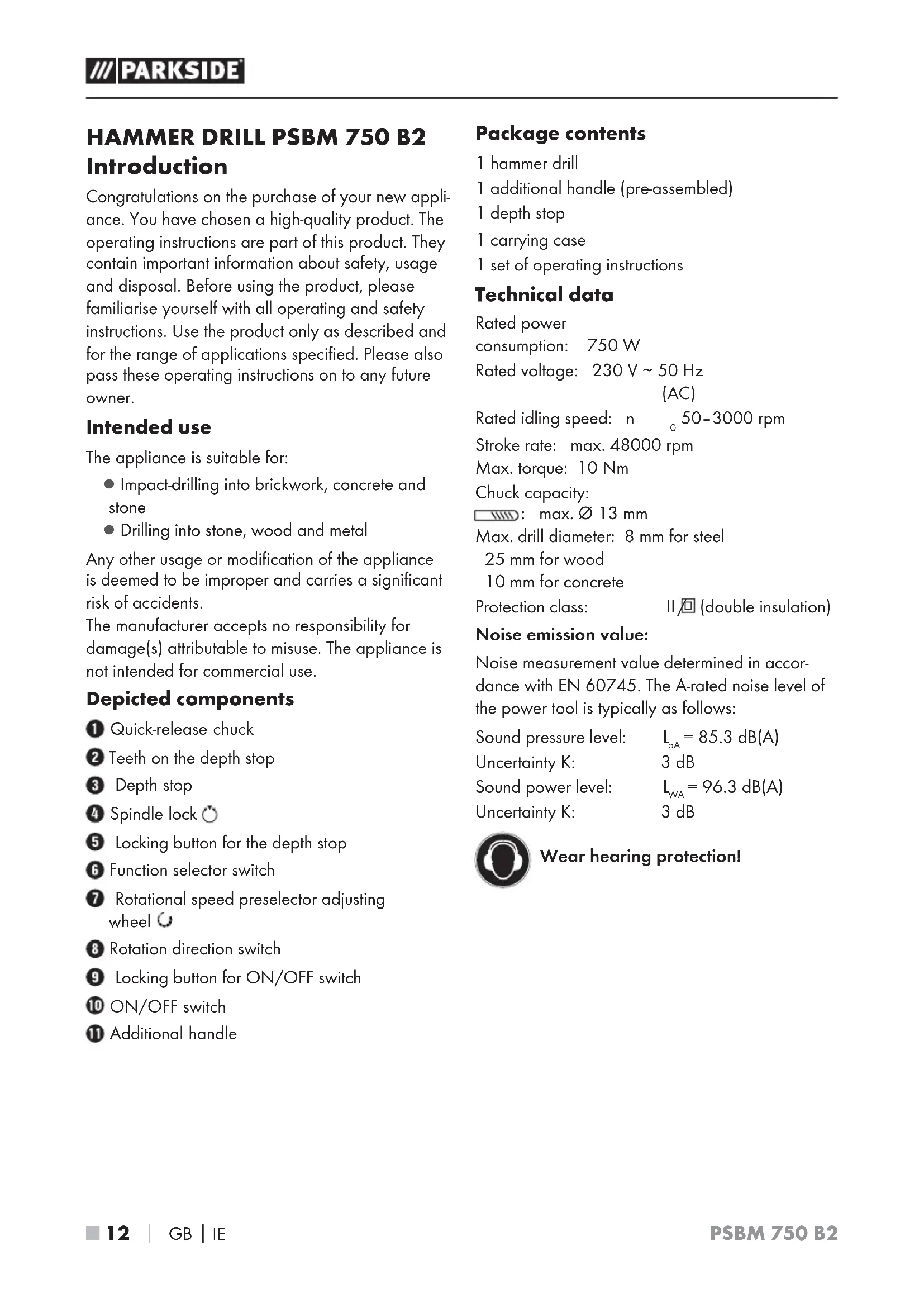

HAMMER DRILL PSBM 750 B2 Introduction

Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

The appliance is suitable for:

• Impact-drilling into brickwork, concrete and stone
• Drilling into stone, wood and metal

Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents.

The manufacturer accepts no responsibility for damage(s) attributable to misuse. The appliance is not intended for commercial use.

Depicted components

Quick-release chuck
Teeth on the depth stop
3 Depth stop
Spindle lock
Locking button for the depth stop
6 Function selector switch
Rotational speed preselector adjusting wheel
Rotation direction switch
9 Locking button for ON/OFF switch
10 ON/OFF switch
Additional handle

Package contents

1. hammer drill
   1 additional handle (pre-assembled)
   1 depth stop
   1 carrying case
   1 set of operating instructions

Technical data

Rated power

consumption: 750 W

Rated voltage: 230V 50Hz

(AC)

Rated idling speed: n 50-3000 rpm

Stroke rate: max. 48000 rpm

Max. torque: 10 Nm

Chuck capacity:

max.013mm

Max. drill diameter: 8 mm for steel

25 mm for wood

10 mm for concrete

Protection class: II (double insulation)

Noise emission value:

Noise measurement value determined in accordance with EN 60745. The A-rated noise level of the power tool is typically as follows:

Sound pressure level: L_pA = 85.3 dB(A)

Uncertainty K: 3 dB

Sound power level: L_WA = 96.3dB(A)

Uncertainty K: 3 dB

Wear hearing protection!

Total vibration value:

Total vibration values (vector total of three directions) determined in accordance with EN 60745:

Drilling in metal:

(Main handle): a_h,D = 6.190 m/s^2 , K = 1.5 m/s^2

(Additional handle): a_h,D = 5.874 m/s^2 ,

K = 1.5m / s^2

Hammer drilling in concrete:

(Main handle): a_h,1D = 10.858 m/s^2 , K = 1.5 m/s^2

(Additional handle): a_h, ID = 10.276 m / s^2 ,

K = 1.5m / s^2

NOTE

The vibration level specified in these instructions has been measured in accordance with a standardised measuring procedure and can be used for equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate.

WARNING!

The vibration level varies depending on the use of the power tool and may be higher than the value specified in these instructions in some cases.

Regular use of the power tool in this way may cause the user to underestimate the vibration. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General Power Tool SafetyWarnings

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing on jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety instructions for drills

hearing protection. Exposure to loud noise can lead to hearing loss.

Use the additional handle supplied with the appliance. Loss of control can lead to injuries.
Hold the appliance by the insulated handles when you are carrying out work during which the deployed tool may come into contact with concealed power cables or its own power cable. Contact with a live wire may electrify exposed metal parts of the power tool and could give the operator an electric shock.

Wear a dust mask.

Appliance-specific safety instructions

WARNING! TOXIC DUST!

Working with the tool can produce harmful/ toxic dusts which represent a health hazard for the person operating the appliance and for anyone else in the vicinity.

CAUTION: SUPPLY LINES! DANGER! Ensure that you are not likely to hit power, gas or water supply lines when you are working with the power tool. If necessary, check with a service line detector before you start to cut or drill into a surface.

Residual risks!

Even if you operate this power tool properly, there will still be residual risks. The following risks can occur in relation to the power tool's design and structure:

1. Lung damage, if no suitable dust protection mask is worn.
2. Hearing damage, if no suitable hearing protection is worn.
3. Damage to health caused by hand-arm vibrations if the appliance is used for extended periods or is not properly used and maintained.

WARNING!

The power tool creates an electromagnetic field during operation. This field can, in certain circumstances, impair active or passive medical implants. To reduce the risk of fatal injuries, we recommend that people with medical implants consult their doctor and the manufacturer of the medical implant before operating this machine.

Original accessories/auxiliary equipment

Use only the accessories and additional equipment that are specified in the operating instructions and are compatible with the appliance.

Use

WARNING!

Switch the appliance off and remove the power plug before starting any work on the appliance.

Additional handle

NOTE

For safety reasons, you should only use this appliance with the additional handle 1 attached.

Loosen the strap on the additional handle by turning it clockwise.
Push the additional handle in the direction of the quick release chuck 1.
Turn the additional handle to the required position.
The locking positions on the additional handle must now be pushed over the locking pin on the spindle of the appliance.
Turn the additional hand anticlockwise again to tighten it.

NOTE

Move the additional handle into the various locking positions depending on your working position. Undo and lock the additional handle as described previously.

Depth stop

Push the locking button for the depth stop and keep it pushed in.
Insert the depth stop into the additional handle 11.
Make sure that the teeth on the depth stop point upwards and downwards.
Pull the depth stop out until the distance between the tip of the drill and the tip of the depth stop corresponds with the required drilling depth.
Release the locking button for the depth stop 5 to lock the depth stop 3

Changing tools

The appliance has a manual spindle lock.

Once the motor has come to a standstill, press and hold the spindle lock button 4.
Turn the quick-release chuc towards RELEASE to open it.
Insert the desired tool into the quick-release chuck 1.
Turn the quick-release chuc towards GRIP to tighten the tool.
Release the spindle lock

Operation

Select operating mode

Function selector switch:

Push the function selector switch so that it engages at the required symbol:

Function Symbol
Drilling	#
Impact drilling	T

Select direction of rotation

WARNING!

The rotation direction switch may only be used/adjusted if the appliance is at a standstill.

Select the direction of rotation by pressing the rotation direction switch towards the left or right.

Preselecting the rotation speed

You can use the rotational speed preselector adjusting wheel to preselect the rotational speed. The speed you select depends on the material to be processed. Work out the right setting by carrying out a practice test.:

NOTE

The appliance only reaches the set rotational speed during continuous operation.

Switching on and off

Switching the appliance on:

Press the ON/OFF switch10.

Switching the appliance off:

Release the ON/OFF switch10.

Switching to continuous operation:

Press the ON/OFF switch. Lock it in the pressed position with the ON/OFF switch lock button

Switching off continuous operation:

Press the ON/OFF switch and release it again.

Maintenance and cleaning

WARNING! RISK OF INJURY! Switch the appliance off and remove the power plug before starting any work on the appliance.

Never permit liquids to penetrate inside the appliance.
Use a soft, dry cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic.
Always clean the appliance after completion of work.
Store the appliance in a dry place.

WARNING!

If the connecting cord needs to be replaced, this must be carried out by the manufacturer or an authorised representative in order to avoid safety hazards.

NOTE

Replacement parts not listed (such as carbon brushes, switches) can be ordered via our service hotline.

Disposal

The packaging is made from environmen-tally friendly material and can be dis-posed of at your local recycling plant.

dispose of power tools in your normal domestic waste!

European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner.

Your local community or municipal authorities can provide information on how to dispose of the worn-out appliance.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7:plastics, 20-22: paper and cardboard, 80-98: composites

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g.IAN 12345) available as proof of purchase.
You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

NOTE

For Parkside and Florabest tools, please send us only the defective item without the accessories (e.g. battery, storage case, assembly tools, etc.).

You can download these instructions along with many other manuals, product videos and software at www.lidl-service.com.

Service

WARNING!

Have the power tool repaired by the service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.
Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or its customer service. This will ensure that the safety of the appliance is maintained.

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 304996

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21, DE - 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive (2006/42/EC)

Electromagnetic Compatibility (2014/30/EU)

RoHS Directive (2011/65/EU)*

• The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Applied harmonised standards:

EN 60745-1:2009/A11:2010

EN 60745-2-1:2010

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 50581:2012

Type designation of machine: Hammer drill PSBM 750 B2

Year of manufacture: 03 - 2018

Serial number: IAN 304996

Bochum, 27/03/2018

CE

Semi Uguzlu

Quality Manager

The right to effect technical changes in the context of further development is reserved.

Table des matieres

Introduction 22

Chere cliente, cher client,

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Directive relative aux machines (2006/42/CE)

Directive RoHS (2011/65/EU)*

• Responsible qualite -

(onbelast): 50-3000min

Aantal slagen: max. 48.000 min

WAARSCHUWING! GIFTIGESTOFFEN!

WAARSCHUWING! LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DUITSLAND

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NEMECKO

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANIA

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANHA

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com
