USER MANUAL PC 2026 Orbegozo

Digital kitchen glass with a digital display showing temperature reading (no visible text or symbols on the device body)

PC 2026

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

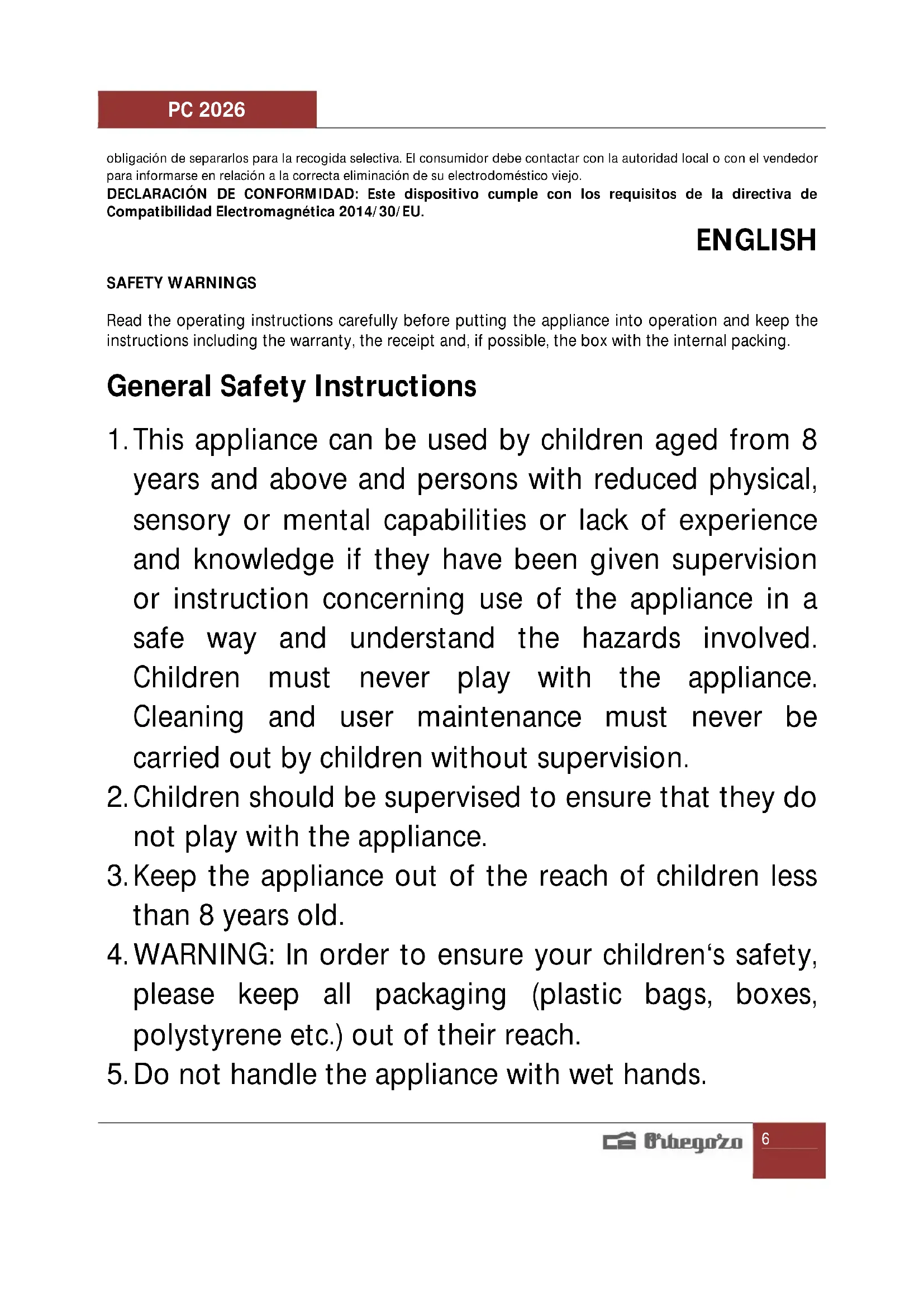

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. Do not handle the appliance with wet hands.

6. Never immerse the appliance in water or any other liquid.

7. This appliance is for household use only.
8. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]
9. WARNING: In case of misuse, there is a risk of possible injury.

Special Safety Instructions

• Use the device only for the intended purpose.
• Always place the appliance on a stable, level and horizontal surface when you use it.

USE

• The kitchen scales has been developed to show the weight of food and ingredients.
• Be careful with the scale. Do not let it to drop and charge it to the maximum capacity.

KEY FUNCTIONS

• ⏻ Key: Power on/ Power off/Tare function
• Unit key: Unit change "g", "kg", "ml", "lb.oz", "fl.oz"

OPERATION

• Take out the scale, and open up the battery cover, install the batteries to the battery compartment
• Put the scale on a flat table, and ensure it is steady.
• The device will automatically switch off after 3 minutes if the item you test always keep on the scale, and the device will automatically switch off after 1 min if the scale shows "0" and non-usage.

WEIGHTING STEP

1) Press the key ⏻ to power on. "0" appears on the display after 2 seconds. Then you can weigh the food.
2) When you press the key of "UNIT", you can select grams 0-999g, resp. kgs 1-20kg, ml or lb.oz, fl.oz as the unit of weight.

Hold function: the measured result is shown for 8 seconds after the weighed part got removed from the scale surface. After 8 seconds the display will automatically switch to 0. If user press tare, the scale is at 0 directly.

TARE FUNCTION

- If you want to weigh items in a container, the container should be placed on the weighing surface before you switch on the scales. You may also delete the weight of the container pressing the ⏻ button. The display will show "0".

-Now add the items to weigh. The weight will be shown on the display. Touch ⏻ . The display will again show "0". Now you may add the next item to weigh. You may repeat the procedure several times as desired.

ERROR DISPLAY INTRODUCTION

- The scale has a load capacity of max. 20 kg. The display will show "Err" if this maximum load is exceeded.

- The symbol 1.0 appears if the batteries need replacing.

INTRODUCTION OF USING AND ISTALLING THE BATTERIES

- Use 1xCR2032 (included)

- To insert or replace the battery, open the battery compartment located underneath the unit. When inserting the battery, always observe the correct polarity. Please put 2XCR2032 battery into the battery compartment.

ADVIDE FOR USE AND CARE

• Always put the scale on a clean and flat table.
• To ensure the life of the scale, do not put the scale under wet, hot & cold conditions.
- The product is a high precision electronic weighing apparatus. Therefore do not drop otherwise the scale can be easily damaged.
- If the scale surface is dirty, please clean the scale with soft cloth, do not use any chemical detergent and don't allow water to get inside the scale.
- If the result appears improperly, please check about whether the batteries and the touching point contact well. Replace with new batteries if used for a long time already, then try again.

CLEANING AND CARE

The device may be wiped with a soft dry or slightly damp, lint free cloth.

Do not use any abrasive, harsh cleaning solutions or aggressive solvents for cleaning.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately

collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the EMC directive 2014/30/EU
