USER MANUAL PC 3010 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

1. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given appropriate supervision or training regarding use of the appliance in a safe manner and understand the dangers it entails. Children should not play with the device. Cleaning and maintenance to be carried out by the user should not be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with this appliance.
3. Keep the appliance out of the reach of children under 8 years of age.
4. CAUTION: For the safety of your children, do not leave packaging material (plastic bags, cardboard, polyethylene, etc.) within their reach.
5. Do not operate it if you notice that the appliance is not working properly.
6. Do not handle the appliance with wet hands.
7. Do not submerge the device in water or any other liquid.
8. This appliance is for home use only.
9. If you need a copy of the instruction manual, you can find it on our website www.orbegozo.com

SPECIFIC

• Use the device only for its intended purpose
• Always place the appliance on a stable, flat and horizontal surface when using it.
- When inserting batteries, make sure your hands and the device are dry.
- Microwaves and cell phones can cause interference and alter weight results.
- If the microwave is operating, use the kitchen scale at a safe distance of at least 1.5 meters from the microwave, or turn the microwave off.
- If your mobile phone is on, keep it at a safe distance of at least 2 meters from the scale, or turn it off.

•

Before using the device

Remove plastic before use

Electromagnetic fields (EMF)

This device complies with all standards regarding electromagnetic fields (EMF). If used correctly and in accordance with the instructions in this manual, the appliance can be used safely according to the scientific knowledge available today.

Features and specifications

1. Equipped with high precision measurement sensor
2. With piece count calculation mode
3. With blue LCD screen backlight
4. Zero/Tare
5. Overload/low battery indication
6. Auto zero/Auto shut off

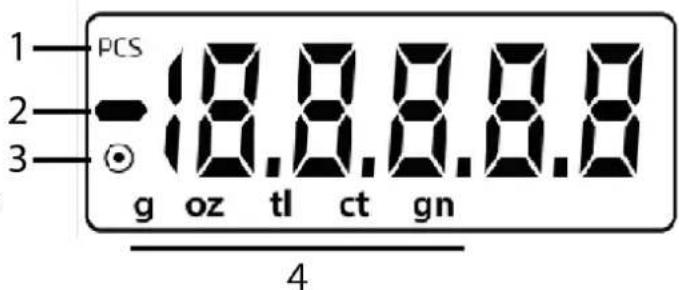

LCD screen icons

1. Piece counting
2. Negative value
3. Tare
4. Measurement units (Gram, Ounce, Tola, Carat and Grain)

1—PCS 2—-18.8.8.8.8 3—●g oz tl ct gn 4

Battery change

1. Open the battery compartment located at the bottom of the weight.
2. Remove the old battery.
3. Place new batteries in the compartment. Note the polarity.

OPERATION

1. Place the weight on a flat, sturdy surface. Avoid carpets or soft surfaces.
2. Press the ON/OFF button to turn on the unit.
3. Wait until the screen shows before starting to use it.
4. Always place the object you want to weigh in the center of the platform.

Change of weight unit

UNITS key to change the weight unit between Gram, Ounce, Tola, Carat and Grain.

Weight calibration

1. Press and hold the UNIT button and CAL will appear on the display
2. Press the UNIT button again, the reference weight will flash
3. Select the weight with the TARE button from 10.00 to 200.00
4. Place the weight on the weighing surface until PASS appears on the display

Using Piece Counting Mode

1. Turn on the scale and wait until the LCD shows "0.00".
2. Press and HOLD the [PCS] key for 2 seconds, the LCD will display a random number, for example "25".
3. Press the [UNITS] key to select the sample quantity of the item you have placed on the platform (it is programmed to allow calibrating weights of 4 different configured quantities which are 25, 50, 75 or 100 pieces). Press and HOLD the [PCS] key for 2 seconds to confirm the above information, now the LCD will display PCS in the corner to indicate the scale is in counting mode.
4. You can place any amount of your item(s) on the scale and the LCD will display a count.

Note : Repeat the above steps to perform part calculation for any different object. To achieve accuracy in calibration, it is advisable to weigh a preset quantity of 100 pieces.

Tare function

To weigh different loads consecutively without removing the previous ones from the weight. Place the first load on the weight, you can read the weight. Press the TARE button so that the LCD displays "0.00" again before adding the next load. You can repeat this operation until you reach the maximum weight supported by the scale.

LCD backlight

1. The LCD screen background lights up by default when the weight is turned on.
2. It can be turned on and off manually by pressing the LIGHT key while the weight is in operation.

Manual disconnection

The display automatically turns off if the weight is not used for 60 seconds. It can also be turned off manually by pressing the ON/OFF button.

To get the most out of battery life, always press the ON/OFF key to turn off the weight after use.

Warning indicators

1. Low battery. The weight will show the code "Lo" when the battery is close to empty. Change the battery.
2. Weight overload. The weight will show the code O-Ld when the load is greater than the maximum allowed (200g). Remove cargo to avoid damage.

Lo 0-Ld

Cleaning and maintenance

1. Wipe the weight with a slightly damp cloth. DO NOT submerge the weight in water or use chemical/abrasive cleaning products.
2. The weight is a high precision device. It is a delicate and extremely sensitive product. Avoid dropping the weight or subjecting it to violent impacts, as damage may occur.

ELIMINATION OF THE HOUSEHOLD APPLIANCES OLD

In base to the Rule European 2012/19/EU of Waste of appliances Electrical and Electronics (WEEE), the household appliances old No they can be thrown in the regular municipal containers; have to be selectively collected to optimize the recovery and recycling of the components and materials that the constitute, and reduce he impact in the health human and he environment. He symbol of cube of trash crossed out HE

brand about all the products for remember to the consumer the obligation of separate them for collection selective.

The consumer must contact the local authority or the seller for information regarding the correct removal of his household appliance old.

STATEMENT OF ACCORDANCE:

This device complies with the requirements of the requirements of the directive Compatibility Electromagnetic 2014/30/EU.

WARRANTY

This device is covered and has the right to legal warranty in accordance with current legislation from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the service closest to your location, contact us through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email reflected on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or compounds that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Consult the legal conditions on our website.
