PC 4200 - Kitchen scales Orbegozo - Free user manual and instructions

Product type	Electronic luggage scale
Brand	Orbegozo
Model	PC 4200
Maximum capacity	50 kg (110 lb)
Accuracy	50 g (0,1 lb)
Display type	LCD
Digit height	11,3 mm
Functions	Zero setting, tare, unit conversion, weight hold
Power supply	2 AAA 1.5V batteries
Low battery indicator	Yes, displays "Lo"
Auto-off	After 2 minutes of inactivity
Housing material	Not specified
Dimensions	Not specified
Device weight	Not specified
Usage	Weighing luggage (strap to attach to handle)
Safety	Do not immerse, avoid magnetic fields, keep out of reach of children
Maintenance	Clean with a damp cloth, do not use abrasive products
Warranty	Legal according to current legislation
Standards	EMC Directive 2014/30/EU
Included accessories	Strap, hook, battery cover
Repairability	Do not repair yourself, contact an authorized service
Usage tips	Read the manual before use, use only for intended purpose

Frequently Asked Questions - PC 4200 Orbegozo

How to turn on the scale?

Press the G/T/A button to turn on the scale. Make sure there is no load before turning it on.

How to use the tare function?

Place the empty container, then press the G/T/A button. The display shows 0 and 'T'. Then add the food or object to weigh.

How to change the weight unit?

Turn off the scale, then press the G/T/A button for about 3 seconds. The unit blinks, press again to select kg or lb. After 3 seconds, the unit is saved.

What does the 'Lo' display mean?

The 'Lo' display indicates that the batteries are low. Replace them with two new AAA batteries, respecting polarity.

The scale does not turn on, what to do?

Check that the batteries are installed correctly and are new. If the problem persists, contact after-sales service.

How to clean the scale?

Clean it with a slightly damp cloth. Never immerse the scale in water and do not use chemical or abrasive products.

What is the maximum capacity of the scale?

The maximum capacity is 50 kg (110 lb). Do not exceed this limit to avoid damaging the device.

The scale displays 'H', what to do?

'H' means the weight is locked after 3 flashes. Press the G/T/A button to reset the scale and perform a new measurement.

Can I weigh something other than luggage?

Yes, as long as the object can be hung on the strap and does not exceed 50 kg. Avoid weighing fragile or sharp objects.

How to replace the battery?

Remove the battery cover, take out the used batteries and insert two new AAA batteries, respecting the polarities (+/-). Close the cover.

USER MANUAL PC 4200 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
3. Do not handle the appliance with wet hands.
4. Never immerse the appliance in water or any other liquid.
5. This appliance is for household use only.
6. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com

Warning

• Do not repair the device yourself, but rather consult an authorized expert.
• Use the device only for the intended purpose.

Caution

• Make sure your hands and the appliance are dry when you insert the batteries.
• A microwave oven or a mobile phone may cause interference, which can lead to unreliable weighing results.
• Use the scale at a safe distance of at least 1.5 meters from a working microwave oven, or switch off the microwave oven.

Before the first Using

Remove protective plastic before using the scale.

Electromagnetic fields (EMF)

This appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

SPECIFICATIONS

Zero/Tare
Low power/ overload indication
LCL digit height: 11.3mm
Capacity: 50kg / 110lb
Graduation: 50g/0.1lb
Power 2x1.5V AAA batteries included

KEY ILLUSTRATION

: Switch on / off, conversion weight unit, zero/tare

1. Replace new battery.
2. Scale overload. Remove item to avoid damage.

Max. Weight capacity is indicated on the scale.

WEIGHING

1. Strap the webbing belt through the luggage handle and secure the hook of the belt onto the triangle ring.
2. Press / / to switch on the scale before lifting (ensure no stress).
3. When display shows zero, lift the charge keeping it vertical and balanced. The LCD screen now shows the luggage weight.

① When the weight is balanced, press again / / to use Tare function. When the LCD screen shows 0 and "T", it indicates that Tare function is working properly.
② The weight will be locked after 3 blinks (Screen shows "H"). Press button / T / A to reset the scale and start measuring again. The scale will turn off automatically after 2 minutes inactive.

1. Press the button 0 / T / A for 3 seconds to switch the scale off.

TO CONVERT WEIGHT UNIT

Press the button to switch on the device. Weight unit is flashing after LCD shows Zero.

Press the button to select weight unit. After idle for 3 seconds, the weight unit is set and you can start weighing.

TO REPLACE BATTERY

Please, replace battery when LCD shows "Lo". Open battery case cover on the back of scale:

1. Take out the used batteries.
2. Install new batteries checking the polarity is right.

CARE AND MAINTANCE

Wipe the scale with a slightly damp cloth. Do not immerse the scale in water or use chemical/ abrasive cleaning agents.

Do not stress the triangle ring for long time. During travel, keep the scale away from objects with sharp ends (such as toy, stationery etc.), in case the scale is switched on frequently and consume battery power.

To make sure accuracy, do not use this scale in strong magnetic field.

Keep the scale away from babies and children to avoid danger of swallow the batteries and small components.

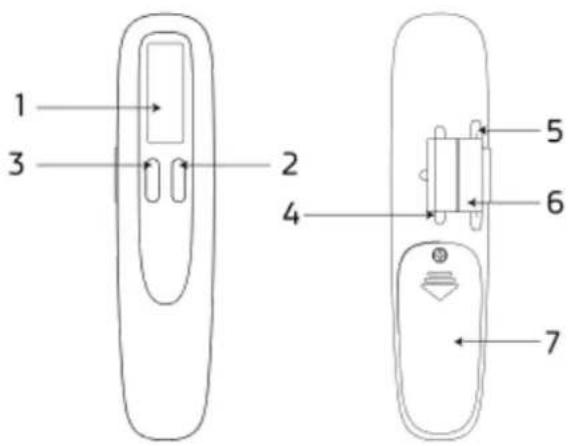

KEY

1. LCD Screen
2. G / T / A Power/Tare/Up
3. U/SET/Units/Set/Lower
4. Metallic Triangle
5. Hooks
6. Strap
7. Batteries cover

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the

environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/assistencia-technica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbego is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. (Check the legal conditions on our website).
