Orbegozo RRM 510 - Electric heater

RRM 510 - Electric heater Orbegozo - Free user manual and instructions

Find the device manual for free RRM 510 Orbegozo in PDF.

English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
📄

Document temporarily unavailable

The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.

View the manual : Français FR Català CA English EN Español ES Português PT
Pick your language and provide your email: we'll send you a specifically translated version.
Product type Electric heater
Brand Orbegozo
Model RRM 510
Nominal power 500 W
Power supply 230 V ~ 50 Hz
Power settings Position I (half power) and Position II (full power)
Thermostat Yes, mechanical with temperature adjustment
Anti-freeze function Yes, maintains approx. 7 °C
Operation indicator light Yes, lights up when the heater is heating
Safety device Overheat protection (do not cover)
Installation type Floor standing with supplied feet
Material Metal (oil heater?) - not specified, estimate
Maintenance and cleaning Unplug before cleaning, dust regularly
Safety instructions Do not cover, do not use near water, keep out of reach of children under 3 years
Warranty Legal warranty according to applicable legislation
Standards Compliant with directives 2014/35/EU and 2014/30/EU

Frequently Asked Questions - RRM 510 Orbegozo

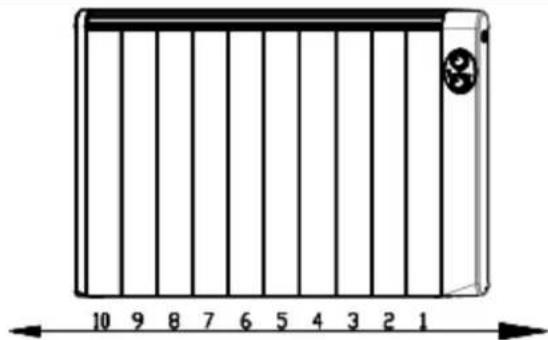

How to install the feet of the Orbegozo RRM 510 heater?
Insert the edges of the bottom of the heater into the foot supports as shown in the diagram (fig. 1.1). You will hear a click indicating that installation is successful. For the RRM 510 A model, the first foot goes in position 1 and the second in position 3.
What are the available power settings?

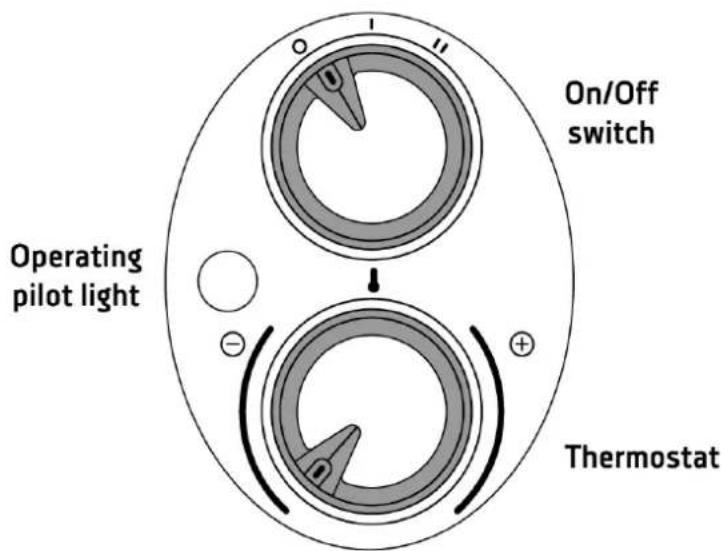

The heater has two positions: Position I (half power) and Position II (full power). Turn the upper selector to choose the mode.
How does the thermostat work?
Turn the thermostat clockwise to increase the temperature. The indicator light turns on to show that the heater is heating. When the desired temperature is reached, turn it slowly counterclockwise until you hear a 'click': the light goes off and the thermostat maintains the temperature.
What to do if the indicator light does not turn on?
Check that the heater is properly plugged in and that the thermostat is set to a temperature higher than the room temperature. If the problem persists, contact technical support.
Can the heater be used in a bathroom?
No, do not use the appliance in the immediate vicinity of a bath, shower, or pool. It must be installed so that the controls cannot be touched by a person in the water.
How to clean the heater?
Always unplug the appliance before cleaning. Dust the exterior regularly with a dry cloth. Accumulated dust can burn and leave marks on walls.
Is the anti-freeze function automatic?
Yes, select the minimum setting on the thermostat. The heater then maintains a temperature of approximately 7 °C, ideal for prolonged absences and to prevent freezing.
What does the symbol 'DO NOT COVER' mean?
This symbol (on the label) indicates that you must never cover the heater, as this would cause overheating and a fire hazard.
Where can I find the complete manual?
The complete manual is available for free download in PDF format on the site notice-facile.com or on the official Orbegozo website (www.orbegozo.com).
How to get spare parts or repair?
For any technical assistance or repair, contact the after-sales service via the link https://orbegozo.com/asistencia-technica/ or by email indicated in the manual. The legal warranty covers the device, keep your receipt.
