USER MANUAL RRM 1510 Orbegozo

Three white electric heater units with vertical cooling fins and mounting feet, shown from different angles (no text or symbols visible)

Three white electric solar heating cabinets with vertical panel lines and control knobs, shown from different angles (no text or symbols visible)

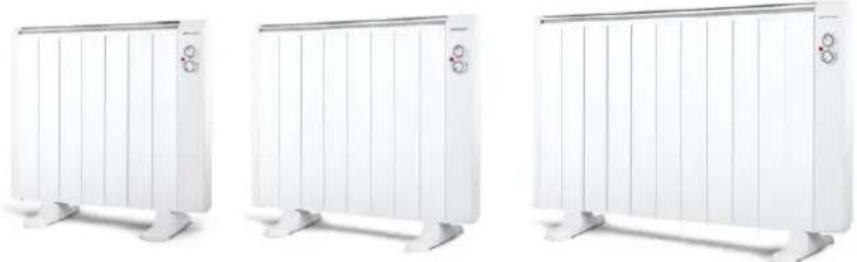

RRM 510 A 810 A 1010 A 1310 A 1510 A 1810 A

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Diagram of a rectangular device with vertical bars and a circular symbol on the right side, labeled with numbers 1 to 10 (no text or symbols on the device itself)

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

fig.1.1

Fig. 1

We congratulate you for having chosen our product.

Please read the following information carefully before using the appliance for the first time for your own safety and to ensure correct use.

Read the Safety information's and safe positioning also carefully before using of the heater about to avoid any risk of fire or lives.

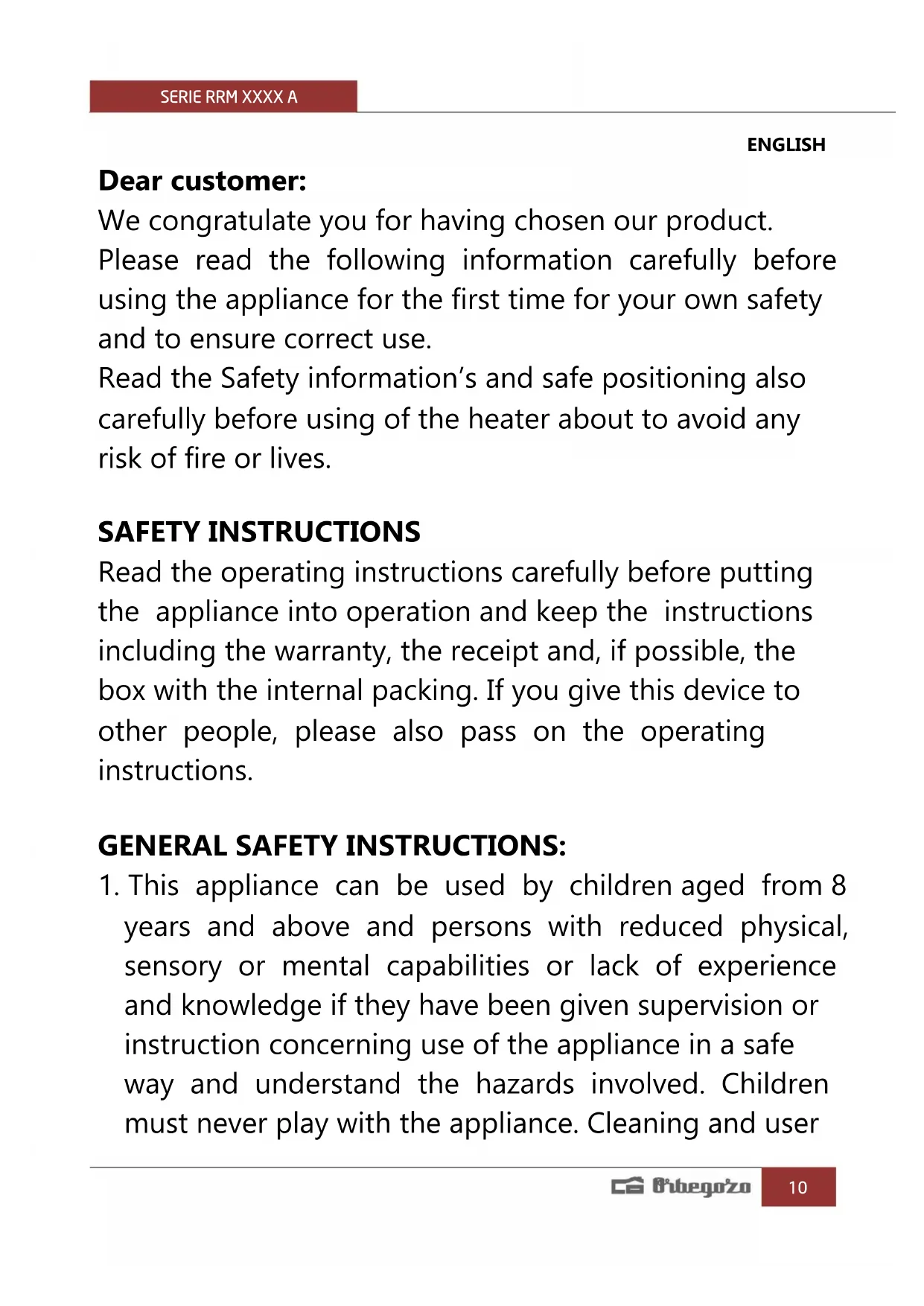

SAFETY INSTRUCTIONS

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

GENERAL SAFETY INSTRUCTIONS:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user

maintenance must never be carried out by children without supervision.

1. Children should be supervised to ensure that they do not play with the appliance.
2. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
3. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
4. Never pull on the cord when unplugging.
5. Do not use the unit with a damaged cord or plug, or if it is not working properly.
6. Do not handle the appliance with wet hands.
7. Never immerse the appliance in water or any other liquid.
8. Make sure the appliance has been unplugged before cleaning.
9. This appliance must be installed following the national regulations for electrical installations.
10. This appliance is for household use only.
11. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.
12. WARNING: In case of misuse, there is a risk of possible injury.

IMPORTANT SAFETY INSTRUCTIONS:

• The meaning of figure 📋 in marking is "DO NOT COVER". WARNING: In order to avoid overheating, do not cover the heater.
• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- The device should not be placed immediately below a socket base.

- Do not place a heater in use near curtains, furniture, wood panelling or combustible material which can deteriorate with heat.

• Do not use this heater in the immediate vicinity of a bath, shower or pool.
• Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• Do not use the appliance in flammable atmospheres (e.g. in the vicinity of combustible gases or sprays cans)! Explosion and fire hazard!
• Do not use the heater in rooms with explosive gas (e.g. petrol) or while using inflammable glue or solvent (e.g. when gluing or varnishing parquet floors, PVC etc.) Do not allow aerosols, inflammable substances or materials sensitive to heat to be in the flow of hot air.
• Do not use the heater in areas or rooms which are a risk of fire, such as garages, stables, wooden shed etc.
• The unit must be mounted such that the control elements cannot be touched by persons who are in bath, shower, or any other water-filled receptacle.
  • Always unplugged the heater after use.
• Important! Do not insert any foreign objects into the appliance openings! Risk of injury (electric shock) and damage to the appliance!
• Keep the mains cord at a safe distance from the air inlet and outlet grilles.

INSTALLING INSTRUCTIONS

How to install the feet:

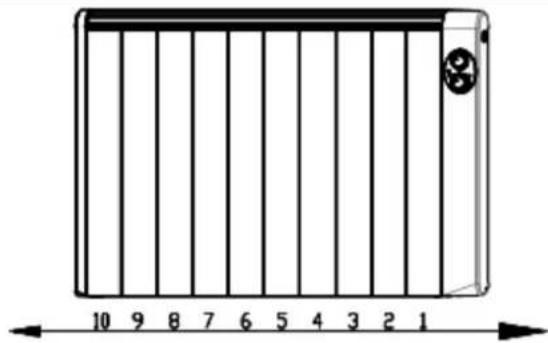

Insert the edges of the bottom of the radiator into the feet support as show in (see below figure 1, fig.1.1 and form) as below. You will hear a click to indicate that the installation was a success.

ATTENTION: Make sure to install the radiator on a surface that supports high temperatures.

Diagram of a rectangular device with vertical bars and a scale bar, no text or symbols present

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

fig.1.1

Fig. 1

Model	Feet Position
	First feet	Second feet
RRM 510 A	1	3
RRM 810 A	1	5
RRM 1010 A	1	6
RRM 1310 A	1	7
RRM 1510 A	1	8
RRM 1810 A	1	10

OPERATE INSTRUCTIONS

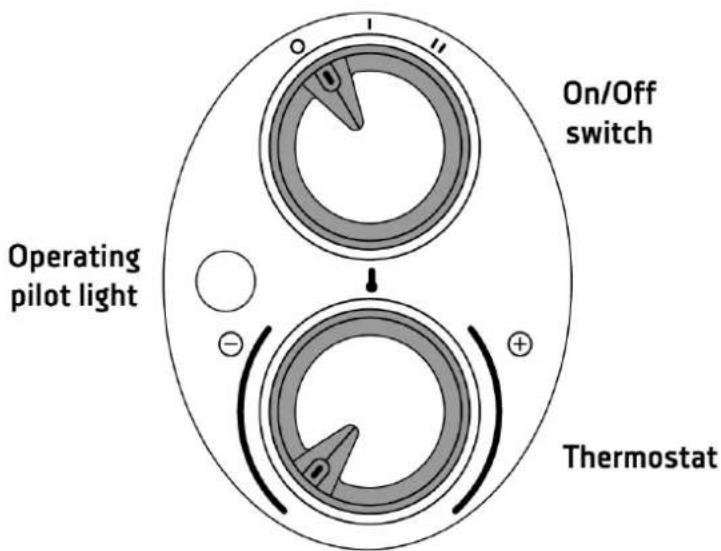

On/Off switch Operating pilot light Thermostat

1. Once the radiator is installed on the floor and properly connected, turn the upper selector to turn on the radiator.

2. Turn the thermostat clockwise and check that the pilot light comes on, indicating that the radiator is heating up.

3. Once the desired temperature is reached, turn the thermostat counterclockwise until you hear a "click" and the pilot will go out. After this, the thermostat will regulate the temperature of the room so that it stays at the desired temperature.

4. Select position I so that the appliance works at half power. Select position II for the appliance to perform at maximum power.

5. Every time the appliance is switched on again to recover the temperature you have selected, the indicator light will come on.
6. The radiator incorporates an anti-freeze safety device. If you select the minimum setting on the thermostat, the temperature will remain at approximately 7^ C, ideal for prolonged absences as it prevents freezing and saves heating costs.

CLEANING

We recommend keeping electric radiators clean. Dust may appear, which can burn and settle on the wall and on the emitter in the form of streaks or dark areas. These stains are exclusively due to the lack of cleanliness of the electric radiator and the surrounding area.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

INFORMATION REQUIREMENTS FOR LOCAL SPACE HEATERS (EU)2015/1188
Item	Model identifier	Symbol	Value	Unit	Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	RRM 510 A	P_nom	0.5	kW	manual heat charge control, with integrated thermostat	N/A
	RRM 810 A	P_nom	0.8	kW	manual heat charge control with room and/or outdoor temperature feedback	N/A
	RRM 1010 A	P_nom	1	kW	electronic heat charge control with room and/or outdoor temperature feedback	N/A
	RRM 1310 A	P_nom	1.3	kW	fan assisted heat output	N/A
	RRM 1510 A	P_nom	1.5	kW	Type of heat output/room temperature control (select one)
	RRM 1810 A	P_nom	1.8	kW	single stage heat output and no room temperature control	No
Minimum heat output (indicative)	RRM 510 A	P_nom	0.5	kW	Two or more manual stages, no room temperature control	No
	RRM 810 A	P_nom	0.8	kW	with mechanic thermostat room temperature control	Yes
	RRM 1010 A	P_nom	1	kW	with electronic room temperature control	No
	RRM 1310 A	P_nom	1.3	kW	electronic room temperature control plus day timer	No
	RRM 1510 A	P_nom	1.5	kW	electronic room temperature control plus week timer	No
	RRM 1810 A	P_nom	1.8	kW	Other control options (multiple selections possible)
Maximum continuous heat output	RRM 510 A	P_nom	0.5	kW	room temperature control, with presence detection	No
	RRM 810 A	P_nom	0.8	kW	room temperature control, with open window detection	No
	RRM 1010 A	P_nom	1	kW	with distance control option	No
	RRM 1310 A	P_nom	1.3	kW	with adaptive start control	No
	RRM 1510 A	P_nom	1.5	kW	with working time limitation	No
	RRM 1810 A	P_nom	1.8	kW	with black bulb sensor	No
Auxiliary electricity consumption
At nominal heat output		All models	el_max	0,000	kW
At minimum heat output		All models	el_min	0,000	kW
In standby mode		All models	el_SB	0,0008	kW
Contact details info	SONIFER SA. Avenida de Santiago 86, 30007, Murcia. Spain.
