USER MANUAL RMN 1500 Orbegozo

4. Cord storage 5. Brackets and wheels

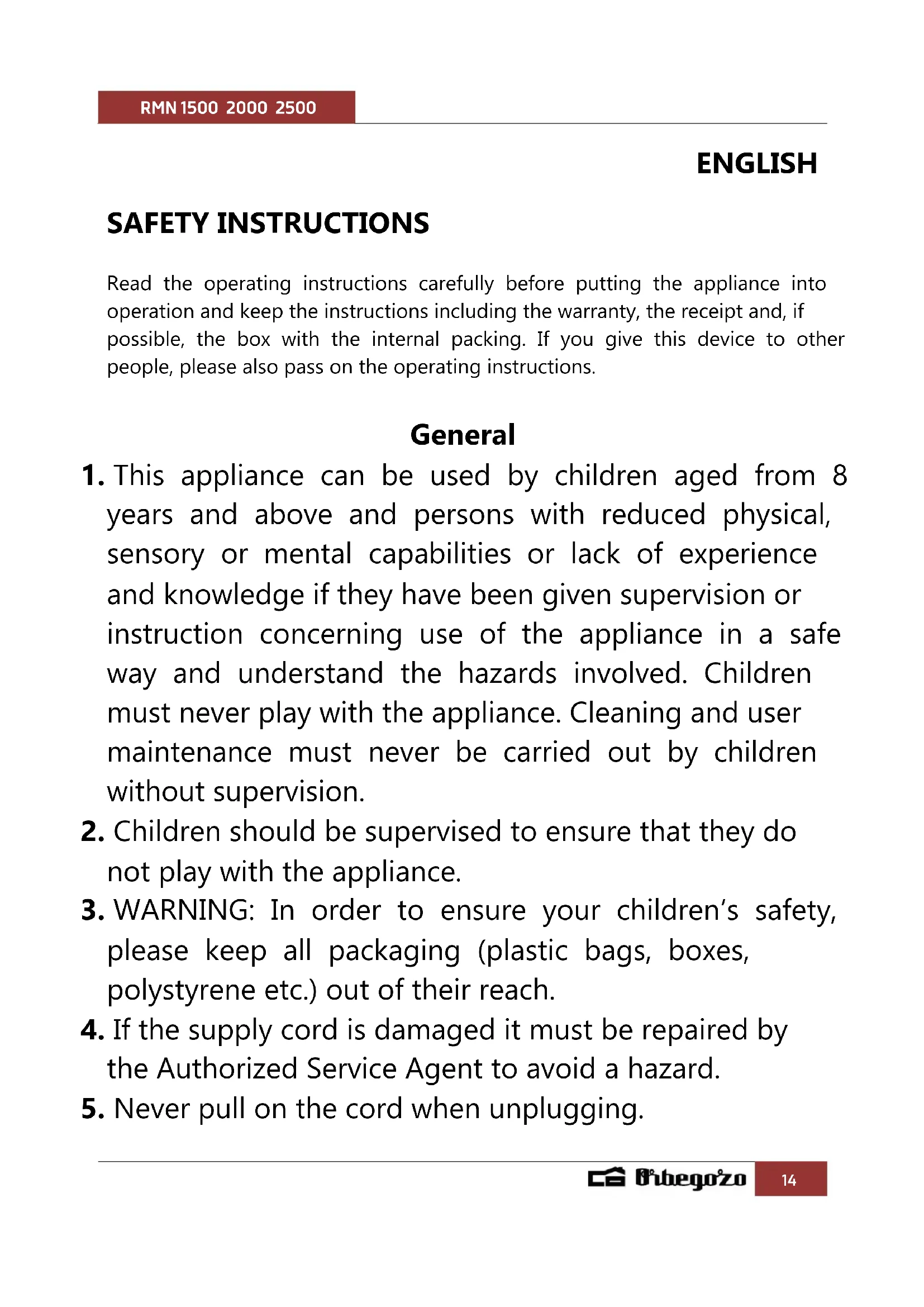

ENGLISH SAFETY INSTRUCTIONS Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions. General

1. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do

not play with the appliance.

3. WARNING: In order to ensure your children‘s safety,

please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

4. If the supply cord is damaged it must be repaired by

the Authorized Service Agent to avoid a hazard.

6. Do not use the unit with a damaged cord or plug, or if

it is not working properly.

7. Do not handle the appliance with wet hands.

8. Never immerse the appliance in water or any other

9. Make sure the appliance has been unplugged before

10. This appliance must be installed following the

national regulations for electrical installations.

11. This appliance is for household use only.

12. In case that you need a copy of the instruction

manual, you can ask find it in our website: www.orbegozo.com

13. WARNING: In case of misuse, there is a risk of

possible injury. Special Safety Instructions

WARNING: In order to avoid overheating, do

not cover the heater. Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normalRMN 1500 2000 2500

operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance. CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. The device should not be placed immediately below a socket base. Do not place a radiator in use near curtains, furniture, wood paneling or combustible material which can deteriorate with heat. Do not use this radiator in the immediate vicinity of a bath, shower or pool. Check if the voltage indicated on the bottom of the appliance corresponds to the local mains voltage before you connect the appliance. The appliance must be connected to an earthed mains outlet. If you wish to use an extension cord, a 3- wire type is suitable.RMN 1500 2000 2500

Do not use the appliance in flammable atmospheres (e.g. in the vicinity of combustible gases or sprays cans)! Explosion and fire hazard! Important! Do not insert any object into the appliance openings! Risk of injury (electric shock) and damage to the appliance! Attention! The front grille becomes very hot when the appliance is in use. Place the appliance so that is cannot be touched by accident! Risk of burns! The appliance will cool down gradually after being switched off. The radiator is not designed for use as the main form of heating. Use the appliance only for the intended use, i.e. extra heating in the house. Keep the mains cord at a safe distance from the air inlet and outlet grills. Do not wind the cord around the appliance and do not bend it. Always unplugged the heater after use. The socket-outlet must be accessible at all times to enable the mains plug to be disconnected as quickly as possible. Do not attempt to move the radiator while in use. Allow to pursue the device not unsupervised and do not leave the house if you use the device.RMN 1500 2000 2500

Protection of this heater is designed to prevent direct access to the heating elements and should be positioned in place when in use. This protection does not guarantee full protection for children or disabled persons. Do not use the radiator on extremely deep-pile carpets! Do not use the heater in an upright position. There is tip over switch on the base. When the heater tips over, the electricity will be turned off automatically.

WARNING: do not use the product after a short

circuit Do not use this heater if it has been dropped. Do not use if there are visible signs of damage to the heater. Use this heating appliance on a horizontal and stable surface, or if possible fix it to a wall.

WARNING: Do not use this heater in rooms that are

occupied by persons who cannot leave the room by themselves, unless permanent surveillance is provided.

WARNING: To reduce the risk of fire, keep textiles,

curtains, or other flammable material at least 1m away from the air outlet.RMN 1500 2000 2500

MOUNTING LEGS Place the wheels on the brackets and click them together. Place the brackets with wheels on the ends of the bottom of the unit and screw. MANUAL Connect the device to the network. Turn the thermostat control knob in the direction of clockwise into position maximum. Press the power switches as per your desired comfort. Model Switch I Switch II Switches I + II RMN 1500 500 W 1000 W 1500 W RMN 2000 1000 W 1000 W 2000 W RMN 2500 1250 W 1250 W 2500 W

When the room temperature is desired, turn the thermostat control counter clockwise until you hear a "click". Leave command in that position, and the thermostat will automatically maintain the selected temperature, initiating a series of connections and disconnections. When not using the appliance, place the thermostat control knob in the “OFF” position, disconnect the power selectors and disconnect the appliance from the electrical outlet. Note that the control light lights up when the appliance is heating up. Once the desired temperature is reached, it turns off again.

MAINTENANCE AND CLEANING

Before cleaning, make sure the appliance is disconnected from the network. Cool hot parts. It is important to keep the lint screen clean , dust and foreign elements that hinder Correct air evacuation Use a dry cloth for cleaning. Do not use chemical or abrasive cleaners, steel wool, etc., Who can damage the apparatus surfaces.RMN 1500 2000 2500

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU. GUARANTEE This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia- tecnica/ For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/ Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.RMN 1500 2000 2500

This product is only suitable for well insulated spaces or occasional use Item RMN 1500 Symbol Value Unit

Item RMN 1500 Unit Heat output

Type of heat input, for electric storage local space heaters only (select one) Nominal heat output

manual heat charge control, with integrated thermostat N/A Minimum heat output (indicative)

Manual heat charge control with room and/or outdoor temperature feedback N/A Maximum continuous heat output

Electronic heat charge control with room and/or outdoor temperature feedback N/A Auxiliary electricity consumption

Type of heat output/room temperature control (select one) At minimum heat output

Single stage heat output and no room temperature control

Two or more manual stages, no room temperature control

With mechanic thermostat room temperature control YES

With electronic room temperature control

Electronic room temperature control plus week timer

Other control options (multiple selections possible)

Room temperature control, with presence detection

Room temperature control, with open window detection

With distance control option

With adaptive start control

With working time limitation

With black bulb sensor

Item RMN 2000 Symbol Value Unit

Type of heat input, for electric storage local space heaters only (select one) Nominal heat output

manual heat charge control, with integrated thermostat N/A Minimum heat output (indicative)

Manual heat charge control with room and/or outdoor temperature feedback N/A Maximum continuous heat output

Electronic heat charge control with room and/or outdoor temperature feedback N/A Auxiliary electricity consumption

Type of heat output/room temperature control (select one) At minimum heat output

Single stage heat output and no room temperature control

Two or more manual stages, no room temperature control

With mechanic thermostat room temperature control YES

With electronic room temperature control

Electronic room temperature control plus week timer

Other control options (multiple selections possible)

Room temperature control, with presence detection

Room temperature control, with open window detection

With distance control option

With adaptive start control

With working time limitation

With black bulb sensor

Item RMN 2500 Symbol Value Unit

Item RMN 2500 Unit Heat output

Type of heat input, for electric storage local space heaters only (select one) Nominal heat output

manual heat charge control, with integrated thermostat N/A Minimum heat output (indicative)

Manual heat charge control with room and/or outdoor temperature feedback N/A Maximum continuous heat output

Electronic heat charge control with room and/or outdoor temperature feedback N/A Auxiliary electricity consumption

Type of heat output/room temperature control (select one) At minimum heat output

Single stage heat output and no room temperature control

Two or more manual stages, no room temperature control

With mechanic thermostat room temperature control YES

With electronic room temperature control

Electronic room temperature control plus week timer

Other control options (multiple selections possible)

Room temperature control, with presence detection

Room temperature control, with open window detection

With distance control option

With adaptive start control

With working time limitation

With black bulb sensor

Auxiliary electricity consumption

Auxiliary electricity consumption

Auxiliary electricity consumption
