Orbegozo RRW 805 - Electric heater

RRW 805 - Electric heater Orbegozo - Free user manual and instructions

Find the device manual for free RRW 805 Orbegozo in PDF.

English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
📄

Document temporarily unavailable

The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.

View the manual : Français FR English EN Español ES Português PT
Pick your language and provide your email: we'll send you a specifically translated version.
Product typeElectric radiator (thermal emitter)
BrandOrbegozo
ModelRRW 805
Nominal power0.8 kW (800 W)
Supply voltage230 V ~ 50 Hz
Operating modesComfort, Economy, Programming, Frost protection
Wi-Fi controlYes, via Orbegozo app
Remote controlYes
ProgrammingWeekly, 1-hour steps
Open window detectionYes (automatic activation of frost protection mode)
Child lockYes (via remote control)
Temperature compensationYes, adjustable
InstallationFloor (with feet) or wall-mounted
Minimum safety distances15 cm sides, 20 cm front, 22 cm floor, 30 cm top (wall mounting)
Standby consumption0.0008 kW
CleaningRegular dusting; do not use abrasive products
WarrantyLegal warranty according to applicable legislation
Technical servicehttps://orbegozo.com/asistencia-tecnica/

Frequently Asked Questions - RRW 805 Orbegozo

How to turn on the Orbegozo RRW 805 radiator?
Plug in the device and set the main switch to position I. Then press the ⏻ button to turn it on. The screen displays standby mode then the last used mode.
How to adjust the temperature in Comfort mode?
Once in Comfort mode, use the + and - keys to adjust the desired temperature (usually between 20°C and 23°C).
How to program the radiator for the week?
Press and hold the ⏻ button for 5 seconds to access the programmer. Set hour by hour by choosing the mode (Comfort, Economy, Frost protection) with the M key and advance with +. Repeat for the 24 hours of each day, from Monday to Sunday.
What to do if the screen displays 'OC' or 'SC'?
'OC' means the thermostat is below -15°C, 'SC' means it is below -50°C. These codes indicate a sensor malfunction. Contact technical service.
How to activate open window detection?
Simultaneously press the ⏻ and M keys for a few seconds until you see the symbol. You can also use the remote control.
How to lock the control panel?
Use the child lock button on the remote control. To unlock, press the same button again.
What are the safety distances to observe?
Leave at least 15 cm on the sides, 20 cm in front. For wall mounting, allow 22 cm from the floor and 30 cm above the radiator.
How to clean the radiator?
Unplug the device and dust it with a soft cloth. Do not use abrasive products or solvents. Regular cleaning prevents burnt dust deposits.
Can I use the radiator in a bathroom?
No, do not use it in the immediate vicinity of a bathtub, shower, or pool. The device is not designed for damp rooms.
What to do if the radiator does not heat?
Check the power supply and the main switch. Make sure the mode is not in Frost protection (temperature below 7°C) or that the programming is not in stop mode. If the problem persists, contact technical service.

User questions about RRW 805 Orbegozo

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Electric heater in PDF format for free! Find your manual RRW 805 - Orbegozo and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RRW 805 by Orbegozo.

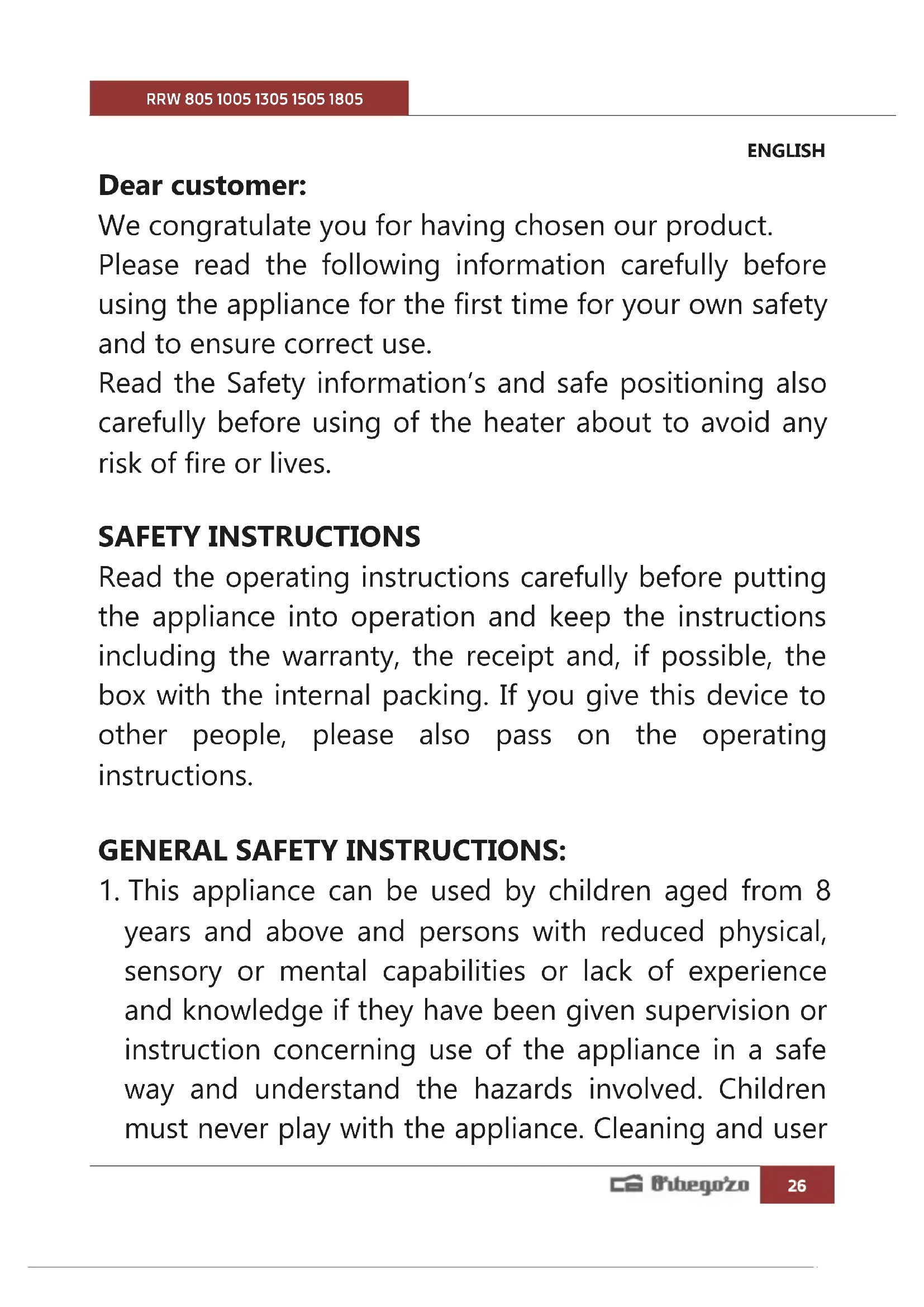

USER MANUAL RRW 805 Orbegozo
