FO 6000 - Oven Orbegozo - Free user manual and instructions

Product Type	Outdoor Gas Cooker
Brand	Orbegozo
Model	FO 6000
Number of Burners	4
Power per Burner	1.4 kW
Compatible Gas	Butane (G30) / Propane (G31)
Gas Pressure	28-30 / 37 mbar
Consumption per Burner	509 g/h
Burner Diameter	7 mm
Usage	Outdoor only
Gas Connection	Flexible hose 1.5 m max. with regulator
Max. Bottle Capacity	12.5 kg
Required Airflow	2.0 m³/h per kW
Supported Temperature	Resistant to 90 °C
Maintenance	Clean with soapy water, no abrasive products
Safety	Do not move while in operation, close gas after use, check for leaks
Repairability	Spare parts available from approved technical service
Material	Enameled and chrome steel
Recommended Gas Pressure	Butane 28-30 mbar, Propane 37 mbar
Assembly Instructions	Includes assembly of feet, burner and valve

Frequently Asked Questions - FO 6000 Orbegozo

How to light the burner?

Open the bottle regulator, turn the burner valve to the open position (OPEN) and light with a lighter. If the burner does not light, close the valve (CLOSE), wait 5 minutes and repeat.

What to do in case of gas smell?

Immediately turn off the burner, close the gas supply at the bottle valve, then contact the gas supplier or a qualified technician. Never use a flame to search for a leak.

Can I use this appliance indoors?

No, this appliance must be used outdoors only in a well-ventilated area. Never use it inside a house, basement, or enclosed space.

What type of gas to use?

The appliance operates on butane (G30) or propane (G31) gas at a pressure of 28-30 mbar for butane and 37 mbar for propane. Check the rating plate.

How to clean the cooker?

Clean the enameled or chrome parts with soapy water, rinse and dry with a soft cloth. Never use abrasive products. For the burners, wash with soapy water and check that the openings are not obstructed.

How to check a gas leak?

Apply soapy water to the connections (hose union with the cooker and the regulator) using a brush. If bubbles appear, there is a leak. Never use a flame for this check.

Can I modify or repair the appliance myself?

No, any modification or repair must be carried out by an approved technician. Parts protected by the manufacturer cannot be handled by the user.

How to store the appliance in winter?

Store the cooker in its original packaging, in a dry and clean place. Disconnect the gas bottle and close the valve. Keep out of reach of children.

What gas pressure should I use?

The supply pressure must be 28-30 mbar for butane and 37 mbar for propane. Use a corresponding approved regulator.

How often to replace the gas hose?

Replace the flexible hose before the indicated expiration date, or as soon as it shows signs of wear (cracks, porosity). Have the appliance checked at least once a year by a professional.

USER MANUAL FO 6000 Orbegozo

Black plastic floor stand with a brass valve attached, no visible text or symbols

FO 6000

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Three simple line drawings of cooking pots with handles and a central stove (no text or symbols)

• This appliance must be installed in accordance with current regulations.
• Please read instructions before installing and using this appliance.
• Only use outdoors.
• Do not move the appliance when in use.
• Close the gas supply to the bottle after use.
• Any modification of the appliance may be dangerous.
• This appliance must be kept away from flammable materials.

All the actions indicated in this manual must be carried out by qualified persons and in accordance with applicable regulations.

TECHNICAL DATA:

• Category I 3+
• Type of gas G30/G31
• Regulator. Supply pressure 28-30/37 mbar

This utensil is class 1: free-standing cooking appliance.

Bottle capacity cannot exceed 12,5 kg of gas.

WARNINGS FOR USE

• The appliance and the gas bottle must be placed on a flat surface far away from flammable materials.
• Protect the bottle and the appliance from direct sunlight.
• WARNING: do not move the appliance when in use or when still hot.
• Change the deteriorated or porous gas tubes and replace them before the expiry date indicated on the same tube. The tubes must not be compressed, and must be installed so that they are not subject to any forces. THEY MUST NOT come into contact with any hot part.
• All repairs and maintenance must be carried out by specialized personnel.

• Any modification or alteration could be dangerous.

• WARNING: Accessible parts can reach very high temperatures!

• Keep out of children's reach.
• WARNING: after use, turn off the burner immediately.
• The surface where the gas cooker will be installed must be flat and high temperature resistant.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they are supervised by a competent person during its use.
• Children should be supervised to ensure that they do not play with the appliance.
• PRECAUTION: For safety reasons, never leave packaging materials (plastic bags, cardboard, polyethylene etc.) within the reach of children.

CONNECTING THE GAS

In order to work, the stove must have:

• 1 bottle of gas (butane or propane), only bottled by Official Dealers, in accordance with the gas indicated on the data plate.
• 1 pressure regulator approved and indicated on the data plate with following characteristics: 28-30 bar for butane and 37 mbar for propane.
• 1 flexible tube approved for gas, with a maximum length of 1.5 m.
• 2 screw clamps for the flexible tube.

Connect the flexible tube to the gas supply inlet on the stove and the regulator, ensuring the tightness by means of the 2 screw clamps.

Place the bottle on a stable surface and assemble the bottle regulator. Make sure that the flexible tube does not come into contact with the stove and that it is not subject to any twisting forces. After opening the regulator, check there is no gas leak by applying soapy water with a brush on the joint of the flexible tube with the cooker and the regulator. The appearance of bubbles means there is a gas leak. Never use a flame to detect gas leaks.

The bottle replacement must be done far away from any source of flame.

IF YOU SMELL GAS:

• Turn off the burner
• Close the appliance gas supply (bottle tap)
• Contact your gas supplier or specialized personnel.

MAINTENANCE (by qualified personnel)

• Before doing any type of work, the gas supply tap must be turned off.
• Verify the state of the flexible connection tube regularly and replace it whenever necessary (expiry date).
• To ensure proper functioning, once a year check the burner taps, if necessary, REPLACE THEM. After doing this, you must check to see there is no gas leak.

USER INDICATIONS. USE & MAINTENANCE.

WARNING

• This appliance must be installed in accordance with current regulations.
• Please read instructions before installing and using this appliance.
• Only use outdoors.
• Do not move the appliance when in use.
• Close the gas supply to the bottle after use.
• Any modification of the appliance may be dangerous.
• This appliance must be kept away from flammable materials.
• Do not close the air outlets in case the bottle is placed in a closed area.

The bottle capacity can be no more than 12,5 kg.

WARNINGS FOR USE

• The appliance and the gas bottle must be placed on a flat surface far away from flammable materials.
• Protect the bottle and the appliance from direct sunlight.
• WARNING: do not move the appliance when in use or when still hot.
• Change the deteriorated or porous gas tubes and replace them before the expiry date indicated on the same tube. The tubes must not be compressed, and must be installed so that they are not subject to any forces. THEY MUST NOT come into contact with any hot part.
• All repairs and maintenance must be carried out by specialized personnel.
• Any modification or alteration could be dangerous.
• The manufacturer will not be held liable in the event of improper installation, or inadequate use of the appliance.
• We advise you to check if your appliance has been properly installed. Also it is necessary to have the appliance checked at least once a year to examine the state of the connection tube, taps, etc.
• After use, turn off the burner immediately.
• WARNING: Accessible parts can reach very high temperatures!
• Keep out of children's reach.
• The surface where the gas cooker will be installed must be flat and high temperature resistant.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they are supervised by a competent person during its use.
• Children should be supervised to ensure that they do not play with the appliance.
• PRECAUTION: For safety reasons, never leave packaging materials (plastic bags, cardboard, polyethylene etc.) within the reach of children.

IF YOU SMELL GAS:

• Turn off the burner
• Close the appliance gas supply (bottle tap)
• Contact your gas supplier or specialized personnel.

WARNING: when the appliance is no longer in use, turn the burner off immediately.

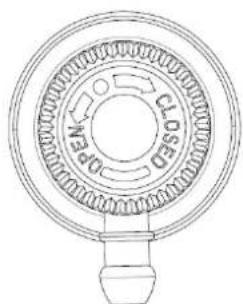

MONTAJE DEL HORNILLO

MONTAJE DE LAS PATAS DEL QUEMADOR

The most appropriate cooking point must be used according to the diameter of the pan. The flame must not exceed the diameter of the pan. Whenever possible, cover the pan with a lid to save energy. The

Recommended pan diameter
Burner	18-32 cm

WARNING: PROTECTIVE GLOVES MUST BE USED WHEN HANDLING VERY HOT ELEMENTS.

BURNER USE

1. Open the bottle's regulator.
2. Turn the valve to "open" position then ignited the burner by external means such as fire igniter.
3. If the burner has not lit, turn off the control valve, waits 5 minutes and repeat step1.
4. Once the burner is lit, you can regulate the flame to its most convenient level.
5. To turn the stove off: turn the cylinder valve or regulator switch to the OFF position and then turn all control valves off.

WARNING: Never put your head or your body above the turned-on stove when you light it on or cook. This is a dangerous behaviors that may lead to fire, burn, serious injuries or death.

CLEANING-MAINTENANCE

To ensure the proper functioning of your appliance, it must be cleaned regularly and with care as indicated below:

• Enamel or painted parts: wash with soap and water, rinse and dry with a soft cloth. Abrasive substances must not be used;
• Chrome-plated parts: wash with soap and water, rinse and dry. If necessary, use appropriate liquid detergents, but never abrasive ones.
• Burner: wash with soap and water and dry: after cleaning, make sure that all the flame-spreader holes are clean and unblocked.
• Clean all accessible burner parts after every use.
• Never leave any residue on the surface.
• WARNING: never use abrasive detergent products
• In the event of prolonged non-use of the appliance, it should be stored away in its packaging and kept in a clean and dry place.
• If the holes of the burners and the Venturi tube are blocked, never use metallic objects to unblock them. The diameter of the holes might be altered and lead to the malfunctioning of the appliance. For example, use compressed air.
• In the event of any technical problem, please contact the installer or a specialized technician.
• All appliance components and parts may only be replaced by a specialized technician.

WARNINGS

• If the taps open or close with difficulty, do not force them and contact the technical assistance service.
• Check regularly the state of the gas connection, and, if necessary, replace it.
• If the appliance is not going to be used for a long period of time, turn off the general gas supply.
