| Product Type | Cross Line Laser Level |
| Brand | Parkside |
| Model | PKLL 7 C3 |
| Maximum Working Area | 7 m |
| Leveling Accuracy | ±0.8 mm/m |
| Self-Leveling Range | ±4° |
| Typical Leveling Time | Approximately 6 seconds |
| Laser Class | 2 (EN 60825-1:2014) |
| Wavelength | 635 nm |
| Maximum Output Power | <1 mW |
| Power Supply | 2 AAA 1.5 V batteries |
| Product Weight (with batteries) | 240 g |
| Clamp Weight | 160 g |
| Dimensions (L x W x H) | Approximately 67 x 66 x 84 mm |
| Maximum Jaw Opening | 60 mm |
| Operating Temperature | +5 °C to +35 °C |
| Maximum Relative Humidity | ≤90 % |
| Protection Type | IP20 |
| Maximum Service Height | 2000 m |
| Thread | 1/4" |
| Main Functions | Automatic and manual leveling, horizontal and vertical lines |
| Maintenance and Cleaning | Dry cloth for the housing; gentle air jet for the laser output |
| Safety | Do not look into the laser beam; class 2 |
| Delivery Contents | Cross line laser, clamp, 2 AAA batteries, instruction manual |
| Warranty | 3 years |
Frequently Asked Questions - PKLL 7 C3 PARKSIDE
User questions about PKLL 7 C3 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Laser level in PDF format for free! Find your manual PKLL 7 C3 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PKLL 7 C3 by PARKSIDE.
USER MANUAL PKLL 7 C3 PARKSIDE
GB IE NI
CROSS LINE LASER
Translation of the original instructions
FR BE
NIVEAU LASER EN CROIX
GB/IE/NI Translation of the original instructions Page 5
List of pictograms used......Page 6
Introduction......Page 7
Intended use......Page 7
Description of parts....Page 8
Scope of delivery....Page 8
Technical data......Page 8
Safety notes......Page 9
Safety instructions for batteries/rechargeable batteries..Page 12
Initial use ...... Page 14
Inserting / Changing batteries ...... Page 14
Switching on/off Page 14
Use automatic levelling system......Page 15
Working without the automatic levelling system......Page 16
Practical guidance ...... Page 16
Working with the clamp ...... Page 16
Working with the tripod......Page 17
Maintenance and cleaning......Page 17
Storage Page 18
Disposal Page 18
Warranty Page 19
Warranty claim procedure......Page 20
Service Page 21
| List of pictograms used | |
 | Please read the instructions for use. |
 | Danger of explosion! |
 | Wear safety gloves! |
 | Attention! - The manual must be consulted in all cases where this symbol is marked. |
 | Protect yourself from laser radiation! |
 | Do not stare into the laser beam! |
 | Volt (Direct Current) |
 | Alkaline batteries included |
Cross Line Laser PKLL 7 C3
- Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Intended use
The product is suitable for the determination and verification of horizontal and vertical lines. The product is exclusively suitable for use in enclosed operating sites. Any other use or modification of the product shall be considered improper use and may result in serious accidents. The manufacturer assumes no liability for damages due to improper use. Not intended for commercial purposes.
• Description of parts
1 Ring-button
2 LED indicator (red: levelling off, green levelling on)
3 Battery compartment
3a Battery compartment cover
4 LOCK Switch
5 thread (underneath)
6 Laser beam opening
7 screw (to align with -thread of cross line laser)
8 Retaining screw
9 Clamp Jaw
10 Clamping Nut
- Scope of delivery
1 Cross line laser
1 Clamp
2 1.5 V-Batteries, Type AAA
1 Set of instructions for use
- Technical data
Operating voltage: 3 V (direct current)
Working area ^1) : 7 m
Levelling accuracy: +/- 0.8 mm/m
Typical self-levelling range: ± 4^
Typical levelling time: approx. 6 seconds
Operating temperature: +5 °C–35 °C
Max. relative humidity: ≤ 90 %
Laser class: 2
Wave length ( ): 635 nm
Maximum performance P max: 1 mW
Clamp mount: 14 "
Batteries: 2 x 1.5 V-Batteries, Type AAA
Product weight: 240 g (with batteries)
Clamp weight: 160 g
Product dimensions: approx. 67 x 66 x 84 mm
Max. Clamp jaw opening: 60 mm
Degree of protection: IP20
Max. operation altitude: 2000 m
1) The operating range can be reduced by unfavourable environmental conditions (e.g. direct sunlight).
Safety notes
■ DANGER OF SUFFOCATION! Packaging materials (e.g. films or polystyrene) can not be used as toys. Always keep children away from the packaging material. The packaging material is not a toy.
Do not work with the measuring tool in an environment where there is a danger of explosion, where there are flammable liquids, gasses or dusts. Sparks can be created in the product, which could ignite dust or fumes.
Test on known sources before use, to make sure that equipment is functioning correctly.
If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
The manual must be consulted in all cases where symbol is marked.
This product may be used by children from the age of 8, by persons of reduced physical, sensory or mental abilities or a lack of experience and / or knowledge if they are supervised or instructed with regard to the safe use of the product and have understood the risks resulting from use. Do not allow children to play with the product. Cleaning and user maintenance may not be carried out by children unless they are supervised.
Do not leave the switched-on product unattended and switch the product off after use. Others could be blinded by the laser beam. Risk of eye injury.
Do not expose the product to moisture or direct sunlight.
Do not expose the product to extremely high temperatures or temperature fluctuations. For example, do not leave it in your car for a long time. In the case of large temperature fluctuations, let the product acclimatise before using it. In extreme temperatures or temperature fluctuations, the precision of the product can be impaired.
Avoid strong impacts against the measuring tool. Damage to the measuring tool can impair its accuracy. After a strong impact compare the laser line with a known vertical or horizontal reference line to check it.
■ Turn the measuring tool off when you transport it. When it is switched off the pendulum unit is locked, which otherwise can be damaged in strong movements.
Do not bring the measuring tool near to heart pacemakers. The magnet inside the measuring tool creates a field that can impair the function of pacemakers.
- Keep the measuring tool away from magnetic data carriers and devices that are sensitive to magnetic influences. The effects of the magnet can lead to irreversible data losses.
■ Protect yourself from a sense radiation!
WARNING! Viewing the laser beam with optical instruments (e.g. loupe, magnifying glass etc.) is associated with risk injury to the eyes.
CAUTION! If operating or adjusting devices than other than those described here are used or other procedures are carried out, this can lead to dangerous radiation effects.
■ Never direct the laser beam at people, animals or reflective surfaces. Even looking briefly into the laser beam can cause damage to the eyes.
■The laser assembly inside the equipment can be examined, repaired or replaced by the manufacturer only. If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
The radiation pattern emitted from this equipment during the performance of operation and maintenance procedure:
- Wavelength: 635 nm
• Maximum power or energy output: <1mW
Safety instructions for batteries / rechargeable batteries
■ DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.
DANGER OF EXPLOSION! Never recharge
non-rechargeable batteries. Do not short-circuit batteries/rechargeable batteries and/or open them.
Overheating, fire or bursting can be the result.
■ Never throw batteries / rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries / rechargeable batteries.
Risk of leakage of batteries / rechargeable batteries
- Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!
WEAR PROTECTIVE GLOVES! Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.
In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.
Only use the same type of batteries / rechargeable batteries. Do not mix used and new batteries / rechargeable batteries.
■ Remove batteries / rechargeable batteries if the product will not be used for a longer period.
Risk of damage of the product
■ Only use the specified type of battery / rechargeable battery!
- Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
- Clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries / rechargeable batteries from the product immediately.
- Initial use
☐ Check that the delivery is complete and that there is no visible damage.
☐ Remove the packaging material from the product.

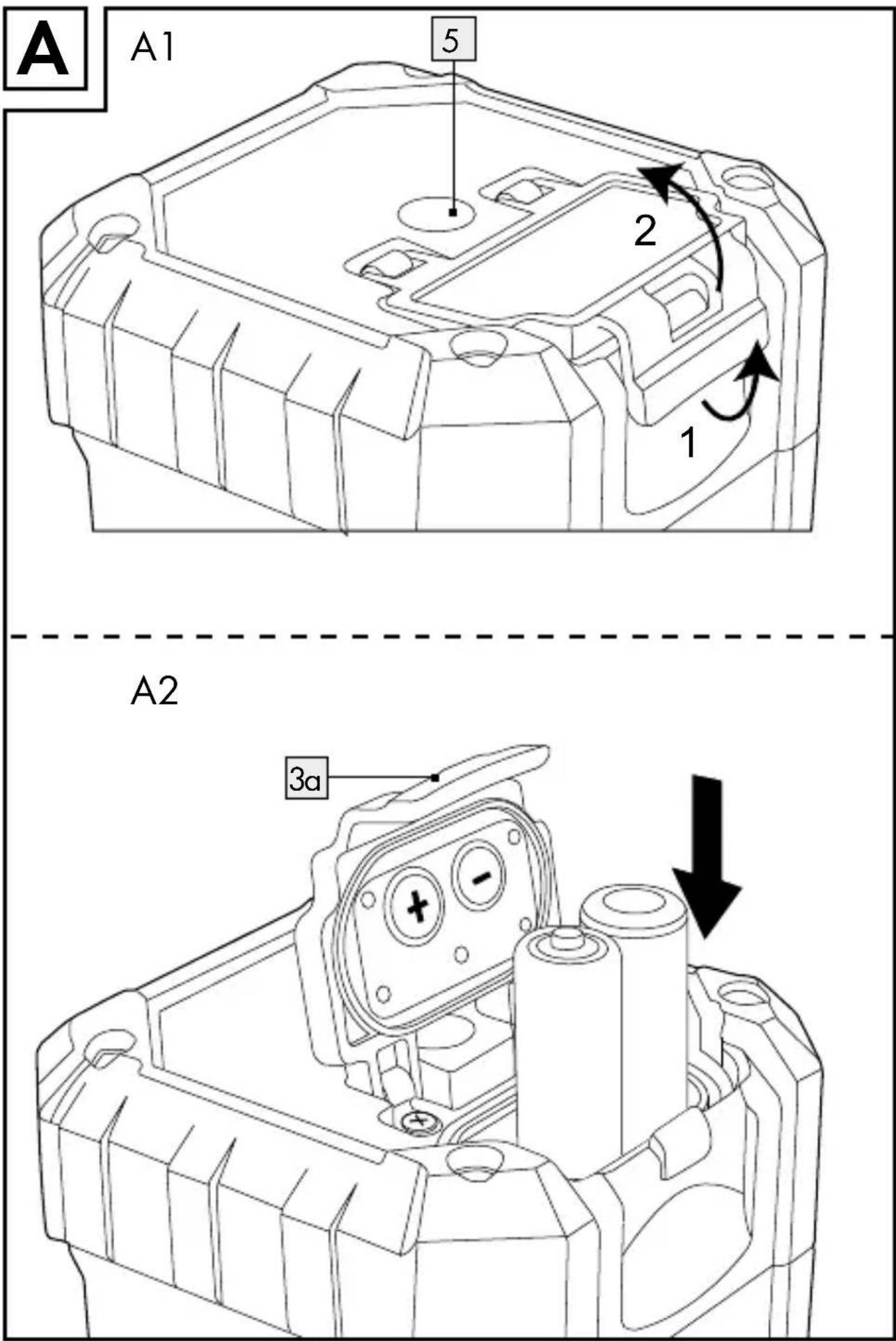

- Inserting / Changing batteries
Open the battery compartment covered as shown in the fig A1.
☐ Insert batteries into the battery compartment as shown in the fig A2.
Make sure that the batteries are inserted in a correct polarity as shown in the fig A2 before closing back the battery compartment cover 3a.
Note: when the battery is low, the LED indicator 2 blinks red. Always replace all batteries at the same time. Only use batteries from the same manufacturer and with the same capacity.
Remove the batteries from the product if it will not be in use for a prolonged period of time. In long periods of storage the batteries can corrode and can run themselves down.
- Switching on/off
To switch the product on, push the LOCK switch to the position 🔒. Immediately after being switched on, the product releases two laser lines from the laser beam opening 6.
To switch the product off, push the LOCK switch to the position 🔒. When switched off, the pendulum unit is locked.
- Use automatic levelling system
To work with automatic levelling, place the product on a level, firm surface, or fasten it with the 14 -thread 5 to 18 " screw 7 of supplied clamp.
When it is switched on, the automatic levelling system automatically corrects irregularities of ±4^ within the self levelling area. The levelling is concluded when the laser lines stop moving and the LED indicator 2 goes green.
☐ If automatic levelling is not possible, e.g. because the base of the measuring tool deviates by more than 4^ from the horizontal or because the product is being freely hand-held, the LED indicator 2 will go red and the horizontal and vertical laser lines will be switched off.
Note 1: operation without automatic levelling will always be indicated via the red LED indicator 2.
Note 2: if the product is agitated or its position is changed during operation, the product will automatically re-level. After re-levelling check the positions of the horizontal and vertical laser lines against reference points to avoid errors.
Note 3: The top Ring-button 1 has no function at this mode.
- Working without the automatic levelling system
Put the LOCK switch into the position
☐ Push the ring-button on the top of the product. Now the product will release two laser lines from the laser beam opening 6 that are not levelled. Operation without automatic levelling will always be indicated via the red LED indicator 2.
☐ Push the ring-button on top again to turn off the product at this mode.
Practical guidance
□ Always use only the middle of the laser line for markings. The width of the line depends on the distance.

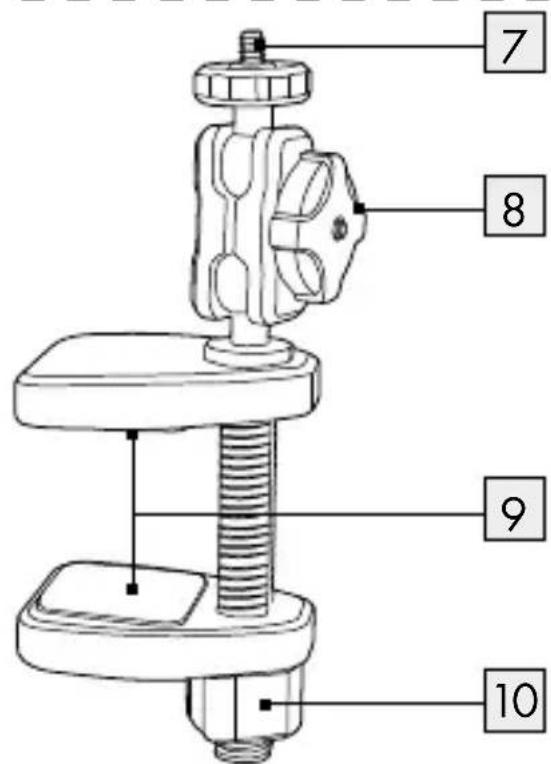

- Working with the clamp
The clamp provided can be used to attach the device to various objects.
- Release the clamping nut 10 by rotating the clamping nut anti-clockwise.
- Position the clamping jaws 9 to the desired location.
- Rotate the clamping nut 10 clockwise until fastened.
-
Place 14 -thread 5 of cross line laser with the 18 screw 7 of the clamp and tighten with hand. Do not use excessive force as this may damage the device.
-
Align the cross line laser. To do so, release the retaining screw 8 by rotating anti-clockwise and move the cross line laser into the desired position.
-
Fix the position by fastening the retaining screw 8
- Working with the tripod
You can place the cross line laser in a stable position and adjust the height using a tripod (not provided in scope of delivery). Place the cross line laser with 14 -thread 5 onto the 18 screw of your tripod and tighten by hand. Do not use excessive force as this may damage the device.
● Maintenance and cleaning
The product requires no maintenance.
ATTENTION! Never submerge the product in water or other liquids. Do not allow water to enter into the product during cleaning.
Keep the product clean to ensure good, secure work.
☐ Use a dry cloth to clean the outside.
Clean the laser beam opening with a soft air jet. In cases of heavy contamination, remove the dirt with a slightly damp Q-tip. Do not exert any strong pressure!
WARNING! For repair purposes the product may only be opened by a professional.
■ Have the measuring tool repaired by qualified professionals and only with original replacement parts. This ensures that the safety of the measuring tool is maintained.
Storage
☐ If you will not be using the product for a prolonged period of time, remove the batteries and store it in a clean, dry place that is not exposed to direct sunlight.
●Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.
Environmental damage through incorrect disposal of the batteries / rechargeable batteries!
Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.
- Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product.
Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
CE
- Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
☐ Please have the till receipt and the item number (e.g. IAN 123456) available as proof of purchase.
☐ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
☐ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
☐ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
Service
GB Service Great Britain
Tel.: 0800 404 7657
E-Mail: owim@lidl.co.uk
IE Service Ireland
NI Service Northern Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak))
E-Mail: owim@lidl.ie
