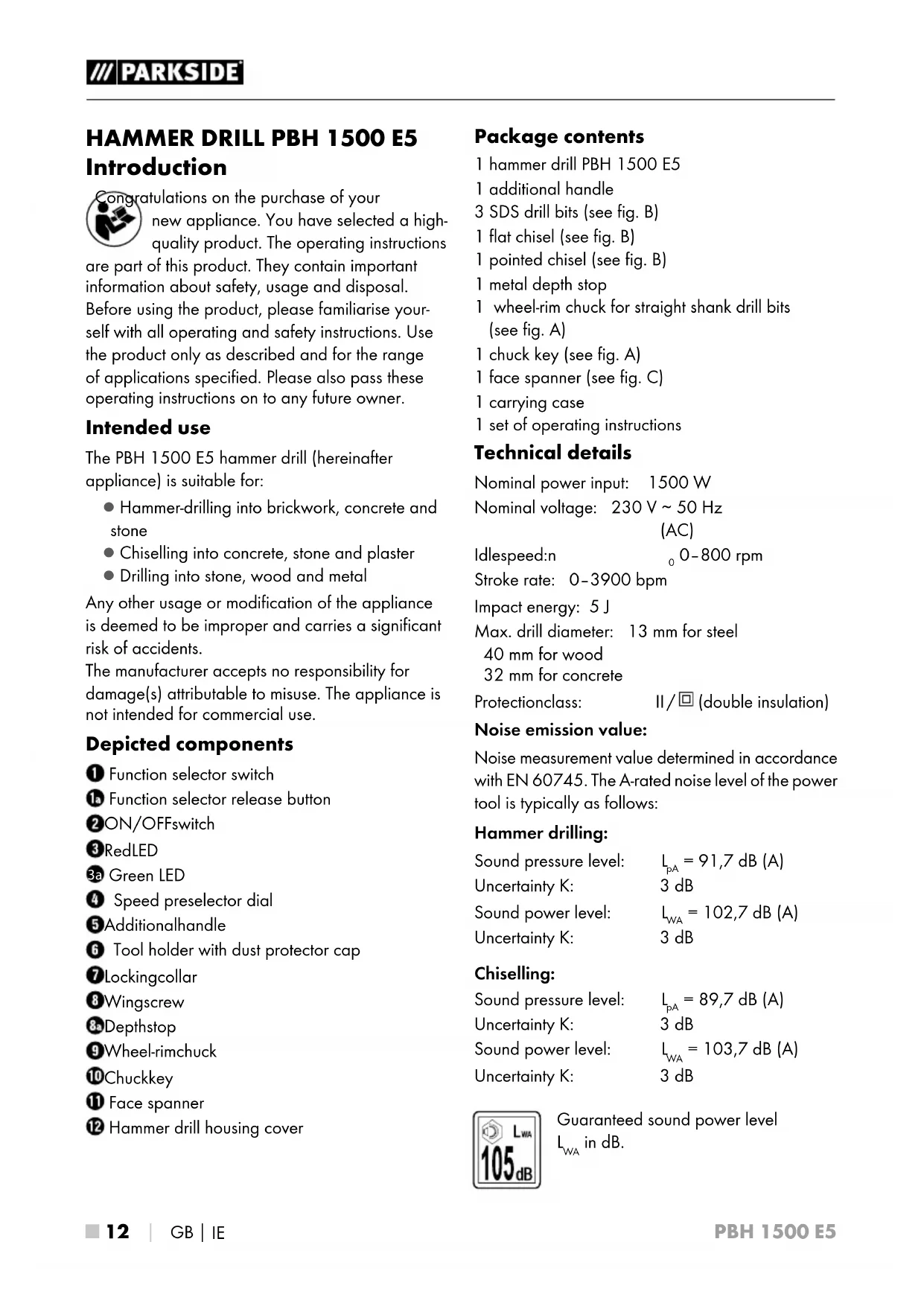

HAMMER DRILL PBH 1500 E5 Introduction

tulations on the purchase of your new appliance. You have selected a highquality product. The operating instructions

are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

The PBH 1500 E5 hammer drill (hereinafter appliance) is suitable for:

• Hammer-drilling into brickwork, concrete and stone
• Chiselling into concrete, stone and plaster
• Drilling into stone, wood and metal

Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents.

The manufacturer accepts no responsibility for damage(s) attributable to misuse. The appliance is not intended for commercial use.

Depicted components

Function selector switch
Function selector release button
ON/OFFswitch
3RedLED
3a Green LED
Speed preselector dial
Additionalhandle
Tool holder with dust protector cap
7Lockingcollar
Wingscrew
Depthstop
Wheel-rimchuck
10Chuckkey
10 Face spanner
12 Hammer drill housing cover

Package contents

1 hammer drill PBH 1500 E5
1 additional handle
3 SDS drill bits (see fig. B)
1 flat chisel (see fig. B)
1 pointed chisel (see fig. B)
1 metal depth stop
1 wheel-rim chuck for straight shank drill bits (see fig. A)
1 chuck key (see fig. A)
1 face spanner (see fig. C)
1 carrying case
1 set of operating instructions

Technical details

Nominal power input: 1500 W

Nominal voltage: 230V 50Hz (AC)

ldlespeed:n 0-800 rpm

Stroke rate: 0-3900 bpm

Impact energy: 5 J

Max. drill diameter: 13 mm for steel

40 mm for wood

32 mm for concrete

Protectionclass: II/ (double insulation)

Noise emission value:

Noise measurement value determined in accordance with EN 60745. The A-rated noise level of the power tool is typically as follows:

Hammer drilling:

Sound pressure level: L_pA = 91.7 dB (A)

Uncertainty K: 3 dB

Sound power level: L_WA = 102.7dB(A)

Uncertainty K: 3 dB

Chiselling:

Sound pressure level: L_pA = 89.7 dB (A)

Uncertainty K: 3 dB

Sound power level: L_WA = 103.7dB(A)

Uncertainty K: 3 dB

Guaranteed sound power level L_WA in dB.

Total vibration value:

Total vibration values (vector total of three directions) determined in accordance with EN 60745:

Hammer drilling in concrete: a_h(HD) = 9.9 m/s^2 , K = 1.5 m/s^2

Chiselling: a_h(CHeq) = 18.5 m/s^2 , K = 1.5 m/s^2

WARNING!

The vibration level specified in these instructions has been measured in accordance with the standardised measuring procedure specified in EN 60745 and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate. The vibration level varies depending on the use of the power tool and may, in some cases, be higher than the value specified in these instructions.

NOTE

Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General Power Tool SafetyWarnings

WARNING!

• Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Appliance-specific safety instructions for hammer drills

hearing protection. Exposure to loud noise can lead to hearing loss.

Use the additional handle supplied with the appliance. Loss of control can lead to injuries.
Hold the appliance by the insulated handles when you are carrying out work during which the deployed tool may come into contact with concealed power cables or its own power cable. Contact with a live wire may electrify exposed metal parts of the power tool and could give the operator an electric shock.

Wear a dust mask.

WARNING! TOXIC DUST!

Working with the tool can produce harmful/ toxic dusts which represent a health hazard for the person operating the appliance and for anyone else in the vicinity.

CAUTION, POWER CABLES! DANGER!
Ensure that you are not likely to hit power, gas or water supply lines when you are working with the power tool. If necessary, check with a service line detector before you start to cut or drill into a surface.

Original accessories/auxiliary equipment

Use only the accessories and additional equipment that are specified in the operating instructions and are compatible with the appliance.

Use

Additional handle

NOTE

For safety reasons, you should never use this appliance without the additional handle attached.
Remove the additional handl by turning it in a clockwise direction (see fold-out page).
Turn the additional hand to the desired position.
Fix the additional hand in the new position by turning it anticlockwise.

Depth stop

Undo the wing screw.
Insert the depth stop into the additional handle 5
Ensure that the totohing on the depth stop is facing upwards.
Pull the depth stop out until the distance between the tip of the drill and the tip of the depth stop corresponds with the required drilling depth.
Retighten the wing screw afterwards.

Tool/chuck:

Pull the locking colla ⑦ backwards and insert the tool/wheel-rim chuck ⑨ the tool holder ⑥.
Release the locking colla7. This locks the holder. Check that the tool is properly locked by pulling it. The tool has radial play because of its design.

Removing the tool/chuck:

Pull the locking colla on the tool backwards.

NOTE

Tighten the drill in the wheel-rim chuck 9 at the same time. To do this, apply the chuck key 10 in sequence to all of the 3 positions on the wheel-rim chuck 9 and tighten the tool (e.g. drill) at the same time.

Clamping a tool: Turn the chuck key 10 clockwise.
Removing a tool: Turn the chuck key 10 anticlockwise.

WARNING!

Do not use the wheel-rim chuc for hammer drilling or chiselling!

Operation

Select operating mode

WARNING!

Do not press the function selector switch until the appliance has come to a complete standstill. Switching between functions while the tool is still rotating can damage the appliance.

Function selector switch:

Press and hold the release button on the function selector switch 1. Turn the function selector switch 1o that the required symbol engages at the arrow mark:

Function Symbol
Drilling	#
Hammer drilling	T #
Chiselling	T
Chisel position adjust-ment	#

Adjusting the chisel position:

You can rotate the tool to the required position for chiselling using this function.

Turn the function selector switch to the position.
Turn the tool in the tool holde to the required position.
Turn the function selector switch to the T position for the chiselling function.

Preselecting the rotation speed

You can use the rotational speed preselector dial to preselect the rotational speed. Level 1 (low rotational speed) up to level 6 (high rotational speed). Work out the correct settings by carrying out a test.

Level 3-6: high speed: for hammer drilling/ chiselling in concrete or stone
Level 1-3: low speed: for drilling in steel or wood

LED display

The green LED lights up when the mains plug is inserted.
The red LED lights up when the carbon brushes are worn down. Stop all work and send the appliance to customer service.

Switching on and off

Switching the appliance on:

Press the ON/OFF switch 2.

Switching the appliance off:

Release the ON/OFF switch 2.

Maintenance and cleaning

WARNING! RISK OF INJURY! the appliance off and pull out the mains plug before starting any work on the appliance.

The appliance must always be kept clean, dry and free from oil or grease.
Use a soft, dry cloth to clean the housing.
Clean the tool holde regularly.
To do this, pull the locking colla7 backwards and pull the dust protector cap off the tool holder 6
Before fitting a tool into the tool holde, grease it lightly.

WARNING!

If the mains cable needs to be replaced, this must be carried out by the manufacturer or an authorised representative in order to avoid safety hazards.

Fill the hammer mechanism housing with grease.

Check regularly (at least every 50 operating hours) to ensure there is enough grease in the hammer mechanism housing.
Open the hammer drill housing covet on the hammer mechanism housing with the aid of the face spanner 1

All moving parts in the hammer mechanism must be coated in a layer of grease.

Refill with sufficient grease until all machine parts are completely coated.
Close the hammer drill housing covet on the hammer mechanism housing with the aid of the face spanner 1

Disposal

Packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

dispose of power tools in your normal domestic waste!

European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner. Your local community or municipal authorities can provide information on how to dispose of the worn-out appliance.

Dispose of the packaging in an environmentally friendly manner.

Note the labelling on the packaging and separate the packaging material components for disposal if necessary.

The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7:plastics,

20-22: paper and cardboard, 80-98: composites

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

NOTE

For Parkside and Florabest tools, please send us only the defective item without the accessories (e.g. battery, storage case, assembly tools, etc.).

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

WARNING!

Have the power tool repaired by the service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.
Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or its customer service. This will ensure that the safety of the appliance is maintained.

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 298871

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, documents officer: Mr Semi Uguzlu, BURGSTR. 21, DE - 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive

(2006/42/EC)

EMC (Electromagnetic Compatibility)

(2014/30/EU)

Directives on noise emission

(2000/14/EC)

(2005/88/EC)

RoHS Directive

(2011/65/EU)*

• The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Applied harmonised standards:

EN 60745-1:2009/A11:2010

EN 60745-2-6:2010

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 50581:2012

Type designation of machine: Hammer drill PBH 1500 E5

Year of manufacture: 02 - 2018

Serial number: IAN 298871

Bochum, 27.02.2018

CE

Semi Uguzlu

• Quality Manager -

We reserve the right to make technical changes in the context of further product development.

Sommaire

Introduction. 22

(Courant alternative)

Régime de ralenti: n 0-800 min

Frequence de frappe: 0 - 3900 min

:une protection auditive.

Chere cliente, cher client,

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Directive relative aux machines

(2006/42/CE)

WAARSCHUWING! GIFTIGE STOFFEN!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DUITSLAND

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NEMECKO

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANIA

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANHA

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com
