Product Type	Ultra-slim body composition analyzer
Brand	Escali
Model	BFBW180
Maximum Capacity	400 lb / 180 kg
Division (increment)	0.2 lb / 0.1 kg
Dimensions	35 × 35 × 2.4 cm (14 × 14 × 1 in)
Net weight	1.75 kg (3.85 lb)
Power supply	2 CR2032 batteries (included)
Display	LCD
Units of measurement	Pounds (lb), Kilograms (kg), Stone (st)
Measurement range	5 kg to 180 kg (11 lb to 400 lb)
Accuracy	±0.3 kg at 50 kg, ±0.4 kg at 100 kg, ±0.5 kg at 150 kg, ±0.7 kg at 180 kg
Auto shut-off	After 15 seconds of inactivity
Protection rating	IP21
Measurement method	Bioelectrical impedance analysis (BIA)
User profiles	Up to 4 profiles
Athlete mode	Yes (for exercise ≥10h/week for 6 months)
Measured functions	Weight, body fat, body water, muscle mass, bone mass
Maintenance and cleaning	Clean with a damp cloth; do not immerse in water
Safety	Do not use with a pacemaker or other electronic medical device
Warranty	Limited; see www.escali.com/warranties

Frequently Asked Questions - BFBW180 Escali

How to set up a user profile?

Press ENTER, use the LEFT/RIGHT arrows to select a profile number (1 to 4), then press ENTER. Follow the prompts to select gender, height, age, and athlete mode if necessary.

How to activate athlete mode?

During profile setup, after selecting gender, choose the icon with a running figure using the arrows. This mode is recommended if you exercise at least 10 hours per week regularly for 6 months.

What to do if the screen displays "---"?

This message indicates overload. Stop using the scale immediately and do not exceed the maximum capacity of 180 kg.

How to clean the scale?

Use a damp cloth to clean the surface. Never immerse the scale in water and do not use abrasive products.

Why doesn't the scale turn on?

Check that the insulating plastic strip has been removed from the battery compartment. Make sure the batteries are correctly installed with the +/- polarity. If the problem persists, replace the batteries with new ones.

What is the accuracy of the scale?

Accuracy varies by weight: ±0.3 kg at 50 kg, ±0.4 kg at 100 kg, ±0.5 kg at 150 kg, and ±0.7 kg at 180 kg.

Can I use the scale on a carpet?

No, the scale must be placed on a hard, flat, and level surface. It will not work correctly on a carpet.

How to interpret body fat results?

The scale displays a body fat percentage. Refer to the charts in the manual for normal ranges based on age and gender. For example, for a man aged 20-29, a normal rate is between 13% and 20%.

Can the scale be used with a pacemaker?

No, the scale uses BIA technology which sends an electrical signal. It is contraindicated for pacemaker wearers or any other internal electronic medical device.

What is the warranty of the scale?

The warranty covers defects in materials and workmanship. Escali's liability is limited to two times the cost of the product. For more details, visit www.escali.com/warranties.

USER MANUAL BFBW180 Escali

Thank you for choosing the Escali BFBW180 Body Composition Digital Scale. This state-of-the-art, precision measuring instrument is only accurate when used on hard, flat and level surfaces. This scale will not function correctly on carpet. The electronic sensors are very sensitive; avoid dropping or jarring the scale, and please keep it where it will be protected from impact.

Warning! Do not use this product if you have a pacemaker or other internal electronic medical devices.

INITIAL SETUP:CREATING & EDITING USER PROFILES

1. Remove the insulating plastic strip from the battery compartment. Ensure the batteries are properly seated within the + / - terminals.
2. Press the UNIT button on the base of the scale to select your desired unit of measure; pounds (lb), kilograms (kg) or stones (st).
3. To set up a new user profile (or edit an existing profile) press ENTER and use the LEFT or RIGHT arrow buttons located on the side of the scale to select a profile number. Press ENTER to confirm.
4. "CLrN" will appear on display. Using the arrow buttons on the side, select "N" to continue, or "Y" to reset your profile. Press ENTER to confirm.
5. Select your gender using the LEFT or RIGHT arrow buttons (Activate Athlete Mode by selecting your gender with the accompanied running figure). Press ENTER to confirm.
6. Select your height using the LEFT or RIGHT arrow buttons and press ENTER to confirm.
7. Select your age using the LEFT or RIGHT arrow buttons and press ENTER to confirm.
8. When the display shows zero weight, step on the scale with clean and dry bare feet. The scale will measure your weight and then calculate your body composition.

Note: This body scale can save up to 8 unique user profiles. To program additional profiles, follow steps 3 through 8.

SHOULD I ACTIVATE ATHLETE MODE?

Activate Athlete Mode if you exercise at least 10 hours per week and have been doing so consistently for the last 6 months, or longer.

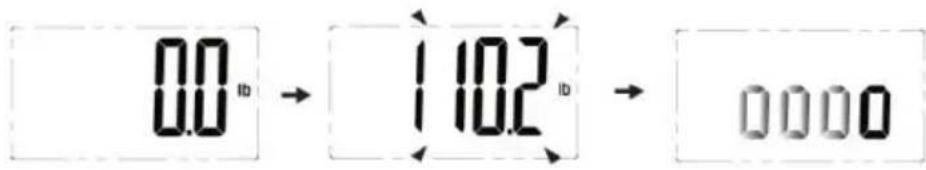

MEASURING BODY WEIGHT & BODY COMPOSITION

1. To use the scale, stand still on the center of the platform with clean and dry bare feet touching each of the metal foot placers. After a few seconds the scale will display your weight.

2. Next, the scale will automatically select your user profile and calculate your body composition while an "o" scrolls across the display.

1. Finally, the scale will display your current body composition measurements. You may now step off the scale. The scale will cycle through your weight, body fat, body water, muscle mass and bone density measurements three times before turning off.

Note: The scale will automatically select your user profile to calculate your body composition by comparing your current body weight measurement to previous body weight measurements from each user profile. If your current body weight changes by more than 7 pounds from your previous measurement, or if your body weight is within 7 pounds of another user profile, then you will need to manually select your user profile number with the corresponding LEFT or RIGHT arrow buttons before the scale will display your current body composition.

HOW DOES THE SCALE MEASURE BODY COMPOSITION?

This scale uses Bioelectrical Impedance Analysis (BIA) technology to measure body composition. BIA technology sends an unperceivable electronic signal through your body to calculate your body fat, body water and muscle mass percentages. Do not use this scale if you have a pacemaker or other internal electronic medical device.

HOW DO I GET THE MOST ACCURATE RESULTS?

Hydration levels fluctuate throughout the day and are affected by eating, drinking and exercise. As a result, for maximum accuracy and repeatability, it is recommended that this scale is used at the same time of day under the same conditions to establish a personal average. These readings are a close indication, and not an exact value. Please consult your doctor for more information.

MEASUREMENTS DURING WEIGHT LOSS

During weight loss, body fat percentages may not change as expected since the reading is a percentage of body fat compared to body weight, and both could be changing at the same time. To minimize the loss of lean body tissue, be sure to include exercise in your weight loss plan.

BODY FAT PERCENTAGE (5%-60% x 0.1%) — SUGGESTED RANGES

Standard for Men:

Rating	Age
	20-29	30-39	40-49	50-59	60+
Low <13%	<14% <16%	<17% <18%
Normal 13-20%	14-21%	16-23%	7-24%	18-25%
Moderately High	20.1-23%	1.1-24%	3.1-26%	24.1-27%	25.1-28%
High	>23%	>24%	>27%	>28%

Standard for Women:

Rating	Age
	20-29	30-39	40-49	50-59	60+
Low <19%	<20% <21%	<22% <23%
Normal 19-28%	20-29%	21-30%	2-31%	23-32%
Moderately High	28.1-31%	29.1-32%	30.1-33%	31.1-34%	32.1-35%
High	>31%	>32%	>34%	>35%

MUSCLE MASS PERCENTAGE — SUGGESTED RANGES

Men	Approximately 40% of total body weight.
Women	Approximately 30% of total body weight.

BODY WATER PERCENTAGE (43%-73% x 0.1%) — SUGGESTED RANGES

Men	Actual Body Fat Range Optimal Body Water Range
	4% to 14% 63% to 70%
	14% to 21% 57% to 63%
	22% to 24% 55% to 57%
	25% and over 37% to 55%
Women	4% to 20% 58% to 70%
	21% to 29% 52% to 58%
	30% to 32% 49% to 52%
	33% and over 37% to 49%

BONE MASS PERCENTAGE — SUGGESTED RANGES

The average bone mass percentage for both men and women is between 4% to 5% of total body weight.

PROPER USE & CARE

Use and stow the scale at room temperature.

• Do not submit the scale to shaking, excessive vibration, or other rough treatment; use on a flat and stable surface.

• The display may be affected by electromagnetic disturbances such as radios, microwaves, or cell phones. If such disturbances occur, remove the source of the disturbance, and restart the scale.

Disassembling, or tampering with the scale voids the warranty.

• Clean the scale with a damp cloth; do not submerge in liquid; scale is not waterproof.

• Failure to insert batteries in the correct polarity, as indicated in the battery compartment, may shorten the life of the batteries or cause batteries to leak.

• Do not mix Alkaline, Standard (Carbon-Zinc) or Rechargeable (Nickel Cadmium) or (Nickel Metal Hydride) batteries. Do not mix old and new batteries.

• Batteries should be recycled or disposed of as per state and local guidelines. Do not dispose of batteries in fire.

INDICATIONS FOR USE

This device is intended for adults and children (10-17 years old) to measure weight and use bio-electrical impedance analysis (BIA) technology to estimate body fat, total body water percentage, bone mass and muscle mass in a home environment.

TROUBLESHOOTING WARNING MESSAGES

"---" Overload

Solution: Stop using the scale for measurement.

PRODUCT SPECIFICATIONS

Model: BFBW180

Capacity: 400 lb / 180 kg

Increments: 0.2lb / 0.1kg

Product Dimensions: 14 × 14 × 1 in / 35 × 35 × 2.4 cm

Power Source: Two CR2032 batteries (included)

ESCALI CORPORATION

3203 Corporate Center Drive, Suite 150

Burnsville, MN 55306

USA

PRODUCT SUPPORT

24/7 Online support: https://escali.zendesk.com

Email support: [e-mail]

Phone support: 1-800-467-6408

LIFETIME LTD. WARRANTY

This scale is guaranteed to be free of defects in materials and workmanship.

For more details visit: www.escali.com/warranties

Escali's liability is limited to two (2) times the cost of the product.

© Escali Corp., Minneapolis, MN, USA. All rights reserved. Escali, the Escali logo and other Escali marks are owned by Escali Corp. and may be registered.

FCC USER GUIDE INFORMATION

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guar

antee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna;
- Increase the separation between the equipment and the receiver;
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected;
- Consult the dealer or an experienced radio / TV technician for help.

Radio Transmitters (Part 15)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Caution

The Escali BFBW180 Ultra Slim Body Composition Bathroom Scale offers you a seamless way to manage your health. Please be aware that this device is designed for adults' self-measuring and self-monitoring body fat and hydration levels. Any information provided by this device is in no way meant to treat, cure or prevent any disease or illness from happening. This device should not be used by anyone who is acutely or chronically ill, suffering from a disease or taking medications that affect your water levels. The accuracy of readings for these patients has not been verified. Specific medical advice should be obtained from a physician.

Before diet and exercise, you must first find a professional medical guide.
- The Escali BFBW180 is equipped with data transmission function. It may emit electromagnetic energy so as to perform its intended function. Nearby portable and mobile RF communications equipment can affect the performance of the device.
- Portable and mobile RF communications equipment can affect the measuring accuracy of the Escali BFBW180.
- Kindly note that the use of accessories, transducers or cables other than those specified, with internal components, may result in increased EMISSIONS or decreased IMMUNITY of the device.
- Be aware that misuse of electrical equipments can cause electric shock, burns, fire and other hazards. Please do not use the device in a flammable gas environment.
- Warning that the Escali BFBW180 should not be used adjacent to or stacked with other equipment.
Manufacturer will make available on request circuit diagrams, component parts list, etc.
WARNING: No modifications of this equipment is allowed.
- During using the scale, the patient will contact with the surface and the electrode of the scale. The surface and the electrode of the scale is type BF Applied part.
The device doesn't need to be calibrated in five years lifetime.
- Do not touch the output of the batteries when using the analyzer.
- The patient is an intended operator. The patient can perform all the operations in the manual, such as measurement, data transmitting, changing batteries.

Product Name BFBW180 Ultra Slim Body Composition Scale

Dimension Scale: 14 x 14 x 1 in / 350 x 350 x 24.5 mm (Approximately)

Net Weight 3.85 lb / 1.75 kg (Approximately)

Display LCD

Measurement Unit Pound (lb) / Kilogram (kg) / Stone (st)

Measurement Range 11 lb to 400 lb / 5 kg to 180 kg / 0 st: 11 lb to 28 st: 5 lb

Division 0.2 lb / 0.1 kg / 0 st: 1 lb

Accuracy 50kg: ±0.3kg; 100kg: ±0.4kg; 150kg: ±0.5kg; 180kg: ±0.7kg

Working Environment

Temperature: 41°F to 104°F / 5°C to 40°C; Relative Humidity: ≤90% RH; Atmospheric Pressure: 86 kPa to 106 kPa

Storage Environment

Temperature: -4°F to 140°F / -20°C to 60°C; Relative Humidity: ≤90% RH; Atmospheric Pressure: 50 kPa to 106 kPa

Power Source 6V (Two CR2032-size Batteries)

Turn on Method Instant Or Technology

Auto-OFF The scale will turn off after about 15 seconds if there is no operation.

Accessories 1. Two CR2032-size batteries; 2. User Manual

Mode of Operation Continuous Operation

Degree of Protection Type BF applied part

Software Version A0

Protection against Ingress of Water P21

Symbol for “THE OPERATION GUIDE MUST BE READ”	Symbol for “TYPE BF APPLIED PARTS”	MANUFACTURER”
Symbol for “SERIAL NUMBER” Symbol for “ENVIRONMENT PROTEC-	Symbol for “ENVIRONMENT PROTEC-	Symbol for “DIRECT CURRENT”
Symbol for “MANUFACTURE DATE”	Please Recycle	TION-Waste electrical products should not be disposed of with household waste. where facilities exist. Check with your local authority or retailer for recycling advice.”
