Product Type	Bathroom Scale
Brand	Escali
Model	XL Display Bathroom Scale
Display	Large, easy-to-read LCD
Capacity	400 lb / 180 kg
Graduation	0.1 lb / 0.05 kg
Power Source	3 x AAA batteries (included)
Auto-On / Auto-Off	Yes
Platform Material	Tempered glass
Platform Dimensions	11.8 x 11.8 inches (30 x 30 cm)
Unit of Measure	lb / kg / st (switchable)
Low Battery Indicator	Yes
Overload Indicator	Yes
Non-Slip Feet	Yes
Cleaning Instructions	Wipe with a damp cloth; do not submerge
Battery Replacement	Remove battery cover on underside
Safety	Do not step on edge; use on hard, flat surface
Warranty	1 year limited warranty
Manual Languages	English (other languages available via request)

Frequently Asked Questions - XL Display Bathroom Scale Escali

How do I replace the batteries?

Open the battery compartment on the underside of the scale. Remove old batteries and insert three AAA batteries following the polarity markings.

Why does my scale show 'Err' or 'OL'?

'Err' indicates an error (e.g., unstable surface). 'OL' means overload: the weight exceeds 400 lb/180 kg. Remove weight immediately.

How do I switch between lb, kg, and st?

Press the UNIT button on the back or bottom of the scale. Each press cycles through lb, kg, and st.

Can I use the scale on carpet?

For accurate readings, place the scale on a hard, flat surface. Carpet may cause inconsistent measurements.

What does the low battery icon look like?

A battery symbol appears on the display when batteries are low. Replace them promptly.

How do I clean the scale?

Wipe the glass platform with a damp cloth and mild soap if needed. Do not immerse in water or use abrasive cleaners.

Why is the display faint or not turning on?

Check battery installation and replace if old. Ensure the battery contacts are clean. Press firmly to activate auto-on.

Is the scale accurate?

Yes, the scale is calibrated at the factory. If drift occurs, you can recalibrate by placing a known weight. See manual for details.

What is the maximum weight capacity?

The maximum capacity is 400 lb (180 kg). Do not exceed this limit.

Does the scale have a memory function?

No, this model does not store previous weigh-ins. It shows only the current weight.

USER MANUAL XL Display Bathroom Scale Escali

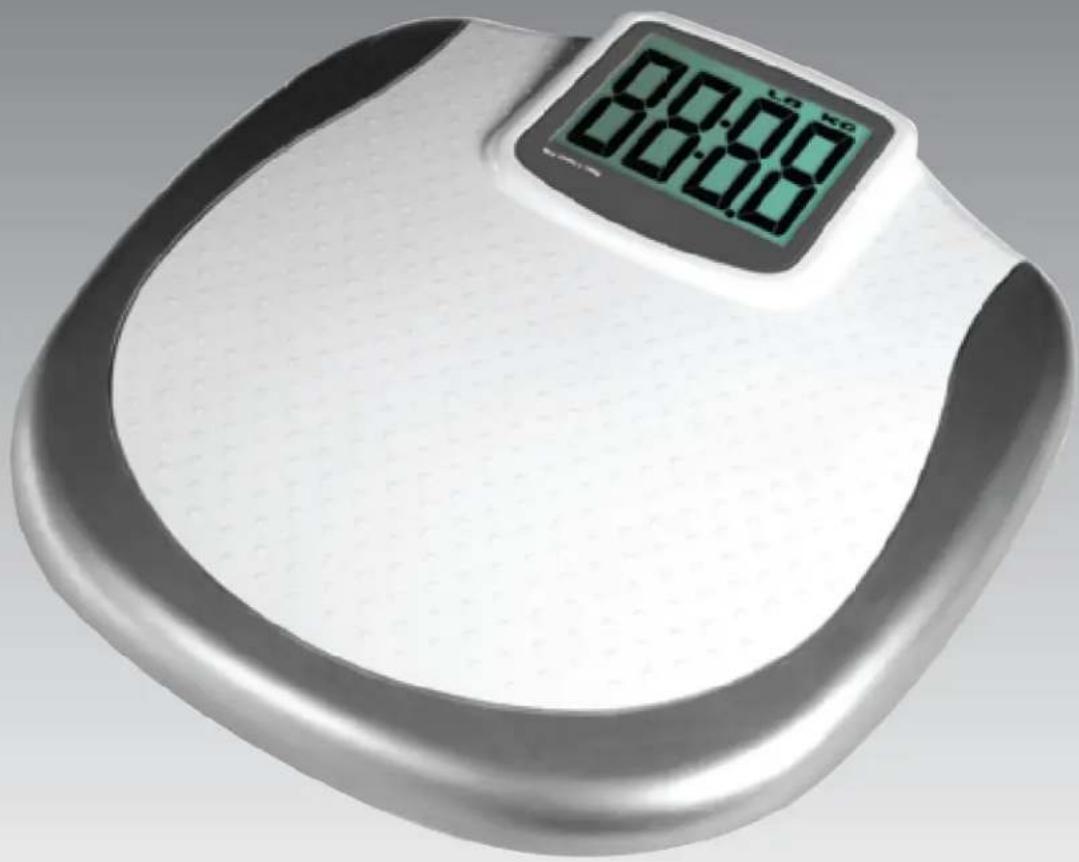

Bathroom Scale Extra-Large Display

Digital kitchen scale with digital display showing 00:00, no text or symbols on the device itself

OPERATING INSTRUCTIONS

Thank you for choosing the Escali XL180, Extra Large Display scale. This precision state-of-the-art measuring instrument is most accurate when weighing on a flat hard surface.

Avoid carpet. As the electronic sensors are sensitive, avoid dropping or jarring the scale and store where it will be protected from impact.

FEATURES & SPECIFICATION:

1. Capacity : 200 KG / 440 LB
2. Weight Graduation : 0.1 KG /
3. Operation Temperature: 0\~40°C
4. Power Supply: 2 x CR 2032 Battery
5. Weight Units : LB, KG
6. LCD V.A.: 95 mm x 75 mm
7. Auto Off In 6 Seconds If No Operation
8. Low Voltage Indication: "Lo"
9. Error Indication: "Err"

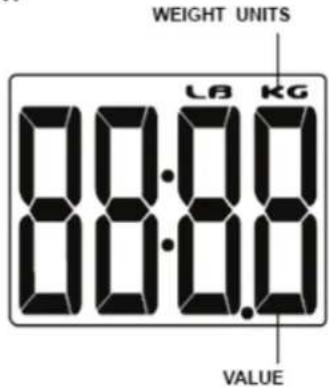

FULL DISPLAY

INITIAL SETUP :

1. Remove the insulating plastic strip from the batteries and ensure the +/- terminals are correctly placed as shown inside the battery compartment. This scale operates on 2-CR2032 lithium batteries (included).
2. Select desired unit mode (Kg or Lb) with slide switch on bottom of scale.

HOW TO WEIGH:

1. Use foot to tap on the middle of the weighing platform.
2. LCD shows a moving '8', then '0,0'.
3. Now step on the platform and stand still.
4. Your weight reading is shown in about 3 seconds then locked.
5. You can now step off the scale. The display will hold your weight reading for about 5 seconds
6. The scale then turns off automatically in about 8 seconds.

TURNING OFF YOUR SCALE:

The scale turns off automatically in about 8 seconds.

CHANGING THE WEIGHING MODE:

You can simply change the weighing mode on the back side of the scale.

DO NOT PLACE OVERWEIGHT ITEMS ON THE SCALE:

Weighing items over the maximum weight capacity will cause an overload 'Err' error to display. Immediately remove overweight items to avoid causing damage to your scale.

BATTERY REPLACEMENT:

Replace the batteries when the LCD display shows the low battery 'LO' symbol.

TO CHANGE BATTERIES
Ensure+/- terminals are correctway round

*Please remove the insulating strip before use.

ADDITIONAL INFORMATION:

1.) Make sure your scale is at room temperature, and on a stable horizontal surface free of vibration.
2.) This scale is not waterproof. Do not expose to moisture.
3.) As this scale is a precision instrument, it must be treated with extreme care. Avoid rough treatment, shaking and vibration.
4.) Do not disassemble this scale or the warranty will be void.
5.) The display value may be affected by electromagnetic disturbances such as operating near a radio. If this occurs, move the device that is causing the disturbance and turn the scale off and restart.

PRODUCT GUARANTEE

Your Escali scale is guaranteed to be free of defects in materials and workmanship for a lifetime. For full details of this guarantee please visit our website at:

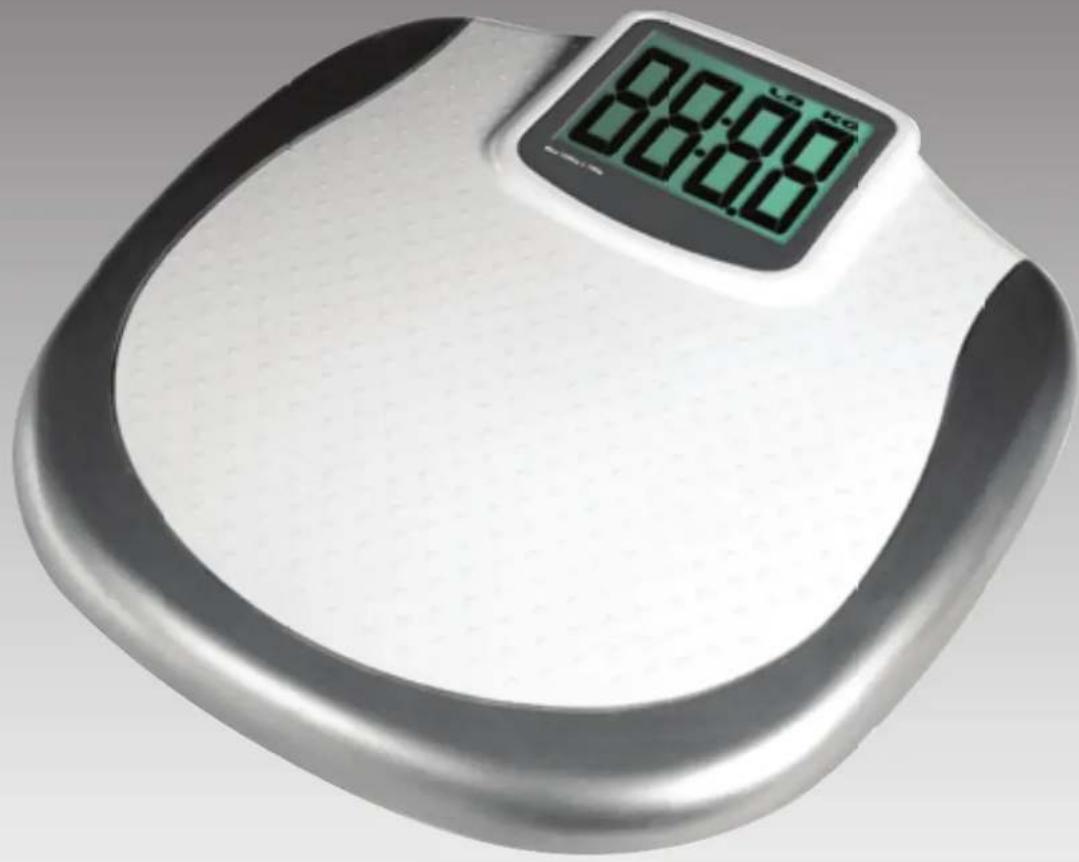

Báscula de Baño Pantalla Extra Grande

Digital kitchen scale with digital display showing 00:00, no text or symbols on the device itself

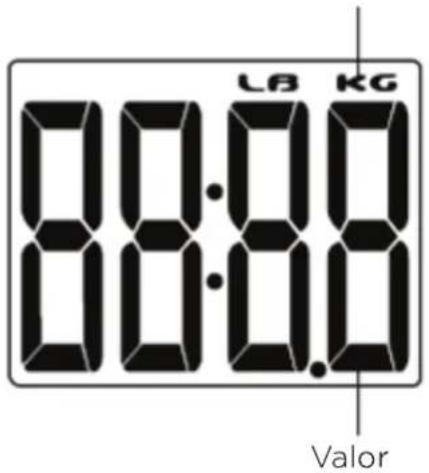

PANTALLA COMPLETA:

Pantalla Completa

Unidades de peso

ESPECIFICACIONES

completos © Escali LLC, 2009
