USER MANUAL Travel Cot Light BabyBjörn

4–7 8–11 12–15 16–19 20–23 24–27 28–31 32–35 36–39 40–43 44–47 48–51 52–55 56–59 60–63 TCLight_OM_ww_v4_201504.indd 3 2015-06-01 09:535

IMPORTANT! Do NOT use the travel cot without the original mattress with base from BABYBJÖRN. Non-usage of the stiff ened base can result in your child overturning the cot. Mattress, consisting of:

• Base Strap loops Hinge Removable fabric Legs Hooks Foot plugs

BABYBJÖRN TRAVEL COT LIGHT

Congratulations on your choice of the BABYBJÖRN Travel Cot Light, which is a practical and stable travel cot that ensures your child can sleep securely and in comfort. The travel cot can be used for newborns and up until your child is around three years of age. PARTS OF THE BABYBJÖRN TRAVEL COT LIGHT Refer to these parts when reading the instructions. IMPORTANT! Please read this manual carefully before use. Keep it for later reference. ENGLISH TCLight_OM_ww_v4_201504.indd 4 2015-06-01 09:535

• Weight: 6 kg (including case)

• Mattress cover: 70% polyester, 30% cotton

• Mattress cover in UK: 100% Trevira fabric (Polyester)

• The fabrics closest to your child are Oeko-Tex Standard 100, product class 1 - approved for baby products.

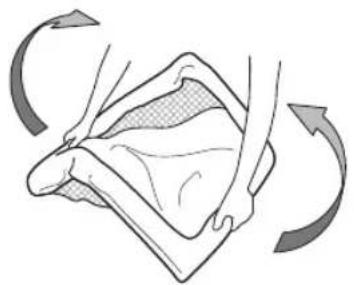

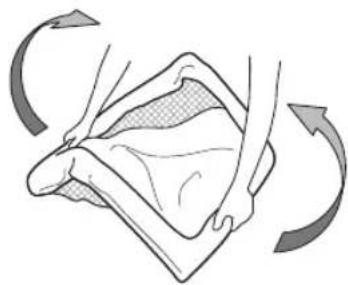

2. Hold the two short sides. Turn

the cot so its legs are towards the fl oor and unfold it with one clear movement so that the legs unfold.

3. Make sure that each leg is

4. Place the mattress inside the

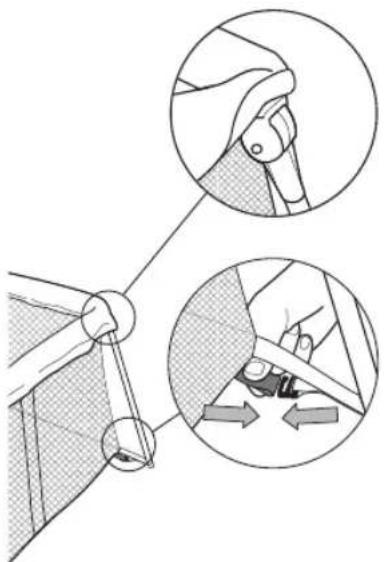

cot. Pull the four red strap loops on the underside of the mattress cover through the holes in the bottom of the cot. Fasten each loop to a red hook.

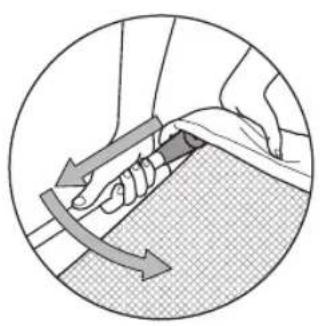

the mattress from the travel cot. Fold up the mattress with the base and place in the bag. Turn the cot upside down. Release one leg at a time by pulling the legs out. PULL!

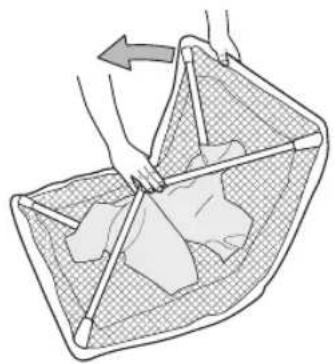

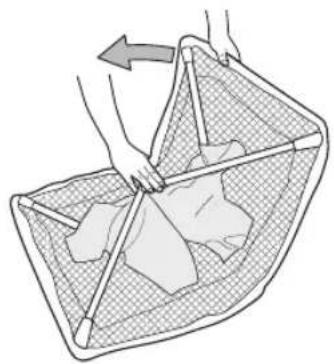

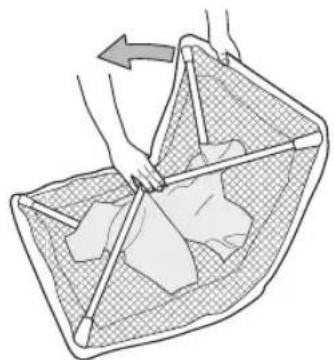

2. Once released, fold the legs

down and lay them diagonally. Fold up the travel cot. Place the cot in the bag between the folded mattress.

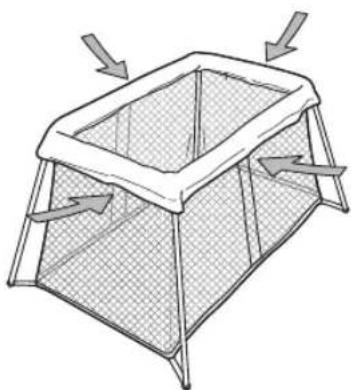

1. To wash the cot, remove the

fabric by opening the four zips on each side of the upper edge.

2. Pull out each foot plug and

release the fabric from the legs.

WASHING INSTRUCTIONS Cot fabric: Machine wash 40 ˚C. Do not tumble dry. The cot should be assembled when replacing the fabric. Reinsert the foot plugs and then close the zips. Mattress cover: Machine wash 60 ˚C. (UK: Machine wash 40 ˚C) Mattress foam: Do not machine wash. WARNING

• Do NOT use the travel cot without the original mattress with base from BABYBJÖRN.

• Non-usage of the stiff ened base can result in your child overturning the cot.

• Do not use more than one mattress in the cot.

• Always check on the child in the cot regularly.

• To prevent falls: do NOT use the travel cot when the child is able to climb in and out of the cot.

• Do NOT use the travel cot if any part is broken, torn or missing and use only spare parts approved by the manufacturer.

• Do NOT use the travel cot if it is not correctly assembled: all of the legs must be locked in the extended position, all four zips closed and the mattress with the base downwards must be fi rmly against the bottom of the cot. Check all fi ttings regularly for security.

• Be aware of the risk of open fi re and other sources of strong heat, such as electric bar fi res, gas fi res, radiator, etc., in the near vicinity of the cot.

• Do NOT leave anything in the cot or place the cot close to another product, which could provide a foothold or present danger of suff ocation or strangulation, e.g. strings, blind/ curtain cords, etc.

• Do NOT let the child play with the cot when it is folded up, or if the fabric has been removed. TCLight_OM_ww_v4_201504.indd 7 2015-06-01 09:549

• Support Sangles Armature repliable Toile amovible Pieds Crochets Patins

Do not use more than one mattress in the cot.

• 當嬰兒床摺合或拆掉布料後，請勿讓寶寶把玩。 TCLight_OM_ww_v4_201504.indd 63 2015-06-01 10:08WW - Version 4 - 201506 CONTACT US To find the answers to most questions and contact our customer service, please visit www.babybjorn.com The Parallel Line Design is a sign of a genuine BABYBJÖRN product. Art. 040. The mark BABYBJÖRN is protected by trademark registrations in several countries. US TM Reg. Nos. 1,385,135, 4,511,202 & 4,518,181. The parallel line design is protected by trademark registration in the USA. US TM Reg. No. 3,633,481. This product is protected by design registrations in several countries. BabyBjörn AB. Travel Cot Light © BabyBjörn AB, 2005/2013. © BabyBjörn AB, 2015. For more information, please contact: info@babybjorn.se, BabyBjörn AB, SE-330 10 Bredaryd, Sweden, www.babybjorn.com TCLight_OM_ww_v4_201504.indd 64 2015-06-01 10:08
