USER MANUAL Travel Crib Light BabyBjörn

• Base Strap loops Hinge Removable fabric Legs Hooks Foot plugs Congratulations on choosing the BABYBJÖRN Play Yard , which is a safe, practical and stable play yard that helps ensure that your child will play securely and comfortably. The play yard can be used for newborns and children up to around three years of age. IMPORTANT! Do NOT use the play yard without the original mattress with base from BABYBJÖRN. Not using the stiened base can result in your child overturning the play yard.

BABYBJÖRN PLAY YARD3

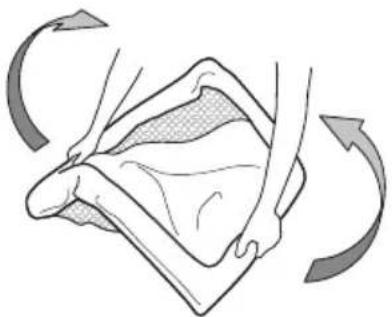

1. Open the bag. Lift out the play

yard. Hold the two short sides. Turn the product so its legs are towards the floor and unfold it with one clear movement so that the legs unfold.

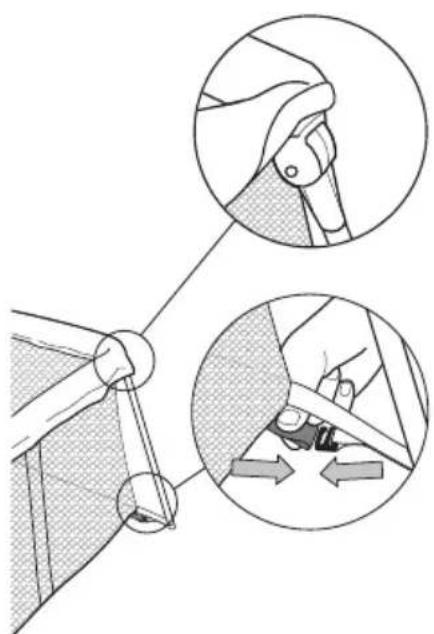

2. Make sure that each leg is

3. Place the mattress, base down,

inside the play yard. Pull the four red strap loops on the underside of the mattress cover through the holes in the bottom of the play yard. Fasten each loop to a red hook.

• Weight: 6 kg/13 lb (including case). Wooden leg version: 5,5 kg /12 lb

• Mattress: 60 x 105 cm/23.5 x 41 in

• Fabric: 100% polyester

• Bottom surface of mattress cover: 100% polyester

• Top surface of mattress cover: 50% polyester, 50% polyurethane (PU)

• Babybjörn Play Yard is Oeko-Tex Standard 100, product class 1 - approved for baby products.

ASSEMBLING THE PLAY YARD4

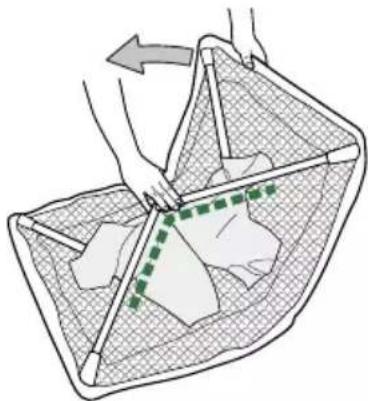

1. Release the strap loops holding

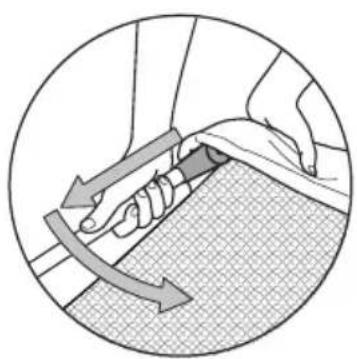

the mattress in place. Remove the mattress from the play yard. Fold up the mattress with the base and place in the bag. Release one leg at a time by pulling the legs out. PULL!

2. Once released, fold the legs

down and lay them diagonally. The legs shall preferably be placed in a certain order, illustrated below. Fold up the play yard. Place the play yard in the bag between the folded mattress.

FOLDING UP THE PLAY YARD5

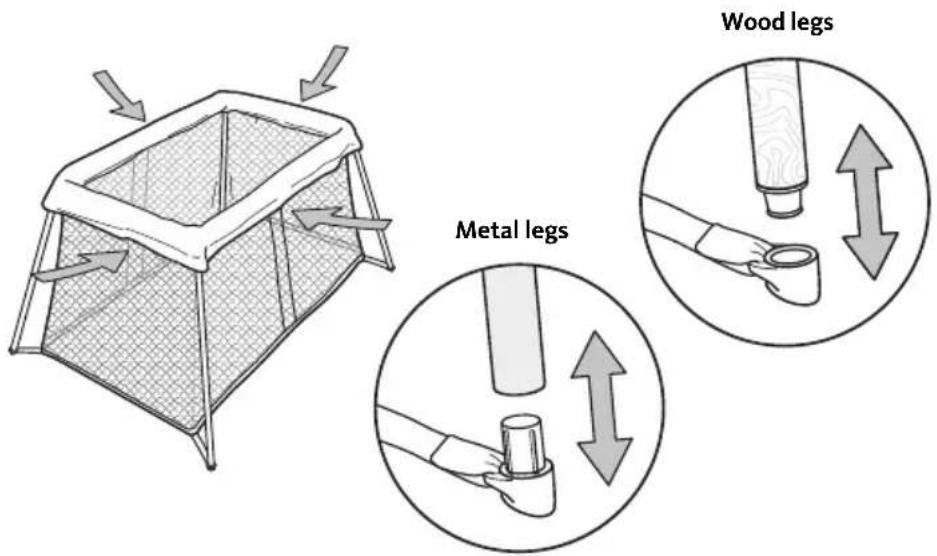

1. To wash the play yard, remove

the fabric by opening the four zippers on each side of the upper edge.

2. Pull out each foot plug and

release the fabric from the legs. Wood legs Metal legs WASHING INSTRUCTIONS Fabric: Machine wash in warm water. Do not tumble dry. The play yard should be assembled when replacing the fabric. Reinsert the foot plugs and then close the zippers. Mattress cover: Machine wash in hot water. Mattress foam: Do not machine wash. IMPORTANT! After washing, please ensure that all four zippers are completely closed and that all 4 foot plugs are fastened before use. If you have questions or if there is anything you do not understand, call BabyBjörn Customer Service at 866-424-0200.

WASHING THE PLAY YARD6

WARNING! Failure to follow these warnings and the instructions could result in serious injury or death.

• Do NOT use the product without the original mattress with base from BABYBJÖRN.

• Not using the stiened base can result in your child overturning the product.

• Do not use more than one mattress in the play yard.

• Always provide the supervision necessary for the continued safety of your child. When in use, never leave your child unattended.

• Discontinue use of the product when child is able to climb out or reaches the height of 35 in. (890mm).

• When child is able to pull to standing position, remove bumper pads, large toys, and other objects that could serve as steps for climbing out.

• Do NOT use the product if it is not correctly assembled: all of the legs must be locked in the extended position, all four zippers closed and the mattress with the base down must be firmly against the bottom of the product. Check all fittings regularly for security.

• To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their back to sleep, unless otherwise advised by your physician.

• Not intended for unsupervised sleep.

• Strings can cause strangulation! Do NOT place items with a string around a child’s neck such as hood strings or pacifier cords. Never suspend strings over product or attach strings to toys.

• Do NOT place product near window where cords from blinds or drapes can strangle a child.

• Do NOT let the child play with the product when it is folded up, or if the fabric has been removed.

• Never use plastic shipping bags or other plastic film as mattress covers. Not sold and intended for that purpose, they can cause suocation.

• Do NOT use a water mattress with this product.7

• The product, including side rails, must be fully erected prior to use.

• After raising side, make sure latches are secure.

• Child can become entrapped and die when improvised netting or covers are placed on top of a product. Never add such items to confine child in product. Infants can suocate

• in gaps between a mattress too small or too thick and product sides.

• on soft bedding. NEVER add a mattress, pillow, comforter, or padding. IMPORTANT! Check this product for damaged hardware, loose joints, missing parts, or sharp edges before assembly and periodically during use. Do NOT use if any parts are missing, damaged, or broken. Contact BabyBjörn for replacement parts and instructions if needed. Never substitute parts.98 Le matelas comprend:

BABYBJÖRN warrants to the original consumer purchaser that this product will be free from defects resulting from material, design or workmanship for two () years from the original date of purchase. If any defect is discovered within six () months from the date of purchase, we ask you to call the retailer where the product was purchased, to arrange for the replacement of the defective product. If this is not possible, please contact BabyBjorn INC, following the instructions below. If any defect is discovered after six () months and within two () years from the date of purchase, we ask you to call BabyBjorn INC at You will be given a return authorization number and asked to send us the defective product, postage prepaid, along with proof of purchase. Please send the product to: BabyBjorn Inc. Broadway Suite , NY . If BabyBjörn determines that the product is defective, BabyBjörn will either repair or replace the product and return it to you, all at BabyBjörn’s expense. This warranty applies only to defective original material, or to defects arising from faulty workmanship. The warranty does not apply to defects resulting from normal wear and tear, product misuse, after market product alterations, or failure to follow use and care instructions supplied with the product. The warranty detailed above shall be in lieu of any and all other warranties. All other warranties, including implied warranties of merchantability and fitness for a particular purpose are hereby expressly disclaimed.
