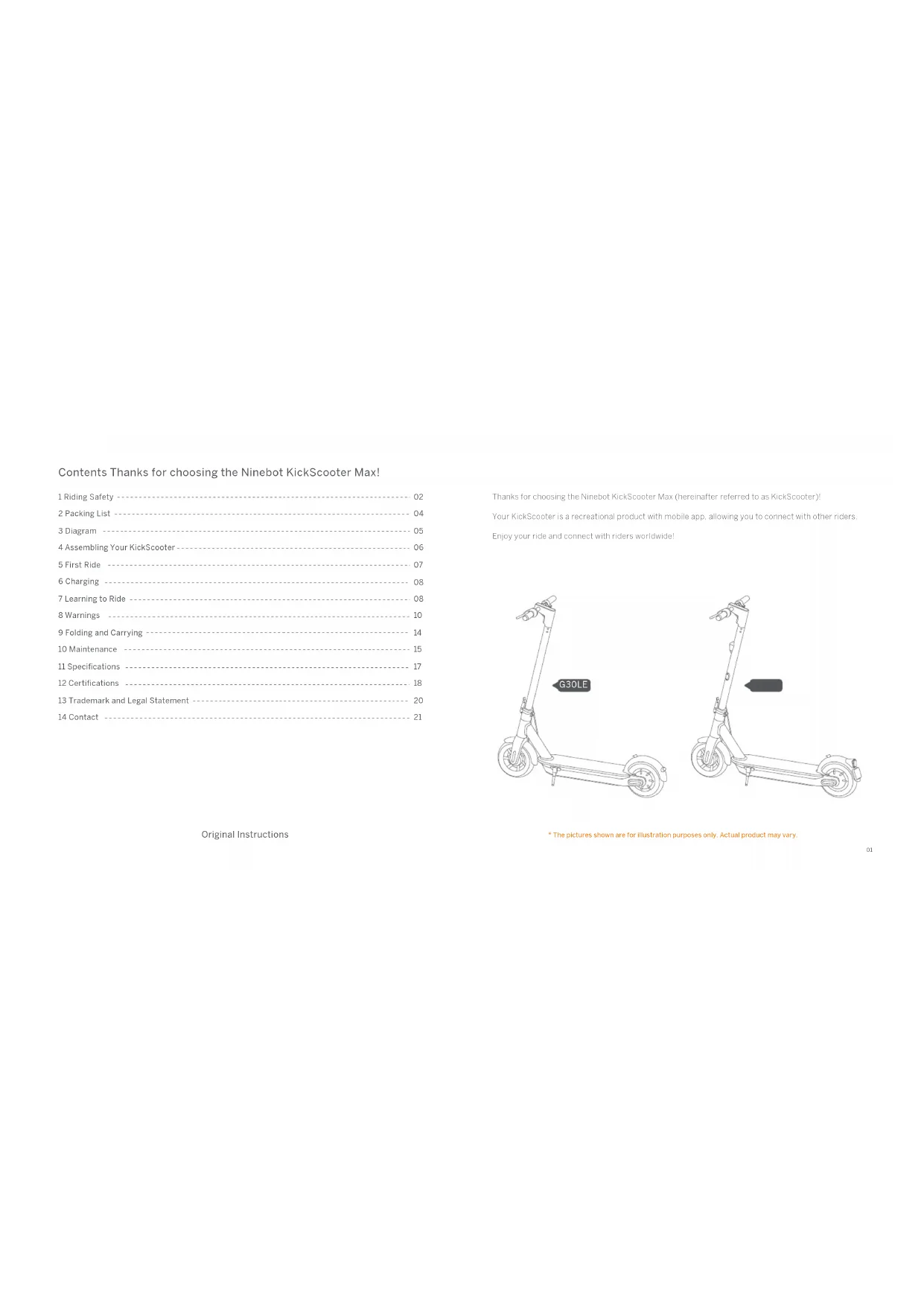

USER MANUAL Ninebot KickScooter MAX G30LD SEGWAY

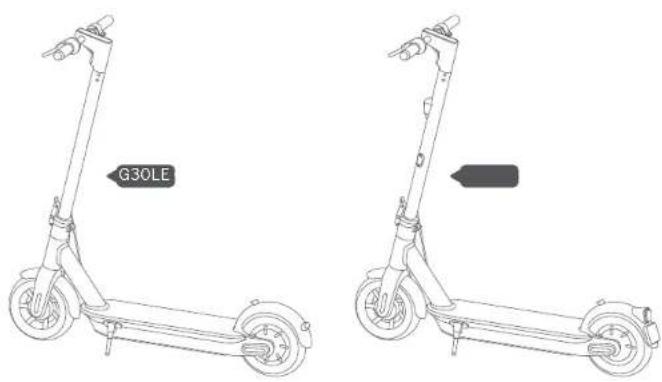

• The pictures shown are for illustration purposes only. Actual product may vary. G30LE G30LD1 Riding Safety

1. The KickScooter is a recreational product. Before mastering riding skills, you need to practice. Neither Ninebot Inc., which means Ninebot (Beijing) Tech Co., Ltd. and its subsidiaries and affiliates, nor Segway Inc. is responsible for any injuries or damage caused by a rider's inexperience or failure to follow the instructions in this document.

2. Please understand that you can reduce the risk by following all the instructions and warnings in this manual, but you

cannot eliminate all the risks. Remember that whenever you ride the KickScooter you risk injury from loss of control, collisions, and falls. When entering into public spaces always comply with the local laws and regulations. As with other vehicles, faster speeds require longer braking distance. Sudden braking on low traction surfaces could lead to wheel slip, or falls. Be cautious and always keep a safe distance between you and other people or vehicles when riding. Be alert and slow down when entering unfamiliar areas.

3. Always wear a helmet when riding. Use an approved bicycle or skateboard helmet that fits properly with the chin

strap in place, and provides protection for the back of your head.

4. Do not attempt your first ride in any area where you might encounter children, pedestrians, pets, vehicles, bicycles,

or other obstacles and potential hazards.

5. Respect pedestrians by always yielding the right of way. Pass on the left whenever possible. When approaching a

pedestrian from the front, stay to the right and slow down. Avoid startling pedestrians. When approaching from behind, announce yourself and slow down to walking speed when passing. Please obey local traffic laws and regulations if situation is different. 6. In places without laws comply with the safety guidelines outlined in this manual. Neither Ninebot Inc. nor Segway Inc. is responsible for any property damage, personal injury/death, accidents, or legal disputes caused by violations of the safety instructions.

7. Do not allow anyone to ride your KickScooter on his/her own unless they have carefully read this manual and

followed the Riding Safety in the App. The safety of new riders is your responsibility. Assist new riders until they are comfortable with the basic operation of the KickScooter. Make sure each new rider wears a helmet and other protective gear.

8. Before each ride check for loose fasteners and damaged components. If the KickScooter makes abnormal sounds or

signals an alarm, immediately stop riding. Diagnose your KickScooter via the Segway-Ninebot App and call your dealer/distributor for service.

9. Be alert! Scan both far ahead and in front of your KickScooter — your eyes are your best tool for safely avoiding

obstacles and low traction surfaces (including, but not limited to, wet ground, loose sand, loose gravel, and ice).

10. To reduce risk of injury, you must read and follow all “CAUTION” and “WARNING” notices in this document. Do not

ride at an unsafe speed. Under no circumstance should you ride on roads with motor vehicles. The manufacturer recommends riders be 14+ years old. Always follow these safety instructions: A. People who should not ride the KickScooter include:

i. Anyone under the influence of alcohol or drugs.

ii. Anyone who suffers from disease that puts them at risk if they engage in strenuous physical activity.

iii. Anyone who has problems with balance or with motor skills that would interfere with their ability to maintain

iv. Anyone whose weight is outside the stated limits (see Specifications).

vi. Children under the age of 14 years old.

B. Riders under the age of 18 years old should ride under adult supervision. C. Comply with local laws and regulations when riding this product. Do not ride where prohibited by local laws. D. To ride safely, you must be able to clearly see what is in front of you and you must be clearly visible to others. E. Do not ride in the snow, in the rain, or on roads which are wet, muddy, icy, or that are slippery for any reason. Do not ride over obstacles (sand, loose gravel, or sticks). Doing so could result in a loss of balance or traction and could cause a fall.

11. Do not attempt to charge your KickScooter if, the charger or the power outlet, is wet.

12. As with any electronic device, use a surge protector when charging to help protect your KickScooter from damage

due to power surges and voltage spikes. Only use the Segway supplied charger. Do not use a charger from any other different product models.

13. Use only Ninebot or Segway approved parts and accessories. Do not modify your KickScooter. Modifications to your

KickScooter could interfere with the operation of the KickScooter, could result in serious injury and/or damage, and could void the Limited Warranty.

14. Children should not play with the KickScooter or parts of it nor should cleaning or maintenance be done by children.

The use of the machine results in the transmission of vibrations throughout the driver's body.

15. Always place the KickScooter on its stand on a flat and stable surface. The KickScooter must be placed with the

stand against the slope to prevent it from tipping over. Never place the KickScooter with the front facing down the slope, as the stand may close and tip the machine. Once the KickScooter is on its stand, check its stability to avoid any risk of falling (by slip, wind or slight jolt). Do not park the KickScooter in a busy area, but rather along a wall. If possible, always choose to park your KickScooter on flat ground.

16. For a better driving experience, it is recommended to conduct a regular maintenance of the product.

Please read the user manual before charging the battery.

17. Do not touch the brake system, it could cause injuries.

18. The A-weighted emission sound pressure level is less than 70 dB(A). The mechanical vibrations transmitted by the

KickScooter are less than 2.5 m/s

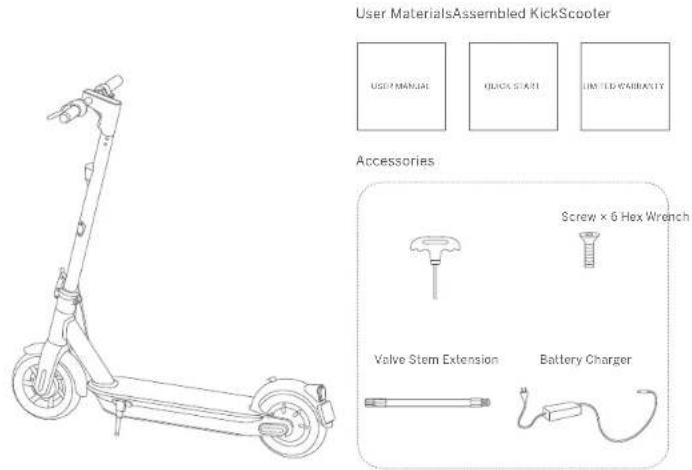

3 Diagram2 Packing List Dashboard & Power Button Battery Compartment Hub Motor Rear Light Insurance Plate Area*

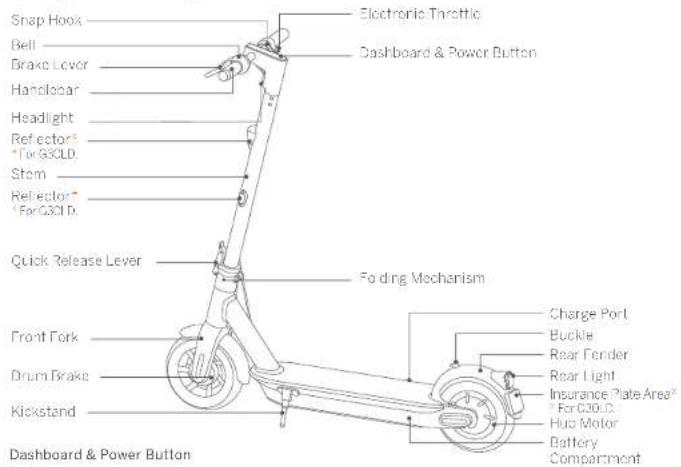

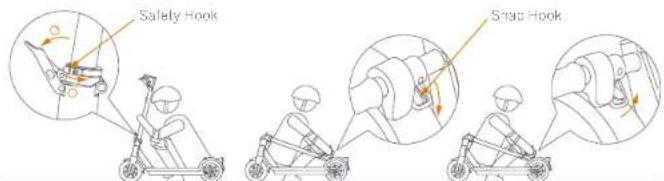

• For G30LD. Buckle Dashboard & Power Button Electronic Throttle Rear Fender Quick Release Lever Kickstand Folding Mechanism Front Fork Reflector*

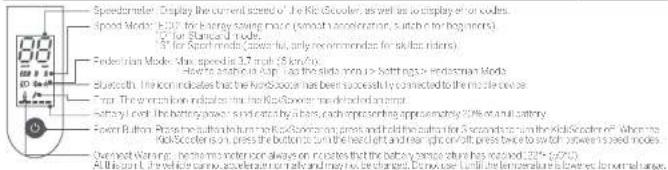

• For G30LD. Stem Drum Brake Charge Port Handlebar Brake Lever Snap Hook Bell Headlight Speedometer: Display the current speed of the KickScooter, as well as to display error codes. Speed Mode: "ECO" for Energy saving mode (smooth acceleration, suitable for beginners). "D" for Standard mode. "S" for Sport mode (powerful, only recommended for skilled riders). Bluetooth: The icon indicates that the KickScooter has been successfully connected to the mobile device. Error: The wrench icon indicates that the KickScooter has detected an error. Battery Level: The battery power is indicated by 5 bars, each representing approximately 20% of a full battery. Power Button: Press the button to turn the KickScooter on; press and hold the button for 3 seconds to turn the KickScooter off. When the KickScooter is on, press the button to turn the headlight and rear light on/off; press twice to switch between speed modes. Pedestrian Mode: Max. speed is 3.7 mph (6 km/h).

• How to enable in App: Tap the slide menu > Setttings > Pedestrian Mode. Overheat Warning: The thermometer icon always on indicates that the battery temperature has reached 122°F (50°C). At this point, the vehicle cannot accelerate normally and may not be charged. Do not use it until the temperature is lowered to normal range. When unpacking your KickScooter, please verify that the above items are included in the package. If any components are missing, please contact your dealer/distributor or nearest service center (see Contact). After verifying that all components are present and in good condition, you can assemble your new KickScooter. Please retain the box and packaging materials in case you need to ship your KickScooter in the future. Remember to power off your KickScooter and unplug the charge cable before assembling, mounting accessories, or cleaning the mainframe. Accessories User MaterialsAssembled KickScooter QUICK START USER MANUAL LIMITED WARRANTY Screw × 6 Hex Wrench Battery Charger Valve Stem Extension Reflector*

3. Install six screws (two on each side)

with the included hex wrench.

4. Verify that your KickScooter can be

aware of the correct orientation. Headlight facing front

1. Unfold the stem and fasten it. Then

unfold the kickstand to support the KickScooter. 5 First Ride There are safety risks when learning to ride the KickScooter. You must read the Riding Safety via the Segway-Ninebot App (hereinafter referred to as App) before your first ride. For your safety, your new KickScooter is not activated and will beep occasionally after Power ON. Until activated, the KickScooter maintains very low riding speed, and can not perform with full function. Install the App on your mobile device (with Bluetooth 4.1 or above), connect to the KickScooter with Bluetooth, and follow the App instructions to activate your KickScooter and enjoy the full performance. Scan the QR code to download the App.

Install the App and register/login. Power on the KickScooter. The Bluetooth icon off indicates the KickScooter is ready to connect.

Click “Vehicle”→“Search vehicle” to connect to your KickScooter. The KickScooter will beep it has successfully connected. The Bluetooth icon will remain illuminated. Follow the App instructions to activate the KickScooter and learn how to ride safely. You can now start to use your KickScooter, check the status with the App, and interact with other users. Have fun! Vehicle Fans Moments MeDiscover Segway-Ninebot App

7 Learning to Ride Wear an approved helmet and other protective gear to minimize any possible injury.

1. Power on the KickScooter and check

the battery level. Charge the KickScooter if the battery level is low. WARNING Do not charge if the charge port or charge cable is wet. Do not charge or use your battery if it is damaged or see trace of water. Close the charge port cover when not charging. Your KickScooter is fully charged when the LED on the charger changes from red (charging) to green (trickle charge). Close the charge port cover when finished. Open the charge port cover. Insert the charge plug. Charging step 6 Charging Charge port WARNING When hard braking, you risk serious injury due to loss of traction and falls. Maintain a moderate speed and look out for potential hazards.

3. Put your other foot on the footrest to keep

both feet stable. Press the electronic throttle to speed up when you are balanced. Note: For your safety, the motor will not engage until the KickScooter reaches

4. Slow down by releasing the throttle; and

brake by squeezing the brake lever.

5. To turn, shift your body weight and

turn the handle slightly.

2. Stand on the footrest with one foot

and push off with another foot to start gliding.10 11 DO NOT press the throttle when walking with the KickScooter. DO NOT carry heavy objects on the handlebar. DO NOT ride the KickScooter with only one foot. Avoid contacting obstacles with the tire/wheel. Watch your head when passing through doorways. Do not keep your feet on the rear fender. Keep your speed between 3.1–6.2 mph (5–10 km/h) when you ride through speed bumps, elevator door stills, bumpy roads or other uneven surfaces. Slightly bend your knee to better adjust mentioned surfaces. 8 Warnings DO NOT ride the KickScooter in the rain. DO NOT get wet. Failure to follow these instructions could lead to serious injury. WARNING12 13 WARNING Always keep both hands on the handlebar or you risk serious injury due to loss of balance and falls. DO NOT rotate the handle violently while riding at high speed. DO NOT ride on public roads, motorways, or highways. The KickScooter is for one rider only. Do not carry any passengers. Do not carry a child. Do not ride when pregnant. DO NOT take your hands off the handlebar while riding. Do not ride with one hand only. DO NOT touch the hub motor after riding because it can get hot. DO NOT ride up and down stairs or jump over obstacles. Do not use mobile phone or wear earphones when operating the KickScooter. Do not ride through puddles or any other (water) obstacles. In such a case please lower your speed and bypass the obstacle.14 15 9 Folding and Carrying When your KickScooter is folded up, lift it by the stem to carry. Carrying Turn off your KickScooter. Turn the safety hook counterclockwise and open the quick release lever. Folding Unfolding Align the snap hook and the buckle and hook them. Disengage the snap hook from the buckle. Fold the stem up, close the quick release lever and turn the safety hook clockwise. Safety Hook

10 Maintenance Cleaning and Storage Use a soft, wet cloth to wipe the mainframe clean. Dirt hard to remove can be scrubbed with a toothbrush and toothpaste, then cleaned with a soft, wet cloth. NOTE Do not wash your KickScooter with alcohol, gasoline, acetone, or other corrosive/volatile solvents. These substances may damage the appearance and internal structure of your KickScooter. Do not wash your KickScooter with a power washer or hose. WARNING Make sure the KickScooter is powered OFF, the charge cable is unplugged, and the rubber cap on the charge port is tightly sealed before cleaning; otherwise you may damage the electronic components. Store your KickScooter in a cool, dry place. Do not store it outdoors for extended periods of time. Exposure to sunlight and temperature extremes (both hot and cold) will accelerate the aging process of the plastic components and may reduce battery life. Tire Tires supplied with the product are to be mounted on the wheel by a professional repairer. Removing the wheels is complicated and incorrect assembly can lead to instability and malfunctions: – Please contact an authorized repairer if the product is still under manufacturer guarantee. You can ask for the list of the authorized repairers to the customer service available at www.segway.com. – If the product is no longer under guaranteed you can contact any specialized repairer of your choice. – Should you have questions, you can contact customer service available at www.segway.com. Inflate tires to 32–37 psi. Inflate both tires equally. Maintenance and removal of the battery Do not remove the battery. Removing the battery is complicated and can alter the operation of the machine: You can contact an authorized repairer if the product is still guaranteed. If the product is not guaranteed, you can contact any specialized repairer of your choice. You can ask for the list of the authorized repairers to the customer service available at www.segway.com. For any further question, you can contact the customer service available at www.segway.com. Do not store or charge the battery at temperatures outside the stated limits (see Specifications). Do not puncture the battery. Refer to your local laws and regulations regarding battery recycling and/or disposal. A well maintained battery can perform well even after many miles of riding. Charge the battery after each ride and avoid draining the battery completely. When used at room temperature (70°F [22°C]) the battery range and performance is at its best; whereas using it at temperatures below 32°F (0°C) can decrease range and performance. Typically, at -4°F (-20°C) range can be half that of the same battery at 70°F (22°C). Battery range will recover when temperature rises. More details are available in the App. NOTE Typically, a fully charged battery should retain power for 120–180 days. A low-power battery should retain power for 30–60 days. Remember to charge the battery after each use. Completely draining the battery may cause permanent damage to the battery. Electronics inside the battery record the charge-discharge condition of the battery; damage caused by over-charging or under-charging will not be covered by the Limited Warranty. WARNING Do not attempt to disassemble the battery. Do not touch battery contacts. Do not dismantle or puncture the casing. Keep the battery contacts away from metal objects to prevent short circuit. Risk of fire. No user serviceable parts. Do not charge or use your battery if it is damaged or see trace of water. WARNING Do not ride when the ambient temperature is outside the machine operation temperature (see Specifications) because low/high temperature will limit the maximum power/torque. Doing so could cause personal injury or property damage due to slips or falls. Others The external flexible cable of this transformer cannot be replaced; if the cord is damaged, the transformer must be discarded and replaced by a new one. Should you have questions, you can contact customer service available at www.segway.com. In case of accident or breakdown: Please contact an authorized repairer if the product is still under guarantee. If not, you can contact any specialized repairer of your choice. You can ask for the list of the authorized repairers to the customer service available at www.segway.com. For any question, please contact customer service available at www.segway.com. Efforts have been made to simplify wording in the user manual for users. Where an action appears too complicated for a user, he is advised to contact an authorized or a specialized repairer or customer service. Snap Hook16 17 Cleaning and Storage Use a soft, wet cloth to wipe the mainframe clean. Dirt hard to remove can be scrubbed with a toothbrush and toothpaste, then cleaned with a soft, wet cloth. NOTE Do not wash your KickScooter with alcohol, gasoline, acetone, or other corrosive/volatile solvents. These substances may damage the appearance and internal structure of your KickScooter. Do not wash your KickScooter with a power washer or hose. WARNING Make sure the KickScooter is powered OFF, the charge cable is unplugged, and the rubber cap on the charge port is tightly sealed before cleaning; otherwise you may damage the electronic components. Store your KickScooter in a cool, dry place. Do not store it outdoors for extended periods of time. Exposure to sunlight and temperature extremes (both hot and cold) will accelerate the aging process of the plastic components and may reduce battery life. Tire Tires supplied with the product are to be mounted on the wheel by a professional repairer. Removing the wheels is complicated and incorrect assembly can lead to instability and malfunctions: – Please contact an authorized repairer if the product is still under manufacturer guarantee. You can ask for the list of the authorized repairers to the customer service available at www.segway.com. – If the product is no longer under guaranteed you can contact any specialized repairer of your choice. – Should you have questions, you can contact customer service available at www.segway.com. Inflate tires to 32–37 psi. Inflate both tires equally. Maintenance and removal of the battery Do not remove the battery. Removing the battery is complicated and can alter the operation of the machine: You can contact an authorized repairer if the product is still guaranteed. If the product is not guaranteed, you can contact any specialized repairer of your choice. You can ask for the list of the authorized repairers to the customer service available at www.segway.com. For any further question, you can contact the customer service available at www.segway.com. Do not store or charge the battery at temperatures outside the stated limits (see Specifications). Do not puncture the battery. Refer to your local laws and regulations regarding battery recycling and/or disposal. A well maintained battery can perform well even after many miles of riding. Charge the battery after each ride and avoid draining the battery completely. When used at room temperature (70°F [22°C]) the battery range and performance is at its best; whereas using it at temperatures below 32°F (0°C) can decrease range and performance. Typically, at -4°F (-20°C) range can be half that of the same battery at 70°F (22°C). Battery range will recover when temperature rises. More details are available in the App. NOTE Typically, a fully charged battery should retain power for 120–180 days. A low-power battery should retain power for 30–60 days. Remember to charge the battery after each use. Completely draining the battery may cause permanent damage to the battery. Electronics inside the battery record the charge-discharge condition of the battery; damage caused by over-charging or under-charging will not be covered by the Limited Warranty. WARNING Do not attempt to disassemble the battery. Do not touch battery contacts. Do not dismantle or puncture the casing. Keep the battery contacts away from metal objects to prevent short circuit. Risk of fire. No user serviceable parts. Do not charge or use your battery if it is damaged or see trace of water. WARNING Do not ride when the ambient temperature is outside the machine operation temperature (see Specifications) because low/high temperature will limit the maximum power/torque. Doing so could cause personal injury or property damage due to slips or falls. Others The external flexible cable of this transformer cannot be replaced; if the cord is damaged, the transformer must be discarded and replaced by a new one. Should you have questions, you can contact customer service available at www.segway.com. In case of accident or breakdown: Please contact an authorized repairer if the product is still under guarantee. If not, you can contact any specialized repairer of your choice. You can ask for the list of the authorized repairers to the customer service available at www.segway.com. For any question, please contact customer service available at www.segway.com. Efforts have been made to simplify wording in the user manual for users. Where an action appears too complicated for a user, he is advised to contact an authorized or a specialized repairer or customer service. 11 Specifications Dimensions Weight Machine Parameters Battery Motor Charger Features Tire Brake Light Length x Width x Height Folded: Length x Width x Height Payload Rider Recommended Age Required Height Max. Speed Typical Range [1] Max. Slope Operating Temperature Storage Temperature IP Rating Duration of Charging Traversable Terrain Max. Charging Voltage Charging Temperature Nominal Energy 367 Wh 32–104°F (0–40°C) Nominal Capacity Battery Management System Input Voltage Output Voltage Output Current Nominal Voltage Nominal Power Output Power Approx. 43.7 × 18.6 × 45.1 in (1109 × 472 × 1146 mm) Approx. 43.7 × 18.6 × 21.0 in (1109 × 472 × 534 mm) 66.1–220.5 lbs (30.0–100.0 kg) Approx. 24.9 miles (40 km) Approx. 20% 36 V 14–104°F (-10–40°C) -4–122°F (-20–50°C) 42 V 10200 mAh 350 W (0.35 kW) Over-heating, short circuit, over-discharge, over-current and over-charge protection 100–240 V ～ 42 V

71 W (0.071 kW) 14–60 years 3’11”–6’6” (120–200 cm) IPX5 Approx. 6.5 h asphalt/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm) Approx. 12.4 mph (20 km/h) Approx. 15.5 mph (25 km/h) LED rear light Riding Modes Tires Energy saving mode, Standard mode and Sport mode Tubeless tire, Material: Natural carbon-black synthetic rubber, 60/70-6.5, Straight nozzle Net Approx. 39.0 lbs (17.7 kg) Approx. 38.6 lbs (17.5 kg) G30LD G30LEItem [1] Typical Range: tested while riding under full power, 165.3 lbs (75.0 kg) load, 77°F (25°C), 60% of max. speed on average on pavement.

• Some of the factors that affect range include: speed, number of starts and stops, ambient temperature, etc.This product is certified to ANSI/CAN/UL-2272 by TUV Rheinland. Important WEEE information WEEE Disposal and Recycling Information Correct Disposal of this product. This marking indicates that this product should not be disposal with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsible to promote the sustainable reuse of materials resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Battery recycling information for the European Union Batteries or packaging for batteries are labeled in accordance with European Directive 2006/66/EC and amendment 2013/56/EU concerning batteries and accumulators and waste batteries and accumulators. The Directive determines the framework for the return and recycling of used batteries and accumulators as applicable throughout the European Union. This label is applied to various batteries to indicate that the battery is not to be thrown away, but rather reclaimed upon end of life per this Directive. In accordance with the European Directive 2006/66/EC and amendment 2013/56/EU, batteries and accumulators are labeled to indicate that they are to be collected separately and recycled at end of life. The label on the battery may also include a chemical symbol for the metal concerned in the battery (Pb for lead, Hg for mercury, and Cd for cadmium). Users of batteries and accumulators must not dispose of batteries and accumulators as unsorted municipal waste, but use the collection framework available to customers for the return, recycling, and treatment of batteries and accumulators. Customer participation is important to minimize any potential effects of batteries and accumulators on the environment and human health due to the potential presence of hazardous substances. Before placing electrical and electronic equipment (EEE) in the waste collection stream or in waste collection facilities, the end user of equipment containing batteries and/or accumulators must remove those batteries and accumulators for separate collection. 12 Certifications Restriction of Hazardous Substances (RoHS) Directive This Ninebot (Changzhou) Tech Co., Ltd. product, with included parts (cables, cords, and so on) meets the require- ments of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (“RoHS recast” or “RoHS 2”). Radio Equipment Directive The company “Segway Europe BV” hereby declares that this device complies with the essential requirements and other relevant provisions of the RED directive 2014/53/EU, the machine directive 2006/42/EC and the RoHS directive 2011/65/EU. The declaration of conformity can be viewed at the following address: http://eu-en.segway.com/support-instructions Segway Europe BV, Hogehilweg 8, 1101 CC Amsterdam, The Netherlands. Hereby, [Ninebot (Changzhou) Tech Co., Ltd,] declares that the radio equipment type [G30LE] and [G30LD] are in compliance with Directive 2014/53/EU. Bluetooth Max. RF Power Frequency Band(s) 20mW 2.4000–2.4835GHz 18 19Ninebot is the registered trademark of Ninebot (Tianjin) Tech. Co., Ltd; Segway and the Rider Design are the registered trademarks of Segway Inc.; Android, Google Play are trademarks of Google Inc., App Store is a service mark of Apple Inc., The respective owners reserve the rights of their trademarks referred to in this manual. The KickScooter is covered by relevant patents. For patent information, go to http://www.segway.com. We have attempted to include descriptions and instructions for all the functions of the KickScooter at the time of printing. However, due to constant improvement of product features and changes of design, your KickScooter may differ slightly from the one shown in this document. Visit the Apple App Store (iOS) or the Google Play Store (Android) to download and install the App. Please note that there are multiple Segway and Ninebot models with different functions, and some of the functions mentioned herein may not be applicable to your unit. The manufacturer reserves the right to change the design and functionality of the KickScooter product and documentation without prior notice. © 2020 Ninebot (Beijing) Tech Co. Ltd. All rights reserved. 13 Trademark and Legal Statement
