Product type	Automatic 4-slice toaster
Brand	Severin
Model	AT 9267
Power supply	220-240 V ~ 50/60 Hz
Power	Approx. 1500 W
Dimensions (approx.)	30 x 20 x 25 cm
Weight (approx.)	2 kg
Number of slots	4
Browning level adjustment	Continuously adjustable (light to dark)
Functions	Toast, Bagel, Defrost, Reheat, Cancel/Interrupt
Bagel function	Toasts the cut side only
Defrost function	Extends toasting time for frozen bread
Reheat function	Reheats already toasted bread (without butter)
Auto shut-off	Yes (at end of cycle and if jammed)
Safety system	Auto shut-off if bread is stuck, hot surfaces
Bun warmer rack	Yes, for reheating rolls and brioches
Crumb tray	Removable, easy to empty
Cord storage	Under the appliance
Maintenance	Wipe with a slightly damp cloth, empty crumb tray regularly
Warranty	2 years (defective parts)

Frequently Asked Questions - AT 9267 SEVERIN

How to clean my Severin AT 9267 toaster?

Unplug and let cool. Clean the exterior with a slightly damp cloth. Never immerse the appliance in water. For crumbs, briefly push in the crumb tray, then remove and empty it.

What to do if bread gets stuck in the toaster?

The appliance stops automatically. Unplug it and carefully remove the bread with a rounded wooden stick (e.g., brush handle). Never touch the metal heating elements with metal objects.

How to use the bagel function?

Place cut bagels with the cut side facing outward of the toaster. Start normal toasting, then press the Bagel button. The indicator lights up. Only the cut side will be toasted, the other side will be simply heated.

How to use the defrost function?

Insert frozen bread, lower the lever to start normal toasting, then press the Defrost button. The toasting time is extended to defrost and toast properly.

Can I reheat buttered toast?

No, do not use the reheat function for buttered toast. Use it only to reheat already toasted plain bread.

How to adjust the browning level?

Turn the browning control: counterclockwise for a lighter result, clockwise for darker. For standard sliced bread, position 4 is recommended.

Why does my toaster emit odor or smoke during first use?

This is normal. Perform 5 empty toasting cycles at maximum temperature before first use, in a well-ventilated room. This removes manufacturing residues.

What is the power and power supply of the appliance?

The appliance operates on 220-240 V ~ 50/60 Hz with a power of approx. 1500 W. Check that the voltage matches your installation.

What to do if the appliance does not turn on?

Make sure the plug is properly inserted and the power outlet is live. Check that the operating lever is fully pressed down (it locks at the bottom only when powered). If the problem persists, contact customer service.

Where to find spare parts or get my toaster repaired?

Contact Severin after-sales service. Repairs must be carried out by authorized personnel to ensure safety. See the list of authorized centers in the manual.

USER MANUAL AT 9267 SEVERIN

Two SEVERIN brand cooktop holders with control knobs and a side grater (no visible text or symbols on the devices themselves)

ART.-NO. AT 2510 / AT 2512 / AT 9266 / AT 9267

GB Instructions for use

FR Mode d'emploi

Automatic toaster with bagel function 11

Close-up of a stainless steel kettle and a black plastic grater on a white surface (no text or symbols visible)

DE

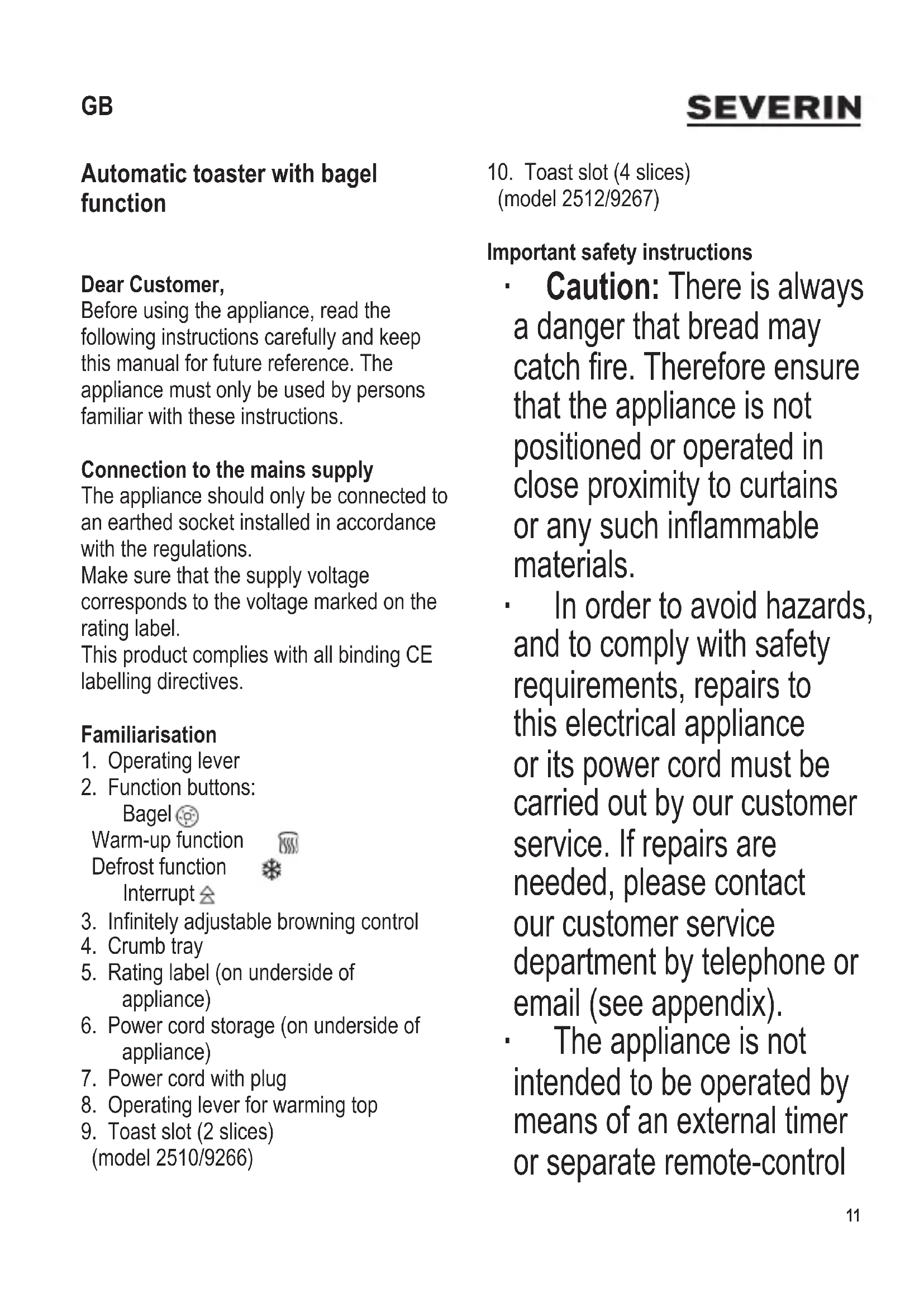

Automatic toaster with bagel function

Dear Customer,

Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations.

Make sure that the supply voltage corresponds to the voltage marked on the rating label.

This product complies with all binding CE labelling directives.

Familiarisation

1. Operating lever
2. Function buttons:

Bagel

Warm-up function

Defrost function Interrupt △

1. Infinitely adjustable browning control
2. Crumb tray
3. Rating label (on underside of appliance)
4. Power cord storage (on underside of appliance)
5. Power cord with plug
6. Operating lever for warming top

7. Toast slot (2 slices) (model 2510/9266)

8. Toast slot (4 slices)

(model 2512/9267)

Important safety instructions

- Caution: There is always a danger that bread may catch fire. Therefore ensure that the appliance is not positioned or operated in close proximity to curtains or any such inflammable materials.

- In order to avoid hazards, and to comply with safety requirements, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please contact our customer service department by telephone or email (see appendix).

- The appliance is not intended to be operated by means of an external timer or separate remote-control

system.

- Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.

• To avoid the risk of electric shock, do not clean the appliance with liquids or immerse it.

- Clean the appliance by simply wiping the outside with a slightly damp cloth.

• To empty the crumb tray, push it in briefly before pulling it out. Empty the tray and replace it.

- This appliance is intended for domestic or similar applications, such as

- in staff kitchens in shops, offices and other similar working environments,

- in agricultural working environments,

- by customers in hotels,

motels etc. and similar accommodation,

- in bed-and breakfast type environments.

This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

• Children must not be permitted to play with the appliance.

• Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised

and at least 8 years of age.

- The appliance and its power cord must be kept well away from children under 8 at all times.

• Caution: Keep any packaging materials well away from children – these are a potential source of danger, e.g. of suffocation.
  • Always position the appliance upright on a level heat-resistant surface.
• To prevent damage to the housing and the power cord, do not position the appliance on or near hot surfaces or open flames such as hot-plates or gas flames.
• Do not use the appliance outdoors.
• Caution: The accessible surfaces of the appliance become hot during operation and remain so for some time afterwards.

Burns can occur from touching the hot parts.

- Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.

• Unwind the power cord completely before operation.

• Do not allow the power cord to touch hot surfaces.

• Do not let the power cord hang free.

• Do not leave the appliance unattended while in use.
• Do not cover the toast slot during operation.
• Do not place bread rolls directly over the toast slots.
• Caution: To prevent damage to the appliance, do not attempt to heat bread slices on the warming top.
• Do not try to remove bread from the toaster with your fingers or insert any other objects (e.g. knives, forks) into the toast slot as the heating elements carry a live current.

• Always remove the plug from the wall socket

• after use,

• in case of any malfunction,

• before cleaning the appliance.

• When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

• Do not insert the plug with wet hands.
• No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with.

Intended use

• This appliance is intended only for toasting single bread slices or bagels in the toast slot and for warming bread rolls on the warming top.
• Toasting of several slices of bread in one slot or browning (au gratin) other foods must not be attempted.

• Do not use foods with any kind of filling or spread (e.g. butter or jam) in or on this appliance.

• This appliance must only be used with the accessories provided by the manufacturer.

• Any use other than that described in these instructions must be considered improper and may lead to personal injury or material damage.

Operation

General information

• Caution: The operating lever locks down only when the plug is inserted.
• Do not use slices which are too thick or too big, as they may become stuck in the toaster. Bagel halves of up to 25 mm can be toasted.
• In case of problems or malfunctions during use, and before cleaning, always remove the plug from the wall socket.
• To remove a slice caught in the slot, use a blunt wooden implement (e.g. a brush handle). Never touch the metal heating elements.

Before using for the first time

• Clean the toaster thoroughly (see Cleaning and care).
• Switch on the toaster without any bread inserted and go through at least five toasting cycles at the maximum temperature setting.
• Allow the toaster to cool down between cycles.
• When switching on the appliance for the first time, the toaster may emit a slight smell and a little smoke, which will disappear after a short while. For that

reason, adequate ventilation should be ensured by opening windows or balcony doors.

Automatic switch-off

This appliance comes with an automatic switch-off feature. If a bread slice should become stuck and cannot be ejected after the toasting cycle is complete, the toaster will automatically switch off. Should this occur, disconnect the appliance from the mains and remove the bread slice as described in the section General information.

Adjusting the degree of browning

• The desired degree of browning can be varied by turning the adjustable browning control knob.
  Light: turn the control knob anti-clockwise.
  Dark: turn the control knob clockwise.
• In the case of sliced bread specifically intended for toasting, we recommend setting the browning control to position 4.

Hint:

Model 2512/9267:

To achieve even browning when toasting only two toast slices, both toast slots should be used, with the browning control set further to the left.

Operation

- Insert the plug into the wall socket.

• After adjusting the browning control, insert the bread into the toast slot and press the operating lever down.

- The indicator light on the eject button ≈ comes on.

- Once the desired degree of browning is reached, the toaster switches off automatically and the slices are ejected. The indicator light goes out.

- To achieve even browning when toasting several slices, allow around 30 seconds between toasting cycles.

Bagel function

- The bagel function is useful for toasting the sliced bagel's cut-open area while the other side is heated.

- Place the sliced bagels with the open area facing outwards in the toaster. Start the normal toasting action and then activate the bagel function in addition. This function is shown by the indicator light.

Defrost function

- The defrost function may be used in addition to the normal action when toasting deep-frozen bread. This will extend the toasting process.

- Simply press the defrost button after activating the regular toasting function. This function is shown by the indicator lamp.

Warm-up function

- The warm-up function is suitable for re-heating bread which has already been toasted. Caution: Do not warm up buttered bread.

- After activating the toasting function, press the warm-up button in addition. This function is shown by the indicator lamp.

Interrupting the toasting cycle

- If you want to interrupt the toasting cycle, press the eject button

- The toaster will switch off and the slices are ejected. The indicator light goes out.

Warming up rolls, buns etc.

- To warm up buns, rolls or other bakery items, push the slide control operating lever for the warming top all the way down to raise the warming top.

- Place the items to be warmed up on the top, adjust the browning control to a medium setting and then push down the operating lever to switch on the toaster.

- Once the browning cycle is complete and the appliance has automatically switched off, turn the roll or bread over and repeat the cycle.

- After use, return the warming top to its rest position by pushing the slide control back up.

- Do not place the items directly on the toast slot.

Cleaning and care

General

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• To avoid the risk of electric shock, do not clean the appliance with liquids or immerse it.
• Do not use abrasives or harsh cleaning solutions.
• The exterior housing may be wiped with a dry or slightly damp, lint-free cloth.

Crumb tray

- During use, any bread crumbs falling down are collected in the crumb tray. It must be frequently emptied. To empty the tray, push it in briefly before pulling it out. Empty the tray and replace it.

Power cord storage

Unwind the power cord completely before operation and make sure it is kept well away from the appliance.

Allow for a sufficient cooling-down period before winding up the power cord after use.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials

which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
