USER MANUAL Style UNOLD

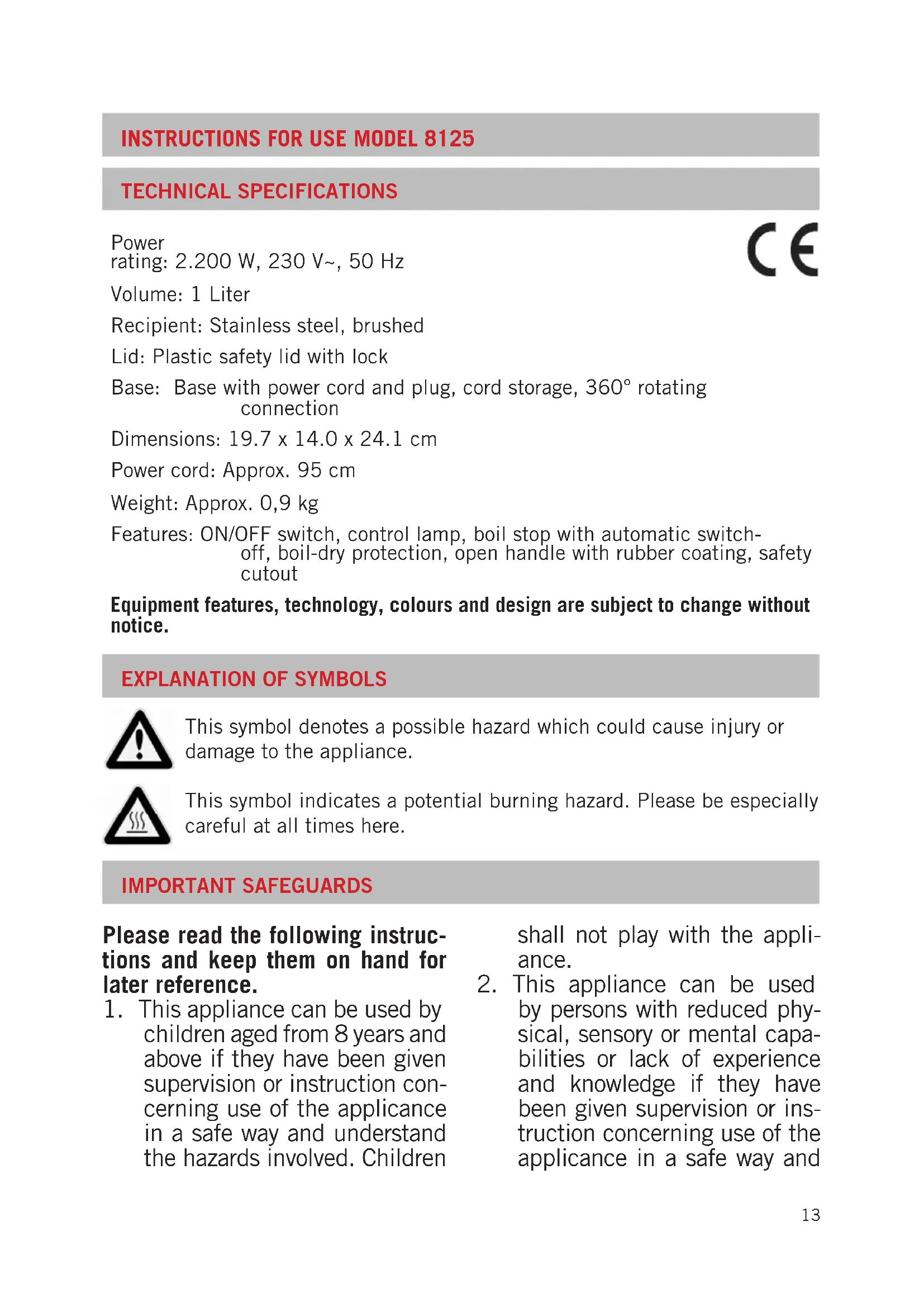

IMPORTANT SAFEGUARDS TECHNICAL SPECIFICATIONS Please read the following instruc- tions and keep them on hand for later reference.

1. This appliance can be used by

children aged from 8 years and above if they have been given supervision or instruction con

cerning use of the applicance in a safe way and understand the hazards involved. Children shall not play with the appli

2. This appliance can be used

by persons with reduced phy

sical, sensory or mental capa- bilities or lack of experience and knowledge if they have been given supervision or ins

truction concerning use of the applicance in a safe way and

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance. This symbol indicates a potential burning hazard. Please be especially careful at all times here.14 understand the hazards invol- ved.

3. Children shall not play with

the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and super

4. Children of less than 3 years

should be kept away unless continuously supervised.

5. Children aged from 3 years

and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

6. CAUTION – Some parts of

this product can become very hot and cause burns. Particu

lar attention has to be given where children and vulnerable people are present.

7. Children shall not play with

8. Keep the appliance and its

cord out of the reach of child

ren aged less than 8 years

9. Connect appliance only to an

AC power supply with voltage corresponding to the voltage on the rating plate.

10. Do not operate this appli

ance with an external timer or remote control system.

11. Never immerse the appliance

or the power cord in water or other liquids.

12. The base should never come

into contact with water or other liquids. In case this ever happens, it must be completely dry before opera

ting the appliance again.

13. Do not clean the electric

kettle or the base in a dish- washer.

14. Never touch the appliance or

power cord with wet hands.

15. This appliance is intended

to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by client in hotels, motels and other working environ

ments; bed and breakfast type envi

16. For safety reasons, never

place the appliance on hot surfaces, a metal tray or a wet surface.

17. Do not place the appliance or

power cord near open flames during operation.

18. Always use the electric kettle

on a level, uncluttered and heat-resistant surface.

19. Make sure that the power

cord does not hang over the edge of the countertop or table, since this can cause accidents, for example if small children pull on the cord.

20. Route the power cord so that

there is no possibility of the cord being pulled or tripped over.

21. Never wrap the power cord

around the appliance.

heating water. Do not use it to heat milk or other liquids, since they will boil over when heated.

24. Never heat objects such as

cans or bottles in the elec

25. Make sure that the lid of the

appliance is always comple

tely closed, to prevent inju- ries from hot splashing water.

26. Do not open the lid as long as

the water is boiling, to pre

vent injuries from hot splas- hing water.

27. Never fill the appliance with

more than 1.0liters of water, to prevent the water from boiling over.

ance if there is no water in the kettle.

29. Make sure that all users,

especially children, are aware of the danger of injury from emerging steam or hot splashing water – danger of burns!

30. Do not move the appliance

as long as it is in operation, to prevent burns from splas

31. The electric kettle features

boil dry protection, which means the appliance shuts off automatically if the hea

ting element becomes too hot. Allow the appliance to cool about 15 minutes. Then fill the electric kettle with cold water. The boil dry pro

tection is deactivated and the appliance is ready for operation again.

32. Do not use the appliance

with accessories of other manufacturers or brands, to prevent damage.

33. Unplug the appliance from

the power supply after use and prior to cleaning. Never leave the appliance unatten

ded when it is plugged in to the power supply.

34. Check the appliance, the plug

and the power cord regularly for wear or damage. In case of damage to the power cord or other parts, please send the appliance or the base for inspection and repair to our after sales service. Unautho

rized repairs can result in serious risks to the user and void the warranty.

35. If the supply cord is dama

ged, it must be replaced by the manufacturer or its ser

vice agent or a similarly qua- lified person in order to avoid a hazard. CAUTION: The appliance becomes very hot during operation! Do not open the lid while the water is boiling. If the kettle is overfilled, boiling water can splash out. Never open the housing of the appliance. This can result in electric shock.16 BEFORE USING THE APPLIANCE THE FIRST TIME

1. Remove all packaging materials

and any transport safety devices.

2. Clean all parts with a damp

cloth, as described in the chapter “Cleaning and care”.

3. Check to make sure that the appli-

4. Connect the base via the power

cord to the power supply (230 V~, 50 Hz).

5. Remove the kettle from the base.

7. Add clear, cold water to the “Max”

8. Close the lid by pressing lightly.

9. Place the kettle level on the base.

10. Switch on the kettle by pressing

the ON/OFF switch downwards into the „I“-position. The kettle cannot be switched on if it is not properly seated on the base.

11. When the water boils, the appli-

ance automatically shuts off.

12. For hygienic reasons, please dis-

card the water from the first boi- ling. The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties. OPERATION

1. Remove the kettle from the base.

3. Fill the kettle with at least

0.5 liters of water. Do not fill the

kettle with more than 1.0 liters of water (“Max” marking).

4. Close the lid by pressing lightly.

5. Place the kettle level on the base.

6. Switch on the kettle by pressing

the ON/OFF switch downwards into the „I“-position. The kettle cannot be switched on if it is not properly seated on the base.

7. When the water boils, the appli-

ance automatically shuts off.

8. Whenever you take the kettle off

the base, the appliance is auto- matically switched off, even if the water is not yet boiling.

9. Of course you may also push the

switch into the „O“-position to interrupt heating.

10. If you want to boil more water, ple-

ase allow the appliance to cool off for a few minutes. Boiling water can cause scal- ding. Therefore, please handle the appliance with care when it contains hot water.

11. The appliance features boil dry

protection. When operated wit- hout water or with excessive sca- ling, the appliance shuts off auto- matically. If this happens, please allow the appliance to cool off briefly before filling it with water again or descale the appliance as described in the chapter “Desca- ling”.Allow the appliance to cool before cleaning it. Before cleaning, always turn off the appliance and unplug it from the power supply.

1. Do not immerse the base, power

cord or kettle in water or other liquids or wash them in the dish- washer.

2. Wipe off the base and the kettle

with a damp cloth and a little dishwashing detergent. Do not use any abrasive scouring agents, steel wool, metal objects, hot cleaning agents or disinfectants, since they can damage the appliance.

3. The appliance must be completely

dry on the outside before you use it again.

1. To keep the appliance operating

efficiently and to prolong its ser- vice life, it should be descaled regularly, depending on the hard- ness of your water.

2. The lime scale filter has to be

cleaned regularly. Please empty the kettle completely and allow it to cool off. Carefully remove the filter from the pour spout. Clean the filter carefully with a soft brush under running water. You can also place the filter in a bowl with a descaling solution. Then rinse the filter with clear water and insert it in the pour spout.

3. Use off-the-shelf descaling pro-

ducts for electronic kettles and comply with the manufacturer’s instructions. To descale, fill the kettle half full, maximum, other- wise the liquid can boil over and can cause severe injuries.

4. Heat the liquid (do not boil!) and

allow it to sit for some time in the electronic kettle.

5. Pour the descaling solution out of

6. Then fill it with fresh water and

bring to a boil. Pour this water out as well. Then rinse out the kettle at least twice with clean water.18 GUARANTEE CONDITIONS

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment. We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the re- sponsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs only in Germany and Austria. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty. The instruction booklet is also available for download: www.unold.de19 Alimentation: 2200 W, 230 V~, 50 Hz Capacité: 1 litre Conteneur: Acier inox, brossé Couvercle: Couvercle de sécurité en plastique avec verrou Base: Base avec cordon et prise, rangement du cordon, connecteur rotatif 360° Dimensions: 19,7 x 14,0 x 24,1 cm Cordon d‘alimentation: Env. 95 cm Poids: Env. 0,9 kg Caractéristiques: Touche MARCHE/ARRET, lampe de contrôle, arrêt automatique de l’ébullition, mise hors courant automatique, poignée gommée ouverte, protection anti-bouillonnement à sec Modifications et erreurs des caractéristiques de l‘équipement, de la technique, des couleurs et du design réservées.
