USER MANUAL HMDA100 SONY

Trinitron Color Computer Display

Operating Instructions US
Mode d'emploi FR
Manual de instrucciones ES

HMD-A100

HMD-A200

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. __ Serial No. ____

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p Cord Type SVT or SJT, minimum 3 18 AWG Length Maximum 15 feet Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

If you have any questions about this product, you may call:
Sony Customer Information Center
1-800-222-SONY (7669)
or write to:
Sony Customer Information Center
1 Sony Drive, Mail Drop #T1-11, Park Ridge, NJ 07656

Declaration of Conformity

Trade Name: SONY

Model No.: HMD-A100, A200

Responsible Party: Sony Electronics Inc.

Address: 1 Sony Drive, Park Ridge, NJ 07656 USA

Telephone No.: 201-930-6972

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Table of Contents

Precautions 4

Identifying parts and controls 5

Setup. .6

Step 1: Connect your monitor to your computer 6

Step 2: Connect the power cord. 6

Step 3: Turn on the monitor and computer 6

Connecting Universal Serial Bus (USB) compliant peripherals . . . . 7

Selecting the on-screen menu language

LANGUAGE/INFORMATION) 8

Customizing Your Monitor .8

Navigating the menu. 8

Adjusting the brightness and contrast (BRIGHTNESS/CONTRAST) 10

Adjusting the horizontal size or centering of the picture (H-SIZE/CENTER) 10

Adjusting the vertical size or centering of the picture (V-SIZE/CENTER) 10

Adjusting the curvature of the picture's sides (PIN/PIN BALANCE). 10

Adjusting the angle of the picture's sides (KEY/KEY BALANCE) 11

Adjusting the picture's rotation (ROTATION) 11

Enlarging or reducing the picture (ZOOM) 11
Adjusting the color of the picture (COLOR) 11

Additional settings (DEGAUSS/CANCEL MOIRE) 12

Resetting the adjustments (RESET). 12

• Trinitron is a registered trademark of Sony Corporation.
  Macintosh is a trademark licensed to Apple Computer, Inc., registered in the U.S.A. and other countries.
• Windows and MS-DOS are registered trademarks of Microsoft Corporation in the United States and other countries.
• IBM PC/AT and VGA are registered trademarks of IBM Corporation of the U.S.A.
• VESA and DDC ^11 are trademarks of the Video Electronics Standard Association.
• ENERGY STAR is a U.S. registered mark.
• All other product names mentioned herein may be the trademarks or registered trademarks of their respective companies.
• Furthermore, " " and " " are not mentioned in each case in this manual.

Technical Features 13

Preset and user modes. 13

Power saving function. 13

Troubleshooting. 13

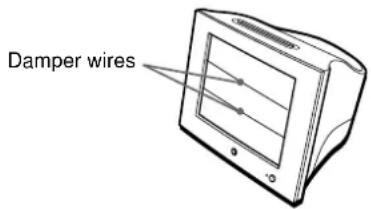

If thin lines appear on your screen (damper wires). 13

On-screen messages 13

Trouble symptoms and remedies 14

Self-diagnosis function 16

Specifications. 16

Appendix.

1. Preset mode timing table

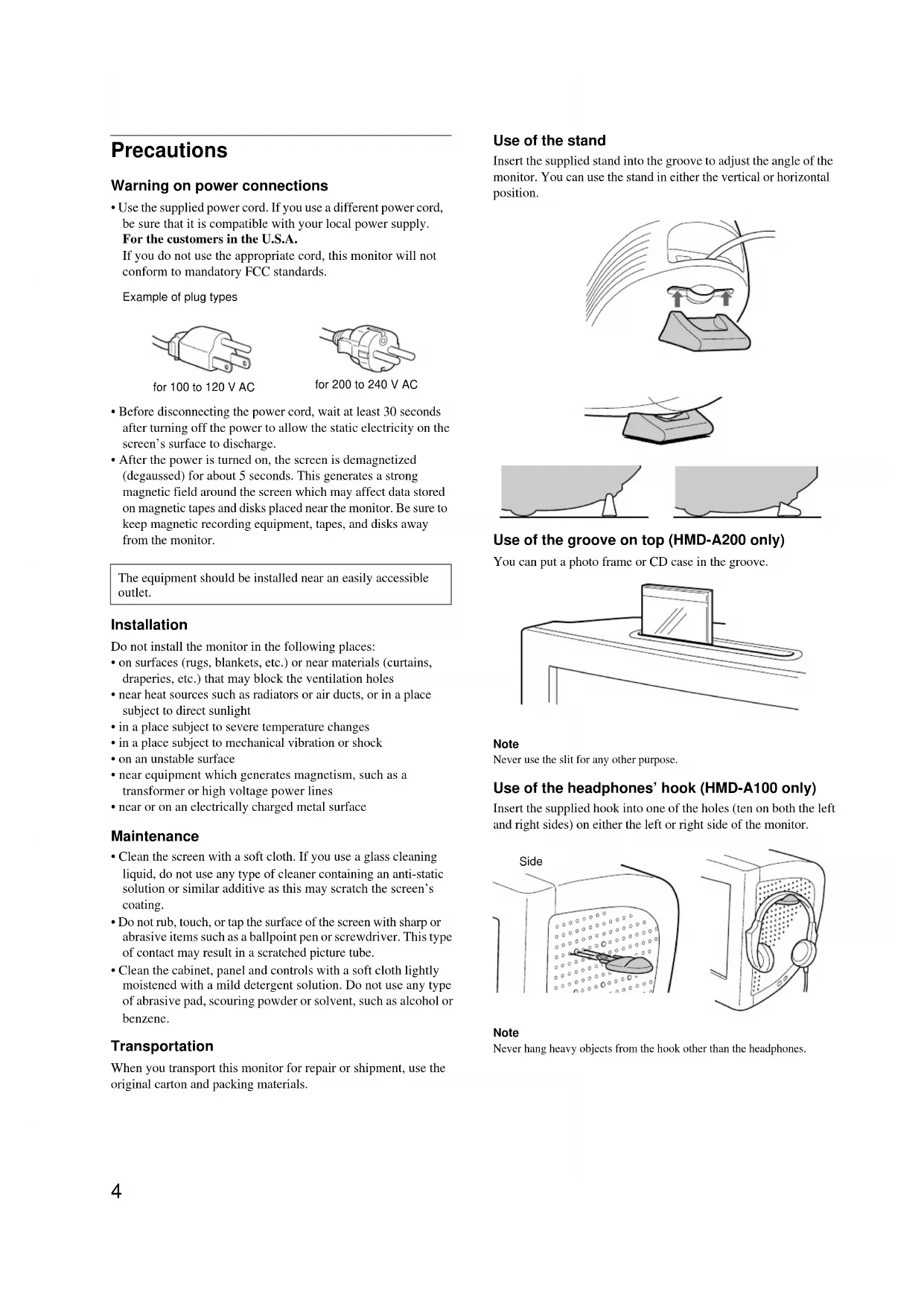

Precautions

Warning on power connections

• Use the supplied power cord. If you use a different power cord, be sure that it is compatible with your local power supply.

For the customers in the U.S.A.

If you do not use the appropriate cord, this monitor will not conform to mandatory FCC standards.

Example of plug types

for 100 to 120VAC

for 200 to 240 V AC

• Before disconnecting the power cord, wait at least 30 seconds after turning off the power to allow the static electricity on the screen's surface to discharge.
  After the power is turned on, the screen is demagnetized (degaussed) for about 5 seconds. This generates a strong magnetic field around the screen which may affect data stored on magnetic tapes and disks placed near the monitor. Be sure to keep magnetic recording equipment, tapes, and disks away from the monitor.

The equipment should be installed near an easily accessible outlet.

Installation

Do not install the monitor in the following places:

• on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies, etc.) that may block the ventilation holes
• near heat sources such as radiators or air ducts, or in a place subject to direct sunlight
• in a place subject to severe temperature changes
• in a place subject to mechanical vibration or shock
  on an unstable surface
• near equipment which generates magnetism, such as a transformer or high voltage power lines
• near or on an electrically charged metal surface

Maintenance

• Clean the screen with a soft cloth. If you use a glass cleaning liquid, do not use any type of cleaner containing an anti-static solution or similar additive as this may scratch the screen's coating.
• Do not rub, touch, or tap the surface of the screen with sharp or abrasive items such as a ballpoint pen or screwdriver. This type of contact may result in a scratched picture tube.
• Clean the cabinet, panel and controls with a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent, such as alcohol or benzene.

Transportation

When you transport this monitor for repair or shipment, use the original carton and packing materials.

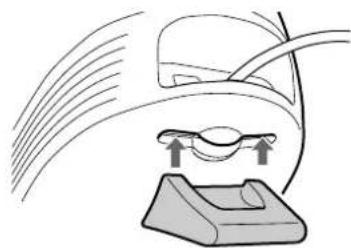

Use of the stand

Insert the supplied stand into the groove to adjust the angle of the monitor. You can use the stand in either the vertical or horizontal position.

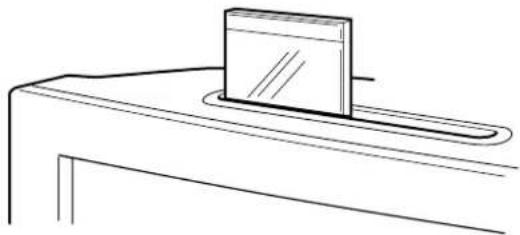

Use of the groove on top (HMD-A200 only)

You can put a photo frame or CD case in the groove.

Note

Never use the slit for any other purpose.

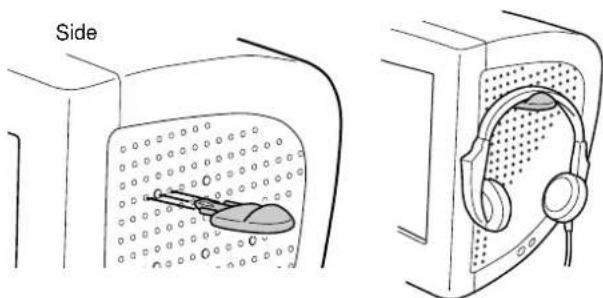

Use of the headphones' hook (HMD-A100 only)

Insert the supplied hook into one of the holes (ten on both the left and right sides) on either the left or right side of the monitor.

Note

Never hang heavy objects from the hook other than the headphones.

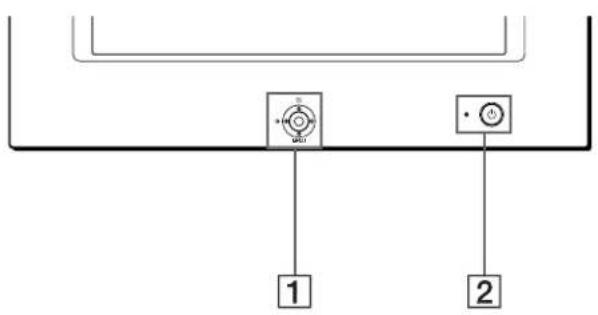

Identifying parts and controls

See the pages in parentheses for further details. (Model HMD-A200 is used for illustration purposes.)

Control button (page 9)

The control button is used to display the menu and make adjustments to the monitor, including brightness and contrast adjustments.

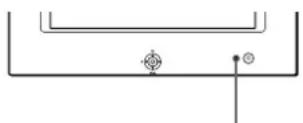

2 (power) switch and indicator (pages 6, 13, 16)

This button turns the monitor on and off. The power indicator lights up in green when the monitor is turned on, and either flashes in green and orange, or lights up in orange when the monitor is in power saving mode.

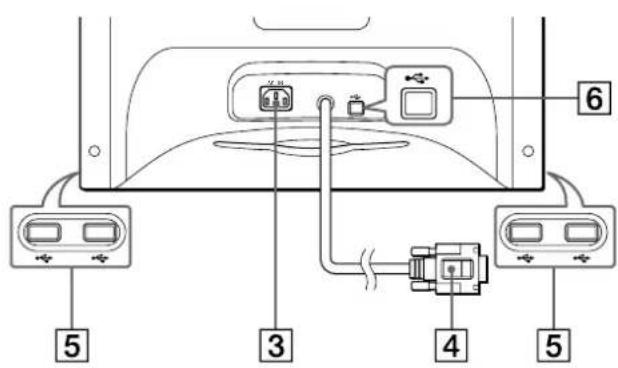

AC IN connector (page 6)

This connector provides AC power to the monitor.

RearFront

4 Video input connector (HD15) (page 6)

This connector inputs RGB video signals (0.700 Vp-p, positive) and sync signals.

US

Pin No. Signal
1	Red
2 Green
3	B	l u e
4 ID (Ground)
5 DDC Ground*
6 Red Ground
7 Green Ground
8 Blue Ground
9 DDC + 5V*
10 Ground
11 ID (Ground)
12 Bi-Directional Data (SDA)*
13 H. Sync
14 V. Sync
15 Data Clock (SCL)*

• DDC (Display Data Channel) is a standard of VESA.

5 USB (universal serial bus) downstream connectors (page 7)

Use these connectors to link USB peripheral devices to the monitor.

6 USB (universal serial bus) upstream connector (page 7)

Use this connector to link the monitor to a USB compliant computer.

Setup

Before using your monitor, check that the following accessories are included in your carton:

Power cord (1)
USB cable (1)
- Monitor stand (1)
- Hook (1) (HMD-A100 only)
Warranty card (1)
Notes on cleaning the screen's surface (1)
This instruction manual (1)

Step 1:Connect your monitor to your computer

Turn off the monitor and computer before connecting.

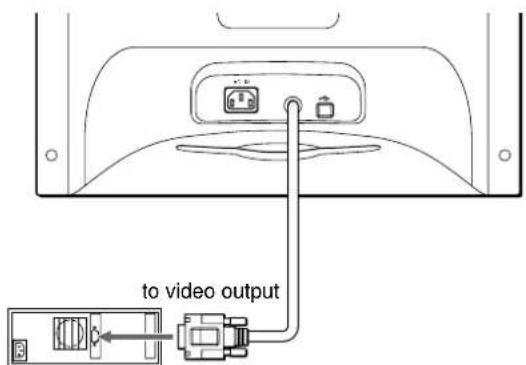

- Connecting to an IBM PC/AT or compatible computer

IBM PC/AT or compatible computer

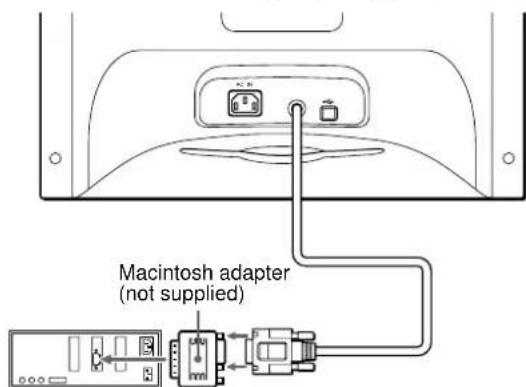

- Connecting to a Macintosh or compatible computer

You will need a Macintosh adapter (not supplied).

Macintosh or to video compatible computer output

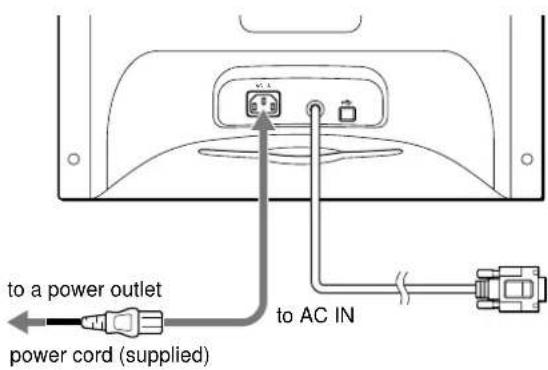

Step 2:Connect the power cord

With the monitor and computer switched off, first connect the power cord to the monitor, then connect it to a power outlet.

Step 3:Turn on the monitor and computer

First turn on the monitor, then turn on the computer.

The installation of your monitor is complete. If necessary, use the monitor's controls to adjust the picture.

If no picture appears on your screen

• Check that the monitor is correctly connected to the computer.
• If NO INPUT SIGNAL appears on the screen, confirm that your computer's graphic board is completely seated in the correct bus slot.

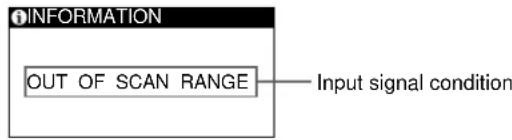

• If you are replacing an old monitor with this model and OUT OF SCAN RANGE appears on the screen, reconnect the old monitor. Then adjust the computer's graphic board so that the horizontal frequency is between 30 - 70kHz , and the vertical frequency is between 48 - 120Hz .

For more information about the on-screen messages, see "Trouble symptoms and remedies" on page 14.

Setup on various OS (Operating System)

This monitor complies with the "DDC" Plug & Play standard and automatically detects all the monitor's information. No specific driver needs to be installed to the computer.

If you connect the monitor to your PC, and then boot your PC for the first time, the setup Wizard may be displayed on the screen. Click on "Next" several times according to the instructions from the Wizard until the Plug & Play Monitor is automatically selected so that you can use this monitor.

For customers using Windows NT4.0

Monitor setup in Windows NT4.0 does not use the display driver. Refer to the Windows NT4.0 instruction manual for further details on adjusting the resolution, refresh rate, and number of colors.

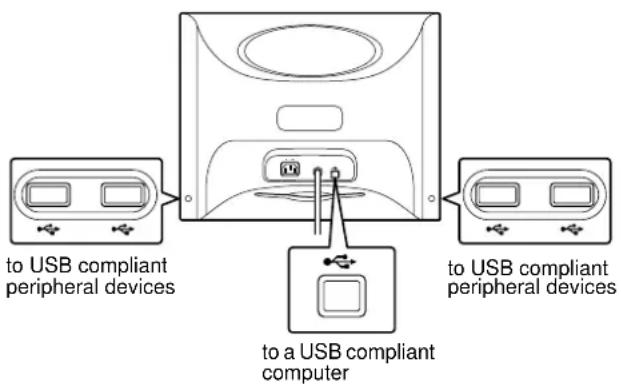

Connecting Universal Serial Bus (USB) compliant peripherals

Your monitor has one upstream USB connector (on the rear panel) and four downstream USB connectors (two on both the left and right sides). They provide a fast and easy way to connect USB compliant peripheral devices (such as keyboards, mice, printers and scanners) to your computer using a standardized USB cable. To use your monitor as a hub for your peripheral devices, connect the USBs as illustrated below.

1 Turn on the monitor and computer.

2 Connect your computer to the square upstream + connector using the supplied USB cable.

For customers using Windows

If a message appears on your screen, follow the on-screen instructions and select Generic USB Hub as the default setting.

3 Connect your USB compliant peripheral devices to the rectangular downstream USB connectors.

Notes

• Not all computers and/or operating systems support USB configurations. Check your computer's instruction manual to see if you can connect USB devices.
• In most cases, USB driver software needs to be installed on the host computer. Refer to the peripheral device's instruction manual for further details.
• The monitor functions as a USB hub as long as the monitor is either "on" or in power saving mode.
• If you connect a keyboard or mouse to the USB connectors and then boot your computer for the first time, the peripheral devices may not function. First connect the keyboard and mouse directly to the computer and set up the USB compliant devices. Then connect them to this monitor.
• Do not lean on the monitor when plugging in the USB cables. The monitor may suddenly shift and cause injury.

Selecting the on-screen menu language (LANGUAGE/INFORMATION)

English, French, German, Italian, Spanish, Russian, and Japanese versions of the on-screen menus are available. The default setting is English.

1 Press the center of the control button.

See page 9 for more information on using the control button.

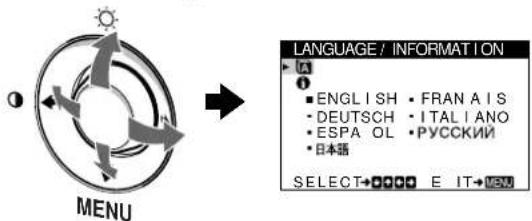

2 Move the control button to highlight LANGUAGE/ INFORMATION and press the center of the control button again.

3 Move the control button / to select (LANGUAGE), and press the center of the control button. Then move the control button / to select a language.

• ENGLISH
  FRANCAIS: French
• DEUTSCH: German
  ITALIANO:Italian
• ESPANOL: Spanish
  :RVSGKNU
  ：中

To close the menu

Press the center of the control button once to return to the main MENU, and twice to return to normal viewing. If no buttons are pressed, the menu closes automatically after about 30 seconds.

To reset to English

See "Resetting the adjustments (RESET)" on page 12.

Customizing Your Monitor

You can make numerous adjustments to your monitor using the on-screen menu.

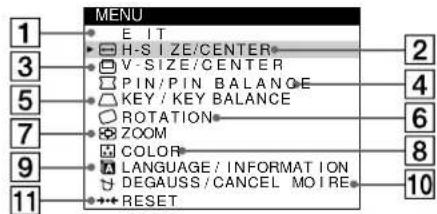

Navigating the menu

Press the center of the control button to display the main MENU on your screen. See page 9 for more information on using the control button.

Use the control button to select one of the following menus.

1 EXIT

Select EXIT to close the menu.

2 H-SIZE/CENTER (page 10)

Select the H-SIZE/CENTER menu to adjust the picture's horizontal size and centering.

3 V-SIZE/CENTER (page 10)

Select the V-SIZE/CENTER menu to adjust the picture's vertical size and centering.

4 PIN/PIN BALANCE (page 10)

Select the PIN/PIN BALANCE menu to adjust the curvature picture's sides.

5 KEY/KEYBALANCE

(page 11)

Select the KEY/KEY BALANCE menu to adjust the angle of the picture's sides.

ROTATION (page 11)

Select the ROTATION menu to adjust the picture's rotation.

7 ZOOM (page 11)

Select the ZOOM menu to enlarge or reduce the picture.

8 COLOR (page 11)

Select the COLOR menu to adjust the picture's color temperature. You can use this to match the monitor's colors to a printed picture's colors.

LANGUAGE/INFORMATION (page 8, 15)

Select the LANGUAGE/ INFORMATION menu to choose the on-screen menu's language and display this monitor's information box.

10 DEGAUSS/CANCEL MOIRE (page 12)

Select the DEGAUSS/CANCEL MOIRE menu to degauss the screen and cancel the moir.

11 RESET (page 12)

Select the RESET menu to reset the adjustments.

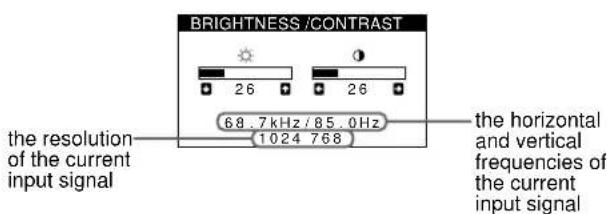

Displaying the current input signal

The horizontal and vertical frequencies of the current input signal are displayed in the BRIGHTNESS/CONTRAST menu. If the signal matches one of this monitor's factory preset modes, the resolution is also displayed.

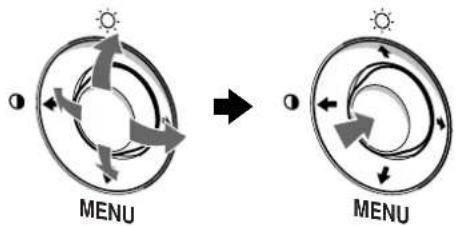

Using the control button

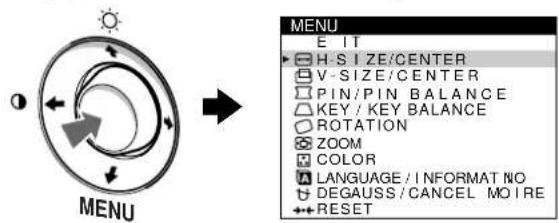

1 Display the main MENU.

Press the center of the control button to display the main MENU on your screen.

2 Select the menu you want to adjust.

Highlight the desired menu by moving the control button up () , down () , and left () or right () to move sideways.

3 Adjust the menu.

Move the control button left () or right () to make the adjustment.

4 Close the menu.

Press the center of the control button once to return to the main MENU, and twice to return to normal viewing. If no buttons are pressed, the menu closes automatically after about 30 seconds.

Resetting the adjustments

You can reset the adjustments using the RESET menu. See page 12 for more information on resetting the adjustments.

Adjusting the brightness and contrast (BRIGHTNESS/CONTRAST)

Brightness and contrast adjustments are made using a separate BRIGHTNESS/CONTRAST menu.

These settings are stored in memory for all input signals.

1 Move the control button in any direction.

The BRIGHTNESS/CONTRAST menu appears on the screen.

2 Move the control button / to adjust the brightness (a) and / to adjust the contrast (b).

The menu automatically disappears after about 3 seconds.

Adjusting the horizontal size or centering of the picture (H-SIZE/CENTER)

These settings are stored in memory for the current input signal.

1 Press the center of the control button.
The main MENU appears on the screen.
2 Move the control button to highlight + SIZE/ CENTER, and press the center of the control button again.
The H-SIZE/CENTER menu appears on the screen.
3 First move the control button / to select the desired adjustment item. Then move the control button / to make the adjustment.

Select To
H-SIZE	adjust the horizontal size
H-CENTER	adjust the horizontal centering

Adjusting the vertical size or centering of the picture (V-SIZE/CENTER)

These settings are stored in memory for the current input signal.

1 Press the center of the control button.
The main MENU appears on the screen.
2 Move the control button to highlight -SIZE/ CENTER, and press the center of the control button again.
The V-SIZE/CENTER menu appears on the screen.
3 First move the control button / to select the desired adjustment item. Then move the control button / to make the adjustment.

Select To
V-SIZE	adjust the vertical size
V-CENTER	adjust the vertical centering

Adjusting the curvature of the picture's sides (PIN/PIN BALANCE)

These settings are stored in memory for the current input signal.

1 Press the center of the control button.
The main MENU appears on the screen.
2 Move the control button to highlight PIN/PIN BALANCE, and press the center of the control button again.
The PIN/PIN BALANCE menu appears on the screen.
3 First move the control button / to select the desired adjustment item. Then move the control button / to make the adjustment.

Select To
PIN	expand or contract the picture sides
PIN BALANCE	shift the picture sides to the left or right

Adjusting the angle of the picture's sides (KEY/KEY BALANCE)

These settings are stored in memory for the current input signal.

1 Press the center of the control button.
The main MENU appears on the screen.
2 Move the control button to highlight/KEY/KEY BALANCE, and press the center of the control button again.
The KEY/KEY BALANCE menu appears on the screen.
3 First move the control button / to select the desired adjustment item. Then move the control button / to make the adjustment.

Select To
☐ KEY	adjust the picture width at the top of the screen
☐ KEY BALANCE	shift the picture to the left or right at the top of the screen

Adjusting the picture's rotation (ROTATION)

This setting is stored in memory for all input signals.

1 Press the center of the control button.
The main MENU appears on the screen.
2 Move the control button to highlight BOTATION, and press the center of the control button again.
The ROTATION menu appears on the screen.
3 Move the control button to rotate the picture.

Enlarging or reducing the picture (ZOOM)

This setting is stored in memory for the current input signal.

1 Press the center of the control button.
The main MENU appears on the screen.
2 Move the control button to highlight zoom and press the center of the control button again.
The ZOOM menu appears on the screen.
3 Move the control button / to enlarge or reduce the picture.

Note

Adjustment stops when either the horizontal or vertical size reaches its maximum or minimum value.

Adjusting the color of the picture (COLOR)

The COLOR settings allow you to adjust the picture's color temperature by changing the color level of the white color field. Colors appear reddish if the temperature is low, and bluish if the temperature is high. This adjustment is useful for matching the monitor's colors to a printed picture's colors. This setting is stored in memory for all input signals.

1 Press the center of the control button.

The main MENU appears on the screen.

2 Move the control button to highlight COLOR and press the center of the control button again.

The COLOR menu appears on the screen.

3 Move the control button to select a color temperature.

The preset color temperatures are 5000K, 6500K, and 9300K. Since the default setting is 9300K, the whites will change from a bluish hue to a reddish hue as the temperature is lowered to 6500K and 5000K.

4 If necessary, fine tune the color temperature.

First move the control button / to select USER. Then move the control button / button to select R (red), G (green), or B (blue) and move the control button / to make the adjustment.

If you fine tune the color temperature, the new color settings are stored in memory and recalled whenever you select USER.

Additional settings (DEGAUSS/CANCEL MOIRE)

You can manually degauss (demagnetize) the screen, and cancel the moir.

1 Press the center of the control button.

The main MENU appears on the screen.

2 Move the control button / to highlight DEGAUSS/CANCEL MOIRE and press the center of the control button again.

The DEGAUSS/CANCEL MOIRE menu appears on the screen.

3 Move the control button / to select the desired adjustment item.

Adjust the selected item according to the following instructions.

Degaussing the screen

The monitor is automatically demagnetized when the power is turned on.

To manually degauss the monitor, first move the control button / to select (DEGAUSS). Then move the control button.

The screen is degaussed for about 5 seconds. If a second degauss cycle is needed, allow a minimum interval of 20 minutes for the best result.

Cancelling the moir*

If elliptical or wavy patterns appear on the screen, adjust the moiré cancellation level.

To adjust the amount of moiré cancellation, first move the control button / to select CANCEL MOIRE). Then move the control button / until the moiré effect is at a minimum.

• Moire is a type of natural interference which produces soft, wavy lines on your screen. It may appear due to interference between the pattern of the picture on the screen and the phosphor pitch pattern of the monitor.

Example of moir

Resetting the adjustments (RESET)

This monitor has the following two reset methods. Use the RESET menu to reset the adjustments.

1 Press the center of the control button.

The main MENU appears on the screen.

2 Move the control button / to highlight RESET and press the center to the control button again.

The RESET menu appears on the screen.

Reset the settings according to the following instructions.

Resetting all of the adjustment data for the current input signal (MODE)

Move the control button

The MODE item is selected. All of the adjustment data for the current input signal is reset.

Note that the following items are not reset by this method.

• on-screen menu language (page 8)
• picture's rotation (page 11)

Resetting all of the adjustment data to factory preset levels (ALL)

Move the control button

The ALL item is selected. All of the adjustment data for the current input signal is reset. All of the adjustment data (except for the USER settings in the COLOR menu) is reset to the factory preset levels.

Note

The monitor's buttons will not operate for about 5 seconds when ALL is selected.

Technical Features

Preset and user modes

When the monitor receives an input signal, it automatically matches the signal to one of the factory preset modes stored in the monitor's memory to provide a high quality picture at the center of the screen. (See Appendix for a list of the factory preset modes.) For input signals that do not match one of the factory preset modes, the digital Multiscan technology of this monitor ensures that a clear picture appears on the screen for any timing in the monitor's frequency range (horizontal: 30 - 70kHz , vertical: 48 - 120Hz ). If the picture is adjusted, the adjustment data is stored as a user mode and automatically recalled whenever the same input signal is received.

Note for Windows users

For Windows users, check your video board manual or the utility program which comes with your graphic board and select the highest available refresh rate to maximize monitor performance.

Power saving function

This monitor meets the power-saving guidelines set by VESA, ENERGY STAR, and NUTEK. If no signal is received by the monitor from the connected computer, the monitor will automatically reduce power consumption as shown below.

Power mode Power consumption*		( power) indicator
normal operation	≤ 115 W green
active off**	≤ 5 W orange***
power off 0 W off

• Figures reflect power consumption when no USB compatible peripherals are connected to the monitor.
  When your computer enters the "active off" mode, the input signal is cut and NO INPUT SIGNAL appears on the screen. After 20 seconds, the monitor enters the power saving mode.
  * If the horizontal or vertical sync signal is received by the monitor, the power indicator may alternately blink green and orange.

Troubleshooting

Before contacting technical support, refer to this section.

If thin lines appear on your screen (damper wires)

The lines you are experiencing on your screen are normal for the Trinitron monitor and are not a malfunction. These are shadows from the damper wires used to stabilize the aperture grille and are most noticeable when the screen's background is light (usually white). The aperture grille is the essential element that makes a Trinitron picture tube unique by allowing more light to reach the screen, resulting in a brighter, more detailed picture.

On-screen messages

If there is something wrong with the input signal, one of the following messages appears on the screen. To solve the problem, see "Trouble symptoms and remedies" on page 14.

The input signal condition

OUT OF SCAN RANGE

indicates that the input signal is not supported by the monitor's specifications.

NO INPUT SIGNAL

indicates that no signal is being input to the monitor.

Trouble symptoms and remedies

If the problem is caused by the connected computer or other equipment, please refer to the connected equipment's instruction manual. Use the self-diagnosis function (page 16) if the following recommendations do not resolve the problem.

Symptom Check these items
No pictureIf the (power) indicator is not lit	·Check that the power cord is properly connected.·Check that the (power) switch is in the "on" position.
If the NO INPUT SIGNAL message appears on the screen, or if the (power) indicator is either orange or alternating between green and orange	·Check that the video signal cable is properly connected and all plugs are firmly seated in their sockets (page 6).·Check that the HD15 video input connector's pins are not bent or pushed in.■Problems caused by the connected computer or other equipment·The computer is in power saving mode. Try pressing any key on the computer keyboard.·Check that the computer's power is "on."·Check that the graphic board is completely seated in the proper bus slot.
If the OUT OF SCAN RANGE message appears on the screen	■Problems caused by the connected computer or other equipment·Check that the video frequency range is within that specified for the monitor. If you replaced an old monitor with this monitor, reconnect the old monitor and adjust the frequency range to the following.Horizontal: 30 - 70 kHzVertical: 48 - 120 Hz
If no message is displayed and the (power) indicator is green or flashing orange	·Use the Self-diagnosis function (page 16).
If using a Macintosh system · Check that the Macintosh adapter (not supplied) and the video signal cable are properly connected (page 6).
Picture flickers, bounces, oscillates, or is scrambled	·Isolate and eliminate any potential sources of electric or magnetic fields such as other monitors, laser printers, electric fans, fluorescent lighting, or televisions.·Move the monitor away from power lines or place a magnetic shield near the monitor.·Try plugging the monitor into a different AC outlet, preferably on a different circuit.·Try turning the monitor 90° to the left or right.■Problems caused by the connected computer or other equipment·Check your graphics board manual for the proper monitor setting.·Confirm that the graphics mode (VESA, Macintosh 16" Color, etc.) and the frequency of the input signal are supported by this monitor (Appendix). Even if the frequency is within the proper range, some video boards may have a sync pulse that is too narrow for the monitor to sync correctly.·Adjust the computer's refresh rate (vertical frequency) to obtain the best possible picture.
Picture is fuzzy	·Adjust the brightness and contrast (page 10).·Degauss the monitor* (page 12).·Decrease the moirc cancellation effect (page 12).
Picture is ghosting	·Eliminate the use of video cable extensions and/or video switch boxes.·Check that all plugs are firmly seated in their sockets.
Picture is not centered or sized properly	·Adjust the size or centering (page 10). Note that some video modes do not fill the screen to the edges.
Edges of the image are curved	·Adjust the shape of the picture (page 10).
Wavy or elliptical pattern (moire) is visible	·Cancel the moire (page 12). ■Problems caused by the connected computer or other equipment ·Change your desktop pattern.
Color is not uniform	·Degauss the monitor* (page 12). If you place equipment that generates a magnetic field, such as a speaker, near the monitor, or if you change the direction the monitor faces, color may lose uniformity.
White does not look white	·Adjust the color temperature (page 11).
USB peripherals do not function	·Check that the appropriate USB connectors are securely connected (page 7). ·Check that the Ⓞ (power) switch is in the “on” position. ■Problems caused by the connected computer or other equipment ·Check that the power of any self-powered USB compliant peripheral devices is “on.” ·Install the latest version of the device driver on your computer. Contact your device’s manufacturer for information about the appropriate device driver. ·If your USB compliant keyboard or mouse does not function, connect them directly to your computer, reboot your computer, and make any necessary adjustments to the USB settings. Then reconnect the keyboard or mouse to the monitor. ·For customers using Windows 95 1. Right-click on My Computer and select Properties. 2. Click on the Device Manager tab. Scroll down and select Universal Serial Bus Controller. →If Universal Serial Bus Controller does not appear, you need to load a USB supplement disk. Contact your computer’s manufacturer for more information about obtaining a USB supplement disk. 3. Se→lect Generic USB Device from the USB controller list and click on Properties. 4. If there is a check in the box next to “Disable in this hardware profile,” remove the check. 5. Click on Refresh.
A hum is heard right after the power is turned on	·This is the sound of the auto-degauss cycle. When the power is turned on, the monitor is automatically degaussed for 5 seconds.

• If a second degauss cycle is needed, allow a minimum interval of 20 minutes for the best result. A humming noise may be heard, but this is not a malfunction.

Displaying this monitor's name, serial number, and date of manufacture (INFORMATION)

1 Press the center of the control button. The main MENU appears on the screen.

2 Move the control button to highlight LANGUAGE/ INFORMATION and press the center of the control button.

The LANGUAGE/INFORMATION menu appears on the screen.

3 Move the control button / to select (INFORMATION) and press the center of the control button.

This monitor's information box appears on the screen.

Example

If the problem persists, call your authorized Sony dealer and give the following information.

Model name: HMD-A100, HMD-A200
- Serial number
- Name and specifications of your computer and graphics board.

Self-diagnosis function

This monitor is equipped with a self-diagnosis function. If there is a problem with your monitor or computer, the screen will go blank and the (power) indicator will either light up green or flash orange. If the (power) indicator is lit in orange, the computer is in power saving mode. Try pressing any key on the keyboard.

(power) indicator

If the (power) indicator is green

1 Disconnect the video input cable, or turn off the connected computer.
2 Press the (power) button to turn the monitor off and on.
3 Move the control button for 2 seconds before the monitor enters power saving mode.

If all three color bars appear (red, green, blue), the monitor is working properly. Reconnect the video input cables and check the condition of your computer.

If the color bars do not appear, there is a potential monitor failure. Inform your authorized Sony dealer of the monitor's condition.

If the (power) indicator is flashing orange

Press the (power) button to turn the monitor off and on.

If the (power) indicator lights up green, the monitor is working properly.

If the (power) indicator is still flashing, there is a potential monitor failure. Count the number of seconds between orange flashes of the (power) indicator and inform your authorized Sony dealer of the monitor's condition. Be sure to note the model name and serial number of your monitor. Also note the make and model of your computer and video board.

Specifications

HMD-A100

CRT 0.25mm aperture grille pitch

15 inches measured diagonally

90-degree deflection

Viewable image size Approx. 285

215 mm (w/h)

(11^1 / 4 · 8^1 / 2 inches)

14.0" viewing image

Resolution Horizontal: Max. 1280 dots

Vertical: Max. 1024 lines

Standard image area Approx. 270

(10^3 / 4 · 8 inches)

Deflection frequency* Horizontal: 30 to 70kHz

Vertical: 48 to 120Hz

AC input voltage/current 100 to 120V 50 - 60Hz 1.9 A

Power consumption Max. 95 W (with no USB devices connected)

Dimensions Approx. 373· 372· 425mm w/h/d)

(14^3 / 4· 14^3 / 4· 16^3 / 4 inches)

Mass Approx. 15kg (33 lb 11 oz)

Plug and Play DDC1/DDC2B

Supplied accessories See page 6

• Recommended horizontal and vertical timing condition

Horizontal sync width should be more than 1.0 sec
Horizontal blanking width should be more than 3.6 sec
Vertical blanking width should be more than 500~ sec

HMD-A200

CRT 0.25 mm aperture grille pitch

17 inches measured diagonally

90-degree deflection

Viewable image size Approx. 327

(12^7 / 8· 9^5 / 8 inches)

16.0" viewing image

Resolution Horizontal: Max. 1280 dots

Vertical: Max. 1024 lines

Standard image area Approx. 312

234 mm (w/h)

(12^3 / 8· 9^1 / 4 inches)

Deflection frequency* Horizontal: 30 to 70kHz

Vertical: 48 to 120Hz

AC input voltage/current

00 to 120V 50 - 60Hz 2.0A

Power consumption Max. 115 W (with no USB devices

connected)

Dimensions

Approx. 460· 378· 441mm (w / h / d)

(18^1 / 8· 15· 17^3 / 8 inches)

Mass Approx. 19kg (41 lb 14 oz)

Plug and Play DDC1/DDC2B

Supplied accessories See page 6

• Recommended horizontal and vertical timing condition

Horizontal sync width should be more than 1.0 sec
Horizontal blanking width should be more than 3.0 sec
Vertical blanking width should be more than 500~ sec

Design and specifications are subject to change without notice.

Table des Matieres

Précautions 4

Plug & Play DDC1/DDC2B

Plug & Play DDC1/DDC2B

Noswithouthe way of making the right choice.

Characteristica Plug and play

DDC1/DDC2B
