Product type	Wireless LAN access point
Brand	Sony
Model	PCWA-A320
Dimensions (W x H x D)	98 x 98 x 33 mm
Weight (with cable)	Approx. 320 g
Power supply	AC 100-240 V, 50/60 Hz, 5 W
Network interfaces	100BASE-TX/10BASE-T (auto MDI/MDI-X)
Wireless standards	IEEE 802.11b, IEEE 802.11g
Frequency	2.4 GHz (ISM band)
Maximum range (no obstacles)	100 m
WEP encryption	64-bit / 128-bit
Modulation method	DS-SS, OFDM
Supported protocol	TCP/IP
Max. number of clients	16 (recommended)
Configuration	Via web interface (Access Point Scan Utility)
Reset	Reset button (press 1 s)
Operating temperature	5 °C to 35 °C
Storage temperature	-20 °C to 60 °C
Maintenance	Clean with a slightly damp cloth or mild detergent solution
Safety	Use only the supplied power supply unit; avoid dropping and exposure to moisture or excessive heat
Package contents	Wireless unit, power supply unit, power cord (2), CD-ROM, quick start guide, troubleshooting guide, warranty leaflet, regulation leaflet

Frequently Asked Questions - PCWAA320 SONY

How to connect the PCWA-A320 access point to the Internet?

Connect the NETWORK port of the power supply unit to your DSL modem, ISDN router, broadband router, or Ethernet hub using an Ethernet cable. Make sure the communication device has a routing function.

What are the default settings of the access point?

The default SSID is the six-character code printed inside the back panel. WEP encryption is disabled, frequency is set to auto-select, and IP assignment is via DHCP.

How to reset the access point to factory defaults?

Turn on the unit, then using a paperclip, press the reset button (located under the wireless unit) for at least one second. When the status indicator flashes red, release the button. The unit restarts with the default settings.

How to configure WEP encryption?

Access the access point configuration page via a web browser, click on Simplified configuration, then enable WEP encryption. Choose a key length (40 or 104 bits) and enter a key of 5 or 13 characters. Note the key for other devices.

What to do if the Scan Utility does not detect the access point?

Check that your computer is connected to the wireless network with the correct SSID. Move the computer closer to the access point. Also check that firewall settings do not block communication.

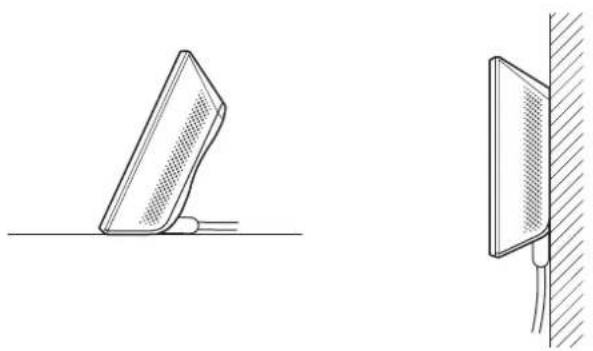

How to install the access point on a wall?

Remove the back panel by sliding it. Use the mounting holes to screw the unit to the wall with two suitable screws (round or flat head, dimensions indicated in the manual). Ensure the bracket can support the weight.

Which browsers are compatible with the configuration page?

The configuration page is compatible with Internet Explorer version 5.5 or later and Netscape version 6.1 or later. Make sure no proxy server is set for the access point's IP address.

How to update the access point firmware?

Go to http://www.vaio-link.com, access the PCWA-A320 page and follow the instructions to download and install the latest firmware version. Check the site regularly for updates.

What safety precautions should I take when using the access point?

Use only the supplied power supply unit. Do not place the device on an unstable surface, near a heat source, in a damp or dusty place. In case of emergency, unplug the power cord. Do not use solvents for cleaning.

How to disable Windows XP firewall for configuration?

Go to Start > Control Panel > Network Connections, right-click your wireless connection, select Properties > Advanced, then uncheck 'Protect my computer'. Remember to re-enable it after configuration.

USER MANUAL PCWAA320 SONY

Wireless LAN Access Point PCWA-A320

Quick Start Guide Kurzeinführung Manuel de mise en route

CONTENTS

English -

Quick Start Guide......page 3

Deutsch -

Kurzeinführung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Français -

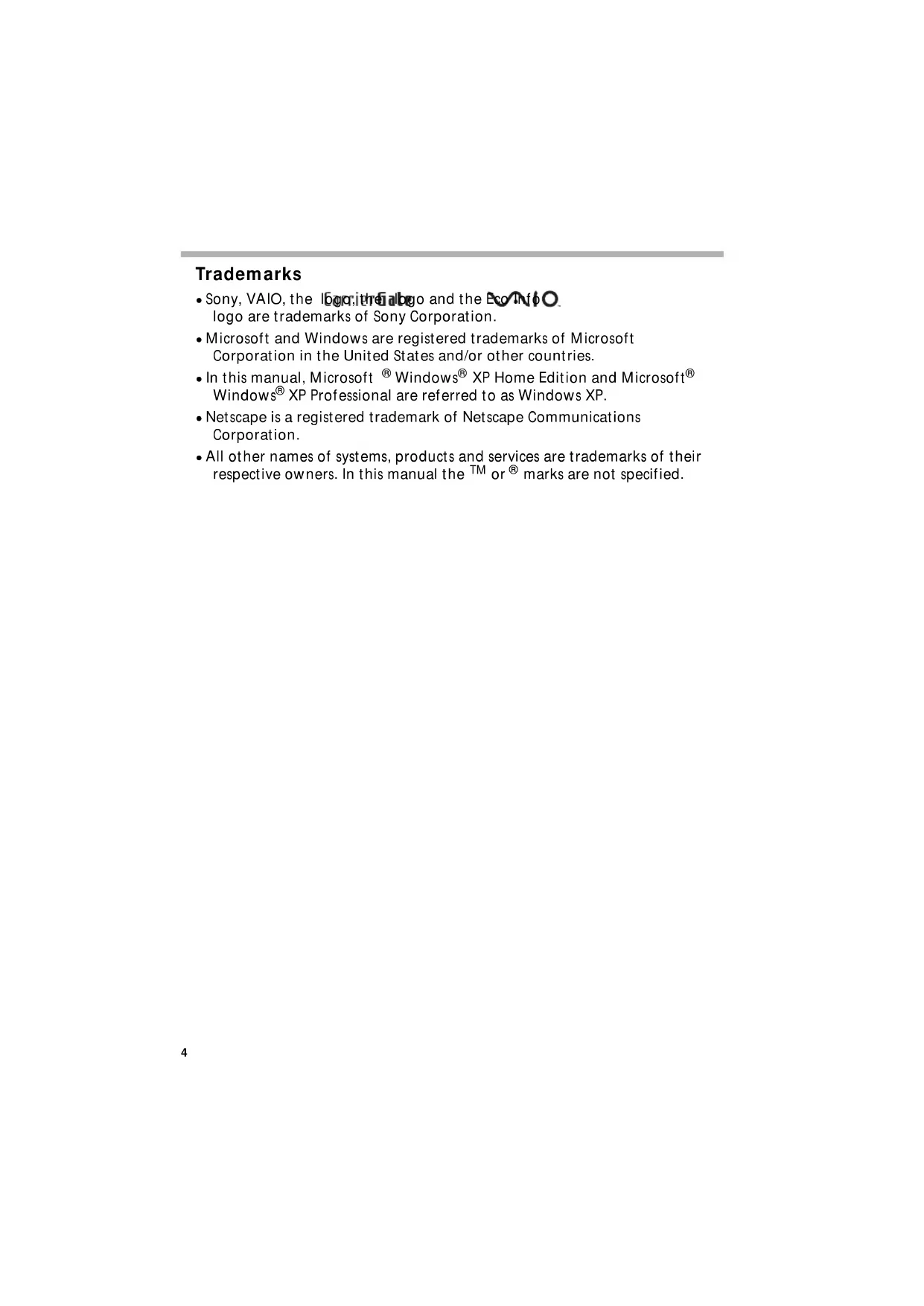

- Sony, VAIO, the logo, the logo and the Eco Info logo are trademarks of Sony Corporation.

- Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries.

- In this manual, Microsoft ^ Windows ^ XP Home Edition and Microsoft ^ Windows ^ XP Professional are referred to as Windows XP.

- Netscape is a registered trademark of Netscape Communications Corporation.

- All other names of systems, products and services are trademarks of their respective owners. In this manual the ^TM or ^ marks are not specified.

Introduction

This document provides an overview of the Wireless LAN Access Point PCWA-A320 features and the necessary configuration steps.

Unpacking your Access Point

Once you have unpacked the unit, make sure that all of the following items are present:

• Wireless Unit
• Power cord (2x)
  • CD-ROM (setup disc)
• Quick Start Guide
• Troubleshooting Guide
• Warranty leaflet
  • Regulatory Leaflet
• Power Unit

Names of parts and functions

Wireless Unit

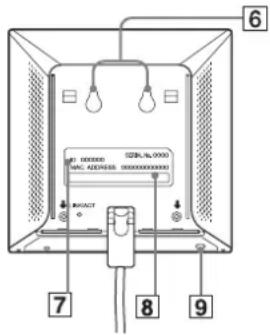

Front Rear (With rear cover removed)

1 STATUS indicator Indicates the status of the Wireless Unit.
Booting: quickly flashes white.
Normal: slowly flashes white
During firmware update : flashes red
During Quick Setup : flashes red
If firmware update fails: continues flashing red after firmware update (from this state, you must update the firmware again).

2 Reset switch Returns the Wireless Unit settings to their factory defaults.

3 LINK/ACT indicator Lights when an Ethernet cable is connected to the NETWORK connector on the Power Unit.

4 Wireless unit cable Connects to the WIRELESS UNIT connector on the Power Unit.

5 Rear cover Remove this cover if you want to hang the Wireless Unit to a wall and to verify the MAC address and Network Name (SSID).

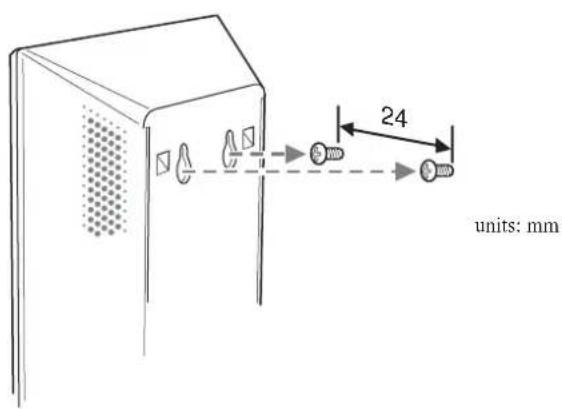

6 Wall mounting holes Use these holes to hang the Wireless Unit to the wall.

7 ID The six-character hexadecimal unique product ID is printed here. This ID is used as the default Network Name (SSID) of the Wireless Unit.

8 MAC address The Wireless Unit MAC address is printed here.

9 Quick Setup switch Use this switch to set up the Wireless LAN Converter PCWA-DE30. Refer to the Quick Start Guide of the Wireless LAN Converter or Help for details.

Power Unit

10 11 12

10 100-240 V AC jack Connect the supplied power cord here.

11 WIRELESS UNIT connector Connect the Wireless Unit cable here.

12 NETWORK connector Connect the Wireless Unit to your computer or other device using an Ethernet cable.

Use a straight-through or crossover Ethernet cable.

Factory default settings

The factory default settings of the Access Point are:

NAME DEFAULT SETTING

Network Name (SSID) The six characters printed on the label under

the rear cover of the Access Point

(Wireless Unit)

Encryption (WEP) Disabled

Frequency (Channel) Auto Select

Broadcast Network Name (SSID) Yes

Access Control Accept all

Connection Method Obtain an IP address automatically (DHCP)

DNS server -

Speed Auto-Detect

Quick Setup Switch Enable

Time Server (NTP Server)

To reset to the Access Point factory default settings, proceed as follows:

1Turn on the unit.

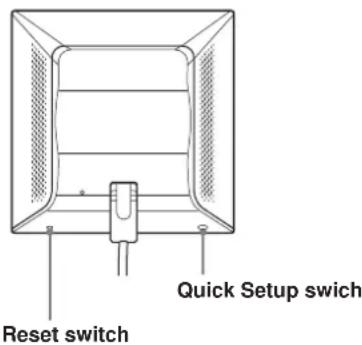

2Press and hold the Reset switch on the bottom of the Wireless Unit for at least a second with a paper clip.

Be careful not to press the Quick Setup switch by mistake when you reset the Wireless Unit.

3When the status indicator flashes, release the Reset switch.

The Wireless Unit restarts automatically with all settings returned to its factory defaults.

Capabilities

Wireless access to the Internet from a variety of locations

The Wireless LAN Access Point PCWA-A320 (hereafter referred to as Access Point) is an IEEE 802.11g compliant bridge-type 2.4 GHz wireless LAN access point. You can use the Access Point as a base station to build a wireless LAN system consisting of computers equipped with Wireless LAN PC Cards or Wireless LAN Converters.

If you want to enable the computers that are connected to the wireless LAN to access the Internet, simply connect the Access Point to a DSL modem, cable modem, ISDN router, broadband router or another similar communication device, or to an Ethernet LAN (wired LAN) that is connected to the Internet.

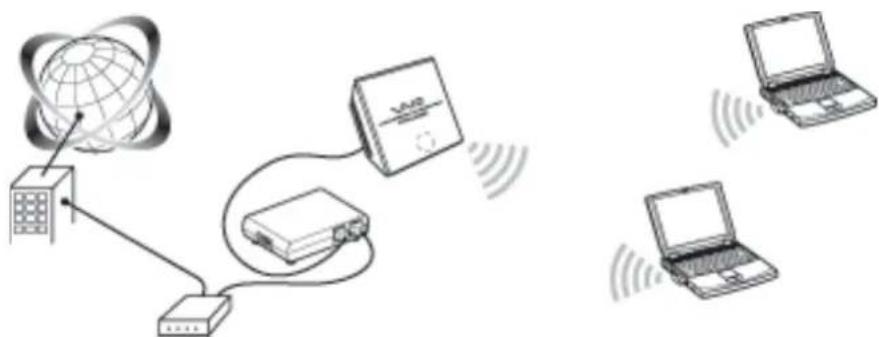

Diagram illustrating wireless network communication with a globe, router, and laptop, showing signal propagation between devices.

- Use an Ethernet cable to connect the Access Point to the communication device. You cannot use a USB connection to connect the Access Point to a communication device. Connect the Access Point to a communication device with a router function. If the communication device does not have a router function (such as a cable modem), a separate broadband router is required.

Installation, connection and setup procedures

1 Perform the necessary preparations and confirmations for connection.

2Connect the Access Point.

3Establish a communication session between the computer and the Access Point.

4 Install the Utility Software.

5Configure the Access Point settings.

6Configure the computer settings.

7Install the Access Point.

Procedure 1 - Preparing and confirming the connections

The procedure in this guide describes the connection process using the factory default settings.

The factory default settings of the Access Point function are:

- Network Name (SSID) : the 6-character identifier printed on the label inside the rear cover of the Wireless Unit.

- Encryption (WEP) : disabled.

Before setting up the Access Point, do the following:

1 Set up the Wireless LAN PC Card or Wireless LAN Converter.

Perform the required software installation and settings according to the instructions provided with your Wireless LAN PC Card or Wireless LAN Converter to make it operational. Refer to the manuals provided with your Wireless LAN PC Card or Wireless LAN Converter.

2Prepare a communication device that can function as a router (such as a broadband router or an ADSL modem router).

3Configure the computer firewall settings.

If you are using the Windows XP Internet Connection Firewall or another personal firewall, you may need to change the security level setting. Carefully read the Computer Firewall Functions section in this manual.

Computer Firewall Functions

When using the Windows XP Internet Connection Firewall function: enabling the Windows XP Internet Connection Firewall function may prevent the computer from being accessed externally (this function is disabled by default). This function can prevent connection to your network when you change your Access Point settings. If this happens, disable the Internet Connection Firewall function, connect to the network and then re-enable the function. Refer to the Windows XP Help for details.

- Make sure that you take appropriate security measures when the Internet Connection Firewall function is disabled.

When using personal firewall software provided standalone or as part of antivirus or network security software:

antivirus scanning and network security software sometimes includes a function called a personal firewall intended to prevent unauthorised access by other computers. Depending on the software, the security level of this function may initially be set to a high level. If this high security level setting is left enabled, other computers may be unable to access your computer. This can cause problems such as not being able to connect to the network when changing the Wireless Broadband Router settings. In this event, lower the security level to allow the network connection. While the security level is lowered, pay special attention to security. It is highly recommended that you return to the original settings after setting up the Wireless Broadband Router.

- Pay special attention to security issues. For questions about firewall functions, please contact your firewall software manufacturer.

For more details about the Access Point settings, consult the Help files. To display Help:

Click Start, point to Programs (All Programs in Windows XP), Wireless LAN and click Access Point Scan Help.

To display Help for the Access Point Setup Page:

Click Help on the Access Point Setup Page.

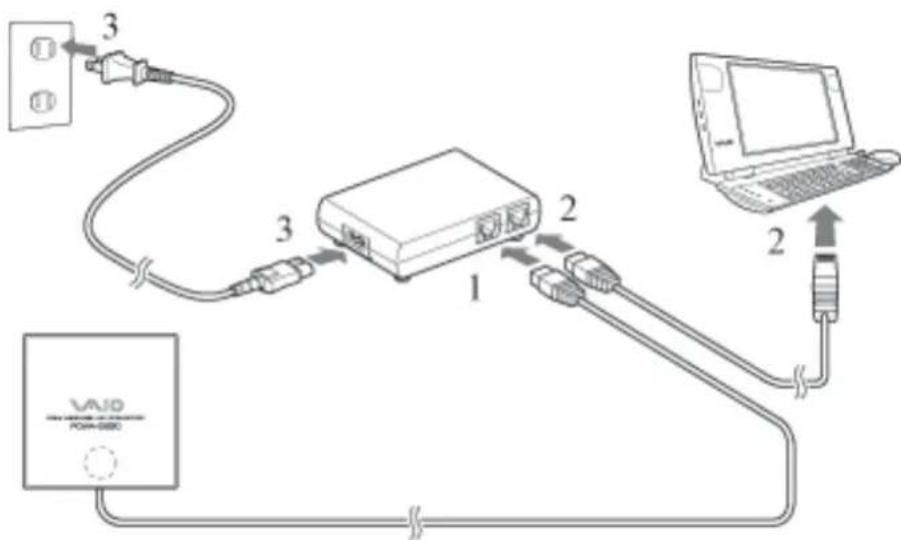

Procedure 2 - Connecting the Access Point

Connect the DSL modem, ISDN router, broadband router or Ethernet LAN.

1Connect the Wireless Unit and Power Unit.

2Connect your DSL modem, ISDN router, broadband router or Ethernet LAN hub to the power unit with an Ethernet cable.

3Connect to the power outlet.

• The Access Point does not have a power switch.

You can use either a straight-through or cross-over Ethernet cable.

- Depending on your provider, you may need to make settings on your computer and with various connection tools. If this is the case, go to Procedure 3 after making the required settings.

Connect the Access Point to a communication device with a router function. If the communication device does not have a router function (such as a cable modem), a separate broadband router is required.

Establishing a wireless connection

Procedure 3 - Establishing a communication session between the computer and the Access Point

The procedure in this guide describes the connection process using the factory default settings.

The factory default settings of the Access Point function are:

- Network Name (SSID) : the 6-character identifier printed on the label inside the rear cover of the Wireless Unit.

- Encryption (WEP) : disabled.

Simple line drawing of a mechanical or electrical component with no text, numbers, or symbols

Remove the rear cover by sliding it in the direction of the arrow.

Diagram of a computer monitor with ventilation slots and a stand (no text or labels)

Network Name (SSID)
This ID is used as the default Network Name (SSID).

Configure the wireless communication settings on the computer and then establish a communication session between the computer and your Access Point. Refer to the manuals provided with your Wireless LAN PC Card or Wireless LAN Converter for the configuration procedure.

When you are done, check that an IP address is assigned to the computer. Although communication is possible from this state, for security reasons, be certain to perform the subsequent procedures to change the factory default settings.

• The Network Name (SSID) may also be called ESSID or Network ID, depending on the particular device.
  Encryption may also be called encoding or security depending on the particular device. When using the Windows XP operating system with a Wireless LAN PC Card, on the Start menu, click Connect to, Wireless Network Connection and make the communication settings that affect the connection to the Access Point from the dialog box that appears.
  If no Wireless Network Connection item can be found on the Start menu, click Control Panel, Network and Internet Connections, Network Connection and double-click Wireless Network Connection.

Access Point Settings

Procedure 4 - Installing the Utility Software

Install the Access Point Scan Utility to be able to detect the Access Point on the computer.

1 Insert the supplied CD-ROM into the computer to which the

Wireless LAN Card or Wireless LAN Converter is connected.

2For computers running Windows Me or Windows 2000, double-click the My Computer icon on the desktop.

For computers running Windows XP, click Start and select My Computer.

3 In My Computer, click the CD-ROM drive icon and then double-click setup.exe.

The installation program starts. Follow the on-screen instructions and install the utility software.

- Depending on your computer's settings, the file name Setup.exe may be displayed as Setup.

Procedure 5 - Configuring the Access Point settings

Display the Access Point Setup Page and set up the Access Point.

The following browsers are compatible:

• Internet Explorer 5.5 or later;
• Netscape 6.1 or later.
• To display the Wireless LAN Access Point Setup Page from the PCWA-A320 Access Point software, set one of the Web browsers above as your computer's default Web browser. If your Web browser is configured to use a proxy server, set the browser proxy settings so the browser does not use a proxy server for the IP address of the Access Point. For details on how to disable the proxy settings, consult your Troubleshooting Guide - Case 3.
• The Wireless LAN Access Point Setup Page is saved in the internal memory of the Access Point.

Proceed as follows to configure the Access Point settings:

1 Click the Start button, point to Programs (All Programs in Windows XP), Wireless LAN and click Access Point Scan.

The Scan Utility starts up, and automatically searches for Access Points on the same network. Once the Scan Utility finishes searching for Access Points, it displays a list of Access Points.

If the Scan Utility does not find any Access Points, move the computer to a location that provides good conditions for wireless communication with the Access Point and click Scan to search again. For details, refer to the Troubleshooting Guide - Case 1.

2Select the Access Point to which you want to connect from the list of Access Points that were found by the Scan Utility.

If multiple Access Points are shown in the list, check the MAC addresses. Each Access Point's MAC address is printed on a bar code label inside the rear cover of the Wireless Unit. After checking the MAC address, make sure to reconnect the Ethernet cable.

3 Click Access Point Setup Page.

The Access Point Setup Page appears.

If the Access Point Setup Page does not appear, check whether a proxy server is specified in the Web browser settings. If a proxy server is specified, the Access Point Setup Page cannot be displayed. Set the browser's proxy settings so that the IP address of the Access Point bypasses the proxy server. Refer to your Troubleshooting Guide - Case 3 or refer to the Access Point Setup Utility Help for details about bypassing the proxy server.

4Click Easy Setup.

The Easy Setup window appears.

5Enter the network name (SSID).

The network name (SSID) is an ID that serves to identify the wireless network. Enter up to 32 letters, numbers or symbols.

It is recommended that you write down the network name for future reference.

6 Set Encryption (WEP) to Enable.

Encryption (WEP) encodes wireless communication sessions and prevents unauthorised access to the network.

7Select Key Length.

The encryption key is the password required for WEP communications on the encrypted network.

8 If you select 40-bit for the Key Length, enter the encryption key and re-enter it again at WEP Key (confirmation).

Enter up to five letters, numbers and symbols. If you select 104-bit (WEP 128-bit) for the Key Length, enter up to 13 letters, numbers and symbols.

It is recommended that you write down the encryption key for future reference.

9Click Next.

The setup confirmation window appears.

10 Click the Execute Setup button if you are satisfied with the displayed settings.

Click the Back button to modify the settings. You will then return to the previous page.

11If you are satisfied with the displayed settings, close the Web browser.

- While changing the wireless settings, the connection to the Access Point is disabled. After completing Procedure 5, read Procedure 6 and reestablish the connection.

Procedure 6 - Configuring computer settings

Configure the Network Name (SSID) and Encryption (WEP) wireless communication settings on the computer to match those set on the Access Point in Procedure 5. After making the settings of your computer, communication with the Access Point will be enabled.

Refer to the instructions of your Wireless LAN PC Card or Wireless LAN Converter.

Installing the Access Point

Procedure 7 - Installing the Access Point

When configuration is finished, install the Access Point. Its settings are stored so that even when it is turned off, the settings are preserved. The Wireless Unit can be hung to walls.

The settings are now complete.

Resetting the Access Point to factory defaults

1Turn on the Access Point.

2 With a paper clip or similar object, press and hold the Reset switch at the bottom of the Wireless Unit for at least one second. When you press the Reset switch, the indicator on the front of the Wireless Unit lights red and it starts flashing when the switch is pressed for one second.

Reset switch Quick Setup switch

3 When the status indicator starts flashing red, release the Reset switch. The Access Point restarts under the default settings.

Obtaining the latest Access Point Firmware

1Go to http://www.vaio-link.com

2Check the Wireless LAN Access Point PCWA-A320 page.

It is recommended that you regularly check for firmware updates.

This description assumes that the connection is established with the factory default settings.

Here are some other things you can do:

- Set an administrator password and guest password;

- Set the Access Point date and time;

- Set the IP address manually.

For details, see the online Help of the Access Point Setup page.

Sony's support options

This section describes how to get help and support from Sony.

• Quick Start Guide (this manual) : explains how to install the Access Point.
• Troubleshooting Guide : provides solutions to the most common problems users have with their Access Point.
• Online Help for the Access Point Setup Page : explains how to configure the Access Point.
• Sony's support website : http://www.vaio-link.com/ provides the latest information on your Access Point.

Installation precautions

Installation

Select a secure location for the Wireless Unit where it cannot drop or fall over. Route the cable to the Wireless Unit to suit the installation location.

Installation examples

- Desktop installation • Hanging

Two technical line drawings showing a flat panel mounted on a surface and a vertical panel mounted on a wall, both without any text or symbols.

- Do not install in an insecure location.

Do not install in a location where the Wireless Unit could fall as a result of shock or vibration, such as on the edge of a shelf.

Do not install in a location where the Wireless Unit or the cables could be accidentally bumped by a person or other objects.

Hanging the units

1Locate the wall mounting holes.

Technical line drawing of a mechanical device with no visible text or symbols

To hang the Wireless Unit to a wall, remove the rear cover by sliding it in the direction of the arrow.

2 Hang the unit to a wall by using screws or nails.

The wireless Unit does not come with any sort of fittings used to hang it. Use screws of sufficient strength to support it.

24 units: mm

- Always use two screws or nails and make sure that the unit is secure on the wall. Select a location that will hold the weight of the unit when hanging it to a wall. If the location cannot hold the weight of the unit, it may fall and cause accidents. When hanging the unit to walls made of plasterboard or other brittle material, make sure that the material is strong enough to support the unit's weight and use special screw fasteners or other fixtures designed for use with that material. If the unit is hung with ordinary screws, it may fall. When hanging the unit to a wall, be careful not to drop the unit or the tools used for doing the work. Dropping the unit or tools could result in unforeseen accidents.

Recommended screws
Roundhead screws · Flathead screws

Ø5.7 Ø3.1 2.3

units: mm

Ø6.2 Ø3.1 1.8

Precautions

For regulatory issues or precautions for a safe use, please check the Wireless LAN Regulations Guide.

Power Unit

Use the Power Unit and the power cord supplied with the Access Point. Using a different power unit may result in damage and/or injury.

Safety

Do not drop the Access Point. Careful handling helps to prevent damage.

Installation

Do not place the Access Point where it is exposed to the following conditions:

• Unstable surfaces;
  • High humidity or poor ventilation;
• Excessive dust;
• Direct sunlight or extreme heat;
• Closed cars;
• Magnetic fields (near magnets, speakers or televisions);
• Frequent vibration;
• Locations where the transmission of radio waves may be obstructed by metal plates or concrete walls.

Operation

Exposure to rapid changes in temperature or very damp environments can cause condensation on internal parts. This may prevent the Access Point from operating properly.

If this should happen, unplug the power cord from the power outlet and allow the Access Point to dry for two or three hours.

Cleaning

Clean the casing with a soft cloth lightly moistened with water or a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzene. This may damage the finish of the casing.

Emergencies

In case of an emergency, stop the wireless functions by unplugging the power cord.

Specifications

Power AC100 - 240V, 50/60 Hz

Power consumption Approx. 5 W

Interfaces 100BASE-TX/10BASE-T (automatic MDI/MDI-X detection)

Maximum external dimensions Approx. 98x98x33 mm (WxHxD)

Weight Approx. 320 g (inc. connection cable)

Recommended number of connected clients 16 or less

Protocol support TCP/IP

Standards IEEE 802.11b

IEEE 802.11g

Radio frequency 2.4 GHz wireless network: 2.4 to 2.4835 GHz (ISM band)

Maximum connection distance Line of sight approx. 100 m (the maximum connection distance depends on the environment)

WEP (data encryption) 64 bits/128 bits

Modulation methods DS-SS

OFDM

Operating temperature 5°C to 35°C (no condensation)

Storage temperature -20°C to 60°C (no condensation)

Kurzeinführung

Marken

VAIO 2.400 Wireless LAN ACCESS POINT PCWA-A320

2 3 4 5

abdeckung)

6 000000 000000000 VAC ADDRESS: 00000000000 BLOGIC 7 8 9

Diagram showing network connection between a globe, network device, and two laptops with wireless signals (no text or labels)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Two technical line drawings of a mechanical component, one showing a flat surface and the other a vertical panel mounted on a wall (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

amples informations.

Diagram illustrating wireless network communication with a globe, USB device, and two laptops emitting signals.

Simple line drawing of a device with ventilation ducts and a blue arrow indicating airflow direction (no text or symbols)

Diagram of a computer monitor with ventilation slots and a cable outlet (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols
