| Product Type | USB Bluetooth Adapter |
| Brand | Sony |
| Model | PCGA-BA1 |
| Technology | Wireless Bluetooth |
| Bluetooth Version | 1.1 |
| Power Class | Class 2 |
| Maximum Range | 10 meters (without obstacles) |
| Maximum Transfer Rate | Approx. 723 Kbps |
| Frequency Band | 2.4 GHz (2.400 - 2.4835 GHz) |
| Supported Bluetooth Profiles | Generic Access, Service Discovery, Serial Port, Dial-up Networking, Generic Object Exchange, Object Push, Basic Imaging, Hardcopy Cable Replacement, Human Interface Device |
| Interface | USB |
| Dimensions (L × W × H) | 17.0 × 8.5 × 41.3 mm |
| Weight | 5.0 g |
| Operating Temperature | 5 to 35 °C |
| Operating Humidity | 20 to 80 % (non-condensing) |
| Storage Temperature | -20 to 60 °C |
| Storage Humidity | 10 to 90 % (non-condensing) |
| Compatible Operating System | Windows XP (Service Pack 1) |
| Power Supply | Via USB port |
| Maintenance and Cleaning | Wipe with a soft, dry cloth; for stains, use a neutral detergent solution. Do not use thinners, alcohol, or benzine. |
| Security | Passkey authentication; adjustable to be undetectable; avoid interference by removing the adapter in sensitive areas (airplane, hospital). |
| Included Software | BlueSpace NE, Bluetooth drivers |
Frequently Asked Questions - PCGABA1 SONY
User questions about PCGABA1 SONY
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Other computer accessories in PDF format for free! Find your manual PCGABA1 - SONY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PCGABA1 by SONY.
USER MANUAL PCGABA1 SONY
Bluetooth™ USB Adapter
Operating Instructions GB
Before using the PCGA-BA1, be sure to read the accompanying End User Software License Agreement.
☐ Copyright laws prohibit reproducing the software or the manual accompanying it in whole or in part, or renting the software without the permission of the copyright holder.
☐ In no event will Sony be liable for any financial damages, or loss of profits, including claims made by third parties, arising out of the use of the software supplied with this device.
☐ If a problem occurs with this product as a result of defective manufacturing, Sony will replace it. However, Sony bears no other responsibility.
☐ The software provided with this unit cannot be used with other units.
☐ Please note that, due to continued efforts to improve quality, the software specifications may be changed without notice.
☐ Operation of this unit with software other than that provided is not covered by the warranty.
Warnings
☐ To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
☐ To prevent fire or shock hazard, do not expose the unit to rain or moisture.
☐ In some situations or environments, the use of the Bluetooth ^™ technology might be restricted by the proprietor of the building or responsible representatives of the organization, for example on board airplanes, in hospitals or in any other environment where the risk of interference with other devices or services is perceived or identified as harmful.
☐ If you are uncertain about the policy applying to the use of Bluetooth™ technology in a specific organization or environment, you are encouraged to first ask for authorization prior to switching it on.
□ Consult your physician or the manufacturer of personal medical devices (pacemakers, hearing aids, etc.) regarding any restrictions on the use of Bluetooth™ technology.
Regulatory information
For customers in Europe
Sony hereby declares that the PCGA-BA1 Bluetooth™ USB
Adapter is in compliance with the essential requirements and other relevant provisions of European Directive 1999/5/EC.
To obtain a copy of the declaration of Conformity (DoC) with the R & TTE Directive, please access the following URL address:
http://www.compliance.Sony.de/
The PCGA-BA1 is a Bluetooth ^TM intended radio device using the 2.4
GHz frequency band (2.400GHz – 2.4835GHz). It is intended for wireless communication with other Bluetooth ^TM enabled devices using the Bluetooth ^TM
Serial Port, Dial-up Networking via mobile phone or modem, Object Push and Basic Imaging profiles.
The PCGA-BA1 Bluetooth ^TM
technology complies with regulations in the following countries, and can therefore only be used in these countries:
Austria, Belgium, Denmark,
Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg,
Norway, Portugal, Spain, Sweden, Switzerland, the Netherlands and the United Kingdom.
In France, this product can only be used indoors.
- Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries.
- BLUETOOTH and its logo are trademark owned by Bluetooth SIG, Inc., U.S.A and licenced to Sony Corporation.
- All other names of systems, products and services are trademarks of their respective owners. In the manual, the ^TM or ^® marks are not specified.
- In this manual, Microsoft ^ Windows ^ XP Home Edition and Microsoft ^ Windows ^ XP Professional are referred to as Windows XP.
• VAIO and are registered trademarks of Sony Corporation.
- Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries.
- BLUETOOTH and its logo are trademark owned by Bluetooth SIG, Inc., U.S.A and licenced to Sony Corporation.
- All other names of systems, products and services are trademarks of their respective owners. In the manual, the ^TM or ^® marks are not specified.
- In this manual, Microsoft ^ Windows ^ XP Home Edition and Microsoft ^ Windows ^ XP Professional are referred to as Windows XP.
How to use this product......11
Ways to Connect with Bluetooth Devices ....12
Inserting the Bluetooth USB adapter... 14
Communicating using BlueSpace NE ....15
Communicating using Windows XP functions .....19
Using a Bluetooth cell phone or modem ....20
Assigning/changing the Bluetooth device name for the computer ....24
Terminating Bluetooth communication ....25
Notes on Use......26
Maintenance 27
Bluetooth Wireless Technology .....28 Connection format.....28
Speed 29
Communication range and power 29
Bluetooth standard .....29
Security....30
Getting Help ....31
Specifications ....32
Troubleshooting....33

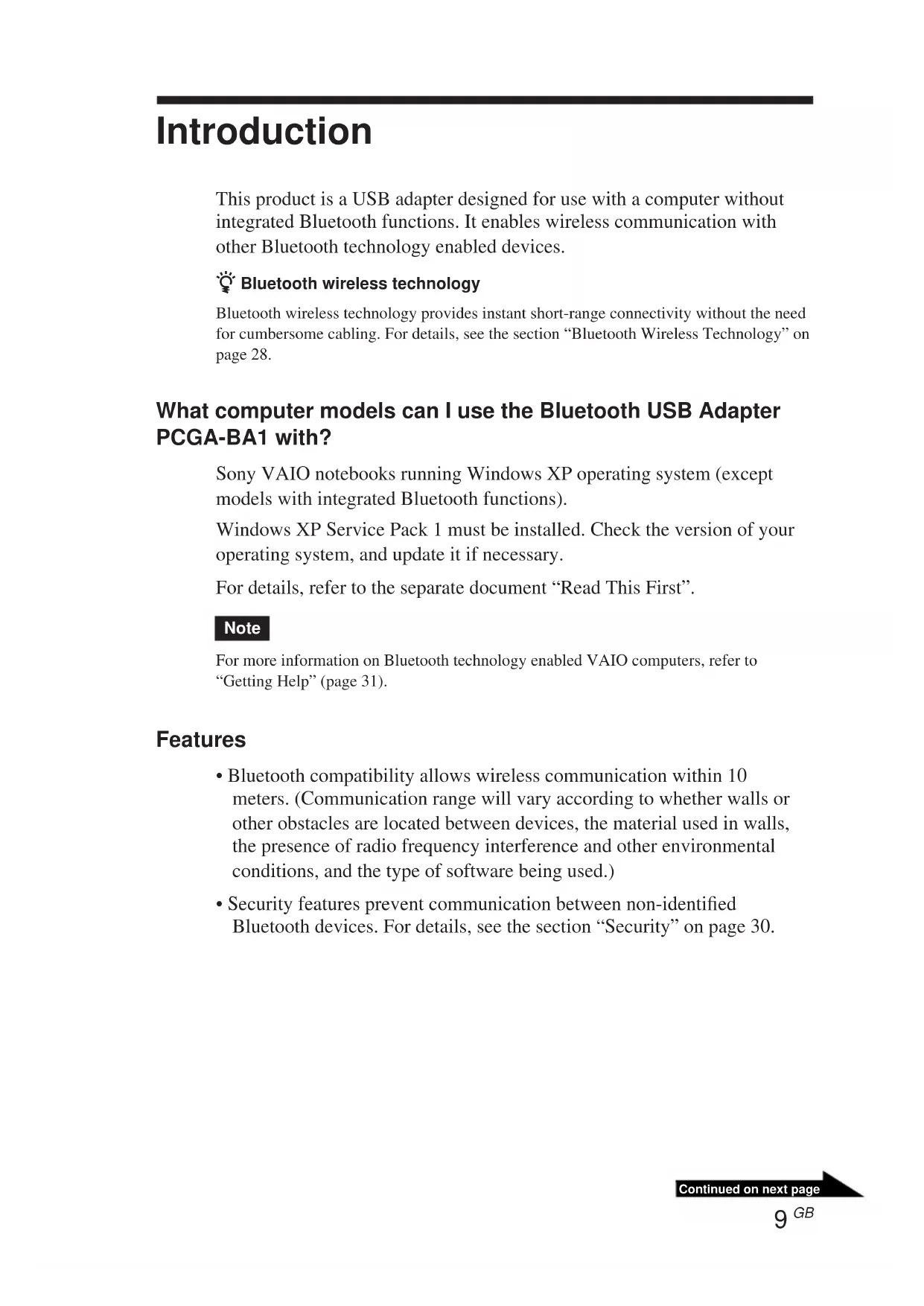

Introduction
This product is a USB adapter designed for use with a computer without integrated Bluetooth functions. It enables wireless communication with other Bluetooth technology enabled devices.
Bluetooth wireless technology
Bluetooth wireless technology provides instant short-range connectivity without the need for cumbersome cabling. For details, see the section “Bluetooth Wireless Technology” on page 28.
What computer models can I use the Bluetooth USB Adapter PCGA-BA1 with?
Sony VAIO notebooks running Windows XP operating system (except models with integrated Bluetooth functions).
Windows XP Service Pack 1 must be installed. Check the version of your operating system, and update it if necessary.
For details, refer to the separate document “Read This First”.
Note
For more information on Bluetooth technology enabled VAIO computers, refer to “Getting Help” (page 31).
Features
- Bluetooth compatibility allows wireless communication within 10 meters. (Communication range will vary according to whether walls or other obstacles are located between devices, the material used in walls, the presence of radio frequency interference and other environmental conditions, and the type of software being used.)
- Security features prevent communication between non-identified Bluetooth devices. For details, see the section “Security” on page 30.
What Bluetooth devices can the Bluetooth USB Adapter PCGA-BA1 communicate with?
(As of May 2003)
- Sony VAIO notebooks with integrated Bluetooth functions (For Europe)
- Other Sony VAIO notebooks running Windows XP operating system with an inserted Bluetooth USB Adapter PCGA-BA1
- Other Sony products with Bluetooth functions
Check the Bluetooth services supported by your Bluetooth device.
Hint
The software CD-ROM includes a copy of this document and the separate “Read This First” as PDF files in the “manual” folder.
How to use this product
When the Bluetooth USB adapter is inserted into a computer, it can exchange data with other Bluetooth technology enabled computers, mobile phones, modems, etc. simply by being placed in the vicinity of the other device, without any physical cable connection.
Example of use: computer to computer


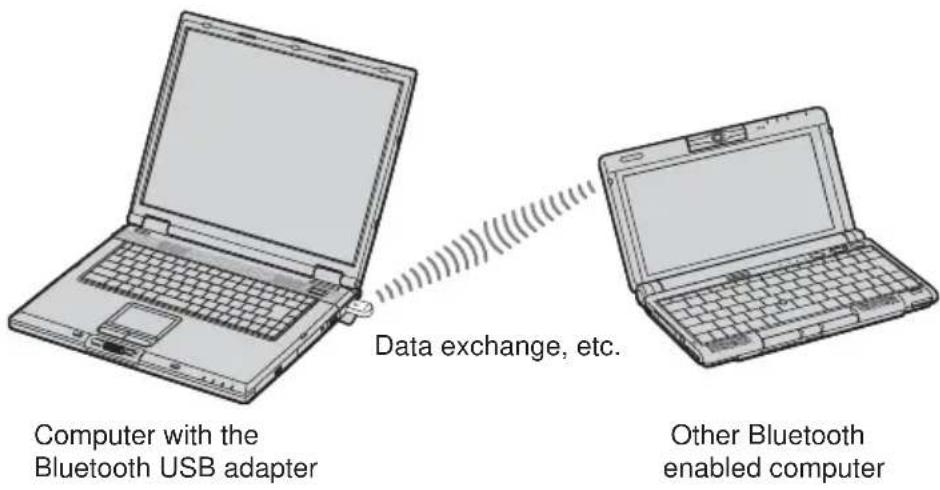

Computer with the Bluetooth USB adapter Data exchange, etc. Other Bluetooth enabled computerExample of use: computer to Bluetooth Modem Station (or other Bluetooth devices)


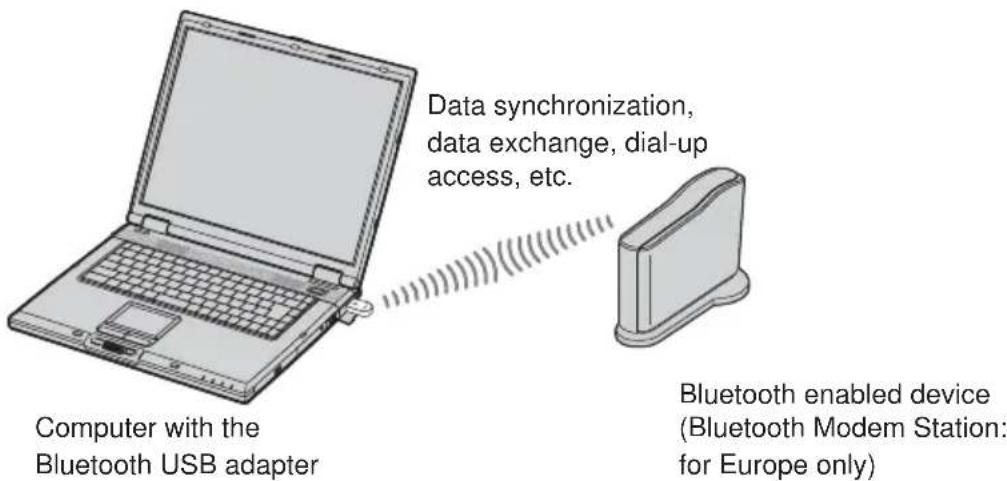

Data synchronization, data exchange, dial-up access, etc. Computer with the Bluetooth USB adapter Bluetooth enabled device (Bluetooth Modem Station: for Europe only)Bluetooth communications with the Bluetooth USB adapter use either the supplied BlueSpace NE software or Windows XP functions, according to the intended type of operation.
Ways to Connect with Bluetooth Devices
When connecting to a Bluetooth technology-enabled device, use one of the following (depending on the function of the device).
- BlueSpace NE software
- Windows XP functions (Wireless Link in Control Panel)
Things you can do using the BlueSpace NE software
- Exchange files and images between computers
- Synchronize data and exchanging files and images with a PDA
- Use a camcorder or a digital still camera as a remote camera, to exchange images
- Send images to computer or any Bluetooth device that support BIP (Basic Image Profile)
- Bluetooth Modem Station setup (Europe only)
• Exchange addresses with cellular phones
Things you can do with the Windows XP operating system
- Connect to the Internet with a Bluetooth Modem Station (Europe only)
- Connect to the Internet with a cellular phone
- Use a mouse or keyboard
- Print text on a Bluetooth printer
To use the Bluetooth USB adapter for communication with other Bluetooth technology enabled devices, the Bluetooth device driver and BlueSpace NE software on the supplied CD-ROM must be installed on the computer. The installation procedure is described in the separate “Read This First” document.
In order to use the Bluetooth USB adapter, you must install the Bluetooth device driver and the BlueSpace NE software contained on the supplied CD-ROM. For instructions on how to install the software, see the separate document “Read This First”.
Notes
- Some Bluetooth technology enabled equipment may not function with the Bluetooth USB adapter, depending on the type of equipment, software version, and other factors. Before purchasing a Bluetooth technology enabled device, please check its operating environment requirements.
For information on Bluetooth technology enabled devices, refer to “Getting Help” (Page 31).
- You may not be able to establish a connection with a computer running a version of BlueSpace earlier than 2.1.1. To rectify this, upgrade BlueSpace to the most recent version.
The models below also have the following restrictions.
To be able to connect using BlueSpace NE with PCG-SR31K and PCG-C1VFK, you must upgrade the operating system to Windows XP, and then update the BlueSpace and the Bluetooth drivers.
For details about version updates, refer to “Getting Help” (page 31).
- BlueSpace NE does not support IP connections or chat functions. It is therefore not possible to use these with devices running earlier versions of BlueSpace.
Inserting the Bluetooth USB adapter
Insert the Bluetooth USB adapter into a USB port on the computer.


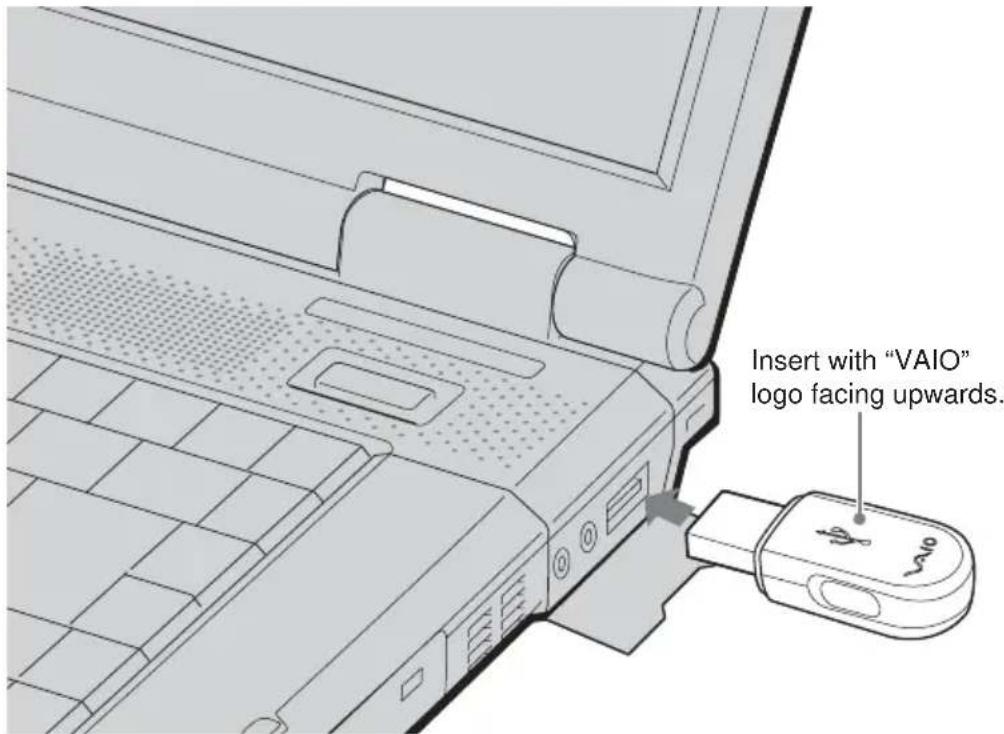

Insert with "VAIO" logo facing upwards.
Hint
The location of the USB port varies depending on the computer model. For details, see the manuals provided with your computer.
When the Bluetooth USB adapter is inserted into the USB port of your computer, it is active whenever the computer is turned on. The blue indicator on the adapter lights up to show that the adapter is active.
Notes
- Within an aircraft and in other locations where radio emissions may be a problem, remove the Bluetooth USB adapter from the computer. Simply shutting down the software is not enough to stop the emission of radiowaves from the unit.
- Only one Bluetooth USB adapter can be used per computer.
- Do not insert the Bluetooth USB adapter into an external USB hub. Otherwise, software and radio functions may not perform correctly.
Communicating using BlueSpace NE
This section describes the general procedure for using the BlueSpace NE software installed on your computer to communicate with another Bluetooth technology enabled device.
To communicate with other Bluetooth technology enabled devices using BlueSpace NE, the Bluetooth device driver and BlueSpace NE software on the supplied CD-ROM must first be installed on the computer. The installation procedure is described in the separate “Read This First” document.
Notes
- Some Bluetooth technology enabled equipment may not function with the Bluetooth USB adapter, depending on the type of equipment, software version, and other factors. Before purchasing a Bluetooth technology enabled device, please check its operating environment requirements.
For information on Bluetooth technology enabled devices, refer to “Getting Help” (page 31).
- You may not be able to establish a connection with a computer running a version of BlueSpace earlier than 2.1.1. To rectify this, upgrade BlueSpace to the most recent version.
The models below also have the following restrictions.
To be able to connect using BlueSpace NE with PCG-SR31K and PCG-C1VFK, you must upgrade the operating system to Windows XP, and then update the BlueSpace and the Bluetooth drivers.
For details about version updates, refer to “Getting Help” (page 31).
- BlueSpace NE does not support IP connections or chat functions. It is therefore not possible to use these with devices running earlier versions of BlueSpace.
- You may find that some Bluetooth technology enabled devices operate differently than described in the following procedures. Refer to the manual provided with the Bluetooth device or Sony Bluetooth Product Information
For customers in the USA and Canada http://www.ita.sel.sony.com/support/bluetooth/
For customers in Europe www.vaio-link.com
For customers in other regions http://www.css.ap.sony.com/
Refer to “Ways to Connect with Bluetooth Devices” for the types of communications for which you can use BlueSpace NE (Page 12).
Also refer to the BlueSpace NE online help.
- Do not cover the Bluetooth USB adapter while it is in use. This may interfere with communication.
- If Wireless LAN and Bluetooth functions are used at the same time on the same computer, communication speed may be reduced due to electromagnetic interference, and other unwanted effects may occur.
- If a power-saving mode is enabled on one of the computers, Bluetooth communication may not be possible. Set both computers to normal mode.
1 Turn on the computer and insert the Bluetooth USB adapter into the USB port (page 14).
2 Click the "Start" button, and select "All Programs" – "BlueSpace NE" – "BlueSpace NE".
BlueSpace NE launches and its main window appears.
When the "Welcome to BlueSpace NE" window appears, click "OK".
With the factory default settings, the next time Windows starts, appears automatically in the notification area. In this case, you can launch BlueSpace NE by double-clicking
3 Click the (Device Discovery) button in the main window.
The computer with the Bluetooth USB adapter begins searching for other Bluetooth technology enabled devices in the vicinity. When the search is complete, any detected Bluetooth devices appear in the device list.


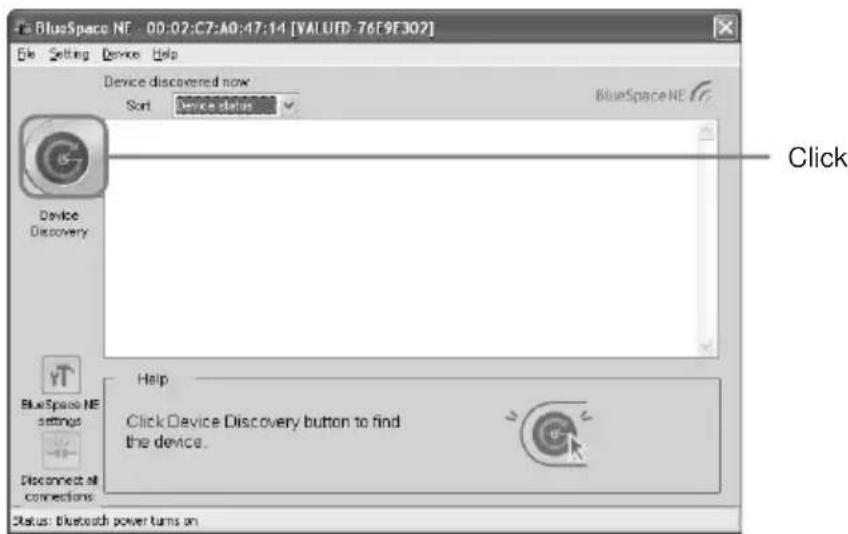

BlueSpace NE - 00:02:C7:A0:47:14 [VALUED-76[F9F302] File Setting Device Help Device discovered now Sort device status Device Discovery BlueSpace NE settings Disconnect all connections Help Click Device Discovery button to find the device. Status: Bluetooth power turns on BlueSpace NE Click
When a device is first detected, the mark appears on the device list in the main window.
4 In the device list, select the device you want to connect with, and click the (Service Discovery) button.
Note
If authentication between devices has not been completed, a window may appear prompting you to confirm whether you want to perform only service discovery, or both discovery and authentication. Follow the on-screen instructions to exchange passkeys and complete the authentication. If the authentication window does not appear, right-click on the device to connect with, and click “Authentication”.
The computer searches for services on the selected device, and when finished, displays icons for the available services (those supported by both the device and BlueSpace NE).


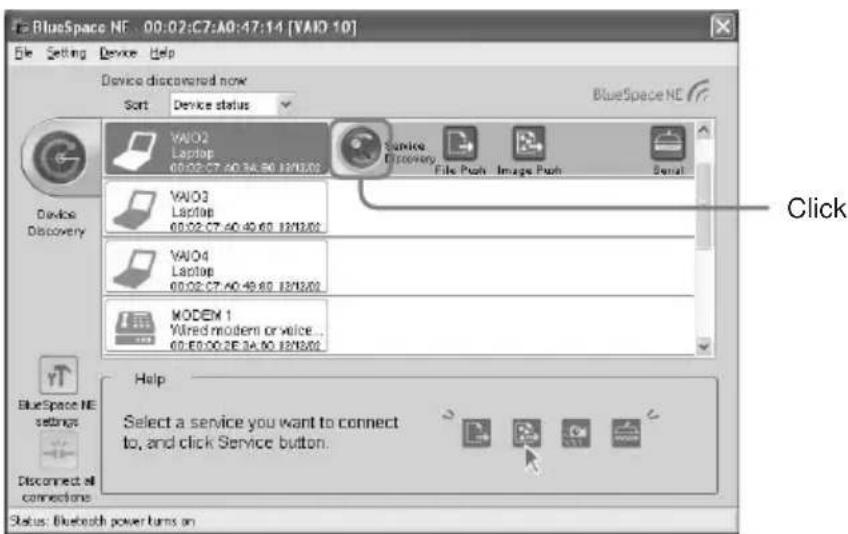

BlueSpace NE 00:02:C7:A0:47:14 [VAIO 10] File Setting Device Help Device discovered now Sort Device status BlueSpace NE VAIO2 Laptop 00:02:C7:60:49:60 12/12/02 Service Discovery File Push Image Push Serial Device Discovery VAIO3 Laptop 00:02:C7:60:49:60 12/12/02 VAIO4 Laptop 00:02:C7:60:49:60 12/12/02 MODEM 1 Wired modern or voice... 00:02:C7:60:49:60 12/12/02 Help Select a service you want to connect to, and click Service button. BlueSpace NE settings Disconnect all connections Status: Bluetooth power turns on
What is a passkey?
A passkey is a secret code entered by the user to enable two Bluetooth devices to communicate. When the same alphanumeric string is entered at both devices, communication becomes possible. The passkey may be changed for every communication session. Once a valid link has been established, communication is possible without you having to reenter the passkey for a preset period of time.
5 Select and connect to the service required.
If the “A Bluetooth device requires authentication” balloon message appears in the notification area
The target Bluetooth technology enabled device is requesting connection authentication. In this case, mutual authentication is required to enable Bluetooth communications with this device.
To authenticate, click ✪ in the notification area. When the “Bluetooth Connection Wizard” window appears, follow the on-screen instructions to exchange passkeys.
To skip authentication, click ✗ in the balloon or “Cancel” in the “Bluetooth Connection Wizard” window.
Communicating using Windows XP functions
See “Ways to Connect with Bluetooth Devices” (page 12) for the types of communication that use Windows XP functions.
To communicate using Windows XP functions, refer to the Windows XP Wireless Link Help and the manual provided with the Bluetooth technology enabled device.
Hint
Before you make a dial-up connection with the Bluetooth cell phone or modem the first time, you need to install the device as a Wireless Link, and then set up the dial-up connection. Refer to the Windows XP Wireless Link Help for details.
To display the Windows XP Wireless Link Help.
1 Click the "Start" button and click "Control Panel".
2 Click the “Printers and Other Hardware” icon.
3 Click the "Wireless Link" icon.
4 Double-click the "Bluetooth" tab, and click "Show Bluetooth details".
If the “A Bluetooth device requires authentication” balloon message appears in the notification area
The target Bluetooth technology enabled device is requesting connection authentication. In this case, mutual authentication is required to enable Bluetooth communications with this device.
To authenticate, click 📋 in the notification area. When the “Bluetooth Connection Wizard” window appears, follow the on-screen instructions to exchange passkeys.
To skip authentication, click ✗ in the balloon or “Cancel” in the “Bluetooth Connection Wizard” window.
Using a Bluetooth cell phone or modem
By using Windows XP functions to connect the Bluetooth USB adapter to a Bluetooth cell phone or modem, dial-up communication is possible without a connecting cable.
This section describes installation of a Bluetooth cell phone or modem, and dial-up connection setup. For operating details, refer to the manual provided with the Bluetooth cell phone and the Windows XP Wireless Link Help.
Setting up a Bluetooth cell phone or modem
1 Turn on the Bluetooth cell phone or modem and set it to allow discovery.
For details, see the manual provided with the cell phone.
2 Turn on the computer and insert the Bluetooth USB adapter into the USB port (page 14).
3 Click the "Start" button and select "Control Panel". The Control Panel appears.
4 Click the "Printers and Other Hardware" icon.
5 Click "Wireless Link", and click the "Bluetooth" tab.
6 Click "Add", and then "Next" in the "Bluetooth Connection Wizard" window.
Device discovery starts, and the Bluetooth cell phone is detected.
7 Click the "Bluetooth cell phone" icon, and click "Next".
"Authenticate the device?" appears.
Refer to the manual provided with the cell phone to determine whether device authentication is required.
If required, perform the following steps.
8 Select "Yes, authentication is required", and click "Next".
The message “Enter the passkey for the Bluetooth device” appears.
9 If necessary, enter a passkey in the Passkey column, and click "Next".
Note
A passkey may be already displayed in the Bluetooth connection wizard, but depending on your cell phone, only a certain passkey may be accepted. Follow the instructions in your cell phone manual to enter the passkey.
10 If necessary, enter the passkey that was entered with the connection wizard.
The message “Please specify the service to be enabled between the device and Windows” appears.
Note
Depending on your Bluetooth cell phone, passkey entry may not be requested.
11 Select "Dial-up network (DUN)", and click "Next".
The “Bluetooth Connection Wizard Complete” window appears.
12 Click "Finish".
The Bluetooth cell phone icon appears as a wireless link when authentication is finished. Installation of the cell phone or modem is complete.
Preparing to make a dial-up connection
1 Turn on the Bluetooth cell phone or modem and set it to allow discovery.
For details, see the manual provided with the cell phone.
2 Turn on the computer and insert the Bluetooth USB adapter into the USB port (page 14).
3 Click the "Start" button and click "Control Panel".
4 Click the "Network and Internet Connections" icon.
5 Click the "Network Connections" icon.
The “Network Connections” window appears.
6 Click "Create a new connection".
The “Welcome to the New Connection Wizard” window appears.
7 Click "Next", check that "Connect to the Internet" is selected, and click "Next".
If the option is not selected, click ☐ so that it becomes . ☑
When you click “Next”, the “Getting Ready” window appears.
8 For the item "Set up my connection manually", click so that it becomes . Then click "Next".
The “Internet Connection” window appears.
9 Verify that "Connect using a dial-up modem" is checked, and click "Next".
If the option is not checked, click so that it becomes .
When you click “Next”, the “Select a Device” window appears.
10 Under "Select the devices to use in this connection", click the check box for "Standard modem over Bluetooth link".
If another modem is selected, click the check box to deselect it.
11 Click "Next".
The “Connection Name” window appears.
12 Enter the name to use for this connection in the "ISP Name" (Internet Service Provider Name) field, and click "Next".
The “Phone Number to Dial” window appears.
13 Enter the telephone number of the ISP (Internet Service Provider) access point, and click "Next".
The “Internet Account Information” window appears.
14 Configure "User name", "Password" and "Confirm password", and click "Next".
The “Completing the New Connection Wizard” window appears.
15 Click "Finish".
Establishing a dial-up connection
1 Click the "Start" button, then click "Control Panel" – "Network and Internet Connections" – "Network Connections".
The “Network Connections” window appears.
2 Double-click the icon of the connection destination created in the "Create a new connection" procedure.
3 Click "Dial".
The dial-up connection is established via the Bluetooth connection.
Terminating a dial-up connection
Right-click * in the task bar, and select “Disconnect” from the menu.
* The icon appearing in the task bar looks just like the icon of the connected wireless network device. You can check the name of the connected device by moving the pointer to the icon in the task bar.
For information on how to terminate Bluetooth communication, see “Terminating Bluetooth communication” (page 25).
Assigning/changing the Bluetooth device name for the computer
The computer name to be displayed when detected by another Bluetooth technology enabled device can be set using Windows XP functions.
1 Turn on the computer and insert the Bluetooth USB adapter into the USB port (page 14).
2 Click the "Start" button, and click "Control Panel". The Control Panel appears.
3 Click the "Printers and Other Hardware" icon.
4 Click the "Wireless Link" icon.
5 Click the "Hardware" tab.
6 Select "Sony Bluetooth USB Adapter", and click "Properties". The "Sony Bluetooth USB Adapter Properties" window appears.
7 Click the "Advanced" tab.
8 Change the "Name", and click "OK".
Terminating Bluetooth communication
While communicating using BlueSpace NE
1 Click the connected service button appearing in the BlueSpace NE main window, or click →(“Disconnect all connections” button).
A confirmation window appears.
2 Click "Yes".
3 Click in the top right-hand corner of the window to close the BlueSpace NE main window.
4 Remove the Bluetooth USB adapter from the USB port.
While communicating using Windows XP functions
Remove the Bluetooth USB adapter from the USB port.
Notes
When the computer is connected to the Bluetooth cell phone or modem, right-click in the task bar, and select "Disconnect" from the menu to terminate the dial-up connection first. Then perform the following steps to terminate Bluetooth communication.
* The icon appearing in the task bar looks just like the icon of the connected wireless network device. You can check the name of the connected device by moving the pointer over the icon in the task bar.
Notes on Use
Protect the unit from shock
To prevent the possibility of damage, take care not to drop the unit or otherwise subject it to strong shocks.
Usage and storage locations
Do not use or store this unit in locations subject to high humidity, high temperatures, strong vibrations, direct sunlight, or high levels of dust.
Operation
- Do not place any objects on top of the unit.
- Protect the unit from sudden temperature changes. Do not use the unit immediately after moving it from a cold to a warm location or after the ambient temperature has risen drastically. Otherwise condensation inside the unit can occur. If the temperature has changed significantly during operation, turn off the power of the unit and let it stand for about an hour.
Transport
Retain the packing material of the unit and reuse it when transporting the unit again.
Notes on discs
On handling discs
- To keep the disc clean, handle only by the edges. Do not touch the surface.
- Do not write on or stick paper or tape to the surface of the disc.
- Do not use a disc with tape, seals, or paste on it. Such a disc may damage the disc drive.
Correct Incorrect
On safekeeping
- Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight.
• After playing, store the disc in its case. Stocking discs without cases or leaving the disc exposed, may cause damage to the disc.
On cleaning
- Fingerprints, dust or dirt can cause reading errors or reduced sound quality. Always keep the disc clean.
- Clean the disc with a duster. Wipe the disc from the center out.
- Do not use solvents such as benzine, thinner, commercially available cleaners or antistatic spray intended for vinyl LPs.
Bluetooth communications
- The 2.4 GHz band used by Bluetooth and wireless LAN devices is also used by various other devices. Bluetooth devices incorporate technology that minimizes interference from other devices using the same wavelength. However, communication speed and achievable distances may be reduced. Interference from other devices can also stop communications altogether.
-
The data transfer rate will vary depending on distance and obstacles between devices, device configuration, radio interference, operating system, software application, etc. In some cases, communication may be interrupted.
-
Communication range will vary according to whether walls or other obstacles are located between devices, the material used in walls, the presence of radio frequency interference and other environmental conditions, and the type of software being used.
- If Wireless LAN and Bluetooth functions are used at the same time on the same computer, communication speed may be reduced due to electromagnetic interference, and other unwanted effects may occur.
- Please note that due to limitations of the Bluetooth standard, large files may occasionally be corrupted during continuous transfer due to electromagnetic interference from the environment.
Maintenance
Cleaning the case
- Wipe the outside of the unit with a soft, dry cloth. To remove stains, moisten the cloth with a mild, neutral detergent. Do not use solvents, cleaning alcohol, benzine or other substances that may damage the finish.
- Fingerprints and smudges can be removed by wiping with a lens cleaning cloth.
Bluetooth Wireless Technology
Bluetooth wireless technology is a new development that is about to revolutionize the field of personal networks. As a world-wide standard for short-range, low-cost wireless communications, Bluetooth compatibility will be integrated in a wide variety of devices, allowing notebooks, mobile phones and other mobile equipment to communicate with each other and access the Internet.
The Bluetooth SIG (Special Interest Group) comprises electronics and communications equipment manufacturers and other leading companies in the fields of computing and networking. The SIG has worked out the technological standards for Bluetooth communications. Many Bluetooth technology compatible products are now being developed and brought onto the market. Along with Sony, the Bluetooth SIG comprises more than 2000 companies worldwide including major computer and communications equipment manufacturers as well as household appliance manufacturers.
Connection format


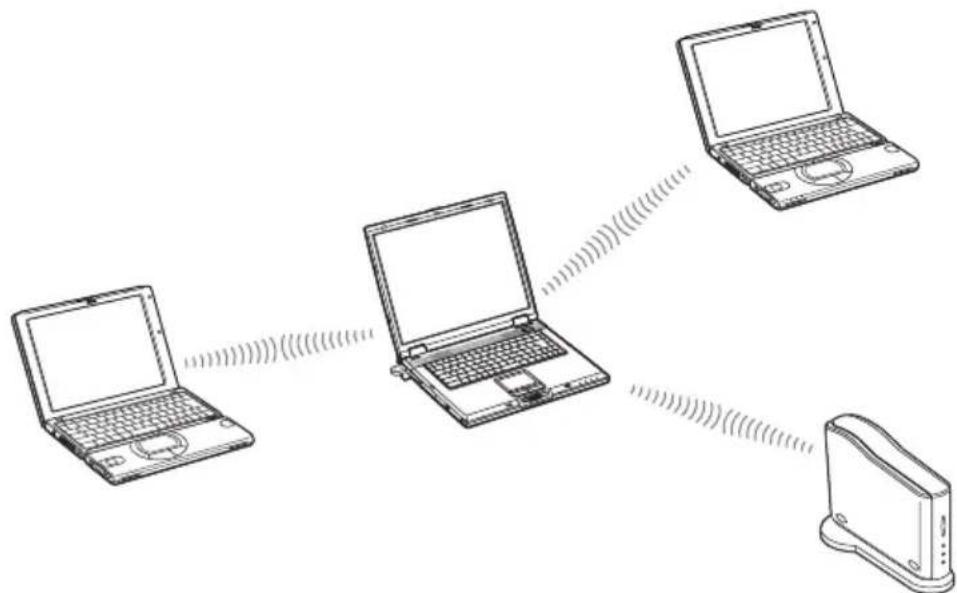

Line drawing of three laptops connected to a server, showing signal propagation (no text or symbols)Using Bluetooth, the notebook in which this device is installed can communicate wirelessly with nearby peripheral devices (with no interconnecting cables).
In addition, files can be exchanged wirelessly between the notebook in which this device is installed and other Bluetooth-enabled computers or digital cameras.
To establish a wireless connection between the notebook in which this device is installed and another Bluetooth-enabled device, each device must support a common set of functions (profile).
Speed
Bluetooth communications support a maximum data transfer rate of 723 kbps, but actual data transfer rates will vary, depending on factors such as distance and obstacles between devices, radio interference, the operating system or the software used, as well as equipment sensitivity and the performance of the aerial. Data transfer rates are optimized to achieve the best throughput under a given set of conditions.
Communication range and power
Bluetooth enabled devices are divided into several categories. Power Class 1 devices can communicate within a 10 to 100 meter range*. Power Class 2 or 3 devices can communicate within a 10 meter range*.
The Bluetooth USB adapter is a Power Class 2 device.
* This assumes that no obstacles are present.
Communication range will vary according to whether walls or other obstacles are located between devices, the material used in walls, the presence of radio frequency interference and other environmental conditions, and the type of software being used.
Bluetooth standard
In order to facilitate communication between Bluetooth technology compatible devices from various manufacturers, the Bluetooth SIG has worked out standards regarding wireless transfer methods, security implementation, application specific data formats, etc. All Bluetooth technology compatible devices must be certified according to procedures approved by the Bluetooth SIG to make sure that applicable standard requirements are met.
However, even if standard requirements are met, individual device performance and specifications as well as operation procedures vary, which means that data exchange may not be possible in all cases.
Security
Bluetooth wireless communications implement an authentication feature that can be used to prevent unauthorized access from unidentified Bluetooth devices. The first time two Bluetooth devices communicate with each other, a common passkey must be entered before the two devices are allowed to exchange data. Once a connection has been established, communication between the devices can proceed for a preset interval (default setting in BlueSpace software: indefinite), without the need to reenter the passkey.
The Bluetooth USB adapter can be set up so as not to be discovered by other Bluetooth devices. For information on how to set the device information storage period and how to set not respond to the device discovery from remote devices, refer to the help function of the BlueSpace NE software.
Getting Help
This section describes how to get help and support from Sony, as well as troubleshooting tips for your Bluetooth USB Adapter.
About Sony's Support Options
Sony provides following support options for your Bluetooth USB Adapter. If you have questions about your Bluetooth USB Adapter and the software, check these places for answers:
☐ Read This First explains how to install the software before using Bluetooth USB Adapter.
☐ This guide explains how to use your Bluetooth USB Adapter.
For customers in the United States and Canada
☐ The Sony Customer Information Service Center offers information about your notebook and other Sony products that work with your computer. To contact Sony Customer Information Service Center, call 1-888-4SONYPC (1-888-476-6972).
☐ The Sony fax-back service provides you with answers to frequently asked questions. You can use this automated service to request a list of available topics and then select the topics that you want to receive. To contact the Sony fax-back service, call 1-888-4SONYPC (1-888-476-6972).
☐ The Sony e-mail support service answers your questions by electronic mail. Just send your question in an e-mail message, and a customer service representative will send you a reply. To send a question to Sony e-mail support, address the message to SOS@info.sel.sony.com.
☐ The Sony website provides the latest information on your products.
http://www.ita.sel.sony.com/support/
For customers in Europe
□Support service. For addresses and numbers, refer to your Customer Service Guide. www.vaio-link.com
For customers in other regions
□ VAIO Website provides Frequently Asked Questions and solutions. vaio-online.sony.com/
Specifications
Wireless communications
Communication method
Bluetooth standard Ver. 1.1
Maximum data transfer rate ^1)
Approx. 723 kbps
Output
Bluetooth standard Power Class 2
Communication range 2)
Up to 10 m
Supported Bluetooth profiles 3)
Generic Access Profile
Service Discovery Application Profile
Serial Port Profile
Dial-up Networking Profile
Generic Object Exchange Profile
Object Push Profile
Basic Imaging Profile
Hardcopy Cable Replacement Profile
Human Interface Device Profile
Frequency band
2.4 GHz band (2.400 GHz - 2.4835 GHz)
1) Data transfer rate will vary depending on distance and obstacles between devices, device configuration, radio interference, operating system, software application, etc. In some cases, communication may be interrupted.
^2) Communication range will vary according to whether walls or other obstacles are located between devices, the material used in walls, the presence of radio frequency interference and other environmental conditions, and the type of software being used.
3) Bluetooth standard profiles specify the usage purpose for Bluetooth devices communicating with each other.
General
Interface
USB
Dimensions
Approx. 0.7 × 0.4 × 1.7 in. (17.0 × 8.5 × 41.3 ~mm)
(w/h/d)
Mass
Approx. 0.1 oz (5.0 g)
Ambient conditions for operation and storage
Operating temperature
5^ to 35^
(temperature gradient less than 10^ C/hour)
Operating humidity
20% to 80% (not condensed),
provided that humidity is less than 65% at 35°C
(hygrometer reading of less than 29^ C)
Storage temperature
-20°C to 60°C
(temperature gradient less than 10^ C/hour)
Storage humidity
10% to 90% (not condensed),
provided that humidity is less than 20% at 60°C
(hygrometer reading of less than 35^ C)
Design and specifications are subject to change without notice.
Troubleshooting
If a problem occurs during operation of the unit, please check the points listed in this troubleshooting guide. If the problem persists, contact support service. For contact information, see “Getting Help” on page 31.
You should also consult the manuals provided with your computer.
Symptom Cause/Remedy
No communication targets listed. Bluetooth communication not possible.
→Make sure that the Bluetooth USB adapter is properly inserted in the USB port.
→Make sure that the Bluetooth USB adapter is not covered.
→Communication is possible only within a range of about 10 meters. If devices are further away, move them closer together.
→Communication range may be less than 10 meters, depending on factors such as the presence of obstacles between devices, radio interference, wall and other materials, and the type of software application. Try moving the computer with the Bluetooth USB adapter or the other device.
→If a power-saving mode is enabled at the computer with the Bluetooth USB adapter, correct Bluetooth communication may not be possible. Set the computer to normal mode.
→Check whether the Bluetooth function is enabled at the target device, and whether normal mode is selected. If a power-saving mode is enabled on the target device, correct Bluetooth communication may not be possible.
→Check whether the Bluetooth function is turned on at the connection target device. For details, see the documentation of the device.
→If the intended target device is currently communicating with another device, it may not be listed as an available device, and communication with the computer with the Bluetooth USB adapter may not be possible.
→The name of the Bluetooth enabled device at the communication destination may have been changed since the previous device discovery. Delete all devices that have been discovered using the BlueSpace NE software, and restart to perform device discovery again.
For more details, see the Help information for the BlueSpace NE software.
Symptom Cause/Remedy
| No communication targets listed. Bluetooth communication not possible. | →If this device is connected to a computer serving as the slave, it will be unable to communicate with other devices. Terminate the current communications link (page 25), and reconnect from the computer to which this device is connected. |
| Data transfer speed is low. | →Make sure that the computer with the Bluetooth USB adapter is not covered.→Data transfer speed may be affected by factors such as the distance and presence of obstacles between devices, radio interference, walls and other materials, and the type of software application. Try moving the computer with the Bluetooth USB adapter or the other device. |
| Cannot connect to service supported by target Bluetooth device. | →Connection is possible only to a service also supported by the computer with the Bluetooth USB adapter.For details, see BlueSpace NE help and the manual provided with the target Bluetooth device. |
| An error message appears and dial-up connection cannot be established by the Bluetooth cell phone or modem. | →The previous connection may not have been properly terminated. After restarting the computer to which the Bluetooth USB adapter is connected, try establishing the dial-up connection again.→The modem may not be properly installed.See “Setting up a Bluetooth cell phone or modem” (page 20) to reinstall the modem.When you have finished the reinstallation perform the following steps in order.1 Restart the computer to which the Bluetooth USB adapter is connected.2 Click the “Start” button, and click “Control Panel”. The Control Panel appears.3 Click the “Network and Internet Connections” icon.4 Click the “Network Connections” icon.The “Network Connections” window appears.5 Double-click the connection target icon.6 In the “Connect to ...” window (where “...” is the name of the connection destination), click “Properties”, and in the “General” tab, place a check mark by “Standard modem over Bluetooth link”, so that is it shown at the top of the “List” tab.7 Click “OK”.8 Click “Dial” again to establish the dial-up connection. |
Symptom Cause/Remedy
| File exchange with another VAIO computer is not possible. | →If an older version of the BlueSpace software is being used problems with the file transfer service may occur. Make sure that the BlueSpace software and the Bluetooth device driver on the target are the latest versions. For information on upgrading software refer to the VAIO-Link website. |
| The computer with the Bluetooth USB adapter installed does not go into standby mode. | →Switching to standby mode automatically is not possible if the computer is communicating with other Bluetooth devices. To enter standby mode, terminate all Bluetooth communications. |
| Bluetooth communication fails midway. | →Remove Bluetooth USB adapter from the USB connector, then plug it back into the connector and try Bluetooth communication again.Other devices located in the vicinity of Wireless LAN communication can cause Bluetooth communication to fail midway. |
| The message “The Bluetooth device requires authentication” appears in the notification area. | →The target Bluetooth enabled device is requesting connection authentication. Mutual authentication is required to enable Bluetooth communications with this device. Refer to “Communicating using Windows XP functions” (page 19) for details. |
| The authentication window does not appear even when performing Service Discovery on a non-authenticated device. | →Authentication may not have been performed during previous Service Discovery. Right-click on the device connected via BlueSpace NE, and click “Authentication”. |
Diagram showing three connected devices: a laptop, a laptop with signal waves, and a server with wireless signal lines.Bluetooth Standard Power Class 2
Generic Access Profile
Service Discovery Application Profile
Serial Port Profile
Dial-up Networking Profile
Generic Object Exchange Profile
Object Push Profile
Basic Imaging Profile
Hardcopy Cable Replacement Profile
Human Interface Device Profile
Frequenzbereich
Diagram showing three laptops connected to a server, with signal waves indicating data transmission.Printed on 100% recycled paper using VOC(Volatile Organic Compound)-free vegetable oil based ink.
