Product Type	21-inch Trinitron CRT Monitor
Brand	Sony
Model	CPDE500
Dimensions (W x H x D)	497 x 480 x 478 mm (19 5/8 x 19 x 18 7/8 in)
Weight	Approx. 32 kg (70 lb 9 oz)
Power Supply	100 – 240 V, 50/60 Hz, 2.0 – 1.0 A
Power Consumption	Approx. 145 W (normal), ≤ 15 W (standby), approx. 1 W (deep sleep)
Maximum Resolution	2048 × 1536 pixels
Recommended Resolution	1600 × 1200 pixels
Horizontal Frequency	30 – 109 kHz
Vertical Frequency	48 – 160 Hz
Aperture Grille Pitch	0.24 mm
Displayed Image Size	Approx. 403.8 × 302.2 mm (16 × 12 in)
Main Functions	OSD menus: brightness, contrast, size, centering, zoom, geometry, convergence, color (sRGB), moiré, degaussing, control lock, power saving (DPMS)
Maintenance and Cleaning	Use a soft cloth; for the screen, a glass cleaner without antistatic solution; for the chassis, a soft cloth lightly dampened with neutral detergent
Safety	Use the appropriate power cord; do not obstruct ventilation openings; install near an accessible wall outlet; avoid unstable surfaces or heat sources
Spare Parts and Repairability	Power cord, Macintosh adapter (beige system) and installation floppy disk included; for repairs, contact an authorized Sony dealer
General Information	Compliant with MPR II, VESA DDC 1/2B/2Bi, GTF, ENERGY STAR, NUTEK; Plug & Play compatible with Windows 95/98

Frequently Asked Questions - CPDE500 SONY

How to clean the monitor screen?

Use a soft cloth. If you use a glass cleaner, make sure it does not contain antistatic solution or similar additives, as they may scratch the screen coating. Never use abrasive objects or solvents such as alcohol or benzene.

What to do if the screen shows no image?

First check that the power cord is plugged in and the power switch is ON. If the power indicator is orange or blinking, the monitor is likely in power saving mode: press a key on the keyboard or move the mouse. Also check that the video cable is properly connected and that the pins are not bent. If the message 'NO VIDEO INPUT' is displayed, ensure the computer is on and the graphics card is firmly seated.

How to adjust brightness and contrast?

Move the control stick in any direction to display the BRIGHTNESS/CONTRAST menu. Then move it up or down (↓/↑) to adjust brightness, and left or right (←/→) to adjust contrast. The menu auto-disappears after about 3 seconds.

How to manually degauss the screen?

Access the OPTION menu by pressing the center of the control stick, select the ⊕ (DEGAUSS) icon with the stick up or down, then move it to the right (→). Degaussing lasts about 2 seconds. If necessary, wait 20 minutes before a second cycle.

Why do fine lines appear on the screen?

These lines are the shadow of the damper wires used to stabilize the aperture grille of Trinitron tubes. They are more visible on a bright background and are not a malfunction. They are a normal characteristic of Trinitron technology.

How to lock the controls to prevent accidental adjustments?

In the OPTION menu, select the Ⓑ (MENU LOCK) icon and set it to ON. Only the power switch and EXIT and MENU LOCK settings remain operational. To unlock, repeat the procedure and set to OFF.

What are the power saving modes?

The monitor reduces power consumption in three stages: 1) standby (≤ 15 W, alternating green and orange indicator), 2) sleep (≤ 15 W, alternating green and orange indicator), 3) deep sleep (approx. 1 W, steady orange indicator). The modes comply with VESA DPMS, ENERGY STAR and NUTEK standards.

How to reset the monitor settings?

Use the RESET button. To reset a single parameter, select it in the menu and press RESET. To reset all settings for the current input signal, press RESET when no menu is displayed. For a full reset of all signals, hold down RESET for at least two seconds.

What to do if the image is blurry or distorted?

Adjust brightness and contrast. If the image is distorted, use the GEOM (geometry) menus to correct rotation, shape, or edge curvature. If moiré patterns appear, enable the MOIRE CANCEL function in the SCREEN menu and adjust the setting. If the problem persists, degauss the screen.

How to change the menu language?

Press the center of the control stick to display the main MENU. Select LANG by moving the stick, then press again. Choose the desired language from the options (French, English, German, etc.) by moving the stick up or down. To exit, press the center of the stick twice.

USER MANUAL CPDE500 SONY

Trinitron ^® Color Computer Display

Operating Instructions US

Mode d'emploi FR

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTADOR (Para Mexico unicamente/For Mexico only)

Sony Electronicos de Mexico, S.A. de C.V.

Henry Ford No.29

Fraccionamiento San Nicolas, Tlalnepantla

Estado de Mexico, CP54030

Tel.: [phone]

R.F.C. SEM-941001-BJA

IMPORTANTE

This product complies with Swedish National Council for Metrology (MPR) standards issued in December 1990 (MPR II) for very low frequency (VLF) and extremely low frequency (ELF).

INFORMATION

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p Cord Type SVT or SJT, minimum 3 Length Maximum 15 feet Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Declaration of Conformity

Trade Name: Sony

Model No.: CPD-E500

Responsible Party: Sony Electronics Inc.

Address: 1 Sony Drive, Park Ridge, NJ. 07656 USA Telephone No.: 201-930-6970

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Table of Contents

Precautions 4

Identifying parts and controls 5

Setup 6

Step 1: Connect your monitor to your computer ..... 6

Step 2: Connect the power cord ....6

Step 3: Turn on the monitor and computer ..... 7

Selecting the on-screen menu language (LANG) 7

Customizing Your Monitor....8

Navigating the menu 8

Adjusting the brightness and contrast 9

Adjusting the size of the picture (SIZE) 10

Adjusting the centering of the picture (CENTER) 10

Enlarging or reducing the picture (ZOOM) 10

Adjusting the shape of the picture (GEOM) 10

Adjusting the convergence (CONV) 11

Adjusting the quality of the picture (SCREEN) 11

Adjusting the color of the picture (COLOR) 12

Additional settings (OPTION) 13

Resetting the adjustments 14

Technical Features ....14

Preset and user modes 14

Power saving function 14

Troubleshooting ....15

If thin lines appear on your screen (damper wires) ..... 15

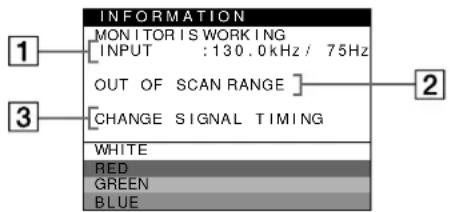

On-screen messages 15

Trouble symptoms and remedies 16

Self-diagnosis function 18

Specifications ....18

Appendix....i

Preset mode timing table ....i

• Tr i n is a registered trademark of Sony Corporation.
  • Macintosh is a trademark licensed to Apple Computer, Inc., registered in the U.S.A. and other countries.
• Windows ^1 and MS-DOS are registered trademarks of Microsoft Corporation in the United States and other countries.
  • IBM PC/AT and VGA are registered trademarks of IBM Corporation of the U.S.A.
• VESA and DDC ^1 are trademarks of the Video Electronics Standard Association.
  • ENERGY STAR is a U.S. registered mark.
• All other product names mentioned herein may be the trademarks or registered trademarks of their respective companies.
• Further "rand" "are not" mentioned in each case in this manual.

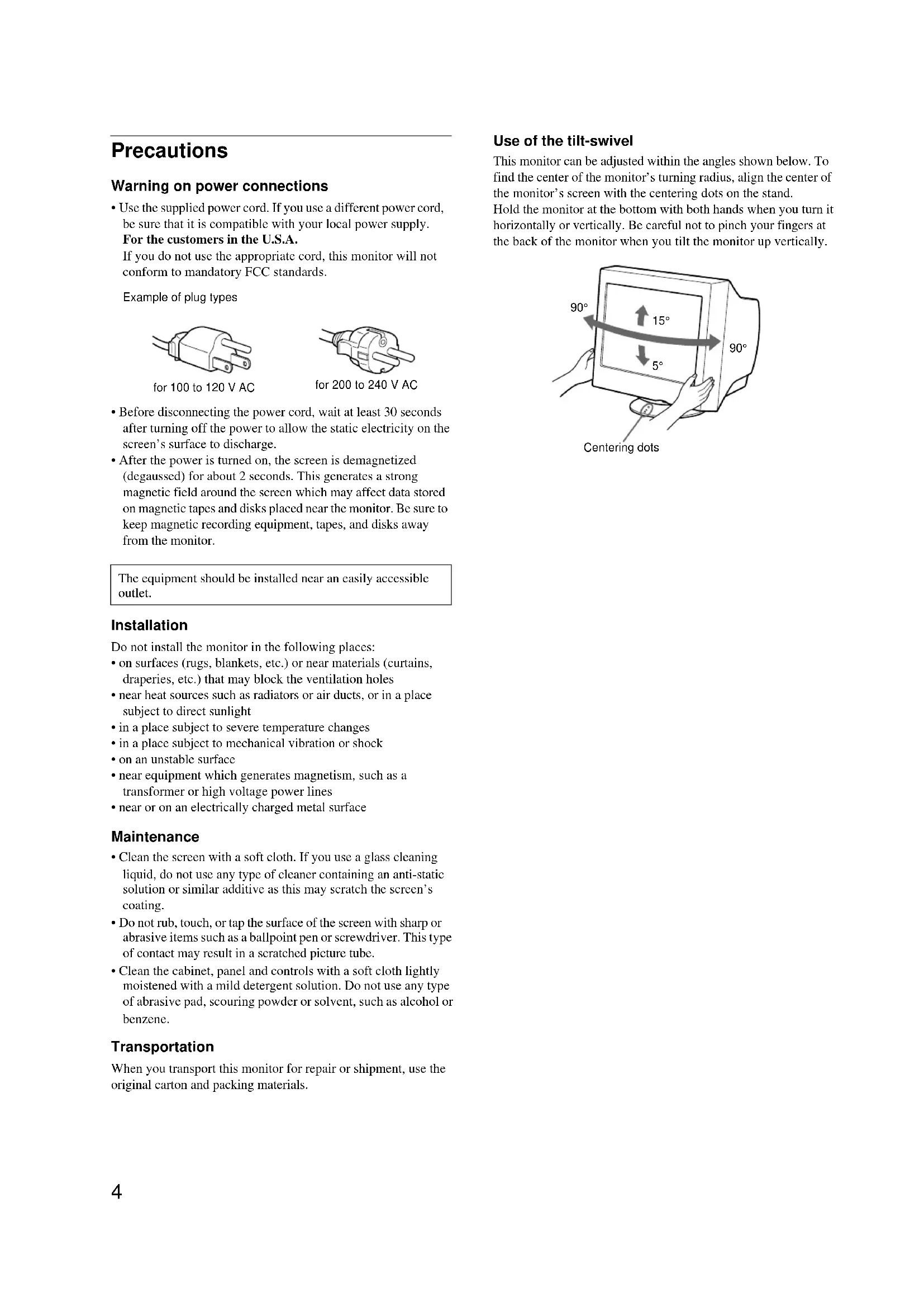

Precautions

Warning on power connections

- Use the supplied power cord. If you use a different power cord, be sure that it is compatible with your local power supply. For the customers in the U.S.A.

If you do not use the appropriate cord, this monitor will not conform to mandatory FCC standards.

Example of plug types

for 100 to 120 V AC

for 200 to 240 V AC

- Before disconnecting the power cord, wait at least 30 seconds after turning off the power to allow the static electricity on the screen's surface to discharge.

• After the power is turned on, the screen is demagnetized (degaussed) for about 2 seconds. This generates a strong magnetic field around the screen which may affect data stored on magnetic tapes and disks placed near the monitor. Be sure to keep magnetic recording equipment, tapes, and disks away from the monitor.

The equipment should be installed near an easily accessible outlet.

Installation

Do not install the monitor in the following places:

- on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies, etc.) that may block the ventilation holes

- near heat sources such as radiators or air ducts, or in a place subject to direct sunlight

• in a place subject to severe temperature changes

- in a place subject to mechanical vibration or shock

• on an unstable surface

- near equipment which generates magnetism, such as a transformer or high voltage power lines

- near or on an electrically charged metal surface

Maintenance

- Clean the screen with a soft cloth. If you use a glass cleaning liquid, do not use any type of cleaner containing an anti-static solution or similar additive as this may scratch the screen's coating.

- Do not rub, touch, or tap the surface of the screen with sharp or abrasive items such as a ballpoint pen or screwdriver. This type of contact may result in a scratched picture tube.

- Clean the cabinet, panel and controls with a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent, such as alcohol or benzene.

Transportation

When you transport this monitor for repair or shipment, use the original carton and packing materials.

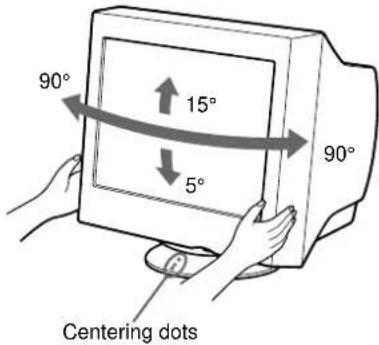

Use of the tilt-swivel

This monitor can be adjusted within the angles shown below. To find the center of the monitor's turning radius, align the center of the monitor's screen with the centering dots on the stand. Hold the monitor at the bottom with both hands when you turn it horizontally or vertically. Be careful not to pinch your fingers at the back of the monitor when you tilt the monitor up vertically.

90° 15° 5° 90° Centering dots

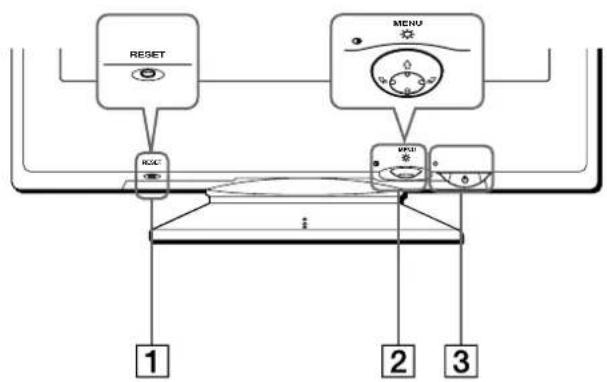

Identifying parts and controls

See the pages in parentheses for further details.

1 RESET (reset) button (page 14)

This button resets the adjustments to the factory settings.

②Control button (page 9)

The control button is used to display the menu and make adjustments to the monitor, including brightness and contrast adjustments.

3 (power) switch and indicator (pages 7, 14, 18)

This button turns the monitor on and off. The power indicator lights up in green when the monitor is turned on, and either flashes in green and orange, or lights up in orange when the monitor is in power saving mode.

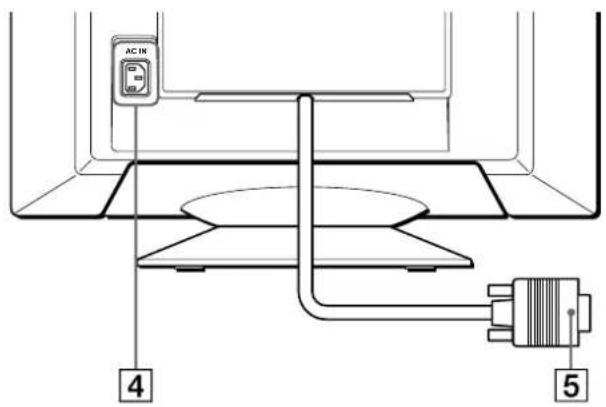

RearFront

AC IN 4 5

4 AC IN connector (page 6)

This connector provides AC power to the monitor.

5 Video input connector (HD15) (page 6)

This connector inputs RGB video signals (0.700 Vp-p, positive) and sync signals.

Pin No. Signal
1	Red
2 Green(Sync on Green)
3	B	l	u	e
4 ID (Ground)
5 DDC Ground*
6 Red Ground
7 Green Ground
8 Blue Ground
9 DDC + 5V*
10 Ground
11 ID (Ground)
12 Bi-Directional Data (SDA)*
13 H. Sync
14 V. Sync
15 Data Clock (SCL)*

* DDC (Display Data Channel) is a standard of VESA.

Setup

Before using your monitor, check that the following accessories are included in your carton:

• Power cord (1)
  • Macintosh adapter (for beige system) (1)
• Setup Disk (1)
• Warranty card (1)
• Notes on cleaning the screen's surface (1)
  • This instruction manual (1)

Step 1: Connect your monitor to your computer

Turn off the monitor and computer before connecting.

Note

Do not touch the pins of the video signal cable connector as this might bend the pins.

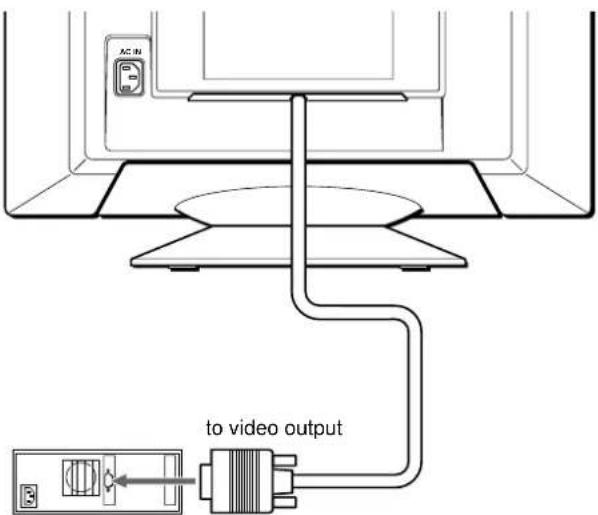

■ Connecting to an IBM PC/AT or compatible computer

AC IN to video output

IBM PC/AT or compatible computer

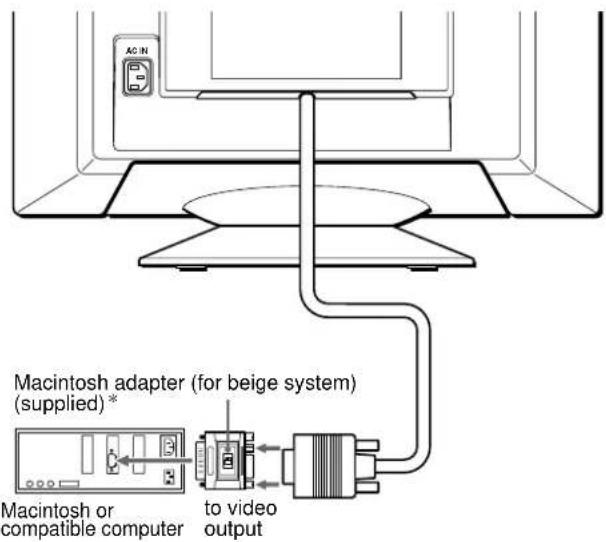

■ Connecting to a Macintosh or compatible computer

AC-IN Macintosh adapter (for beige system) (supplied)* Macintosh or compatible computer to video output

* Connect the supplied Macintosh adapter to the computer before connecting the cable. This adapter is compatible with Macintosh LC, Performa, Quadra, Power Macintosh, and Power Macintosh G3 series computers that have two rows of pins. If you are connecting to the other version of Power Macintosh G3 series with three rows of pins or models other than those stated above, you will need a different adapter (not supplied).

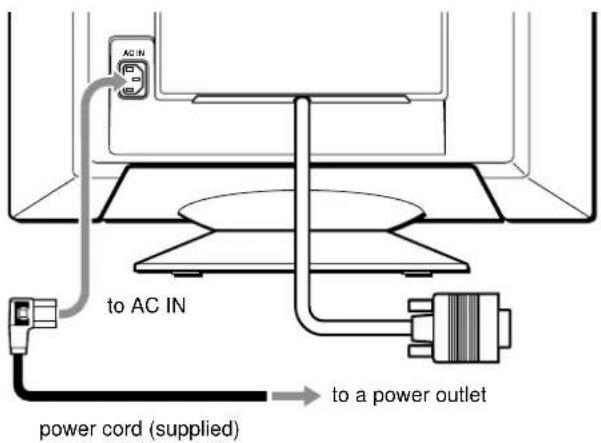

Step 2: Connect the power cord

With the monitor and computer switched off, first connect the power cord to the monitor, then connect it to a power outlet.

AC IN to AC IN power cord (supplied) to a power outlet

Step 3: Turn on the monitor and computer

First turn on the monitor, then turn on the computer.

The installation of your monitor is complete.

If necessary, use the monitor's controls to adjust the picture.

If no picture appears on your screen

• Check that the monitor is correctly connected to the computer.
• If NO INPUT SIGNAL appears on the screen, confirm that your computer's graphic board is completely seated in the correct bus slot.
• If you are replacing an old monitor with this model and OUT OF SCAN RANGE appears on the screen, reconnect the old monitor. Then adjust the computer's graphic board so that the horizontal frequency is between 30 – 109 kHz, and the vertical frequency is between 48 – 160 Hz.

For more information about the on-screen messages, see “Trouble symptoms and remedies” on page 16.

For customers using Windows 95/98

To maximize the potential of your monitor, install the new model information file from the supplied Setup Disk onto your PC. This monitor complies with the “VESA DDC” Plug & Play standard. If your PC/graphics board complies with DDC, select “Plug & Play Monitor (VESA DDC)” or this monitor’s model name as the monitor type in the “Control Panel” of Windows 95/98. If your PC/graphics board has difficulty communicating with this monitor, load the Setup Disk and select this monitor’s model name as the monitor type.

For customers using Windows NT4.0

Monitor setup in Windows NT4.0 is different from Windows 95/98 and does not involve the selection of monitor type. Refer to the Windows NT4.0 instruction manual for further details on adjusting the resolution, refresh rate, and number of colors.

Selecting the on-screen menu language (LANG)

English, French, German, Spanish, Italian, Dutch, Swedish, Russian and Japanese versions of the on-screen menus are available. The default setting is English.

1 Press the center of the control button.

See page 9 for more information on using the control button.

MENU

SR CENTER COM E COLOR OPTION

2 Move the control button to highlight A LANG and press the center of the control button again.

MENU

LANGUAGE ► ENGLISH FRAN AIS DEUTSCH ESPA OL ITALIANO NEDERLANDS SVENSKA РУССКИЙ 日本語

3 Move the control button ↓/↑ to select a language.

• ENGLISH
• FRANÇAIS: French
• DEUTSCH: German
- ESPAÑOL: Spanish
• ITALIANO: Italian
• NEDERLANDS: Dutch
• SVENSKA: Swedish
• :РУСОКИЙ
• : 日本語ese

To close the menu

Press the center of the control button once to return to the main MENU, and twice to return to normal viewing. If no buttons are pressed, the menu closes automatically after about 30 seconds.

To reset to English

Press the RESET button while the LANGUAGE menu is displayed on the screen.

Customizing Your Monitor

You can make numerous adjustments to your monitor using the on-screen menu.

Navigating the menu

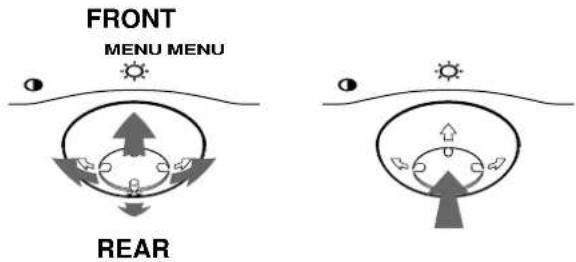

Press the center of the control button to display the main MENU on your screen. See page 9 for more information on using the control button.

Use the control button to select one of the following menus.

1 CENTER (page 10)

Selects the CENTER menu to adjust the picture's centering, size or zoom.

2SIZE (page 10)

Selects the SIZE menu to adjust the picture's size, centering or zoom.

3 GEOM (page 10)

Select the GEOM menu to adjust the picture's rotation and shape.

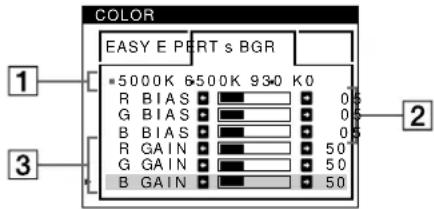

4COLOR (page 12)

Select the COLOR menu to adjust the picture's color temperature. You can use this to match the monitor's colors to a printed picture's colors.

COLOR EASY E PERT sRGB 5000K 6500K 9300K 5000K

5 SCREEN (page 11)

Select the SCREEN menu to adjust the picture's quality. You can adjust the landing and moire cancellation effect.

CONV (page 11)

Select the CONV menu to adjust the picture's horizontal and vertical convergence.

⑦ LANG (page 7)

Select the LANG menu to choose the on-screen menu's language.

LANGUAGE • ENGLISH FRAN AIS DEUTSCH ESPA OL ITALIANO NEDERLANDS SVENSKA РУССКИЙ 日本語

8OPTION (page 13)

Select the OPTION menu to adjust the monitor's options. The options include:

• degaussing the screen
• changing the on-screen menu position
• locking the controls

9 EXIT

Select EXIT to close the menu.

■ Displaying the current input signal

The horizontal and vertical frequencies of the current input signal are displayed in the main MENU. If the signal matches one of this monitor's factory preset modes, the resolution is also displayed.

SCREEN CENTER EIT COLOR SIZE OPTION

the resolution of the current input signal 68.7kHz/85Hz the horizontal and vertical frequencies of the current input signal

■ Using the control button

1 Display the main MENU.

Press the center of the control button to display the main MENU on your screen.

MENU

2 Select the menu you want to adjust.

Highlight the desired menu by moving the control button towards the rear to go up (↑), towards the front to go down (↓), and left (←) or right (→) to move sideways.

FRONT MENU MENU REAR

3 Adjust the menu.

Move the control button left ( ) or right ( ) to make the adjustment.

MENU

4 Close the menu.

Press the center of the control button once to return to the main MENU, and twice to return to normal viewing. If no buttons are pressed, the menu closes automatically after about 30 seconds.

MENU

■ Resetting the adjustments

Press the RESET button. See page 14 for more information on resetting the adjustments.

Adjusting the brightness and contrast

Brightness and contrast adjustments are made using a separate BRIGHTNESS/CONTRAST menu.

These settings are stored in memory for all input signals.

1 Move the control button in any direction.

The BRIGHTNESS/CONTRAST menu appears on the screen.

2 Move the control button ↓/↑ to adjust the brightness (♀), and ←/→ to adjust the contrast (○).

If you are using the sRGB mode

If you selected the sRGB mode in the COLOR menu, the following BRIGHTNESS/CONTRAST menu appears on the screen.

For more information about using the sRGB mode, see "Adjusting the color of the picture (COLOR)" on page 12.

The menu automatically disappears after about 3 seconds.

Adjusting the size of the picture (SIZE)

This setting is stored in memory for the current input signal.

1 Press the center of the control button. The main MENU appears on the screen.
2 Move the control button to highlight SIZE and press the center of the control button again. The SIZE/CENTER menu appears on the screen.
3 First move the control button ↓/↑ to select for horizontal adjustment, or for vertical adjustment. Then move the control button ←/→ to adjust the size.

Adjusting the centering of the picture (CENTER)

This setting is stored in memory for the current input signal.

1 Press the center of the control button. The main MENU appears on the screen.
2 Move the control button to highlight CENTER and press the center of the control button again. The SIZE/CENTER menu appears on the screen.
3 First move the control button ↓/↑ to select for horizontal adjustment, or for vertical adjustment. Then move the control button ←/→ to adjust the centering.

Enlarging or reducing the picture (ZOOM)

This setting is stored in memory for the current input signal.

1 Press the center of the control button. The main MENU appears on the screen.
2 Move the control button to highlight SIZE or CENTER and press the center of the control button again. The SIZE/CENTER menu appears on the screen.
3 Move the control button ↓/↑ to select zoom), and move ←/→ to enlarge or reduce the picture.

Note

Adjustment stops when either the horizontal or vertical size reaches its maximum or minimum value.

Adjusting the shape of the picture (GEOM)

The GEOM settings allow you to adjust the rotation and shape of the picture.

The (rotation) setting is stored in memory for all input signals. All other settings are stored in memory for the current input signal.

1 Press the center of the control button. The main MENU appears on the screen.
2 Move the control button to highlight GEOM and press the center of the control button again. The GEOMETRY menu appears on the screen.
3 First move the control button ↓/↑ to select the desired adjustment item. Then move the control button ←/→ to make the adjustment.

Select To

○	rotate the picture
□	expand or contract the picture sides
□	shift the picture sides to the left or right
□	adjust the picture width at the top of the screen
□	shift the picture to the left or right at the top of the screen

Adjusting the convergence (CONV)

The CONV settings allow you to adjust the quality of the picture by controlling the convergence. The convergence refers to the alignment of the red, green, and blue color signals.

If you see red or blue shadows around letters or lines, adjust the convergence.

These settings are stored in memory for all input signals.

1 Press the center of the control button.

The main MENU appears on the screen.

2 Move the control button to highlight CONV and press the center of the control button again.

The CONVERGENCE menu appears on the screen.

3 First move the control button ↓/↑ to select the desired adjustment item. Then move the control button ←/→ to make the adjustment.

Select To
	horizontally shift red or blue shadows
	vertically shift red or blue shadows
TOPV CONVER TOP	vertically shift red or blue shadows at the top of the screen
BOTV CONVER BOTTOM	vertically shift red or blue shadows at the bottom of the screen

Adjusting the quality of the picture (SCREEN)

The SCREEN settings allow you to adjust the quality of the picture by controlling the moire and landing.

• If the color is irregular at the corners of the screen, adjust the landing.
• If elliptical or wavy patterns appear on the screen, cancel the moire.

The CANCEL MOIRE and MOIRE ADJUST settings are stored in memory for the current input signal. All other settings are stored in memory for all input signals.

1 Press the center of the control button.

The main MENU appears on the screen.

2 Move the control button to highlight SCREEN and press the center of the control button again.

The SCREEN menu appears on the screen.

3 First move the control button ↓/↑ to select the desired adjustment item. Then move the control button ←/→ to make the adjustment.

Select To
□LANDING	reduce any color irregularities in the screen’s top left corner to a minimum.
□LANDING	reduce any color irregularities in the screen’s top right corner to a minimum.
□LANDING	reduce any color irregularities in the screen’s bottom left corner to a minimum.
□LANDING	reduce any color irregularities in the screen’s bottom right corner to a minimum.
□CANCEL MOIRE*	turn the moire cancellation function ON or OFF.(MOIRE ADJUST) appears in the menu when you select ON.
□MOIRE ADJUST	adjust the degree of moire cancellation until the moire is at a minimum.

• Moire is a type of natural interference which produces soft, wavy lines on your screen. It may appear due to interference between the pattern of the picture on the screen and the phosphor pitch pattern of the monitor.

Example of moire

Note

The picture may become fuzzy when CANCEL MOIRE is set to ON.

Adjusting the color of the picture (COLOR)

The COLOR settings allow you to adjust the picture's color temperature by changing the color level of the white color field. Colors appear reddish if the temperature is low, and bluish if the temperature is high. This adjustment is useful for matching the monitor's color to a printed picture's colors. These settings are stored in memory for all input signals.

1 Press the center of the control button. The main MENU appears on the screen.
2 Move the control button to highlight 📄 COLOR and press the center of the control button again. The COLOR menu appears on the screen.
3 Move the control button / to select the adjustment mode. There are three types of adjustment modes, EASY, EXPERT and sRGB.
4 First move the control button ↓/↑ to select the desired adjustment item. Then move the control button ←/→ to make the adjustment. Adjust the selected mode according to the following instructions.

EASY mode

COLOR EASY E PERT s BGR 5000K 6500K 930 K0 50 K00 1 2

1 Move the control button ↓/↑ to select the color temperature row 1. Then move the control button ←/→ to select a color temperature.

The preset color temperatures are 5000K, 6500K, and 9300K. Since the default setting is 9300K, the whites will change from a bluish hue to a reddish hue as the temperature is lowered to 6500K and 5000K.

2 If necessary, fine tune the color temperature. Move the control button ↓/↑ to select the color temperature row ②. Then move the control button ←/→ to fine tune the color temperature.

If you fine tune the color temperature, the new color settings are stored in memory for each of the three color temperatures and item 1 of the on-screen menu changes as follows.

• [5000K]→[ ◯1 ]
- [6500K] [2]
• [9300K]→[ ■■B ]

EXPERT mode

You can make additional adjustments to the color in greater detail by selecting the EXPERT mode.

COLOR EASY E PERT s BGR ■ 5000K 6500K 930 K0 R BIAS □ 0 G BIAS □ 0 B BIAS □ 0 R GAIN □ 50 G GAIN □ 50 B GAIN □ 50 1 2 3

1 Move the control button ↓/↑ to select the color temperature row 1. Then move the control button ←/→ to select a color temperature.
2 Move the control button ↓/↑ to select the adjustment item ②. Then move the control button ←/→ to adjust the BIAS (black level). This adjusts the dark areas of an image.
3 Move the control button ↓/↑ to select the adjustment item ③. Then move the control button ←/→ to adjust the GAIN (white level). This adjusts the light areas of an image.

You can adjust the R (red), G (green), B (blue) component of the input signal when making changes to items 2 and 3.

If you fine tune the color temperature, the new color settings are stored in memory for each of the three color temperatures and item 1 of the on-screen menu change as follows.

• [5000K]→[ ◯1 ]
• [6500K]→[ ☐2 ]
• [9300K]→[ ☐3 ]

sRGB mode

The sRGB color setting is an industry standard color space protocol designed to correlate the displayed and printed colors of sRGB compliant computer products. To adjust the colors to the sRGB profile, simply select the sRGB mode in the COLOR menu. However, in order to display the sRGB colors correctly ( =2.2 , 6500K), you must set your computer to the sRGB profile and adjust the brightness ( Ⓞ ) and contrast ( Ⓑ ) to the numbers shown in the menu. For information on how to change the brightness ( Ⓡ ) and contrast ( Ⓓ ), see page 9.

Note

Your computer and other connected products (such as a printer), must be sRGB compliant.

COLOR EASY E PERT s BGR :56 :76 FOR sRGB

Additional settings (OPTION)

You can manually degauss (demagnetize) the monitor, change the menu position, and lock the controls.

1 Press the center of the control button. The main MENU appears on the screen.
2 Move the control button to highlight OPTION and press the center of the control button again. The OPTION menu appears on the screen.
3 Move the control button ↓/↑ to select the desired adjustment item. Adjust the selected item according to the following instructions.

Degaussing the screen

The monitor is automatically demagnetized (degaussed) when the power is turned on.

To manually degauss the monitor, first move the control button ↓/↑ to select ⬆ (DEGAUSS). Then move the control button →.

The screen is degaussed for about 2 seconds. If a second degauss cycle is needed, allow a minimum interval of 20 minutes for the best result.

Changing the menu's position

Change the menu's position if it is blocking an image on the screen.

To change the menu's on-screen position, first move the control button ↓/↑ to select ⬆ (OSD H POSITION) for horizontal adjustment, or ⏻(○SD V POSITION) for vertical adjustment. Then move the control button ←/→ to shift the on-screen menu.

Locking the controls

To protect adjustment data by locking the controls, first move the control button ↓/↑ to select ON (CONTROL LOCK). Then move the control button →, to select ON.

Only the ⏻ (power) switch, EXIT, and ⓄONTROL LOCK) of the ⏻OPTION menu will operate. If any other items are selected, the ⏻mark appears on the screen.

To cancel the control lock

Repeat the procedure above and set (CONTROL LOCK) to OFF.

Resetting the adjustments

This monitor has the following three reset methods. Use the RESET button to reset the adjustments.

RESET

Resetting a single adjustment item

Use the control button to select the adjustment item you want to reset, and press the RESET button.

Resetting all of the adjustment data for the current input signal

Press the RESET button when no menu is displayed on the screen. Note that the following items are not reset by this method:

• on-screen menu language (page 7)
- adjustment mode in the COLOR menu (EASY, EXPERT, sRGB) (page 12)
• on-screen menu position (page 13)
• control lock (page 13)

Resetting all of the adjustment data for all input signals

Press and hold the RESET button for more than two seconds.

Note

The RESET button does not function when O_m (CONTROL LOCK) is set to ON.

Technical Features

Preset and user modes

When the monitor receives an input signal, it automatically matches the signal to one of the factory preset modes stored in the monitor's memory to provide a high quality picture at the center of the screen. (See Appendix for a list of the factory preset modes.) For input signals that do not match one of the factory preset modes, the digital Multiscan technology of this monitor ensures that a clear picture appears on the screen for any timing in the monitor's frequency range (horizontal: 30 – 109 kHz, vertical: 48 – 160 Hz). If the picture is adjusted, the adjustment data is stored as a user mode and automatically recalled whenever the same input signal is received.

Note for Windows users

For Windows users, check your video board manual or the utility program which comes with your graphic board and select the highest available refresh rate to maximize monitor performance.

Power saving function

This monitor meets the power-saving guidelines set by VESA, ENERGY STAR, and NUTEK. If the monitor is connected to a computer or video graphics board that is DPMS (Display Power Management Signaling) compliant, the monitor will automatically reduce power consumption in three stages as shown below.

Power mode	Power consumption	(power) indicator
normal operation	≤ 145 W green
1 standby ≤ 15 W green and orange		alternate
2 suspend (sleep)*	≤ 15 W green and orange	alternate
3 active off** (deep sleep)*	Approx. 1 W orange
power off 0 W off

* "Sleep" and "deep sleep" are power saving modes defined by the Environmental Protection Agency.

** When your computer enters a power saving mode, the input signal is cut and NO INPUT SIGNAL appears on the screen. After a few seconds, the monitor enters a power saving mode.

Troubleshooting

Before contacting technical support, refer to this section.

If thin lines appear on your screen (damper wires)

The lines you are experiencing on your screen are normal for the Trinitron monitor and are not a malfunction. These are shadows from the damper wires used to stabilize the aperture grille and are most noticeable when the screen's background is light (usually white). The aperture grille is the essential element that makes a Trinitron picture tube unique by allowing more light to reach the screen, resulting in a brighter, more detailed picture.

Damper wires

Simple line drawing of a computer monitor with a pointer and screen (no text or symbols)

On-screen messages

If there is something wrong with the input signal, one of the following messages appears on the screen.

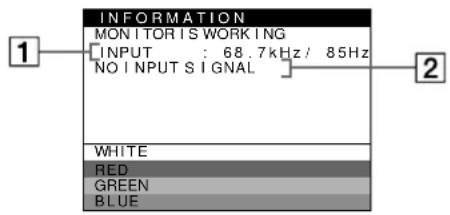

If NO INPUT SIGNAL appears on the screen

INFORMATION MONITOR IS WORKING INPUT : 68.7kHz / 85Hz NO INPUT SIGNAL WHITE RED GREEN BLUE

①The frequencies of the current input signal

If the monitor recognizes the frequencies of the current input signal, the horizontal and vertical frequencies are displayed.

②The input signal condition NO INPUT SINGAL

This indicates that no signal is input.

If OUT OF SCAN RANGE appears on the screen

INFORMATION MONITOR IS WORKING [INPUT :130.0kHz / 75Hz] OUT OF SCAN RANGE ] CHANGE SIGNAL TIMING WHITE RED GREEN BLUE

US

1 The frequencies of the current input signal

If the monitor recognizes the frequencies of the current input signal, the horizontal and vertical frequencies are displayed.

2 The input signal condition OUT OF SCAN RANGE

This indicates that the input signal is not supported by the monitor's specifications.

3 The remedies

CHANGE SIGNAL TIMING appears on the screen. If you are replacing an old monitor with this monitor, reconnect the old monitor. Then adjust the computer's graphic board so that the horizontal frequency is between 30 - 109 kHz, and the vertical frequency is between 48 - 160 Hz.

For more information, see “Trouble symptoms and remedies” on page 16

Trouble symptoms and remedies

If the problem is caused by the connected computer or other equipment, please refer to the connected equipment's instruction manual. Use the self-diagnosis function (page 18) if the following recommendations do not resolve the problem.

* If a second degauss cycle is needed, allow a minimum interval of 20 minutes for the best result. A humming noise may be heard, but this is not a malfunction.

Symptom Check these items
No picture
If the ⏻ (power) indicator is not lit	Check that the power cord is properly connected.Check that the ⏻ (power) switch is in the “on” position.
If the NO INPUT SIGNAL message appears on the screen, or if the ⏻ (power) indicator is either orange or alternating between green and orange	Check that the video signal cable is properly connected and all plugs are firmly seated in their sockets. (page 6).Check that the HD15 video input connector’s pins are not bent or pushed in.■Problems caused by the connected computer or other equipmentThe computer is in power saving mode. Try pressing any key on the computer keyboard or moving the mouse.Check that the computer’s power is “on.”Check that the graphic board is completely seated in the proper bus slot.
If the OUT OF SCAN RANGE message appears on the screen	■Problems caused by the connected computer or other equipmentCheck that the video frequency range is within that specified for the monitor. If you replaced an old monitor with this monitor, reconnect the old monitor and adjust the frequency range to the following.Horizontal: 30 – 109 kHzVertical: 48– 160 Hz
If no message is displayed and the ⏻ (power) indicator is green or flashing orange	Use the Self-diagnosis function (page 18).
If using Windows 95/98	If you replaced an old monitor with this monitor, reconnect the old monitor and do the following. Install the Setup Disk (page 7) and select this monitor (“CPD-E500”) from among the Sony monitors in the Windows 95/98 monitor selection screen.
If using a Macintosh system	Check that the supplied Macintosh adapter and the video signal cable are properly connected (page 6).
Picture flickers, bounces, oscillates, or is scrambled	Isolate and eliminate any potential sources of electric or magnetic fields such as other monitors, laser printers, electric fans, fluorescent lighting, or televisions.Move the monitor away from power lines or place a magnetic shield near the monitor.Try plugging the monitor into a different AC outlet, preferably on a different circuit.Try turning the monitor 90° to the left or right.■Problems caused by the connected computer or other equipmentCheck your graphics board manual for the proper monitor setting.Confirm that the graphics mode (VESA, Macintosh 21" Color, etc.) and the frequency of the input signal are supported by this monitor (Appendix). Even if the frequency is within the proper range, some graphics boards may have a sync pulse that is too narrow for the monitor to sync correctly.Adjust the computer’s refresh rate (vertical frequency) to obtain the best possible picture.
Picture is fuzzy	Adjust the brightness and contrast (page 9).Degauss the monitor* (page 13).If CANCEL MOIRE is ON, the picture may become fuzzy. Decrease the moire cancellation effect or set CANCEL MOIRE to OFF (page 11).
Picture is ghosting	Eliminate the use of video cable extensions and/or video switch boxes.Check that all plugs are firmly seated in their sockets.
Picture is not centered or sized properly	Adjust the size (page 10) or centering (page 10). Note that some video modes do not fill the screen to the edges.
Edges of the image are curved	Adjust the geometry (page 10).
Wavy or elliptical pattern (moire) is visible	Set CANCEL MOIRE to ON and adjust the degree of moire cancellation until the moire is at a minimum (page 11).■Problems caused by the connected computer or other equipmentChange your desktop pattern.
Color is not uniform	Degauss the monitor* (page 13). If you place equipment that generates a magnetic field, such as a speaker, near the monitor, or if you change the direction the monitor faces, color may lose uniformity.Adjust the landing (page 11).
White does not look white	Adjust the color temperature (page 12).
Letters and lines show red or blue shadows at the edges	Adjust the convergence (page 11).
Monitor buttons do not operate (appears on the screen)	If the control lock is set to ON, set it to OFF (page 13).
A hum is heard right after the power is turned on	This is the sound of the auto-degauss cycle. When the power is turned on, the monitor is automatically degaussed for two seconds.

Displaying this monitor's name, serial number, and date of manufacture.

While the monitor is receiving a video signal, press and hold the center of the control button for more than five seconds to display this monitor's information box.

If the problem persists, call your authorized Sony dealer and give the following information.

• Model name: CPD-E500
- Serial number
- Name and specifications of your computer and graphics board.

Self-diagnosis function

This monitor is equipped with a self-diagnosis function. If there is a problem with your monitor or computer, the screen will go blank and the ⏻ (power) indicator will either light up green or flash orange. If the ⏻ (power) indicator is lit in orange, the computer is in power saving mode. Try pressing any key on the keyboard.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

(1) (power) indicator

If the ⏻ (power) indicator is green

1 Disconnect the video input cable or turn off the connected computer.
2 Press the ⏻ (power) button twice to turn the monitor off and then on.
3 Move the control button for 2 seconds before the monitor enters power saving mode.

MB

If all four color bars appear (white, red, green, blue), the monitor is working properly. Reconnect the video input cable and check the condition of your computer.

If the color bars do not appear, there is a potential monitor failure. Inform your authorized Sony dealer of the monitor's condition.

If the ⏻ (power) indicator is flashing orange

Press the ⏻ (power) button twice to turn the monitor off and then on.

If the ⏻ (power) indicator lights up green, the monitor is working properly.

If the ⏻ (power) indicator is still flashing, there is a potential monitor failure. Count the number of seconds between orange flashes of the ⏻ (power) indicator and inform your authorized Sony dealer of the monitor's condition. Be sure to note the model name and serial number of your monitor. Also note the make and model of your computer and video board.

Specifications

CRT 0.24 mm aperture grille pitch

21 inches measured diagonally

90-degree deflection

FD Trinitron

Viewable image size Approx. 403.8 · 302.2 mm (w/h)

(16 · 12 inches)

19.8" viewing image

Resolution

Maximum Horizontal: 2048 dots

Vertical: 1536 lines

Recommended Horizontal: 1600 dots

Vertical: 1200 lines

Standard image area Approx. 388 · 291 mm (w/h)

(15 ^3 /8 · 11 ^1 /2 inches)

or

Approx. 364 · 291 mm (w/h)

(14 ^3 /8 · 11 ^1 /2 inches)

Deflection frequency* Horizontal: 30 to 109 kHz

Vertical: 48 to 160 Hz

AC input voltage/current 100 to 240 V, 50–60 Hz, 2.0–1.0 A

Power consumption Approx. 145 W

Dimensions Approx. 497·480·478 mm (w/h/d)

(19 ^5 /8 · 19 · 18 ^7 /8 inches)

Mass Approx. 32 kg (70 lb 9 oz)

Plug and Play DDC1/2B/2Bi, GTF**

Supplied accessories See page 6

* Recommended horizontal and vertical timing condition

- Horizontal sync width duty should be more than 4.8% of total horizontal time or 0.8~ s , whichever is larger.

• Horizontal blanking width should be more than 2.3 μsec.

• Vertical blanking width should be more than 450 μsec.

** If the input signal is Generalized Timing Formula (GTF) compliant, the GTF feature of the monitor will automatically provide an optimal image for the screen.

Design and specifications are subject to change without notice.

Table des Matières

Précautions....4

Simple line drawing of a computer monitor with a pointer pointing to the screen (no text or symbols)

Diagram illustrating light refraction and reflection with labeled components and directional arrows

Exemple

INFORMATIONS

MOEL CP 600

SER NO 1234567

M9995260RE

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

Diagram showing sun, wind direction, and circular flow with directional arrows (no text or symbols)

Simple line drawing of a computer monitor with a pointer and screen (no text or symbols)

Pure technical diagram of a mechanical or fluidic component with no visible text, numbers, or symbols

Plug and Play DDC1/2B/2Bi, GTF**

If the input signal does not match one of the factory preset modes above, the Generalized Timing Formula feature of this monitor will automatically provide an optimal image for the screen as long as the signal is GTF compliant.
