USER MANUAL CPDG520P SONY

Trinitron Color Computer Display

Operating Instructions US
Mode d'emploi FR
Manual de instrucciones ES

CPD-G520

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. __ Serial No. ____

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANT

This product complies with Swedish National Council for Metrology (MPR) standards issued in December 1990 (MPR II) for very low frequency (VLF) and extremely low frequency (ELF).

INFORMATION

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3·18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'99 guidelines.

If you have any questions about this product, you may call:

Sony Customer Information Center

Declaration of Conformity

Trade Name:SONY

Model No.: CPD-G520

Responsible Party: Sony Electronics Inc.

Address: 680 Kinderkamack Road, Oradell NJ 07649

U.S.A.

Telephone No.: 201-930-6972

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Table of Contents

Precautions. 4

Identifying parts and controls 5

Setup. .6

Step 1: Connect your monitor to your computer 6

Step 2: Connect the power cord. 7

Step 3: Turn on the monitor and computer 7

Selecting the on-screen menu language (LANGUAGE). 8

Selecting the input signal 8

Customizing Your Monitor 9

Navigating the menu. 9

Adjusting the picture quality (PICTURE EFFECT) 10

Adjusting the brightness and contrast (CONTRAST/BRIGHT). 11

Adjusting the centering of the picture (SIZE/CENTER) 11

Adjusting the size of the picture (SIZE/CENTER). 11

Automatically sizing and centering the picture (AUTO) 12

Adjusting the shape of the picture (GEOMETRY) 12

Adjusting the convergence (CONVERGENCE) 13

Adjusting the picture quality (SCREEN) 13

Adjusting the color of the picture (COLOR) 14

Additional settings (OPTION) 16

Resetting the adjustments (RESET). 17

T r i n is a registered trademark of Sony Corporation.
Macintosh is a trademark licensed to Apple Computer, Inc., registered in the U.S.A. and other countries.
- Windows and MS-DOS are registered trademarks of Microsoft Corporation in the United States and other countries.
- IBM PC/AT and VGA are registered trademarks of IBM Corporation of the U.S.A.
VESA and DDC are trademarks of the Video Electronics Standards Association.
- ENERGY STAR is a U.S. registered mark.
- All other product names mentioned herein may be the trademarks or registered trademarks of their respective companies.
- Furthermore, "T" and "T" are not mentioned in each case in this manual.

Technical Features 17

Preset and user modes. 17

Power saving function. 17

Troubleshooting. 18

If thin lines appear on your screen (damper wires). 18
On-screen messages 18
Trouble symptoms and remedies 19
Self-diagnosis function 21

Specifications. 21

Appendix.

Preset mode timing table

TCO'99 Eco-document

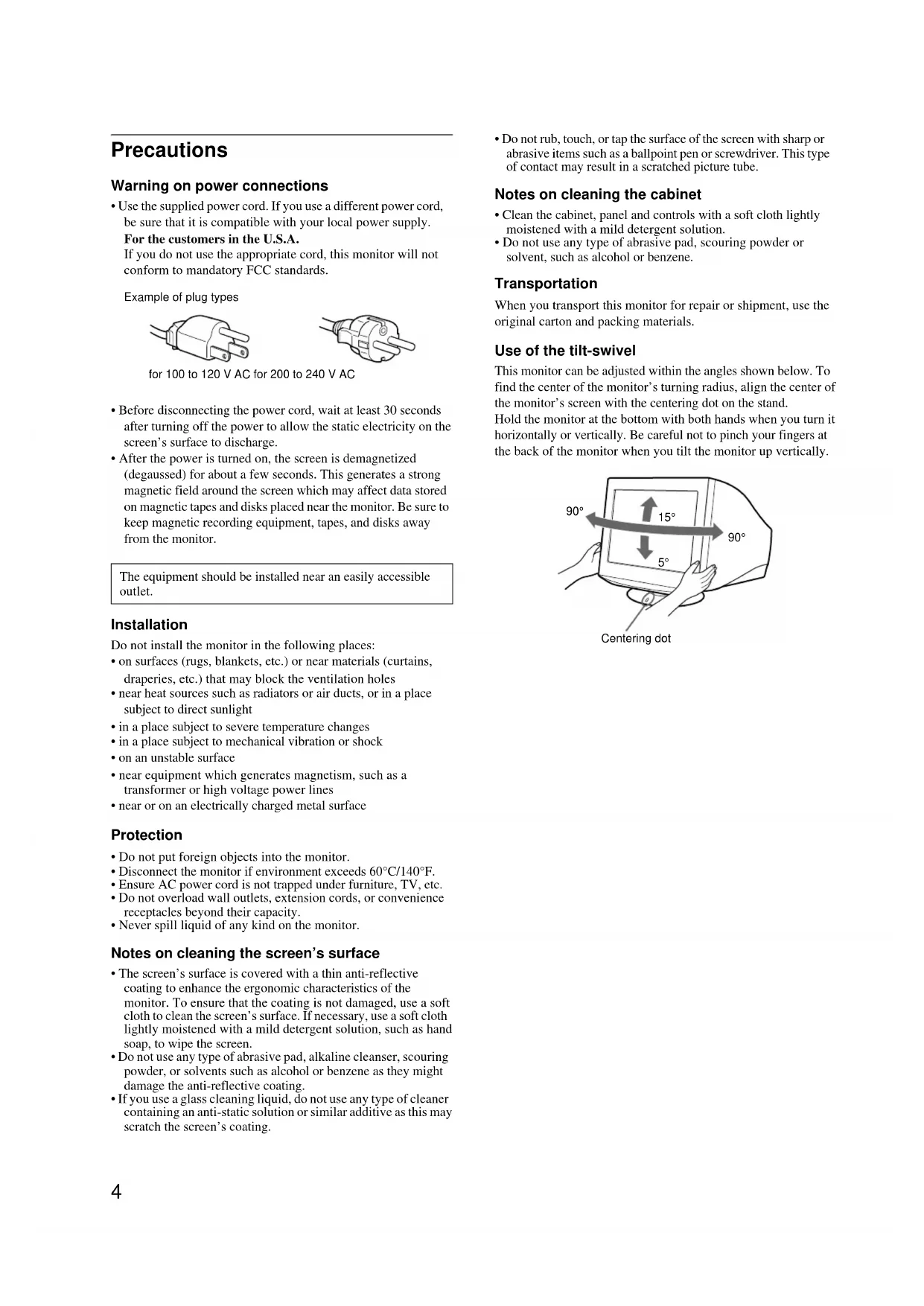

Precautions

Warning on power connections

• Use the supplied power cord. If you use a different power cord, be sure that it is compatible with your local power supply.

For the customers in the U.S.A.

If you do not use the appropriate cord, this monitor will not conform to mandatory FCC standards.

Example of plug types

for 100 to 120V AC for 200 to 240V AC

• Before disconnecting the power cord, wait at least 30 seconds after turning off the power to allow the static electricity on the screen's surface to discharge.
  After the power is turned on, the screen is demagnetized (degaussed) for about a few seconds. This generates a strong magnetic field around the screen which may affect data stored on magnetic tapes and disks placed near the monitor. Be sure to keep magnetic recording equipment, tapes, and disks away from the monitor.

The equipment should be installed near an easily accessible outlet.

Installation

Do not install the monitor in the following places:

• on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies, etc.) that may block the ventilation holes
• near heat sources such as radiators or air ducts, or in a place subject to direct sunlight
• in a place subject to severe temperature changes
• in a place subject to mechanical vibration or shock
  on an unstable surface
• near equipment which generates magnetism, such as a transformer or high voltage power lines
• near or on an electrically charged metal surface

Protection

• Do not put foreign objects into the monitor.
• Disconnect the monitor if environment exceeds 60^ / 140^ .
• Ensure AC power cord is not trapped under furniture, TV, etc.
• Do not overload wall outlets, extension cords, or convenience receptacles beyond their capacity.
• Never spill liquid of any kind on the monitor.

Notes on cleaning the screen's surface

• The screen's surface is covered with a thin anti-reflective coating to enhance the ergonomic characteristics of the monitor. To ensure that the coating is not damaged, use a soft cloth to clean the screen's surface. If necessary, use a soft cloth lightly moistened with a mild detergent solution, such as hand soap, to wipe the screen.
• Do not use any type of abrasive pad, alkaline cleanser, scouring powder, or solvents such as alcohol or benzene as they might damage the anti-reflective coating.

• If you use a glass cleaning liquid, do not use any type of cleaner containing an anti-static solution or similar additive as this may scratch the screen's coating.

• Do not rub, touch, or tap the surface of the screen with sharp or abrasive items such as a ballpoint pen or screwdriver. This type of contact may result in a scratched picture tube.

Notes on cleaning the cabinet

• Clean the cabinet, panel and controls with a soft cloth lightly moistened with a mild detergent solution.
• Do not use any type of abrasive pad, scouring powder or solvent, such as alcohol or benzene.

Transportation

When you transport this monitor for repair or shipment, use the original carton and packing materials.

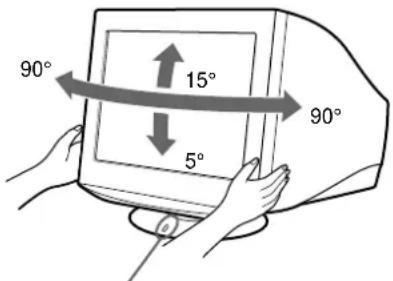

Use of the tilt-swivel

This monitor can be adjusted within the angles shown below. To find the center of the monitor's turning radius, align the center of the monitor's screen with the centering dot on the stand.

Hold the monitor at the bottom with both hands when you turn it horizontally or vertically. Be careful not to pinch your fingers at the back of the monitor when you tilt the monitor up vertically.

Centering dot

Identifying parts and controls

See the pages in parentheses for further details.

Front

1INPUT (input) switch (page 8)

This switch selects the INPUT 1 (video input 1 connector:

1) or INPUT 2 (video input 2 connector: 2).

2PICTURE EFFECT button (page 10)

This button is used to change the preset picture effects

modes.

3 MENU button (page 9)

This button is used to display or close the menu.

4 Control button (OK, ↑/↓) (page 10)

This button is used to make adjustments to the monitor and

call up the CONTRAST menu directly.

5 ① (power) switch and indicator (pages 7, 17, 21)

This button turns the monitor on and off. The power indicator

lights up in green when the monitor is turned on, and lights up

in orange when the monitor is in power saving mode.

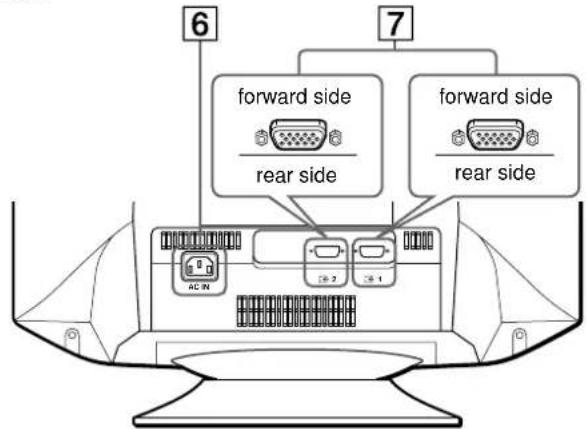

Rear

6AC IN connector (page 7)

This connector provides AC power to the monitor.

7 Video input connectors (HD15) (1 / 2) page 6

These connectors input RGB video signals (0.700 Vp-p,

positive) and sync signals.

Pin No. Signal
1	Red
2 Green (Sync on Green)
3	B	1 u e
4 ID (Ground)
5 DDC Ground*
6 Red Ground
7 Green Ground
8 Blue Ground
9 DDC + 5V*
10 Ground
11 ID (Ground)
12 Bi-Directional Data (SDA)*
13 H. Sync
14 V. Sync
15 Data Clock (SCL)*

• DDC (Display Data Channel) is a standard of VESA.

Setup

Before using your monitor, check that the following accessories are included in your carton:

Power cord (1)
Video signal cable (1)
Warranty card (1)
This instruction manual (1)

Step 1:Connect your monitor to your computer

Turn off the monitor and computer before connecting.

Notes

• Do not touch the pins of the video signal cable connector as this might bend the pins.
• When connecting the video signal cable, check the alignment of the HD15 connector. Do not force the connector in the wrong way or the pins might bend.

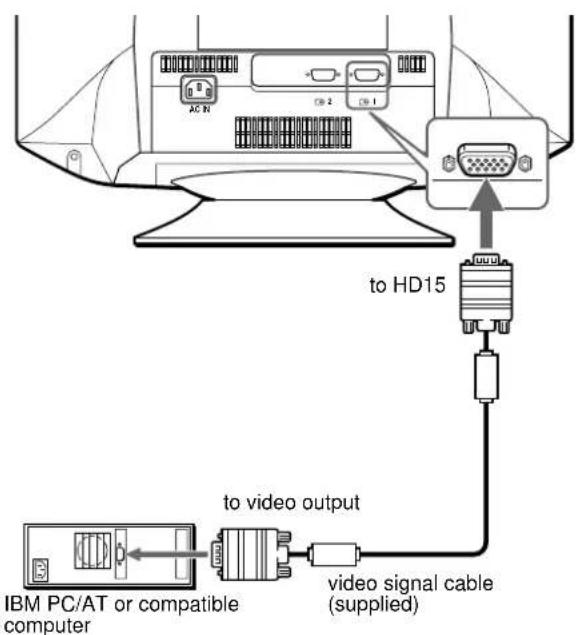

- Connecting to an IBM PC/AT or compatible computer

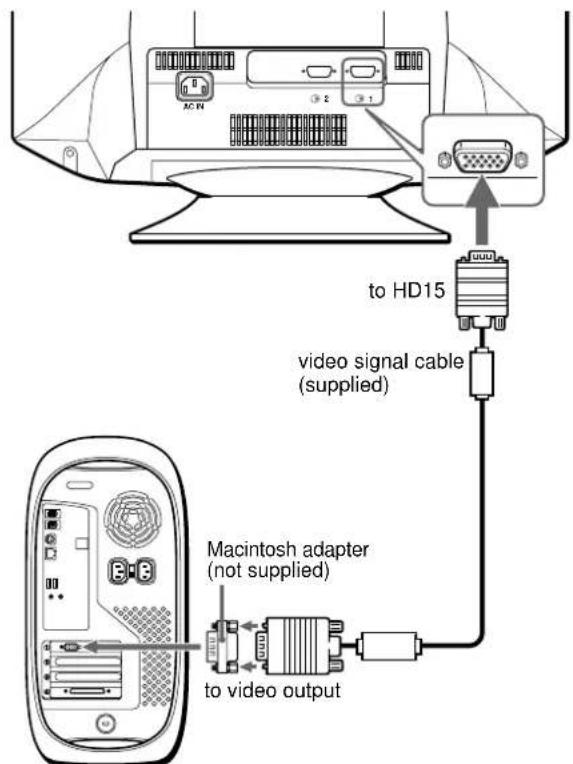

- Connecting to a Macintosh or compatible computer

You will need a Macintosh adapter (not supplied).

Macintosh or compatible computer

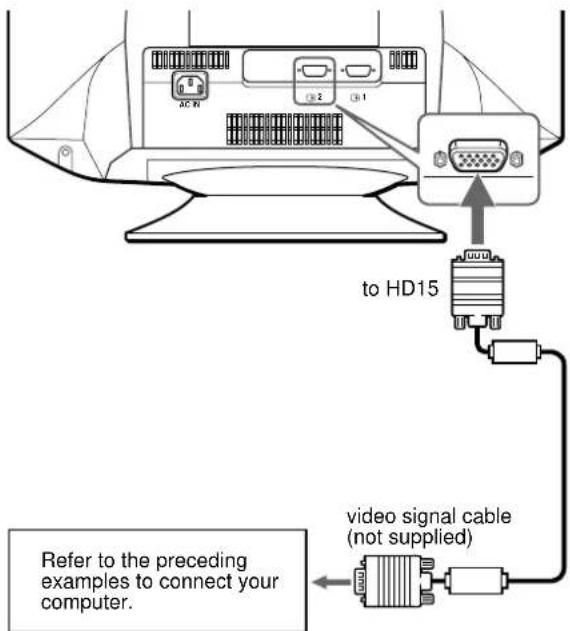

- Connecting to a second computer

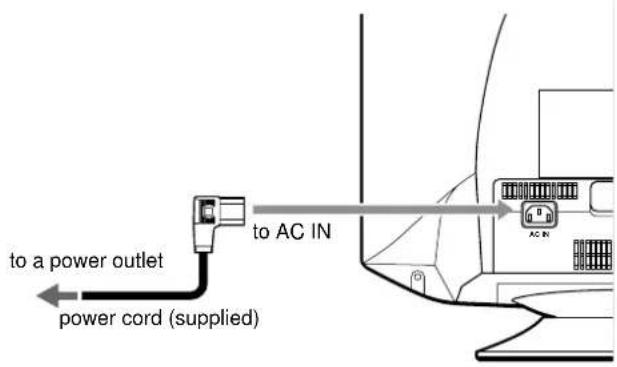

Step 2:Connect the power cord

With the monitor and computer switched off, first connect the power cord to the monitor, then connect it to a power outlet.

Step 3:Turn on the monitor and computer

First turn on the monitor, then turn on the computer.

The installation of your monitor is complete.

If necessary, use the monitor's controls to adjust the picture.

If no picture appears on your screen

• Check that the monitor is correctly connected to the computer.
• If NO SIGNAL appears on the screen, try changing the input signal (page 8), and confirm that your computer's graphics board is completely seated in the correct bus slot.
• If you are replacing an old monitor with this model and OUT OF SCAN RANGE appears on the screen, reconnect the old monitor. Then adjust the computer's graphics board so that the horizontal frequency is between 30 - 130kHz and the vertical frequency is between 48 - 170Hz .

For more information about the on-screen messages, see "Trouble symptoms and remedies" on page 19.

Setup on various OS (Operating System)

This monitor complies with the "DDC" Plug & Play standard and automatically detects all the monitor's information. No specific driver needs to be installed to the computer.

If you connect the monitor to your PC, and then boot your PC for the first time, the setup Wizard may be displayed on the screen. Click on "Next" several times according to the instructions from the Wizard until the Plug & Play Monitor is automatically selected so that you can use this monitor.

Selecting the on-screen menu language (LANGUAGE)

English, French, German, Spanish, Italian, Dutch, Swedish, Russian and Japanese versions of the on-screen menus are available. The default setting is English.

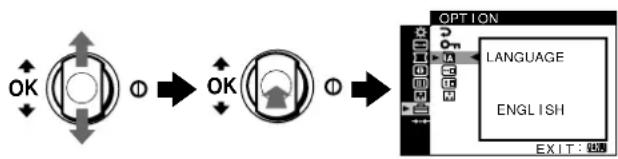

1 Press the MENU button.

The menu appears on the screen.

2 Move the control button up or down to highlight OPTION and press the control button.

3 Move the control button up or down to highlight LANGUAGE and press the control button.

4 Move the control button up or down until the desired language appears on the screen. Then press the control button to select the language.

Each time you move the control button up or down, the language can be selected appears cyclically.

• ENGLISH
  FRANCAIS: French
• DEUTSCH: German
• ESPANOL: Spanish
  ITALIANO:Italian
• NEDERLANDS: Dutch
  SVENSKA: Swedish
  ·RMSIGKNU
  ·：

To close the menu

Press the MENU button. If no buttons are pressed, the menu closes automatically after about 45 seconds.

To reset to English

Select ENGLISH in step 4 above.

Selecting the input signal

You can connect two computers to this monitor using the HD15 connectors. To select one of the two computers, use the INPUT switch.

Move the INPUT switch.

The selected connector appears on the screen for 3 seconds.

"INPUT 1" or "INPUT 2" appears on the screen.

Note

If no signal is input to the selected connector, NO SIGNAL appears on the screen. After a few seconds, the monitor enters the power saving mode. If this happens, switch to the other connector.

Customizing Your Monitor

You can make numerous adjustments to your monitor using the on-screen menu.

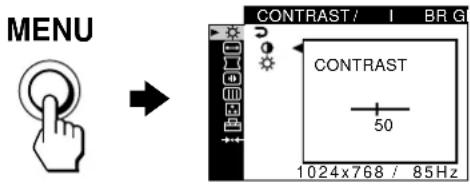

Navigating the menu

Press the MENU button to display the menu on the screen. See page 10 for more information on using the MENU and control buttons.

Use the control button to select one of the following menus.

1CONTRAST/BRIGHT (page 11)

Adjusts the contrast and brightness. You can also call up this menu directly by moving the control button up or down while there is no menu on the screen.

SIZE/CENTER (page 11)

Adjusts the size or centering.

3GEOMETRY (page 12)

Adjusts the rotation and shape of the picture.

4CONVERGENCE (page 13)

Adjusts the picture's horizontal and vertical convergence.

5SCREEN (page 13)

Adjusts the picture's quality.

The options include:
- degaussing the screen (DEGAUSS)
- adjusting the moirccancellation (CANCELMOIRE)
adjusting the landing (LANDING)

6COLOR (page 14)

Adjusts the picture's color temperature to match the monitor's colors to a printed picture's colors.

7OPTION (page 16)

Adjusts the monitor's options.
The options include:

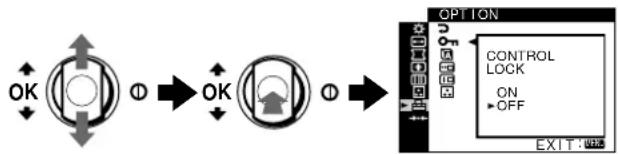

- locking the controls
- changing the on-screen menu's language
- changing the on-screen menu position
- changing the picture's color temperature setting mode

8RESET (page 17)

Resetstheadjustments.

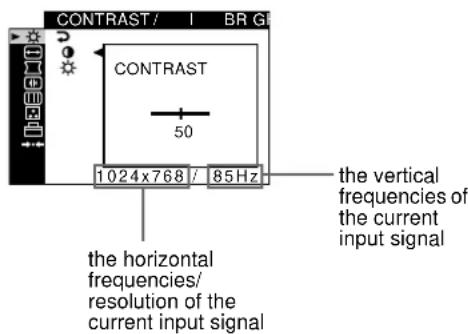

Displaying the current input signal

When you press the MENU button to display the menu, the horizontal/vertical frequencies of the current input signal are displayed in the menu. If the signal matches one of this monitor's factory preset modes, the resolution is also displayed.

Using the MENU and control buttons

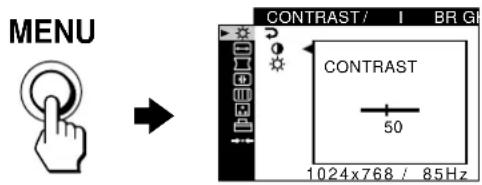

1 Display the menu.

Press the MENU button to display the menu on the screen.

MENU

2 Select the menu you want to adjust.

Highlight the desired menu by moving the control button up or down. Then press the control button.

3 Adjust the menu.

Move the control button up or down to make the adjustment and press the control button.

If you want to select another menu;

move the control button up or down to select and press the control button to exit the menu.

4 Close the menu.

Press the MENU button. If no buttons are pressed, the menu closes automatically after about 45 seconds.

MENU

Adjusting the picture quality (PICTURE EFFECT)

Press the PICTURE EFFECT button.

Each time you press the button, the three picture modes cyclically change as follows.

PICTURE EFFECT

Select For

PROFESSIONAL accurate and consistent display color. Choose this for professional desktop publishing and graphic applications.

STANDARD images with high contrast and brightness.

Choose this mode for commonly used applications, such as spreadsheets, word processing, E-mail, or WEB surfing.

DYNAMICextremely vivid and photo-realistic images.

Brighter than "STANDARD" mode, choose this for intense graphic applications such as games, DVD playback, or entertainment software.

Adjusting the brightness and contrast (CONTRAST/BRIGHT)

These settings are stored in memory for the signals from the currently selected input connector.

1 Press the MENU button.

The menu appears on the screen.

2 Move the control button up or down to highlight . Then press the control button.

The CONTRAST/BRIGHT menu appears on the screen.

3 Move the control button up or down to highlight or Then press the control button.

4 Move the control button up or down to adjust the contrast (O) or brightness (Q) Then press the control button.

If you are using the sRGB mode

If you selected the sRGB mode in the COLOR MODE (f the OPTION (f menu, the following CONTRAST/BRIGHT menu appears on the screen.

You cannot adjust the contrast (O) or brightness (O) on this screen. If you want to adjust them, select a mode other than sRGB in the COLOR MODE (of the OPTION () mehu.

For more information about using the sRGB mode, see "Adjusting the color of the picture (COLOR)" on page 14.

Adjusting the centering of the picture (SIZE/CENTER)

This setting is stored in memory for the current input signal.

1 Press the MENU button.

The menu appears on the screen.

2 Move the control button up or down to highlight SIZE/CENTER and press the control button.

The SIZE/CENTER menu appears on the screen.

3 Move the control button up or down to select horizontal adjustment, or for vertical adjustment. Then press the control button.

4 Move the control button up or down to adjust the centering.

Adjusting the size of the picture (SIZE/CENTER)

This setting is stored in memory for the current input signal.

1 Press the MENU button.

The menu appears on the screen.

2 Move the control button up or down to highlight SIZE/CENTER and press the control button.

The SIZE/CENTER menu appears on the screen.

3 Move the control button up or down to select horizontal adjustment, or for vertical adjustment. Then press the control button.

4 Move the control button up or down to adjust the size.

Automatically sizing and centering the picture (AUTO)

You can easily adjust the picture to fill the screen by using the SIZE/CENTER menu.

1 Press the MENU button.

The menu appears on the screen.

2 Move the control button up or down to highlight SIZE/CENTER and press the control button.

The SIZE/CENTER menu appears on the screen.

3 Move the control button up or down to select (AUTO). Then press the control button.

The adjustment window appears on the screen.

4 Move the control button up or down to select OK. Then press the control button.

The picture automatically fills the screen.

Notes

• If you do not want to use the AUTO function, select CANCEL in step 4.
• This function is intended for use with a computer running Windows or similar graphic user interface software that provides a full-screen picture. It may not work properly if the background color is dark or if the input picture does not fill the screen to the edges (such as an MS-DOS prompt).
  The displayed image moves for a few seconds while this function is performed. This is not a malfunction.

Adjusting the shape of the picture (GEOMETRY)

The GEOMETRY settings allow you to adjust the rotation and shape of the picture.

The (rotation) setting is stored in memory for all input signals.

All other settings are stored in memory for the current input signal.

1 Press the MENU button.

The menu appears on the screen.

2 Move the control button up or down to highlight GEOMETRY and press the control button.

The GEOMETRY menu appears on the screen.

3 Move the control button up or down to select the desired adjustment item. Then press the control button.

The adjustment bar appears on the screen.

4 Move the control button up or down to make the adjustment. Then press the control button.

Select To
○	rotate the picture
○	expand or contract the picture sides
○	shift the picture sides to the left or right
○	adjust the picture width at the top of the screen
○	shift the picture to the left or right at the top of the screen
RESET	reset all the GEOMETRY adjustments to the factory setting levels. Select OK.

For more information about using the RESET mode, see "Resetting the adjustments (RESET)" on page 17.

Adjusting the convergence (CONVERGENCE)

The CONVERGENCE settings allow you to adjust the quality of the picture by controlling the convergence. The convergence refers to the alignment of the red, green, and blue color signals. If you see red or blue shadows around letters or lines, adjust the convergence.

These settings are stored in memory for all input signals.

1 Press the MENU button.

The menu appears on the screen.

2 Move the control button up or down to highlight CONVERGENCE and press the control button. The CONVERGENCE menu appears on the screen.

3 Move the control button up or down to select the desired adjustment item. Then press the control button.

The adjustment bar appears on the screen.

4 Move the control button up or down to make the adjustment. Then press the control button.

Select To
#	horizontally shift red or blue shadows
±	vertically shift red or blue shadows
± T	vertically shift red or blue shadows at the top of the screen
B	vertically shift red or blue shadows at the bottom of the screen
BOTTOM	reset all the CONVERGENCE adjustments to the factory setting levels. Select OK.
RESET

For more information about using the RESET mode, see "Resetting the adjustments (RESET)" on page 17.

Adjusting the picture quality (SCREEN)

The SCREEN settings allow you to degauss (demagnetize) the monitor manually and adjust the picture quality by controlling the moir and landing.

• If the color is not uniform or picture is fuzzy, degauss the monitor (DEGAUSS).
• If elliptical or wavy patterns appear on the screen, cancel the moiré (CANCEL MOIRE).
• If the color is irregular at the corners of the screen, adjust the landing (LANDING).

The monitor is automatically demagnetized (degaussed) when the power is turned on.

The screen is degaussed for about 2 seconds. If a second degauss cycle is needed, allow a minimum interval of 20 minutes for the best result.

The CANCEL MOIRE setting is stored in memory for the current input signal. All other settings are stored in memory for all input signals.

1 Press the MENU button.

The menu appears on the screen.

2 Move the control button up or down to highlight SCREEN and press the control button.

The SCREEN menu appears on the screen.

3 Move the control button up or down to select the desired adjustment item. Then press the control button.

The adjustment bar appears on the screen.

4 Move the control button up or down to make the adjustment. Then press the control button.

(continued)

Select To
DEGAUSS	degauss the monitor. To degauss the monitor manually, select OK.
CANCE MOIRE	adjust the degree of moire cancellation until the moire* is at a minimum
LANDING	reduce any color irregularities in the screen's top left corner to a minimum
LANDING	reduce any color irregularities in the screen's top right corner to a minimum
LANDING	reduce any color irregularities in the screen's bottom left corner to a minimum
LANDING	reduce any color irregularities in the screen's bottom right corner to a minimum
RESET	reset all the SCREEN adjustments to the factory setting levels. Select OK.

• Moire is a type of natural interference which produces soft, wavy lines on your screen. It may appear due to interference between the pattern of the picture on the screen and the phosphor pitch pattern of the monitor.

Example of moiré

Note

The picture may become fuzzy when the CANCEL MOIRE function is activated.

Adjusting the color of the picture (COLOR)

The COLOR settings allow you to adjust the picture's color temperature by changing the color level of the white color field. Colors appear reddish if the temperature is low, and bluish if the temperature is high. This adjustment is useful for matching the monitor's color to a printed picture's colors.

You can set the color temperature for each of the video input connectors.

Select the COLOR mode

There are 4 types of adjustment modes, EASY, PRESET, EXPERT, and sRGB. The default setting is EASY which can be adjustable from 5000K to 11000K.

If you want to set another mode (other than EASY), select the desired mode in the OPTION menu. Then adjust the selected mode in each COLOR (x) menu.

1 Press the MENU button.

The menu appears on the screen.

2 Move the control button up or down to highlight OPTION and press the control button.

The OPTION menu appears on the screen.

3 Move the control button up or down to highlight COLOR MODE. Then press the control button.

4 Move the control button up or down to select the COLOR mode.

EASY mode

1 Press the MENU button.

The menu appears on the screen.

2 Move the control button up or down to highlight

COLOR and press the control button.

The COLOR menu appears on the screen.

3 Move the control button up or down to highlight. Then press the control button.

The adjustment bar appears.

4 Move the control button up or down to fine tune the color temperature.

The new color temperature setting you fine tuned between 5000K to 11000K is stored in memory.

PRESETmode

1 Press the MENU button.

The menu appears on the screen.

2 Move the control button up or down to highlight

COLOR and press the control button.

The COLOR menu appears on the screen.

3 Move the control button up or down to highlight. Then press the control button.

The adjustment bar appears.

4 Move the control button up or down to select the desired temperature.

The preset color temperatures are 5000K, 6500K, and 9300K. Since the default setting is 9300K, the whites will change from a bluish hue to a reddish hue as the temperature is lowered to 6500K and 5000K.

EXPERT mode

You can make additional adjustments to the color in greater detail by selecting the EXPERT mode.

1 Press the MENU button.

The menu appears on the screen.

2 Move the control button up or down to highlight COLOR and press the control button.

The COLOR menu appears on the screen.

3 Move the control button up or down to adjust the R (red), G (green), and B (blue) component of input signal for each of GAIN (0) and BIAS (9). Then press the control button.

If you want to reset the EXPERT adjustments, select (RESET) in COLOR menu. Then select OK in the RESET window.

■ sRGB mode

The sRGB color setting is an industry standard color space protocol designed to correlate the displayed and printed colors of sRGB compliant computer products. To adjust the colors to the sRGB profile, simply select the sRGB mode in the COLOR MODE ( ) menu of the OPTION () menu.

However, in order to display the sRGB colors correctly ( = 2.2 6500K) you must set the PICTURE EFFECT mode to PROFESSIONAL (page 10) and your computer to the sRGB profile. If you select this mode, you cannot operate the CONTRAST/BRIGHT menu adjustments.

Note

Your computer and other connected products (such as a printer), must be sRGB compliant.

(continued)

Restoring the color from the EASY, PRESET, or sRGB modes (IMAGE RESTORATION)

The colors of most display monitors tend to gradually change brilliance over several years of service. The IMAGE RESTORATION feature found in the EASY, PRESET, and sRGB menus allows you to restore the color to the original factory quality levels. The explanation below explains how to restore the monitor's color from the EASY mode for example.

First, select the EASY, PRESET, or sRGB mode in the OPTION menu (page 14).

1 Press the MENU button.
The menu appears on the screen.
2 Move the control button up or down to highlight COLOR and press the control button.
The COLOR menu appears on the screen.
3 Move the control button up or down to highlight IMAGE RESTORATION. Then press the control button.
4 Move the control button up or down to select OK. Then press the control button.

The picture disappears while the color is being restored (about 2 seconds). After the color is restored, the picture reappears on the screen again.

Notes

• Before using this feature, the monitor must be in normal operation mode (green power indicator on) for at least 30 minutes. If the monitor goes into power saving mode, you must return the monitor to normal operation mode and wait for 30 minutes for the monitor to be ready. You may need to adjust your computer's power saving settings to keep the monitor in normal operation mode for the full 30 minutes. If the monitor is not ready, the following message will appear.

• The monitor may gradually lose its ability to perform this function due to the natural aging of the picture tube.

Additional settings (OPTION)

You can lock the controls, change the on-screen language, change the menu position, and set the COLOR mode.

1 Press the MENU button.

The menu appears on the screen.

2 Move the control button up or down to highlight OPTION and press the control button.

The OPTION menu appears on the screen.

3 Move the control button up or down to select the desired adjustment item.

Adjust the selected item according to the following instructions.

Locking the controls (CONTROL LOCK) You can protect the adjustment data by locking the controls. Move the control button up or down to highlight ONCONTROL LOCK) and press the control button. Then move the control button up or down to select ON and press the control button.

Only the ① (power) switch, MENU button, INPUT switch, and ⑦ (CONTROL LOCK) of the ⑤ OPTION menu will operate. If any other items are selected, the ④ mark appears on the screen.

To cancel the control lock

Repeat the procedure above and set CONTROL LOCK) to OFF.

Changing the on-screen language (LANGUAGE)

See page 8.

Changing the menu's position (OSD POSITION)

Change the menu's position if it is blocking an image on the screen.

Move the control button up or down to select FSD POSITION) for horizontal adjustment, or FSD POSITION) for vertical adjustment and press the control button. Then move the control button up or down to shift the on-screen menu.

Setting the COLOR mode

See page 14.

Resetting the adjustments (RESET)

This monitor has the following 2 reset methods.

Resetting all the adjustment data for the current input signal

1 Press the MENU button.

The menu appears on the screen.

2 Move the control button up or down to highlight RESET and press the control button.
3 Move the control button up or down to select +1 and press the control button.
4 Move the control button up or down to select OK and press the control button.

Note that the following items are not reset by this method:

on-screen menu language (page 8)
- color mode setting in the OPTION menu (EASY, PRESET, EXPERT, sRGB) (page 14)
- color temperature setting in the PRESET mode (5000K, 6500K, 9300K) (page 15)
on-screen menu position (page 16)

Resetting all of the adjustment data for all input signals

Select ·s 2 in step 3 above.

Note

The RESET function does not function when oNTROL LOCK) is set to ON.

Technical Features

Preset and user modes

When the monitor receives an input signal, it automatically matches the signal to one of the factory preset modes stored in the monitor's memory to provide a high quality picture at the center of the screen. (See Appendix for a list of the factory preset modes.) For input signals that do not match one of the factory preset modes, the digital Multiscan technology of this monitor ensures that a clear picture appears on the screen for any timing in the monitor's frequency range (horizontal: 30 - 130kHz , vertical: 48 - 170Hz ). If the picture is adjusted, the adjustment data is stored as a user mode and automatically recalled whenever the same input signal is received.

Note for Windows users

For Windows users, check your graphics board manual or the utility program which comes with your graphics board and select the highest available refresh rate to maximize monitor performance.

Power saving function

This monitor meets the power-saving guidelines set by VESA, ENERGY STAR, and NUTEK. If no signal is input to the monitor from your computer, the monitor will automatically reduce power consumption as shown below.

Power mode Power consumption ① (power) indicator
normal operation	≤135 W green
active off* (deep sleep)**	≤3 W orange
power off Approx. 0 W off

• When your computer enters power saving mode, the input signal is cut and NO SIGNAL appears on the screen before the monitor enters active off mode. After a few seconds, the monitor enters power saving mode.
  **“Deep sleep” is power saving mode defined by the Environmental Protection Agency.

Troubleshooting

Before contacting technical support, refer to this section.

If thin lines appear on your screen (damper wires)

The visible lines on your screen especially when the background screen color is light (usually white), are normal for the Trinitron monitor. This is not a malfunction. These are shadows from the damper wires used to stabilize the aperture grille. The aperture grille is the essential element that makes a Trinitron picture tube unique by allowing more light to reach the screen, resulting in a brighter, more detailed picture.

On-screen messages

If there is something wrong with the input signal, one of the following messages appears on the screen.

If NO SIGNAL appears on section 1

This indicates that no signal is input from the selected connector.

The selected connector

This message shows the currently selected connector (INPUT 1 or INPUT 2).

3The remedies

The following messages appear on the screen.

• If ACTIVATE BY COMPUTER appears on the screen, try pressing any key on the computer or moving the mouse, and confirm that your computer's graphics board is completely seated in the correct bus slot.
• If CHECK SIGNAL CABLE appears on the screen, check that the monitor is correctly connected to the computer (page 6).
• If CHECK INPUT SELECTOR appears on the screen, try changing the input signal (page 8).

If OUT OF SCAN RANGE appears on line 1

This indicates that the input signal is not supported by the monitor's specifications.

The selected connector and the frequencies of the current input signal

This message shows the currently selected connector (INPUT 1 or INPUT 2). If the monitor recognizes the frequencies of the current input signal, the horizontal and vertical frequencies are also displayed.

3The remedies

CHANGE SIGNAL TIMING appears on the screen. If you are replacing an old monitor with this monitor, reconnect the old monitor. Then adjust the computer's graphics board so that the horizontal frequency is between 30 - 130kHz , and the vertical frequency is between 48 - 170Hz .

For more information, see "Trouble symptoms and remedies" on page 19.

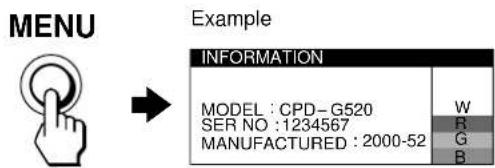

Displaying this monitor's name, serial number, and date of manufacture.

While the monitor is receiving a video signal, press and hold the MENU button for more than 5 seconds to display this monitor's information box.

If the problem persists, call your authorized Sony dealer and give the following information.

• Model name: CPD-G520
• Serial number
• Name and specifications of your computer and graphics board.

Trouble symptoms and remedies

If the problem is caused by the connected computer or other equipment, please refer to the connected equipment's instruction manual. Use the self-diagnosis function (page 21) if the following recommendations do not resolve the problem.

Symptom Check these items
No picture
If the ① (power) indicator is not lit	·Check that the power cord is properly connected. ·Check that the ① (power) switch is in the “on” position.
If the NO SIGNAL message appears on the screen, or if the ① (power) indicator is orange	·Check that the video signal cable is properly connected and all plugs are firmly seated in their sockets (page 6). ·Check that the INPUT switch setting is correct (page 8). ·Check that the video input connector's pins are not bent or pushed in. ■Problems caused by the connected computer or other equipment ·The computer is in power saving mode. Try pressing any key on the keyboard or moving the mouse. ·Check that the computer's power is “on.” ·Check that the graphic board is completely seated in the proper bus slot.
If the OUT OF SCAN RANGE message appears on the screen	■Problems caused by the connected computer or other equipment ·Check that the video frequency range is within that specified for the monitor. If you replaced an old monitor with this monitor, reconnect the old monitor and adjust the frequency range to the following. Horizontal: 30 - 130 kHz Vertical: 48- 170 Hz
If no message is displayed and the ① (power) indicator is green or flashing orange	·Use the Self-diagnosis function (page 21).
If using a Macintosh system · Check that the Macintosh adapter (not supplied) and the video signal cable are properly connected (page 6).
Picture flickers, bounces, oscillates, or is scrambled	·Isolate and eliminate any potential sources of electric or magnetic fields such as other monitors, laser printers, fluorescent lighting, televisions, or electric fans. ·Move the monitor away from power lines or place a magnetic shield near the monitor. ·Try plugging the monitor into a different AC outlet, preferably on a different circuit. ·Try turning the monitor 90° to the left or right. ■Problems caused by the connected computer or other equipment ·Check your graphics board manual for the proper monitor setting. ·Confirm that the graphics mode (VESA, Macintosh 21" Color, etc.) and the frequency of the input signal are supported by this monitor (Appendix). Even if the frequency is within the proper range, some graphics boards may have a sync pulse that is too narrow for the monitor to sync correctly. ·Adjust the computer's refresh rate (vertical frequency) to obtain the best possible picture.
Picture is fuzzy	·Adjust the contrast and brightness (page 11). ·Degauss the monitor* (page 13). ·Adjust the degree of moiré cancellation until the moiré is minimal, or set CANCEL MOIRE to OFF (page 13).

(continued)

Symptom Check these items
Picture is ghosting	• Eliminate the use of video cable extensions and/or video switch boxes. • Check that all plugs are firmly seated in their sockets.
Picture is not centered or sized properly	• Set the AUTO (function to OK (on) in the SIZE/CENTER menu (page 12). • Adjust the size or centering (page 11). Note that with some input signals and/or graphics boards the periphery of the screen is not fully utilized.
Edges of the image are curved • Adjust the geometry (page 12).
Wavy or elliptical pattern (moire) is visible	• Adjust the degree of moiré cancellation until the moire is minimal (page 13). ■Problems caused by the connected computer or other equipment • Change your desktop pattern.
Color is not uniform	• Degauss the monitor* (page 13). If you place equipment that generates a magnetic field, such as a speaker, near the monitor, or if you change the direction the monitor faces, color may lose uniformity. • Adjust the landing (page 13).
White does not look white	• Adjust the color temperature (page 14).
Letters and lines show red or blue shadows at the edges	• Adjust the convergence (page 13).
Monitor buttons do not operate (appears on the screen)	• If the control lock is set to ON, set it to OFF (page 16).
IMAGE RESTORATION function does not operate	• Before using this function, the monitor must be in normal operation mode (green power indicator on) for at least 30 minutes. For more information on using the IMAGE RESTORATION function, see page 16. • Adjust the computer's power saving settings to keep the monitor in normal operation mode for more than 30 minutes. • The monitor may gradually lose its ability to perform this function due to the natural aging of the picture tube.
A hum is heard right after the power is turned on	• This is the sound of the auto-degauss cycle. When the power is turned on, the monitor is automatically degaussed for a few seconds.

• If a second degauss cycle is needed, allow a minimum interval of 20 minutes for the best result. A humming noise may be heard, but this is not a malfunction.

Self-diagnosis function

This monitor is equipped with a self-diagnosis function. If there is a problem with your monitor or computer(s), the screen will go blank and the ① (power) indicator will either light up green or flash orange. If the ① (power) indicator is lit in orange, the computer is in power saving mode. Try pressing any key on the keyboard or moving the mouse.

① (power) indicator

If the ① (power) indicator is green

1 Disconnect any plugs from the video input 1 and 2 connectors, or turn off the connected computer(s).
2 Press the ① (power) button twice to turn the monitor off and then on.
3 Hold the control button upward for 2 seconds before the monitor enters power saving mode.

If all four color bars appear (white, red, green, blue), the monitor is working properly. Reconnect the video input cables and check the condition of your computer(s).

If the color bars do not appear, there is a potential monitor failure. Inform your authorized Sony dealer of the monitor's condition.

If the ① (power) indicator is flashing orange

Press the ① (power) button twice to turn the monitor off and then on.

If the ① (power) indicator lights up green, the monitor is working properly.

If the ① (power) indicator is still flashing, there is a potential monitor failure. Count the number of seconds between orange flashes of the ① (power) indicator and inform your authorized Sony dealer of the monitor's condition. Be sure to note the model name and serial number of your monitor. Also note the make and model of your computer and graphic board.

Specifications

CRT 0.24mm aperture grille pitch

21 inches measured diagonally

90-degree deflection

FD Trinitron

Viewable image size Approx. 403.8· 302.2mm (w/h)

(16·12 inches)

19.8" viewing image

Resolution

Maximum Horizontal: 2048 dots

Vertical: 1536 lines

Recommended Horizontal: 1600 dots

Vertical: 1200 lines

Input signal levels Video signal

Analog RGB: 0.700 Vp-p

(positive), 75 Ω

SYNC signal

H/V separate or composite sync:

TTL 2k Polarity free

Sync on Green: 0.3 Vp-p

(negative)

Standard image area Approx. 388· 291mm (w/h)

(15^3 / 8· 11^1 / 2 inches)

or

Approx. 364 291 mm (w/h)

(14³/8· 11¹/2 inches)

Deflection frequency* Horizontal: 30 to 130kHz

Vertical: 48 to 170Hz

AC input voltage/current 100 to 240V 50 - 60Hz 2.0 - 1.0A

Power consumption Approx. 135 W

Dimensions Approx.497 502 485 mm(w/h/d)

(19 7/8 · 19 · 18 7/8 inches)

Mass

Approx. 30kg (66 lb 2 oz)

Plug and Play

DDC2B/DDC2Bi, GTF**

Supplied accessories See page 6

• Recommended horizontal and vertical timing condition

Horizontal sync width duty should be more than 4.8% of total horizontal time or 0.8~ s whichever is larger.
Horizontal blanking width should be more than 2.3 sec.
Vertical blanking width should be more than 450~ sec

** If the input signal is Generalized Timing Formula (GTF) compliant, the GTF feature of the monitor will automatically provide an optimal image for the screen.

Design and specifications are subject to change without notice.

Table des Matieres

Précautions. 4

Plug and Play DDC2B/DDC2Bi, GTF**

Plug and Play DDC2B/DDC2Bi, GTF**

If the input signal does not match one of the factory preset modes above, the Generalized Timing Formula feature of this monitor will automatically provide an optimal image for the screen as long as the signal is GTF compliant.

TCO'99 Eco-document

■ Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/

Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium**

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury**

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with c.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

• Bio-accumulative is defined as substances which accumulate within living organisms.
  ** Lead, Cadmium and Mercury are heavy metals which are Bioaccumulative.
